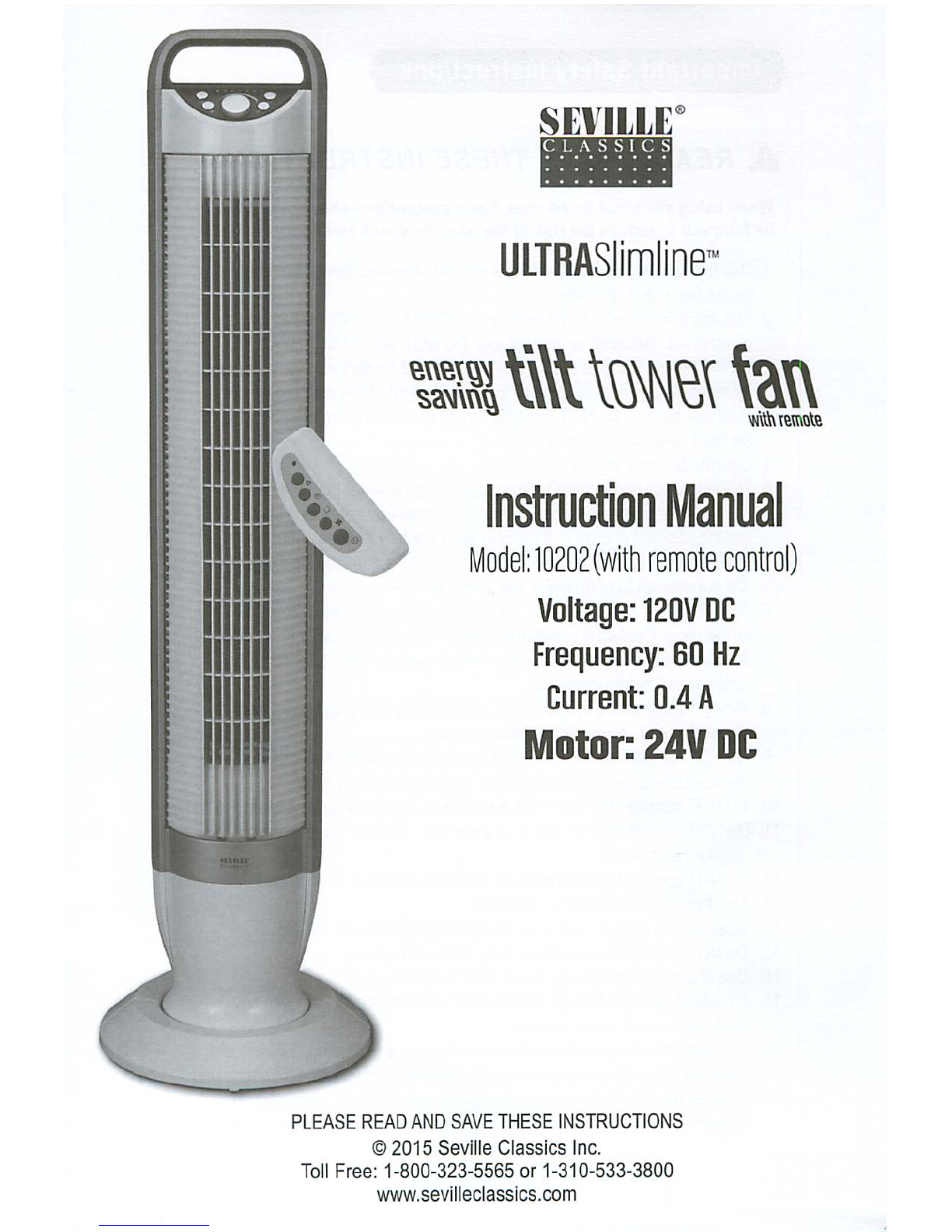

Seville Classics ULTRASlimline 10202 User manual

SEVILLE
ULTRASIimline'
3\\\UWM \fflV
w\.\\\eww\e
Instruction Manual
Model:10202(withremotecontrol)
Voltage: 120V DC
Frequency: 60 Hz
Current: 0.4 A
Motor: 24V DC
PLEASE READAND SAVE THESE INSTRUCTIONS
©2015 Seville Classics Inc.
Toll Free: 1-800-323-5565 or 1-310-533-3800
www.sevilleclassics.com

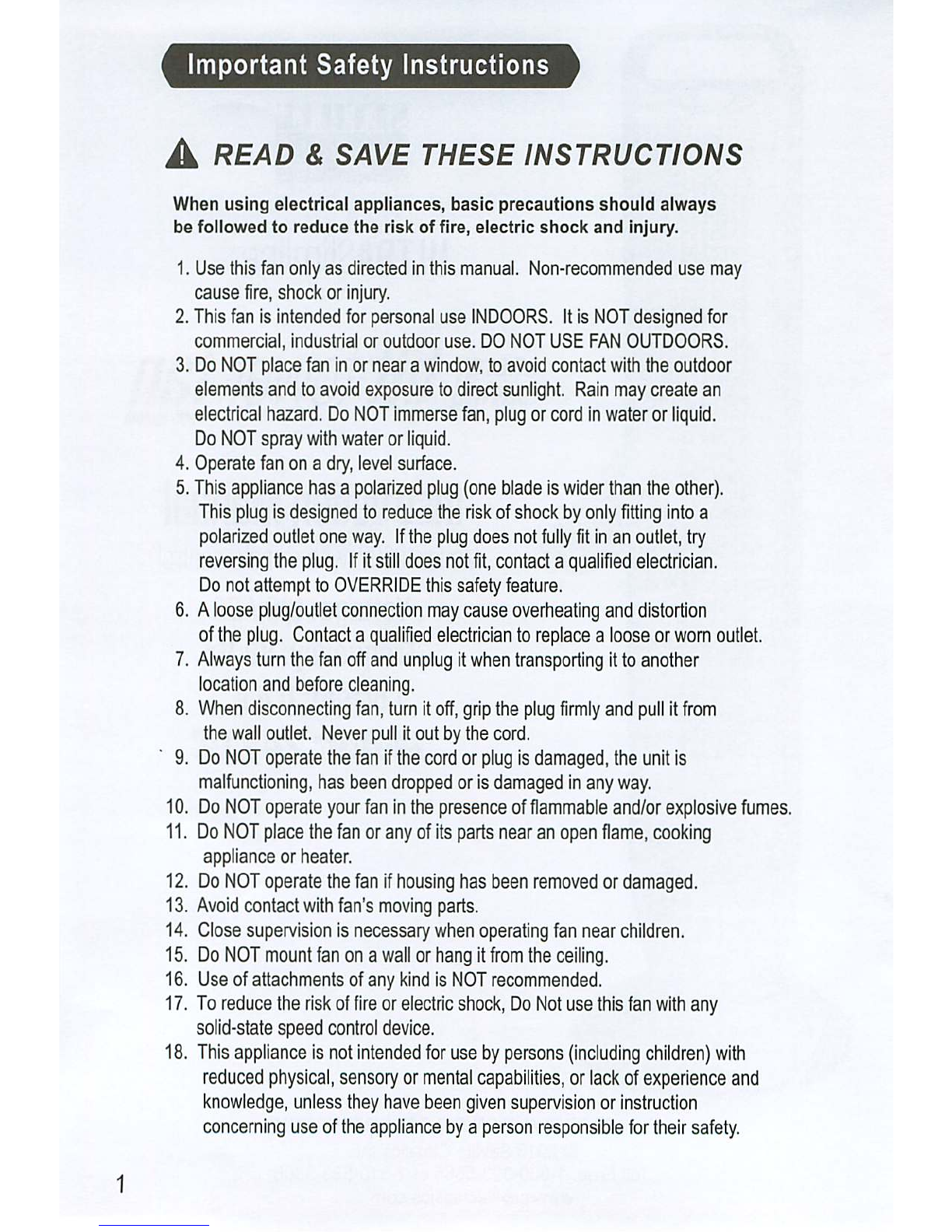

Important Safety Instructions
A READ & SAVE THESE INSTRUCTIONS
When using electrical appliances, basic precautions should always
be followed to reduce the risk of fire, electric shock and injury.
1. Use this fan only as directed in this manual. Non-recommended use may
cause fire, shock or injury.
2. This fan is intended for personal use INDOORS. It is NOT designed for
commercial, industrial or outdoor use. DO NOT USE FAN OUTDOORS.
3. Do NOT place fan in or near a window, to avoid contact with the outdoor
elements and to avoid exposure to direct sunlight. Rain may create an
electrical hazard. Do NOT immerse fan, plug or cord in water or liquid.
Do NOT spray with water or liquid.
4. Operate fan on a dry, level surface.
5. This appliance has a polarized plug (one blade is wider than the other).
This plug is designed to reduce the risk of shock by only fitting into a
polarized outlet one way. If the plug does not fully fit in an outlet, try
reversing the plug. If it still does not fit, contact a qualified electrician.
Do not attempt to OVERRIDE this safety feature.
6. A loose plug/outlet connection may cause overheating and distortion
of the plug. Contact a qualified electrician to replace a loose or worn outlet.
7. Always turn the fan off and unplug it when transporting it to another
location and before cleaning.
8. When disconnecting fan, turn it off, grip the plug firmly and pull it from
the wall outlet. Never pull it out by the cord.
9. Do NOT operate the fan if the cord or plug is damaged, the unit is
malfunctioning, has been dropped or is damaged in any way.
10. Do NOT operate your fan in the presence of flammable and/or explosive fumes.
11. Do NOT place the fan or any of its parts near an open flame, cooking
appliance or heater.
12. Do NOT operate the fan if housing has been removed or damaged.
13. Avoid contact with fan's moving parts.
14. Close supervision is necessary when operating fan near children.
15. Do NOT mount fan on a wall or hang it from the ceiling.
16. Use of attachments of any kind is NOT recommended.
17. To reduce the risk of fire or electric shock, Do Not use this fan with any
solid-state speed control device.
18. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.

Important Safety Instructions
19. Do not operate any fan with a damaged cord or plug. Discard fan or return to an
authorized service facility for examination and/or repair.
20. Do not run cord under carpeting. Do not cover cord with throw rugs runners, or
similar coverings. Do not route cord under furniture or appliances. Arrange cord
away form traffic.
Features a Fuse Safety Plug
This product employs overload protection (fuse). A blown fuse indicates an overload or
short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the
fuse as per the user serving instructions (follow product marking for proper fuse rating)
and check the product. If the replacement fuse blows, a short-circuit may be present
and the product should be discarded or returned to an authorized service facility for
examination and/or repair.
User Servicing Instructions
Always unplug this product before installing or replacing fuses.
Grasp plug and remove from the receptacle or other outlet devise. Do not unplug by
pulling on cord.
Extra fuse located (Fig.1).
Take o ut ex tra f use ( Fig .2) .
Open fuse cover (Fig.2) by sliding open fuse access cover on top of the plug by
using your thumb or a flathead screwdriver to slide the cover down towards the prongs.
NOTE: Ensure that fuse cover is completely open before attempting to remove fuse.
Remove fuse carefully by using a small screwdriver to pry the fuse out of the
compartment by the metal ends of the fuse (Fig.3).
Place plug on a solid flat surface. Insert new 5 Amp, 125 Volt fuse into fuse
compartment and use a small screwdriver to secure the metal ends of the fuse
into the compartment.
Close fuse cover (Fig.4) by sliding closed the fuse access cover on top of the plug.
CAUTION: Risk of fire. Replace fuse only with 5 Amp, 125 Volt fuse.
"Risk of fire. Do not replace attachment plug. Contains a safety device (fuse, AFCI, LCDI)
that should not be removed. Discard product if the attachment plug is damaged."

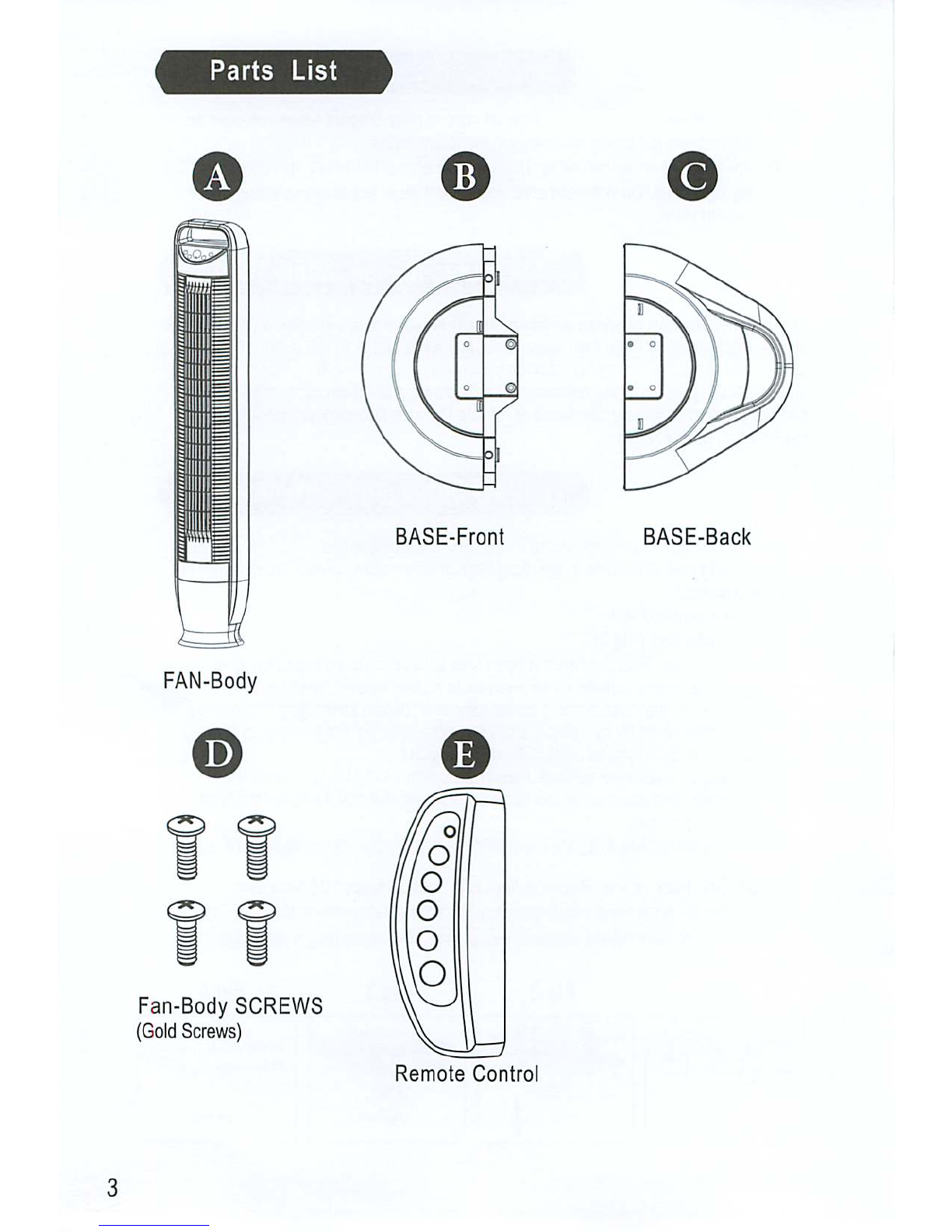

Fig.1 Fig.2
i i te
«*.
i
Fig.3 Fig.4
vmry

|OJ}uoo sjouiey
PBa-3SVa
©
O
o
e
lUOJd-gsva
©
(SM9J0S p|09)
SM3dOS Apog-uej
0
Apoa-NVJ
\S\-\ SJJBd

Q Apoq-uej aqi p uiouoq aqi uo }Sod
jajuao aq} ujojj 0 Apoq uej aq) jo wouoq aqj uo pajeooi smbjos Apog-uej p aqj aAOLuay
3d31S
■uej din jo dot aq) \oa\ojd ja\)aq
pue Aiqiuasse joj uuojieid ajnoas ajoui e noA qm6 him siq± -aseq wouoq aq) Buiqoe))e ajiqM Buiaoui luojj uej
aq)jo dot aq) ajnoas 0) yoo\q ONDIOVd JWOJ aul °W UB) dUU° d°l aul aoeld 'uaul 'UM0P apisdn jooij aqi
uo xoq aq)jo do) aq) luojj yooiq SNIXOVd VWOd aul aoeld 'UBi eWi° wouoq aq) o) aseq aq) Buiqoeue uaqM
wousBoons
/ 1^
ujj i—O—1:L
\ 1
'sjsod jno) aqj
ojuo sa|oq jnoj aqj 6uiu6!|B Aq@>peq-3SV9 9U.1 ojuoQ juojj-gsva 9M1 >PO| A|wjuj
•UMop apjsdn aseq aq} wn]_

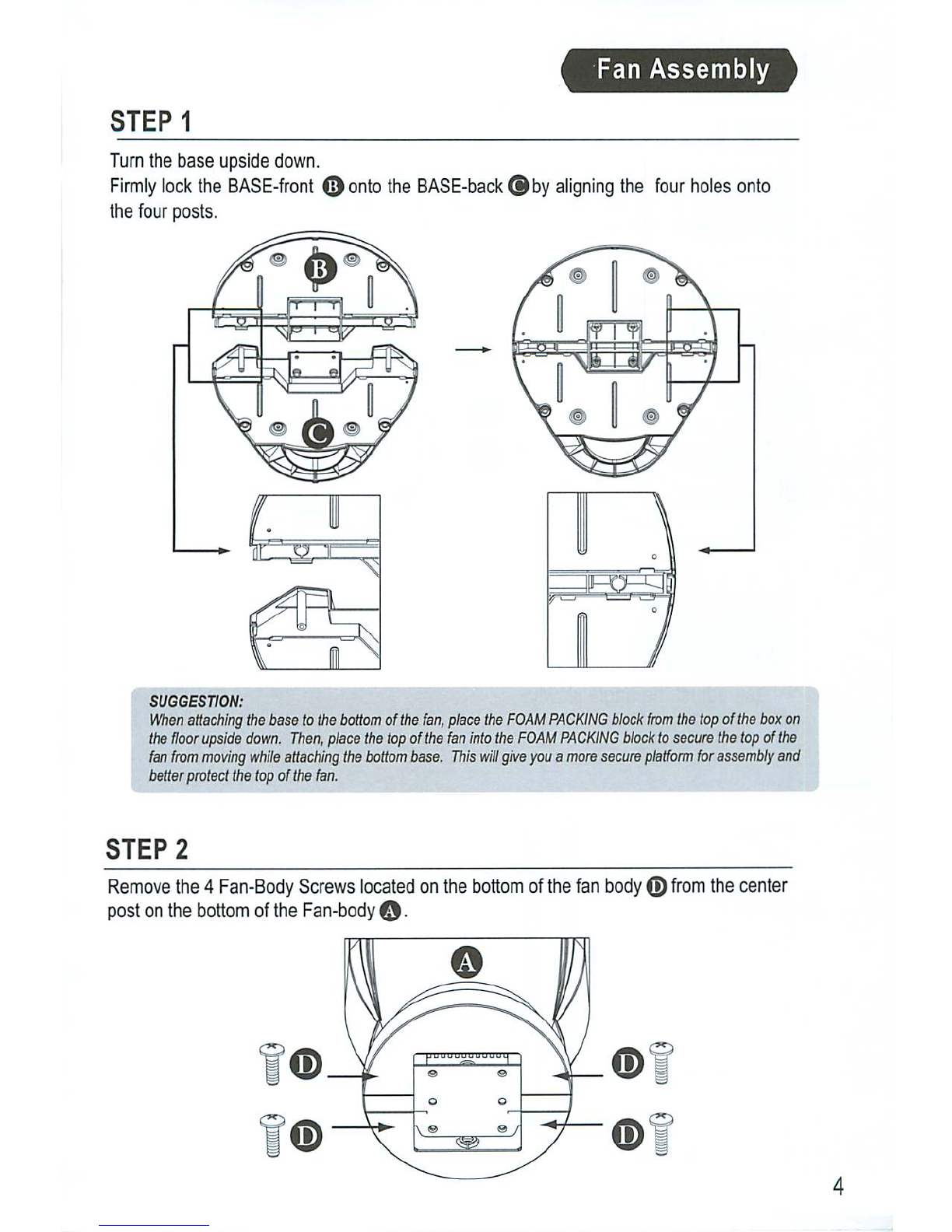

Td31S
Aiquiessv uej

//
jl
11
11
11
11
< I
y
h
o3K9-0 -"
A|MO|S 8|6ub 9ur jsnfpe eseeid
•uajq6r} /\|ajnoas pue aseq aqyo wo}}oq aq} qBnoiqj sa|oq aqj ojui© SM3dOS
Apog-uej f au,l a0Bld '^BM 9U° °6 A|uo \\m }| "3SV9 9Lil i° d°l aLfl u° sal°M Jn°] 9LI1
ojui Apog-NVd aq) uo sjsod jnoj aqi uasw pue juoj] NVd aqi qijM juojj 3SV9 8LIJ u6!IV
8 dais
Aiqmassv uej

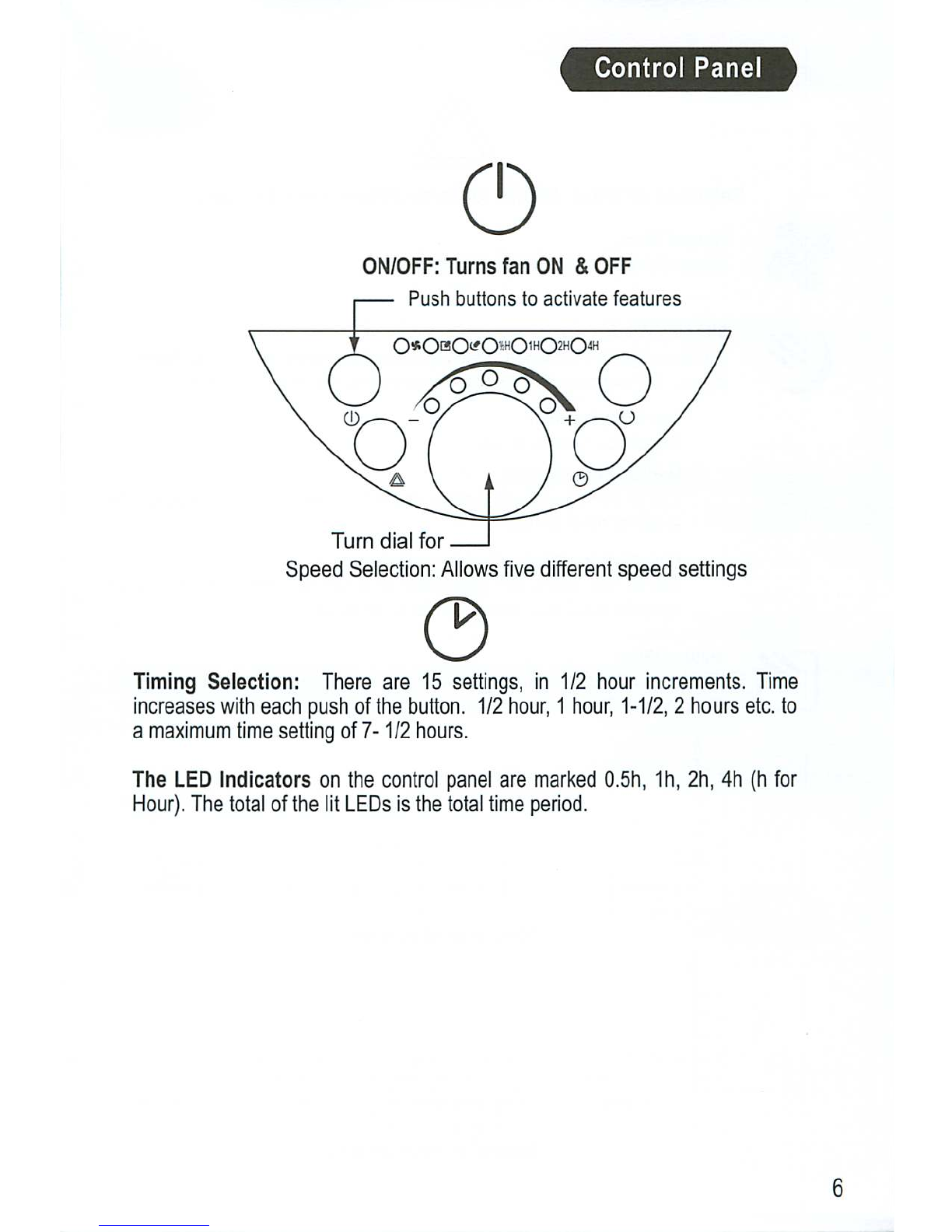

Control Panel
©
ON/OFF: Turns fan ON &OFF
Push buttons to activate features
Turn dial for
Speed Selection: Allows five different speed settings
©
Timing Selection: There are 15 settings, in 1/2 hour increments. Time
increases with each push of the button. 1/2 hour, 1 hour, 1-1/2, 2 hours etc. to
a maximum time setting of 7-1/2 hours.
The LED Indicators on the control panel are marked 0.5h, 1h, 2h, 4h (h for
Hour). The total of the lit LEDs is the total time period.

Control Panel
Selection of Wind: Allows for three different wind modes:
Normal Wind:
Speed dial allows five different speed settings.
Sleeping Wind:
The Sleeping Wind allows you to set a speed and that speed will gradually lower
to Low. The air flows as an evening breeze slowing to a light night breeze.
Low Sleeping Wind
The air flow remains at Low.
Medium Sleeping Wind
The air flow begins with medium speed for a half hour then drops to Low
speed for a half an hour.
High Sleeping Wind
The air flow begins with High speed for a half hour then drops to Medium
speed for a half hour, then to Low for a half an hour.
Natural Wind:
^^ The Natural Wind mode automatically selects wind speed randomly as you would
find outdoors. The speeds are graphically described below.
A
5 -
4 -
3 —
1
ft I I I I I I I I I I I
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Natural wind at speed 1
5 —
4 —
3
i_r
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Natural wind at speed 2

Control Panel
4 —
3
2 —I U^^^
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Natural wind at speed 3
/
5 —
4 — 4H n
4_rnr^ u
1 —
i i i i 1 1 1 1 1 1 1 1 1 1 1 1 1 &
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Natural wind at speed 4
J^
I I I I I I I
0 1 2 3 4 5 6 7 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Natural wind at speed 5
o
Oscillating Selection:
This function starts and stops the oscillation of the fan.

ULTRASIimline™ Remote Control for Tower Fan
To use your remote, point the top end directly at the front of the fan aiming at the little
window just below the control panel on the top of the fan.
©Power Button -Turns fan ON & OFF
Speed Mode -Allows five different speed
settings.
Wind Mode - Changes the wind mode from
Normal Wind to Natural Wind to Sleeping
Wind.
0
O
Timer - Changes the time the fan is on from 0.5 hr up to a
maximum of 7.5 hr, in 0.5 hr increments.
Oscillation - Turns the fan oscillation ON or OFF
Note
This equipment has been tested and found to comply with the limits for Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reason
able protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may caused harmful interference to radio or television
reception, which can be determined by turning the equipment off and on. The user is
encouraged to try to correct the interference by one or more of the following measures:
■Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or experienced radio/TV technician for help.
WARNING: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the equipment.

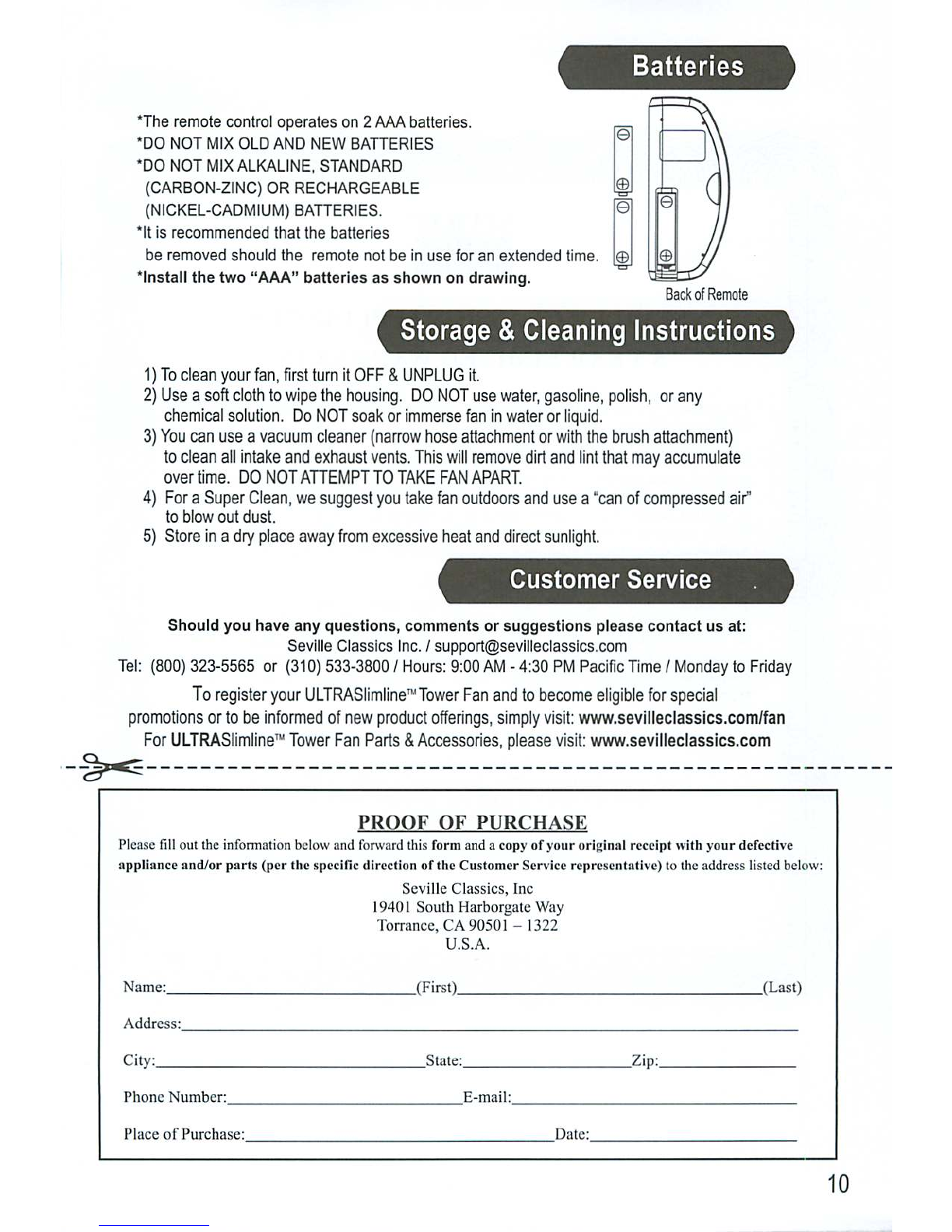

Batteries
"The remote control operates on 2 AAA batteries.
'DO NOT MIX OLD AND NEW BATTERIES
*DO NOT MIX ALKALINE, STANDARD
(CARBON-ZINC) OR RECHARGEABLE
(NICKEL-CADMIUM) BATTERIES.
'It is recommended that the batteries
be removed should the remote not be in use for an extended time.
'Install the two "AAA" batteries as shown on drawing.
0
Back of Remote
Storage & Cleaning Instructions
1) To clean your fan, first turn it OFF & UNPLUG it.
2) Use a soft cloth to wipe the housing. DO NOT use water, gasoline, polish, or any
chemical solution. Do NOT soak or immerse fan in water or liquid.
3) You can use a vacuum cleaner (narrow hose attachment or with the brush attachment)
to clean all intake and exhaust vents. This will remove dirt and lint that may accumulate
over time. DO NOT ATTEMPT TO TAKE FAN APART.
4) For a Super Clean, we suggest you take fan outdoors and use a "can of compressed air"
to blow out dust.
5) Store in a dry place away from excessive heat and direct sunlight.
Customer Service
Should you have any questions, comments or suggestions please contact us at:
Seville Classics Inc. / [e-mail]
Tel: [phone] or [phone] / Hours: 9:00 AM-4:30 PM Pacific Time / Monday to Friday
To register your ULTRASIimline™Tower Fan and to become eligible for special
promotions or to be informed of new product offerings, simply visit: www.sevilleclassics.com/fan
For ULTRASIimline,u Tower Fan Parts & Accessories, please visit: www.sevilleclassics.com
§-*
PROOF OF PURCHASE
Please fill out Ihe information below and forward this form and a copy of your original receipt with your defective
appliance and/or parts (per the specific direction of the Customer Service representative) to the address listed below:
Seville Classics, Inc
19401 South Harborgate Way
Torrance, CA 9 0 5 01-1 3 2 2
U.S.A.
Name: .(First). JLast)
Address:
City:_ State: -Zip:.
'hone Number: E-mail:
Place of Purchase: Date:
10

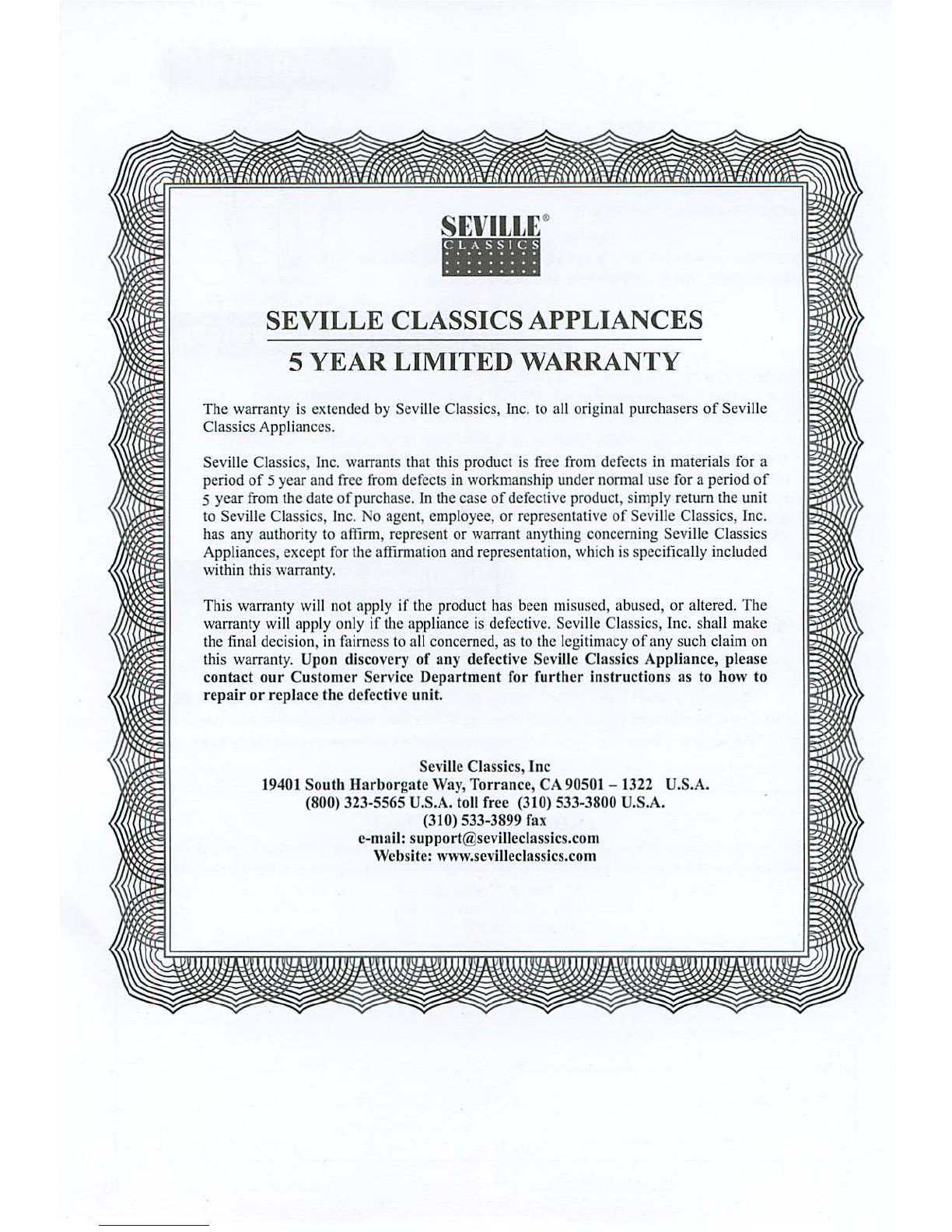

SEVILLE
SEVILLE CLASSICS APPLIANCES
5 YEAR LIMITED WARRANTY
The warranty is extended by Seville Classics, Inc. to all original purchasers of Seville
Classics Appliances.
Seville Classics, Inc. warrants that this product is free from defects in materials for a
period of 5 year and free from defects in workmanship under normal use for a period of
5 year from the date of purchase. In the case of defective product, simply return the unit
to Seville Classics, Inc. No agent, employee, or representative of Seville Classics, Inc.
has any authority to affirm, represent or warrant anything concerning Seville Classics
Appliances, except for the affirmation and representation, which is specifically included
within this warranty.
This warranty will not apply if the product has been misused, abused, or altered. The
warranty will apply only if the appliance is defective. Seville Classics, Inc. shall make
the final decision, in fairness to all concerned, as to the legitimacy of any such claim on
this warranty. Upon discovery of any defective Seville Classics Appliance, please
contact our Customer Service Department for further instructions as to how to
repair or replace the defective unit.
Seville Classics, Inc
19401 South Harborgate Way, Torrance, CA 90501 - 1322 U.S.A.
[phone] U.S.A. toll free [phone] U.S.A.
[phone] fax
e-mail: [email protected]
Website: www.sevilleclassics.com
