Seville Classics ULTRASlimline 10111 User manual

ULTRASlimline
Instruction Manual
Model: 10111 (with remote-control)
Voltage: 120V AC
Frequency: 60 HZ
Current: 0.6 A
PLEASE READ AND SAVE THESE INSTRUCTIONS
© 2010 Seville Classics Inc. (800)-323-5565 or (310)-533-3800
www.sevilleclassics.com
TWOER
SPEED

2
FAN-Body
BASE-Front BASE-Back
Fan-Body SCREWS
Remote Control
Base SCREWS
and CLIPS
ABC
DF E
3
STEP 1
Turn the base upside down. Unscrew the 2 base SCREWS and base CLIPS
from posts on the BASE-back . Firmly snap the BASE-front onto the BASE-back
by aligning the four holes onto the four posts. Replace the SCREWS and CLIPS so
that the clips wraps over the BASE-back and tighten.
Fan Assembly
STEP 2
Remove the 4 SCREWS from the center post on the bottom of the FAN - body .
C
C
C
B
E
E
DA
A
D
D
D
D
C
B
C
B
C
B
C
B
E
E
(Gold Screws)
(White Clips)
E
E

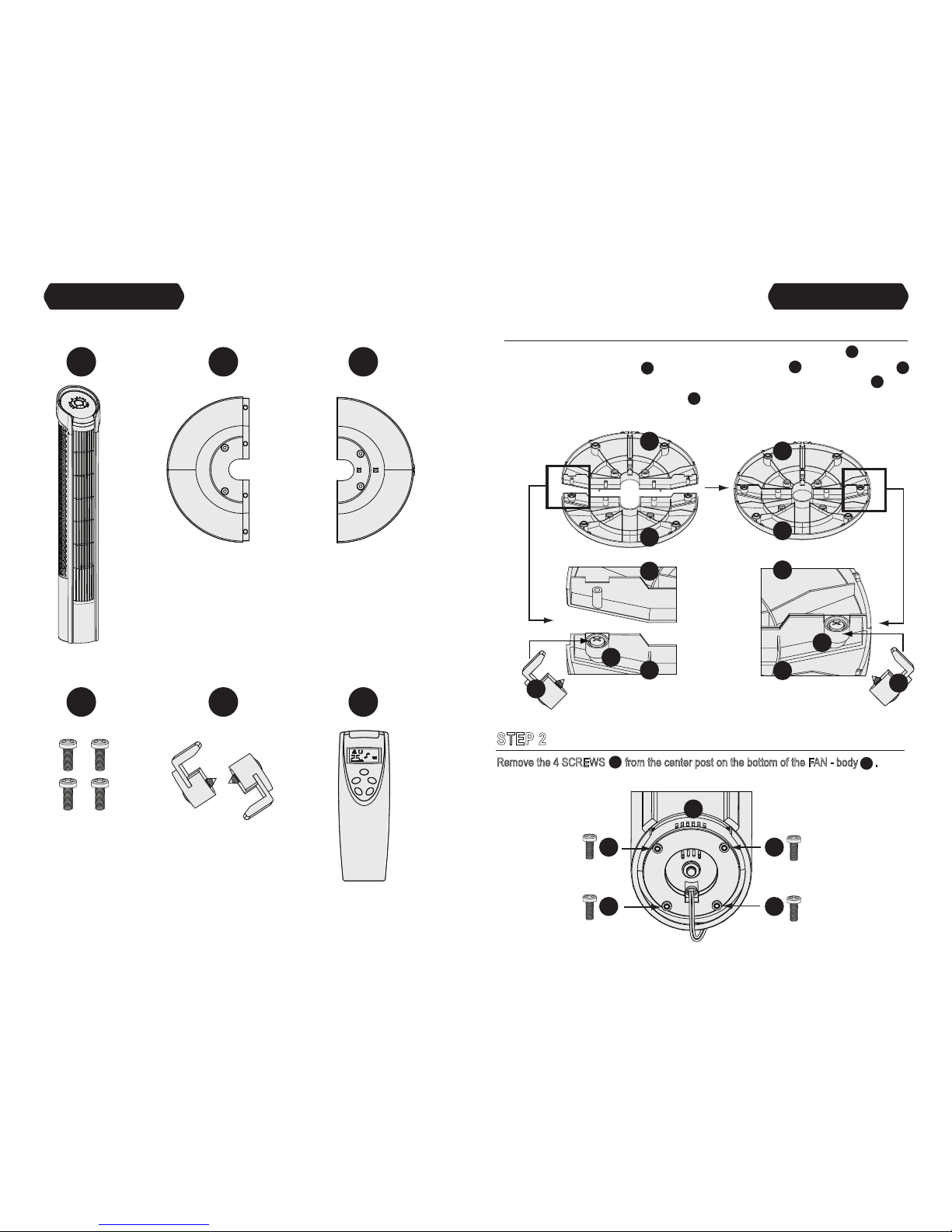

Parts List

4
STEP 4
Run the power cord through the guide on the bottom of the BASE-back by tucking the
cord under the tabs. Set fan uprighton the base and it is ready for use.
STEP 3
Pass the Power Cord through the center hole in the center of the BASE.
Align the BASE front with the FAN front and insert the four posts on the FAN body into
the four holes on the top of the BASE, it will only go one way. Place the 4 SCREWS
into the holes through the bottom of the base and tighten securely.
5
Push buttons to activate features
ON/OFF: Turns fan ON & OFF
Speed Selection: Allows four different speed settings
Timing Selection: There are 15 settings, in 1/2 hour increments. Time
increases with each push of the button. 1/2 hour, 1 hour, 1-1/2, 2 hours etc. to
a maximum time setting of 7- 1/2 hours.
The LED Indicators on the control panel are marked 0.5h, 1h, 2h, 4h. (h for
Hour) The sum of the lit LED’s is the total time period.
HighLow Medium
D
D
D
D
D
A
C
B
C
B
Power Cord
See further instructions on use, care and safety.
ECO
Fan Assembly Control Panel

7
6

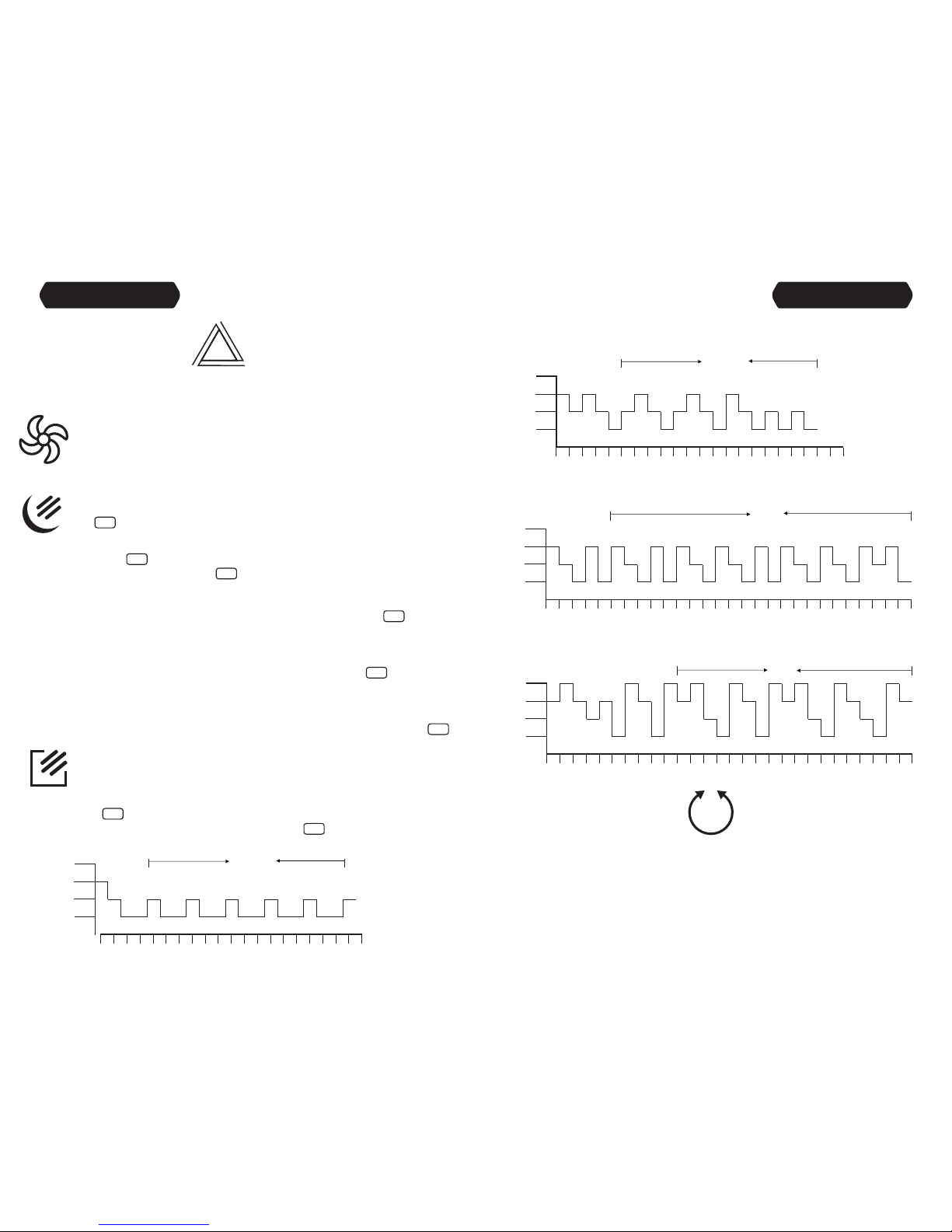

Selection of Wind: Allows for three different wind modes:
1. Normal Wind:
The Normal wind mode is simply the Low,
Medium & High fan speed settings.
(1) Sleeping Wind
The air flow remains at .
(2) Low Sleeping Wind
The air flow begins at low for a half an hourand then drops to .
(3) Medium Sleeping Wind
The air flow – The air flows begins with medium speed for a half hour then
drops to Low speed for a half an hour and finally drops to .
(4) High Sleeping Wind
The air flows begins with High speed for a half hour then drops to Medium
seed for a half hour, then to Low for a half an hour and finally drops to .
Control Panel
3. Natural Wind:
The natural wind mode automatically selects wind speed randomly as you would
find outdoors. The speeds are graphically described below.
2. Sleeping Wind:
The Sleeping Wind allows you to set a speed and that speed will gradually lower
to . The air flows as an evening breeze slowing to a light night breeze.
(3) Medium Natural Wind - The wind settings will repeat the following
80 second wind cycle with Medium speed being the most common.
(4) High Natural Wind - The wind settings will repeat the following
80 second wind cycle with High speed being the most common.
Oscillating Selection:
This function starts & stops the oscillation of the fan.
Controlling the Oscillation Angles: To change the winddirection, place both hands
on the fan and turn the fan body to the left or right. There are 5 positions to choose
from to change the oscillation angle. To have the fan fully oscillate left and right,
have the fan in the third or center position.
(2) Low Natural Wind - The wind settings will repeat the following 80 second wind
cycle with Low speed being the most common.
(1) Sleep Wind - The wind settings will repeat the following
80 second wind cycle with air flow remains at being the most common.
One cycle
High Speed
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140
High
Med
Low
ECO
OFF
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140
Med
Low
ECO
OFF
High
Med Speed One cycle
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110
Med
OFF
High
Low Speed
Low
ECO
One cycle
025 15 20 30 35 45 50 60 65 70 75 85 90
High
Med
Low
ECO
OFF
Eco Speed
One cycle
ECO
ECO
ECO
ECO
ECO
ECO
ECO
ECO
Control Panel

9
8

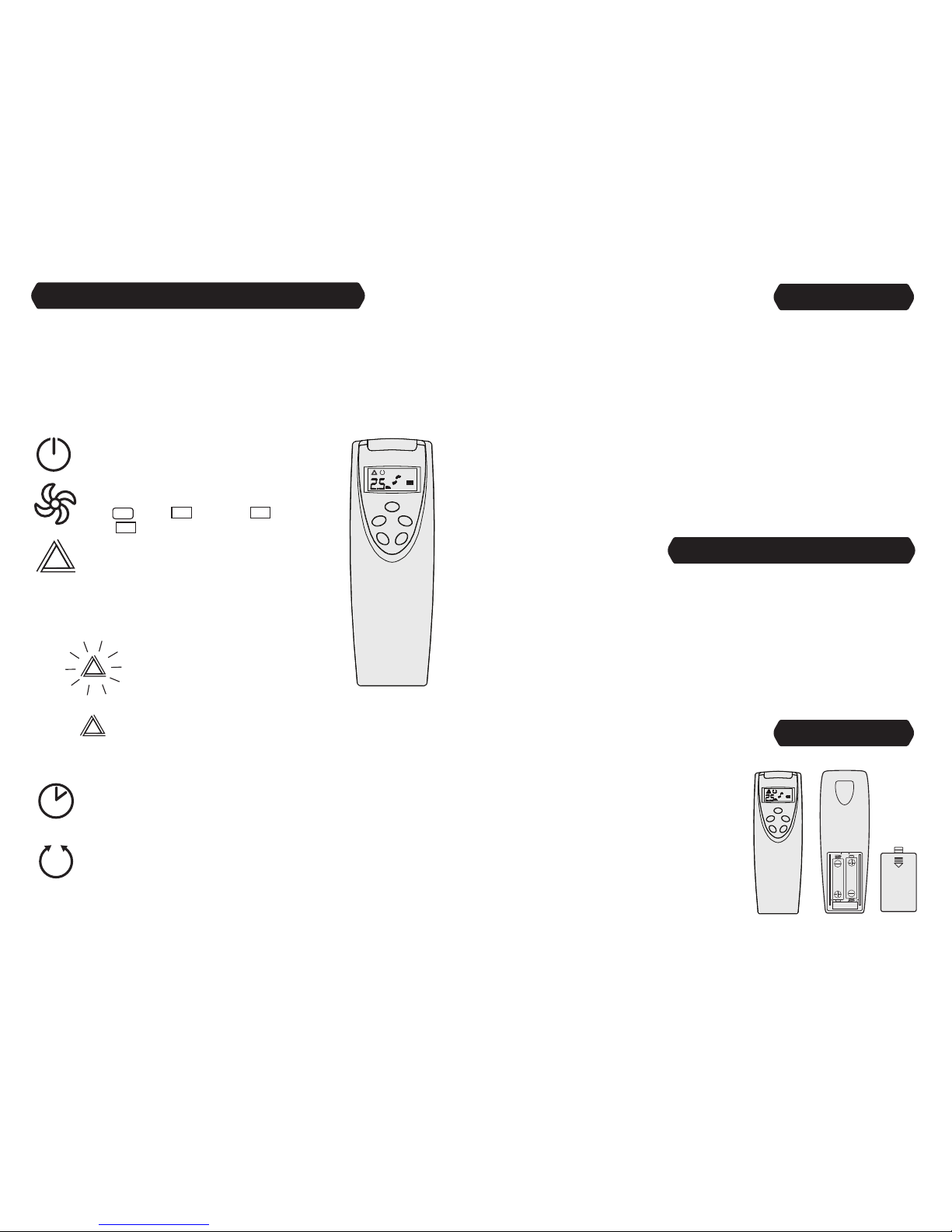

Functions:
Speed Mode - Changes wind speed from
Eco to Low to Medium to
High .
Wind Mode - Changes the wind mode from
Normal Wind to Natural Wind to Sleeping
Wind.
(1) Normal Wind is indicated by no icon
appearing in the upper left hand corner
of the display.
(2) Natural Wind is indicated by a blinking
triangle icon appearing in the upper left hand
corner of the display.
(3) Sleeping Wind is indicated by a solid
triangle icon appearing in the upper left hand
corner of the remote.
Timer - Changes the time, the fan is on from 0.5 hr up to a max of
7.5 hr, in 0.5 hr increments.
Oscillation - Turns the fan oscillation ON or OFF
*The remote control operates
on 2 AAA batteries.
*DO NOT MIX OLD AND NEW BATTERIES
*DO NOT MIX ALKALINE, STANDARD
(CARBON-ZINC) OR RECHARGEABLE
(NICKEL-CADMIUM) BATTERIES.
*It is recommended that the batteries
be removed should the remote not
be in use for an extended time.
*Install the two “AAA” batteries
supplied as shown.
To use your remote, point the top end directly at the front of the
fan aiming at the little window just below the control panel on
the top of the fan.
Power Button -Turns fan ON & OFF
blinking
solid
1) To clean your fan, first turn it OFF & unplug it.
2) Use a soft cloth to wipe the housing. DO NOT use water, gasoline, polish,
or any chemical solution. Do NOT soak/immerse fan in water/liquid.
3) You can use a vacuum cleaner (narrow tube with the brush attachment)
to clean all intake and exhaust vents. This will remove dirt and lint that
may accumulate over time. DO NOT ATTEMPT TO TAKE APART FAN.
4) For a Super Clean. Suggest you take fan outdoors and use “Compressed Air”
(used to clean computers and electronics) and blow out dust thoroughly.
5) Store in a dry place away from excessive heat and direct sunlight.
This equipment has been tested and found to comply with the limits for Clss B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may caused harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
.Reorient or relocate the receiving antenna.
.Increase the separation between the equipment and the receiver.
.Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
.Consult the dealer or experienced radio/TV technician for help.
WARNING: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the equipment.
Storage & Cleaning Instructions
Batteries
Front of Remote Back of Remote
ECO LO
HI
MED
ULTRASlimline Remote Control for Tower Fan Note

10
PROOF OF PURCHASE
Please fill out the information below and forward this form and a copy of your original receipt with your defective
appliance and/or parts (per the specific direction of the Customer Service representative) to the address listed below:
Should you have any questions, comments or
suggestions please contact us at:
Seville Classics Inc.
Tel: [phone] or (310)-533-3800
www.sevilleclassics.com
Product Registration
To register your ULTRASlimline Tower Fan and to become eligible for special
promotions or to be informed of new product offerings, simply visit:
www.sevilleclassics.com/fan
Parts & Accessories
For ULTRASlimline Tower Fan Parts & Accessories, please visit :
www.sevilleclassics.com
Costumer Service
Seville Classics, Inc
19401 South Harborgate Way
Torrance, CA 90501 – 1322
U.S.A.
Name: (First) (Last)
Address:
City: State: Zip:
Phone Number: E-mail:
Place of Purchase: Date:
11
1. Use this fan only as directed in this manual. Non-recommended use may
cause fire, shock or injury.
2. This fan is intended for personal use INDOORS. It is NOT designed for
commercial, industrial or outdoor use.
3. Do NOT place fan in or near a window, to avoid contact with the outdoor
elements and to avoid exposure to direct sunlight. Rain may create an
electrical hazard. Do NOT immerse fan, plug or cord in water/liquid.
Do NOT spray with water/liquid. DO NOT use Fan outdoors.
4. Operate fan on a dry, level surface.
5. This appliance has a polarized plug (one blade is wider than the other).
This plug is designed to reduce the risk of shock by only fitting into a
polarized outlet one way. If the plug does not fully fit in an outlet, try
reversing the plug. If it still does not fit, contact a qualified electrician.
Do not attempt to defeat this safety feature.
6. A loose plug/outlet connection may cause overheating and distortion
of the plug. Contact a qualified electrician to replace a loose or worn outlet.
7. Always turn the fan off and unplug it when transporting it to another
location and before cleaning.
8. When disconnecting fan, turn it off, grip the plug firmly and pull it from
the wall outlet. Never pull it out by the cord.
9. Do NOT operate the fan if the cord or plug is damaged, the unit is
malfunctioning, has been dropped or is damaged in any way.
10. Do NOT operate your fan in the presence of flammable and/or explosive fumes.
11. Do NOT place the fan or any of its parts near an open flame, cooking
appliance or heater.
12. Do NOT operate the fan if housing has been removed or damaged.
13. Avoid contact with fan’s moving parts.
14. Close supervision is necessary when operating fan near children.
15. Do NOT mount fan on a wall or hang it from the ceiling.
16. Use of attachments of any kind is NOT recommended.
17. Do NOT use this fan with any solid state speed control devices.
18. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
When using electrical appliances, basic precautions should always
be followed to reduce the risk of fire, electric shock and injury.
READ & SAVE THESE INSTRUCTIONS
Important Safety Instructions
