ShadeLab STILLA User manual

Assembly manual

2 | | ASSEMBLY

INDEX
1 - INTRODUCTION ..............................................................page 4
1.1 - Symbols used in the manual ....................................................... page 4
1.2 - Personnel requirements .............................................................. page 4
1.3 - Equipment necessary ................................................................. page 5
1.4 - Before starting assembly ............................................................page 5
2 - SAFETY .......................................................................page 6
2.1 - General safety information.......................................................... page 6
2.2 - Working environment .................................................................page 6
3 - ASSEMBLY TECHNICAL TABLES ..........................................page 7
3.1 - Table of minimum dimensions .................................................... page 7
3.2 - Motor power table ...................................................................... page 7
3.3 - Table of cutting dimensions ........................................................ page 8
4 - STILLA COMPONENTS AND DIAGRAMS ................................page 9
4.1 - Tilting diagrams .......................................................................... page 9
4.2 - Awning components ................................................................... page 10
4.3 - Material necessary for assembly ................................................ page 11
5 - AWNING ASSEMBLY ........................................................page 12
6 - REGULATING THE AWNING ................................................page 17
6.1 - Troubleshooting .......................................................................... page 18
7 - REMOVING AND PACKING THE AWNING ................................page 20
7.1 - Removing .................................................................................... page 20
7.2 - Packing ....................................................................................... page 20

4 | | ASSEMBLY
1 - INTRODUCTION
This “assembly manual” for STILLA awnings has been produced by SHADELAB to
supply the indications necessary for the operations of assembling the components
that make up the product.
Assembly must be carried out by personnel with suitable technical and professional
qualifications, in accordance with the respective national laws or regulations (see Par.
1.2 “Personnel requirements”).
It is forbidden to eliminate, rewrite or alter the pages in the manual and their content.
This manual must be kept intact in all its parts, in an easily accessible place.
SHADELAB reserves the right to update the production and the respective manuals,
without being obliged to update the previous production and manuals.
SHADELAB reserves all rights to this manual: no total or partial reproduction is al-
lowed without authorisation in writing.
1.1 - Symbols used in the manual
Shown below are the WARNING symbols used in this manual:
IMPORTANT
Indications and advice to be observed to ensure a correct use of the awning. Failure to
follow these indications may endanger the integrity and/or resistance of the product.
ATTENTION
DANGER FOR THE OPERATOR! Instructions and indications to be assessed and fol-
lowed with care. Failure to follow these indications may endanger personal safety.
1.2 - Personnel requirements
The personnel appointed to perform this operation must possess a technical knowl-
edge of the product, acquired by assembling similar products for at least one year or
after having followed a suitable technical training course.

| ASSEMBLY | 5
1.3 - Equipment necessary
To ensure the correct assembly of the mechanical part, of the textile part, and conse-
quently the optimum operation of the finished product, it is necessary to be in pos-
session of the following equipment:
»fabric rolling frame;
»awning assembly frame with arms and vertically movable positioning bar;
»electric and pneumatic screwdriver;
»complete set of tools.
1.4 - Before starting assembly
IMPORTANT
Some components must be cut to suit the dimensions of the awning that is to be ob-
tained (see Par. 3.3 “Table of cutting dimensions”).

6 | | ASSEMBLY
2 - SAFETY
2.1 - General safety information
Follow these safety precautions:
ATTENTION
Wear the garments and personal protection equipment contemplated by the safety
regulations in force for the workplace (protective helmet, gloves, etc.).
ATTENTION
It is forbidden to use the awning to support yourself: risk of serious personal injury and
of damage to the awning itself.
IMPORTANT
Do not lay objects on the awning.
IMPORTANT
This manual is an integral part of the product. Before assembly, carefully read all the
instructions given in this manual.
IMPORTANT
SHADELAB guarantees the EC marking only for products supplied by the company itself.
If any parts have to be replaced with other components not guaranteed by SHADELAB,
the product guarantee will automatically become void and SHADELAB shall not answer
for any malfunctions of the product.
ATTENTION
Some awning components are constantly subject to strong pressure (arms) and, if the
instructions in this manual are not carefully followed, these components may cause
serious harm to persons, animals and things.
ATTENTION
NEVER reuse the arm lock after removing it.
2.2 - Working environment
At the moment of assembly, good natural and/or artificial lighting must be created in
the place where the work is being done.

| ASSEMBLY | 7
3 - ASSEMBLY TECHNICAL TABLES
3.1 - Table of minimum dimensions
Stilla minimum dimensions
Arm projection [cm] Minimum width [cm]
150 196
175 221
200 246
225 271
250 296
275 321
300 346
Tab.1
3.2 - Motor power table
Width [cm]
200 300 400 500 600
Projections [cm]
150 15/17 N/m
175
25 N/m200
225
250
25/30 N/m275
300
Tab.2
IMPORTANT
For this awning model it is not necessary to use motors with an electronic limit switch.

8 | | ASSEMBLY
3.3 - Table of cutting dimensions
Cutting dimensions
Component Type of control Cutting ratio measurements
in [mm]
Terminal bar
NICE MOTOR L -74
NICE MOTOR WITH EMERGENCY MANOEUVRE L -78
SOMFY MOTOR L -77
SOMFY MOTOR WITH EMERGENCY MANOEUVRE L -82
BECKER MOTOR L -77
BECKER MOTOR WITH EMERGENCY MANOEUVRE L -84
CRANK L -90
Roller tube
NICE MOTOR L -74
NICE MOTOR WITH EMERGENCY MANOEUVRE L -78
SOMFY MOTOR L -77
SOMFY MOTOR WITH EMERGENCY MANOEUVRE L -82
BECKER MOTOR L -77
BECKER MOTOR WITH EMERGENCY MANOEUVRE L -84
CRANK L -90
Fabric
NICE MOTOR L -94
NICE MOTOR WITH EMERGENCY MANOEUVRE L -98
SOMFY MOTOR L -97
SOMFY MOTOR WITH EMERGENCY MANOEUVRE L -102
BECKER MOTOR L -97
BECKER MOTOR WITH EMERGENCY MANOEUVRE L -104
CRANK L -110
Tab.3

| ASSEMBLY | 9
PROJECTION
HEIGHT
239
185
303
216
239
110
400
375 350 325 300 275 250 225 200 175 150
3°
85°
294

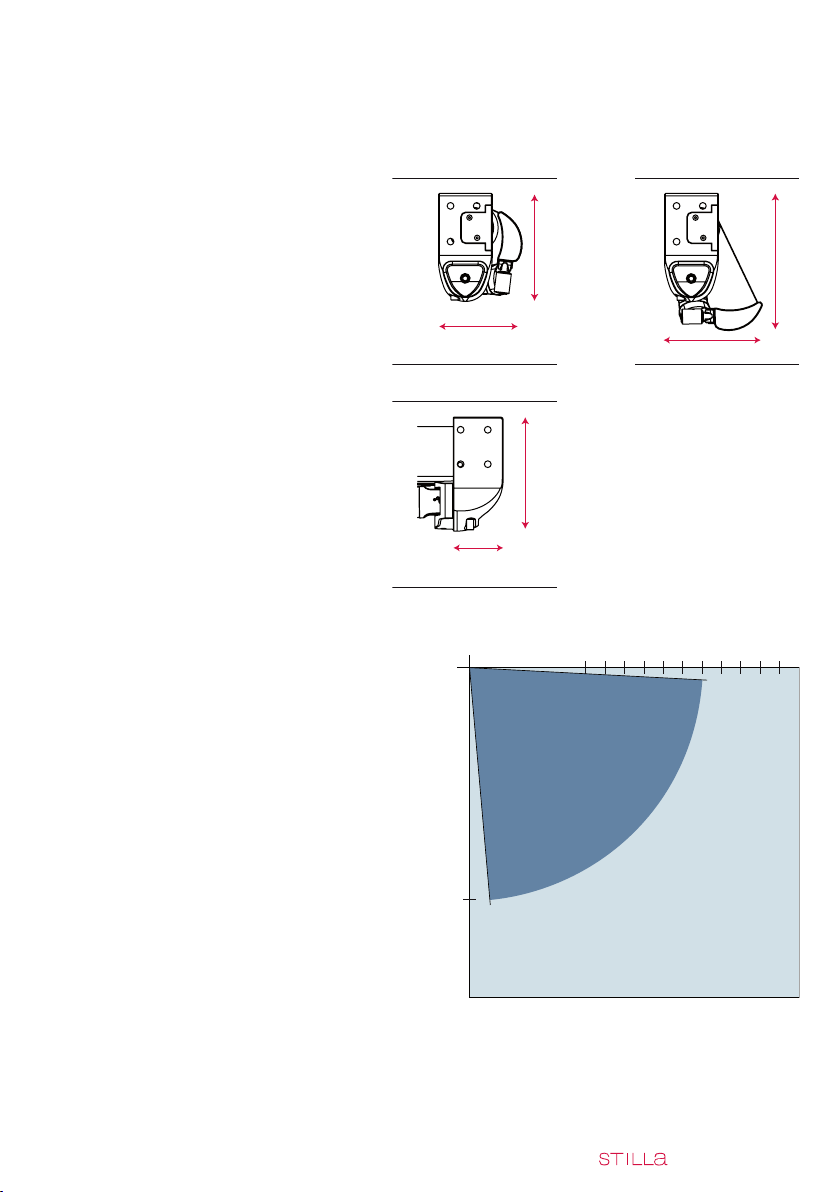

4 - STILLA COMPONENTS AND DIAGRAMS
4.1 - Tilting diagrams
Awning dimensions with arms folded
wall / niche / roof mounting
Arm length and inclination
wall / niche / roof mounting
RECOMMENDED ARM: HOME
RECOMMENDED DIMENSIONS: width 600 cm - projection 300 cm
3° minimum inclination 85° maximum inclination
backview

10 | | ASSEMBLY
4.2 - Awning components
In the system supplied by SHADELAB the customer will find the following compo-
nents already preassembled:
»1 left arm support (see ref. 1, fig. 1);
»1 right arm support (see ref. 2, fig. 1);
»1 plate with pin (see ref. 3, fig. 1);
»1 cap with hole (see ref. 4, fig. 1);
»1 roller tube (see ref. 5, fig. 1);
»1 cap with square pin* (see ref. 6, fig. 1);
»1 crank* (see ref. 7, fig. 1);
»2 arms (see ref. 8, fig. 1);
»2 terminal bar connecting kits (see ref. 9, fig. 1);
»1 terminal bar (see ref. 10, fig. 1);
»2 terminal bar caps (see ref. 11, fig. 1).
(*) only in the manual version.
fig.1
2
1
34
5
6
7
8
9
9
10
11
11

| ASSEMBLY | 11

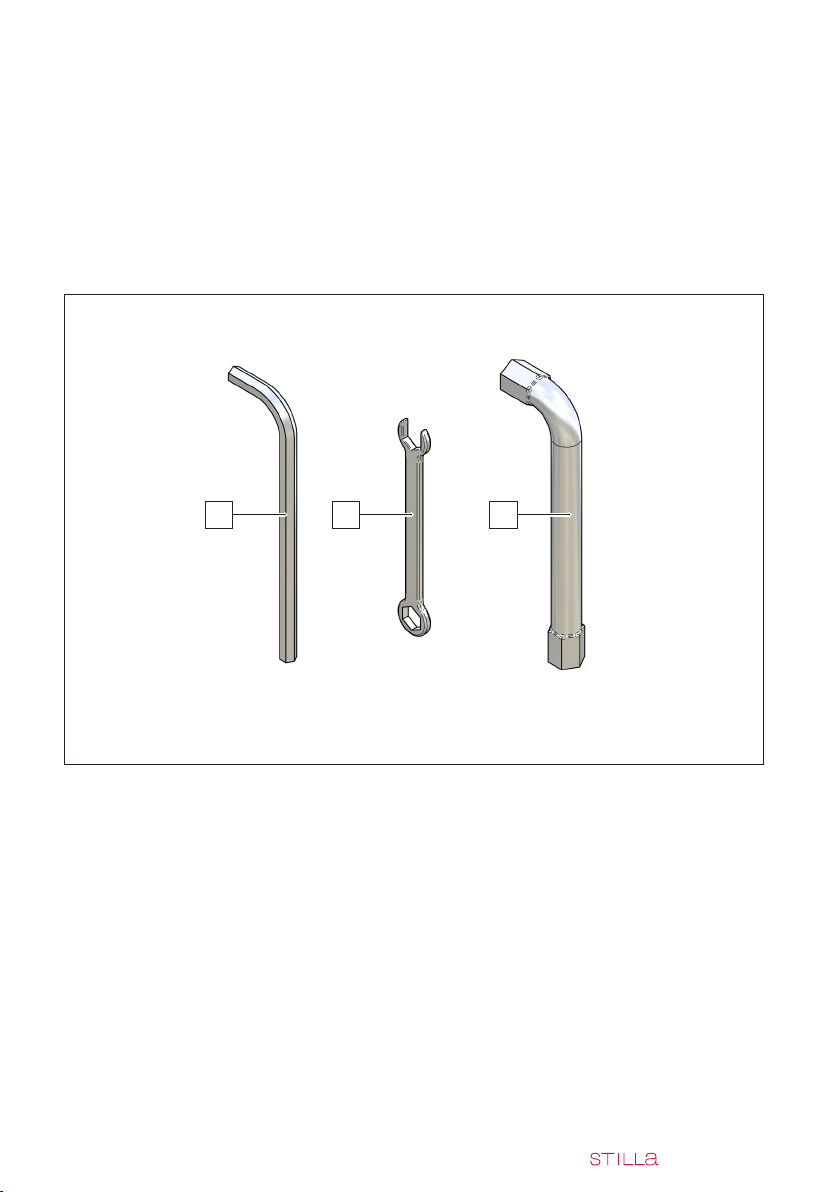

4.3 - Material necessary for assembly
The following spanners must be used to assemble the STILLA awning:
»Allen wrenches (see ref. 1, fig. 2): 3, 4, 5, 8, 10
»Combination spanners (see ref. 2, fig. 2): 10
»Box spanners (see ref. 3, fig. 2): 13
fig.2
1 2 3

12 | | ASSEMBLY
5 - AWNING ASSEMBLY
IMPORTANT
Before starting assembly, the person appointed to do the job must have cut the pieces
to suit the size of the awning that is to be obtained (see tab. par. 3.3).

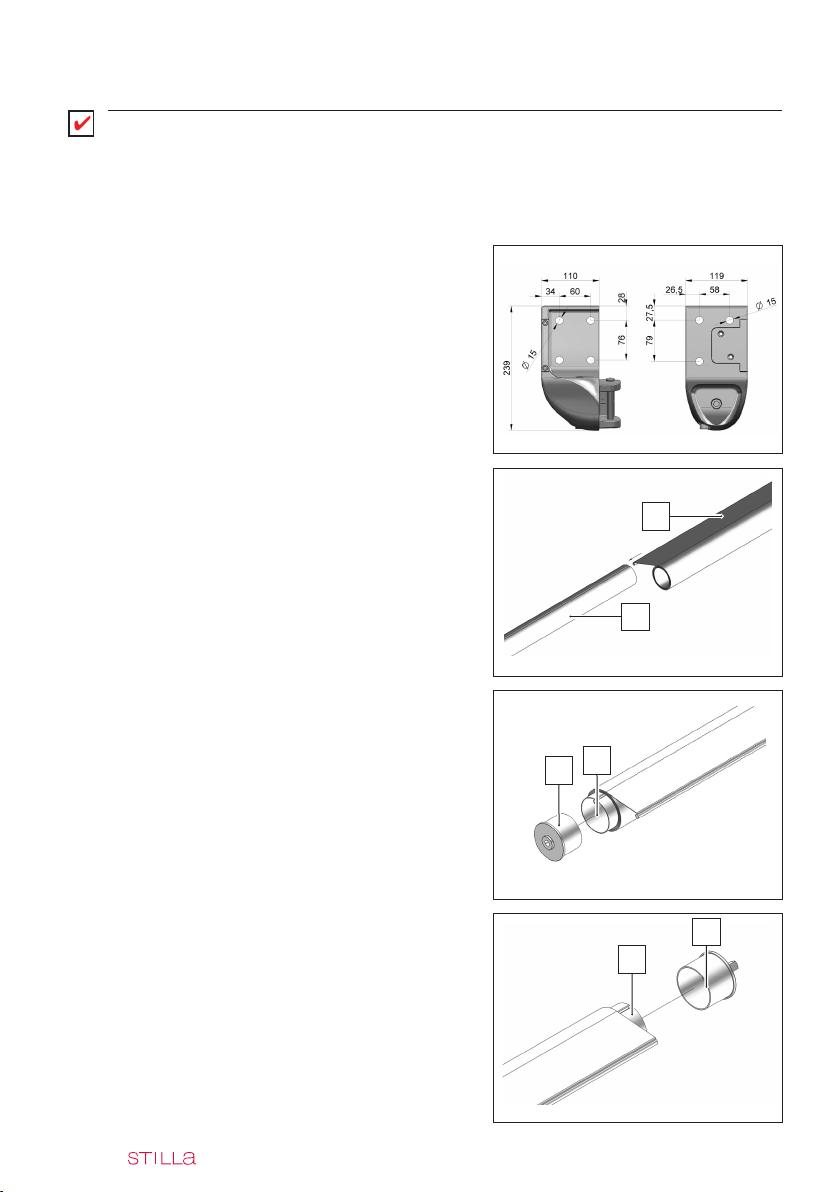

Define the distance of the arm supports (see
fig. 3) and position them on the awning as-
sembly frame.
Assemble the fabric (see ref. 1 fig. 4) with
the roller tube (see ref. 2 fig. 4) and roll it up
completely.
Insert the cap with hole (see ref. 3 fig. 5) on
the side opposite the control (see ref. 4 fig.
5).
MANUAL AWNING:
Insert the cap with square pin (see ref. 5 fig.
6) in the roller tube (see ref. 6 fig. 6).
fig.6
fig.4
fig.5
fig.3
1
2
34
5
6

| ASSEMBLY | 13

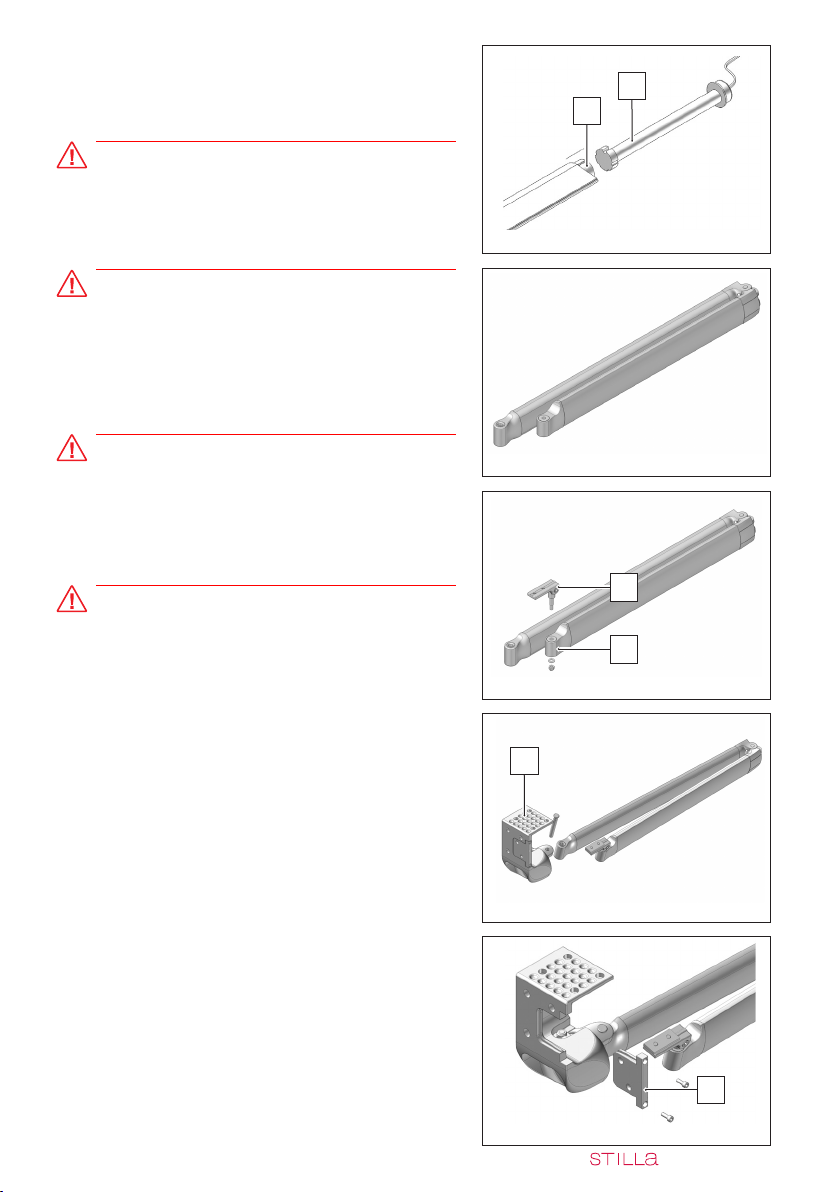

MOTOR-OPERATED AWNING:
Insert the motor (see ref. 7 fig. 7) in the roller
tube (see ref. 8 fig. 7).
ATTENTION
These instructions are of a general nature, so
you must follow the ones given in the motor
manual.
ATTENTION
The arm (see fig. 8) is provided with a safety band
that blocks the tightening mechanism. Do not re-
move this band until the awning has been com-
pletely assembled. Failure to respect the correct
assembly procedure may cause serious harm to
persons, animals and things in the vicinity.
ATTENTION
NEVER reuse the arm lock after removing it.
Fit the terminal bar connecting kit (see ref. 9
fig. 9) onto the end of the arm (see ref. 10 fig.
9), (box spanner 13).
ATTENTION
Ensure that the two kits are correctly fixed to
the ends of the arms.
Assemble the arms on the respective levers
of the arm supports (see ref. 11 fig. 10).
Remove the insert from the support which
goes on the side opposite the control (see ref.
12 fig. 11), (Allen wrench 5).
Perform the same operation on the other
support too.
fig.10
fig.8
fig.9
fig.7
8
7
9
10
fig.11
11
12

14 | | ASSEMBLY
Fit the plate with pin (see ref. 13 fig. 12) on
the insert which goes on the side opposite
the control (Allen wrench 4, combination
spanner 10).
fig.12
MANUAL AWNING:
Assemble the crank (see ref. 14 fig. 13) on the
insert (Allen wrench 4).
MOTOR-OPERATED AWNING:
Assemble the motor plate (see ref. 15 fig. 14)
on the insert (Allen wrench 4).
Assemble the terminal bar (see ref. 16 fig. 15)
with the fabric (see ref. 17 fig. 15) inserting
the latter in the ogive in the terminal bar.
Assemble the insert including the plate with
pin on the cap with hole (see ref. 18 fig. 16) of
the roller tube.
fig.16
fig.14
fig.15
fig.13
13
14
15
16
17
18

| ASSEMBLY | 15

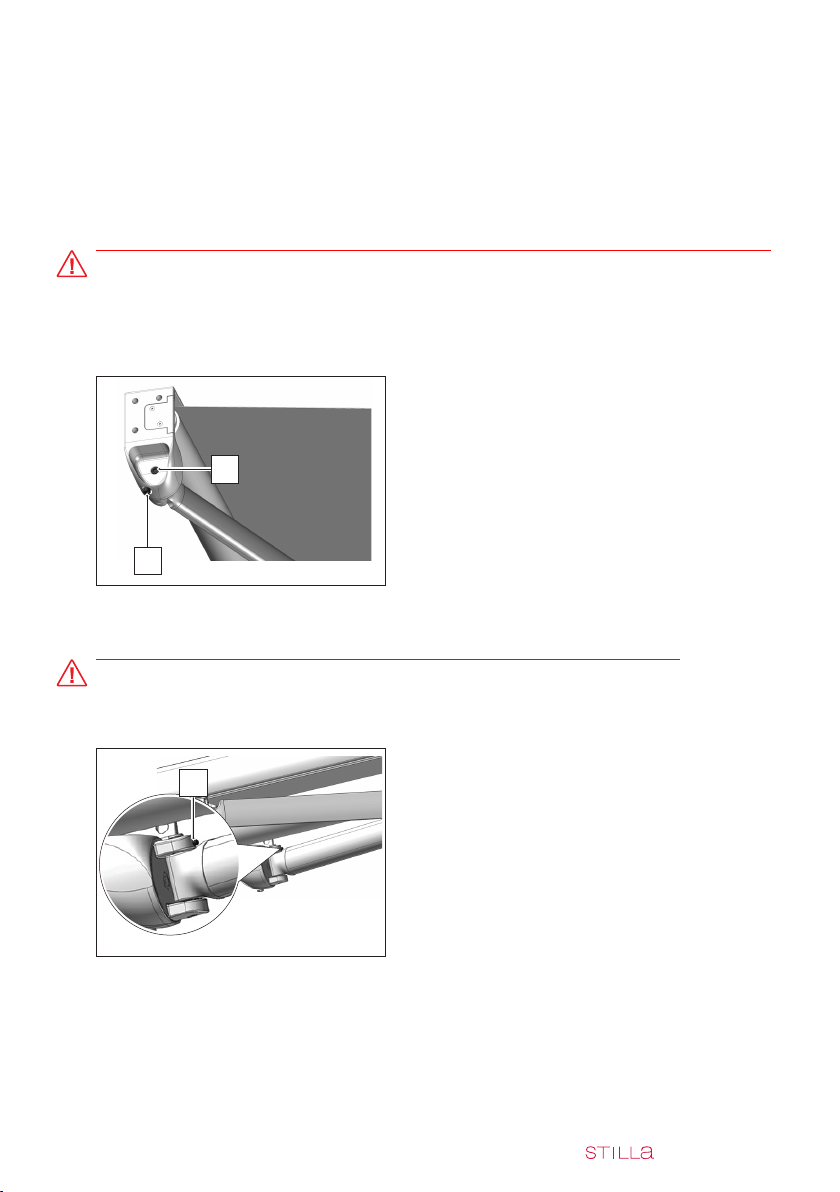

If the arm holder is to be used (see ref. 20 fig.
19), proceed as follows:
insert the arm holders in the groove in the ter-
minal bar with the aid of a rubber hammer);
insert the plate of the terminal bar connecting
kit and lightly tighten the screws.
Push the arms towards the supports, centre
the terminal bar with the fabric; once this has
been checked, the terminal bar connector
screws can be tightened (Allen wrench 5).
ATTENTION
Ensure that the terminal bar is firmly fixed
to the arms to prevent their opening without
control. fig.20
fig.19
fig.21
Insert the terminal bar caps (see ref. 21 fig.
21).
fig.17
fig.18
Assemble the insert including the motor
plate/crank (see ref. 19 fig. 17) on the roller
tube on the control side.
Assemble the tube complete with fabric, ter-
minal bar and inserts on the arm supports,
tightening the screws (Allen wrench 5) (see
fig. 18).
ATTENTION
Do not use the screwdriver. Ensure that the
inserts are firmly fixed to the supports.
19
20
21

16 | | ASSEMBLY
After having checked the tightness of the
terminal bar connecting screws, remove the
bands from the arms and open the awning.
Fix the fabric to the terminal bar. Perform two
awning opening/closing cycles.
fig.22

| ASSEMBLY | 17
6 - REGULATING THE AWNING
Once the awning has been assembled, to check that all the components are correctly
fitted you must:
»Make 2-3 test cycles of opening/closing the awning.
»Regulate any components that prevent the correct and unimpeded opening and closing move-
ment of the awning.
ATTENTION
Ensure that there are no persons, animals or things in the vicinity while opening/clos-
ing the awning.
Regulating the awning:
Slacken the side screw (see ref. 22 fig. 23)
of the arm support (Allen wrench 10). To
increase the inclination slacken the socket-
head screw (see ref. 23 fig. 23), (Allen wrench
8). To decrease the inclination tighten the
socket-head screw, raising the terminal bar.
After regulation, check that the terminal bar
is perfectly horizontal.
With the awning almost closed, check that
the arms are parallel.
If they are not parallel, tighten or slacken the
dowel (see ref. 24 fig. 24) in the lever (Allen
wrench 3), accompanying the arm.
fig.23
fig.24
ATTENTION
After regulation, firmly tighten the side screw.
23
22
24

18 | | ASSEMBLY
6.1 - Troubleshooting
The table below gives some examples of causes/remedies for any difficulties that
might be encountered when testing opening/closing of the awning:
MANUAL AWNING
PROBLEMS CAUSES REMEDIES
Tapered winding of the fabric Incorrect symmetry of the
arms
Fabric thickness not
uniform
Completely roll up the fabric and
contact the assistance service
Completely roll up the fabric and
contact the assistance service
Tab.4
MOTOR-OPERATED AWNING
Without electronic control unit
PROBLEMS CAUSES REMEDIES
Tapered winding of the fabric Incorrect symmetry of the
arms
Fabric thickness not
uniform
Completely roll up the fabric and
contact the assistance service
Completely roll up the fabric and
contact the assistance service
The awning does not roll up
completely
The awning does not open
completely
Incorrect limit switch
adjustment
Motor crown wheel shifts
during movement
Contact the Assistance service
Contact the Assistance service
Motor very noisy Wiring error
Faulty motor
Contact the Assistance service
Contact the Assistance service
Motor blocks after 4-5 min-
utes continuous operation
Motor thermal protection
tripped
Let the motor cool for a few minutes
Tab.5

| ASSEMBLY | 19
With electronic control unit
PROBLEMS CAUSES REMEDIES
The awning does not move Faulty fuse
Faulty motor
Wiring error
Contact the Assistance
service
Contact the Assistance
service
Contact the Assistance
service
The awning moves discon-
tinuously
Faulty anemometer Contact the Assistance
service
The awning does not roll
up in presence of strong
wind or rain
Wiring error
Faulty anemometer/pluviometer
Contact the Assistance
service
Contact the Assistance
service
With the radio control the
awning opens or closes
by itself
Wiring error
Fault in the system
Contact the Assistance
service
Contact the Assistance
service
Tab.6

20 | | ASSEMBLY
fig.25
7- REMOVING AND PACKING THE AWNING
7.1 - Removing
ATTENTION
The awning must be taken down by qualified personnel.
ATTENTION
The awning must be taken down when closed.
7.2 - Packing
The awning must be packed, wrapping separately the supports with the respective
arms and the tube complete with fabric, terminal bar and inserts.
IMPORTANT
After having taken down the awning, to protect it against possible blows and con-
sequent damage to its vital parts, the awning must absolutely be wrapped in good
packaging.
IMPORTANT
During packing it is necessary to pay particular attention to the delicate parts of the
awning (for example, the heads); these must be accurately protected with good pack-
aging.
IMPORTANT
Should it be decided not to use the awning for a prolonged period, it must be taken
down and packed and kept in a dry place, far from sources of heat, and sheltered from
atmospheric agents that might damage it.
Block the arms with the safety bands.
Remove the screws that block the terminal
bar connectors on the terminal bar (see ref.
25 fig. 25).
Unscrew the screws that block the inserts on
the supports and remove the tube complete
with fabric and terminal bar (see ref. 26 fig.
25).
26
25
