Shandong Renke Control Technology RS-FX-N01 User manual

Manual wind transmitter (485 type)
Shandong RenKe Control Technology Co.,Ltd. www.temperaturehumiditysensor.com
1
RS-FX-N01
wind transmitter
user's Guide
(485type)
Issue:. V1. 0

Manual wind transmitter (485 type)
Shandong RenKe Control Technology Co.,Ltd. www.temperaturehumiditysensor.com
2

Manual wind transmitter (485 type)
Shandong RenKe Control Technology Co.,Ltd. www.temperaturehumiditysensor.com
3
Context
1. Introduction.............................................................................................................................4
2. Installation instructions........................................................................................................... 5
3. Configure the software installation and use ........................................................................7
4. Communication Protocol........................................................................................................ 8
5. Common Problems and Solutions.........................................................................................10
6. Contact...................................................................................................................................11
7. Document History................................................................................................................. 11
8. Dimensions............................................................................................................................ 11

Manual wind transmitter (485 type)
Shandong RenKe Control Technology Co.,Ltd. www.temperaturehumiditysensor.com
4
1. Introduction
1.1 Product Overview

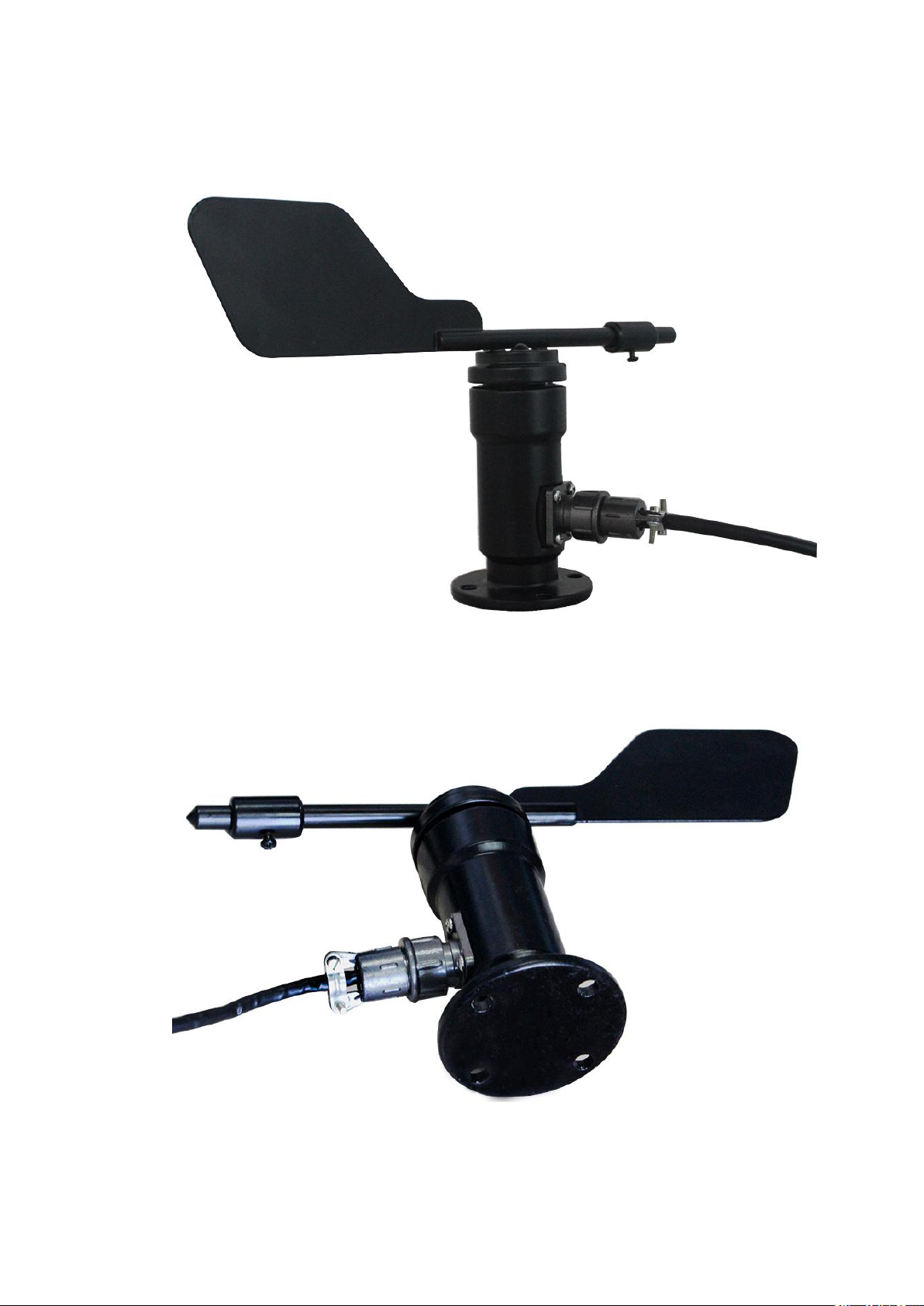

RS-FX-N01 wind transmitter, compact and lightweight, easy to carry and assembly, a new
design concept can effectively obtain information on wind direction, high-quality aluminum alloy
housing, external spray plating process, has good anti-corrosion, anti- Erosion and other
characteristics, to ensure long-term use of the transmitter without rust phenomenon, colleagues
with the internal smooth bearing system to ensure the accuracy of information collection. Is
widely used in greenhouse, environmental protection, weather stations, ships, docks, breeding and
other environmental wind direction measurement.
1.2 Features
Range: 8 indicating a direction
Anti - electromagnetic interference treatment
Using high-performance imported bearings, rotating resistance is small, accurate
measurement
Aluminum case, mechanical strength, high hardness, corrosion resistance,
long-term use in outdoor rust
Equipment structure and weight have been carefully designed and distributed, the
inertia is small, responsive
ModBus-RTU standard communication protocol, easy access,
1.3 Main Specifications
DC power supply (default)
10 ~ 30V DC
Transmitter circuit operating
temperature
-20 ℃~ + 60 ℃, 0 % RH ~ 80% RH
Communication Interface
485 (modbus) protocol
Baud Rate: 2400, 4800 (default), 9600
Data bit length: 8
Parity: none
Stop bit length: 1
The default ModBus Address: 1
Support Function code: 03

Manual wind transmitter (485 type)
Shandong RenKe Control Technology Co.,Ltd. www.temperaturehumiditysensor.com
5
parameter settings
Be configured with software provided by the
configuration 485
Measuring range
8 indicate the direction of
Dynamic response speed
≤ 0.5s
2. Installation instructions
2.1 Equipment installation check
Equipment List:
■ transmitter equipment 1
■ four mounting screws
■ certificate, warranty card, service card, etc.
■ 12V / 2A 1 water supply station (optional)
■ USB to 485 (optional)
■ 485 terminating resistor (optional)
2.2 Interface Description
Wide voltage power input 10 ~ 30 V can. Note that the signal line 485 when the terminal A
\ B two lines can not be reversed, the address bus between multiple devices must not conflict.
2 .3 electrical wiring
Line color
Description
Electricity
source
brown
A positive power supply (10 ~ 30 V DC)
black
Negative power supply
through
letter
yellow
485 -A
blue
485 -B
2.4 Description field wiring
When a plurality of types of devices 485 connected to the same bus, the field wiring have
certain requirements, refer to the specific data packet "485 field wiring device manual."

Manual wind transmitter (485 type)
Shandong RenKe Control Technology Co.,Ltd. www.temperaturehumiditysensor.com
6
2.5 Installation
Flange-mounted wind direction sensors threaded flange firmly fixed to the lower portion of
the tube flange, the chassis Ø65mm, open Ø6mm four mounting
holes are circumferentially Ø47.1mm using only bolts to securely in the bracket On the whole set
of instruments, to maintain the best level, to ensure the accuracy of wind direction data, flange
connection easy to use, able to withstand greater pressure.
Attention to the installation, the direction of the aviation plug must be consistent with
the north direction, so as to avoid measurement errors.
2.6 Considerations
1. Never disassemble, but can not touch the sensor core, so as to avoid damage to the
product.
2. The device as far away from the interference power, in order to avoid inaccuracies in
the measurement, such as inverter, motor, installation, disassembly must disconnect the power
transmitter into the water cut-off can lead to irreversible changes in the transmitter.
3. Prevention of chemicals, oil, dust and other directly against the sensor, not the
condensation, long-term use in extreme temperatures to prevent thermal shock.

Manual wind transmitter (485 type)
Shandong RenKe Control Technology Co.,Ltd. www.temperaturehumiditysensor.com
7
3. Configure the software installation
and use
3.1 Software Selection
Open the data package, select "Debug Software" --- "485 parameter configuration
software" to find Open it.
3.2 parameter settings

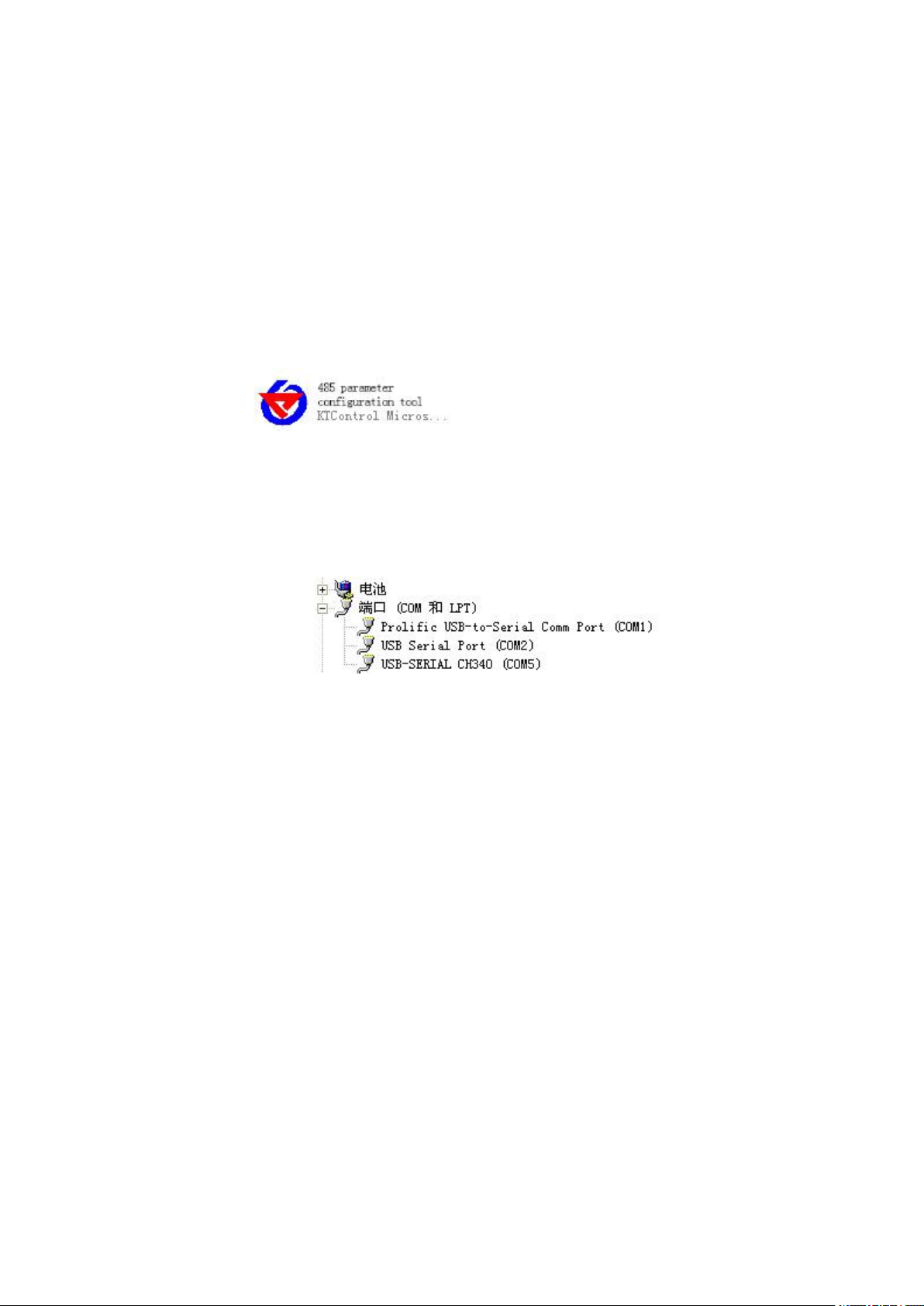

①, select the correct COM port ( "My Computer - Properties - Device Manager - Port"
inside view COM port), a figure below lists several different names drive 485 converter.
②, just take a single piece of equipment and power-up, click on the software testing baud
rate, the software will test the current baud rate and device address, the default baud rate
is 4800bit / s, the default address is0x01.
③, the address needs to be modified according to the use and the baud rate, and can query
the current state devices.
④, if the test is unsuccessful, recheck the wiring and equipment 485 driver installation.

Manual wind transmitter (485 type)
Shandong RenKe Control Technology Co.,Ltd. www.temperaturehumiditysensor.com
8
4. Communication Protocol
4.1 The basic parameters of Communications
Ed code
8-bit binary
Data bits
8
Parity bit
no
Stop bit
1
Error
CRC (cyclic redundancy code)

Manual wind transmitter (485 type)
Shandong RenKe Control Technology Co.,Ltd. www.temperaturehumiditysensor.com
9
checking
Baud rate
2400bit / s, 4800bit / s, 9600 bit / s can be set, the default setting
is 48 00bit / s
4.2 Frame format definition data
Using M odbus - RTU communication protocol, in the following format:
Initial structure ≥ 4 byte time
address code = 1 byte
function code = 1 byte
Data area = N bytes
Error checking = 16-bit CRC
End structure ≥ 4 byte time
Address code: for the address of the transmitter, the communication network is the only
(factory default 0x01).
Function Code: The host command functions such directions, the transmitter has used only
the function code 0x03 (read data register).
Data area: data area is the specific communication data, note data of 16bits endian!
CRC code: two-byte checksum.
Host query frame structure:
address
code
function
code
Register
start address
Register
length
Check
code low
Check the
code high
1 byte
1 byte
2 bytes
2 bytes
1 byte
1 byte
Slave response frame structure:
address
code
function
code
Valid
bytes
Data
area
Second
data area
The
first data
region N
Check
code
1 byte
1 byte
1 byte
2 bytes
2 bytes
2 bytes
2 bytes
4.3 Register Address
Register
address
PLC or configuration
address
content
operating
0000 H
40001
Wind (0-7 files)
Upload data is true
Read
only
0001 H
40002
Direction (0-360 °)
Read

Manual wind transmitter (485 type)
Shandong RenKe Control Technology Co.,Ltd. www.temperaturehumiditysensor.com
10
Upload data is true
only
4.4 value corresponding conversion relationships
Acquiring the
value (0-7 position)
Acquisition
value (0-360 °)
Corresponding
direction
0
0 °
North wind
1
45 °
Northeast wind
2
90 °
Dongfeng
3
135 °
Southeast wind
4
180 °
south wind
5
225 °
Southwest wind
6
270 °
Westerly
7
315 °
Northwest wind
4.5 protocol examples and explanation
Example: the reading direction of the device address 0x01
Inquiry frame:
address
code
function
code
Start
address
Data
length
Check code
low
Check the
code high
0x 01
0x0 3
0x00
0x00
0x00
0x0 2
0x C4
0x 0B
Answer frame: (E.g., read direction (0-7 speed) of 2, (0-360 °) is 90 °)
address
code
function
code
Returns
the number
of valid
bytes
wind
direction
(0-7 files)
wind
direction
(0-360 °)
Check
code low
Check
the code
high
0x 01
0x0 3
0x0 4
0x0 0 0x 02
0x 00 0x 5A
0x DB
0x C8
Wind calculation:
(0-7 speed): 0002 H (hexadecimal) = 2 => direction = Dongfeng
(0-360 °): 005A H (hex) = 90 => = east direction
5. Common Problems and Solutions

Manual wind transmitter (485 type)
Shandong RenKe Control Technology Co.,Ltd. www.temperaturehumiditysensor.com
11
5.1 device can not connect to a PLC or PC
possible reason:
1) computer has multiple COM ports, port selection is not correct.
2) device address error, or there is a duplicate device address (factory default all 1).
3) The baud rate, parity, data bits, stop bits error.
4) The master polling interval and response wait time is too short, it is required more
than 200ms provided.
5) 485 has turned off, or A, B line reversed.
6) the number of devices or the wiring too long, to be near the power supply,
plus booster 485, while increasing 120 Ω termination resistor.
7) USB drive switch 485 is not installed or damaged.
8) equipment damage.
6. Contact
Shandong RenKe Control Technology Co.,Ltd.
Post code：250101
Tel：[phone]
Fax：[phone]
Website address: www.temperaturehumiditysensor.com
7. Document History
V1.0 documents created.

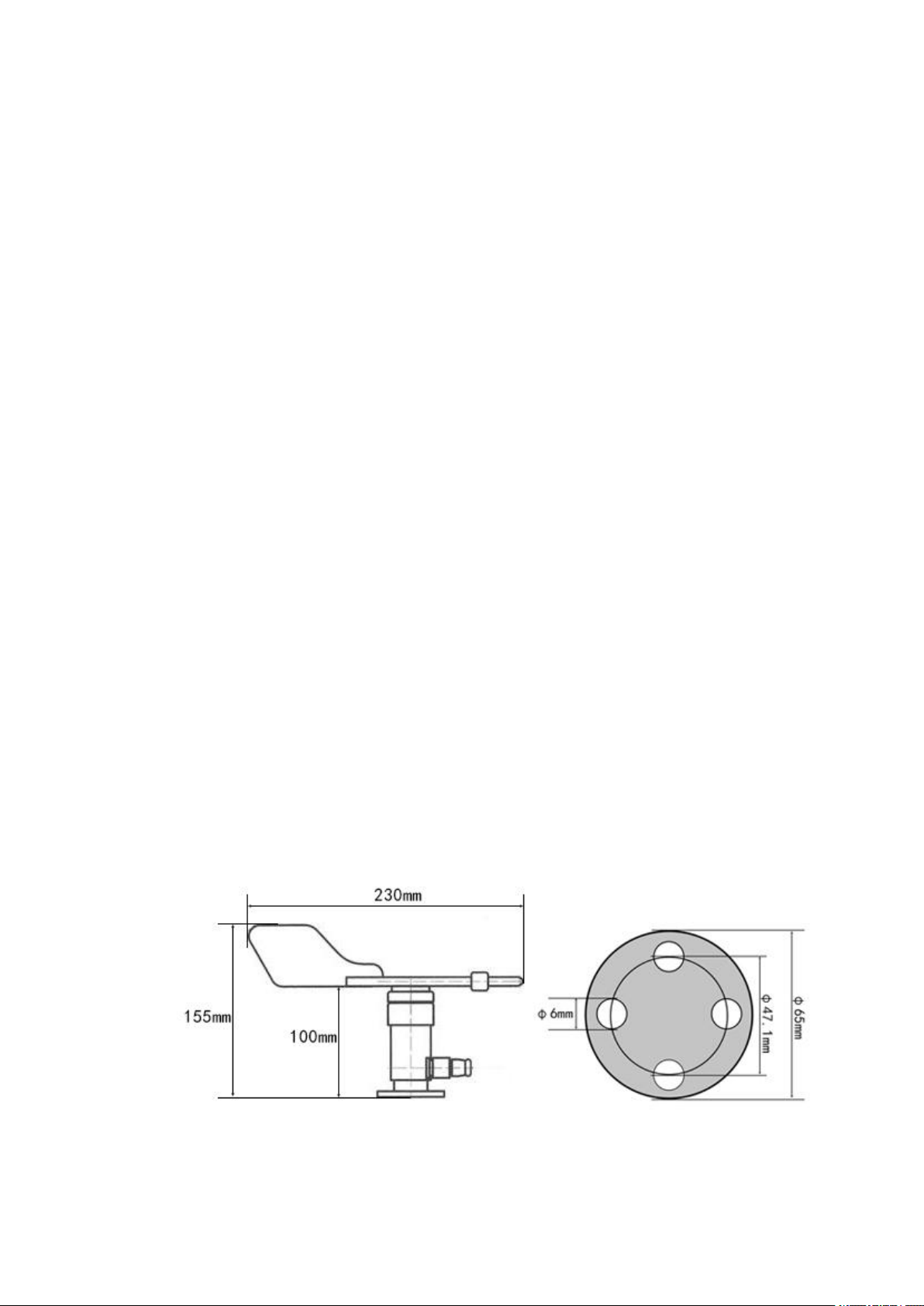

8. Dimensions
