elero UniTec-868 User manual

UniTec-868
No. 28330.0001
elero UK Ltd.
Foundry Lane
Halebank
Widnes,
CheshireWA8 8TZ
[email protected].uk
www.elero.com
Nr.18 100.6701/0505309401
elero
Operating instructions
Please take care of the operating instructions!
GB

Safety instructions
GB-2
Important safety instructions!
Observe the following instructions.
• Use only in dry rooms.
• Only use unmodified original elero electrical
parts.
• Keep persons away from the operating range
of the systems.
• Keep children away from the controls.
• Follow the relevant country-specific
regulations.
• Dispose of used batteries properly.
Replace batteries only with batteries of the
identical type (CR 2032).
• If one or more transmitter are used for
controlling the system, the operating range
must stay visible during operation.
• The device contains swallowable small parts.
GB
Note!
Safety instructions ........................................ GB-2
Explanation of buttons ................................... GB-3
General information ...................................... GB-4
Intended use ............................................... GB-4
Advices ..................................................... GB-5
Mounting of wall bracket ................................. GB-5
Explanation of functions .................................. GB-6
Manual/automatic sliding switch .................... GB-6
Transmission indicator lamp ......................... GB-6
Group controller ....................................... GB- 6
Intermediate position ................................. GB-6
Ventilation/Tilting .................................... GB-6
Programming the radio ................................... GB-7
Program the transmitter ............................. GB-7
Programming further transmitters .................. GB-7
Intermediate positions for
roller shutters/awnings/venetian blinds ................ GB-9
Program intermediate position ...................... GB-9
Programming ventilation slots/tilting ............... GB-9
Approach intermediate position ..................... GB-10
Approach ventilation position/tilting ............... GB-10
Delete intermediate position ......................... GB-10
Delete ventilation slots/tilting ....................... GB-10
Delete radio ................................................ GB-11
Deletion of individual transmitters .................. GB-11
Deletion of all transmitters .......................... GB-11
Technical data ............................................. GB-12
Cleaning .................................................... GB-12
Changing the battery ..................................... GB-12
Notes on troubleshooting ................................ GB-12
General conformity declaration .......................... GB-12
Contents
GB-1

GB-4
General information
You can control one or more receivers with the UniTec-868
transmitter.
This device features a very simple operation.
Intended use
The UniTec-868 may only be used for controlling roller shutter
or sun protection devices.
• Please note that radio systems must not be operated in
areas with an increased risk of interference (e.g. hospitals,
airports).
• The remote control is only approved for devices and systems
for which any malfunction of the manual transmitter or
receiver would not result in a risk for persons,animals or
property, or if such a risk is covered by other safety devices.
• The operator has no protection whatsoever from inter-
ferences by other radio emitters and local terminals
(e.g. also from radio installations),that are normally used on
the same frequency range.
• Only use radio receivers with equipment and units approved
by the manufacturer.
GB
Explanation of buttons
GB-3
General information/intended use
UniTec-868 P

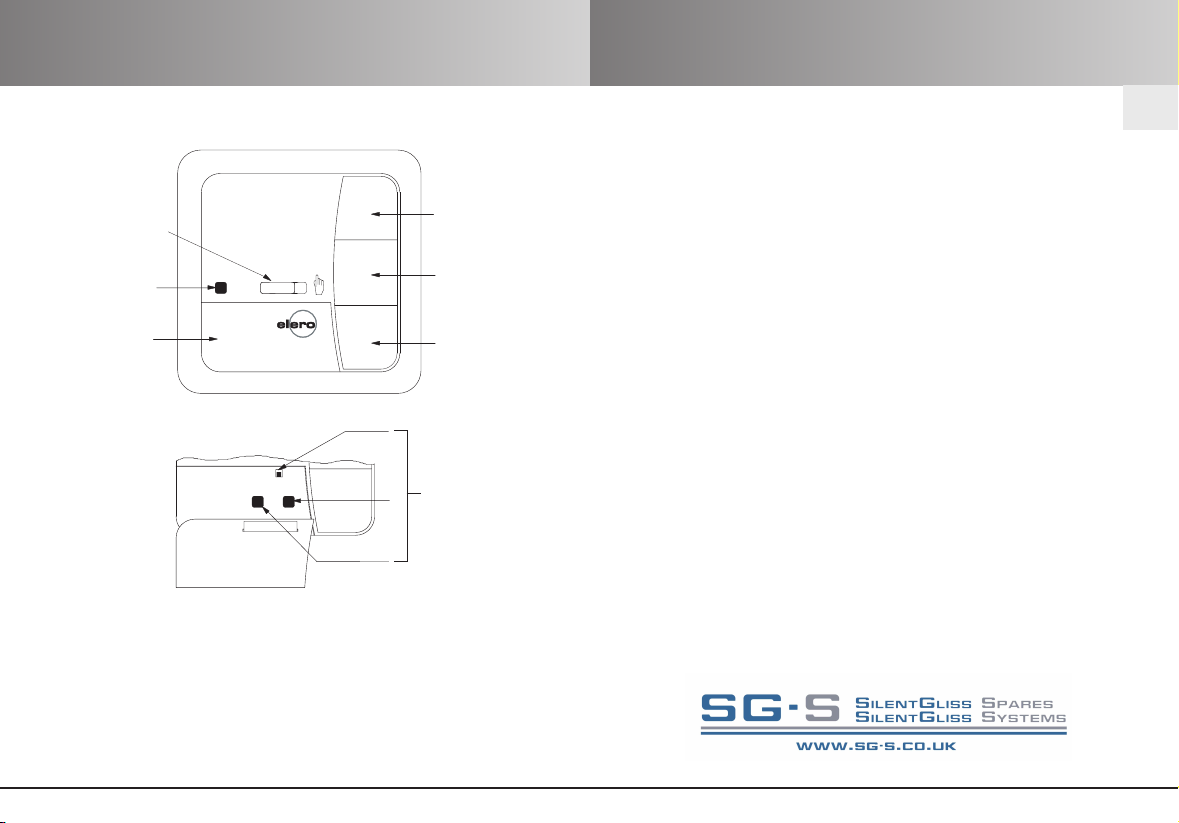

Explanation of buttons
Buttons under the cover flap
Lerntaste (Geräterückseite)
Indicator lamp
Cover flap
Manual/automatic
sliding switch
DOWN-button
STOP-button
UP-button
Auto
Programming
buttons P

Explanation of functions
GB-6
Manual/automatic sliding switch
The receivers are switched into "Manual “ or "AUTO“.
In automatic mode the receivers react to all signals, in manual
mode only to the UP-STOP-DOWN button and the wind signal.
Transmission indicator lamp
A radio signal is displayed by the lighting up of the transmission
indicator lamp.
The transmitting power or the range of transmission will be redu-
ced through the reduction in the performance of the battery. If the
indicator pilot lamp does not light up when the button is pressed
the battery must be exchanged.
Group controller
A group is understood to mean control of one or more receivers at
the same time.
The UniTec-868 can be teached-in into several receivers.
Intermediate position
The intermediate position is a freely-selectable position of the
blind/shutter betweeen the top and bottom end position.This can
be approached from the top end position after programming is
complete.
Press the DOWN-button briefly twice successively.
In venetian blind mode any tilting which is programmed is carried
out automatically when the blind reaches the intermediate posi-
tion.
Ventilation/Tilting
The ventilation-tilting position is a freely selectable positoin of the
blind/shutter between the top and bottom end positoin. Using
this function you can raise the roller shutter from the lower end
position until the ventilation slits are again open.With venetion
blinds,the slats are inverted.
Press the UP-button briefly twice successively.
GB
Installation
GB-5
Advice: Radio systems,which operate on the same frequency,
can lead to reception of interferences.
Please note, that the range of the radio signal is
limited by the government and the built environment.

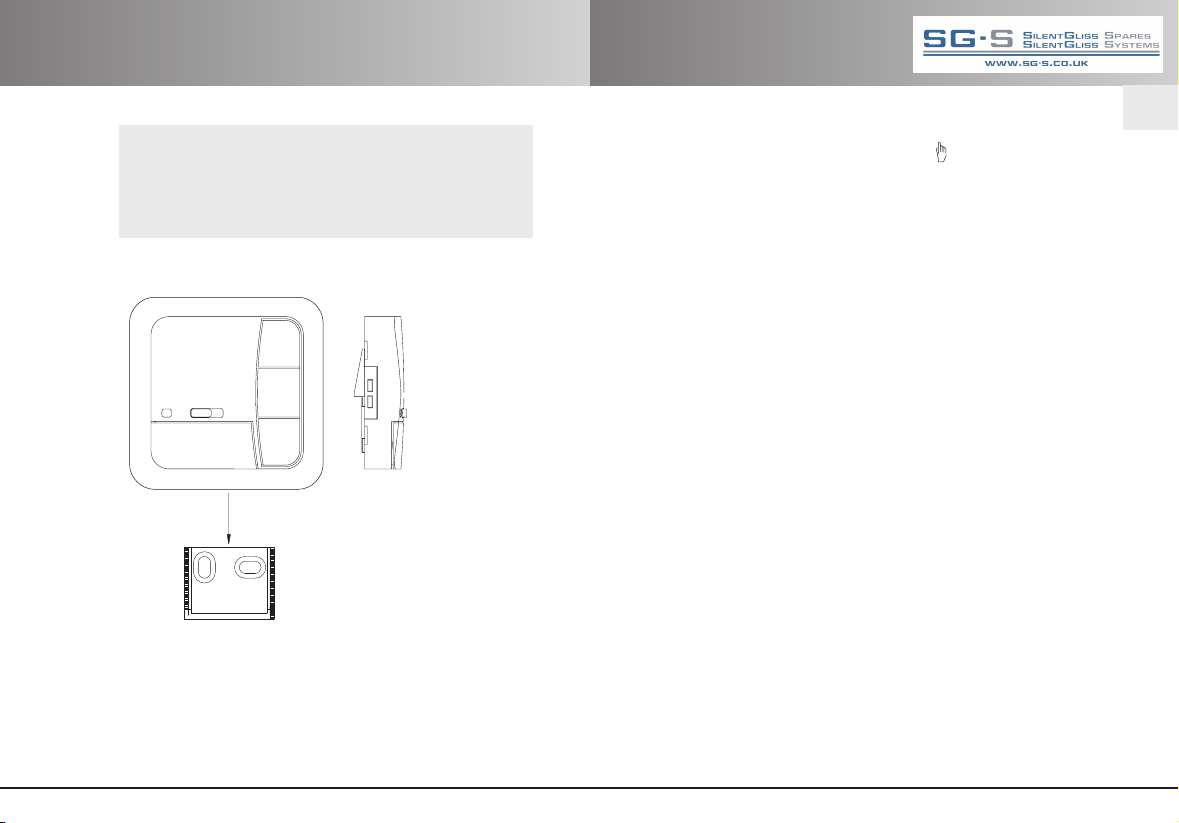

Mounting of wall bracket
• Before installing the unit at the required position,check the
proper function of the transmitter and the receiver.
• Attach the bracket to the wall with the two dowels and screws
which are provided.
• Push the UniTec-868 onto the wall bracket from above.

GB-8
GB
Programming the radio
GB-7
Program the transmitter
Condition: The drive must be installed.
1. 1.With electrical, previously installed drives, turn the safety
fuse off and after a few seconds on again.
The receiver is now in programming mode for about 5 minutes.
2. Stand in front of the blind/shutter with the transmitter.
3. Open the cover on the front and press one of the programming
buttons Pbriefly.
The blind/shutter automatically travels briefly up and down
again and again for about 2 minutes.
4.To define the button assignment press the UP-button on the
transmitter immediately after the start of the up travel (1 sec.).
The blind/shutter will stop for a short time.
Immediately after the start of the down travel press the
DOWN-button on the transmitter.
The blind/shutter will stop.
The transmitter is now programmed.
Programming the radio
Programming further transmitters
If you wish to program other transmitters to a receiver you can pro-
ceed as follows:
1. On a transmitter,which has already been programmed to the
receiver, press the UP,DOWN and the programming button P
until the LED goes out.
2. To define the button assignment press the UP-button on the
transmitter immediately after the start of the up travel (1 sec.).
The blind/shutter will stop for a short time.
Immediately after the start of the down travel press the
DOWN-button on the transmitter.
The blind/shutter will stop.
The transmitter or this channel is programmed.
Advice: If several receivers are connected to the same feed line,
then all are simultaneously ready to program.
The roller shutter starts a“random”brief up/down trip.
The longer you wait with the programming the greater
will be the offset.
Individual transmitters can now be assigned to the
respective receiver.
You can stop the brief up/down travel by briefly pressing
the STOP-button on a manual transmitter which has
already been programmed.
The channel assignment/change can now be made
without you having to disconnect the individual receivers.
If the roller shutter travels in the wrong direction,delete
the transmitter and reprogram it.
The last direction assignment by the transmitter is valid
for all transmitters which have been programmed in the
receiver.

GB-9
Intermediate positions for
roller shutters/awnings/venetian blinds
Programming position B
Condition:The transmitter has been programmed and the
end positions of the drive have been set.
The blind/shutter is at its upper end position.
1. Travel the blind/shutter to the required position with the
DOWN-button.
Important:Hold down the DOWN button until the desired
position is reached.
2. As soon as it reaches the required position,also press the
STOP-button.
The blind/shutter stops,you have now programmed the
intermediate position.
Programming position V
Condition:The transmitter has been programmed and the
end positions of the drive have been set.The
blind/shutter is at its lowest end position.
1. Travel the blind/shutter with the transmitter as far as
necessary in the UP-direction until the ventilation slots
open or the tilting is reached.
Important:Hold down the UP-button until the desired
position is reached.
2. As soon as it reaches the required position,also press the
STOP-button.
The blind/shutter stops,you have now programmed the
position for ventilating slots/tilting.

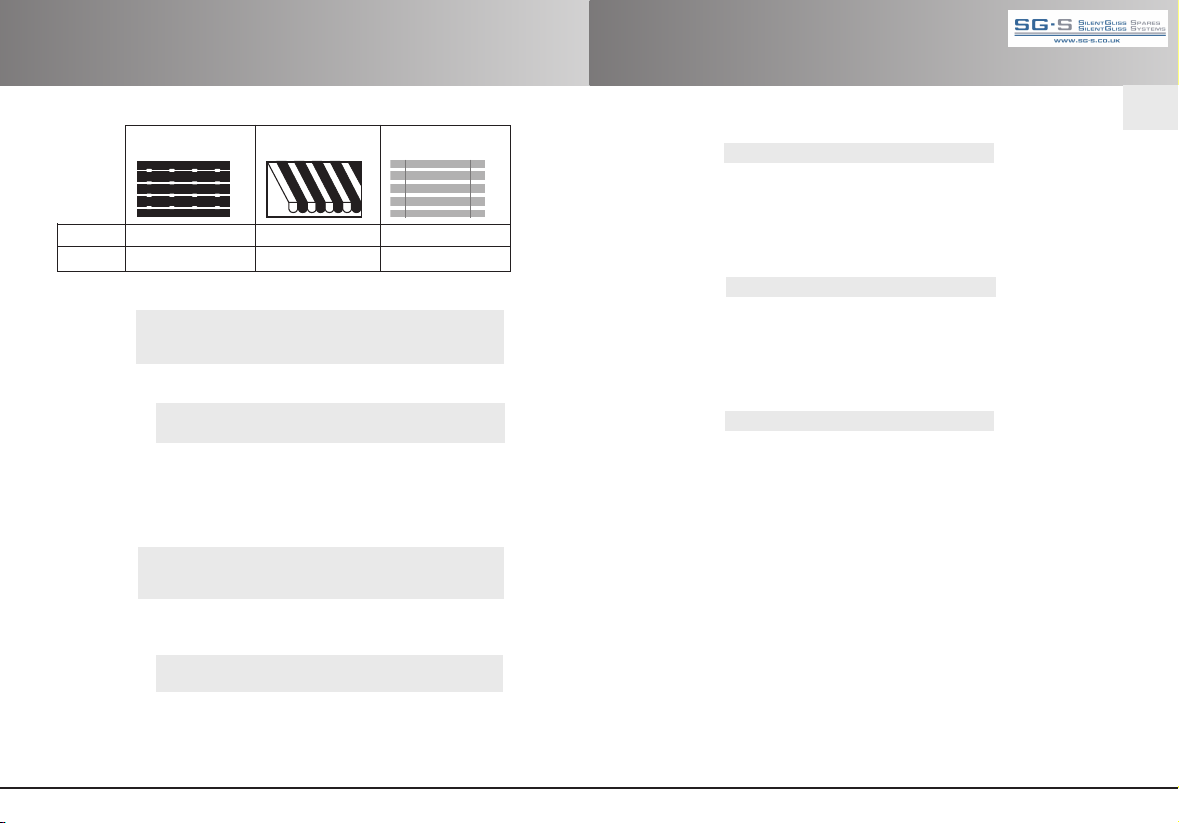

Roller shutters Awning Venetian blind
Pos B
Intermediate position Intermediate position Intermediate position
Pos V Ventilation position Fabric position Tilting position
GB-10
GB
Intermediate positions for
roller shutters/awnings/venetian blinds
Approach Pos B
Condition:The transmitter is now programmed.
1. Press the DOWN-button briefly twice successively.
2.The drive travels to the stored intermediate position.
If no intermediate position has been stored the blind/
shutter travels to the lowest end position.
Approach V(roller shutter, awning)
Condition:The transmitter is now programmed.
1. Press the UP-button briefly twice successively.
2. The blind/shutter travels to the stored ventilation position.
If no ventilation position has been stored the blind/shutter
travels to the upper end position.
Approach VVenetian blinds (venetian blind)
Condition:The transmitter is now programmed.
1. Press the UP-button briefly twice successively.
2. The blind/shutter travels to the stored tilting position.
If no position has been stored the roller shutter travels to
the lower end position.
Delete Pos B
1. Press simultaneously:
• DOWN-button
• STOP-button
2. Hold down this button combination until the LED goes
out briefly.
Delete Pos V
1. Press simultaneously:
• UP-button
• STOP-button
2. Hold down this button combination until the LED goes
out briefly.

GB-12
GB
Operating voltage 3 V DC
Battery type CR 2032
Protection class IP 20
Permitted ambient temperature 0° to +50 °C
Radio frenquency 868,3 MHz
Deletion of individual transmitters
1. Open the front cover and press simultaneously:
• Programming button P
•STOP-button
2. Hold down this button combination until the LED goes out
briefly.
Deletion of all transmitters
1. Open the front cover and press simultaneously:
• Programming button P
•UP-button
•STOP-button
•DOWN-button
2. Hold down this button combination until the LED goes out
briefly 3 times.
Technical data
The maximum sending range within a building is up to 20 m and
in the open air up to 150 m.
GB-11
Deletion of radio/technical data Battery changing/Cleaning/Troubleshooting
Changing the battery
1. Push the wall transmitter up out
of the wall holder.
2. Remove the battery.
3. Insert a new battery correctly.
Cleaning
Clean the device with a damp
cloth only.
Do not use cleaning solutions,
as these may damage the plastic.
Notes on troubleshooting
Fault Cause Remedy
CR
2032
The drive does not run,
the transmission indi-
cator lamp
doesn’t light up.
The drive does not run,
the transmission indi-
cator lamp stays on.
The automatic switch
commands are not
carried out.
Drive operates in the
wrong direction.
1.Install a new battery.
2.Install the battery
correctly.
1.Reduce distance to the
receiver.
2.Program the transmitter
Set the UniTec-868 to
"AUTO“.
Delete transmitter and
program correctly.
1.The battery is empty.
2.The battery is incorrectly
installed.
1.The receiver is outside of
sending range.
2.Transmitter not pro-
grammed into receiver.
The UniTec-868 is set to
"Manual “ operation.
Directions are incorrectly
programmed.
General conformity declaration:
The company Firma elero GmbH herewith declares that the
UniTec-868 conforms to the basic requirements and other relevant
regulations of Directive 1999/5/EC.

Warnhinweise
GB-14
GB
GB-13
