Shark NV80 User manual

Owner’s Guide
www.sharkclean.com
NV80
NV80_26_IB_E_111130_3.indd 1 11-11-30 3:26 PM

TOLL FREE: 1-800-798-7398
This manual covers model numbers:
NV80 26
TECHNICAL SPECIFICATIONS
Voltage: 120V.
Watts: 1200W
Amps: 10A
Hertz: 60Hz
NV80_26_IB_E_111130_3.indd 2 11-11-30 3:26 PM

1
www.sharkclean.com
Contents
Important Safety Instructions 2
Getting Started 4
Using the Vacuum 6
Cleaning with the Vacuum Accessories 7
Emptying the Dust Cup Assembly 8
Proper Care of Your Vacuum 9
Troubleshooting 10
Checking for Blockages 11
Maintenance 12
Warranty and Registration 13
Thank you for
purchasing
the Shark®
Navigator™
Professional.
NV80_26_IB_E_111130_3.indd 1 11-11-30 3:26 PM

2
TOLL FREE: 1-800-798-7398
WARNING:
TO REDUCE THE RISK OF ELECTRIC
SHOCK OR INJURY DO NOT USE
OUTDOORS OR ON WET SURFACES.
WHEN USING YOUR SHARK®
NAVIGATOR™PROFESSIONAL VACUUM,
BASIC SAFETY PRECAUTIONS SHOULD
ALWAYS BE FOLLOWED, INCLUDING THE
FOLLOWING:
READ ALL INSTRUCTIONS BEFORE
USING YOUR SHARK®NAVIGATOR™
PROFESSIONAL VACUUM.
POLARIZED PLUG:
This appliance has a polarized plug (one blade
is wider than the other). As a safety feature, this
plug will fit into a polarized outlet only one way.
Do not force into the outlet or try to
modify the plug to fit.
IMPORTANT SAFETY INSTRUCTIONS
For Household Use Only
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY:
GENERAL ELECTRICAL SAFETY:
1. Unplug from electrical outlet when not in use
and before servicing.
2. DO NOT use vacuum with a damaged cord
or plug. If appliance is not working as it
should, has been dropped, damaged, left
outdoors, or dropped into water, return it to
EURO-PRO Operating LLC for examination,
repair, or adjustment.
3. DO NOT pull or carry vacuum by the cord.

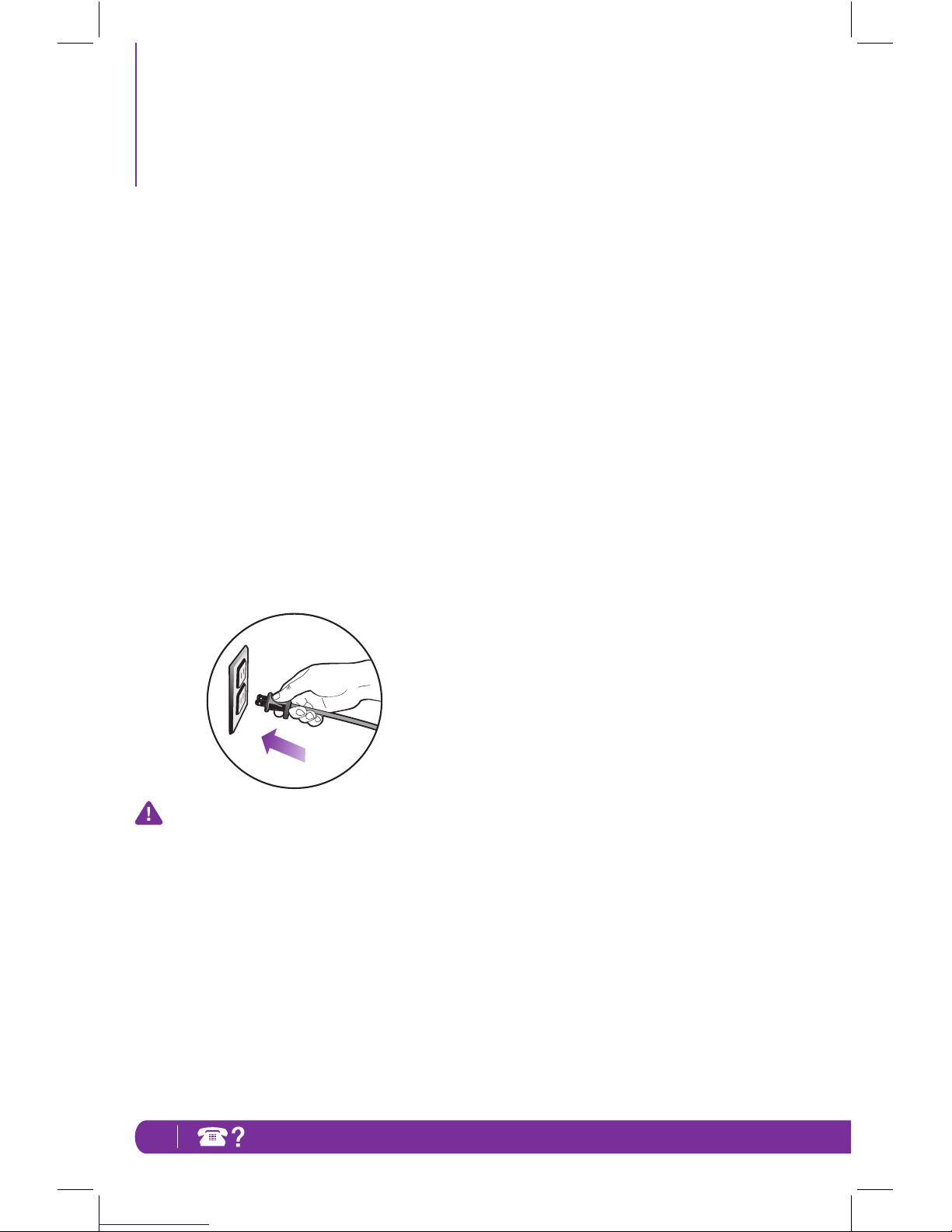

4. DO NOT unplug by pulling on cord; to
unplug, grasp the plug, not the cord.
5. DO NOT handle plug or appliance with
wet hands.
6. DO NOT run the vacuum over the power
cord.
7. DO NOT use the cord as a handle.
8. DO NOT close a door on the cord.
9. DO NOT pull cord around sharp corners.
The use of an extension cord is not
recommended.
10. DO NOT leave appliance when plugged in.
11. Keep cord away from heated surfaces.
12. Turn off all controls before plugging or
unplugging vacuum cleaner.
13. Always turn off this appliance before
connecting or disconnecting motorized
nozzle.
14. Store your appliance with the power cord
secured around the two cord holders-as
shown in the storage instructions.
NV80_26_IB_E_111130_3.indd 2 11-11-30 3:26 PM

3
www.sharkclean.com
HOSE ATTACHMENTS:
1. DO NOT use if air flow is restricted; if the air
paths, the hose, or the accessories become
blocked, turn the vacuum cleaner off. Remove
all obstructions before you turn on the
unit again.
2. Keep the end of the hose and accessory
openings away from face and body.
3. Keep cleaning tools and hose suction
openings away from hair, face, fingers,
uncovered feet,or loose clothing.
4. Only use manufacturer’s recommended
attachments.
GENERAL USE:
1. Use only as described in this manual.
2. DO NOT put any objects into openings. DO
NOT use with any opening blocked; keep
free of dust, lint, hair, and anything that may
reduce air flow.
3. Keep your work area well lit.
4. Keep the vacuum moving over the carpet
surface at all times to avoid damaging the
carpet fibers.
5. DO NOT place vacuum on unstable surfaces
such as chairs or tables.
6. DO NOT allow young children to operate
the vacuum or use as a toy. Close attention is
necessary when used by or near children.
7. DO NOT use vacuum cleaner if it has
been dropped, damaged, left outdoors, or
submerged in water. Return to EURO-PRO
Operating LLC for examination, repair, or
adjustment.
8. DO NOT use without dust cup and/or filters
in place.
DUST CUP/FILTERS/ACCESSORIES:
Before turning on the vacuum:
1. Make sure that all filters are thoroughly dry
after routine cleaning.
2. Make sure that dust cup and all filters are in
place after routine maintenance.
3. Make sure accessories are free of blockages.
4. Only use filters and accessories provided by
EURO-PRO Operating LLC. [Failure to do so
will void the warranty.]
GENERAL CLEANING:
1. DO NOT pick up large-sized objects.
2. DO NOT pick up hard or sharp objects such
as glass, nails, screws or coins that could
damage the vacuum cleaner.
3. DO NOT pick up smoking or burning objects
such as hot coals, cigarette butts, or matches.
4. DO NOT pick up flammable or combustible
materials such as lighter fluid, gasoline, or
kerosene or use vacuum in areas where they
may be present.
5. DO NOT pick up toxic solutions such as
chlorine bleach, ammonia, or drain cleaner.
6. DO NOT use in an enclosed space where
vapors are present from paint, paint thinner,
moth-proofing substances, flammable dust or
other explosive or toxic materials.
7. DO NOT vacuum up any liquids.
8. DO NOT immerse vacuum cleaner in water
or other liquids.
9. DO NOT use outdoors or on wet surfaces;
use only on dry surfaces.
10. Use extra care when cleaning on stairs.
SAVE THESE
INSTRUCTIONS
NV80_26_IB_E_111130_3.indd 3 11-11-30 3:26 PM

4
TOLL FREE: 1-800-798-7398
WHAT’S IN THE BOX YOU JUST
OPENED:
AVacuum Body
BFloor Power Nozzle
CHandle Assembly
DSuper Stretch Hose
ECleaning Wand with Handle
FCleaning Wand
GPet Hair Power Brush
HCleaning Attachments
I16” Crevice Tool*
J Accessory Bag (not shown)
* Note: The crevice tool may be
stored in the Cleaning Wand.
Getting Started
Your Shark®Navigator™
Professional is easy to
assemble:
1Lay your vacuum body on a
level surface.
2Slide the electrical connection
from the power nozzle into the
main body to click into place.
3Connect the hose from the main
body to the power nozzle; push
with a slight turning motion to
create a snug fit.
4Slide the handle assembly
into the upright unit aligning
the hose hook on the handle
assembly with the power cord
hooks on the back of the unit.
5Secure the handle assembly in
place with included nut/bolt
(shipped attached to handle
assembly).
6Place the vacuum in the upright
position.
7Insert the Cleaning Wand with
the Handle into the center post
on the tool caddy. Insert the
16" Crevice Tool onto the post
in front.
8Store the Crevice Tool, Dusting
Brush on the back of the unit.
Store the Cleaning Wand onto
the back post of the tool caddy.
A
C
E
H
I
B
G
D
F
8
4
5
3
7
2
NV80_26_IB_E_111130_3.indd 4 11-11-30 3:26 PM

5
www.sharkclean.com
11 To carry the vacuum:
With the unit in the standing
position, lift by the Dust Cup
Assembly Handle (carry handle).
CAUTION: When lifting or
carrying, DO NOT press Dust
Cup Assembly release button.

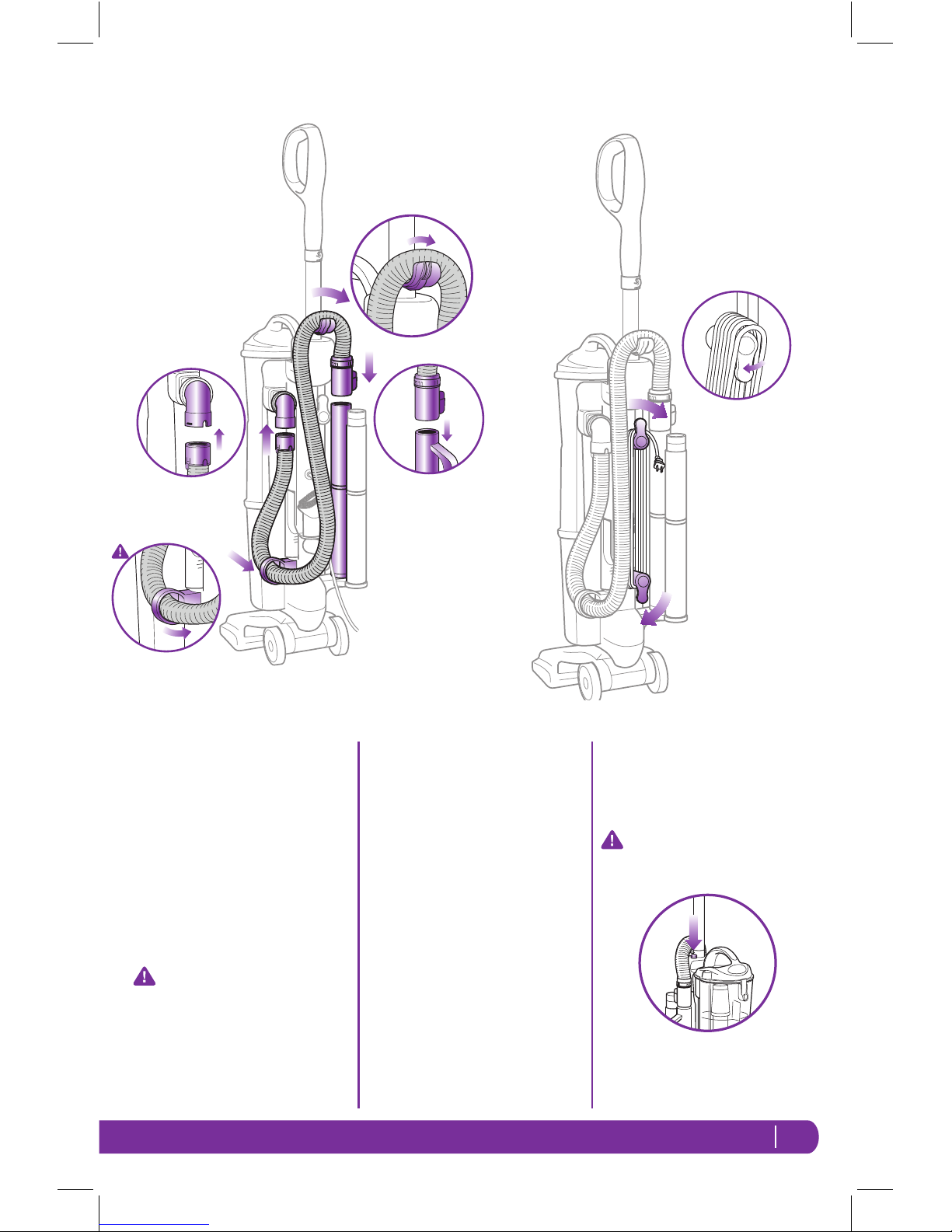

9Attach the Super Stretch Hose:
a) Snap hose into swivel
connector
b) Route under anti-tip hook
to prevent vacuum from
tipping
c) Route over upper hose
holder
d) Press securely onto cleaning
wand with handle
IMPORTANT:
Insert the hose into the wand
with the handle. This completes
the air path and enables suction
to reach the Floor Power
Nozzle.
10 To store the vacuum:
When storing your vacuum,
wind the cord around the two
cord holders and secure with
cord clip:
 •QuickCordreleaseatthe
top of the unit – place in the
upright position.
 •Cordholdernearthebase–
turn it until it is pointing down.
 Toreleasethecord,turntheQuick
Cord release to the left or right.
Store the Pet Hair Power Brush,
in the accessory bag when not
in use.
9
d
b
a
c10
NV80_26_IB_E_111130_3.indd 5 11-11-30 3:26 PM

6
TOLL FREE: 1-800-798-7398
Using the Vacuum
Your Shark®Navigator™
Professional Vacuum can be used to
clean bare floors or carpets – with the
click of a switch.
Stand the vacuum into the upright
position.
Plug in the vacuum.
1Start with the Power Switch in the
“O"- Off position.
2Place your foot on the Floor Power
Nozzle and pull handle towards
you.
3Set the Power Switch to desired
cleaning setting.
4Push the power cord into the
groove on the handle and then
secure the power cord into the
cord clip.
5Press the On/Off switch to the“I"
position to vacuum bare floors or
cleaning with the hose (straight
suction only) or to the "II"
position to engage the motorized
floor brush (for vacuuming carpets
and rugs).
6Due to the huge suction
power of this vacuum, it may
become necessary to adjust
the suction release on the
hose. If the vacuum is difficult
to push or pull or if it is
lifting up area rugs, adjust the
suction release by opening
the valve at the top end of
the hose. Close the suction
release valve for maximum
suction when vacuuming
floors or when using the pet
hair power brush.
IMPORTANT:
Your Brushroll Indicator Light
will illuminate solid green when
the brushroll is on, or solid red if
there is a blockage. This feature is
designed to protect your Lifetime
Belt that powers your brushroll.
See Checking for Blockages
on page 11.
NOTE: The height of your power
nozzle has been optimized
for easy pushing and superior
cleaning on all floor types, so there
is no need to make any height
adjustments as you transition to
different floor & carpet types.
IMPORTANT: To protect your
carpets, the brushroll will only
turn on when you have pulled
the handle back towards you and
released the Floor Power Nozzle.
OFF
Bare Floors /
Tools
Carpets
Power Switch
Settings
Suction Release
Release suction for
easier push and pull
on high pile carpets
and area rugs.
4
2
3
6
NV80_26_IB_E_111130_3.indd 6 11-11-30 3:26 PM

7
www.sharkclean.com
Cleaning with the Vacuum Accessories
Before cleaning with your
accessories:
Stand vacuum into upright position.
Secure Super
Stretch Hose in
the anti-tip hose
hook to prevent
tipping.
Select the “I" - On position for
suction only cleaning.
DO NOT pull vacuum cleaner
around by the hose.
DO NOT overextend the hose.
Vacuum Accessories
Your vacuum comes with a Super
Stretch Hose and Cleaning Wand
with handle. Use one or the other to
attach your cleaning accessories.
1Using the Super Stretch Hose:
Stand the vacuum into upright
position.
Remove the hose from the
Cleaning Wand with handle.
Push the selected tool into the
hose connector.
1
3
4
5
6
2Using the Cleaning Wand:
Stand the vacuum into upright
position.
Remove the Cleaning Wand with
handle (with hose attached)
from the unit.
Push the selected tool into the
end of the Cleaning Wand.
For a longer reach, add the extra
Cleaning Wand (7) and then
attach the various accessories.
3Pet Hair Power Brush
4Dusting Brush
5Crevice Tool
616” Crevice Tool
Note: Remove the crevice tool
from the Cleaning Wand to use.
7Extra Cleaning Wand
To order additional parts and accessories,
go to www.sharkclean.com or call
1-800-798-7398.
2
3
4
5
6
7
NV80_26_IB_E_111130_3.indd 7 11-11-30 3:26 PM

8
TOLL FREE: 1-800-798-7398
Maintenance
For best results empty the Dust Cup
Assembly after each use, as needed
during prolonged usage or when it
reaches the MAX fill line.
DO NOT OVERFILL.
Turn vacuum off before emptying.
To empty the Dust Cup:
1Grip carry handle and press
the Dust Cup release button to
remove.
2Option A:ForQuickEmpty:
Insert Dust Cup deep inside
trash receptacle to contain dust
and debris.
Press the bottom Dust Cup
release button; tap container
gently to dislodge and release
dust and debris.
Snap door in place.
Important: If the Dust Cup
Door does not swing open after
pressing the release button,
push the door open using the
bottom door tabs.
CAUTION:
Unplug the vacuum;
failure to do so might
result in electric
shock.
3Option B: For Allergy Sufferers:
Wrap a trash bag around the
Dust Cup leaving space at the
bottom for the door to swing
open.
Locate the Dust Cup Door
release button within the trash
bag and press to release as you
shake the dust cup to empty
dust and debris.
Snap the bottom door in place.
Note: Option B can also be
performed outside of the home
to further minimize releasing
dust back into the air. Carry just
the Dust Cup and trash bag
outside.
Note: Some dust and debris
may remain in the top of your
dust cup on or near the metal
screen. It is not necessary to
completely remove this material
before continuing to vacuum;
Shark®advanced cyclonic
action will sweep the metal
screen clean once you begin to
refill your dust cup.
1
2
3
NV80_26_IB_E_111130_3.indd 8 11-11-30 3:26 PM

9
www.sharkclean.com
COMPONENT MAINTENANCE SCHEDULE
Rinse and air dry every month under normal use.
Empty each time you vacuum.
Pre-Motor Foam Filter
Dust Cup
Rinse and air dry every month under normal use. Pre-Motor Felt Filter
Clean every 2 years under normal use.
Post-Motor HEPA Filter
1
2
3
4

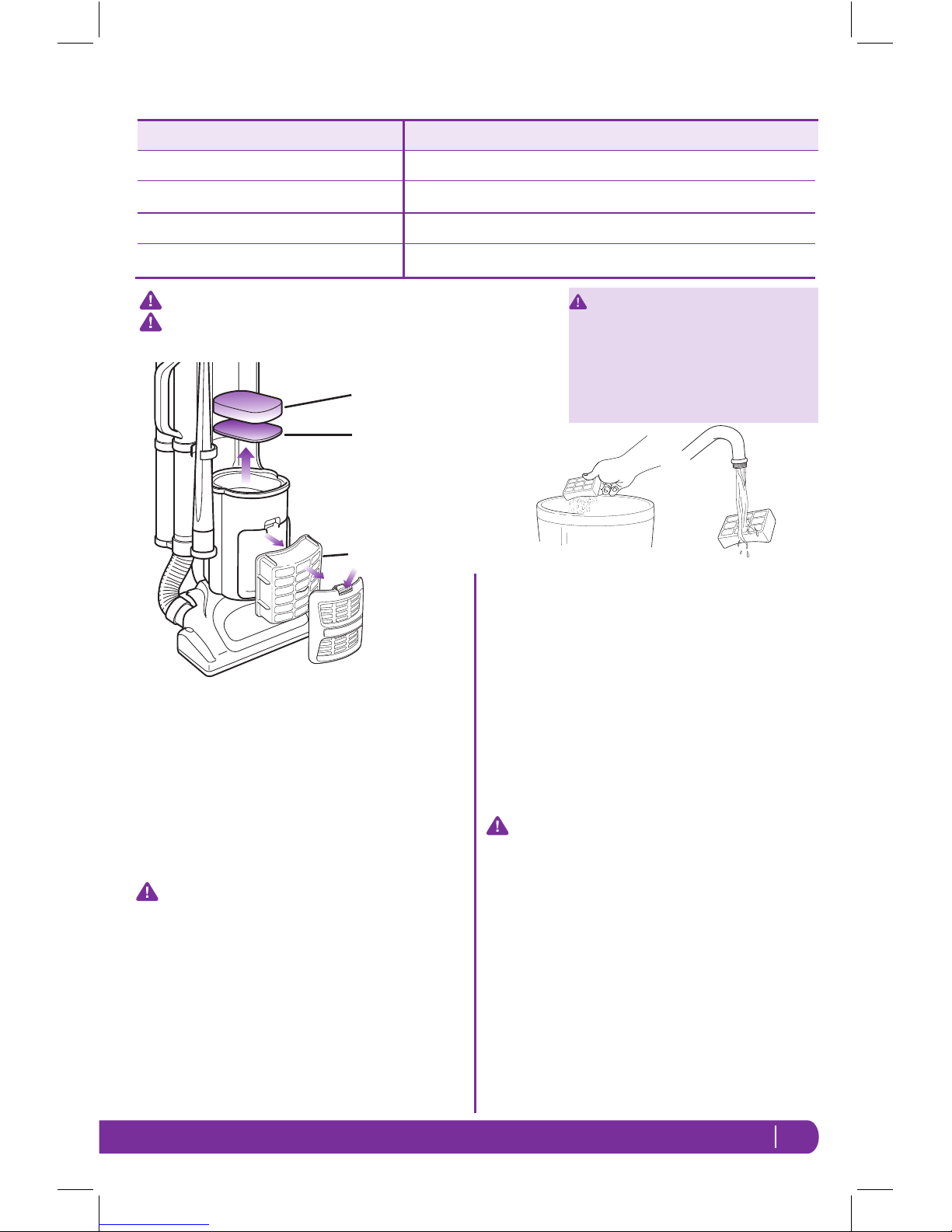

To clean the pre-motor filters:
1 Remove the dust cup.
2 Pull the 2 filters out from the top of the motor
base.
3 Rinse the filters thoroughly in lukewarm water until
the water runs clear.
DO NOT put the filters in the washing machine or
dishwasher.
NOTE: The material in the filters will discolor
over time. This is NORMAL and will not affect the
performance of the filters.
4 Squeeze out excess water and let air-dry for at
least 24 hours before replacing. Do not use a hair
dryer or other heating methods to dry.
5 Place the felt filter in first, then the foam filter.
6 Replace the dust cup.
To clean the post-motor HEPA filter:
1 Remove the filter cover from the front of the
vacuum by pulling up on the tab and pulling the
cover away from the vacuum.
2 Take out the HEPA filter by pulling it straight out.
3 Turn the HEPA filter over so that the dirty side is on
the bottom and vigorously tap it clean against a
garbage can to remove any dust.
4 Wash the HEPA filter under the tap using lukewarm
water with the dirty side face down until the water
runs clear.
DO NOT put the HEPA filter in the washing
machine or dishwasher.
NOTE: The material in the filter will discolor over
time. This is NORMAL and will not affect the
performance of the filter.
5 Allow the HEPA filter to air dry for 24 hours. Do
not use a hair dryer or other heating methods to
dry.
6 Once the HEPA filter is dry, replace it back into the
vacuum.
7 Replace the cover by inserting the two tabs into
the holes at the bottom and then swinging the
cover up until it clicks into place.
DO NOT operate the vacuum without ALL the filters in place.
DO NOT operate the vacuum with WET filters.
Pre-Motor
Foam Filter
Felt Filter
Post Motor
HEPA Filter
IMPORTANT: Loss of Suction may
occur if foam filter is not cleaned
every month. Rinse and allow to air dry
completely. Also, tap loose dirt off filter
between washes as needed.
Foam filters may appear dirty after use -
this is normal.
NV80_26_IB_E_111130_3.indd 9 11-11-30 3:26 PM

10
TOLL FREE: 1-800-798-7398
PROBLEM POSSIBLE REASONS & SOLUTIONS
Vacuum is not
picking up dirt.
Check filters to see if they need cleaning. Follow instructions for rinsing
and drying the filters before re-inserting back into the vacuum. (See
“Maintenance” sections for instructions.)
Dust cup may be full; empty dust cup.
Check hose and hose connections for blockages; clear blockages if required.
If dust cup is empty, and attachment inlets are clear, check for other
blockages. (See “Checking for Blockages” for instructions.)
Vacuum lifts scatter rugs
(lightweight, movable
rugs).
Suction is powerful. Take care when vacuuming scatter-type rugs or rugs with
delicately sewn edges. Open the suction release on the hose to decrease
suction power.
Airflow is restricted. No
suction or light suction.
Check filters to see if they need cleaning. Follow instructions for rinsing
and drying the filters before re-inserting back into the vacuum. (See
“Maintenance” sections for instructions.)
Dust cup may be full; empty dust cup.
Check hose, hose connections, nozzles and accessories for blockages; clear
blockages if required.
Close the suction release on the hose to increase suction power.
If dust cup is empty, and attachment inlets are clear, check for other
blockages. (See “Checking for Blockages” for instructions.)
Motorized floor brush
has become jammed or
has shut off.
Immediately turn off and unplug vacuum, disconnect the nozzle and remove
blockage before reconnecting and turning vacuum back on. (See “Checking
for Blockages” for instructions.)
Vacuum turns off on its
own.
This vacuum cleaner is equipped with a motor protective thermostat. If for
some reason your vacuum overheats, the thermostat will automatically turn
the unit off. Should this occur, perform the following steps to restart the
motor thermostat:
1. Move the On/Off switch to the “O” (Off) position.
2. Unplug the vacuum.
3. Empty the dust cup and clean filters. (See “Maintenance” sections for
instructions.)
4. Check for blockages in hose, accessories and inlet openings.
(See “Checking for Blockages” for instructions.)
5. Allow the unit to cool for a minimum of 45 minutes.
6. Plug in the vacuum.
7. Turn the On/Off switch to the “I” (On) position to restart the vacuum.
Note: If vacuum still does not start, contact Customer Service at:
1-800-798-7398.
Troubleshooting
WARNING:
to reduce the risk of electric shock, the power cord must be disconnected
before performing maintenance/troubleshooting checks.
NV80_26_IB_E_111130_3.indd 10 11-11-30 3:26 PM

11
www.sharkclean.com
Checking for Blockages
Blockages may cause your vacuum
to overheat and shut down. If so,
clear the blockages, then follow the
instructions for Resetting the
Motor Thermostat on page 12.
WARNING: Never insert sharp
objects into any opening to clear
an obstruction.
IMPORTANT: Damages caused
while clearing or attempting to
clear blockages are not covered
under your product’s limited
warranty.
Unplug the vacuum
before checking for
blockages.
Reassemble all parts
securely before
operating vacuum.
1
3
4
1Dust Cup Air Duct:
Stand vacuum into upright
position.
Remove Dust Cup Assembly and
empty Dust Cup if necessary.
Disconnect the Super Stretch
Hose.
Check Air Duct behind Dust Cup
for clogs; clear before replacing
Dust Cup Assembly.
2Intake Opening behind the
Brushroll:
Lay the vacuum flat to expose
brushroll.
Check opening behind the
brushroll for clogs.
Clear the opening.
Clear the brushroll; use scissors
to carefully cut away threads,
hair or other debris that might
be trapped in the bristles.
3Floor Power Nozzle Hose
Connector:
Lay vacuum flat.
Remove Nozzle Hose and check
for clogs.
Push the Hose Connector back
onto the Floor Power Nozzle.
4Hose:
Stand vacuum upright.
Remove hose from both the unit
and Cleaning Wand ends.
Inspect both ends and the length
of the hose for clogs.
Return the hose to the unit
2
NV80_26_IB_E_111130_3.indd 11 11-11-30 3:26 PM

12
TOLL FREE: 1-800-798-7398
Maintenance
Resetting the Motor Thermostat
Your Shark®Navigator™
Professional Vacuum is equipped
with a protective Motor Thermostat.
If the motor should overheat, the
thermostat shuts off the power.
To reset the Motor Thermostat:
Move the Power Button to the
“O”– Off position.
Unplug the vacuum.
Check for clogged hose or filter;
unclog hose and replace filter.
Refer to Checking for Blockages
on page 11.
Wait 45 minutes for vacuum to cool;
then plug in the vacuum.
Turn the Power Switch to the
“I”– On position to start the
vacuum.
Note: If vacuum still does not start,
contact Customer Service at:
1-800-798-7398.
1Cleaning the Pet Hair Power
Brush -
Slide locking latch (A) forward.
Gently tilt brush housing upward
to open.
IMPORTANT: DO NOT force; it
will not open all the way.
Remove debris from turbine
wheel and air passage.
A
Ordering Replacement Parts
To order additional parts and
accessories, go to
www.sharkclean.com
or call 1-800-798-7398.
CLEANING THE MOTORIZED
FLOOR BRUSH
When your motorized floor brush
needs cleaning or locks onto an
object, it automatically shuts
down to prevent damage to your
lifetime belt. The indicator light
will illuminate red warning you
to turn off the vacuum and clear
blockage immediately. The light will
reset itself once blockage has been
cleared and power has been cycled
on/off or vacuum has been locked in
the upright position.
1Detach the motorized floor
brush from the detachable
canister.
2Inspect the opening underneath
and the rotating brush. If a
build-up of debris is present,
remove it. Carefully cut
anything wound around the
rotating brush with scissors.
Avoid damaging or cutting the
bristles.
Rotating
Brush
PART PART NO.
Super Stretch Hose 162FFJ
Dusting Brush &
Crevice Tool 170FFJ
Foam & Felt Filters XFF80
Hepa Filter XHF80
Turbo brush 174FFJ
Cleaning Wand 166FFJ
16"Crevice Tool 167FFJ
NV80_26_IB_E_111130_3.indd 12 11-11-30 3:26 PM

13
www.sharkclean.com
Euro-Pro Five-Year (5) Limited Warranty
EURO-PRO Operating LLC warrants this product to be free from defects in material and workmanship for a period of
five (5) years from the date of the original purchase, when utilized for normal household use, subject to the following
conditions, exclusions and exceptions.
If your appliance fails to operate properly while in use under normal household conditions within the warranty period,
return the complete appliance and accessories, freight prepaid to:
•U.S.: EURO-PRO Operating LLC
For customer service support call 1-800-798-7398
or visit www.sharkclean.com
 •Canada: EURO-PRO Operating LLC
4400BoisFranc,St.Laurent,QuébecH4S1A7
If the appliance is found to be defective in material or workmanship, EURO-PRO Operating LLC will repair or
replace it free of charge. Proof of purchase date and $16.99 to cover the cost of return shipping and handling must
be included.*
Non-durable parts including, without limitation, filters, brushes and electrical parts which normally require
replacement are specifically excluded from warranty.
The liability of EURO-PRO Operating LLC is limited solely to the cost of the repair or replacement of the unit
at our option. This warranty does not cover normal wear of parts and does not apply to any unit that has been
tampered with or used for commercial purposes. This limited warranty does not cover damage caused by misuse,
abuse, negligent handling or damage due to faulty packaging or mishandling in transit. This warranty does not cover
damage or defects caused by or resulting from damages from shipping or repairs, service or alterations to the product
or any of its parts, which have been performed by a repair person not authorized by EURO-PRO Operating LLC.
This warranty is extended to the original purchaser of the unit and excludes all other legal and/or conventional
warranties.The responsibility of EURO-PRO Operating LLC if any, is limited to the specific obligations expressly
assumed by it under the terms of the limited warranty. In no event is EURO-PRO Operating LLC liable for incidental
or consequential damages of any nature whatsoever. Some states do not permit the exclusion or limitation of
incidental or consequential damages, so the above may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or
province to province.
*IMPORTANT: Carefully pack item to avoid damage in shipping. Be sure to include proof of purchase
date and to attach tag to item before packing with your name, complete address and phone number
with a note giving purchase information, model number and what you believe is the problem
with item. We recommend you insure the package (as damage in shipping is not covered by your
warranty). Mark the outside of your package “ATTENTION CUSTOMER SERVICE”. We are constantly
striving to improve our products, therefore the specifications contained herein are subject to change
without notice.
Product Registration
Please visit www.sharkclean.com or call 1-800-798-7398 to register your new Shark®product within ten (10)
days of purchase. You will be asked to provide the store name, date of purchase and model number along with your
name and address.
The registration will enable us to contact you in the unlikely event of a product safety notification. By registering
you acknowledge to have read and understood the instructions for use, and warnings set forth in the accompanying
instructions.
NV80_26_IB_E_111130_3.indd 13 11-11-30 3:26 PM

Euro-Pro Operating LLC
USA: Newton, MA 02459
CAN:4400BoisFranc,St-Laurent,QCH4S1A7
English: 1-800-798-7398
www.sharkclean.com
Copyright © Euro-Pro Operating LLC 2011
Printed in China
Illustrations may differ from actual product.
NV80.E.111130.3
NV80_26_IB_E_111130_3.indd 14 11-11-30 3:26 PM
