Sharp Plasmacluster AE-X12JJ User manual

SPLIT TYPE
ROOM AIR CONDITIONER
OPERATION MANUAL
* Plasmacluster is a trademark of
SHARP Corporation.
INDOOR UNIT OUTDOOR UNIT
AY-XP9JJ AE-X9JJ
AY-XP12JJ AE-X12JJ
AY-XP9JJ_cover.indd 1 07.6.22 7:51:39 AM

AY-XP9JJ_cover.indd 2 07.6.22 7:51:39 AM

1
Thank you for purchasing a SHARP air conditioner.
Please read this manual carefully before operating
the product.
CONTENTS
• IMPORTANT SAFETY INSTRUCTIONS..................1
• SPECIFICATIONS....................................................2
• PART NAMES...........................................................2
• USING THE REMOTE CONTROL...........................4
• SETTING AIR PURIFYING FILTER ........................5
• TIPS ON SAVING ENERGY.....................................5
• AUXILIARY MODE ...................................................5
• BASIC OPERATION.................................................6
• ADJUSTING THE AIR FLOW DIRECTION..............7
• PROGRESSIVE AIRFLOW ......................................8
• POWERFUL JET OPERATION ................................8
• PLASMACLUSTER OPERATION ............................9
• SELF CLEAN OPERATION......................................9
• ONE-HOUR OFF TIMER........................................10
• TIMER OPERATION ..............................................10
• MAINTENANCE .....................................................12
• ADDITIONAL NOTES ON OPERATION ................13
• BEFORE CALLING FOR SERVICE.......................13
WARNINGS FOR INSTALLATION/
REMOVAL/REPAIR
For your safety, ensure that your new air conditioner
is installed by a licensed air conditioning contractor in
accordance with the AUSTRALIAN/NEW ZEALAND
WIRING RULES.
• Do not attempt to install/remove/repair the unit
by yourself. Incorrect work could cause electric
shock, water leak, re etc. Consult a licensed air
conditioning contractor for the installation/removal/
repair of the unit.
CAUTIONS FOR USE
1 If a gas appliance is used in the same room as the air conditioner, ventilate the room periodically
to prevent oxygen depletion.
2 For safety, do not touch the unit with wet hands, it may cause an electric shock.
3 For safety, turn the circuit breaker off when not using the unit for an extended period of time.
4 For safety, do not place anything on top of the outdoor unit or step on it.
5 This unit is designed for residential use. Do not use for other applications such as in a kennel or
greenhouse to raise animals or grow plants.
6 Do not block the air inlets or outlets of the unit.
7 For safety, be sure to turn the unit off at the circuit breaker before performing any maintenance or
cleaning.
8 Do not pour water directly on the unit. Water can cause electrical shock or equipment failure.
9 This appliance is not intended for use by young children or inrm persons unless they have been
adequately supervise by a responsible person to
ensure that they can use the appliance safely.
Young children should be supervised to ensure
that they do not play with the appliance.
CAUTIONS FOR LOCATION/
INSTALLATION
To ensure that your warranty is not affected, both the
indoor/outdoor units and supply/interconnecting cables
must be installed by a licensed air conditioning con-
tractor.
•The unit is designed to operate on 230-240 VAC,
50Hz
•Do not install the unit where ammable gas may
leak. It may cause a re.
SPECIFICATIONS
Indoor unit AY-XP9JJ AY-XP12JJ
Outdoor unit AE-XP9JJ AE-XP12JJ
Rated A.C. voltage (V) 230-240 230-240
Rated frequency (Hz) 50 50
Cooling capacity (kW)* 2.5 3.5
Heating capacity (kW)* 3.2 4.0
*When tested in accordance with AS/NZS3823.1.1.
IMPORTANT SAFETY
INSTRUCTIONS
WARNINGS FOR USE
1
This model should be installed with a xed power
cord to the meter box.
2
Be careful not to expose your body to the outlet
air for prolonged periods. It may affect your
physical condition.
3
When using the air conditioner for infants,
children, elderly, bedridden or disabled people
make sure the room temperature is suitable for
those in the room.
4
Never insert objects into the unit. Inserting
objects can result in injury due to the high speed
rotation of the internal fans.
5
If anything abnormal is noticed with the air
conditioner (eg burning smell), stop the operation
immediately and turn the circuit breaker off.
6
This air conditioner should be installed by a
licensed air conditioning contractor in accordance
with AS/NZS 3000 and your electricity suppliers
service rules.
7
There are local council rules regarding maximum
allowable noise levels emitted by air conditioners,
your licensed air conditioning contractor will
advise you on the correct location of your outdoor
unit.
8
Use only the manufacturer-specified power
cord for replacement. Replacement should be
performed by a service centre approved by
SHARP.
IMPORTANT SAFETY
INSTRUCTIONS
AY-XP9JJ_en.indd 1 07.6.22 7:50:44 AM

2

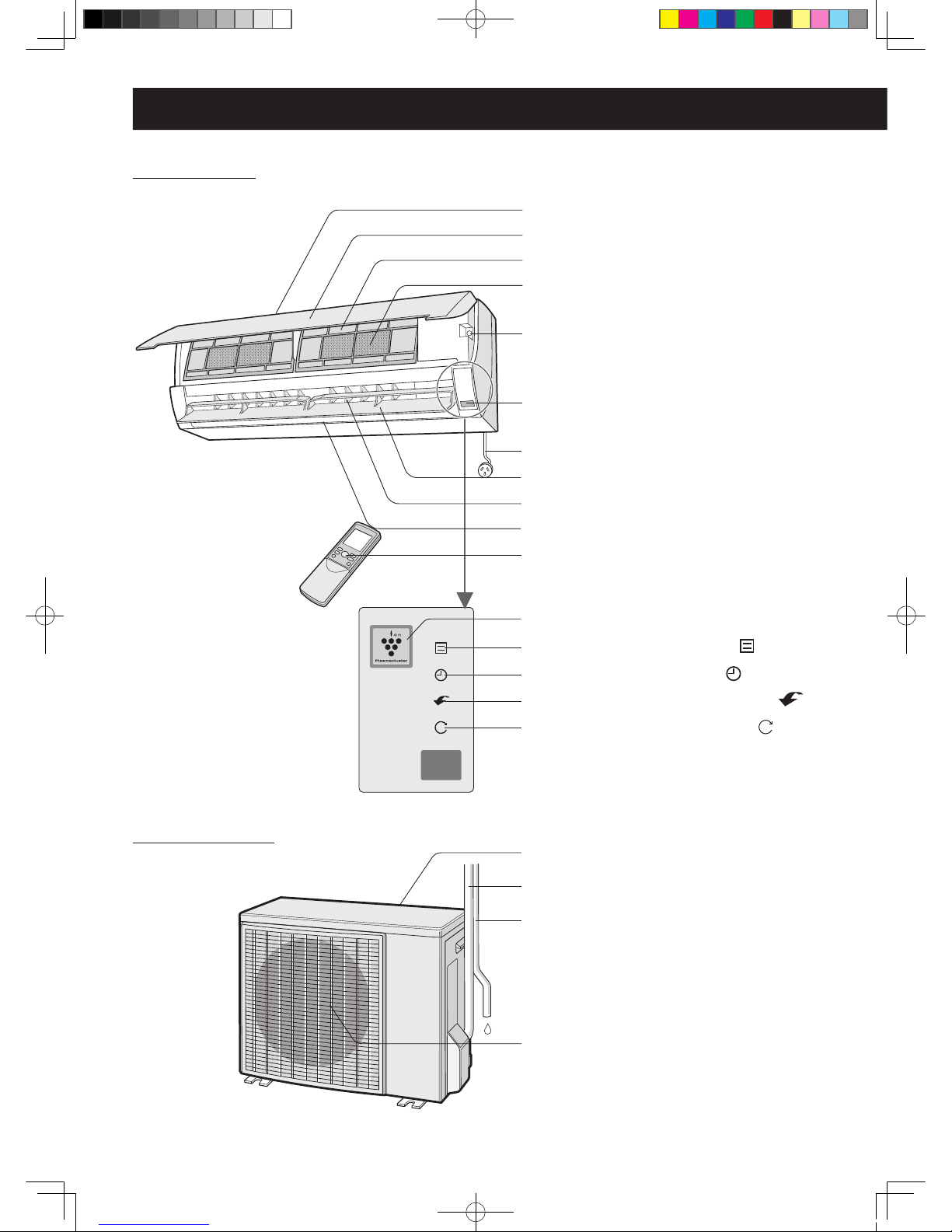

PART NAMES
INDOOR UNIT
1Inlet (Air)
2Front Panel
3Air Filter
4Air Purifying Filter
5AUX. Button
6Receiver Window
7Power Supply Cord
8Vertical Adjustment Louvre
9Horizontal Adjustment Louvre
0Outlet (Air)
qRemote Control
wPLASMACLUSTER Lamp (blue)
eOPERATION Lamp (red )
rTIMER Lamp (orange )
t
POWERFUL JET Lamp (green )
ySELF CLEAN Lamp (green )
OUTDOOR UNIT
uInlet (Air)
iRefrigerant Tube and Interconnecting
Cord
oDrainage Hose
pOutlet (Air)
NOTE:
Actual units might vary slightly from
those shown above.
1
2
3
4
5
6
7
8
9
0
q
w
e
r
t
y
u
i
o
p
AY-XP9JJ_en.indd 2 07.6.22 7:50:44 AM

3
REMOTE CONTROL
1TRANSMITTER
2DISPLAY (Liquid Crystal Display)
3PLASMACLUSTER Button
4DISPLAY Button
5ON/OFF Button
6THERMOSTAT Button
7POWERFUL JET Button
8PROGRESSIVE AIRFLOW Button
9MODE Button
0TIMER ON Button (for setting the timer)
qTIMER OFF Button (for setting the timer)
wONE-HOUR OFF TIMER Button
eTIME ADVANCE Button
rTIME REVERSE Button
tSELF CLEAN Button
yTIMER SET/CANCEL Button
uIndicates battery compartment is below this mark
iSWING Button ( : horizontal direction)
oCLOCK Button
pFAN Button
aSWING Button ( : vertical direction)
L.C.D. REMOTE CONTROL DISPLAY
!PROGRESSIVE AIRFLOW Symbol
@SELF CLEAN Symbol
#PLASMACLUSTER Symbol
$MODE Symbols
: AUTO : COOL
: HEAT : DRY
%Thermostat setting for AUTO and DRY modes
^TEMPERATURE Indicator
&TRANSMITTING Symbol
*POWERFUL JET Symbol
(FAN SPEED Symbols
: AUTO : LOW
: HIGH : SOFT
)TIMER ON Indicator/CLOCK
Indicates the on timer preset time or current time.
QTIMER OFF Indicator
Indicates the preset time for off timer or one-hour off
timer.
CLEAN
FAN
MODE
SET/C
1h
DISPLAY
1
2
3
4
5
6
7
8
9
0
q
w
e
r
t
y
u
i
o
p
a
!
@
#
$
%
^
&
*
(
)
Q
AY-XP9JJ_en.indd 3 07.6.22 7:50:45 AM

4
SET CURRENT CLOCK TIME
There are two clock modes: 12-hour mode and
24-hour mode.
Example: 5 o’clock in the afternoon
Clock Display
12-hour mode PM 5:00
24-hour mode 17:00
1
To set to the 12-hour mode, press the
CLOCK button once in the rst step.
To set to the 24-hour mode, press the CLOCK button twice in the rst step.
2
Press the TIME ADVANCE or REVERSE
button to set the current time.
• Keep the button pressed to advance or reverse
the time display quickly.
3
Press the SET/C button.
• The colon (:) blinks to indicate that the clock is
functioning.
NOTE:
• The current time cannot be set when the timer is
operating.

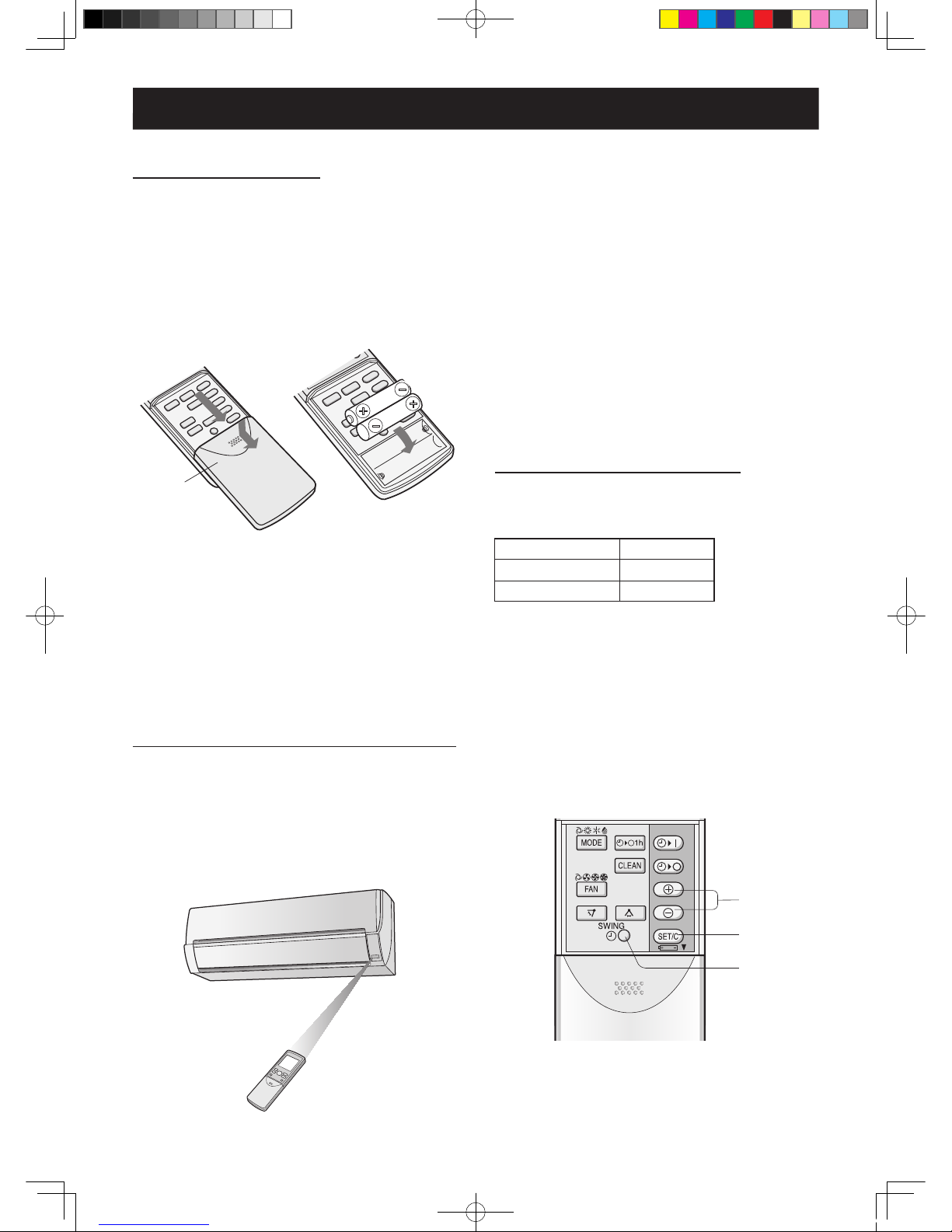

LOADING BATTERIES
Use two size-AAA (R03) batteries.
1
Remove the remote control cover.
2
Insert batteries in the compartment,
making sure the
±and —polarities are
correctly ligned.
• The display indicates “AM 6:00” when batteries
are properly installed.
3
Reinstll the cover.
Remote
control cover
NOTE:
• The battery life is approximately one year in normal
use.
• When you replace the batteries, always change both
batteries, and make sure they are the same type.
• If the remote control does not operate properly after
replacing the batteries, take out the batteries and
reinstall them again after 30 seconds.
• If you will not be using the unit for a long time,
remove the batteries from the remote control.
HOW TO USE THE REMOTE CONTROL
Point the remote control towards the unit’s signal
receiver window and press the desired button. The
unit generates a beep when it receives the signal.
• Make sure there is no curtain or other object
between the remote control and the unit.
• The remote control can send signals from up to 7
metres away.
CAUTION:
• Do not allow the signal receiver window to receive
strong direct sunlight, since it can adversely affect
its operation. If the signal receiver window is
exposed to direct sunlight, close a curtain to block
the light.
• Using a uorescent lamp with a quick starter in the
same room may interfere with transmission of the
signal.
• The unit can be affected by signals transmitted from
the remote control of a television, VCR or other
equipment used in the same room.
• Do not leave the remote control in direct sunlight
or near a heater. Also, protect the unit and remote
control from moisture and shock which can
discolour or damage them.
USING THE REMOTE CONTROL
2
3
1
+
-
+
-
AY-XP9JJ_en.indd 4 07.6.22 7:50:45 AM

5

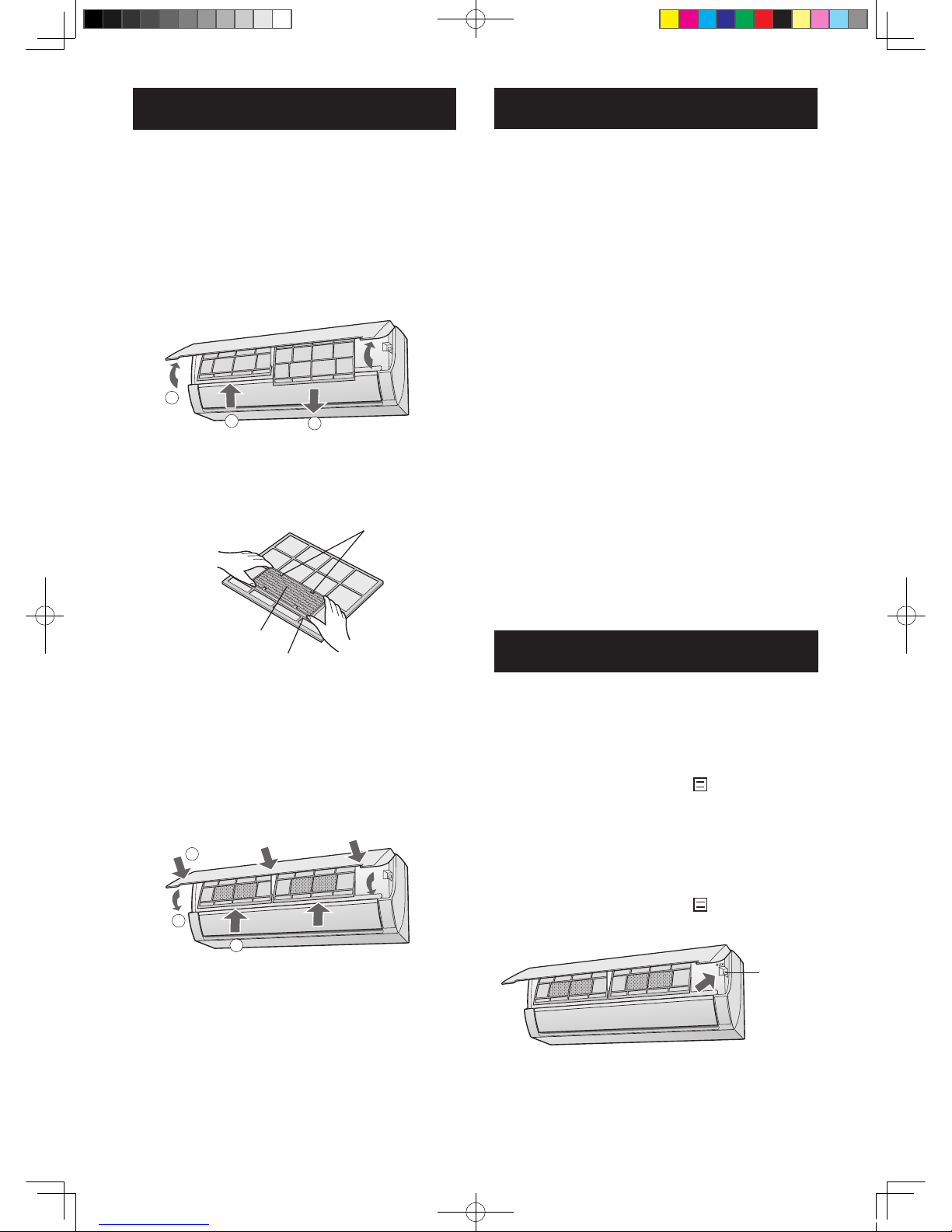

The air purifying filters are packed as
ccessories of this unit. During opertion of
the ir conditioner, the lters remove dust nd
tobacco smoke from the air and discharge clean
ir.
1
Tke out the ir lters.
1Open the front panel.
2 Push the air lters up slightly to unlock them.
3 Pull the air lters down to remove them.
2
Set the ir purifying lter under the lter
stoppers locted on the ir lter.
3
Reinstll the ir lters.
1 Reinstall the air lters in the original posi-
tions.
2Close the front panel.
3Push the arrow-marked areas of the panel
rmly to lock it in place.
Precautions:
• The lters are sealed in a plastic bag to keep their
dust collection effect.
Do not open the bag until using the filters.
(Otherwise the lter life may be reduced.)
• Do not expose the filters to direct sunlight.
(Otherwise they may deteriorate.)
TIPS ON SAVING ENERGY
Below are some simple ways to save energy when
you use your ir conditioner.
SET THE CORRECT TEMPERATURE
• Setting the thermostat 1°C higher than the desired
temperature in the COOL mode and 2°C lower in
the HEAT mode will save approximately 10 percent
in power consumption.
• Setting the temperature lower than necessary
during cooling operation will result in increased
power consumption.
BLOCK DIRECT SUNLIGHT AND PREVENT
DRAFTS
• Blocking direct sunlight during cooling operation will
reduce power consumption.
• Close the windows and doors during cooling and
heating operations.
SET PROPER AIR FLOW DIRECTION TO OBTAIN
THE BEST AIR CIRCULATION
KEEP THE FILTER CLEAN TO ENSURE THE MOST
EFFICIENT OPERATION
MAKE THE MOST OF THE TIMER OFF FUNCTION
DISCONNECT THE POWER CORD, OR TURN OFF
AT THE CIRCUIT BREAKER, WHEN THE UNIT IS
NOT USED FOR AN EXTENDED PERIOD OF TIME
• The indoor unit still consumes a small amount of
power when it is not operating.
AUXILIARY MODE
Use this mode when the remote control is not
vilble.
TO TURN ON
Lift the open panel of the indoor unit and press
the AUX. button.
• The red OPERATION lamp ( ) on the unit will
light and the unit will start operating in the AUTO
mode.
• The fan speed and temperature setting are set to
AUTO.
TO TURN OFF
Press the AUX. button gin.
• The red OPERATION lamp ( ) on the unit will
turn off.
NOTE:
• If the AUX. button is pressed during normal
operation, the unit will turn off.
SETTING AIR PURIFYING
FILTER
Filter stopper
Air purifying lter
Air lter
3
2
1
1
3
2
AUX
AY-XP9JJ_en.indd 5 07.6.22 7:50:46 AM

6
BASIC OPERATION
TIPS ABOUT AUTO MODE
In the AUTO mode, the temperature setting
and mode are automatically selected accord-
ing to the room temperature and outdoor
temperature when the unit is turned on.
Modes and Temperature Settings
The gures in ( ) are temperature settings
During operation, if the outdoor temperature
changes, the temperature settings will auto-
matically slide as shown in the chart.
MODE CHANGEOVER
During seasons when you need COOLING
at daytime and HEATING at night, or if the
room temperature should become extremely
higher than the temperature setting, due to
supplementary heating equipment, the mode
will automatically switch between HEAT and
COOL mode to keep the room temperature
comfortable.
(Example: 1°C higher)
C
(Example: 2°C lower)
C
29
21
2818100 34 (°C)
(°C)
Cool
(24°C) Cool
(25°C)
Heat
(22°C)
Dry
( )
Heat
(23°C)
Heat
(24°C)
Cool
(26°C)
outdoor
temp.
indoor temp.
Room Temp.
-2°C
2
5
3
1
4
CLEAN
FAN
MODE
SET/C
1h
DISPLAY
1
Press the MODE button to select the
opertion mode.
AUTO HEAT COOL DRY
2
Press the ON/OFF button to start
opertion.
• The red OPERATION lamp ( ) on the unit
will light.
3
Press the THERMOSTAT button to set the
desired temperture.
AUTO/DRY MODE
• The temperature can be changed in 1°C incre-
ments within the range of 2°C higher to 2°C
lower from the temperature automatically deter-
mined by the air conditioner.
COOL/HEAT MODE
• The temperature can be set within the range
of 18 to 32°C.
4
Press the FAN button to set the desired
fn speed.
AUTO SOFT LOW HIGH
• In the DRY mode, the fan speed is preset to
AUTO and cannot be changed.
5
To turn off the unit, press the ON/OFF
button gin.
• The red OPERATION lamp ( ) on the unit
will turn off.
AY-XP9JJ_en.indd 6 07.6.22 7:50:46 AM

7
VERTICAL AIR FLOW DIRECTION
1
Press the SWING button( ) on the re-
mote control once.
• The vertical adjustment louvre will swing con-
tinuously.
2
Press the SWING button( ) again when
the vertical adjustment louvre is at the
desired position.
• The louvre will stop moving within the range
shown in the diagram.
Adjustment range
COOL and DRY modes HEAT mode
HORIZONTAL AIR FLOW DIRECTION
1
Press the SWING button( ) on the re-
mote control once.
• The horizontal adjustment louvres will swing
continuously.
2
Press the SWING button( ) again when
the horizontal adjustment louvres are at
the desired position.
NOTE:
• The adjusted position will be memorised and will be
automatically set to the same position when oper-
ated the next time.
• The adjustment range is narrower than the SWING
range in order to prevent condensation from drip-
ping.
CAUTION:
Never attempt to adjust the louvres manually.
• Manual adjustment of the louvres can cause the
unit to malfunction.
• When the vertical adjustment louvre is positioned
at the lowest position in the COOL or DRY mode
for an extended period of time, condensation may
result.
ADJUSTING THE AIR FLOW DIRECTION
CLEAN
FAN
MODE
SET/C
1h
DISPLAY
1
2
CLEAN
FAN
MODE
SET/C
1h
DISPLAY
1
2
AY-XP9JJ_en.indd 7 07.6.22 7:50:47 AM

8

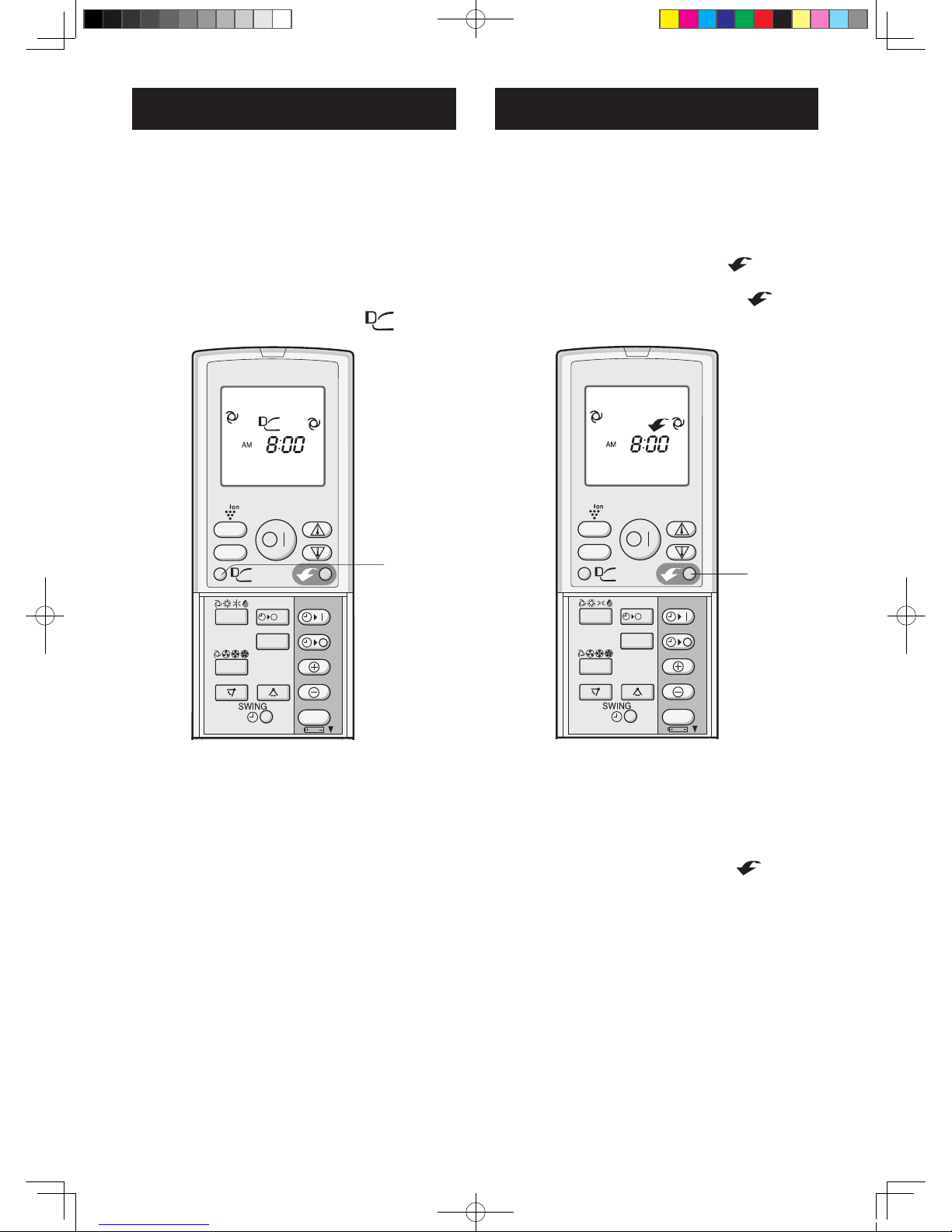

Press the PROGRESSIVE AIRFLOW button during
cooling or dry operation when you do not want to
feel cold ir. The verticl djustment louvre is set
obliquely upwrd to deliver cool ir to the ceiling.
Press the button during heting opertion. The
vertical adjustment louvre is set downward to
deliver the wrm ir down to the oor.
1
During operation, press the
PROGRESSIVE AIRFLOW button.
• The remote control will display “ ”.
TO CANCEL
Press the PROGRESSIVE AIRFLOW button gin.
NOTE:
• The PROGRESSIVE AIRFLOW setting is cancelled
when you press POWERFUL JET button while
PROGRESSIVE AIRFLOW is set.
• If you want PROGRESSIVE AIRFLOW operation
in POWERFUL JET mode, press PROGRESSIVE
A I R F L O W b u t t o n d u r i n g P O W E R F U L J E T
operation.
In this operation, the air conditioner works at the
maximum power and optimum louvre direction to
mke the room cool or wrm rpidly.
1
During operation, press the POWERFUL
JET button.
• The remote control will display “ ”.
• The temperature display will go off.
• The green POWERFUL JET lamp ( ) on
the unit will light up.
TO CANCEL
Press the POWERFUL JET button gin.
• The POWERFUL JET operation will also be can-
celled when the operation mode is changed, or
when the unit is turned off.
• The green POWERFUL JET lamp ( ) on the
unit will turn off.
NOTE:
• The air conditioner will operate at “Extra HIGH” fan
speed for 5 minutes, and then shift to “HIGH” fan
speed. The vertical adjustment louvre will be set
automatically to a diagonally lower direction, though
it can be changed if necessary.
• You can not set the temperature or fan speed
during the POWERFUL JET operation.
• To turn off the POWERFUL JET lamp, press the
DISPLAY button.
PROGRESSIVE AIRFLOW POWERFUL JET OPERATION
CLEAN
FAN
MODE
SET/C
1h
DISPLAY
1
CLEAN
FAN
MODE
SET/C
1h
DISPLAY
1
AY-XP9JJ_en.indd 8 07.6.22 7:50:47 AM

9
PLASMACLUSTER OPERATION
The Plasmacluster Ion generator inside the air
conditioner will release positive and negative
plsmcluster ions into the room.
Approximately the same number of positive and
negative ions released into the air will help to
reduce some irborne mold.
1
During operation, press the
PLASMACLUSTER button.
• The remote control will display “ ”.
• The blue PLASMACLUSTER lamp on the
unit will light up.
TO CANCEL
Press the PLASMACLUSTER button gin.
• The PLASMACLUSTER lamp on the unit will turn
off.
NOTE:
• Use of the PLASMACLUSTER operation will be
memorised, and it will be activated the next time
you turn on the air conditioner.
• To turn off the PLASMACLUSTER lamp, press the
DISPLAY button.
• To perform the PLASMACLUSTER operation
without accompanying heat, cool or dry mode,
press the PLASMACLUSTER button while the unit
is not operating. The mode symbol of the remote
control will go off and the fan speed can not be set
to AUTO.
SELF CLEAN OPERATION
SELF CLEAN operation using plasmacluster ions
helps to reduce the growth of mold fungus and
to dry the inside of the ir conditioner unit. It is
recommended to utilise the operation at seasonal
chnge over.
Note, Mold fungus already in existence can not be
eliminated by this operation.
1
Press the SELF CLEAN button when the
unit is not operting.
• The remote control displays “ ”.
• The red OPERATION lamp ( ), the
green SELF CLEAN lamp ( ) and the blue
PLASMACLUSTER lamp on the unit will light up.
• The unit will stop operation after forty minutes.
TO CANCEL
Press the SELF CLEAN button.
Alternatively, turn the unit off by pressing the ON/
OFF button.
• The red OPERATION lamp ( ), the green SELF
CLEAN lamp ( ) and the blue PLASMACLUSTER
lamp on the unit will turn off.
NOTE:
• You cannot set the temperature, fan speed, air ow
direction or timer setting during the SELF CLEAN
operation.
CLEAN
FAN
MODE
SET/C
1h
DISPLAY
1
CLEAN
FAN
MODE
SET/C
1h
DISPLAY
1
AY-XP9JJ_en.indd 9 07.6.22 7:50:48 AM

10

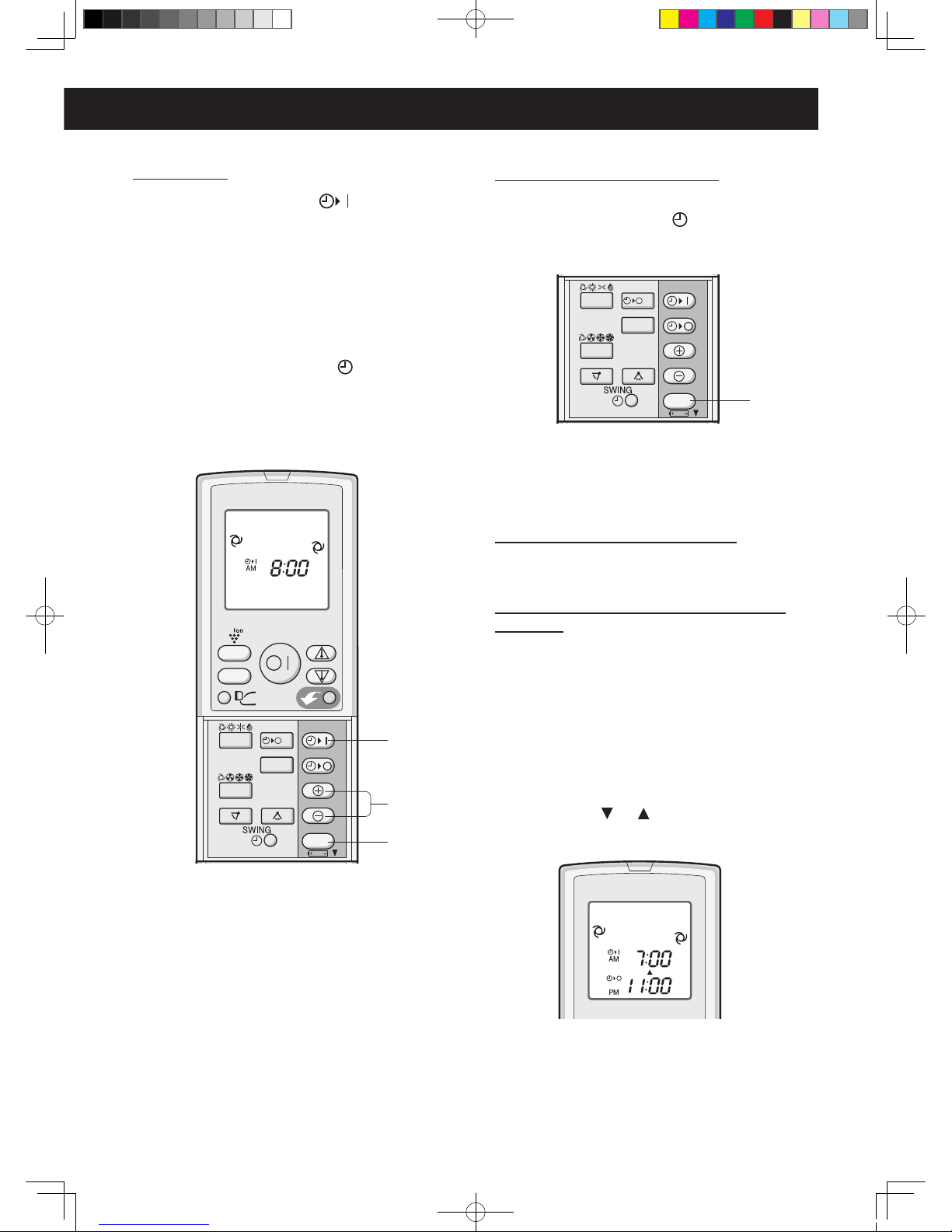

ONE-HOUR OFF TIMER
When the ONE-HOUR OFF TIMER is set, the unit
will utomticlly turn off fter one hour.
1
Press the ONE-HOUR OFF TIMER button.
• The remote control displays “ ”.
• The orange TIMER lamp ( ) on the unit will
light up.
• The unit will stop operating after one hour.
TO CANCEL
Press the TIMER CANCEL (SET/C) button.
• The orange TIMER lamp ( ) on the unit will
turn off.
Alternatively, turn the unit off by pressing the
ON/OFF button.
• The red OPERATION lamp ( ) and the
orange TIMER lamp ( ) on the unit will turn
off.
NOTE:
• The ONE-HOUR OFF TIMER operation has priority
over TIMER ON and TIMER OFF operations.
• If the ONE-HOUR OFF TIMER is set while the unit
is not operating, the unit will operate for an hour at
the formerly set condition.
• If you wish to operate the unit for another hour
before the ONE-HOUR OFF TIMER is activated,
press the ONE-HOUR OFF TIMER button again
during operation.
• If TIMER ON and/or TIMER OFF are set, TIMER
CANCEL button cancels every setting.
TIMER OPERATION
TIMER OFF
1
Press the TIMER OFF ( ) button.
2
The TIMER OFF indicator will blink; press
the TIME ADVANCE or REVERSE button
to set the desired time.
(The time can be set in 10-minute increments.)
3
Point the remote control at the receiver
window on the unit and press the TIMER
SET (SET/C) button.
• The orange TIMER lamp ( ) on the unit will
light.
• The unit will generate a beep when it receives
the signal.
TIPS ABOUT TIMER OFF OPERATION
When the TIMER OFF mode is set, the temperature
setting is automatically adjusted to prevent the room
from becoming excessively hot or too cold while you
sleep. (Auto Sleep function) The Auto Sleep function
will not activate during the AUTO mode.
COOL/DRY MODE:
• One hour after the time operation begins, the
temperature setting rises 1°C higher than the
original temperature setting.
HEAT MODE:
• One hour after the timer operation begins, the
temperature setting drops 3°C lower than the
original temperature setting.
CLEAN
FAN
MODE
SET/C
1h
DISPLAY
1
2
3
CLEAN
FAN
MODE
SET/C
1h
DISPLAY
1
CANCEL
AY-XP9JJ_en.indd 10 07.6.22 7:50:48 AM

11
TIMER ON
1
Press the TIMER ON ( ) button.
2
The TIMER ON indicator will blink; press
the TIME ADVANCE or REVERSE button
to set the desired time.
(The time can be set in 10-minute increments.)
3
Point the remote control at the receiver
window on the unit and press the TIMER
SET (SET/C) button.
• The orange TIMER lamp ( ) on the unit will
light.
• The unit will generate a beep when it receives
the signal.
4
Select the opertion condition.
NOTE:
• The unit will turn on prior to the set time to allow
the room to reach the desired temperature by the
programmed time. (Awaking function)
COMBINED USE OF ON AND OFF
TIMERS
You can use the ON and OFF timers in
combintion.
Example:
To stop operation at 11:00 p.m. and resume operation
to bring the room temperature to the desired level by
7:00 a.m.
1
Set the TIMER OFF to 11:00 p.m. during
opertion.
2
Set the TIMER ON to 7:00 .m.
The arrow ( or ) between the TIMER ON
indicator and the TIMER OFF indicator shows
which timer will activate rst.
NOTE:
• You cannot programmed the ON-TIMER and OFF-
TIMER to operate the unit at different temperatures
or other settings.
• Either timer can be programmed to activate prior
the other.
TO CANCEL TIMER MODE
Press the TIMER CANCEL (SET/C) button.
• The orange TIMER lamp ( ) on the unit will turn
off.
• The current clock time will be displayed on the
remote control.
NOTE:
• If any TIMER ON, TIMER OFF and ONE-HOUR
OFF TIMER are set, the TIMER CANCEL button
cancels all settings.
TO CHANGE TIME SETTING
Cncel the TIMER setting rst, then set it gin.
CLEAN
FAN
MODE
SET/C
1h
DISPLAY
1
2
3
Before setting the timer, make sure the clock is properly set with the current time.
CLEAN
FAN
MODE
SET/C
1h
CANCEL
AY-XP9JJ_en.indd 11 07.6.22 7:50:49 AM

12
MAINTENANCE AFTER AIR
CONDITIONER SEASON
1
Operate the unit in the SELF CLEAN
mode to allow the mechanism to
thoroughly dry.
2
Stop the opertion nd unplug the unit.
Turn off the circuit breaker, if you have
one exclusively for the ir conditioner.
3
Clen the lters, then reinstll them.
MAINTENANCE BEFORE AIR
CONDITIONER SEASON
1
Mke sure tht the ir lters re not dirty.
2
Make sure that nothing obstructs the air
inlet or outlet.
CHANGING THE AIR PURIFYING
FILTER
The lters should be changed every 3 ~ 6 months
1
Remove the ir lters.
2
Chnge the ir purifying lters.
1 Take off the old air purifying lters from the
air lters.
2 Set the new air purifying lters, under the
lter stoppers located on the air lters.
3
Reinstll the ir lters.
NOTE:
• Dirty air purifying lters are not washable for reuse.
New lters are available at your nearest dealer.
Replacement lter: Type AZ-F900F
Disposal of Filters
Please dispose of replaced lters according to the
local disposal laws and regulations.
AIR PURIFYING lter materials
Filter:Polypropylene
Frame:Polyester
MAINTENANCE
Be sure to disconnect the power cord from the
wall outlet or turn off the circuit breaker before
performing ny mintennce.
CLEANING THE FILTERS
The air lters should be cleaned every two weeks.
1
Turn off the unit.
2
Remove the lters.
1Lift the front panel.
2 Push the air lters up slightly to unlock them.
3 Pull the air lters down to remove them.
3
Tke off the ir purifying lters from the
ir lters.
4
Clen the lters.
Use a vacuum cleaner to remove dust. If the
lters are dirty, wash them with warm water and
a mild detergent. Dry lters in the shade before
reinstalling.
5
Reinstll the ir purifying lters.
6
Reinstll the lters.
1 Reinstall the lters in the original positions.
2Close the front panel.
3Push the arrow-marked areas of the panel
rmly to lock it in place.
CLEANING THE UNIT AND THE
REMOTE CONTROL
• Wipe them with a soft cloth.
• Do not directly splash or pour water on them. It can
cause electrical shock or equipment damage.
• Do not use hot water, thinner, abrasive powders or
strong solvents.
Filter stopper
3
2
1
1
3
2
AY-XP9JJ_en.indd 12 07.6.22 7:50:49 AM

13
INDOOR TEMP. OUTDOOR TEMP.
COOLING upper limit 32˚C 46˚C
lower limit 21˚C –10˚C
HEATING upper limit 27˚C 24˚C
lower limit – –15˚C
• The built-in protective device may prevent the unit
from operating when used out of this range.
• Condensation may form on the air outlet if the unit
operates continuously in the COOL or DRY mode
when humidity is over 80 percent.
ADDITIONAL NOTES ON
OPERATION
OPERATING TEMPERATURE RANGE
BEFORE CALLING FOR
SERVICE
The following conditions do not denote equip-
ment malfunctions
UNIT DOES NOT OPERATE
The unit will not operate if it is turned on immediately
after it is turned off. The unit will not operate
immediately after the mode is changed. This is to
protect the internal mechanisms. Wait 3 minutes
before operating the unit.
UNIT DOES NOT SEND OUT WARM AIR
The unit is preheating or de-icing.
ODORS
Carpet and furniture odors that enter into the unit
may be recirculated.
CRACKING NOISE
The unit may produce a cracking noise. This sound
is generated by the friction of the front panel and
other components expanding or connecting due to a
temperature change.
A LOW BUZZING NOISE EMITTED
This is a sound emitted when the unit is generating
Plasmacluster ions.
SWISHING NOISE
The soft, swishing noise is the sound of the refrigerant
owing inside the unit.
WATER VAPOUR
• In the COOL and DRY operation, water vapour
can sometimes be seen at the air outlet due to the
difference between the room air temperature and
the air discharged by the unit.
• In the HEAT operation, water vapour may ow out
of the outdoor unit during de-icing.
THE OUTDOOR UNIT DOES NOT STOP
After stopping the operation, the outdoor unit will
rotate its fan for about a minute to cool down the unit.
ODOR EMITTED FROM THE PLASMACLUSTER
AIR OUTLET
This is the smell of ozone generated from the
Plasmacluster Ion generator. The ozone concentration
is very small, posing no adverse effect on your
health. The ozone discharged into the air rapidly
decomposes, and its density in the room will not
increase.
If the unit appears to be malfunctioning, check the
following points before clling for service.
IF THE UNIT FAILS TO OPERATE
Check to see if the circuit breaker has tripped or the
fuse has blown.
IF THE UNIT FAILS TO COOL (OR HEAT) THE
ROOM EFFECTIVELY
• Check the lters. If dirty, clean them.
• Check the outdoor unit to make sure nothing is
blocking the air inlet or outlet.
• Check the thermostat is properly set.
• Make sure windows and doors are closed tightly.
• A large number of people in the room can prevent
the unit from achieving the desired temperature.
• Check whether any heat-generating appliances are
operating in the room.
IF THE UNIT FAILS TO RECEIVE THE REMOTE
CONTROL SIGNAL
• Check whether the remote control batteries have
become old and weak.
• Try to send the signal again with the remote control
pointed properly towards the unit’s signal receiver
window.
• Check whether the remote control batteries are
installed with the polarities properly aligned.
Please call for service when OPERATION lamp,
TIMER lamp and/or PLASMACLUSTER lamp on
the unit blink.
WHEN POWER FAILURE OCCURS
This air conditioner has a memory function to store
settings when a power failure occurs.
After power recovery, the unit will automatically re-
start in the same settings which were active before
the power failure, except for timer settings.
If the timers were set before a power failure, they will
need to be re-set after power recovery.
PREHEATING FUNCTION
In the HEAT operation, the indoor fan may not start
for two to ve minutes after the unit is turned on to
prevent cold air from blowing out of the unit.
DE-ICING FUNCTION
• When ice forms on the heat exchanger in the
outdoor unit during the HEAT operation, an
automatic de-icer provides heat for about 5 to 10
minutes to remove the ice. During de-icing, the
inside and outside fans stop operating.
• After de-icing is completed, the unit automatically
resumes operation in the HEAT mode.
HEATING EFFICIENCY
• The unit employs a heat pump that draws heat from
the outside air and releases it into the room. The
outside air temperature therefore greatly affects the
heating efciency.
• If the heating efficiency is reduced due to low
outside temperatures, use an additional heater.
• It takes time to warm up and heat the entire room
because of the forced air circulation system.
BEFORE CALLING FOR
SERVICE
AY-XP9JJ_en.indd 13 07.6.22 7:50:49 AM

Printed in Thailand
TINSEA531JBRZ 07G- TH 1
AY-XP9JJ_cover.indd 3 07.6.22 7:51:40 AM
