Sharp MD-MT888H User manual

PORTABLE MINIDISC
RECORDER
Thank you for purchasing this SHARP product.
For the best performance, read this manual carefully.
It will guide you in operating your SHARP product.
MODEL
MD-MT888H
OPERATION MANUAL

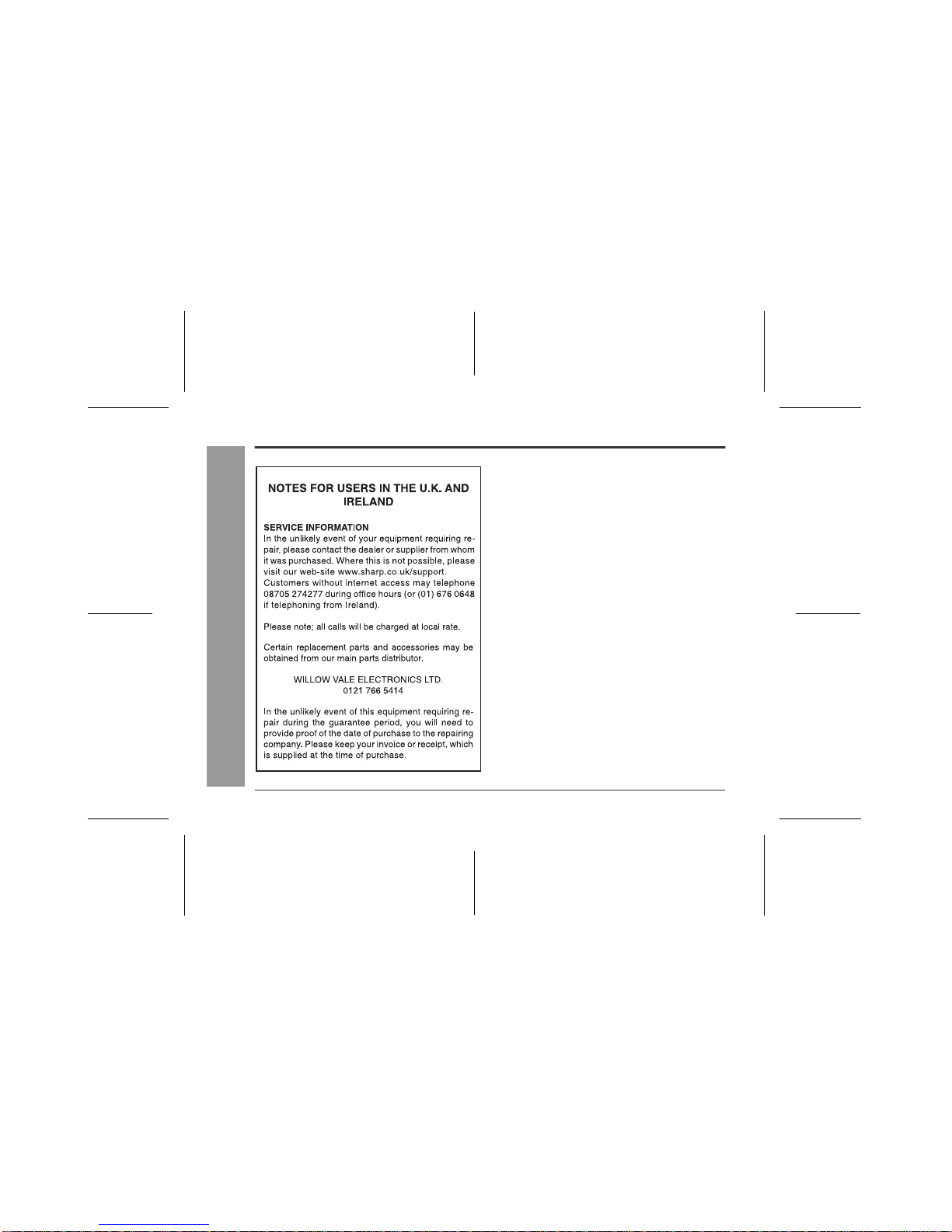

If you require any advice or assistance regarding
your Sharp product, please visit our web-site
www.sharp.co.uk/support.
CustomerswithoutInternetaccessmaytelephone
08705274277duringofficehours(or(01)6760648
if telephoning from Ireland).
0101
MT888H_UK_F 01.8.30, 1:57 PM1

01/8/30 1.fm
2
MD-MT888H
Important Introduction
-Accessories-
Accessories
Notes:
Remote control x 1 Earphones x 1 AC adaptor
(RADPA8046AWZZ)
x 1
Battery carrying
case x 1 Rechargeable nick- el-metal hydride
battery (AD-N55BT)
x 1
Battery charger x 1 Connection cable
(for analogue re-
cording) x 1
Connection cable
(for digital record-
ing) x 1
Carrying bag x 1 Battery case x 1
zParts and equipment mentioned in this operation manual other than those detailed above are not included.
zThe AC adaptor may be different from the one in the drawing.

01/8/30 1.fm
3
MD-MT888H
Important Introduction
-Contents-
Contents
„Important Introduction Page
Special Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Names of Controls and Indicators . . . . . . . . . . . . 7 - 9
„Preparation
Using with the Rechargeable Battery . . . . . . . . 10 - 11
Using with the AC Adaptor . . . . . . . . . . . . . . . . . . . .12
Using with the Alkaline Battery. . . . . . . . . . . . . . . . .13
Inserting a MiniDisc . . . . . . . . . . . . . . . . . . . . . . . . . .13

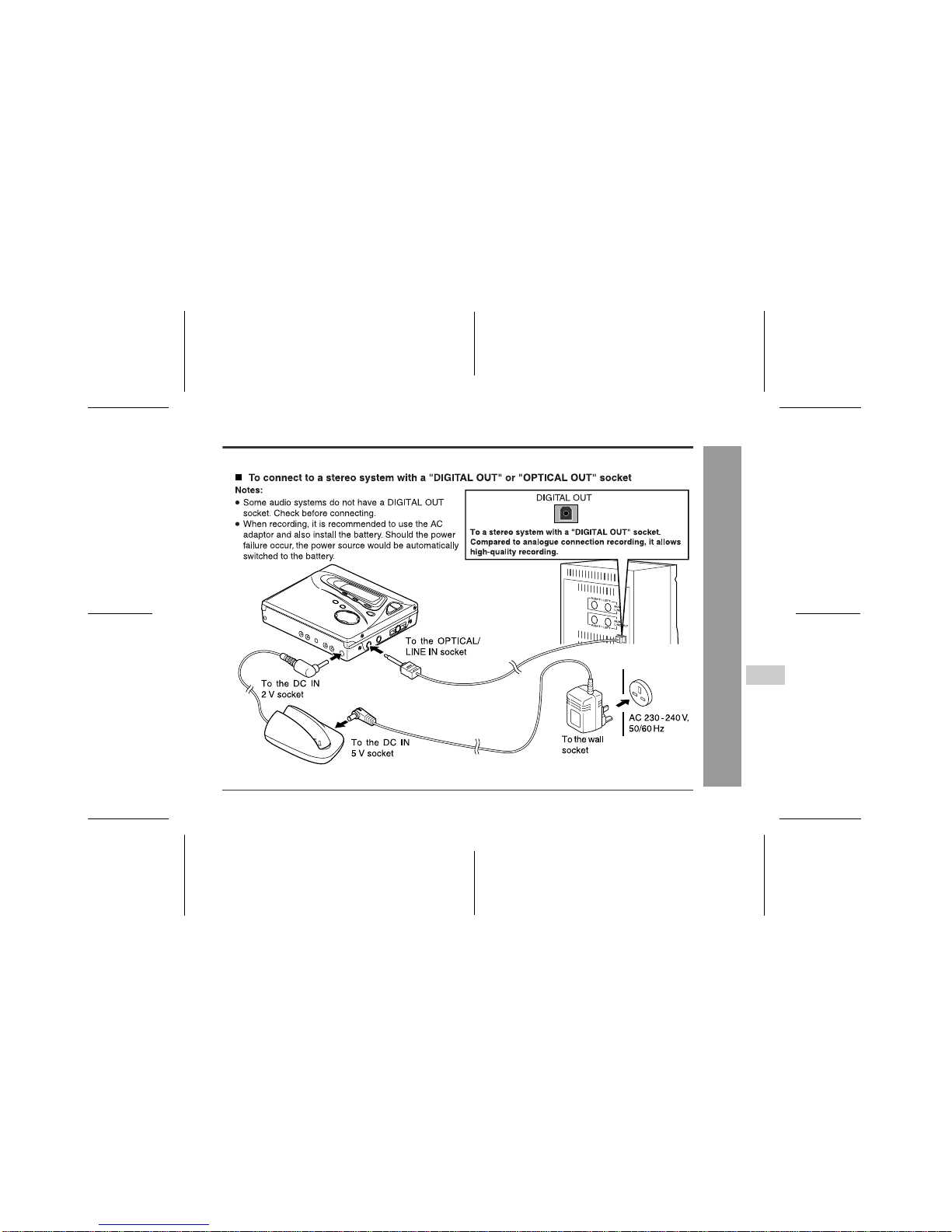

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 - 15
„Basic Operation

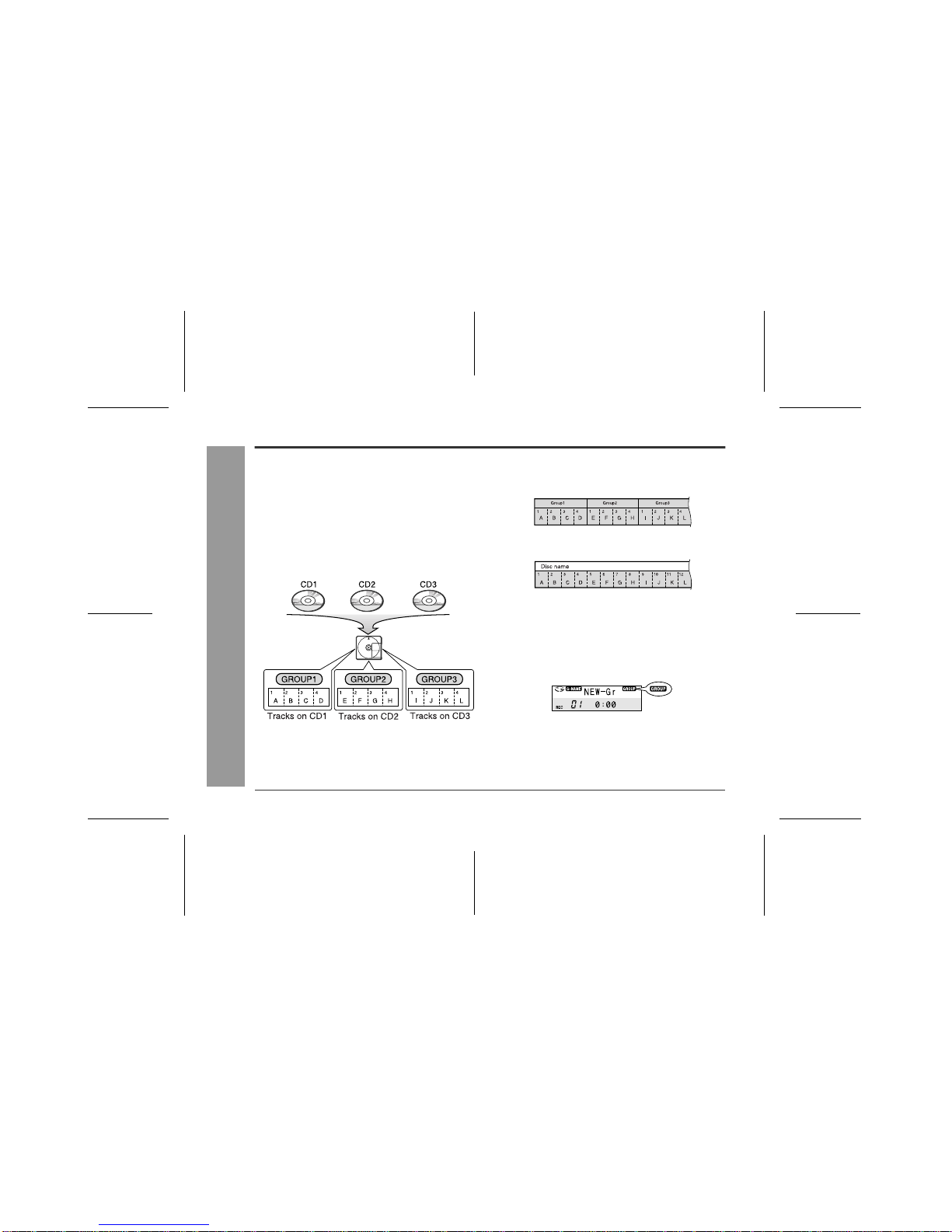

Long Time Recording and Group Recording . . . . . .16

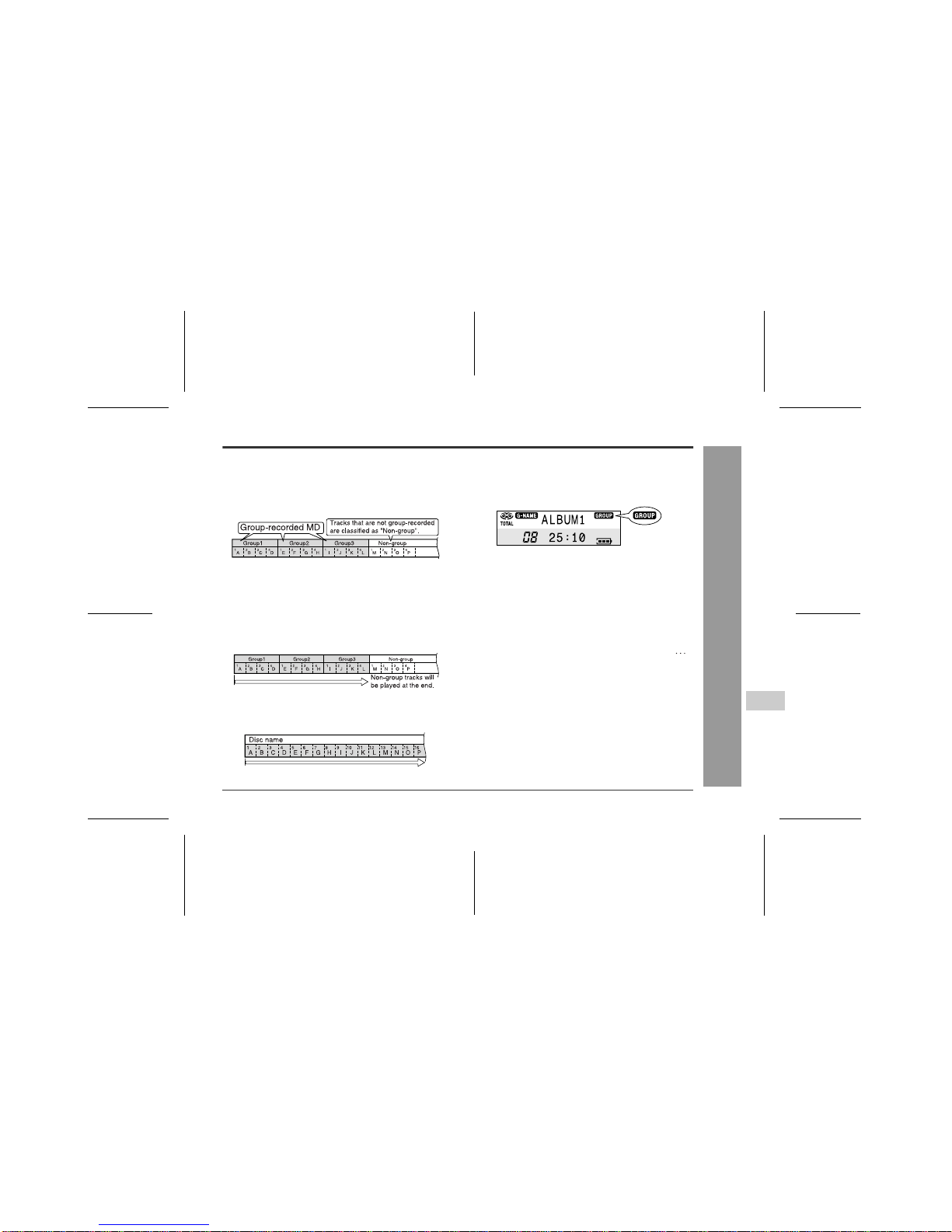

Group Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 - 21
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 - 24
„Useful Features
Advanced Playback . . . . . . . . . . . . . . . . . . . . . . 25 - 27
Advanced Recording . . . . . . . . . . . . . . . . . . . . . 28 - 33
Recording from a Microphone. . . . . . . . . . . . . . 34 - 37
Checking Displays . . . . . . . . . . . . . . . . . . . . . . . 38 - 39
„Advanced Features Page
Titling a MiniDisc . . . . . . . . . . . . . . . . . . . . . . . . 40 - 42
Editing a Recorded MiniDisc . . . . . . . . . . . . . . 43 - 50
Hold Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Changing Default Settings . . . . . . . . . . . . . . . . 52 - 53
Listening through Another System . . . . . . . . . . . . . 54
„References
Other Features and Caution . . . . . . . . . . . . . . . . . . . 55
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . 56 - 57
MiniDisc System Limitations . . . . . . . . . . . . . . . . . . 58
Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . 59 - 61
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . 62 - 63
TERMS OF GUARANTEE . . . . . . . . . . . . . .Backcover

01/8/30 1.fm
4
MD-MT888H
Important Introduction
-Special Notes-
Special Notes
„Warnings
zThe supplied AC adaptor contains no user serviceable
parts. Never remove covers unless qualified to do so.
It contains dangerous voltages, always remove mains
plug from the main outlet socket before any service
operation or when not in use for a long period.
zThe AC adaptor supplied with the MD-MT888H must
not be used with other equipment.
zTo prevent fire or shock hazard, do not expose this
appliance to dripping or splashing liquids. No objects
filled with liquids, such as vases, shall be placed on
the apparatus.
zNever use an AC adaptor other than the one specified.
Otherwise, problems or serious hazards may be cre-
ated.
„Caution
zWhen recording important selections, make a prelimi-
nary test to ensure that the desired material is prop-
erly recorded.
zSHARP is not liable for damage or loss of your record-
ing arising from malfunction of this unit.

01/8/30 1.fm
5
MD-MT888H
Important Introduction
-Special Notes-
zAt full volume, prolonged listening to a personal stereo
may damage the user's hearing. This model complies
with the law if used with the correct earphones (model
number RPHOH0004AWZZ). If the earphones are
damaged in any way, please order using the model
number given above.
zThis product is classified as a CLASS 1 LASER
PRODUCT.
zUse the Portable MiniDisc Recorder only in accord-
ance with the instructions given in this manual and do
not attempt to interfere with the interlock switch or
make any other adjustment as this may result in expo-
sure to hazardous radiation.
Laser Diode Properties
zMaterial: GaAIAs
zWavelength: 785 nm
zPulse time:
Read mode: 0.8 mW Continuous
Write mode: max 10 mW 0.5S
min cycle 1.5S
Repetition
„Notes
zRecording and playback of any material may require
consent, which SHARP is unable to give. Please refer
particularly to the provisions of the Copyright Act
1956, the Dramatic and Musical Performers Protection
Act 1958, the Performers Protection Acts 1963 and
1972 and to any subsequent statutory enactments
and orders.
zThis equipment complies with the requirements of
Directives 89/336/EEC and 73/23/EEC as amended
by 93/68/EEC.
zUS and foreign patents licensed from Dolby Laborato-
ries.
zThe letters in brackets contained in the model number
indicate the colour of the product only. Operation and
specifications are unaffected.

01/8/30 1.fm
6
MD-MT888H
Important Introduction
-Precautions-
Precautions
„Important
zDo not wear your earphones when you are crossing
streets or near traffic.
zDo not play the unit at a high volume. Hearing experts
advise against extended listening at high volume lev-
els.
zIf you experience ringing in your ears, reduce the vol-
ume or discontinue use.
zNo naked flame sources, such as lighted candles,
should be placed on the apparatus.
zAttention should be drawn to the environmental
aspects of battery disposal.
zThe apparatus is designed for use in moderate cli-
mate.
zThis portable MD should only be used within the range
of 0°C - 40°C (32°F - 104°F).
To avoid accidental electric shock or other possible
problems, observe the precautions listed below.
zDo not disassemble or modify the unit.
zDo not drop or subject the unit to shock.
zDo not use the unit near open flames.
zDo not spill liquid on the unit.
z
Do not use an external power supply, other than the 2 V
DC supplied with this unit as it may be damaged.
zSHARP is not responsible for damage due to improper
use. Refer all servicing to a SHARP authorised serv-
ice centre.
„Storing the unit
Avoid using or leaving the unit in the following
places.
zPlaces exposed to direct sunlight for many hours
(especially in cars with the doors and windows closed)
or near heaters. (The cabinet may deform, change col-
our or the unit may malfunction.)
zPlaces exposed to excessive dust.
zPlaces exposed to water.
zPlaces where temperatures are excessively high or
low.
zPlaces (bathrooms) where the humidity is extremely
high.
zPlaces with strong magnetic fields such as TVs or
loudspeakers.
zPlaces exposed to vibration.
zPlaces where sand can easily enter the inside of the
unit (beaches etc.).
zIf the unit is used near radio tuners or TVs, noise and/
or picture interference may result. If you experience
these problems, move the unit away from such
devices.
zDo not use your earphones whilst
driving a motor vehicle, it may cre-
ate a traffic hazard and may be ille-
gal. Remember to obey all of the
safety rules in your area.
zIt is not recommendable to put the
MiniDisc into a rear pocket, as this
may damage the product when sit-
ting.

01/8/30 1.fm
7
MD-MT888H
Important Introduction
-Names of Controls and Indicators-
Names of Controls and Indicators
„Main unit Reference page
1. Synchronised Recording Button . . . . . . . . . . . (28)
2.Mode Button . . . . . . . . . . . . . . . . . . . . . .(19, 26, 29)
3.Volume Buttons . . . . . . . . . . . . . . . . . . . . . . . . . (24)
4.Record Button . . . . . . . . . . . . . . . . . . . . . . .(19, 31)
5.Play/Pause/Stop/Power Off/Hold/Fast Forward/
Fast Reverse Button . . . . .(19 - 21, 23 - 25, 40, 51)
6.Rechargeable Battery Cover. . . . . . . . . . . . . . .(10)
7.2 V DC Input Socket. . . . . . . . . . . . . . . . . . . . . . (12)
8.Optical/Line Input Socket . . . . . . . . . . . . . . (14, 15)
9.Microphone Input Socket . . . . . . . . . . . . . . . . . (34)
10.Remote Control/Earphones/
Line Output Socket . . . . . . . . . . . . . . . . . . . (18, 22)
11.Open Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . (13)
12.3-Colour Indicators . . . . . . . . . . . . . . . . . . . (23, 53)
13.Battery Indicator
14.Disc Mode Indicator
15.Synchro Recording Indicator
16.Record Indicator
17.TOC Indicator
18.Group Indicator
19.Repeat Indicator
20.Random Indicator
21.Level Meter
22.Recording Mode Indicators
23.Track Number Indicator
12345
7
6
8910 11
12
14
13
21
20
22 23
15 16 17 18 19

01/8/30 1.fm
8
MD-MT888H
Important Introduction
-Names of Controls and Indicators-
Names of Controls and Indicators (continued)
„Remote control unit Reference page
1. Earphones Socket . . . . . . . . . . . . . . . . . . . . . . (22)
2.Record Button . . . . . . . . . . . . . . . . . . . . . . . (19, 31)
3.Volume Buttons. . . . . . . . . . . . . . . . . . . . . . . . . (24)
4. Mode/Display Button. . . . . . . . . . . . . . . (19, 26, 38)
5.Group/Clear Button. . . . . . . . . . . . . . . . . . . (16, 21)
6.Menu Button. . . . . . . . . . . . (19 - 21, 23 - 25, 27, 40)
7.Hold Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . (51)
8.Disc Mode Indicator
9.Group Name Indicator
10.Disc Name Indicator
11.Group Indicator
12.Total Track Number Indicator
13.Synchro Recording Indicator
14.Record Indicator
15.Random Indicator
16.Repeat Indicator
17.Recording Mode Indicators
18.Track Number Indicator
19.Character/Time Information Indicator
20.Battery Indicator
2
13456
7
8910 11 15
16
17
1918 20
12
13
14

01/8/30 1.fm
9
MD-MT888H
Important Introduction
-Names of Controls and Indicators-
Menu button operation
Various operations are performed by moving the M but-
ton on the remote control all around or pressing it.
Menu display
When the unit enters the menu mode, the initial letter of
each menu will be displayed in the first line and the con-
tents of the selected menu in the second line.
Note:
Display of the initial letter of the menu depends on
the used conditions.
(Whilst stopped, playback, paused, digital-recording,
analogue-recording, microphone recording, or when a
group-recorded MD or non-group MD is loaded)
If you move the M button toward ...
Playback, pause, selecting a character
If you move the M button toward ...
Fast reverse, selecting a track, menu, and setting
item, moving cursor, adjusting recording level, select-
ing a character
If you move the M button toward ...
Fast forward, selecting a track, menu, and setting
item, moving cursor, adjusting recording level, select-
ing a character
If you move the M button toward ...
Stop, power off
If you press the M button...
Displaying a menu, determining a menu, setting item,
and character

01/8/30 2.fm
10
MD-MT888H
Preparation
-Using with the Rechargeable Battery-
Using with the Rechargeable Battery
„Charging
When the rechargeable battery is used for the first time
or when you want to use it after a long period of disuse,
be sure to charge it fully.
zWhen the portable MD is turned on or operating, the
battery will not be charged.
zNo operation can be performed whilst charging. If you
try to operate, "CH" will appear.
zAfter the rechargeable battery is charged or used, it
will get slightly warm. This is normal.
Caution:
zUse the specified battery AD-N55BT only. Do not
charge a battery (nickel-cadmium, alkaline, etc.) other
than that specified.
zIf the rechargeable battery terminal is dirty, charging
may not start. In such a case, wipe off the dirt with a
dry cloth.
zDo not disassemble the battery.
1Insert the rechargeable battery.
2Connect the AC adaptor.
3Place the unit on the battery charger.
zDo not remove the outer cover of the re-
chargeable battery. It may cause heat gen-
eration, fire, or explosion.
zDo not dip the battery in water, do not dis-
pose of it in a fire, and do not take it apart.

01/8/30 2.fm
11
MD-MT888H
Preparation
-Using with the Rechargeable Battery-
„Display of remaining amount of battery
When the unit is set on the charger, the remaining
amount of battery is displayed.
„Charging time
Charging is completed in about 3 hours, and the dis-
play of remaining amount of battery will go out.
90 % of charging is completed. If you leave it for another
2 hours, the battery will be fully charged.
zCharge the battery within the range of 5°C - 35°C
(41°F - 95°F).
zThe unit can be left in the charging state after it is
completed.
Refresh
If you charge the battery before it runs out completely, the
operating time may be shortened. To avoid this, the bat-
tery is discharged automatically and refreshed.
Display Conditions
Charging.
Scroll
Charging completed.
When the unit is not set correctly
on the charger, the rechargeable
terminal is dirty, or foreign mate-
rial adheres to it, charging may
not be possible. (Wipe the termi-
nal with dry cotton swab.)
Turned off
Refreshing.
The unit reads the memory effect
of the rechargeable battery and
discharge the battery if neces-
sary. After refreshing, it starts
charging automatically.
Flashing

01/8/30 2.fm
12
MD-MT888H
Preparation
-Using with the AC Adaptor-
Using with the AC Adaptor
Caution:
zIf the AC adaptor is not used for a long period of time,
be sure to remove the plug from the socket for safety.
zInsert each plug fully.
Note:
When the power failure occurs whilst playing back music
using the AC adaptor, unplug the unit. If it is left plugged
in, playback may start automatically after the power is
restored.
1Take out the lead from the charger.
2Connect the lead to the main unit (at DC IN
2 V socket).
3Connect the AC adaptor.

01/8/30 2.fm
13
MD-MT888H
Preparation
-Using with the Alkaline Battery/Inserting a MiniDisc-
Using with the Alkaline Battery
Use one commercially available alkaline battery (LR6, AA
size).
When using the alkaline battery, be sure to insert the
rechargeable battery also.
Caution:
Do not put a rechargeable battery (nickel-cadmium bat-
tery, etc.) in the battery case.
Inserting a MiniDisc
Notes:
zDo not place the MiniDisc under the holder.
zIf any resistance is felt, do not force the MiniDisc into
the unit, as it may cause damage to the unit. If resist-
ance is felt, remove the MiniDisc and reload it.
zThe lid cannot be opened if "TOC" is displayed; refer
to the instruction on page 21.
1
2Back of the
portable MD
1Open the battery case cover.
2Insert an alkaline battery into the battery
case.
3Attach the battery case to the unit.
1Slide the OPEN lever to release the com-
partment door.
2Insert a MiniDisc as shown.
3Close the compartment door.

01/8/30 2.fm
14
MD-MT888H
Preparation
-Connections-
Connections
You can record your favourite CDs or tapes to MD.

01/8/30 2.fm
15
MD-MT888H
Preparation
-Connections-

01/8/30 3.fm
16
MD-MT888H
Basic Operation
-Long Time Recording and Group Recording-
Long Time Recording and Group Recording
„Long time recording
Since this MD portable recorder adopts the 4 times long
recording mode, you can record many tracks on one MD
(supporting MDLP).
Up to 320 minutes of recording is possible on one MD (of
80 minutes).
„Group recording
You can record tracks by the group of artists or albums,
etc. That MD can be played by selecting the group.
When the group mode is selected for recording, tracks
are played by the group, starting with the first track of the
group.
When the group mode is cancelled, tracks will be num-
bered sequentially from the beginning.
Setting the group mode
To cancel the group mode
Hold down the GROUP button on the remote control for 1
second or more so that "GROUP" goes out.
Caution:
The group-recorded MD may not be properly
recorded or edited with other equipment.
1. Hold down the REC button on the remote control
for 2 seconds or more.
Recording is paused.
2. Hold down the GROUP button on the remote con-
trol for 1 second or more so that "GROUP" lights
up.

01/8/30 3.fm
17
MD-MT888H
Basic Operation
-Group Playback-
Group Playback
Using a group-recorded MD, you can play back tracks by
the desired group (albums, artists, etc.).
„Playback of group-recorded MD
Example of group recording:
Depending on the selection of the group mode, play-
back of a group-recorded MD changes as follows.
When the group mode is selected
("GROUP" lights up)
Tracks are played by the group, starting with the first track
of the group.
You can select a group to play back.
When the group mode is cancelled
("GROUP" goes out)
Tracks are numbered in the order they are recorded.
Note:
If a group-recorded MD is played back with the equip-
ment that does not support the group function, the disc
name will not be displayed correctly and the group name
will not be displayed at all. (Example) 0;BEST//1- 10;
Setting the group mode
Inserting a group-recorded MD automatically sets
the unit to the group mode.
(The first group is displayed.)
If you eject the MD, the group mode is cancelled.
To cancel the group mode
Whilst in the stop mode, hold down the GROUP button
for 1 second or more so that "GROUP" goes out.

01/8/30 3.fm
18
MD-MT888H
Basic Operation
-Recording-
Recording

01/8/30 3.fm
19
MD-MT888H
Basic Operation
-Recording-
Notes:
zChanging the volume level whilst recording does not
affect the recording.
zYou cannot adjust the bass level whilst recording.
zAfter the group recording is performed, non-group
tracks will be moved behind the groups and track num-
bers will be changed.

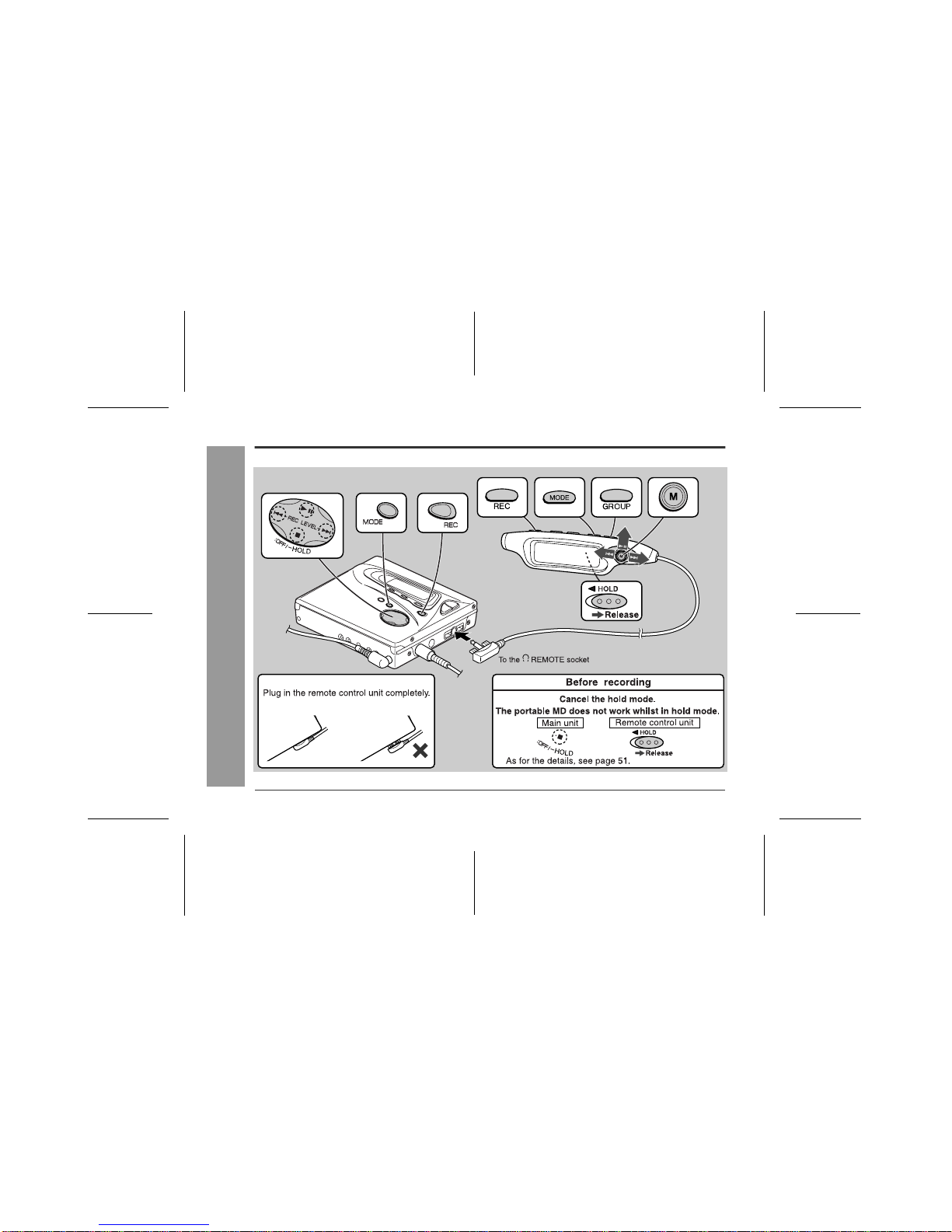

1Plug the remote control into the REMOTE
socket on the unit.
2Hold down the REC button for 2 seconds or
more.
You can perform the same operation by simply press-
ing the REC button on the main unit.
3To perform group record-
ing, hold down the
GROUP button for 1 sec-
ond or more so that
"GROUP" is lit.
zThe unit is ready to record a new group. (To select
a group, refer to page 21.)
zWhen group recording is not performed, hold down
the GROUP button for 1 second or more so that
"GROUP" goes out.
zSetting for the group recording will not be changed
until a new setting is entered.
4Begin playback on the stereo system con-
nected to this portable MD.
5Move the M button toward or to adjust
the recording level (page 20).
You can perform the same operation by holding down
the or button on the main unit.
6Press the PAUSE button on the stereo sys-
tem to enter the playback pause mode.
Here you can search for the track to record.
7Press the MODE button repeatedly to select
the recording mode (page 30).
You can perform the same operation by pressing the
MODE button on the main unit.
8Move the M button toward .
You can perform the same operation by pressing the
button on the main unit.
9Begin playback on the stereo system, the
output will be recorded.

01/8/30 3.fm
20
MD-MT888H
Basic Operation
-Recording-
Recording (continued)
To interrupt recording
Move the M button toward .
zRecording starts by moving the M button toward
again.
zYou can perform the same operation by pressing the
button on the main unit.
zThe track number will be increased by one each time
the recording is interrupted.
To stop recording
Move the M button toward .
zYou can perform the same operation by pressing the
button on the main unit.
zWhen recording stops, "TOC" appears. Whilst "TOC"
appears, the MiniDisc recorded contents have not yet
been updated.
zTo prevent the new recording from being lost, it is not
possible to remove the MiniDisc whilst "TOC" is dis-
played.
To update the recorded contents of the
MiniDisc
Whilst in the stop mode, move the M button toward .
You can perform the same operation by pressing the
button on the main unit.
zThe power turns off after recorded contents have been
updated on the MiniDisc.
„Recording level
Analogue recording
Adjust the recording level so that the maximum sound
volume from the source makes the reading swing some-
where between -4 dB and 0 dB.
You can check the level on the LCD of the main unit.
Digital recording
You can adjust the level in 1dB increments within the
range of +12 - -12dB.
You can check the level on the LCD of the remote control.
Once you adjust the digital recording level, the setting is
retained even after the recording stops. (For cancellation
instructions, see page 52.)
