Sharp Aquos LC40SA5500X User manual

LED BACKLIGHT TV
OPERATION MANUAL
Please choose your favorite page from the content.
If you want to close the operation manual, press the HOME
button.
Also, if you want to return to the previously displayed page,
press the RETURN button.
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>>

1. Part Names
1-1. TV
1-5. Remote Control Unit
2. Watching TV
2-1. Displaying an External Equipment
2-2. Initial Installation
3. Direct Button Operation
3-1. Changing Channels
3-2. Changing Volume
3-3. MUTE
3-4. FLASHBACK
3-5. MPX
3-7. Sleep Timer
3-8. WIDE MODE
3-11. BROWSER
3-12. YouTube
3-13. HOME
4. On-Screen Display Menu
4-1. Introduction
4-3. On-Screen Display Menu Operation
4-4. Menu Operation Buttons
4-5. Initial setup
4-17. Information
4-23. Picture settings
4-25. Audio settings
4-26. Smart TV
4-28. System options
5. Enjoying Photo/Music/Video Playback
5-1. Preparation
5-3. USB Media Player
5-4. Selecting the Folders to Play Back
5-6. Playing Back Files on a USB Memory
Device/Home Network Server
6. Using LINK Operation
6-1. Controlling HDMI Equipment Using
LINK Operation
7. Using a PC
7-1. Control of the TV
7-7. PC Compatibility Chart
8. Using the Internet
8-1. Connecting to the Internet
8-4. Smart TV
8-7. Entering Text (Software Keyboard)
8-9. Using the Browser
8-14. Using Keyboard and Mouse
8-15. Using Applications via the Internet
9. Appendix
9-1. Troubleshooting
9-3. Troubleshooting - Error Message
9-4. Information on the Software License
for This Product
10. Trademarks
11. Specifications
11-1. TV
11-2. Wireless LAN
12. Dimensional Drawings
12-1. LC-40SA5500X
12-2. LC-50SA5500X
12-3. LC-60SA5500X
Contents
EN Contents
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

IMPORTANT INFORMATION
EN Important1
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

IMPORTANT INFORMATION
EN Important2
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

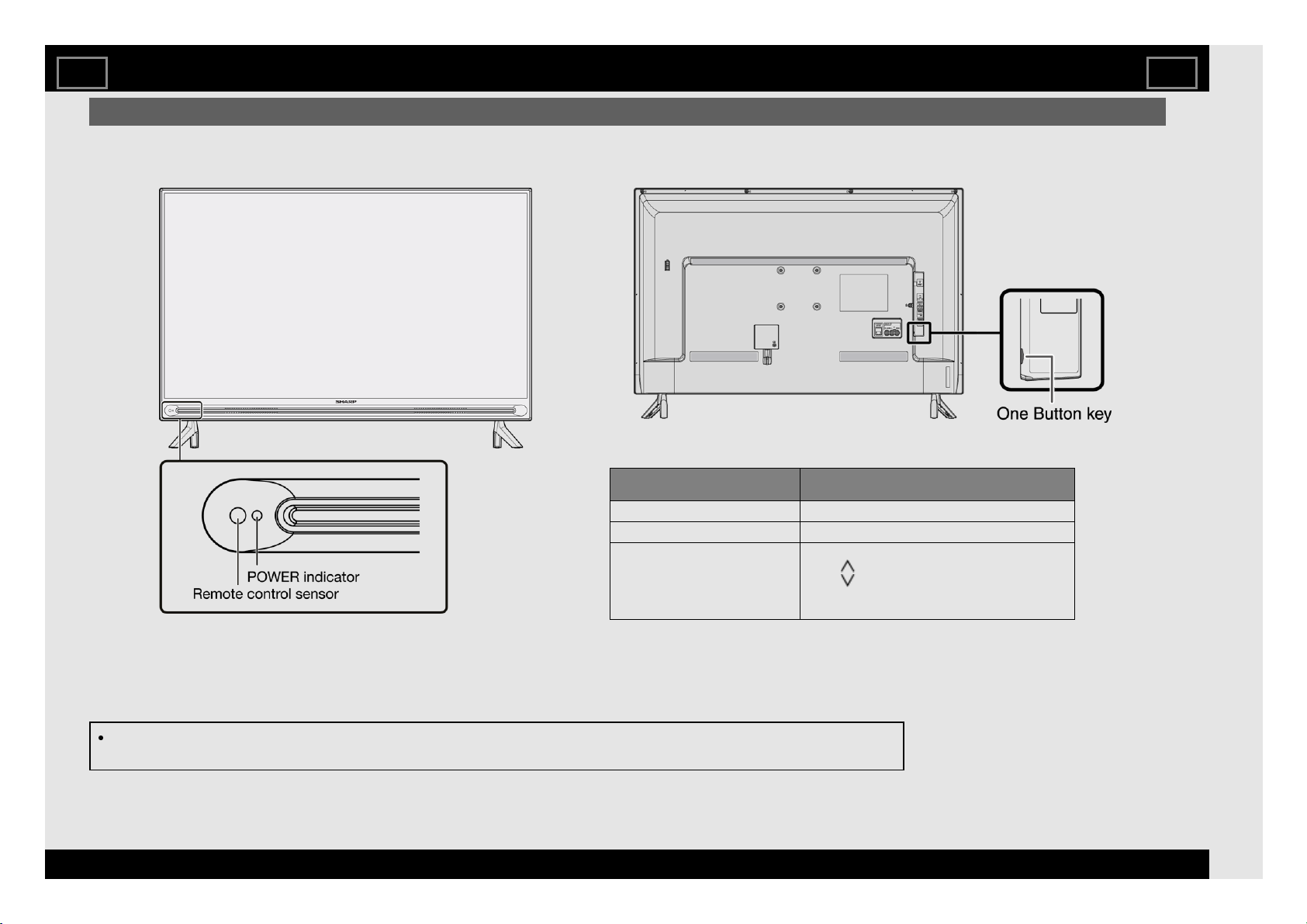

TV
(Front)
LC-40SA5500X
(Side)
The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly
from the actual operations.
Part Names
One Button Key Functions Descriptions
Single Press On/Off (No OSD display)
Long Press Sub-menu display on TV screen (10s timeout)
Function During
Menu 1. INPUT*
2. CH *
3. CH *
4. VOL +*
5. VOL -*
* Single Press: Scroll Down
* Hold Press: Select item
EN 1-1
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

TV (Continue)
(Front)
LC-50/60SA5500X
(Side)
The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly
from the actual operations.
The drawings used throughout this manual are based on the LC-60SA5500X model.
Part Names
EN 1-2
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

TV (Continue)
(Rear)
LC-40SA5500X
*1 See the Setup Guide. And see page 6-1
for external equipment connection.
*2 Use HDMI IN 1 to connect ARC-
compatible equipment.
*3 Usually do not connect anything to this
terminal as it reserved only for service
personnel.
Part Names
EN 1-3
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

TV (Continue)
(Rear)
LC-50/60SA5500X
*1 See the Setup Guide. And see page 6-1
for external equipment connection.
*2 Use HDMI IN 1 to connect ARC-
compatible equipment.
*3 Usually do not connect anything to this
terminal as it reserved only for service
personnel.
Part Names
EN 1-4
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

Remote Control Unit 1 (POWER): Switch the TV power on or enter standby.
2 External equipment operational buttons: Operate the external
equipment.
3 BROWSER: Display the BROWSER screen.
4 MENU: Display the menu screen. (See page 4-3.)
5 MPX: Selects the audio mode during multichannel audio broadcasts.
(See page 3-5 to 3-6.)
6 / / / , ENTER: Select a desired item on the screen.
7 MUTE: Mute the sound. (See page 3-3.)
8 HOME: Display the HOME screen. (See page 3-13).
9 VOL+/-: Set the volume. (See page 3-2.)
10 0-9: Set the channel. (See page 3-1.)
11 (FLASHBACK): Return to the previous channels, HDMI IN 1 - 2, USB
or video input mode. (See page 3-4.)
12 R, G, Y, B: The coloured buttons are correspondingly used to select the
coloured items on the screen.
13 Buttons for useful operations
(Teletext)
Select the teletext mode.
(Reveal hidden teletext)
Display hidden characters.
(Hold)
Stop updating teletext pages automatically or release the hold mode.
(Subtitle)
Switch subtitle languages on / off.
Part Names
EN 1-5
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

Remote Control Unit (Continue) 14 EPG
DTV: Display the EPG screen.
15 GUIDE
DTV: Display the programme channel list.
16 INFO
DTV: Display the programme information.
17 SLEEP: Set the sleep timer. (See page 3-7.)
18 YouTube: Display the YouTube screen.
19 DISPLAY: Display the channel information.
20 RETURN: Return to the previous screen.
21 AV MODE: Select an audio or video setting. (See page 4-23.)
22 CH / : Select the channel. (See page 3-1.)
23 WIDE: Change a wide image mode. (See pages 3-8 to 3-10.)
24 INPUT: Select an input source.
Part Names
EN 1-6
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

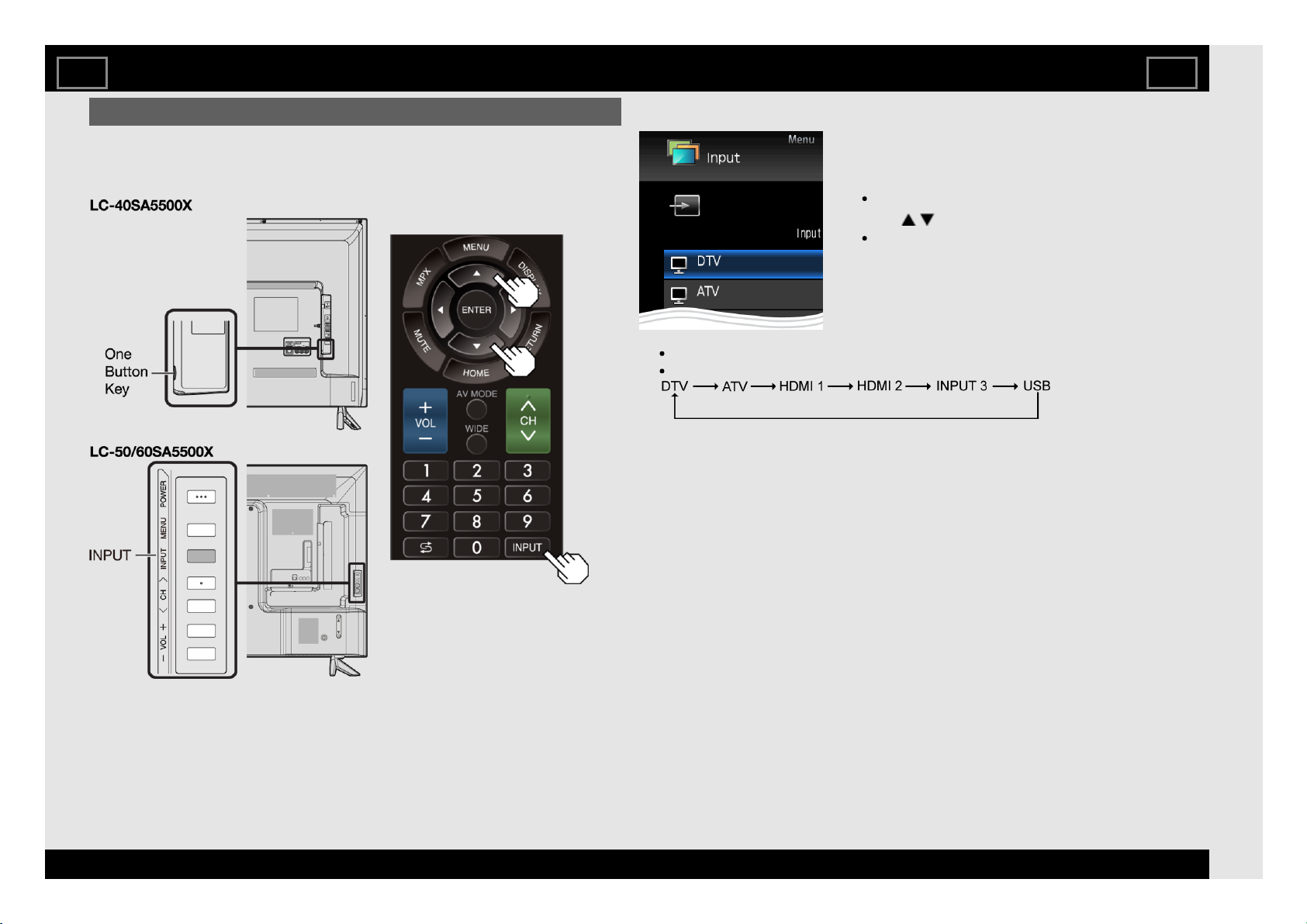

Displaying an External Equipment Image
To view external source images, select the input source by pressing INPUT
on the remote control unit or One Button Key (LC-40SA5500X) / INPUT
(LC-50/60SA5500X) on the TV.
Watching TV
Example
You can also select the input source by pressing INPUT.
Each time INPUT is pressed, the input source toggles.
1 Press INPUT.
The INPUT list screen displays.
2 Press / to select the input source.
An image from the selected source
automatically displays.
EN 2-1
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

Initial Installation
Perform the following steps before you press (POWER) on the remote control unit.
1. Insert the batteries into the remote control unit.
2. Connect the antenna cable to the TV.
3. Plug in the AC cord to the AC outlet.
4. Press (POWER) on the remote control.
The initial auto installation wizard appears. Press ENTER to start the wizard.
Language (Language setting)
Select from among 12 languages. (English, Simplified Chinese, Arabic, Thai, French, Portuguese, Russian,
Persian, Vietnamese, Indonesian, Hebrew and Hindi)
1 Press / / / to select the desired language listed on the screen, and then press ENTER.
Watching TV
EN 2-2
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

Initial Installation (Continue)
Location
Make settings for the country where you use the TV.
2 Press / / / to select "Iran", "Singapore", "Malaysia", "Morocco", "Vietnam", "Indonesia", "Myanmar",
"Thailand","Uzbekistan","Philippines", "Kenya","Tanzania","Nigeria", "Angola", "United Arab Emirates",
"Georgia", "Mauritius", "Egypt" or "Others", and then press ENTER.
Watching TV
EN 2-3
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

Initial Installation (Continue)
TV location
Select "Home" or "Store" for the location where you plan to install the TV.
3 Press / to select "Home" or "Store". Press ENTER to enter the setting.
Home: AV Mode is set to "STANDARD".
Store: AV Mode is set to "DYNAMIC (Fixed)".
Watching TV
EN 2-4
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

Initial Installation (Continue)
CH search (Channel search)
Channel auto search makes the TV look for all channels viewable in the set area.
4 Press / to select "DTV", "ATV", or "DTV+ATV" in "Search type", and then press ENTER.
5 Press / to select "Start", and then press ENTER for searching receivable channels.
The Channel search will start automatically.
To exit the Channel search screen, select "Cancel", and then press ENTER.
Watching TV
EN 2-5
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

Initial Installation (Continue)
Smart TV
Wireless LAN connection is possible only when the WPS (push button) method is used. If any other
method is used, make settings by Smart TV > Internet Setup.
(See pages 8-4 to 8-6.)
6 Press / to select "Yes", and then press ENTER.
7 Press / to select "Wired" or "Wireless", and then press ENTER.
Watching TV
EN 2-6
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

Initial Installation (Continue)
Connection using an ETHERNET cable:
Select "Wired" and press ENTER.
Confirm that the TV is properly connected with the router, and then press "Next". Follow the instructions
on the display to perform the connection test.
Wireless LAN connection by the WPS method:
Select "Wireless" and press ENTER.
Follow the instructions on the display, and finalize the connection after testing its viability.
NOTE
After you finish configuring the network settings, configure the "TV name setting".
(See page 4-27)
When you change the network settings, refer to Smart TV > Internet Setup.
(See pages 8-4 to 8-6.)
SHARP Legal
8 Press / to view Sharp Terms of Use and Sharp Privacy Policy.
Completed
9 The settings confirmation screen is displayed. Confirm the information displayed on the screen, click "OK"
will complete the Easy Setup procedure.
Examples of the settings confirmation screen
NOTE
For changing the settings of the Initial Installation, perform "Easy setup" on the Initial Setup menu on
page 4-5.
Watching TV
EN 2-7
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

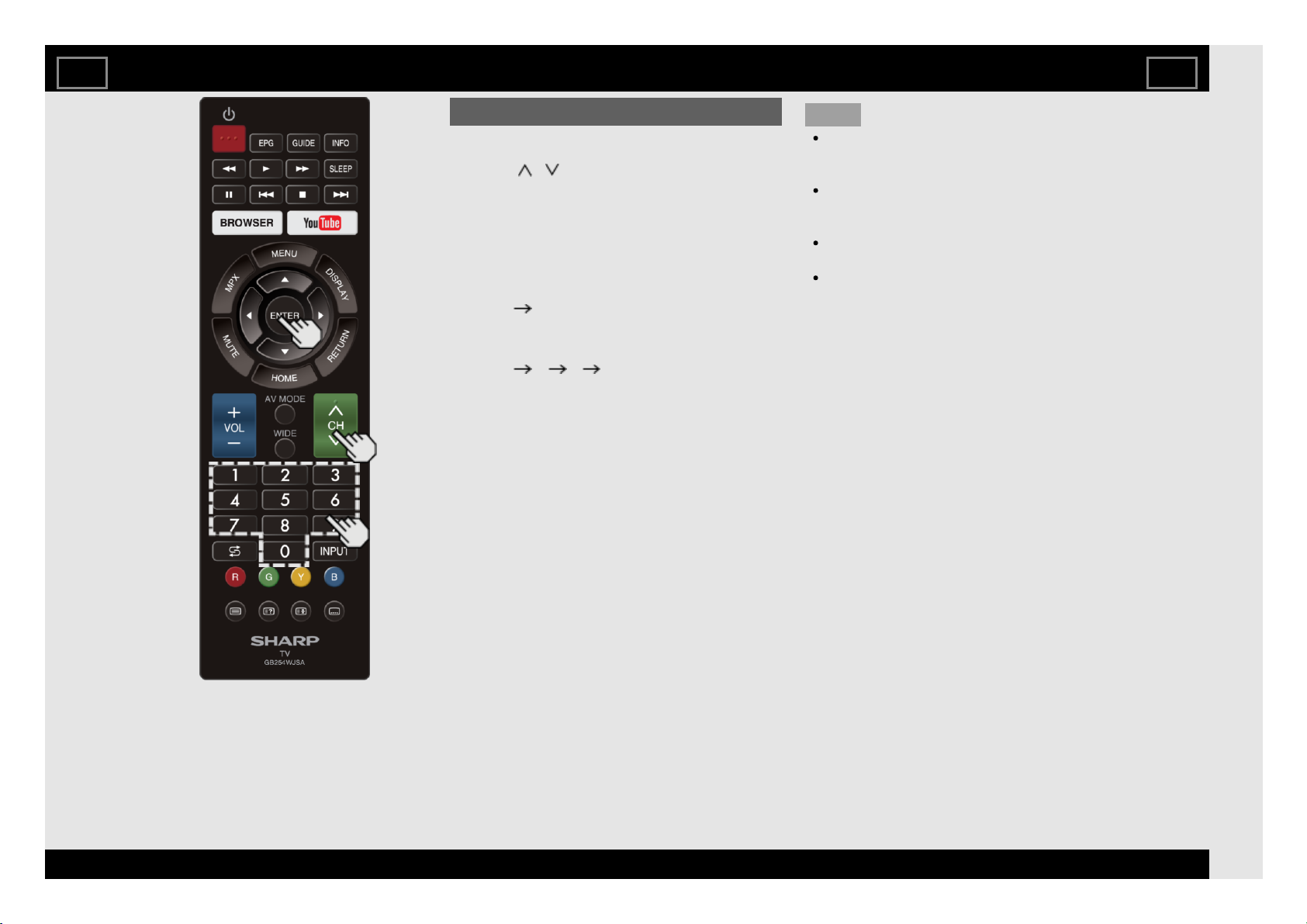

Changing Channels
You can change channels in several ways.
Method 1
Using CH / on the remote control unit or
on the TV.
Method 2
Using remote control buttons 0-9.
Examples:
To select a 1 or 2-digit channel number
(e. g., Channel 5):
Press 5 ENTER
To select a 3-digit channel number (e. g.,
Channel 115):
Press 1 1 5 ENTER
NOTE
When selecting a 1-digit channel number, it
is not necessary to press 0 before the
number.
When you enter 0-9 only, channel selection
will be made if there is no operation within a
few seconds.
If you push "0" by itself, nothing will
happen.
Complete the above steps within a few
seconds.
Direct Button Operation
EN 3-1
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

Changing Volume
You can change the volume by pressing
VOL+/- on the TV or on the remote control unit.
To increase the volume, press VOL +.
To decrease the volume, press VOL -.
Audio status
Output device Audio Output Select
Audio Out Headphone
TV Speaker Variable Sound Mute
AUDIO OUT /
HEADPHONE
Fixed Sound
(Volume MAX) Variable Sound
Direct Button Operation
EN 3-2
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

MUTE
Mutes the current sound output.
Press MUTE.
will be displayed on the screen for 30
minutes.
NOTE
Mute can be cancelled by pressing VOL+/-
or MUTE.
Direct Button Operation
EN 3-3
