Sharp SKCD24U0GS User manual

E
1
Sharp Convection Microwave Drawer & SuperSteam+ Pedestal
Model SKCD24U0GS
For use with models SMD2499FS and SSC2489DS.
IMPORTANT NOTES TO THE INSTALLER
• PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.
• Observe all governing codes, ordinances, and safety instructions.
• Refer to these specic models' installation instructions for more information on placement.
• Be sure to leave these instructions with the consumer.
• Remove all packing material before beginning the installation.
NOTE:
This installation process requires two people. Please ensure you have another person to help lift and install the unit.
WARNING:
Follow all of the steps provided in this installation. Improperly securing or installing the unit can lead to possible injury or
damage to the unit.
INSTALLATION INSTRUCTIONS

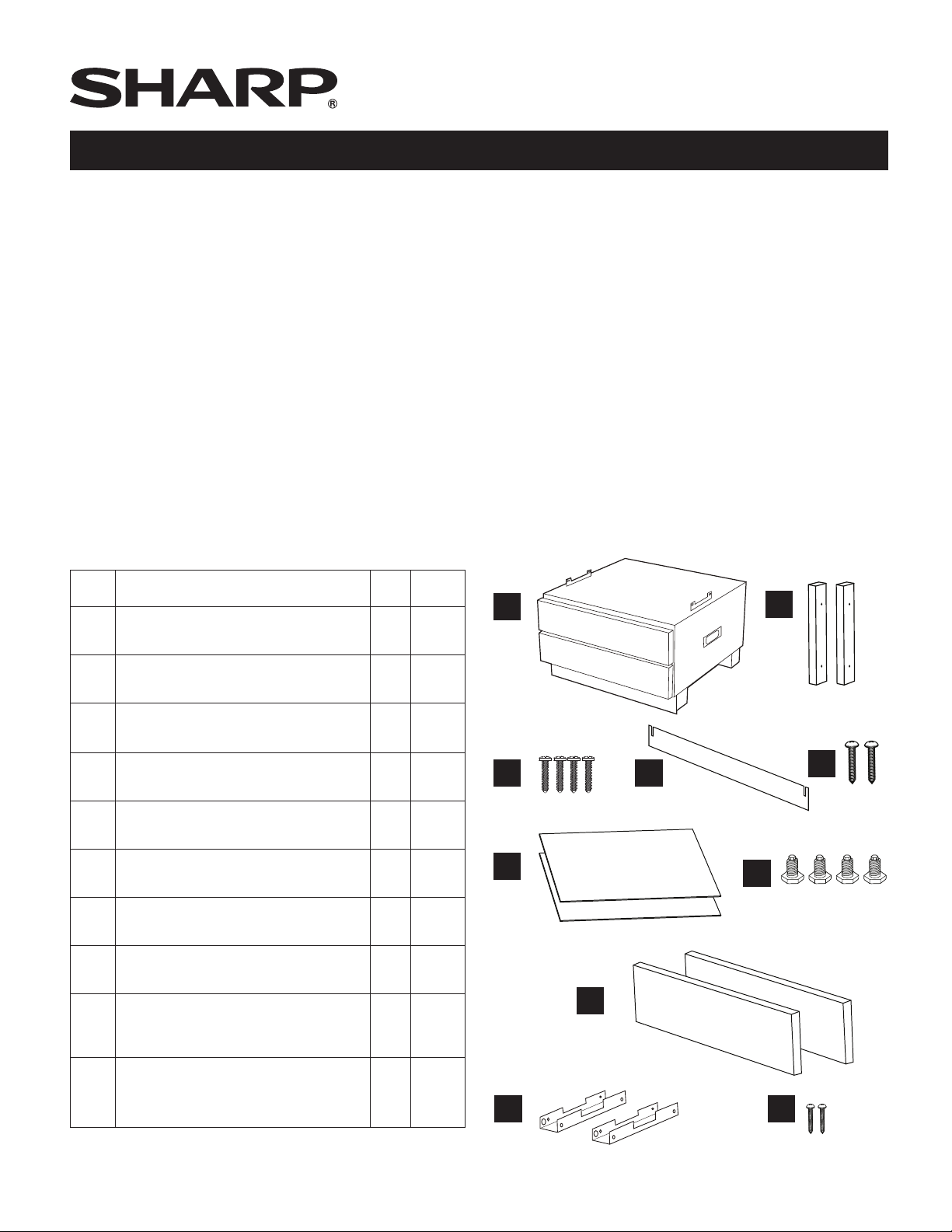

ITEM PART NAME QTY PRICE
CODE
AUTC PEDESTAL
DPED-B002MRK0 1 N/A
BMOUNTING CLEATS
SPAK-B128MRE0 2 AK
CMOUNTING CLEAT SCREWS
XMSS742P38000 4 AA
DTOE KICK
GCOVHB087MRT0 1AT
ETOE KICK SCREWS
XUPS840P12X00 2 AA
FDRAWER MATS
PCOV-B009MRE0A 2 AN
GSCREW LEVELING
GLEGPB006MRE0 4 AC
HDRAWER DECORATION
HDECAC157MRP0 2 BB
I
SUPERSTEAM OVEN
CONVERSION BRACKET
LANGTB464MRP0
2 AP
J
SUPERSTEAM OVEN
CONVERSION BRACKET SCREWS
LX-BZA148WREZ
2 AA
Items B-J are available for ordering.
AB
D
F
H
I J
G
CE

2E
INSTALLATION INSTRUCTIONS

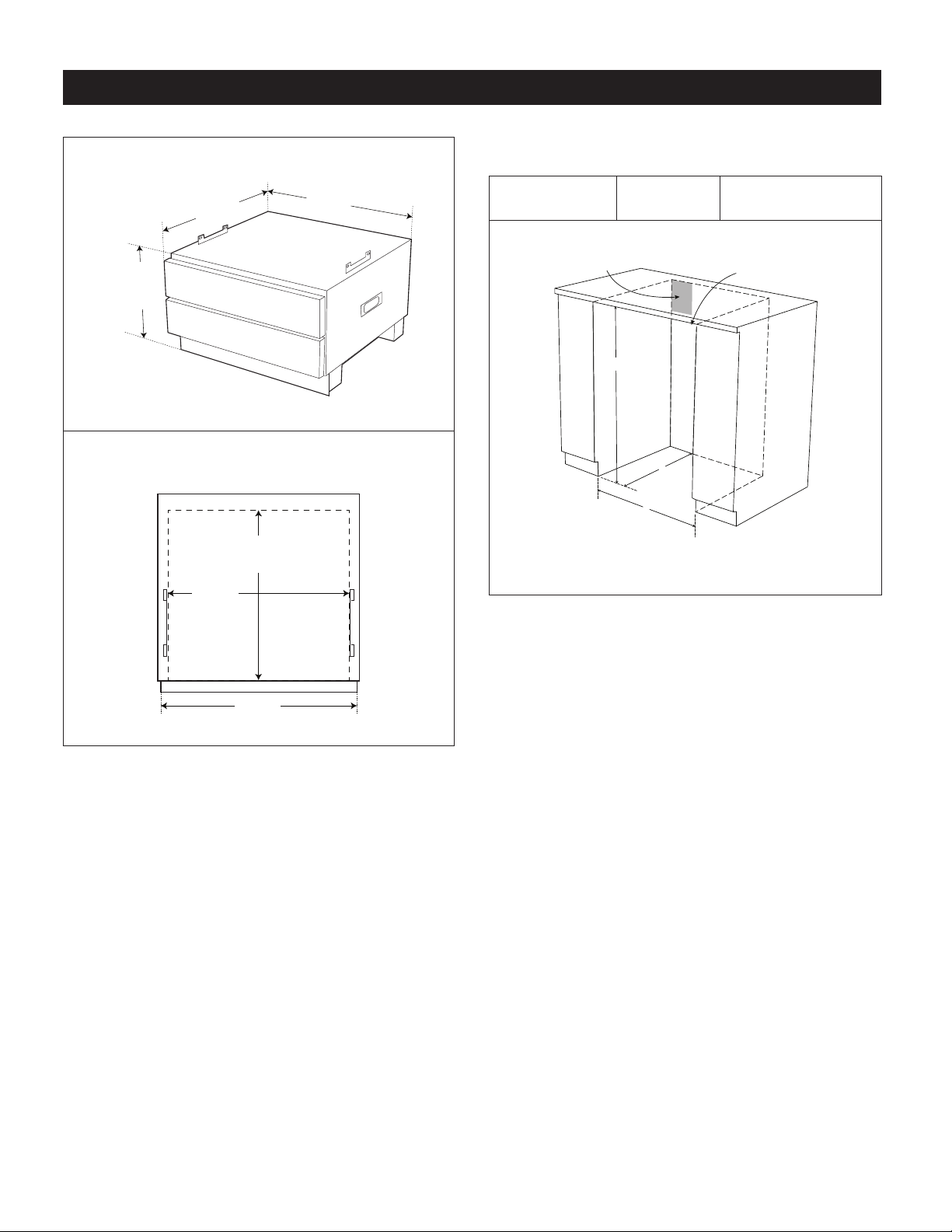

Overall Dimensions
14 7/16"
(366.7 MM) MIN
15 3/4"
(390.5 MM) MAX
23 13/16"
(604.8 MM)
23 1/2"
(596.9 MM)
Inside Drawer Dimensions
21 13/16"
(554.0 MM)
18 11/16"
(474.7 MM)
23 11/16"
(601.7 MM)
1. Cabinet cutout dimensions. Prepare the cabinet opening
as shown in Figure 1.
Height (A)
34
1/2" (876 mm)
Width (B)
24" (610 mm)
Depth (C)
23
1/2" min. (597 mm)
*NOTE: INSTALLER PROVIDE
TOP FILLER IF NEEDED
SUGGESTED ELECTRICAL
OUTLET LOCATION
B
C
A
FIGURE 1

E
3

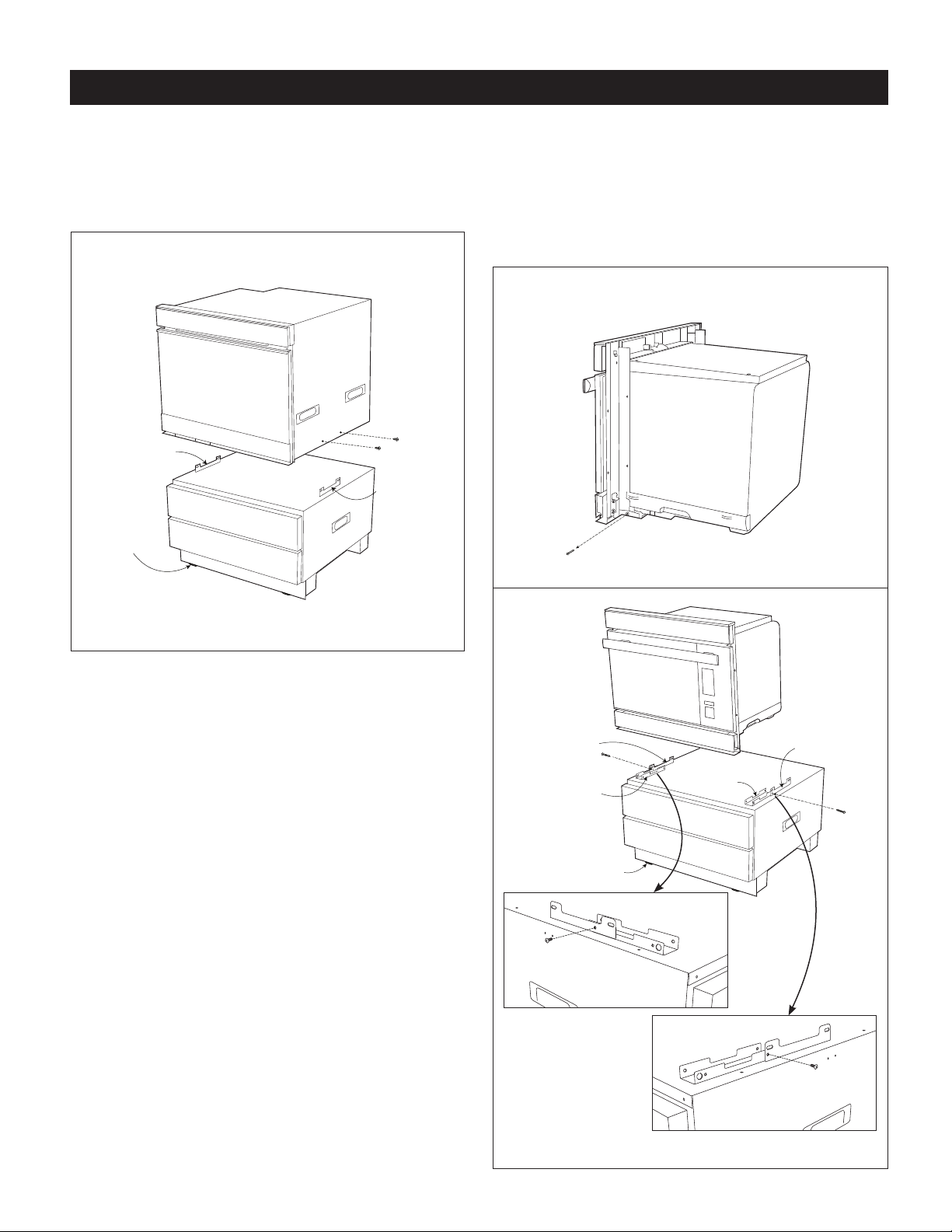

2. Convection Microwave Drawer - Place the oven on a
secure surface. Remove the 4 bottom screws (2 on each
side of the oven) as shown in Figure 2A. Carefully place
the oven on top of the pedestal in-between the mounting
rails on the left and right.
For Convection Microwave Drawer
CONVECTION DRAWER IMAGES
LEFT
MOUNTING
RAILS RIGHT
MOUNTING
RAILS
ADJUSTABLE
FEET
FIGURE 2A
INSTALLATION INSTRUCTIONS
SuperSteam+ Oven - Place the oven on a secure surface.
Remove the 2 bottom screws (1 on each side of the
oven) as showing in Figure 2B. Install the two conversion
brackets with the two provided screws (J). See Figure 2C.
Carefully place the oven on top of the pedestal in-between
the conversion brackets on the left and right.
For SuperSteam+ Oven
FIGURE 2B
ADJUSTABLE
FEET
LEFT
MOUNTING
RAILS
BRACKET BRACKET
RIGHT
MOUNTING
RAILS
FIGURE 2C

4E
INSTALLATION INSTRUCTIONS

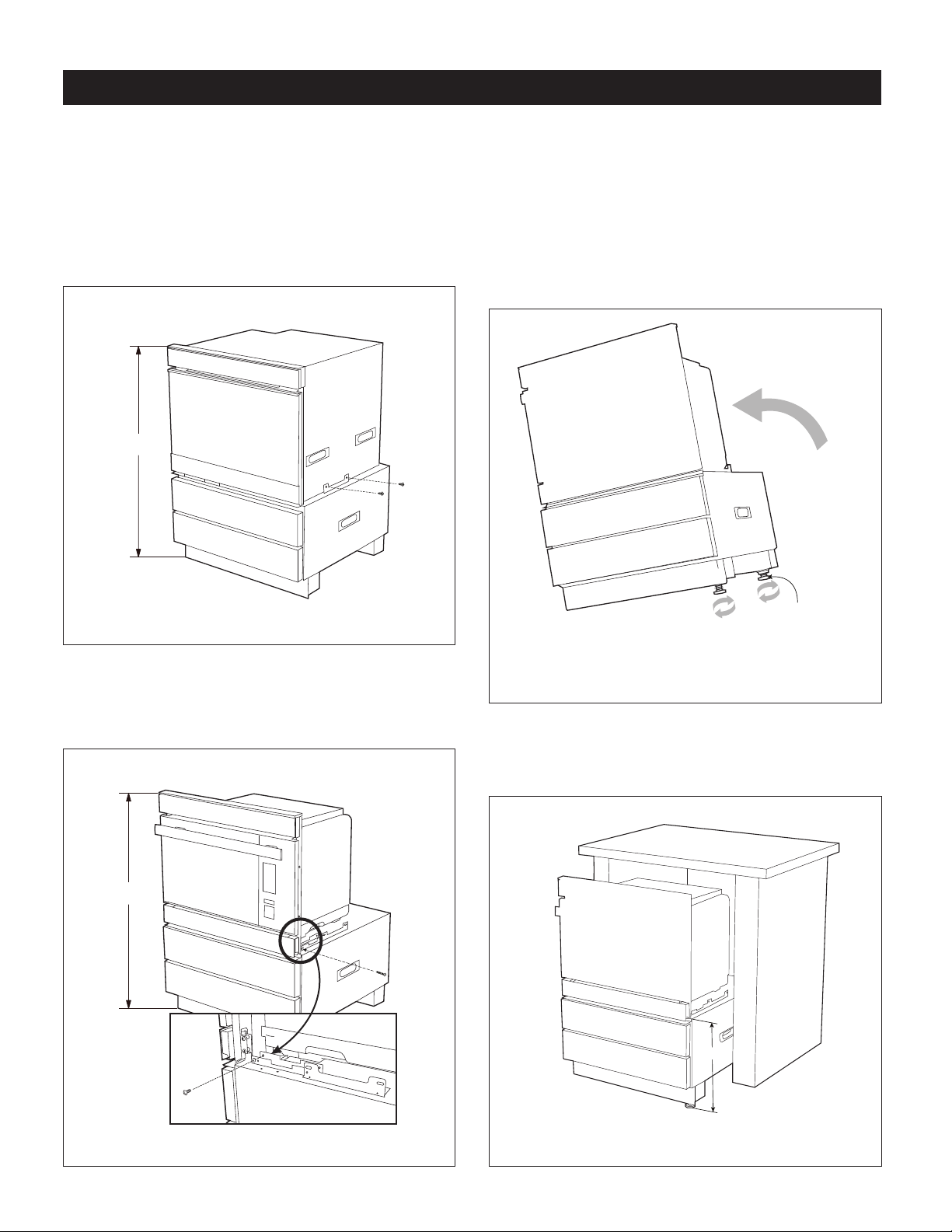

3. Align the front face of the oven with the front face of the
pedestal drawers. Once positioned, fasten the oven to the
pedestal.
Convection Microwave Drawer - Use the same 4
removed screws from Step 2. See Figure 3A.
* Refer to oven installation instructions for the models'
specic below-the-counter clearance guidelines.
For Convection Microwave Drawer
*
FIGURE 3A
SuperSteam+ Oven - Use the 2 removed screws from
Step 2. See Figure 3B.
* Refer to oven installation instructions for the models'
specic below-the-counter clearance guidelines.
For SuperSteam+ Oven
*
FIGURE 3B
4. Adjust the height of the overall unit to t your specic
opening. The pedestal contains 4 adjustable feet. To
adjust, have one person tilt the unit to one side while the
other person adjusts the 2 feet on the raised side to the
desired height. Repeat this step by tilting the unit to the
other side and adjusting the other 2 feet. Ensure that all
feet are adjusted equally to balance the unit. See Figure 4.
CAUTION: Do not tilt forward. The pedestal drawers will
extend out.
USE CHANNEL LOCK OR
SLIP-JOINT PLIERS TO
LOOSEN THE FEET
PRIOR TO ADJUSTMENT
FIGURE 4
5. Once the overall height has been conrmed, measure the
distance from the top surface of the pedestal unit to the
oor. See Figure 5. This measurement will be needed for
the installation of the wooden mounting cleats.
A
FIGURE 5

E
5
INSTALLATION INSTRUCTIONS

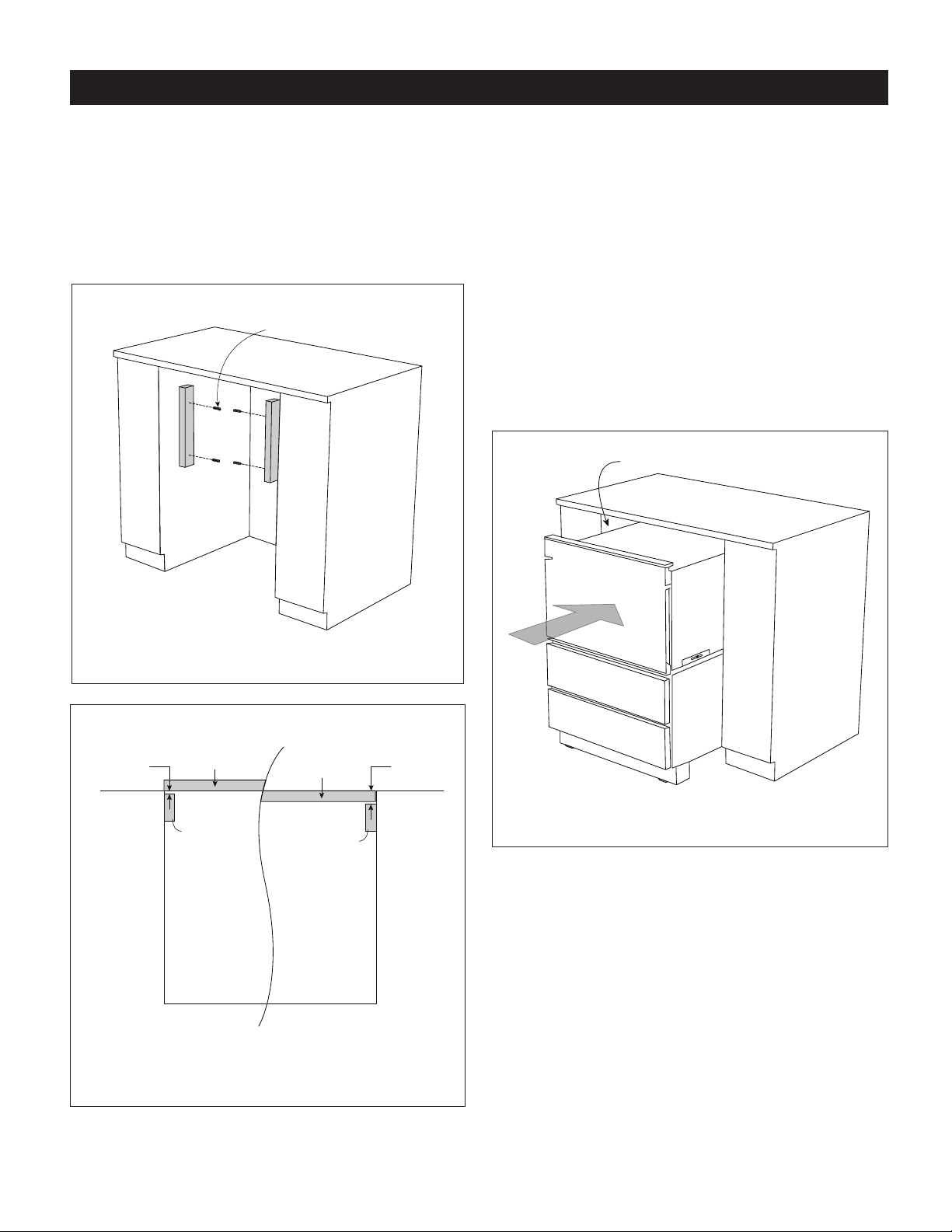

6. Install the wooden cleats.Align the bottom of the cleat to the
measurement from Step 5. The pedestal can be installed
ush or standard with the face of the cabinet. Depending
on the preference, the depth of the cleat position should
be adjusted as such. See Figure 6. Position each cleat and
mark the holes on the cabinet. Pre-drill each hole in the
cabinet using a 1/16" (1.6 mm) drill bit. Attach both cleats
using the 4 mounting cleat screws. See Figure 7.
MOUNTING CLEAT SCREWS
FIGURE 6
X Y
STANDARD MOUNT
CLEAT CLEAT
FLUSH MOUNT
CABINET FACECABINET FACE
UTC DRAWER FACE UTC DRAWER FACE
*NOTE: WHEN USING CONTRACTOR CABINET FACES,
ADD OR SUBTRACT ADDITIONAL DIMENSION.
SUPPLIED DRAWER FACES ARE 1
3
/16"
FIGURE 7
7. Slide the unit into the opening. Plug oven into the wall
receptacle prior to pushing the unit all the way in. See
Figure 8. The mounting angles of the oven should rest
against the installed wooden cleats.
NOTE:
• To aid in sliding the unit into the space, open the bottom
drawer and use middle frame to push into place. In
addition, there are built-in handles on each side of
the pedestal that can assist in the movement of the
unit. Tuck cord behind the oven before pushing the
assembled unit in.
• If the chosen height of the installation presents a gap
between the counter top and the unit, attach cabinet
ller strip as noted in Figure 8. Cabinet ller strip can be
purchased wherever cabinets are sold.
*NOTE: ATTACH CABINET FILLER STRIP IF NEEDED
LEVEL UNIT TO DESIRED HEIGHT
FIGURE 8

6E
INSTALLATION INSTRUCTIONS
8. Open the oven door and pre-drill each hole using a 1/16"
(1.6 mm) drill bit. Fasten the unit to the mounting cleats
using the 4 mounting screws provided with your oven.
See Figure 9A or 9B.
For Convection Microwave Drawer
FIGURE 9A
For SuperSteam+ Oven
FIGURE 9B
9. Install bottom kickplate. Use the 2 toe kick screws to
fasten the plate. The 2 toe kick screws come installed in
the unit. Remove these 2 screws prior to positioning the
kickplate. See Figure 10.
*NOTE: PROVIDE FILLER IF NEEDED
SERIAL
NAMEPLATE
FIGURE 10

E
7
CUSTOM PANEL INSTALLATION

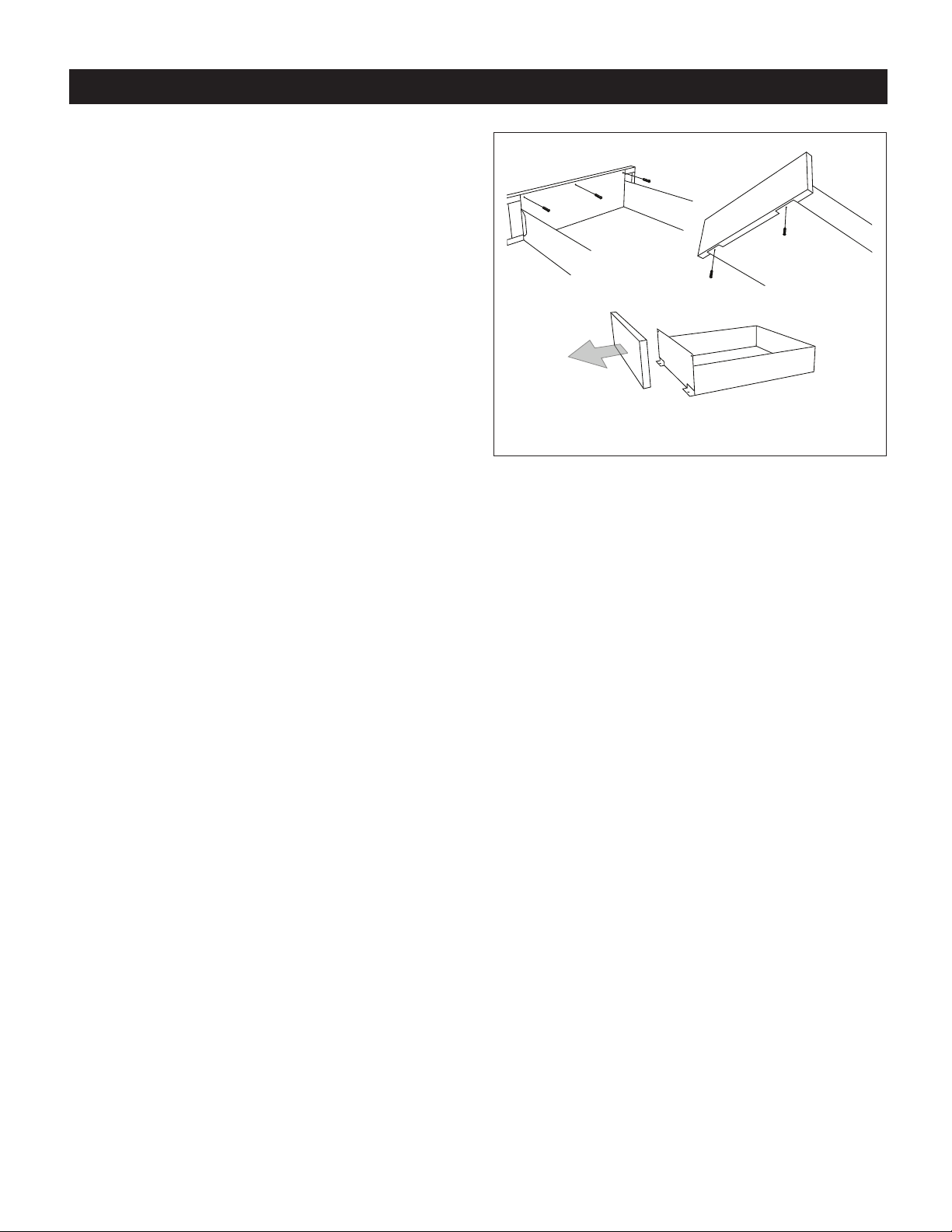

The pedestal drawer fronts can be replaced with custom wood
fronts. If custom drawer faces are preferred, the stainless
steel drawer faces can be taken off by removing 5 screws (3
on the back side and 2 underneath). See Figure 11.
Suggested custom drawer face dimensions:
Height 5" (127 mm)
Width 23
11/16" (602 mm)
Depth 1
3/16" (30.2 mm)
FIGURE 11

SHARP ELECTRONICS CORPORATION • 100 Paragon Drive, Montvale, New Jersey 07645 • USA
For any other assistance or information about this kit, please call Sharp’s Customer Assistance Center: 1-800-BE-SHARP (1-800-237-4277)
SHARP ELECTRONICS OF CANADA LTD • 335 Britannia Road East, Mississauga, Ontario, L4Z 1W9 • Canada
For any other assistance or information about this kit, please call 877-278-6709 Mon-Fri: 8am-5pm EST (except statutory holidays)

1F
Caisson pour tiroir four à micro-ondes et
SuperSteam+™ Sharp modèle SKCD24U0GS
Peut être utilisé avec les modèles SMD2499FS et SSC2489DS
NOTES IMPORTANTES À LA PERSONNE QUI FERA L'INSTALLATION
• VEUILLEZ LIRE ATTENTIVEMENT CES INSTRUCTIONS AVANT DE COMMENCER L'INSTALLATION.
• Veuillez respecter tous les codes de conduite, toutes les ordonnances et instructions de sécurité.
• Veuillez consulter les instructions d'installation du modèle en particulier pour plus de renseignements sur le placement.
• Veuillez vous assurer de laisser ces instructions au consommateur.
• Veuillez retirer tous les matériaux d'emballage avant de commencer l'installation.
REMARQUE :
Ce processus d'installation doit être exécuté par deux personnes. Veuillez vous assurer d'obtenir de l'aide d'une autre personne
pour soulever et installer l'appareil.
AVERTISSEMENT :
Veuillez suivre toutes les étapes indiquées dans cette installation, Une installation inadéquate de l'appareil peut entrainer des
blessures corporelles ou des dommages à l'appareil.
INSTRUCTIONS D'INSTALLATION
ARTICLE NOMS DE LA PIÈCE QTÉ CODE
DU PRIX
ACAISSON À INSTALLER SOUS LE COMPTOIR
DPED-B002MRK0 1 N/A
BTAQUETS DE FIXATION
SPAK-B128MRE0 2 AK
CVIS POUR LES TAQUETS DE FIXATION
XMSS742P38000 4 AA
DCOUP-DE-PIED
GCOVHB087MRT0 1AT
EVIS À COUP-DE-PIED
XUPS840P12X00 2 AA
FREVÊTEMENTS DE FOND DE TIROIR
PCOV-B009MRE0A 2 AN
GVIS DE MISE À NIVEAU
GLEGPB006MRE0 4 AC
HDÉCORATION POUR TIROIR
HDECAC157MRP0 2 BB
I
SUPPORT POUR CONVERSION
DU FOUR SUPERSTEAM
LANGTB464MRP0
2 AP
J
VIS DE SUPPORTS POUR CONVERSION DU
FOUR SUPERSTEAM
LX-BZA148WREZ
2 AA
Les articles B à J peuvent être commandés.
AB
D
F
H
I J
G
CE

2F
INSTRUCTIONS D'INSTALLATION

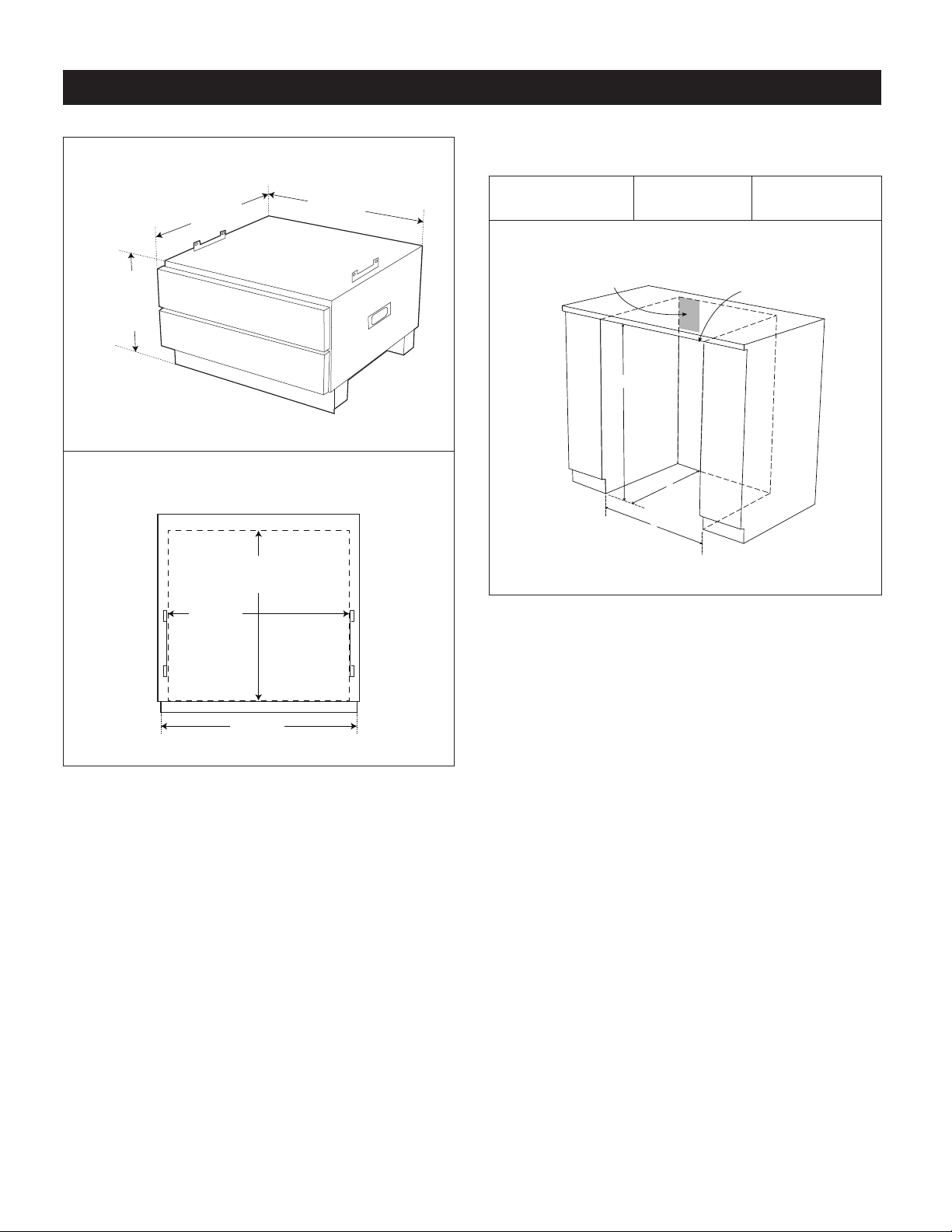

Dimensions générales
14 7/16"
(366.7 MM) MIN
15 3/4"
(390.5 MM) MAX
23 13/16"
(604.8 MM)
23 1/2"
(596.9 MM)
596,9 mm
(23 1/2po)
366,7 mm
(14 7/16 po) MIN
390,5 mm
(15 3/4po) MAX
604,8 mm
(23 13/16 po)
Dimensions de l'intérieur du tiroir
21 13/16"
(554.0 MM)
18 11/16"
(474.7 MM)
23 11/16"
(601.7 MM)
554,0 mm
(21 13/16 po)
474,7 mm
(18 11/16 po)
601,7 mm
(23 11/16 po)
1. Dimensions de la découpe de l'armoire. Préparer
l'ouverture de l'armoire comme illustré à la Figure 1.
Hauteur (A)
876 mm (34 1/2po)
Largeur (B)
610 mm (24 po)
Profondeur (C)
597 cm (23 1/2po)
*NOTE: INSTALLER PROVIDE
TOP FILLER IF NEEDED
SUGGESTED ELECTRICAL
OUTLET LOCATION
B
C
A
EMPLACEMENT DE LA PRISE
ÉLECTRIQUE SUGGÉRÉ
*REMARQUE :
L'INSTALLATEUR DOIT
FOURNIR LA BANDE DE
SUPPORT, SI NÉCESSAIRE
FIGURE 1
