Sharp SJ-X339S User manual

Refrigerator - Freezer
Operation manual
Contents
• Safety information .......................... 3
• Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
• Description ................................ 6
• Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
• Storing food ............................... 8
• Care and cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . 9
• Before you call for service .................... 9
• 6SHFL¿FDWLRQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

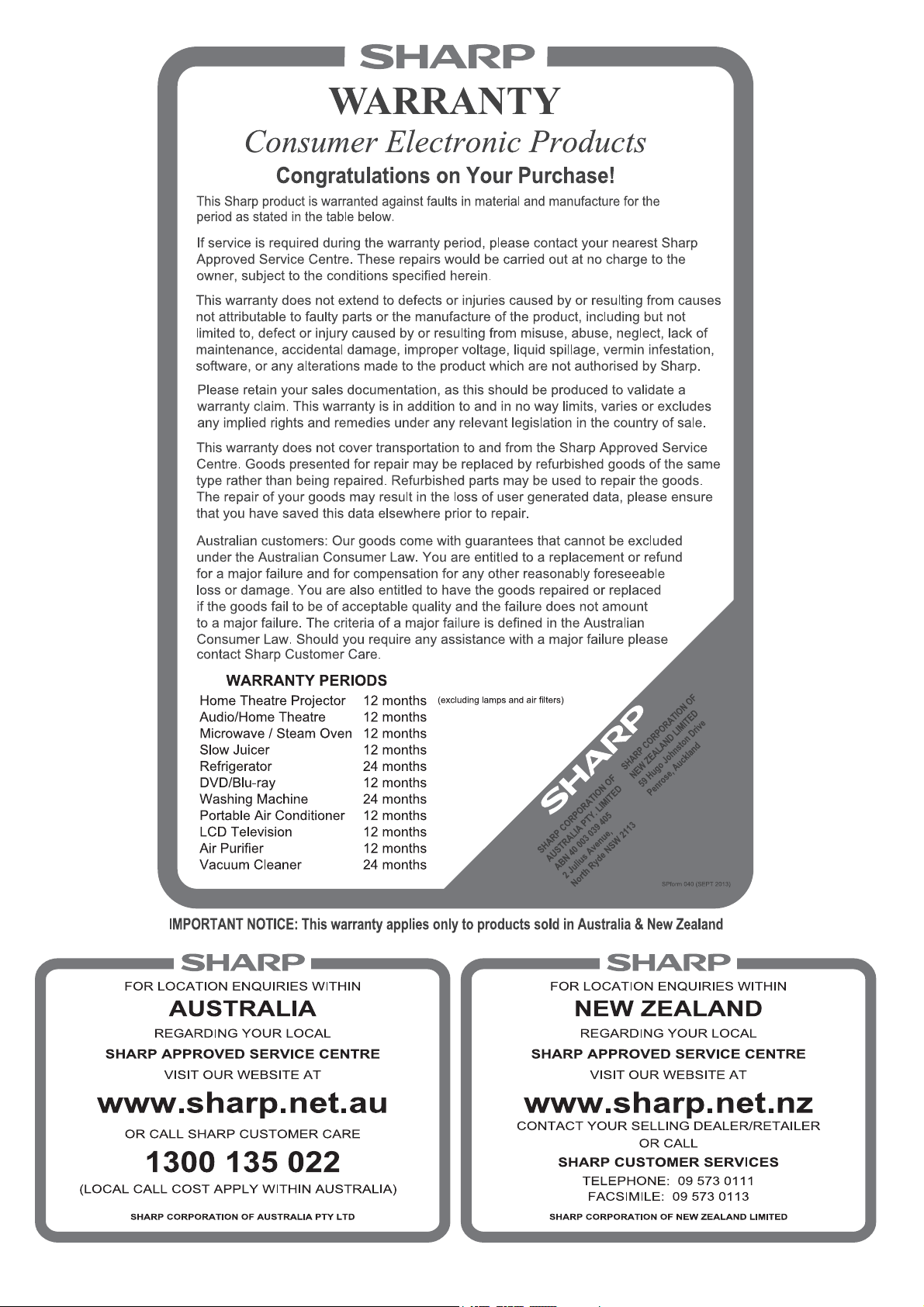

• Warranty ..................................11
MODEL
SJ-X339S
SJ-X339S

3
Household use only
Thank you very much for buying this SHARP product. Before using your SHARP
refrigerator, please read this operation manual to ensure that you gain the maximum
EHQH¿WIURPLW
• This refrigerator is intended for making ice cubes, refrigerating and freezing foods.
• This refrigerator is for household use only, with ambient temperature indicated in
WKHWDEOH7KHFOLPDWHFODVVLVVSHFL¿HGRQWKHUDWLQJSODWH
The refrigerator is fully functional at the ambient temperature range of the indicated
climate class. If the refrigerator is used at colder temperatures, the refrigerator will
not be damaged up to a temperature of +5°C.
• The refrigerator should not be subjected to temperatures of -10°C or below for a
long period of time.
Refrigerant
7KLVUHIULJHUDWRUFRQWDLQVÀDPPDEOHUHIULJHUDQW5D
LVREXWDQHDQGLQVXODWLRQEORZLQJJDVF\FORSHQWDQH
Observe the following rules to prevent ignition and
explosion.
ŶDo not allow any sharp objects to have contact with the
refrigeration system. The refrigeration system behind
and inside the refrigerator contains refrigerant.
ŶDo not use mechanical devices or other means to
DFFHOHUDWHWKHGHIURVWLQJSURFHVV7KLVUHIULJHUDWRUKDV
adopted automatic defrosting system.)
ŶDo not use electrical appliances inside the refrigerator.
ŶDo not block the space around the refrigerator.
Ŷ'RQRWXVHÀDPPDEOHVSUD\VVXFKDVVSUD\SDLQWQHDU
the refrigerator.
ŶIn the case of failure of the refrigeration system, do not
WRXFKWKHZDOOVRFNHWDQGXVHRSHQÀDPHV
Open the window and air out the room. Then ask a
service agent approved by SHARP for service.
In Queensland - the authorized Service Person MUST
hold a Gas Work Authorisation for hydrocardon
refrigerants, to carry out servicing and repairs which
involve the removal of covers.
ŶDuring transportation and installation, ensure that the
tubing of the refrigerator circuit is not damaged.
Installation
ŶDo not install the refrigerator in a damp or wet location.
It may cause damage to the insulation or electrical
leak. Dew may also appear on the outer cabinet and it
causes rust.
Ŷ7KHUHIULJHUDWRUVKRXOGEHLQVWDOOHGÀDWO\DQG¿UPO\RQ
WKHÀRRU
Power cord, Plug, Socket
Read carefully the following rules to prevent electric
VKRFNRU¿UH
Ŷ&RQQHFWWKHSRZHUSOXJLQWRWKHZDOOVRFNHW¿UPO\DQG
directly. Do not use an extension cord or adapter plug.
ŶConnect the power plug to the socket with the required
rated voltage.
ŶConnect the earth pin to the earth terminal properly.
ŶMake sure that the power cord has not been damaged
during installation or moving. If the power plug or cord
is loose, do not insert the power plug.
ŶDo not touch the power plug with wet hands.
ŶDisconnect from the main electricity supply by removing
the main plug from the socket.
Do not remove by pulling the power cord.
Ŷ'XVWGHSRVLWHGRQWKHSRZHUSOXJPD\FDXVH¿UH
Wipe it off carefully.
ŶPull out the plug if the refrigerator is not used for a long
time.
Ŷ6KRXOGWKHÀH[LEOHVXSSO\FRUGEHFRPHGDPDJHGD
special cord is required and it must be replaced by a
service agent approved by SHARP, in order to avoid a
hazard.
In use
ŶDo not store explosive substances such as aerosol
FDQVZLWKDÀDPPDEOHSURSHOODQWLQWKLVDSSOLDQFH
These materials are easy to explode.
ŶDo not store temperature-sensitive products such as
pharmaceutical products in the refrigerator.
There are high risks of changes in product quality .
ŶDo not attempt to change or modify this refrigerator.
7KLVPD\UHVXOWLQ¿UHHOHFWULFVKRFNRULQMXU\
ŶDo not place any object on the top of refrigerator.
If the object falls down from the top, it may cause injury.
ŶDo not use other than potable water to make ice cubes.
ŶThis appliance can be used by children aged from 8
years or above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way or understanding the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be done by children without
supervision.
Climate
class
Acceptable range of
ambient temperature
SN +10°C to 32°C
N&WR&
ST &WR&
T&WR&
Safety information
Warning This means that there are high risks of death or serious injury.
Caution This means that there are high risks of material damage or personal injury.
Warning

4
Care and Cleaning
Ŷ8QSOXJWKHUHIULJHUDWRU¿UVWWRSUHYHQWHOHFWULFVKRFN
ŶDo not splash water directly on the outer cabinet or the
interior. This may lead to rusting and deterioration of
the electrical insulation.
Trouble
ŶIf you smell something burning, pull out the power plug
immediately. Then ask a service agent approved by
SHARP for service.
ŶIn case of gas leak, ventilate the area by opening
window. Do not touch the refrigerator or the power
socket.
Disposal
ŶEnsure that the refrigerator presents no danger to
FKLOGUHQZKLOHEHLQJVWRUHGIRUGLVSRVDOHJUHPRYH
the magnetic door seals to prevent child entrapment.)
ŶThis refrigerator should be disposed appropriately.
Take the refrigerator to a professional recycling plant
IRUÀDPPDEOHUHIULJHUDQWDQGLQVXODWLRQEORZLQJJDVHV
Transportation
ŶWhen you install or move your refrigerator, use curing
PDWWRSURWHFWWKHÀRRUIURPEHLQJGDPDJHG
ŶCarry the refrigerator securely.
If you lift up the refrigerator improperly, it may cause
injury.
Caution
In use
ŶDo not touch the compressor unit or its peripheral
parts, as they become extremely hot during operation
and the metal edges may cause injury.
ŶDo not touch foods or metal containers in the freezer
compartment with wet hands. This may cause
frostbite.
ŶDo not place bottled drinks and cans in the freezer
compartment.
ŶDo not open or close the door when somebody put
a hand near the door. There is a risk that the other
SHUVRQPD\JHWWKHLU¿QJHUVFDXJKWLQWKHGRRU
ŶDo not put oversized object in the pockets of the door.
If the object falls down from the pockets, it may cause
injury.

5
1Keep adequate ventilation space around the refrigerator.
• The picture shows the minimum required space
for installing the refrigerator. The measurement
condition of energy consumption is conducted
under a different space dimension.
• ,QVXI¿FLHQWVSDFLQJZLOOGHFUHDVHFRROLQJHI¿FLHQF\
and increase energy consumption. This may reduce
the life of the unit and void warranty.
Installation Free standing type
28VHWKHDGMXVWDEOHIRRWWRSODFHWKHUHIULJHUDWRUÀDWO\ DQG¿UPO\RQWKHÀRRU
Adjustable
foot
Note
• Place your refrigerator to access the plug.
• Keep your refrigerator out of direct sunlight and do not
place next to heat generating appliance.
• Do not place your refrigerator directly on the ground.
Insert suitable stand such as wooden board under the
refrigerator.
Before using your refrigerator
Clean the inside parts with a cloth soaked in warm water.
If soapy water is used, wipe it off thoroughly with water.
Rear clearance
The space between the rear of the refrigerator and the
wall should be 50mm or more, and less than 75mm. If
the space is wider than 75mm, you may get injured by
touching compressor and its peripheral parts which are
extremely hot during the operation.
Note
• By keeping greater space, the refrigerator may consume
a less amount of power consumption.
• If use the refrigerator in the smaller space dimension
WKDQ¿JXUHGLWPD\FDXVHWHPSHUDWXUHULVHLQWKHXQLW
loud noise and failure.
• Do not push the refrigerator against the wall. The wall
surrounding the refrigerator may get dirty or discolored
EHFDXVHRIWKHDLUÀRZFDXVHGE\KHDWUDGLDWLRQ
Overall space required in use
90mm
or more
60mm
or more
60mm
or more
1215 mm
1090 mm
3 &RQQHFWWKHSRZHUSOXJWRDYROWDPS
power point.

6
1. Temperature control lever
2. Freezer shelf
3. Ice cube maker
1) 'RQRWRYHU¿OOWKLVWUD\ZLWKZDWHU
Otherwise the ice cubes will join
together when frozen.
2) When ice cubes are made, turn the
lever clockwise to put the ice into
the ice cube box.
4. Ice cube box
Note
To prevent the ice cube box from being damaged,
do not pour oil into the box or make ice in it.
5. Two-way fresh room door
How to open Two-way fresh room door
1) Lift up the door.
2) Insert the door into the frame
and push it back to the stopper.
It is locked properly.
6. Fresh shelf
7. Extra Eco button
8. Temperature control knob
9. LED light
10. Refrigerator shelf
11. Vegetable shelf
12. Vegetable case
13. Adjustable foot
14. Magnetic door seal
15. Freezer door pocket
16. Egg pocket
17. Refrigerator door pocket
18. Bottle pocket
19. Utility pocket
Deodorizing unit
Deodorizing catalyst is installed on the routes of cold air.
There is no need to operate and clean.
If you wish to store large items within your
refrigerator
• You may remove any shelves or any pockets numbered
LQWKHSLFWXUHDERYH
• Energy consumption of this model is measured without
the ice cube maker and the ice cube box in accordance
with the international standards.
Lever
Description
2 star section for storing frozen foods only.
Open Close
Use the space as
refrigerator room. Use the space as fresh room.
78
15
5
10
11
12
6
13
1
2
3
4
14
16
18
14
19
17
9
Ice cube box

7
Operation
Extra eco mode
Use this mode when you want to switch the refrigerator
to energy-saving operation.
While this mode is operating, the inside temperature
of the refrigerator and freezer compartment becomes
higher than the normal operation as follows.
Freezer
compartment Refrigerator
compartment
Under “Extra eco”
mode Approx. 2°C plus Approx. 1°C plus
Cancel this mode when you feel the beverages are not
cooled enough or ice making takes longer time.
How to start the operation
Press “EXTRA ECO” button.
How to cancel the operation
Press “EXTRA ECO” button again.
Note
• 7KHHI¿FLHQF\RISRZHUVDYLQJGHSHQGVRQWKH
XVDJHHQYLURQPHQWFRQWUROOLQJWHPSHUDWXUHDPELHQW
temperature, frequency of opening or closing the door,
amount of food).
Controlling temperature
Temp. control knob
(in the refrigerator compartment)
This knob is for controlling the operation time of
compressor of refrigeration system.
When the knob is set at MAX, both compartments
UHIULJHUDWRUFRPSDUWPHQWDQGIUHH]HUFRPSDUWPHQWDUH
cooled well.
Turn the knob to the center for normal use.
Temp. control lever
(in the freezer compartment)
Set the lever to the center for normal use.
This lever is for adjusting the proportion of cold air.
TEMP. CONTROL
Position of
the lever Condition
Left
&ROGDLUÀRZVLQWRWKHrefrigerator
compartment more. The
refrigerator compartment is
cooled well.
Right &ROGDLUÀRZVLQWRWKHfreezer compartment more. The freezer
compartment is cooled well.
Recommended temperature settings are shown
below.
Temp. control lever Temp. control
knob
Normal
TEMP. CONTROL
In summer
:DUPHU
than 35°C) TEMP. CONTROL
• Set to the left side.
• Do not set to the right.
In winter
&ROGHUWKDQ
10°C) TEMP. CONTROL
• Set to the right.
• Do not set to left side.
The lamp is turned on.
The lamp is turned off.
Tips for saving energy
ŶInstall the refrigerator in a well-ventilated area and
keep the space to ventilate.
ŶThe amount of energy consumption of this model is
measured as shown in the picture below.
90mm
300m m 300m m
50mm
ŶKeep your refrigerator out of direct sunlight, and do
not place it next to heat generating appliance.
ŶAvoid opening the door as much as possible.
ŶHot foods should be cooled before storing.
ŶPlace the food evenly on the shelves to allow the
FRRODLUWRFLUFXODWHHI¿FLHQWO\

8
IN
OUT
Fruit / Vegetables
Fruit and vegetables should be loosely enclosed in a
SODVWLFPDWHULDOHJZUDSEDJVGRQRWVHDODQGSODFHG
in the vegetable case to minimize moisture loss.
Dairy Products & Eggs
• Most dairy products have their best-before date on
the outer packaging which informs the recommended
temperature and shelf life of the foods.
• Eggs should be stored in the Egg pocket.
Meats / Fish / Poultry
• Place on a plate or a dish and cover with paper or
plastic wrap.
• )RUODUJHUFXWVRIPHDW¿VKRUSRXOWU\SODFHWRWKHUHDU
of the shelves.
• Ensure all cooked food is wrapped securely or placed in
an airtight container.
For best freezing
• Quality of foods should be fresh.
• Freeze small quantities of food at a time in order to
freeze them quickly.
• Food should be properly sealed or covered tightly.
• Place foods in the freezer evenly.
• Label bags or containers to keep an inventory of
freezing food.
Advice for preventing dew or frost
inside the refrigerator
• Keep the door securely closed. If the food falls down,
it may cause a gap between the cabinet and the door.
Move it back to the shelf or the pocket.
• Food with high-moisture should be stored in airtight
container or sealed tightly.
Note
• Evenly place the food on the shelves to allow the cooling
DLUWRFLUFXODWHHI¿FLHQWO\
• Hot foods should be cooled before storing. Storing hot
foods increases the temperature in the unit and the risk
of food spoilage.
• Do not block the outlet and inlet of the cool air circulating
circuit with foods or containers; otherwise the foods is
not be evenly cooled throughout the refrigerator.
Do not place food directly in
front of cold air outlet.
This may lead to the food
freezing.
Refrigeration reduces the rate of food spoilage.
Ensure that the food is of the freshest possible quality to maximize the shelf life of perishable foods.
The following is a general guide to help promote longer food storage.
Storing food
Do not place food on shaded area.
This may lead to the food freezing.

9
Important
To prevent cracks on inside surfaces and plastic
components, follow these tips.
• Wipe out food oil adhered to plastic parts.
• Some household chemicals may cause damage, so use
RQO\GLOXWHGZDVKLQJXSOLTXLGVRDS\ZDWHU
• If undiluted detergent is used or soapy water is not wiped
off thoroughly, it may result in cracks of plastic parts.
Cleaning
Ŷ5HPRYHWKHDFFHVVRULHVHJVKHOYHVIURPWKHFDELQHW
and the door. Wash them by warm soapy dishwashing
water. After that, rinse them in clean water and dry.
ŶClean the inside with a cloth soaked in warm soapy
dishwashing water. Then, use cold water to wipe off
soapy water thoroughly.
ŶWipe the exterior with a soft cloth each time it gets dirty.
ŶClean the Magnetic door seal with a toothbrush and
warm soapy dishwashing water.
Note
• Do not use hot water, household cleaning powders,
creams or spray-on cleaning products, or any other
cleaning products such as mineral turpentine,
methylated spirits, thinners, petrol etc. These may
damage your refrigerator and may void any warranty.
• If you pull out the power plug once, wait 5 minutes at
least before connecting the power plug again.
• Do not drop objects inside the refrigerator or strike the
inner wall. This may cause cracks to inner surface.
Defrosting
Defrosting is automatically operated by a unique energy
saving system.
When the compartment light is blown
Contact the service agent approved by SHARP to replace
the light. The light is not to be replaced other than by
TXDOL¿HGVHUYLFHSHUVRQQHO
Switching off your refrigerator
If the refrigerator needs to be switched off for an extended
period, the following steps should be taken to reduce the
JURZWKRIPRXOG
1. Remove all food.
2. Remove the power plug from the power point.
3. Clean and dry the interior thoroughly.
Ensure that all the doors are wedged open slightly for
air circulation.
Care and cleaning
Before calling for service, check the following points.
Problem Solution
The outside of the cabinet is
hot when touching. It is normal. The hot pipe is in the cabinet in order to prevent dew generation.
When there is refrigerator
noise. It is normal for the refrigerator to make the following sounds. • Loud noise is made by the compressor when its operation starts
-- Sound becomes quieter after a while.
• The compressor makes loud noise once a day.
-- Operating sound is made immediately after automatic defrost operation.
• 6RXQGRIÀRZLQJÀXLGJXUJOLQJVRXQG¿]]LQJVRXQG
6RXQGRIUHIULJHUDQWÀRZLQJLQSLSHVVRXQGPD\EHFRPHORXGHUIURPWLPHWRWLPH
• Cracking or crunching sound, squeaking sound
-- Sound produced by expansion and contraction of inner walls and internal parts during
cooling.
Frost or dew appears inside
or outside the refrigerator. This may occur in one of the following cases. Use a wet cloth for wiping frost and a dry cloth for wiping dew.
• When the ambient humidity is high.
• When the door is frequently opened and closed.
• :KHQIRRGVFRQWDLQLQJSOHQW\RIPRLVWXUHDUHVWRUHG:UDSSLQJLVUHTXLUHG
The foods in the refrigerator
compartment freeze. • Is the refrigerator operated for a long time with the temp. control knob set MAX? -- Change the temperature control to the other setting.
• If ambient temperature is low, foods may freeze even if the the temp. control knob is set
MIN.
Odors in the compartment. • Wrapping is required for the foods with strong odors.
• Deodorizing unit cannot remove all odors.
If you still require service contact your SHARP Approved Service Centre.
6+$53$SSURYHG6HUYLFH&HQWUHORFDWLRQVFDQEHIRXQGLQWKH6XSSRUWDUHDRIRXUZHEVLWH
$XVWUDOLDKWWSZZZVKDUSQHWDX
1HZ=HDODQGKWWSZZZVKDUSQHWQ]
Before you call for service

10
Rated voltage (V~)
Rated frequency (Hz)
Rated current (A)
Rated input of heating systems (W)
Defrosting input (W)
Refrigerant
Charge (g)
Rated storage volume (L)
Rated gross volume (L)
Climate class
Insulation blowing gas
Group (AS / NZS 4474.1)
Net weight (kg)
Outer dimensions
(mm)
220 - 240
SJ-X339S
50
1.0 - 1.0
125 - 150
125 - 150
R600a
T
42
Cyclo pentane
5T
310
339
50
1767
610
672
Height
Width
Depth with handles,
protrusions
Overall depth 627
6SHFLÀFDWLRQ

11

7,16%&%5=(.7+1
Printed in Thailand
SHARP CORPORATION OF AUSTRALIA PTY.LTD.
A. B. N. 40 003 039 405
2 JULIUS AVENUE, NORTH RYDE NSW 2113
32%2;0$&48$5,(3$5.16:
SHARP CORPORATION OF NEW ZEALAND LIMITED
+8*2-2+16721'5,9(32%2;3(1526($8&./$1'
