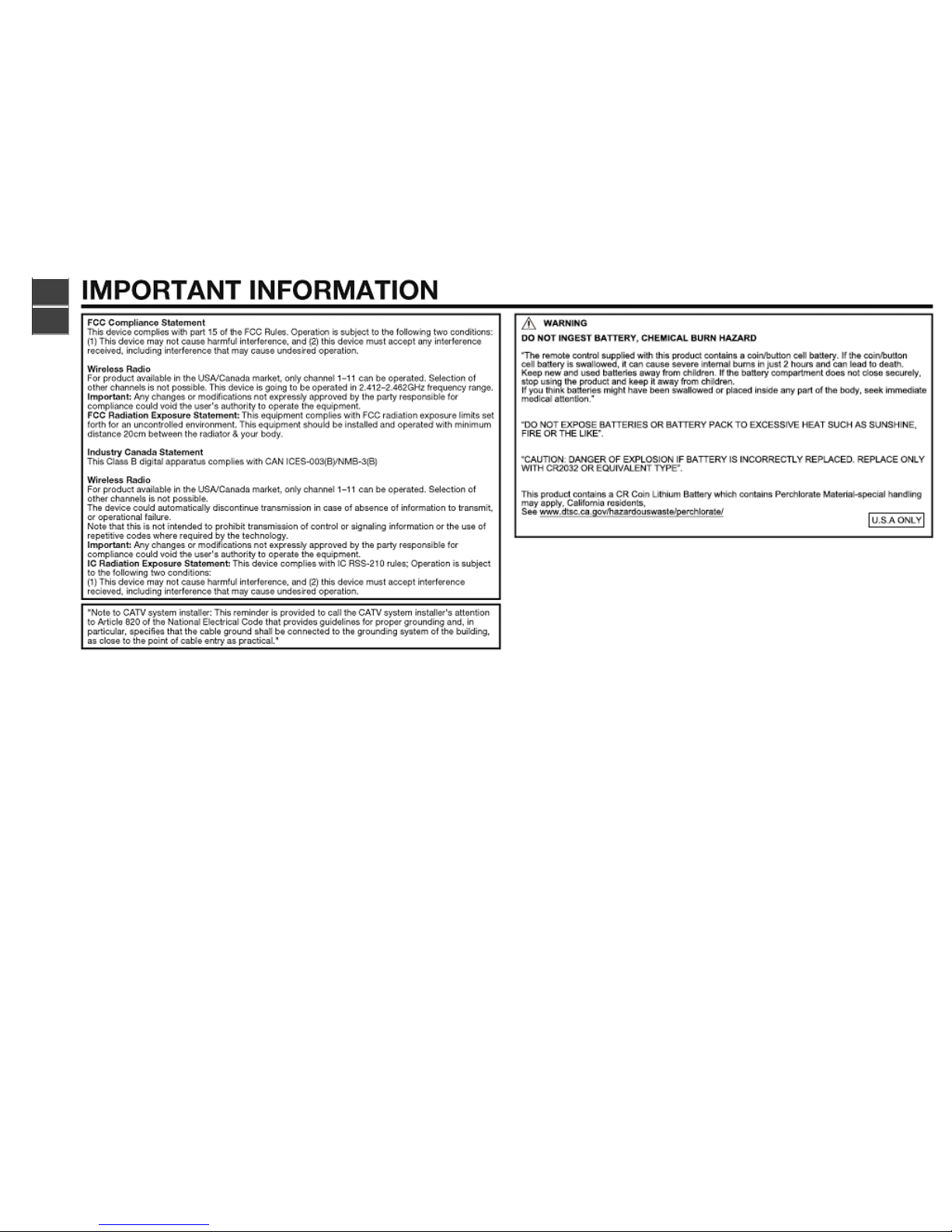

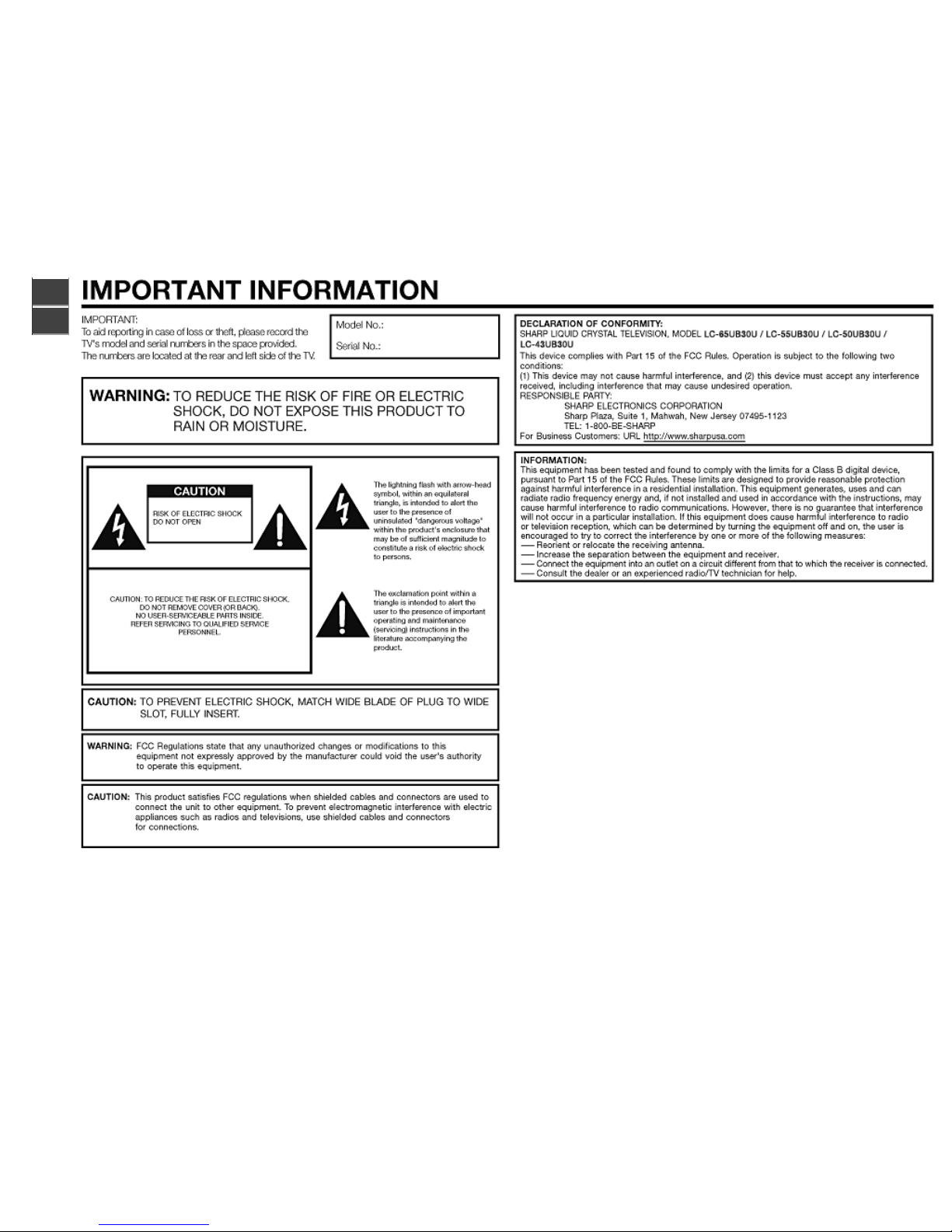

ENG Important1

>>
<<
ENG Important2

>>
<<
ENG Important3

>>
<<
ENG Important4

>>
<<
ENG Important5

>>
<<

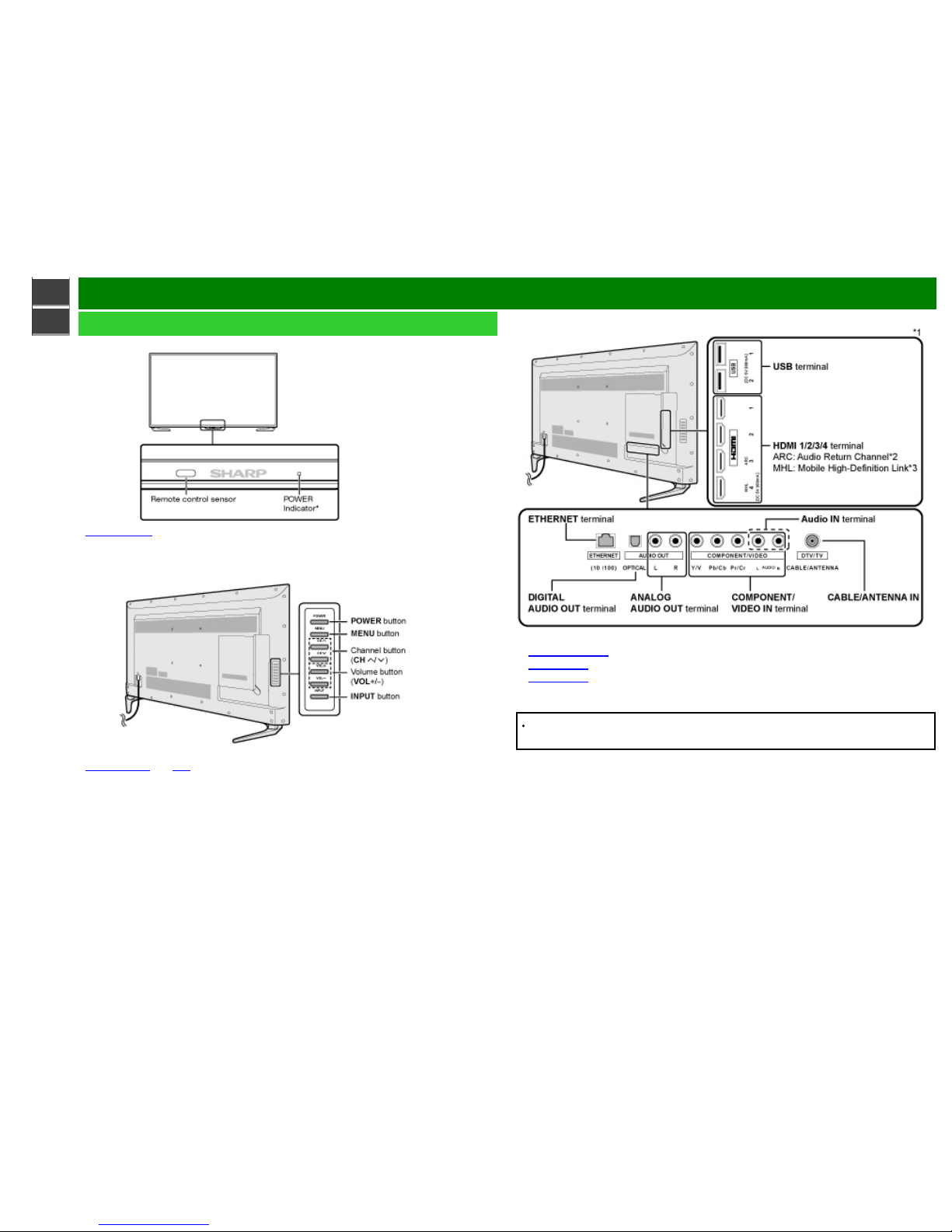

Part Names
ENG 1-1
TV
(Front)
*
See page 4-31.
(Side)
*
See pages 2-1 and 4-4 for button operations.
(Rear)
*1
See the Setup Guide.
And see page 6-1 for external equipment connection.
*2
See page 6-2 for details on the Audio Return Channel.
*3
See page 6-3 for details on the MHL function.
The illustrations and on-screen displays in this operation manual are for explanation purposes
and may vary slightly from the actual operations.

>>
<<
Part Names
ENG 1-2
Remote Control Unit

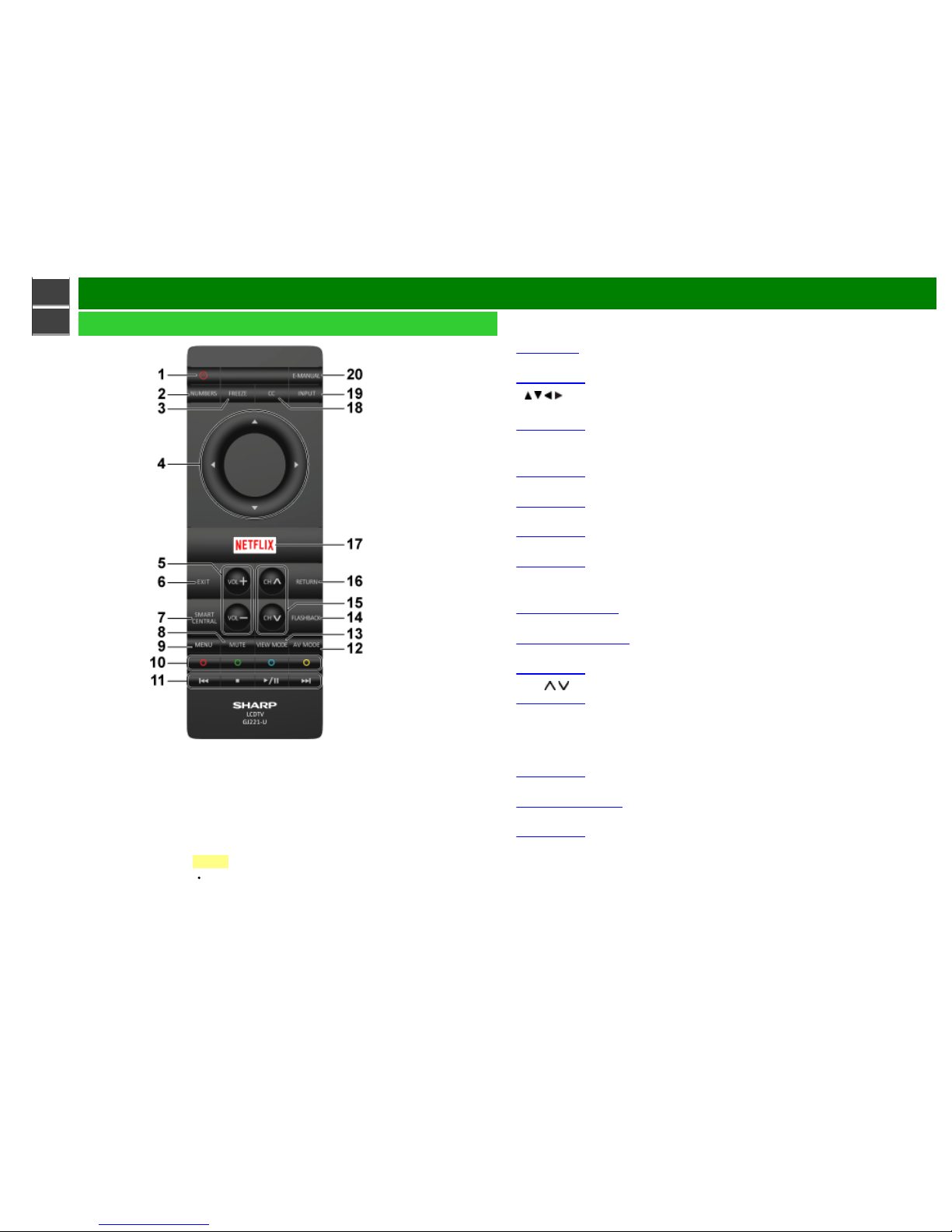

1
POWER: Switch the TV power on or enter standby.
2
NUMBER: Set the channel.
(See
page 3-1.)
3
FREEZE: Set the still image. Press again to return to normal screen.
(See
page 3-4.)
4
/ / / , ENTER: Select a desired item on the screen.
5
VOL+/-: Set the volume.
(See
page 3-2.)
6
EXIT: Turn off the menu screen.
7
SMART CENTRAL: Display the application window.
(See
page 3-6.)
8
MUTE: Mute the sound.
(See
page 3-3.)
9
MENU: Display the menu screen.
(See
page 4-1.)
10
Color (Red/Green/Blue/Yellow): Select 4 preset favorite channels in 4 different categories.
(See
page 4-6.)
11
External equipment operational buttons: Operate the external equipment.
12
AV MODE: Select an audio or video setting.
(See
pages 3-8 to 3-9.)
13
VIEW MODE: Select the screen size.
(See
pages 3-12 to 3-14.)
14
FLASHBACK: Return to the previous channel or external input mode.
(See
page 3-5.)
15
CH / : Select the channel.
(See
page 3-1.)
16
RETURN: Return to the previous menu screen.
17
NETFLIX: Display the Netflix screen.
If
you press the NETFLIX button when the TV is turned off, the TV turns on and the NETFLIX
screen
is displayed.
(See
page 3-7.)
18
CC: Display captions from a closed-caption source.
(See
page 3-10 to 3-11)
19
INPUT: Select a TV input source.
(See
page 2-1.)
20
E-MANUAL: Display the operation manual.
NOTE
When using the remote control unit,
point it at the TV.

>>
<<
Watching TV
ENG 2-1
Displaying an External Equipment Image
To

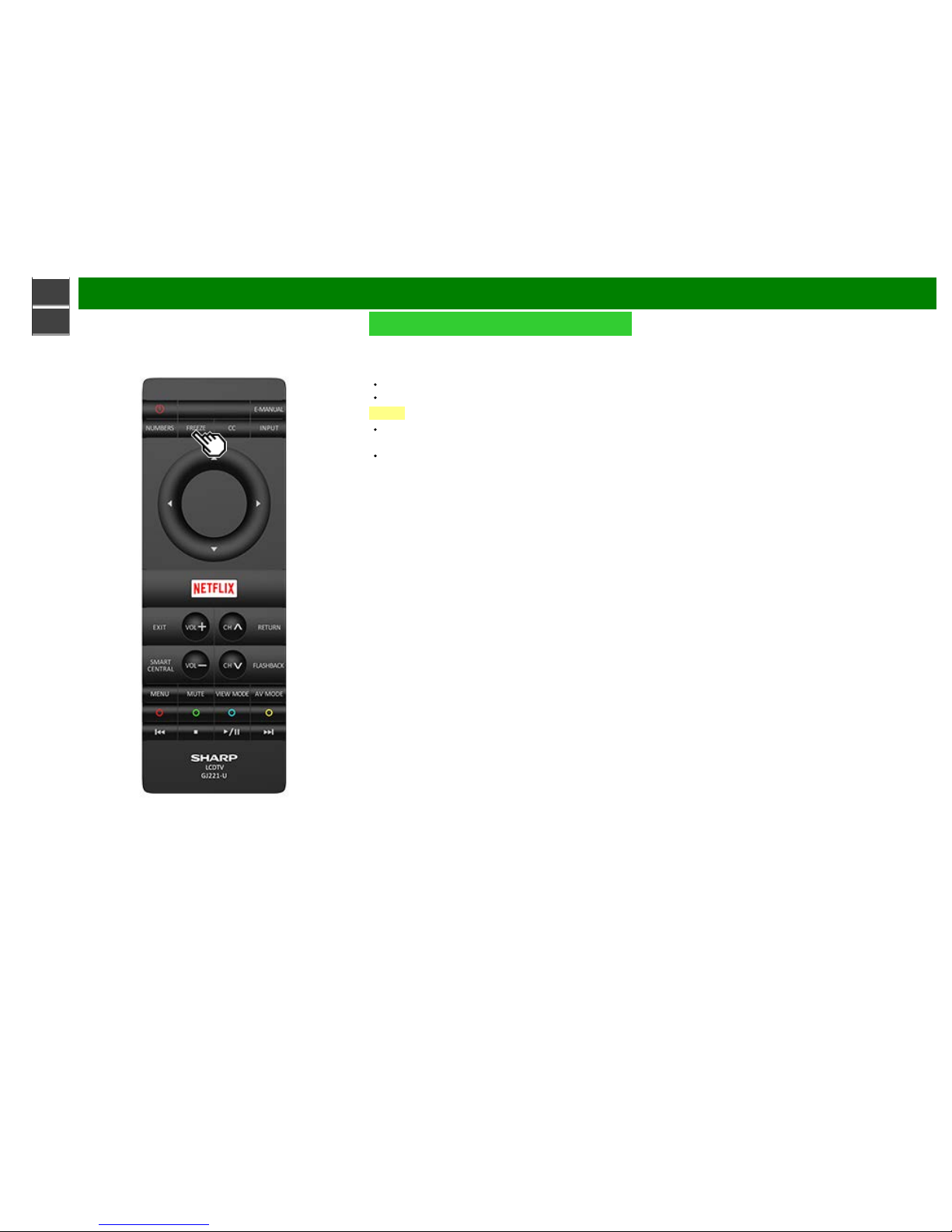

view external source images, select the input source by pressing INPUT on the remote control
unit
or on the TV.

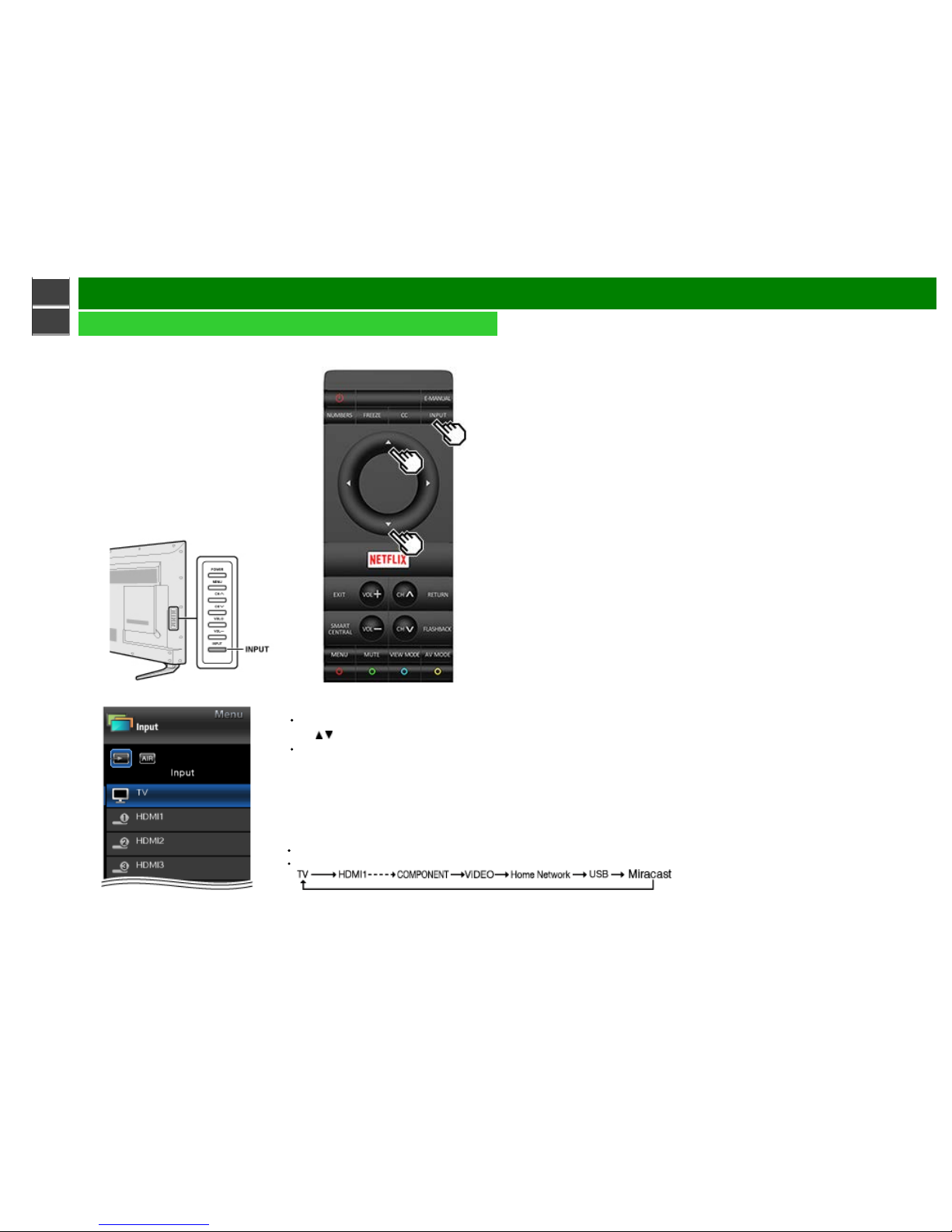

Example 1Press INPUT.
The INPUT list screen displays.
2Press / to select the input source.
An image from the selected source
automatically displays.
You can also select the input source by pressing INPUT.
Each time INPUT is pressed, the input source toggles.

>>
<<
Watching TV
ENG 2-2
Initial Installation
Perform the following steps before you press POWER on
the remote control unit.
1. Insert the battery into the remote control unit.
2. Connect the antenna cable to the TV.
3. Plug in the AC cord to the AC outlet.
Language (Language setting)
Select from among 3 languages: English, French and
Spanish.
1Press / to select the desired language listed on the
screen, and then press ENTER.
Location & Time
Make settings for the country, area and time zone where
you use the TV.
2Press / to select "United States", "Canada" or
"Mexico", and then press ENTER.
3Press / to select the time zone where you are using
the TV, and then press ENTER.
Example
The time zone differs depending on the selected
country.
The factory preset value is the time zone for the
capital of the selected country.

>>
<<
Watching TV
ENG 2-3
Initial Installation (Continue)
4Press / to select the Daylight Savings Time, and then
press ENTER.
"Auto" is the default selection.
TV Location
Select "Home" or "Store" for the location where you plan to
install the TV.
5Press / to select "Home" or "Store".
Press ENTER to enter the setting.
Home: AV MODE is set to "STANDARD".
Store: AV MODE is set to "DYNAMIC (Fixed)". Picture
Reset and Feature Demo can be set.
Picture Reset: AV MODE will be set to "DYNAMIC (Fixed)"
regardless of whether Picture Reset is "On" or "Off".
If you select "On" and there is no operation for 30
minutes:
- AV MODE will be reset to "DYNAMIC (Fixed)".
When "Off" is selected:
- Even after 30 minutes elapses, AV MODE is not reset
to "DYNAMIC (Fixed)".
Feature Demo: When "On" is selected, after all the
settings are completed, the Feature Demo screen is
displayed if there is no operation for several minutes.

>>
<<
Watching TV
ENG 2-4
Initial Installation (Continue)

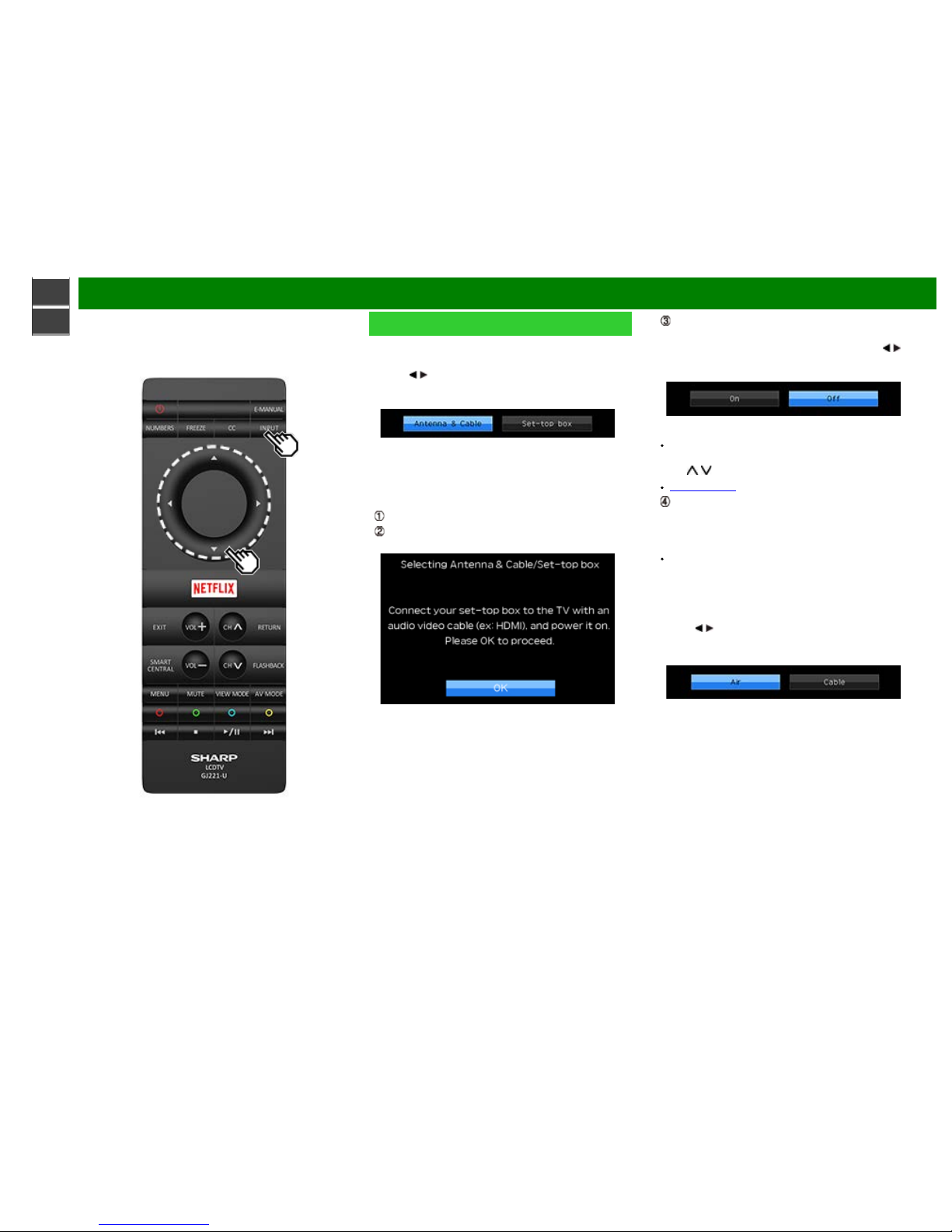

Antenna & Cable/STB
Select the type of connection you will use to watch TV.
6Press / to select "Antenna & Cable" or "Set-top box",
and then press ENTER.
To watch TV via an antenna or cable connection
(without using a set-top box):
Select "Antenna & Cable", and then go to step 7.
To watch TV via a set-top box:
Select "Set-top box", and then press ENTER.
Check that the set-top box connected to the TV is on.
To watch TV, select the input source corresponding to
the terminal connected to the set-top box. When doing
so, you must make the setting to skip "TV". Press / to
select "On", and then press ENTER.
When this is set to "On", the channel on the TV cannot
be changed using the remote control unit or menu. (e.g.
CH / , etc.)
See page 4-11 for details on the Input Skip function.
Press INPUT to select the input source corresponding to
the terminal connected to the set-top box. Make the
necessary settings on the connected external
equipment.
See the operation manual of the connected equipment
for setting up the equipment.
Air/Cable (Antenna setting)
Make sure what kind of connection is made with your TV
when selecting "Air" or "Cable".
7Press / to select "Air" or "Cable".
Press ENTER to enter the setting.

>>
<<
Watching TV
ENG 2-5
Initial Installation (Continue)

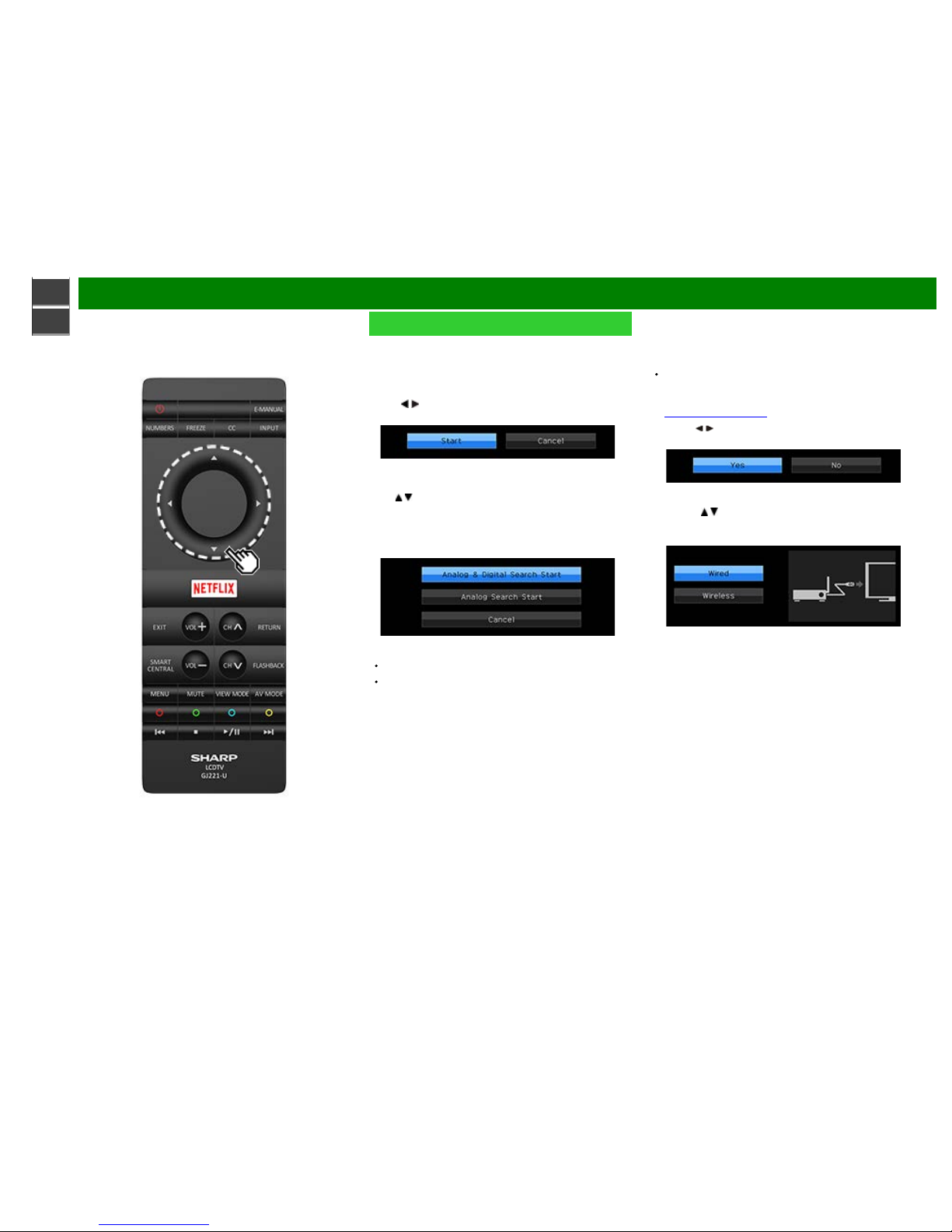

CH Search (Channel search)
Channel auto search makes the TV look for all channels
viewable in the set area.
8When "Air" is selected in Antenna setting:
Press / to select "Start", and then press ENTER.
When "Cable" is selected in Antenna setting:
Press / to select "Analog & Digital Search Start" to
search both analog and digital broadcasts, or to select
"Analog Search Start" to search only analog broadcasts,
and then press ENTER.
The Channel search will start automatically.
To exit the Channel search screen, select "Cancel", and
then press ENTER.
Smart TV
When you connect to the Internet on the TV, select the
desired connection method and follow the instructions
shown on the display.
Wireless LAN connection is possible only when the WPS
(push button) method is used. If any other method is
used, make settings by Smart TV > Internet Setup.
(See pages 7-2 to 7-4.)
9Press / to select "Yes", and then press ENTER.
10 Press / to select "Wired" or "Wireless", and then
press ENTER.

>>
<<
Watching TV
ENG 2-6
Initial Installation (Continue)
Connection using an ETHERNET cable:
Select "Wired" and press ENTER.
Confirm that the TV is properly connected with the
router, and then press "Next". Follow the instructions on
the display to perform the connection test.
Wireless LAN connection by the WPS method:
Select "Wireless" and press ENTER.
Follow the instructions on the display, and finalize the
connection after testing its viability.
NOTE
After you finish configuring the network settings,
proceed with the following:
set the TV name. (See page 4-29.)
enable/disable the smartphone remote application
(installed in your portable device) to control your TV.
view/configure the security settings.
When you change the network settings, refer to Smart
TV > Internet Setup.
(See pages 7-2 to 7-4.)
Completed

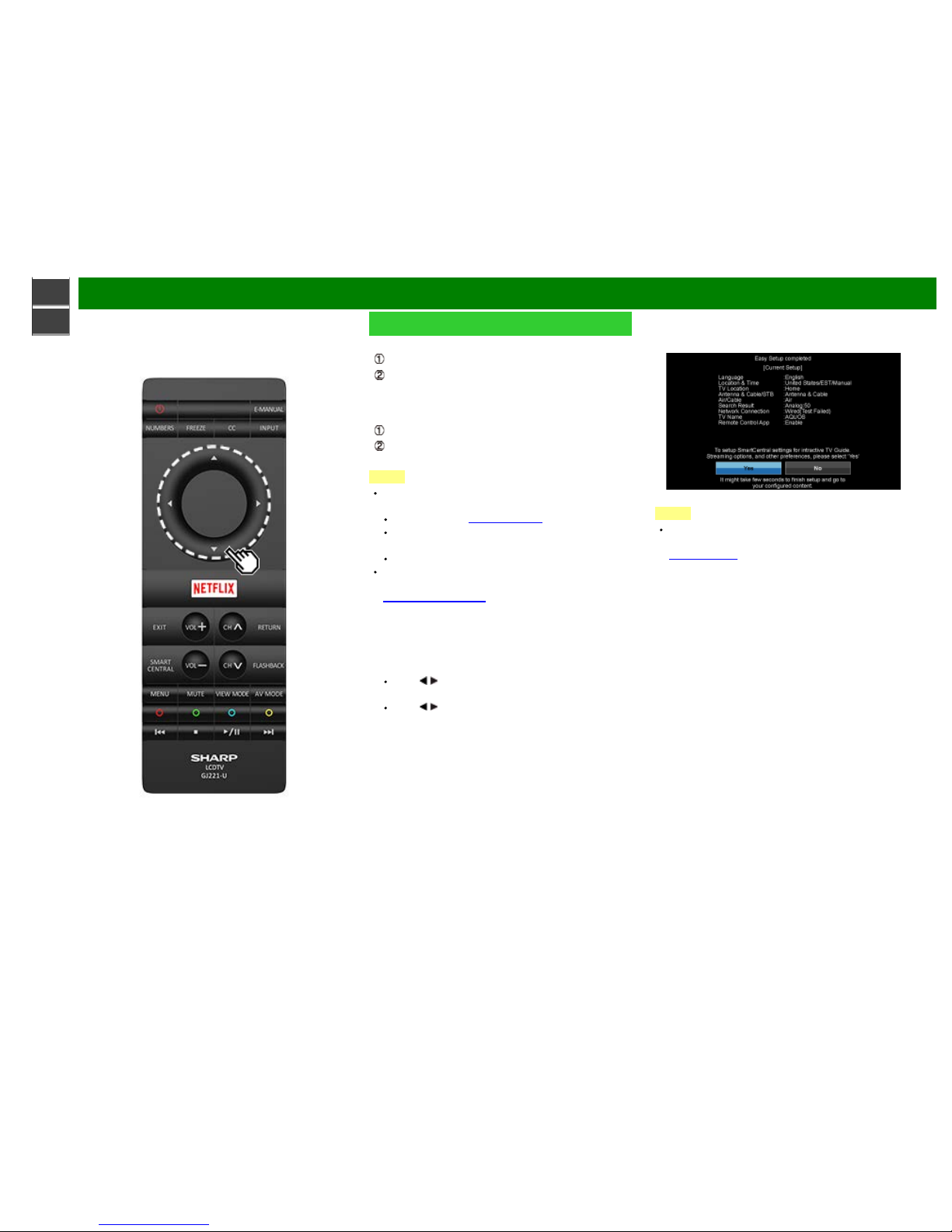

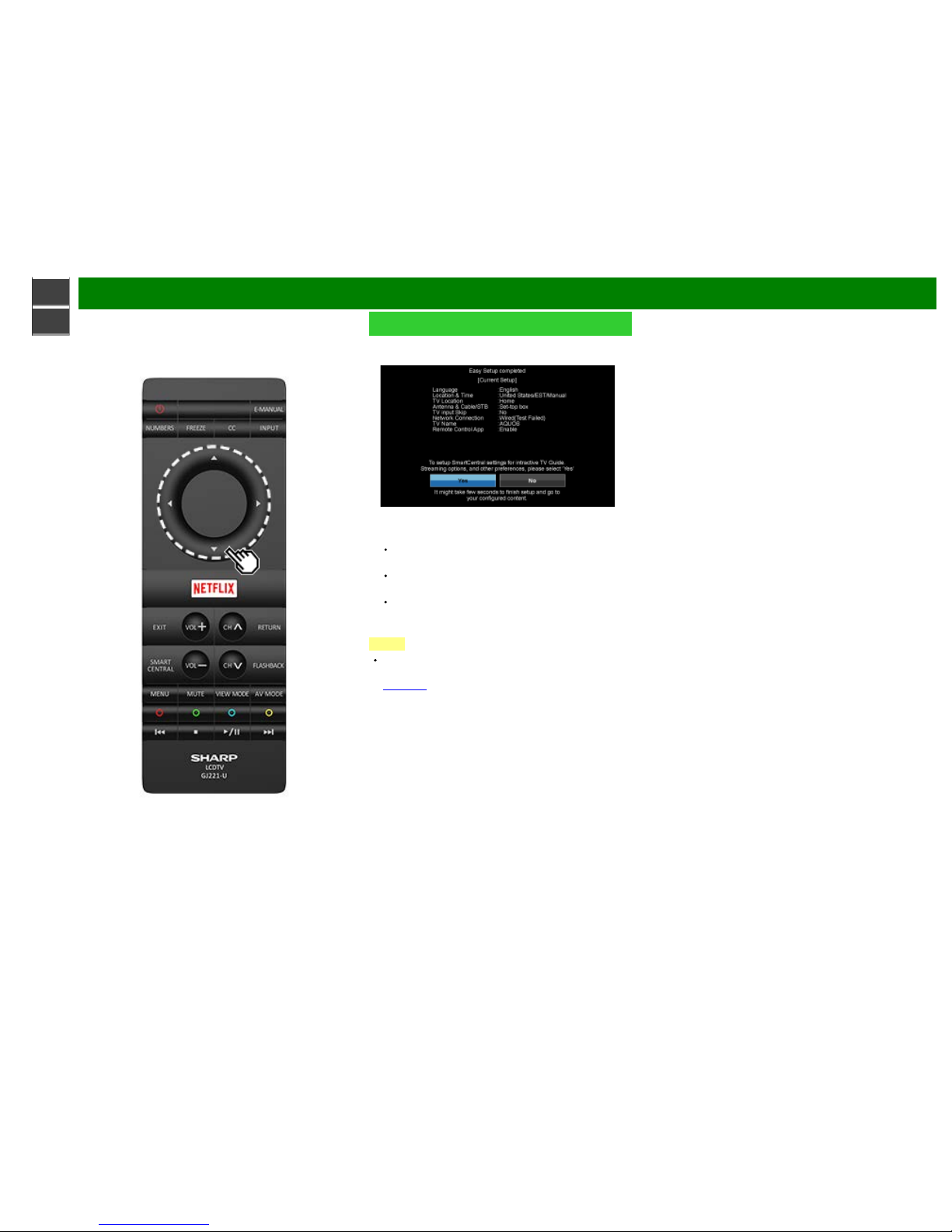

11 The settings confirmation screen is displayed. If you
enable the remote application installed in your portable
device (Android or Apple OS) to control your TV, you
can directly configure the SmartCentral settings.
Press / to select "Yes", and then press ENTER to
enter the SmartCentral homescreen.
Press / to select "No", and then press ENTER to
complete the Easy Setup procedure.
Examples of the settings confirmation screen
When "Antenna & Cable" was selected in step 6.
NOTE
If no channel is found, confirm the type of connection
made with your TV and try "Easy Setup" again.
(See page 4-5.)

>>
<<
Watching TV
ENG 2-7
Initial Installation (Continue)
When "Set-top box" was selected in step 6.
Selecting "No" will complete the Easy Setup procedure.
This may not display correctly depending on the
connected equipment.
This is not displayed correctly when the connected
equipment is off.
To watch TV using a set-top box, press INPUT after
completing the initial settings, and select the input to
which the set-top box is connected.
NOTE
For changing the settings of the Initial Installation,
perform "Easy Setup" on the Initial Setup menu on
page 4-5.

>>
<<
Direct Button Operation
ENG 3-1
Changing Channels
You can change channels in several ways.
Method 1
Using CH /on the remote control unit or on the TV.
Method 2
Press NUMBER. The on-screen keyboard (0-9, •(DOT),
Ent) appears and select the desired channel.
Examples:
To select a 1 or 2-digit channel number (e. g., Channel
5):
Press 5Ent
To select a 3-digit channel number (e. g., Channel
115):
Press 115Ent
To select a 4-digit channel number (e. g., Channel
22.1):
Press 22•(DOT) 1Ent
Method 3
Selecting the program from the Channel list.
1Press INPUT on the remote control unit.
The INPUT list displays.
2Press / to select "AIR" or "CABLE".
The Channel list displays.
3Press / to select the desired channel, and then press
ENTER.
NOTE
When selecting a 1-digit channel number, it is not
necessary to press 0before the number.
When you enter 0-9only, you have to press Ent to
confirm the channel selection.
When you enter 0-9and •(DOT), you have to press Ent
to confirm the channel selection.
Complete the above steps within a few seconds.
If you push "0" by itself or you did not press Ent after
you enter 0-9and •(DOT), nothing will happen.

>>
<<
Direct Button Operation
ENG 3-2
Changing Volume
You can change the volume by pressing VOL+/- on the TV
or on the remote control unit.
To increase the volume, press VOL +.
To decrease the volume, press VOL -.

>>
<<
Direct Button Operation
ENG 3-3
MUTE
Mutes the current sound output.
Press MUTE.
" " will be displayed on the screen, and the sound is
silenced.

>>
<<
Direct Button Operation
ENG 3-4
FREEZE
Allows you to capture and freeze a moving image that you
are watching.
Press FREEZE.
A moving image is captured.
Press FREEZE again to cancel the function.
NOTE
When this function is not available, "No displaying still
image available." will display.
If you are using the freeze function and a broadcast
activates the V -CHIP BLOCK, the freeze function will be
canceled and a V-CHIP BLOCK message will appear.
