SERVICE MANUAL

JAPAN KIT ( VER.1 )

Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the

safety and performance of the set.

This document has been published to be used for

after sales service only.

The contents are subject to change without notice.

SAFETY PRECAUTION

SAFETY PRECAUTION......................................i

CHAPTER 1. OUTLINE

[1] OUTLINE........................................................ 1-1

CHAPTER 2. SPECIFICATIONS

[1] SPECIFICATIONS ........................................ 2-1

CHAPTER 3. OPERATION MANUAL

[1] OPERATION MANUAL .................................. 3-1

CHAPTER 4. DIMENSIONS

[1] DIMENSIONS ............................................... 4-1

CHAPTER 5. ADJUSTMENT

[1] ADJUSTMENT .............................................. 5-1

CHAPTER 6. TROUBLESHOOTING TABLE

[1] TROUBLESHOOTING TABLE....................... 6-1

CHAPTER 7. MAJOR IC INFORMATION

[1] MAJOR IC INFORMATION ........................... 7-1

CHAPTER 8. OVERALL WIRING /SYSYTEM BLOCK

DIAGRAM/PRINTED WIRING BOARD

[1] OVERALL WIRING/SYSYTEM BLOCK DI-

AGRAM ......................................................... 8-1

[2] PRINTED WIRING BOARD SIDE A / SIDE

B..................................................................... 8-3

CHAPTER 9. DESCRIPTION OF SCHEMATIC DIA-

GRAM

[1] DESCRIPTION OF SCHEMATIC................... 9-1

[2] MAIN UNIT ...................................................9-2

[3] MAIN UNIT ( POWER ) ...............................9-14

[4] LED IR UNIT ...............................................9-15

Parts Guide

TopPage

CONTENTS

LCD COLOR TELEVISION

No. SX5M78LC-505865U35T

LC-50U35T

LC-58U35T

LC-65U35T

MODEL:

LC50/58/65U35T

SAFETY PRECAUTION

IMPORTANT SERVICE SAFETY PRECAUTION

WARNING

1. For continued safety, no modification of any circuit should be

attempted.

2. Disconnect AC power before servicing.

BEFORE RETURNING THE RECEIVER (Fire &

Shock Hazard)

Before returning the receiver to the user, perform the following

safety checks:

3. Inspect all lead dress to make certain that leads are not pinched,

and check that hardware is not lodged between the chassis and

other metal parts in the receiver.

4. Inspect all protective devices such as non-metallic control knobs,

insulation materials, cabinet backs, adjustment and compartment

covers or shields, isolation resistor-capacitor networks, mechanical

insulators, etc.

5. To be sure that no shock hazard exists, check for leakage current

in the following manner.

• Plug the AC cord directly into a 120 volt AC outlet.

• Using two clip leads, connect a 1.5k ohm, 10 watt resistor paral-

leled by a 0.15PF capacitor in series with all exposed metal cabinet

parts and a known earth ground, such as electrical conduit or elec-

trical ground connected to an earth ground.

• Use an AC voltmeter having with 5000 ohm per volt, or higher, sen-

sitivity or measure the AC voltage drop across the resistor.

• Connect the resistor connection to all exposed metal parts having a

return to the chassis (antenna, metal cabinet, screw heads, knobs

and control shafts, escutcheon, etc.) and measure the AC voltage

drop across the resistor.

All checks must be repeated with the AC cord plug connection

reversed. (If necessary, a nonpolarized adaptor plug must be used

only for the purpose of completing these checks.)

Any reading of 0.75 Vrms (this corresponds to 0.5 mA rms AC.) or

more is excessive and indicates a potential shock hazard which

must be corrected before returning the monitor to the owner.

///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

SAFETY NOTICE

Many electrical and mechanical parts in LCD color television have

special safety-related characteristics.

These characteristics are often not evident from visual inspection, nor

can protection afforded by them be necessarily increased by using

replacement components rated for higher voltage, wattage, etc.

Replacement parts which have these special safety characteristics are

identified in this manual; electrical components having such features

are identified by " " and shaded areas in the Replacement Parts List

and Schematic Diagrams.

For continued protection, replacement parts must be identical to those

used in the original circuit.

The use of a substitute replacement parts which do not have the same

safety characteristics as the factory recommended replacement parts

shown in this service manual, may create shock, fire or other hazards.

Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the

servicing guidelines which follow:

CAUTION: FO R CO NT IN UED PROTECTION

AGAINST A RISK OF FIRE REPLACE ONLY WITH

SAME TYPE FUSE.

F7001

(LC-65/58/50U35T :250V 5A)

DVM

AC SCALE

1.5k ohm

10W

TO EXPOSED

METAL PARTS

CONNECT TO

KNOWN EARTH

GROUND

0.15

TEST PROBE

LC50/58/65U35T

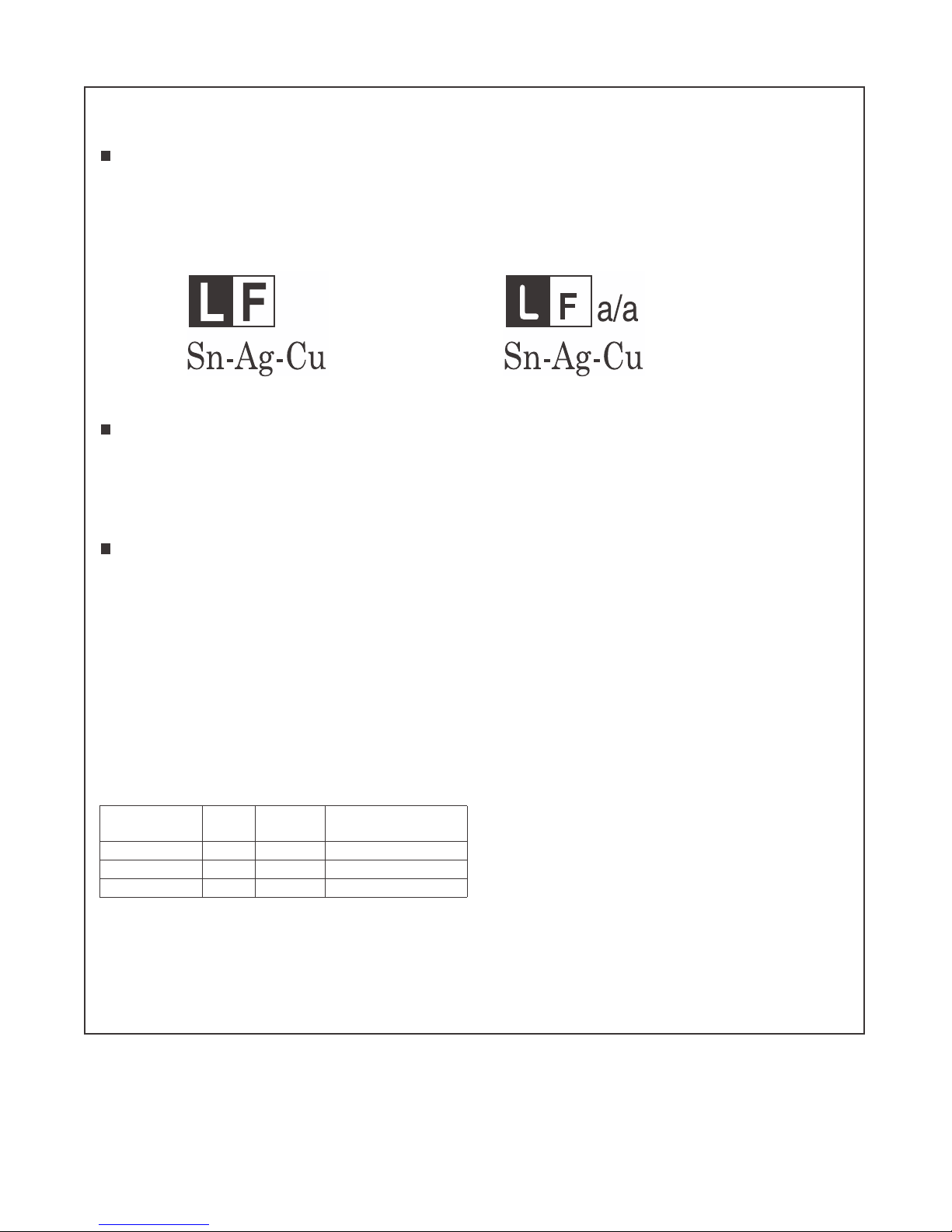

PRECAUTIONS FOR USING LEAD-FREE SOLDER

Employing lead-free solder

• “PWBs” of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The

alphabetical character following LF shows the type of lead-free solder.

Example:

Using lead-free wire solder

• When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause dam-

age or accident due to cracks.

As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 qC, we recommend you to use a dedicated soldering

bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.

Soldering

• As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 qC which is higher than the conventional lead solder by 40 qC, and as it has poor

solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of time. However, Since the land may be

peeled off or the maximum heat-resistance temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the

steady soldering condition.

Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on and off the power of the bit as

required.

If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use of it.

When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.

• Be careful when replacing parts with polarity indication on the PWB silk.

Lead-free wire solder for servicing

Indicates lead-free solder of tin, silver and copper. Indicates lead-free solder of tin, silver and copper.

PARTS CODE PRICE

RANK

PART

DELIVERY DESCRIPTION

ZHNDAi123250E BL J I0.3mm 250g (1roll)

ZHNDAi126500E BK J I0.6mm 500g (1roll)

ZHNDAi12801KE BM J I1.0mm 1kg (1roll)

LC50/58/65U35T

1 – 1

CHAPTER 1. OUTLINE

[1] OUTLINE

MAJOR SERVICE PARTS

Ref.No LC-65U35T Note

NDKEYMG506FEG1

NRDENCA493WJN1

NDUNTKG448FEG1

NDUNTKG447FEG2

NRUNTKB330WJQZ

NQANTZA020WJQZ

NRLCUCA143WJZZ

BT ANTENNA ZQJW020AZTNAQZQJW020AZTNAQTINU

LCD PANEL MODULE UNIT

LCD PANEL MODULE UNIT RLCUCA152WJZZ RLCUCA155WJZZ

LED / IR UNIT DUNTKG447FEG2 DUNTKG447FEG2

WiFi/BT ZQJW033BKTNURZQJW033BKTNURTINU

POWER UNIT RDENCA491WJN1 RDENCA491WJN1

KEY UNIT DUNTKG448FEG1 DUNTKG448FEG1

ĞƐĐƌŝƉƟŽŶ LC-50U35T LC-58U35T

PRINTED WIRING BOARD ASSEMBLIES

MAIN UNIT DKEYMG506FEG3 DKEYMG506FEG2

LC50/58/65U35T

2 – 1

CHAPTER 2. SPECIFICATIONS

[1] SPECIFICATIONS

規格

項目 型號 LC-50U35T LC-58U35T LC-65U35T

mc461mc641mc621器示顯晶液

解析度 8,294,400像素(3840 g2160)

06LAP/34.4CSTN/85.3CSTN/MACES/LAP式模色彩頻視

電視功能電視標準類比 NTSC:M

數位 DVB-T

接收頻道類比VHF/UHF 44.25863.25MHz

數位UHF 470806MHz

hc531設預動自統系諧調視電

統系CSTB語雙/聲體立

音頻放大器 10Wg2

端子 (無線電視/有線電視)ANT(天線輸入) UHF/VHF/CATV75qF型

頭接公nip9buS-DC232-SR

輸入1(ARC)HDMI HDMI（HDMI輸入），ARC

輸入2(MHL)HDMI HDMI（HDMI輸入），MHL

入輸頻音，）入輸IMDH（IMDHIMDH3入輸

）入輸IMDH（IMDHIMDH4入輸

輸入5 音頻輸入，視頻輸入，色差輸入（480I，576I，480P，576P，720P/50Hz，

720P/60Hz，1080I/50Hz，1080I/60Hz)

BSU1BSU

BSU2BSU

BSU）碟硬（3BSU

卡存內CHDS/DSCHDS/DS

乙太網絡(10/100BASE-T) 網路接頭

聲音輸入(HDMI3) 3.5 毫米立體聲插孔（音頻輸入）

出輸頻音位數FIDP/S學光出輸音聲位數

輸出/耳機 3.5毫米插孔（音頻輸出）

螢幕顯示語言英文（美國）/英文（英國）/中文（繁體）

zH06、V011CA求要源電

功率消耗 171W（待機時0.5W） 200W（待機時0.5W） 239W（待機時0.6W）

尺寸不包含台座 1123 (寬) g 656 (高)

g82(深)mm

1298 (寬) g 763 (高)

g85(深)mm

1457 (寬) g 847 (高)

g65(深)mm

包含台座 1123 (寬) g 685 (高)

g305(深)mm

1298 (寬) g 789 (高)

g305(深)mm

1457 (寬) g 882 (高)

g374(深)mm

)gk5.93(gk5.63)gk03(gk82)gk42(gk22）座支括包（座支括包不量重

操作溫度 0°C到 e40°C

I

如果插入的卡不是SD/SDHC（6級或以上），則無法工作。

•作為不斷改進產品效能的方針，SHARP公司保留權利，在不需事先通知的情況下，為提升產品而改變設計與規格。所示之效能規

格指標，為生產本機之標準。個別機器之指標不見得能完全符合此標準。

注意

•安裝液晶電視需要專業技術，因此必須由合格的維修人員進行。顧客不應自己嘗試進行。對於不正確的安裝，或是由於安裝引起

的事故或傷害，SHARP不承擔任何責任。

•在開始操作之前，請先仔細閱讀托架隨附的使用說明書。

LC50/58/65U35T

3 – 1

CHAPTER 3. OPERATION MANUAL

[1] OPERATION MANUAL

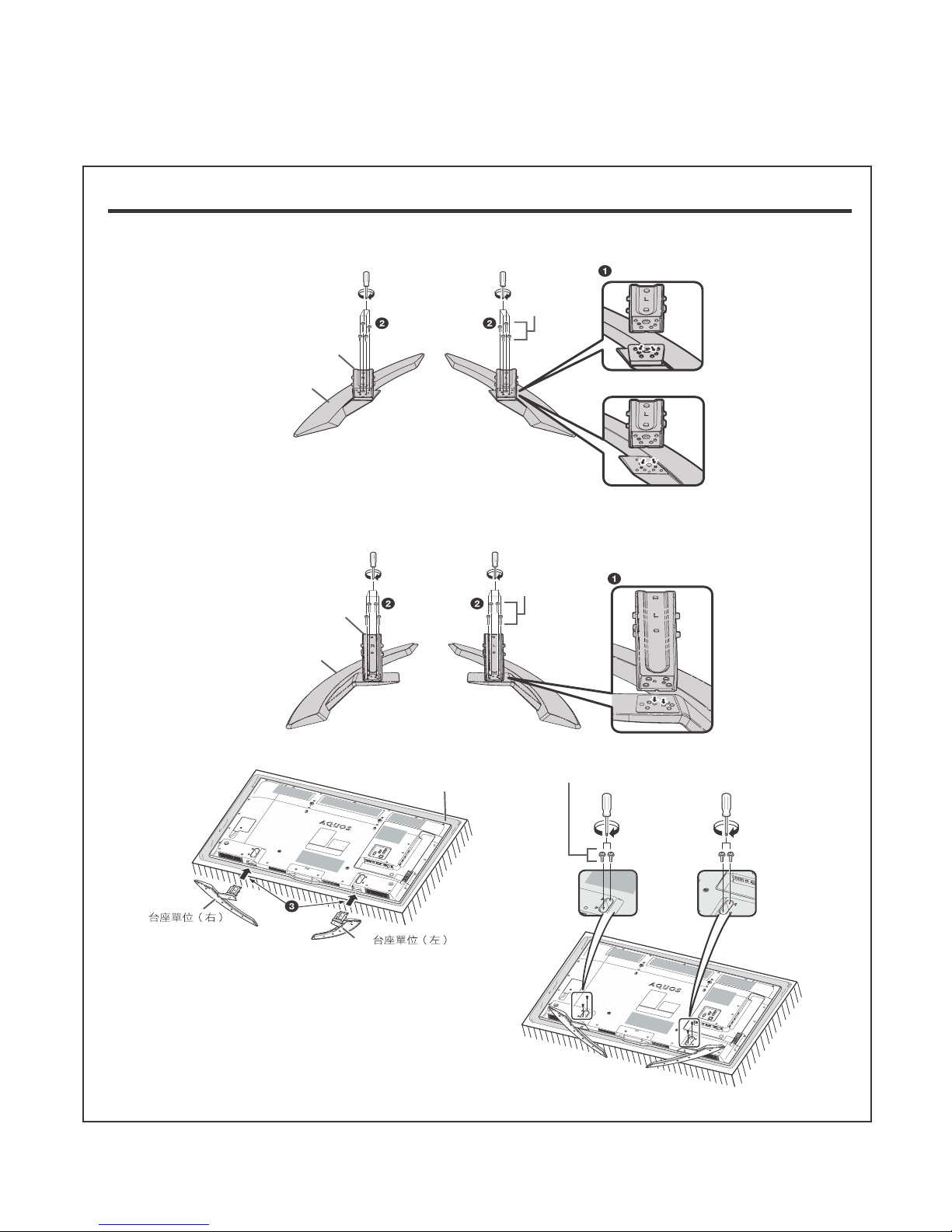

連接台座單位

HLC-58U35T 和LC-50U35T

2支座

1角板

3螺絲

LC-50U35T

LC-58U35T

HLC-65U35T

3螺絲

2支座

1角板

4軟墊

6短螺絲

LC50/58/65U35T

4 – 1

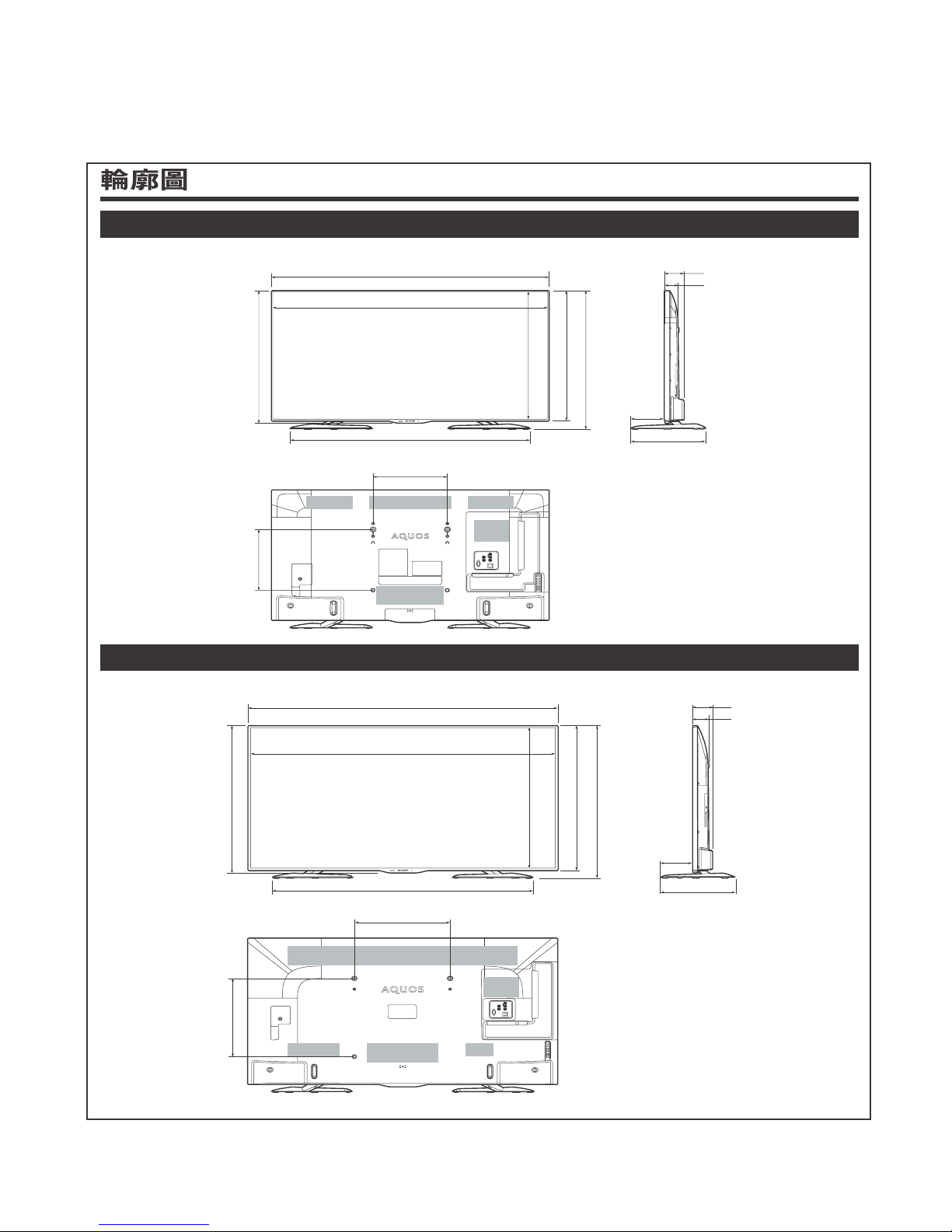

CHAPTER 4. DIMENSIONS

[1] DIMENSIONS

/ Dimensional Drawing

LC-50U35T

Unit : mm

300

1123

1103*

973

622*

646

685

82*

61*

300

137

305

656

LC-58U35T

Unit : mm

400

1298 85*

135

305

69*

1275.3*

1089

726.7*

763

753

789

LC50/58/65U35T

4 – 2

/ Dimensional Drawing

LC-65U35T

Unit : mm

400

1457 65*3

53*2

1432.3*1

882

847

836

1341

162

374

807.3*1

*1 有效區域

*2 最薄的零件

*3 包含突出部份

註

•尺寸並未包含突出物，如螺絲和某些零件。

*1 Active area

*2 Thinnest part

*3 Including projecting parts

NOTE

•Dimensions do not include protrusions such as screws and

some parts.

LC50/58/65U35T

5 – 1

CHAPTER 5. ADJUSTMENT

[1] ADJUSTMENT

[1] ADJUSTMENT PROCEDURE

The adjustment values are set to the optimum conditions at the factory before shipping. If a value should become improper or an adjustment is

required due to part replacement, make an adjustment according to the following procedure.

1. After replacement of any PWB unit and/or IC for repair, please note the following.

xWhen replacing the following units, make sure to prepare the new units loaded with updated software.

When replacing the LCD control PWB, perform the VCOM adjustment.

2. Upgrading of each microprocessor software

CAUTION: Never “POWER OFF” the unit when software upgrade is ongoing.

Otherwise the system may be damaged beyond recovery.

2.1. Software version upgrade

The model employs the following software.

• Main software (please use a software version after upgrade_loader_Malacca_XXXXX.pkg

The main software can be upgraded by using a general-purpose USB Memory.

The followings are the procedures for upgrading, main software can be upgraded as the same time.

2.2. Main software version upgrade

2.2.1 Get ready before you start

• USB Memory of 1GB or higher capacity.

• PC running on Windows 98/98SE/ME/2000/XP/Vista/Win7/Win8 operating system.

• USB Memory reader/writer or PC with a USB port.

• The file system of a USB memory is FAT. (FAT32 supports)

• Use the USB memory without other functions. (lock and memory reader...etc)

2.2.2 Preparations

To upgrade the main software, it is necessary to get ready the USB Memory for version upgrade before you start.

Follow the steps below and create the USB Memory for version upgrade.

1. Copy the file upgrade_loader_Mealacca_XXXXX.pkg for version upgr ade to the root directory (folder) of the USB Memory.

NOTE: In the USB Memory drive, do not store other folders or unrelated files, or more than one file for version upgrade.

Now the USB Memory for version upgrade is ready.

MAIN Unit: DKEYMG506FEG1 (LC-65U35T )

DKEYMG506FEG2 (LC-58U35T)

DKEYMG506FEG3 (LC-50U35T)

LC50/58/65U35T

5 – 2

2.2.3 How to upgrade the software

1. Prepare the following items before working.

USB memory (Copy the file to a USB memory)

AC code

2. Connect USB memory.

* Insert the USB Memory for version upgrade into the service socket (USB2 or USB3 port)

3. Connect AC-code Pushing POWER key

*Upgrade software starts automatically.

*MAIN softwares are written at the same time.

*The upgrade menu is displayed after about 10second.

*Never turn off the power while upgrading.

4. It is completion if displayed, "UPGRADE SUCCESS".

*Check Upgrade condition. "100%"

5. If you failed to upgrade, "E999" is displayed.

6. Disconnect AC Plug and USB memory.

xVerUP LED pattern of USB version UP

Ver UP LED

*Please check the "LED pattern", If you are unable to check the monitor.

*LED pattern detail is please check the "VerUP LED pattern of USB version UP" below.

MAIN Ver CHECK

Case of Ver UP OK Case of Ver UP Error

If you tried upgrade some times but still E999 is displayed,

please give feedback to the service center.

WHITE

Writeing

High

Low

Completion

250ms 250ms

High

Low

Fail

200ms

High

Low

800ms

500ms 500ms

LC50/58/65U35T

5 – 3

3. Entering and exiting the adjustment process mode

1) Before entering the adjustment process mode, the AV position RESET in the video adjustment menu.

2) While holding down the “VOL (–)” and “ENTER” keys at a time, plug in the AC cord of the main unit to turn on the power.

The letter “S” appears on the screen.

3) Next, hold down the “VOL (–)” and “CH ( )” keys at a time.

(The “VOL (–)” and “CH ( )” keys should be pressed and held until the display appears.)

Multiple lines of blue characters appearing on the display indicate that the unit is now in the adjustment process mode.

When you fail to enter the adjustment process mode (the display is the same as normal startup), retry the procedure.

4) To exit the adjustment process mode after the adjustment is done, unplug the AC cord from the outlet to make a forced shutdown. (When the

power was turned off with the remote controller, once unplug the AC cord and plug it again. In this case, wait 10 seconds or so before plugging.)

CAUTION: Use due care in handling the information described here lest your users should know how to enter the adjustment process mode. If the

settings are tampered in this mode, unrecoverable system damage may result.

4. Remote controller key operation and description of display in adjustment process mode

1) Key operation

2) Description of display

noitcnuFyektinuniaMyekrellortnocetomeR

CH ( / ) CH ( / ) Moving an item (line) by one (UP/DOWN)

VOL (+/–) VOL (+/–) Changing a selected item setting (+1/ –1)

Cursor (UP/DOWN) ————— Turing a page (PREVIOUS/NEXT)

Cursor (LEFT/RIGHT) ————— Changing a selected line setting (+10/ –10)

ENTER ENTER Executing a function

(1) Current page/

Total pages

1/17

09500 LMY47M TEST -KEYNOISREVNIAM

09500

_ _ _

BOOT VERSION

T-CON VERSION

No deviseNOISREVCRF

(2) Parameter

1010001NOISREVWSIMDH

KOyekledomydaeryalPYEKYDAERYALP

0C70D5AF4882VTDCLYEKENIVEDIW

WV SECURESTOP KEY WVSecureStop model key OK

1-RRE

YEKPI-PCTD

511118205ONLAIRES

0C70D5AF4882SSERDDACAM

0RORREPMAL

ERROR STANDBY CAUSE 11 00 00 00

CI + KEY

53-41-01-03-00- 00-00-16

LC50/58/65U35T

5 – 4

5. List of adjustment process mode menu

The character string in brackets [ ] will appear as a page title in the adjustment process menu header.

).cte,liatedtnemtsujda(skrameRnoitpircseDmetIeniLegaP

noisreverawtfosniaMnoisreVNIAM11

2 BOOT VERSION

noisreverawtfosrellortnocDCLNOISREVNOC-T3

noisrevWFCRFNOISREVCRF4

5 HDMI SW VERSION

6 PLAYREADY KEY

7 WIDEVINE KEY

8 WV SECURESTOP KEY

YEKCI +9

10 SERIAL NO

11 MAC ADDRESS

rorrepmaloteudnoitanimretforebmuNRORREPMAL21

13 ERROR STANDBY CAUSE

2 1 INDUSTRY INIT Initialization to factory settings

2 BACKLIGHT ACUTIME Accumulated monitor operation time

3 RESET Reset BACKLIGHT TIME

4 LAMP ERROR RESET Reset LAMP ERROR

5 ERROR STAND BY CAUSE RESET Reset ERROR STANDBY CAUSE

6 TIME COUNTER RESET

3 1 VCOM ADJ VCOM adjustment value

4 1 LEV1 Standard value 1 Adjustment gradation setting.

2 LEV2 Standard value 2

3 LEV3 Standard value 3

4 LEV4 Standard value 4

5 LEV5 Standard value 5

6 LEV6 Standard value 6

7 LEV7 Standard value 7

5 1 MG1R WB adjustment Point 1, R adjustment value Parameter for seven-point adjustment

2 MG1G WB adjustment Point 1, G adjustment value

3 MG1B WB adjustment Point 1, B adjustment value

4 MG2R WB adjustment Point 2, R adjustment value

5 MG2G WB adjustment Point 2, G adjustment value

6 MG2B WB adjustment Point 2, B adjustment value

7 MG3R WB adjustment Point 3, R adjustment value

8 MG3G WB adjustment Point 3, G adjustment value

9 MG3B WB adjustment Point 3, B adjustment value

6 1 MG4R WB adjustment Point 4, R adjustment value Parameter for seven-point adjustment

2 MG4G WB adjustment Point 4, G adjustment value

3 MG4B WB adjustment Point 4, B adjustment value

4 MG5R WB adjustment Point 5, R adjustment value

5 MG5G WB adjustment Point 5, G adjustment value

6 MG5B WB adjustment Point 5, B adjustment value

7 MG6R WB adjustment Point 6, R adjustment value

8 MG6G WB adjustment Point 6, G adjustment value

9 MG6B WB adjustment Point 6, B adjustment value

7 1 MG7R WB adjustment Point 7, R adjustment value

2 MG7G WB adjustment Point 7, G adjustment value

3 MG7B WB adjustment Point 7, B adjustment value

8 1 LO 1R WB adjustment Point 1, R adjustment value Parameter for D65 seven-point adjust-

ment

2 LO 1G WB adjustment Point 1, G adjustment value

3 LO 1B WB adjustment Point 1, B adjustment value

4 LO 2R WB adjustment Point 2, R adjustment value

5 LO 2G WB adjustment Point 2, G adjustment value

6 LO 2B WB adjustment Point 2, B adjustment value

7 LO 3R WB adjustment Point 3, R adjustment value

8 LO 3G WB adjustment Point 3, G adjustment value

9 LO 3B WB adjustment Point 3, B adjustment value

LC50/58/65U35T

5 – 5

For the system spec, error"0x11" is always recorded after Factory Reset execution. It is not recorded as problem so that please be careul when you

find out.

-tsujdatniop-neves56DrofretemaraPeulavtnemtsujdaR,4tnioPtnemtsujdaBW4

OL19

ment

eulavtnemtsujdaG,4tnioPtnemtsujdaBW4GOL2

eulavtnemtsujdaB,4tnioPtnemtsujdaBW4 BOL3

eulavtnemtsujdaR,5tnioPtnemtsujdaBW5 ROL4

eulavtnemtsujdaG,5tnioPtnemtsujdaBW5 GOL5

eulavtnemtsujdaB,5tnioPtnemtsujda

BW5 BOL6

eulavtnemtsujdaR,6tnioPtnemtsujdaBW6 ROL7

eulavtnemtsujdaG,6tnioPtnemtsujdaBW6 GOL8

eulavtnemtsujdaB,6tnioPtnemtsujdaBW6 BOL9

10 1 LO 7R WB adjustment Point 7, R adjustment value Parameter for D65 seven-point adjust-

ment

2 LO 7G WB adjustment Point 7, G adjustment value

3 LO 7B WB adjustment Point 7, B adjustment value

11 1 CD MIN Input parameterfor gamma adjustment

2 CD MID1

3 CD MID2

4 CD MID3

5 CD MID4

6 CD MID5

7 CD MID6

8 CD MID7

9 CD MAX

12 1 VAL1 Parameter for gamma adjustment

2VAL2

3VAL3

4VAL4

5VAL5

6VAL6

7VAL7

8 GAMMA ADJ TEMP

13 1 MONITOR TIME OUT

14 1 LCD TEST PATTERN1

2 LCD TEST PATTERN2

3 TV TEST PATTERN

15 1 DUMMY

16 1 USB BACKUP Save the parameter of WB and Gamma

data as USB data file.

2 USB RESTORE Restore the parameter of WB and

Gamma data from USB data file.

17 1 MODEL Set model name.

2 PANEL SIZE Set panel size.

3 VOLUME TYPE Set speaker volume type.

Error Standby Cause

Outline: Communication/Power failure detected by the monitor microprocessor is stored in EEPROM, and last 4 abnormal

can be confirmed in the Process mode A.

Location: Page 1 of the process mode A: MONITOR ERR CAUSE. “0” if there is no error. It is cleared to 0 on the last page of

the process mode A.

Display Error description

0x11 Regular communication time-out ----

0x16 Backlight error Refer to Troubleshooting Table

0x1A Monitor temperature error - Check TV setting environment.

- Check the other monitor (ref No.)

0x1E DET_13V failure Check 13V power line.

0x1F DET_VCORE failure Check CPU core power line.

0x21 DET_POW_T failure Check T-CON or FRC power line.

Page Line Item Description Remarks (adjustment detail, etc.)

4 DESTINATION Set destination.

LC50/58/65U35T

5 – 6

6. Special features

* Error Standby Cause(Page 1/17)

Display of a cause (code) of the last standby

The cause of the last standby is recorded in EEPROM whenever possible.

Checking this code will be useful in finding a problem when you repair the troubled set.

7. Writing the microprocessor software

7.1. Writing the main microprocessor software and monitor microprocessor software

(Main PWB: QPWBXG506WJ**)

Adjustment item Adjustment conditions Adjustment procedure

1 Writing the main micropro-

cessor software and moni-

tor microprocessor software

Checker process

Checking the file version

1) Only boot part, write firmware with Gang Programmer.

IC: RH-iXD775WJQZQ (IC3303)

2) Confirm the software version and operation verification by test checker.

8.1 . WHITE BALANCE ADJUSTMENT/ GAMMA ADJUSTMENT

ERUDECORPNOITIDNOCMETI

1 Setting Brightness㸸MAX (+16)

AV MODE: DYNAMIC

Active Backlight: off

OPC: off

*Set the luminance

meter at the center

of the screen

1. TV is set to below condition.

AVMode :DYNAMIC

Backlight : +16

Active Backlight : OFF

2. Connect White Balance Adjustment jig to TV set.

2 [1] Auto

Adjustment

[DYNAMIC]

Adjustment

[Command]

Adjustment mode

KRSW0001

KKT10037

Multi point adjustment

mode

MSET0001

Point 7

LEV70229

MG7G****

MG7B****

MG7R****

[Adjustment procedure]

1. Using R/C, set the LCD TV to adjustment mode.

[DYNAMIC] Adjustment

2. Set the strongest color as fixed color, minus adjust by

changing the value by 4 at a time to be the reference

value, adjust RGB at MG7***** command.

3. For Point 6, set the correction value of G (1840 x Point 7

G value/3664)(a fraction is rounded up), change the value

by 4 at a time to be the reference value, adjust RB.

4. For Point 5, set the correction value of G (640 x Point 7 G

value/3664) (a fraction is rounded up), change the value

by 4 at a time to be the reference value, adjust RB.

5. For point 4 to 1 : no use, all set to 0

6. Write the adjustment value at MSET0003 command.

*Initial value of RGB at Point 7 = Setting level 3664

*Initial value of RGB at Point 5,6

= correction value of G of each point

LCD TV ADJUSTMENT ITEM

8.White Balance adjustment.

LC50/58/65U35T

5 – 7

Point 6

LEV60115

MG6G****

MG6B****

MG6R****

Point 5

LEV50040

MG5G****

MG5B****

MG5R****

Point 4

LEV40000

MG4G0000

MG4B0000

MG4R0000

Point 3

LEV30000

MG3G0000

MG3B0000

MG3R0000

Point 2

LEV20000

MG2G0000

MG2B0000

MG2R0000

Point 1

LEV10000

MG1G0000

MG1B0000

MG1R0000

W/B adj. value data

input

MSET0003

[Adjustment value]

Based on Teaching set

After adjust luminance spec: Min 280cd/m2

[Reference value for adjustment]

Equipment : Luminance meter [Minolta CS-2000]

(DYNAMIC MODE)

Level

Referenc

e value

Adjustment

Spec.

Inspection

Spec.

Point 7 3664

x=0.2685

±0.0010 ±0.0020

y=0.2670

Point 6 1840

x=0.2685

±0.0015 ±0.0030

y=0.2670

Point 5 640

x=0.2685

±0.0045 ±0.0090

y=0.2670

Point 4 0

NO USE

Point 3 0

Point 2 0

Point 1 0

Remarks

For inspection set condition

AV MODE : [DYNAMIC]

Monochrome : ON

Active Backlight : OFF

Aging time : Minimum 60 min.

LC50/58/65U35T

5 – 8

8.2) GAMMA 2.2 Adjustment

ERUDECORPNOITIDNOCMETI

1 Setting Backlight : MAX(+16)

Active Backlight: Off

Regarding the details of white balance adjustment procedure, refer

to the latest Gamma adjustment spec.

1. Confirm the set condition.

2. Connect the jig.

3. Place the probe at the White Balance adjustment screen

location.

2 Auto

Adjustment

[Command]

Adjustment Mode

KRSW0001

KKT10037

Multi Point

Adjustment Mode

MSET0001

Measurement Pattern

LEV00000

LEV50040

LEV60115

LEV70229

LEV80255

Adjustment Value

Input

GCCX****

(X is Level, **** is

adjustment value

MIN X=0, MAX X=8)

Input Data

GCST0001

࣭Set the MIN adjustment level, and measure the luminance.

Measured luminance is increased 100 times, set the integer as
