Sharp 14T1-U User manual

Fire prevention
To prevent fire, never place any
type of candle or naked flames on
the top or near the TV set.
Object entry
Never insert or drop any metallic
or inflammable objects into
the ventilation openings of the
TV set, as this can cause fire,
electrical shock, or electrical
failure.
OPERATION MANUAL
COLOUR TELEVISION
14T1-U
TINS-D500WJZZ
07P11-MSF
E1 SAFETY PRECAUTIONS
The following accessories are included with this television.
Remote Control Size-AA batteries Operation manual
Rod antenna (dipole) with ribbon feeder
300-75 impedance converter
E2 ACCESSORIES
E3 ANTENNA CONNECTION
If your outdoor antenna uses a 75-ohm coaxial cable
with a standard DIN45325 plug (IEC 169-2), plug it
into the antenna jack at the rear of the set.
Connecting to an antenna Connecting to an antenna via a VCR
If your outdoor antenna uses a 300-ohm twin-lead
flat feeder, connect a 300-ohm to 75-ohm impedance
converter and plug it into the antenna jack at the
rear of the set.
VCR
TV
300-ohm
twin-lead
flat feeder
(not supplied)
75-ohm
impedance
converter
75-ohm coaxial cable
(round cable)
(not supplied)
Standard DIN45325
plug (IEC 169-2)
Antenna in
To RF out terminal
To antenna
in terminal
Antenna
mounting
socket
Antenna
j
ack
Rod Antenna
Feeder
Impedance
Converter
(1) Insert the rod antenna's base post into the
antenna mounting socket until it clicks into
position.
(2) Connect the feeder to the impedance
converter.
(3) Plug the impedance converter into the
antenna jack at the rear of the set.
Rod antenna connection
• When using the RF terminal connection, set the TV to channel zero to make initial adjustments for the VCR.
• If you are using a rod antenna and the signal from TV station is weak or not clear, the picture may not display clearly
or properly. In this case, we recommend that you use an outdoor antenna.
Damage
Turn off the power and unplug
the power cord from the wall
outlet immediately if the TV set
begins to make any unusual noises or gives
off smoke or an unusual smell. Then call your
dealer for service.
Servicing
To reduce the risk of electric
shock, do not remove the back of
the cabinet. This TV set contains
dangerous voltage.
Unstable surface
and shocks
Do not place this TV set on an
unstable cart, stand, shelf, or
table. The TV set may fall, causing serious injury
to a child or adult, and serious damage to the
set. Sharp recommends securing the TV set to
a stable surface or wall to prevent the set from
falling due to sudden shocks or impact.
Power-cord protection
To prevent electrical shock, do
not subject the AC power cord to
damage by bending or twisting it,
or by placing heavy items on top
of it and do not place the AC power cord under the
TV set. If the AC power cord becomes damaged,
unplug it from the wall outlet immediately and call
your dealer for service.
Moisture
To prevent electrical shock,
do not use the TV set in an
excessively damp place.
Water
To prevent fire or electrical
shock, do not place the TV set
near a bathroom, swimming
pool or other area where it may
become wet.
Liquid entry
Do not place a flower vase
or anything else containing liquid
on the TV set, as liquid spilt on the
TV set can cause electrical shock
or failure.
TV Set position
Do place the TV set onto an even
stand, table or rack which size is
bigger than the TV set.
If the TV set is put onto a smaller
size or uneven stand, table or rack may cause
the TV cabinet distort.
Do not put or insert anything between TV set and
the stand, table or rack.
Ventilation
Do not place this TV set in a
confined area, such as on a
bookshelf or in a built-in case.
Leave adequate space behind the TV for proper
ventilation.
Uneven surface and
excessive force
Television equipment and cart
combination should be moved with
care. Quick stops, excessive force, and uneven
surfaces may cause the equipment and cart
combination to overturn.
ENGLISH (На звороті)
УКРАЇНСЬКА
14T1-U_EN.indd 114T1-U_EN.indd 1 10/25/07 11:42:21 AM10/25/07 11:42:21 AM

POS I T I ON 72
SOUN
SK I P OFF
D/DK
MANUA L
SELE T H
:
CRETUN
:
RMEUNCADJUT
:
S
68 25MHz.1
AUTO
COLOUR UTOA
TV set

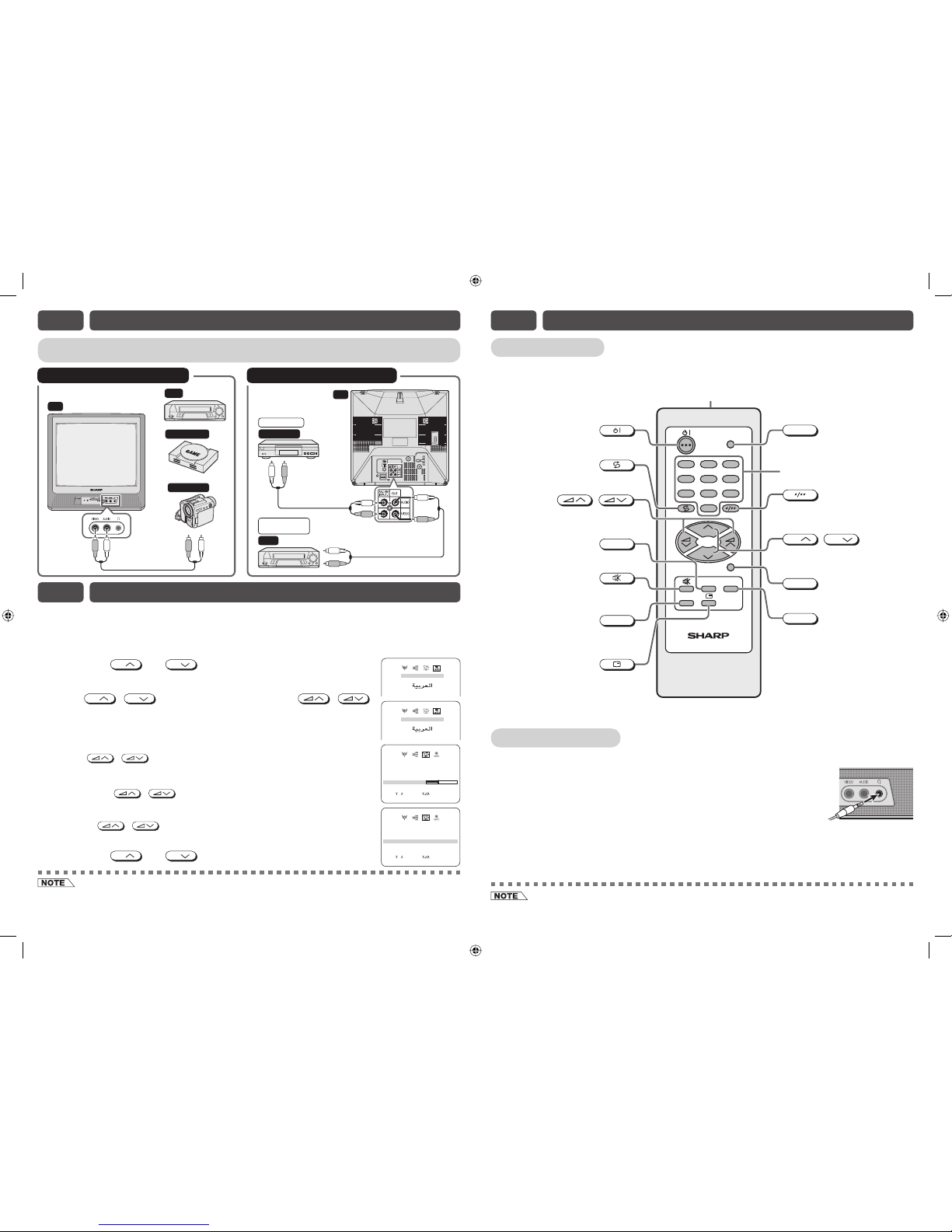

E4 CONNECTING OTHER EQUIPMENTS
Enjoy playback from a video disc player, VCR or other video equipment by connecting them to
this TV set using the Audio/Video in terminals.
• To avoid injuring your hearing, do not put on the headphone before plugging them into the headphone jack and before the
power is turned on.
Remote control
TV
0
1
4
7
2
5
8
3
6
9
CH
CH
TV/VIDEO
MENU
TIMER
LANGUAGE
NORMAL
Mutes the sound and restores sound
to previous level.
Displays the Off Timer.
TIMER
Changes the on-screen display
language.
LANGUAGE
Calls the MENU screen.
MENU
Resets all settings.
NORMAL
Displays the channel and timer settings
on the screen.
Infrared transmitter window
Aim this window at the infrared
sensor window on your TV set.
Turns the TV on or to Standby mode.
Returns to previously viewed channel.
Switches between TV broadcasts
and A/V input programmes.
TV/VIDEO
Switches between one- or two-digit
mode channel selection.
Adjusts the volume.
Used for MENU setup.
/
Number buttons
Selects the channel.
Used for MENU setup.
CH
CH /
E6 PART NAMES
Using headphone
E5 SETTING AND ADJUSTMENT
Insert headphone plug into headphone jack to listen to audio with
headphone.
• The audio from the speakers is turned off.
[ TV Set ]
When you turn on the TV for the first time, perform below procedure and it will automatically
memorize the broadcast channels.
(1) Insert the batteries into the remote control.
(2) Connect the antenna cable to the TV set.
(3) Plug in the AC POWER cord to the wall outlet.
!Press both
CH
and
CH
on TV set for more than two seconds
during normal screen, the LANGUAGE menu will appear.
@ Press
CH
/
CH
to select desired language and /
to set the language.
# Once language setup is completed, CH-SETTING menu will displayed.
• AUTO
Press / and Auto Channel Tuning is started. Auto tuning bar will
shown during Auto Search only.
• MANUAL (Fine tuning)
i) Each time / is pressed, the frequency changes to allow fine
tuning and the colour of channel number changes to yellow to indicate fine
tuning.
ii) Press / for more than 2 seconds, the “Manual Channel Tuning”
will start. If a signal is found, the Manual Channel Tuning will stop searching.
$Press both
CH
and
CH
twice to display normal screen.
• The audiovisual cords required to connect the TV set with video equipment may differ from those shown in the above
diagram. See the operation manual of your video equipment for connection details.
• The above recording and editing connections are intended solely for personal use and not for the illegal copying of
audiovisual material protected by copyright laws.
GL I SEN
ССКИ
H
ANÇAFR I S
Й РУ
GL I SEN
ССКИ
H
ANÇAFR I S
Й РУ
POS I T I ON 72
SOUN
SK I P OFF
D/DK
MANUA L
SELE T H
:
CRETUN
:
RMEUNCADJUT
:
S
68 25MHz.1
AUTO
COLOUR UTOA
Yellow : To VIDEO
White : To AUDIO VCR
Video Game
Camcorder
TV
To Audio/Video
out terminals
TV
To Audio/Video
in terminals
Yellow : To VIDEO
White : To AUDIO
To Audio/Video
out terminals
DVD Player
For Playback
VCR
For Recording
and Editing
Example of rear terminals usageExample of front terminals usage
14T1-U_EN.indd 214T1-U_EN.indd 2 10/25/07 11:42:24 AM10/25/07 11:42:24 AM

Channel / Timer display
Displays the current channel number, the timer, and other settings on the
screen.
!Press .
• The time remaining on the Off timer and channel
number appears on the screen.
• When no timer is set, the channel number appear on
the screen.
@Press once again. The display
disappears.
E8 USEFUL FEATURES
5
OFF 2 : 3 0
TV/VIDEO
TV
0
4
7
2
8
3
6
9
CH
CH
1
5
MENU
TIMER
LANGUAGE
NORMAL
TV/VIDEO
Number
buttons
Mute
Silences the sound.
!Press .
• Press , “ ” appears on the screen, and the
sound is silenced.
@Press , the volume returns to its
previous level.
• Mute will be cancelled if the is pressed at any
time.
TV / Video selection
Switches between TV broadcasts and AV input programmes.
• Each time you press the
TV/VIDEO
, the input switches
between AV1, AV2 and TV programme.
52
2VA
1VA
Channel recall
Switches back to the channel you were watching just before the current
channel.
Press .
• The channel previously viewed returns to the screen.
Example:
After switching from channel 5 to channel 7, is
pressed, the channel will change to channel 5. Press
again to return to channel 7.
5
5
7
7
CONTRAST
Selected item Press Press
To decrease contrast To increase contrast
COLOUR For less colour intensity For more colour intensity
BRIGHTNESS For less brightness For more brightness
TINT
*To move tint toward red To move tint toward green
SHARPNESS For less sharpness For more sharpness
PICTURE NR
WHITE TEMP To more reddish background To more bluish background
(see note below)
ON OFF
*: TINT can only be selected and adjusted when receiving NTSC broadcasts.
• Picture Noise Reduction
Noise might be generated on images when playing deteriorated video tapes
or when receiving broadcasts with relatively weak signals. In these cases, set
PICTURE NR to “ON” to reduce the noise. However, when receiving good images
without noise, you can get better image quality by turning OFF this feature.
• WHITE TEMP can only be adjusted on PICTURE menu.
E7 SELECTING MENU ITEMS
PICTURE menu
CONTRAST 05
BR I G
TINT
HTNESS 0
0
1+
SHARPNESS
W HITE
SELE T H
:
CRETUN
:
RMEUNCADJUT
:
S
PTEM
01
–
PICTURE RNFFO
COLOUR 0
OFF :––––
PAS
BLUE
S
W ORD 0 000
PO
W ER ESAV
BACK
SELE T H
:
CRETUN
:
RMEUNCADJUT
:
S
TV FFO
FFO
FF
O
FEATURES menu
• OFF (OFF TIMER)
– Automatically turns power off after a set length of time has passed.
• TV (CHILD LOCK)
– Preventing children from watching TV.
– If you forget your PASSWORD, please input “2398” to enter, then
change to new PASSWORD.
• BLUE BACK
– Automatically turns the screen blue if a broadcast signal is not received.
• POWER SAVE
– Reduces the picture brightness to create a softer image while saving
electricity.
POS I T I ON 72
SOUN
SK I P OFF
D/DK
MANUAL
SELE T H
:
CRETUN
:
RMEUNCADJUT
:
S
68 25MHz.1
AUTO
COLOUR U TOA
CH-SETTING menu
• POSITION
– The channel position changes to the higher or lower number.
• COLOUR
• SOUND
• SKIP
ON OFF
GL I SENANÇAH
IS FR
ССКИ
Й РУ
SELE T H
:
CRETUN
:
RMEUNCENTR
:
E
LANGUAGE menu
The on-screen display language can be set to English or Francais
or Arabic or Russian.
AUTO SECAM NTSC4.43 PAL NTSC3.58
B/G D/KI
ENGLISH FRANÇAIS
• The on-screen displays in this manual may differ from their actual appearance.
14T1-U_EN.indd 314T1-U_EN.indd 3 10/25/07 11:42:26 AM10/25/07 11:42:26 AM

SHARP CORPORATION
This unit is equipped with a microprocessor. Its performance could be adversely affected by external electrical
noise or interference. If this should happen, unplug the unit and plug it in again after a few minutes.
The following problems do not always indicate a hardware failure. Therefore, please use the
troubleshooting guide below before calling for repair service.
If, after following the guide none of the remedies work, unplug the TV set and call for service.
E9 TROUBLESHOOTING
Quick Service Check List
Increase the volume.
Try fine tuning to correct.
Remote control does not work. Bars on screen. Picture distorted. Picture rolls vertically. No colour. Poor reception on some channels. Picture weak. Picture lines or streaks. Picture ghosting. Picture blurred. Sound OK, picture poor. Picture OK, sound poor. No picture or sound.
Contrast setting in picture mode might be all the way to the minus side.
Press the NORMAL button on the remote control to correct.
Check batteries in the remote control.
Adjust COLOUR control.
Turn OFF using the POWER switch, then turn ON again after a minute.
Check for local interference.
If outside antenna is used, check for broken wires.
Antenna not connected to terminal at the back of the TV set.
POWER switch of TV not ON.
TV not plugged in. Outlet power OFF.
Try a new channel to check for possible station trouble.
Possible Causes/Remedies
Problems
• Design and specifications are subject to change without notice.
• Receiving system: These receiving systems, encompassing all currently available technology, include those with planned
broadcast, videotape and laserdisc hardware and software.
MODEL 14T1-U
Receiving System World multi 18 system
PAL – B/G, I, D/K SECAM – B/G, D/K, K1 NTSC 4.43 – B/G, I, D/K
Receiving Frequency 48.25 MHz – 863.25 MHz
Channel Tuning 100-Channel Electronic Tuner with Full Auto Tuning System
Terminals Audio/video input × 2 (front x 1, rear x 1), Audio/video output × 1 (rear),
Headphone jack x 1 (front)
Sound Output 3 W (RMS) × 1
Power Source AC 110 – 240V, 50 Hz / 60 Hz
Power Consumption 62 W
Dimensions 352 (W) × 334 (H) × 355 (D) mm
Weight 8.8 kg (Approx.)
E10 SPECIFICATIONS
14T1-U_EN.indd 414T1-U_EN.indd 4 10/25/07 11:42:27 AM10/25/07 11:42:27 AM
