C. Attaching the stand unitB. Inserting the batteries
2T-C40AE1X
1
1 Soft cushion
2Stand unit (R) 2Stand unit (L)
3 Screws 3 Screws
2T-C45AE8X
2
2Stand unit (L) 2Stand unit (R)
1 Soft cushion
3 Screws 3 Screws
12 3
CS 软衬垫 底座组件 (R)
底座组件 (L) 螺丝钉
FR Coussin moelleux Ensemble du socle (R)
Ensemble du socle (L) Vis
PT Almofada macia Pedestal (R)
Pedestal (L) Parafusos
ID Bantalan lunak Unit dudukan (R)
Unit dudukan (L) Sekrup
AR (R)
(L)
Remote control unit
123
1“AAA” size battery
B1
CS 装入电池 “AAA” 型号电池
FR Insertion des piles Pile de format « AAA »
PT Colocar as pilhas Pilha de tamanho “AAA”
ID Memasukkan Baterai Baterai ukuran “AAA”
AR
CAUTION
•Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
CS •不要将电池（电池组或电池已被安装）暴露在如直射阳光火等一些过热的环境中
FR
ATTENTION
•
Les piles (ou le bloc-piles) ne doivent pas être exposées à une source de chaleur excessive, telle que les rayons du
soleil, un feu, etc.
PT
CUIDADO
•
A pilhas (módulo de pilha ou pilhas instaladas), não deve ser exposta a calor excessivo, seja por exposição ao sol,
fogo ou outras fontes de calor.
ID
PERHATIAN
•Baterai (kemasan baterai atau baterai terpasang) tidak boleh terpapar pada panas yang berlebihan seperti
cahaya matahari, api atau sejenisnya.
AR •
Initial setup guide 2T-C40AE1X_C45AE8X_H069.indb 2Initial setup guide 2T-C40AE1X_C45AE8X_H069.indb 2 10/22/2018 5:07:46 PM10/22/2018 5:07:46 PM

-5-6
Dear SHARP customer
Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-
free operation of your product, please read the Important Safety Precautions carefully before using this product.
Important Safety Precautions [ENGLISH
EN
]
•Stand base must be attached to prevent the TV set from falling down and cause injuries.
•Cleaning — Unplug the AC cord from the AC outlet before cleaning the product. Use a soft damp cloth to clean the
product. Do not use liquid cleaners, aerosol cleaners or chemical cloth to clean it, as such materials may damage the
product.
•Water and moisture — Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub,
swimming pool and in a wet basement.
•Do not place vases or any other water-filled containers on this product.
The water may spill onto the product causing fire or electric shock.
•Stand — Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause the product to fall,
resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table
recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the
manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.
•When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and
uneven floor surface can cause the product to fall from the cart.
•Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these
vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not
place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is
not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless
proper ventilation is provided or the manufacturer’s instructions are followed.
•The LCD panel used in this product is made of glass. Therefore, it can break when the product is struck forcefully or
with a sharp object. If the LCD panel is broken, be careful not to be injured by broken glass.
•Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating
products (including amplifiers).
•To prevent fire, never place any type of candle or naked flames on the top or near the TV set.
•To prevent fire or shock hazard, do not place the AC power cord under the TV set or other heavy items.
•Do not place heavy objects on this product or stand on it. Doing so could cause injury if the product overturns. Take
special care near children and pets.
•The LCD panel is a very high technology product with 2,073,600 pixels, giving you fine picture details.
Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a fixed point of
blue, green or red.
This is within product specifications and does not constitute a fault.
•Precautions when transporting the TV
When transporting the TV, never carry it by holding or otherwise putting pressure onto the display. Be sure to always
carry the TV by two people holding it with two hands — one hand on each side of the TV.
•Do not display a still picture for a long time, as this could cause an afterimage to remain.
•Install the product on the place where the AC cord can be unplugged easily from the AC outlet or from the AC INPUT
terminal on the rear of the product.
•If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many
injuries, particularly to children, can be avoided by taking simple precautions such as:
•Using cabinets or stands recommended by the manufacturer of the television.
•Only using furniture that can safely support the television.
•Ensuring the television is not overhanging the edge of the supporting furniture.
•Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture
and the television to a suitable support.
•Not standing the televisions on cloth or other materials placed between the television and supporting furniture.
•Educating children about the dangers of climbing on furniture to reach the television or its controls.
•Do not install the TV in a location in which it will be subject to water drops such as underneath an air conditioning unit
or in the vicinity of a humidifier.
•Water drops falling onto the TV and water entering inside it may result in fire, electric shock, or malfunctions.
•We recommend that you install the TV at least 1 m away from the outlet of an air conditioner.

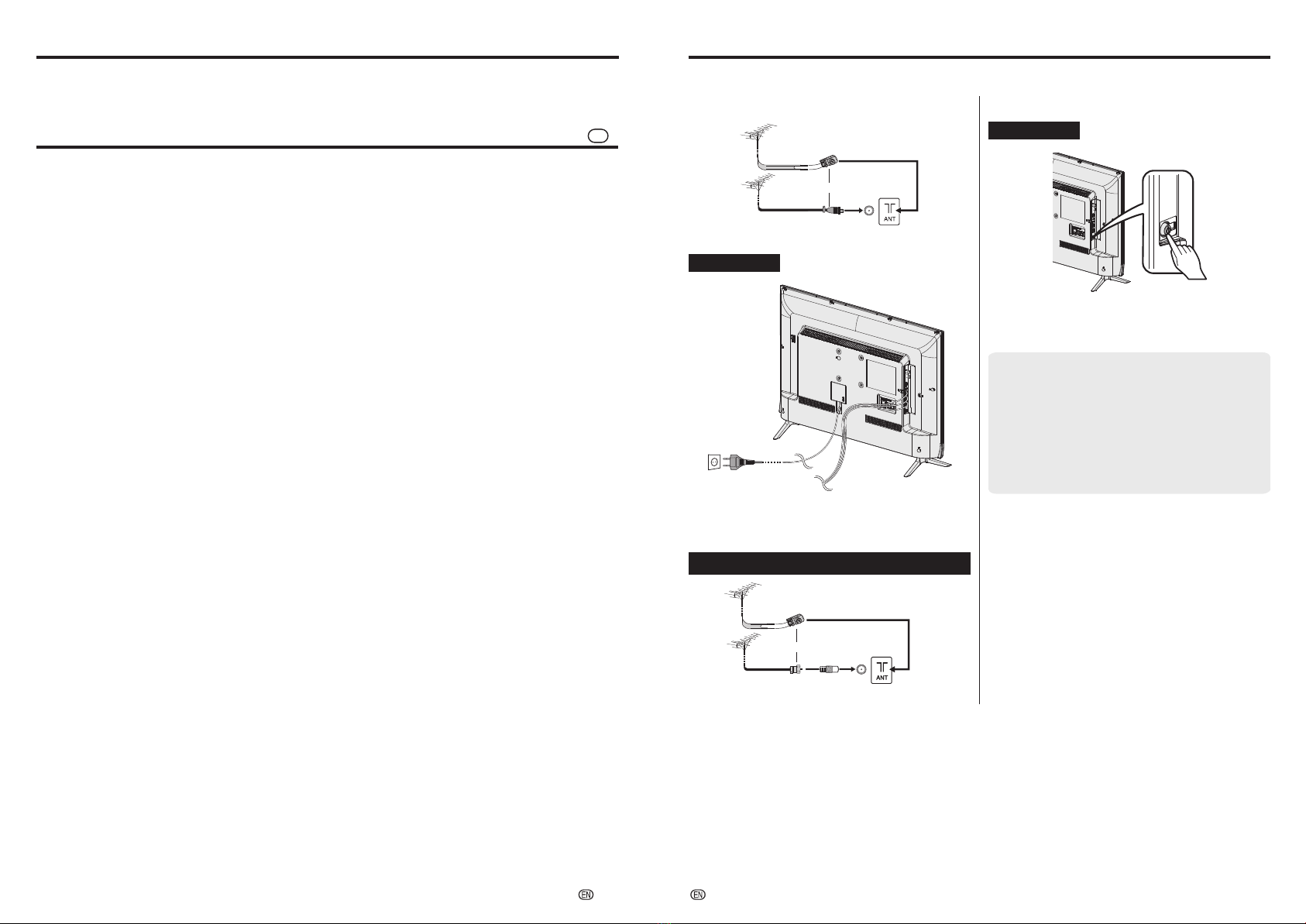

Initial installation
Follow the steps below one by one when using the TV for the first time. Some steps may not be necessary depending on
your TV installation and connection.
Connect an antenna cable to the antenna terminal.
Plug the AC cord into the AC outlet.
2T-C40AE1X
• Place the TV close to the AC outlet, and keep the power
plug within reach.
• Product shape varies in some countries.
For the Philippines only
Antenna adaptor (supplied)
or
Press One Button Key (Single Press) on the TV.
2T-C40AE1X
Run the initial installation.
• Follow the guide on the TV screen to set the following
settings.
Language setting
Location setting
TV Location setting
Channel search setting
Smart TV setting
SHARP Legal setting
Completed
or
Initial setup guide 2T-C40AE1X_C45AE8X_H069.indb 3Initial setup guide 2T-C40AE1X_C45AE8X_H069.indb 3 10/22/2018 5:07:46 PM10/22/2018 5:07:46 PM

-7-8

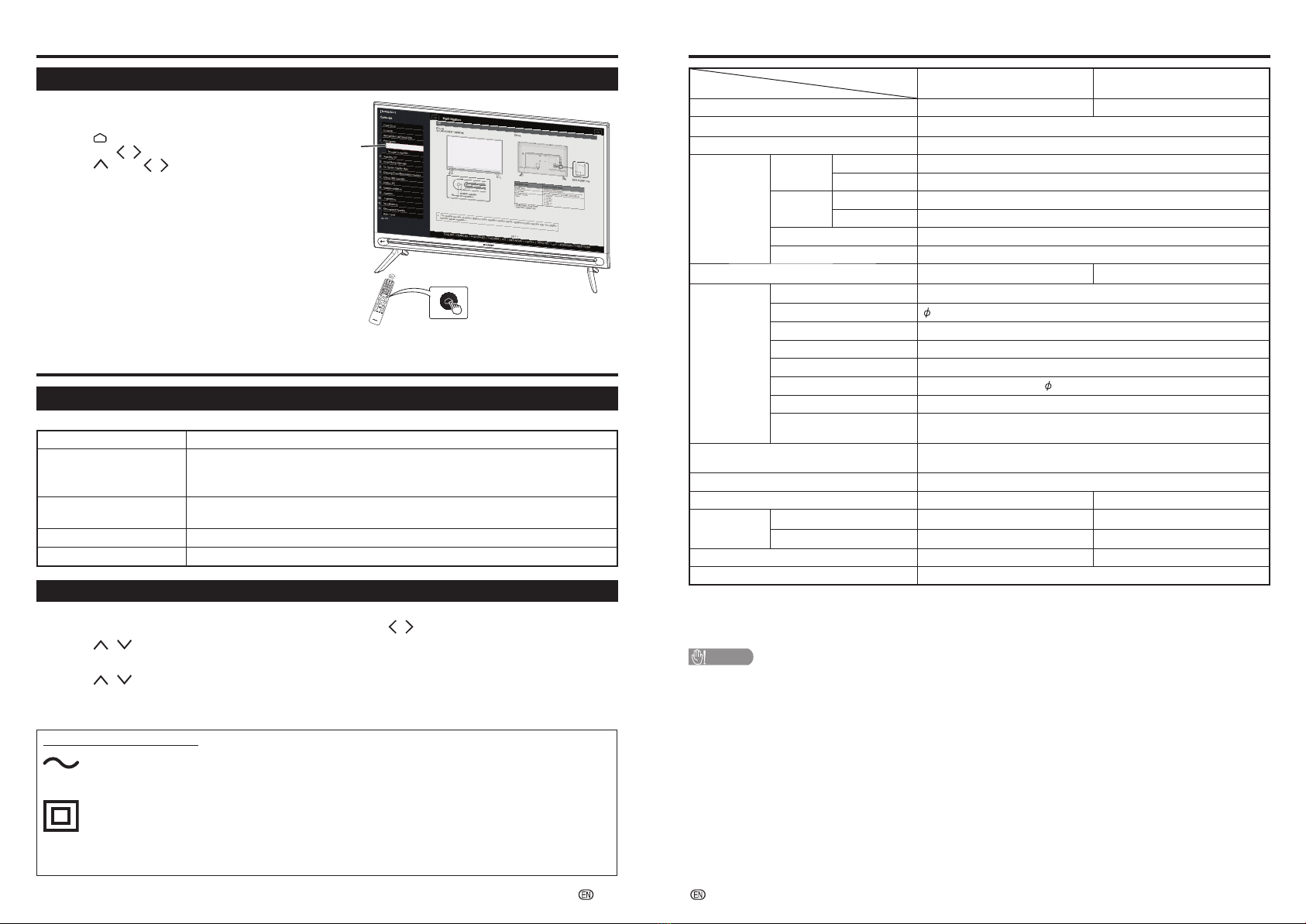

Viewing E-Manual
Appendix
Troubleshooting
The problems described below are not always caused by malfunctions. Check the TV again before having the TV serviced.
Problem Possible Solution
•No power. •Check if you pressed POWER on the remote control unit.
•Is the AC cord disconnected?
•Has the power been turned on?
•Remote control unit does
not operate.
•Are batteries inserted with polarity (+, –) aligned?
•No picture. •Is connection to other components correct?
•No sound. •Is connection to other components correct?
CLEARING THE PASSWORD
If you forget the password, clear the password using the following procedure.
1From the HOME screen, select “Settings” > “Menu”, and then press / to select “Initial setup”.
2Press / to select “Child lock”, and then press ENTER and the password input screen display.
3If you enter “3001” using 0–9, the “Child lock” setting menu will be displayed.
4Press / to select “Set password”, and then press ENTER to set the password.
5Enter the 4-digit number as a password using 0–9,and then enter the same 4-digit to confirm. The new password
is now set.
Symbols placed on equipment
• This mark indicates the product operates on AC Voltage.
• This mark indicates a class II or double insulated electrical appliance wherein the product does not require a safety
connection to electrical earth (ground).
Viewing the Built-in Operation Manual
Displays the built-in operation manual on the screen. You
can read information about how to use this device.
1Press (HOME) to display the HOME screen, and
then press / to select “Settings”.
Press , press / to select “Manual”, and then
press ENTER.
This displays the built-in operation manual screen.
2When you select contents, its page will be displayed.
1
TV
2
Model
Item 2T-C40AE1X 2T-C45AE8X
LCD panel 102 cm 113 cm
Resolution 2,073,600 pixels (1920 g1080)
Video colour system PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60
TV function TV-
standard Analogue PAL: B/G, D/K, I SECAM: B/G, D/K, K/K1 NTSC: M
Digital DVB-T / DVB-T2
Receiving
channel VHF/UHF 44.25—863.25 MHz
CATV S1—S41 ch (including Hyperband)
TV-tuning system Auto Preset 99 ch
STEREO/BILINGUAL NICAM: B/G, I, D/K A2 stereo: B/G MTS: M
Audio amplifier
7.5 W g2 10 W g2
Terminals ANT (Antenna input) UHF/VHF 75 qDIN type
SERVICE ONLY 3.5 mm jack
INPUT 1 (ARC) HDMI HDMI (HDMI input), ARC
INPUT 2 HDMI HDMI (HDMI input)
INPUT 3 AUDIO in, VIDEO in
AUDIO OUT AUDIO out, Headphone ( 3.5 mm stereo)
USB USB (DC5V 1.5A output)
ETHERNET
(10/100 BASE-T) Network connector
OSD language English/Simplified Chinese/Arabic/French/Portuguese/Russian/
Persian/Thai/Vietnamese/Indonesia/Hebrew/Hindi/Malay
Power requirement AC 110 — 240 V, 50/60 Hz
Power consumption 80 W (0.5 W Standby) 101 W (0.5 W Standby)
Dimensions without stand
911 (W) g567 (H) g75 (D) mm 1014 (W) g581 (H) g64 (D) mm
with stand
911 (W) g633 (H) g239 (D) mm 1014 (W) g616 (H) g199 (D) mm
Weight without stand (with stand) 7.4 kg (7.6 kg) 9.0 kg (9.5 kg)
Operating temperature 0°C to +40°C
•As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes
for product improvement without prior notice. The performance specification figures indicated are nominal values of
production units. There may be some deviations from these values in individual units.
•Specification may differ depending on the selected country.
CAUTION
•Installing the Liquid Crystal Television requires special skill that should only be performed by qualified service
personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper
mounting or mounting that results in accident or injury.
•Carefully read the instructions that come with the bracket before beginning work.
Specifications
Initial setup guide 2T-C40AE1X_C45AE8X_H069.indb 4Initial setup guide 2T-C40AE1X_C45AE8X_H069.indb 4 10/22/2018 5:07:47 PM10/22/2018 5:07:47 PM

-29 -30
Appendix
Trademarks
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks
of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance®.
The Wi-Fi Protected Setup™ Logo is a certification mark of Wi-Fi Alliance®.
The Bluetooth®word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of
such marks by SHARP Corporation is under license. Other trademarks and trade names are those of their respective
owners.
ANY USE OF THIS PRODUCT IN ANY MANNER OTHER THAN PERSONAL USE THAT COMPLIES WITH THE
MPEG-2 STANDARD FOR ENCODING VIDEO INFORMATION FOR PACKAGED MEDIA IS EXPRESSLY
PROHIBITED WITHOUT A LICENSE UNDER APPLICABLE PATENTS IN THE MPEG-2 PATENT PORTFOLIO,
WHICH LICENSE IS AVAILABLE FROM MPEG LA, LLC, 6312 S. Fiddlers Green Circle, Suite 400 E,
Greenwood Village, Colorado 80111 U.S.A.
THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND
NON-COMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE VC-1
STANDARD (“VC-1 VIDEO”) AND/OR (ii) DECODE VC-1 VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO
PROVIDER LICENSED TO PROVIDE VC-1 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY
OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C.
SEE HTTP://WWW.MPEGLA.COM
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF
A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO
IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS
ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO
PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY
OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C.
SEE HTTP://WWW.MPEGLA.COM
THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE
PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE
WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS
ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS
OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS
GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT
RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED
FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM
2T-C40AE1X
Unit : mm
633
567
100
500
911
887
876
100
88
239
43
75
Dimensional Drawing
Initial setup guide 2T-C40AE1X_C45AE8X_H069.indb 15Initial setup guide 2T-C40AE1X_C45AE8X_H069.indb 15 10/22/2018 5:07:56 PM10/22/2018 5:07:56 PM

Printed in Malaysia
马来西亚印刷
Imprimé en Malaisie
Impresso na Malásia
Dicetak di Malaysia
SHARP CORPORATION
Kawasan Industri KIIC, Jl. Harapan Raya Lot LL 1 & 2
Gedung No. 01, Desa Sirnabaya, Kec. Teluk Jambe Timur
Kabupaten Karawang 41361
PT. SHARP TRADING INDONESIA
NO. REG I.32.STID4.03901.0516
For Indonesia
ER48977/16
DA56116/16
2T-C45AE8X
Unit : mm
>PS<
PG024WJ
581
616
548
100
1014
958
992
200
86
199
35
64
Dimensional Drawing (Continued)
-31
Initial setup guide 2T-C40AE1X_C45AE8X_H069.indb 16Initial setup guide 2T-C40AE1X_C45AE8X_H069.indb 16 10/22/2018 5:07:57 PM10/22/2018 5:07:57 PM
