ELECTRICAL SPECIFICATION........................3
IMPORTANT SERVICING NOTES ..................4
SERVICE ADJUSTMENTS...............................5
PRINTED WIRING BOARDS............................8
SCHEMATIC DIAGRAM, WAVE FORMS........22
PARTS ALLOCATION TABLES.......................15
PART LIST........................................................31
BLOCK DIAGRAM...........................................30
CONTENTS
MODEL 70GF-63E
SHARP CORPORATION
PAL B/G, I / SECAM L/L’, B/G, D/K SYSTEM COLOUR TELEVISION
SEJB70GF63E00
DA-50W CHASSIS
SERVICE MANUAL
In the interests of user safety (required by safety
regulations in some countries) the set should restored
to its original condition and only parts identical to
those specified should be used.
Issued: 20th Nov ‘00
This document has been published to
be used for after sales service only.
2
70GF-63E
Use this page to keep any special servicing information as Thecnical Report (Bulletin), Technical Information, etc.
If only part number changes are required, just change part number directly on Part List Section.
If you need more information, please refer to the Technical Report (Bulletin).
SERVICE MANUAL UPDATE LOG SHEET
Part #
Technical Report #
Technical Bulletin # Cause / Solution Page # Application
Data /Serial #
3
70GF-63E
ELECTRICAL SPECIFICATIONS
•Power Input .......................220V-240 Volts AC 50Hz
•Power Consumption
•Audio Power Output Rating
Speakers
Left / Right.........................7Ω12W, 6 x 12cm
•Aerial Input Impedance
•Tuning Ranges..............45.75MHz thru 855.25 MHz
INTERMEDIATE FREQUENCIES:
VHF/UHF...........................75 ohm Unbalanced
CATV Special Channels
Normal Operating....................................88W
Stand-by Operating...................................1W
Internal Left Speaker.....................10W (MPO)
Internal Right Speaker..................10W (MPO)
Internal Centre Speaker...........10W (MPO)
Centre................................7Ω12W, 6 x 12cm
•White Level
Set the brightness control, with no signal connected, so that the CRT cathode current is 600mA. The maximum
correction applied to each cathode current to achieve a screen temperature of 8550 degrees K-1 MPCD should not
exceed 15% of its original value.
X=0.290 Y=0.300
WARNING
The chassis in this receiver is partially hot. Use an isolation transformer between the line
cord plug and power receptable, when servicing this chassis.
To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer
servicing to qualified sercice personnel.
Convergence.........................Self Converging System
Focus....................................Bi-Potencial Electrostatic
Sweep Deflection...........................................Magnetic
Specifications are subject to change without prior notice.
•Adjacent Picture Carrier Trap
L’..........................................................41.9MHz
L, D/K, I................................................30.9MHz
B/G.......................................................31.9MHz
I...........................................................40.9MHz
•Adjacent Sound Carrier Trap
L’..........................................................32.4MHz
L, D/K, B/G..........................................40.4MHz
I............................................................32.9MHz
•Sound Carrier Trap
L’..........................................................40.4MHz
L, D/K...................................................32.4MHz
B/G.......................................................33.4MHz
•Picture Carrier Trap
L’..........................................................33.9MHz
L, B/G, D/K, I.......................................38.9MHz
4
70GF-63E
IMPORTANT SERVICING NOTES
SERVICING OF HIGH VOLTAGE SYSTEM AND CRT
Only qualified service personnel are allowed to carry out mintenance and repair of this receiver.
It is important that the static charge is removed from the high voltage system when carrying out
work on the receiver. This can be achieved by connecting a 10K resistor (with a suitably insulated
lead) from the CRT cavity connector to the CRT ground tag. This must be carried out with the AC
supply disconnected from the reciver.
Note the following:
•The CRT in this receiver employs Integral Implosion Protection.
•If the CRT has to be changed it MUST be replaced with the correct type for continued safe
working
•DO NOT lift the CRT by its neck.
•When handing the CRT, ensure that shatterproof goggles are worn.
•Ensure that the CRT is discharge before handling.
X-RAY
This receiver is designed to keep any x-ray emission to an absolute minimum. Some fault conditions
and servicing procedures may produce potentially hazardous x-ray radiation levels. This is a problem
when in close proximity to the receiver for long periods of time. To reduce any risks associated with
this, please observe the following precautions:
1. When undertaking any servicing on this chassis, DO NOT increase the EHT to more than 33 KV,
(at a instantaneous beam current of 1800µΑ).
2. Ensure that during normal operation the EHT does not exceed 32KV±1.5KV (at a beam current of
1600µΑ). This level has been pre-set in the factory. Always check that this level has not been exceeded
after carrying out any repair on the receiver..
3. DO NOT replace the CRT with any other type than that specified in the parts listing as this may
cause excessive x-ray radiation.
BEFORE RETURNING THE RECEIVER TO THE CUSTOMER
In addition to the above checks, the following should also be carried out before returning the receiver
to the customer.
1. Inspect all the leads to ensure that they are dressed correctly and that they are not obstructed or
pinched by any other parts.
2. Ensure that all protective devices are in good condition. These will include non-metallic control
knobs, insulating fish papers, cabinets backs, compartment covers or shieds, mechanical insulators,
etc.
5
70GF-63E
SERVICE ADJUSTMENTS
All the adjustments required for this chassis will be done in Service Mode, except G2 and Focus.
••
••
•G2 ADJUSTMENT
1.Receive cross hatch pattern signal.
2. Set contrast to 80/100 and brightness to 40/100.
3. Connect the oscilloscope to the red cathode and adjsust G2 to read

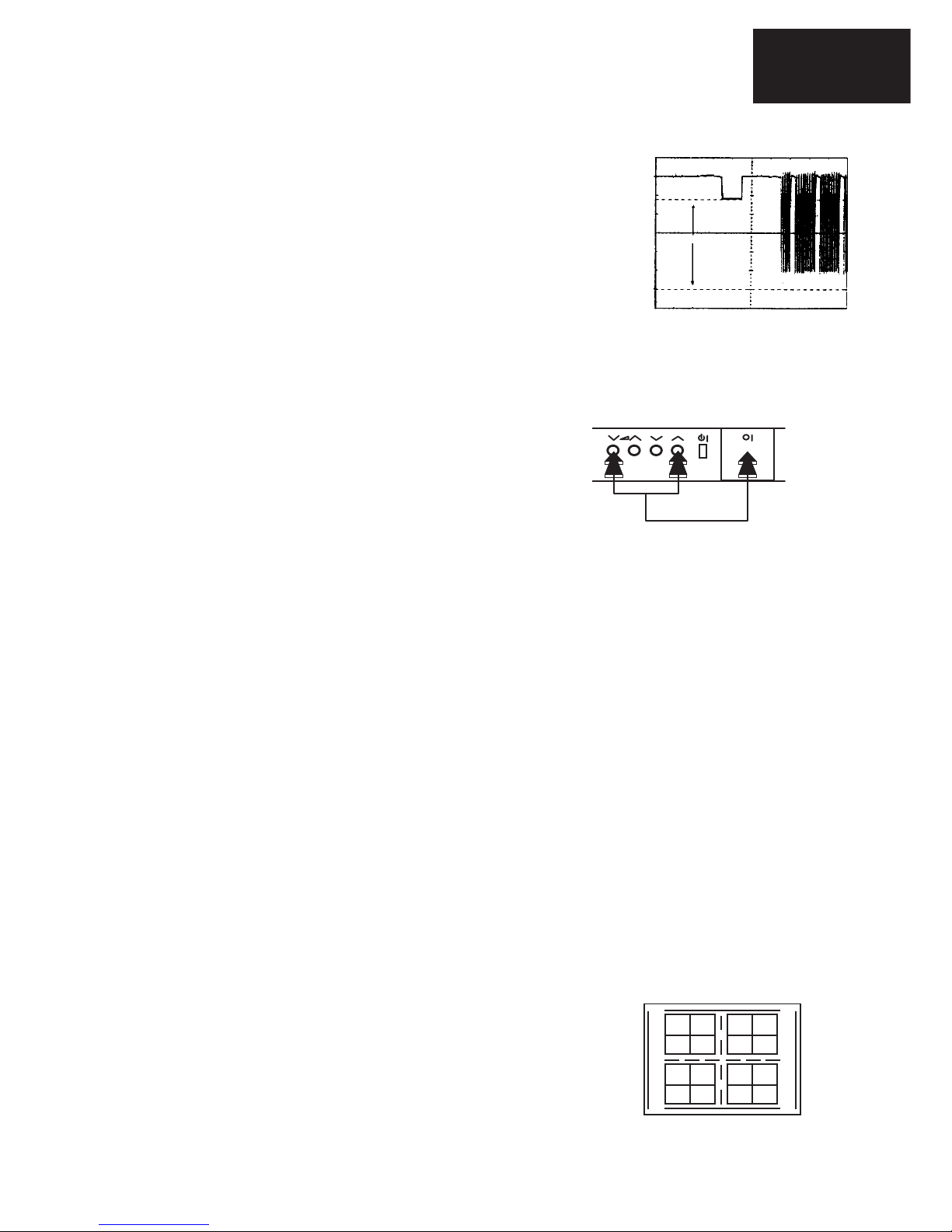

140V on the sensor pulse as in the drawing:
NOTE:
Oscilloscope should be adjusted for vertical TV field trigger and synchronized
with wideo signal.
••
••
•SERVICE MODE FUNCTION
This mode function is provided to assist with the settings of those adjustments that may vary from one
Picture Tube to another, or between models.
In order to use the Service Mode:
1. Connect Test Pattern signal to antenna terminal.
2. Press main switch to «OFF».
3. Press volume-down and channel-up buttons and
main switch to «ON» simultaneously.
4. Service mode is now entered.
The required adjustments can then be made from the Remote Control Unit.
The only buttons required are the following:
Up/Down-channel for movement in adjustment options menu; Up/Down-volume are used to carry out an
adjustment in said menu; ON/OFF is used to memorize a new adjustment.
Adjustment menu is as follows:
To exit service mode, press main switch ot OFF.
Adjustment menu is as follows:
Horizontal:
-Adjust HORIZONTAL SHIFT.
-Adjust E-W WIDTH.
-Adjust PIN PHASE.
-Adjust PIN AMPLITUDE.
-Adjust UPPER CORNER CORRECTION.
-Adjust LOWER CORNER CORRECTION.
All adjustments for Geometries are based on internal pattern (fig.1)
The procedure for making adjustments is as follows:
Vertical:
-Adjust VERTICAL AMPLITUDE.
-Adjust S-CORRECTION.
-Adjust VERTICAL SHIFT.
-Adjust VERTICAL LINEARITY.
Fig.1
CH
1
2
140 V
CH1 gnd
-RED CUT OFF.
-GREEN CUT OFF.
-BLUE CUT OFF.
-ALTER NVM PAGE.
-ALTER NVM POSITION.
-ALTER NVM VALUE.
-TELETEXT MIX MODE CONTRAST.
-TELETEXT CONTRAST.
-OSD CONTRAST.
-DVCO ADJUSTMENT (Only NTSC).
-DVCO ADJUSTMENT (Only PAL).
-AGC ADJUSTMENT.
-AFT ADJUSTMENT.
-ROTATION OFFSET.
-AUTOINSTALLATION ON/OFF.
-SERVICE SOFTWARE AND HEXADECIMAL
COUNTER DISPLAY: «SW ON XXXX SW OFF
XXXX HOURS ON XXXX
-HORIZONTAL SHIFT.
-EAST WEST WIDTH.
-PIN PHASE.
-PIN AMP.
-CORNER AMPLITUD.
-CORNER SYMMETRY.
-VERTICAL LINEARITY.
-VERTICAL AMPLITUDE.
-S CORRECTION.
-VERTICAL SHIFT.
-RED GAIN.
-GREEN GAIN.
-BLUE GAIN.
6
70GF-63E
1− 1−
1− 1−
1− HORIZONTAL SHIFT
a) Internal pattern signal will be displayed.
b) When volume-up button is pressed, picture moves to the left.
c) When volume-down button is pressed, picture moves to the right.
d) Adjust the horizontal location to obtain picture centering (fig. 2).
2− 2−
2− 2−
2− E-W WIDTH
a) Internal pattern signal will be displayed.
b) When volume-up button is pressed, horizontal scanning increases.
c) When volume-down button is pressed, horizontal scanning decreases.
d) Adjust the horizontal amplitude to obtain 9% overscan (fig. 3).
3− 3−
3− 3−
3− PIN PHASE
a) Internal pattern signal will be displayed.
b) When volume-up button is pressed, slide pincushion changes.
c) When volume-down button is pressed, slide pincushion changes.

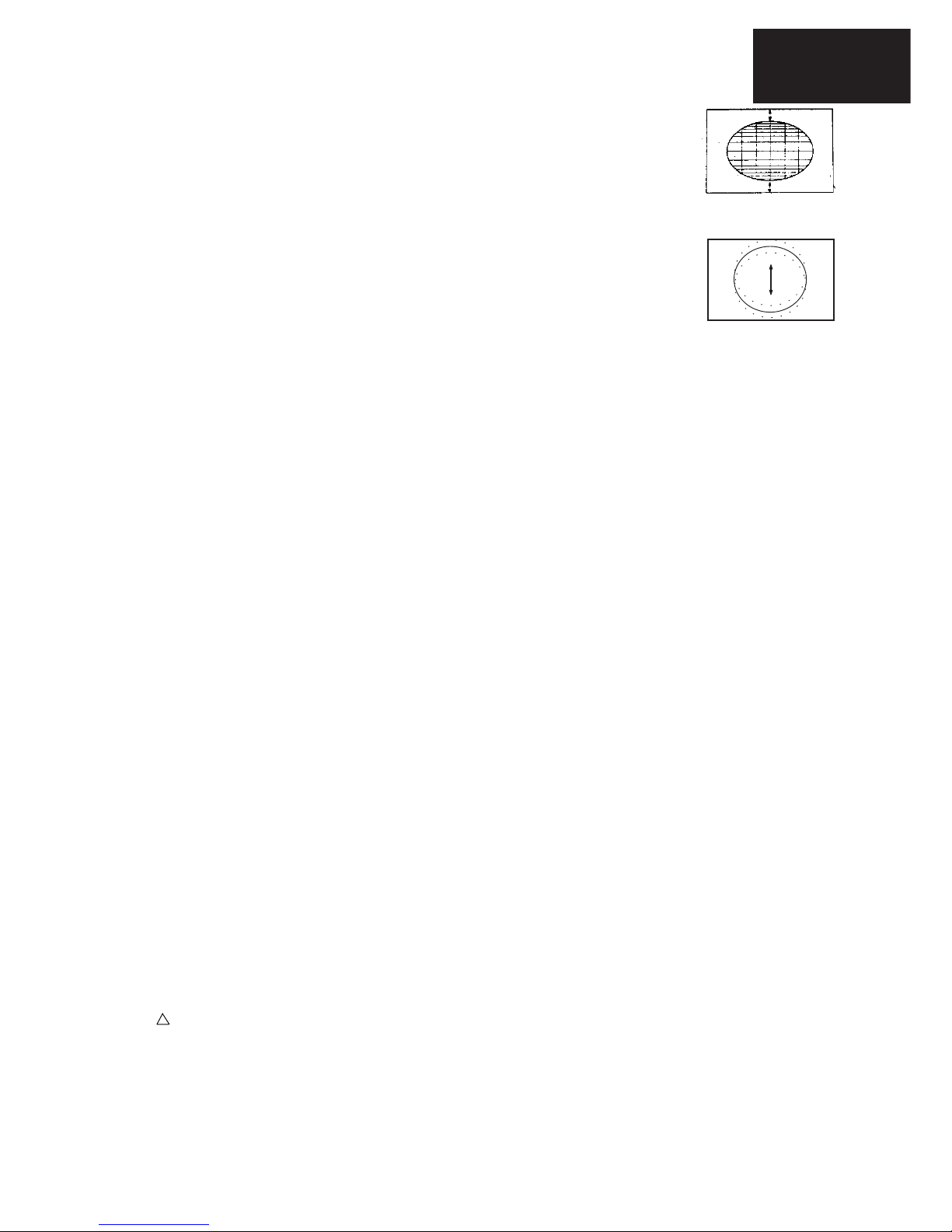

d) Adjust the PIN PHASE to obtain condition as in (fig. 4).
4− 4−
4− 4−
4− PIN AMPLITUDE
a) Internal pattern signal will be displayed.
b) When volume-up button is pressed, slide pincushion changes from
pincushion to barrel shape.
c) When volume-down button is pressed, slide pincushion changes from
pincushion to barrel shape.
d) Adjust the PIN AMPLITUDE to obtain condition as in (fig. 5).
a) Internal pattern signal will be displayed.
b) When volume-up button is pressed, slide pincushion changes from
pincushion to barrel shape.
c) When volume-down button is pressed, slide pincushion changes from
pincushion to barrel shape.
d) Adjust the CORNER AMPLITUD to obtain condition as in (fig. 6).
6− 6−
6− 6−
6− CORNER SYMMETRY
a) Internal pattern signal will be displayed.
b) When volume-up button is pressed, slide pincushion changes from pincushion
to barrel shape.
c) When volume-down button is pressed, slide pincushion changes from
pincushion to barrel shape.
d) Adjust the CORNER SYMMETRY to obtain condition as in (fig. 7).
7− 7−
7− 7−
7− VERTICAL LINEARITY
a) Internal pattern signal will be displayed.
b) When volume-up button is pressed, upper picture scanning decreases and
lower picture scanning increase.
c) When volume-down button is pressed, upper picture scanning increases and
lower picture scanning decrease.
d) Adjust the vertical symmetry to obtain symmetry scanning between upper and
lower picture (fig. 8).
8− 8−
8− 8−
8− VERTICAL AMPLITUDE
a) Internal pattern signal will be displayed.
b) When volume-up button is pressed, vertical size of picture increases.
c) When volume-down button is pressed, vertical size of picture decreases.
d) Adjust the vertical size to obtain overscan (fig. 9).
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 9
Fig. 8
Fig. 7
5− 5−
5− 5−
5− CORNER AMPLITUD
7
70GF-63E
9− 9−
9− 9−
9− S-CORRECTION
a) Internal pattern signal will be displayed.
b) When volume-up button is pressed, upper and lower scanning decreases, and
center scanning increases.
c) When volume-down button is pressed, upper and lower scanning increases,
and center scanning decreases.
d) Adjust the S-CORRECTION to obtain a balance between upper, lower and
center (fig. 10).
10− 10−
10− 10−
10− VERTICAL SHIFT
a) Internal pattern signal will be displayed.
b) When volume-up button is pressed, picture moves up.
c) When volume-down button is pressed, picture moves down.
d) Adjust the horizontal location to obtain picture centering (fig. 11).
COLOUR ADJUSTMENT
The following adjustments are only required when Picture Tube or
IC801 are changed:
1. RED CUT OFF / GREEN CUT OFF / BLUE CUT OFF
2. RED GAIN / GREEN GAIN / BLUE BAIN
ACCESS TO NVM
1.1 Adjust G2.
1.2 Tune a white card.
1.3 Adjust colour to minimum.
1.4 Position colourimeter in the center of screen.
1.5 Adjust brightness and contrast to obtain a luminance of
≈20 NITS.
1.6 Operate in Service Mode and select location RED CUT
OFF / GREEN CUT OFF / BLUE CUT OFF, to obtain colour
coordinates:
X=0.290 ± 0.015 Y=0.300 ± 0.015
To increase press volume-up button and to decrease press
volume down button.
RED CUT OFF alter «X» coordinate.
GREEN CUT OFF alter «Y» coordinate.
BLUE CUT OFF alter «X» and «Y» coordinate.
2.1 Using brightness and contrast buttons, select a
luminance of ≈120 NITS.
2.2 Operate in Service Mode and select location RED GAIN
/ GREEN GAIN / BLUE GAIN, to obtain colour coordinates:
X=0.290 ± 0.015 Y=0.300 ± 0.015
To increase press volume-up button and to decrease press
volume down button.
RED CUT OFF alter «X» coordinate.
GREEN CUT OFF alter «Y» coordinate.
BLUE CUT OFF alter «X» and «Y» coordinate.
2.3 Exit Service Mode and check colour coordinates «X»
and «Y» at 20 and 120 NITS. It may be necessary to repeat
procedure 1 and 2 of COLOUR ADJUSTMENT.
Fig. 10
Fig. 11
Press CH ∧ to move in the following sequence:
ALTER NVM PAG⇒ALTER NVM POS ⇒ALTER VNM
VAL to alter presseting adjustments, press up/down-
volume buttons on ALTER NVM VAL.
!
CAUTION: Do not change NVM VALUE to avoid
risk of serious damages to TV set.
Up/Down volume buttons are used to adjust the
contrast of the following items:
-TELETEXT MIX MODE CONTRAST.
-TELETEXT CONTRAST.
-OSD CONTRAST.
CONTRAST ADJUSTMENT
a) Receive Philips pattern signal.
b) When Stand-by button is pressed (Remote Control
Unit), start
DVCO ADJUSTMENT (PAL)
DVCO ADJUSTMENT (NTSC)
Adjust not required.
AUTO INSTALLATION OFF/ON
When ON is selected, the TV will perform the
autoinstallation sequence as soon as service mode is
removed.
a) Connect Test Pattern signal to antenna terminal.
b) Press main switch to OFF.
c) Press volume-down and channel-up buttons and
main switch to ON simultaneously.
d)»Service Software Vxx.xx» appears o screen.
e)Press main switch to OFF.
PROTECTIONS CANCEL
AGC ADJUSTMENT
a) Tune the TV into CH10 (pattern generator).
b) Adjust the signal strength to 57dB µV
c) Press the stand-by button on the Remote Control
(red button).
The TV will perform automatically the AGC.
AFT ADJUSTMENT PAL BG - I, SECAM L
a) Tune the TV into CH E69 (pattern generator).
b) Press the stand-by button on the Remote Control
(red button).
The TV will perform automatically the AFT.
AFT ADJUSTMENT SECAM L’
a) Tune the TV into CH F04 (pattern generator).
b) Press the stand-by button on the Remote Control
(red button).
The TV will perform automatically the AFT.
a) Put the TV set looking east or west.
b) Tune the TV into a cross hatch pattern signal.
c) Enter into Service Mode.
d) Select Rotation Offset adjustment with up-down
channel buttons.
e) Adjust properly the image rotation with up-down
volume
f) Press main switch to OFF.
ROTATION OFFSET
8
70GF-63E
Page 9

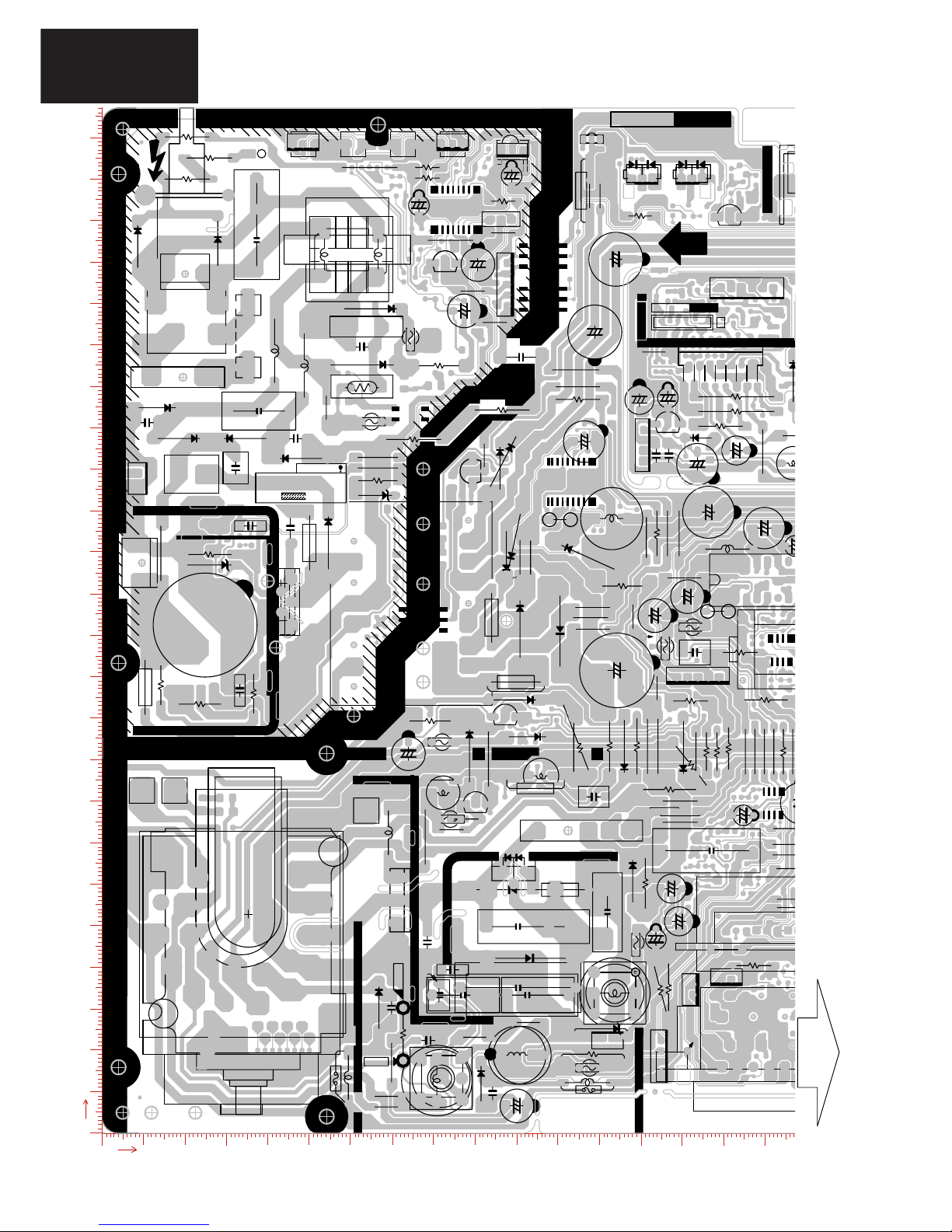

MOTHER UNIT PRINTED WIRING BOARD. Component side.
0
22
23
24
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
10 11 12 13 14 15 16
1
1234 56 789
Y
X
C648
FB603
R604
JF55
D611
(EW)
JF56
JF57
L703
C746
D708
D701
+
C724
D707
C702
(G)
2
1
.
JF54JF53
L705
FB705
JF28
J86
J85
R727
D714
F601
F602
C618
C611A
JL17
R763
D516
J288
J300
1
(MO)
4
(L5)
FB701
R713
R730
(L4)
(ST)(OPC)
(RC)
(SW2)
(SW1)
R628
R608
J320
J100
JL1
R611A
D719
C1807
+
R610
C619
+
J264
+
C620
+
C528
D1809
R606
R617
C607
+
D612
(AV).
R408
JL14.
J284
1
3
(PW)
C504
R553
L604
R518
R603
J316
JF29
C634
J306
D609
JF8
JF9
D608
M1000
R792
J10
R741
C710
R715
C703
D702
C616
+
J101
J133
J134
D610
R616
J174
J175
J176
J177 R533
+
C
J4
CF701 1
J68
THE " " SYMBOL
CAUTION
THE ACTIVE SECTION
IS INDICATED WITH
E
Q711
C
1
(H).
T3.15AH
C615
J173
C610
R613
+
C719
R728
J99
J33
C718
+
R624
J172
R609
R641
D606
R623
D621
L606
J171
Q605
JF1
QKI
DIP
(YC)
(L2)
IC1008
(K).
14
2
115
IC1801
J6
J5
R714
C705
D712
R716
J178
JF10 J211
C613
D613
R612
FB601
D603
C601
D604
D605
1
(CW)
1
2
3
4
S701
S
D
G
20
21
21
20
S705
S704 D1001 D1002
LP701
S703
S702
18
10
9
1
T701
1
2
3
4
5
6
7
8
9
10
11
12
T601
MODULO_DIGITAL
6
12
Q701
L701
B
Q602
E
Q601
B
C
E
(F)
12345
J208 J209
J210
R791
R790
C706
+
R723
J67
IC706
R742
R1036
IC501
20
J69
D711
FB702
C711
C714
L603
R501
L609
J207
L609A
C770
R1821
R1822
R1820
D718
J226
J244
L502
TP601
TP602
K7241BM
F7241BMNF
K7240BM
+
C707
+
C526
123
(A)
+
C509
R643
R503
FB501
C642
C611
C641
+
C723
+
C501
D716
JL2.
R1
C631
C720
+
D720
C713
J327
+
C1823
FB1002
JF48
J326
5
(H)
R536
C638
L612
C637
R614
L611
(AA)
31
C701
F701
FB704
FB703
D722
J321
C721
+
J334
J317
R619
JF51
JF50 L605
+
C632
(STB2)
1
5
POR701
D703
D704 C704
L702
IC701
J17
D731
D734
R721
R778
R703
R771
J344
+
C739
R770
D623
J70
C1812
+
C1811
+
C1824
C1825
D1804
CQ912
E
9
70GF-63E

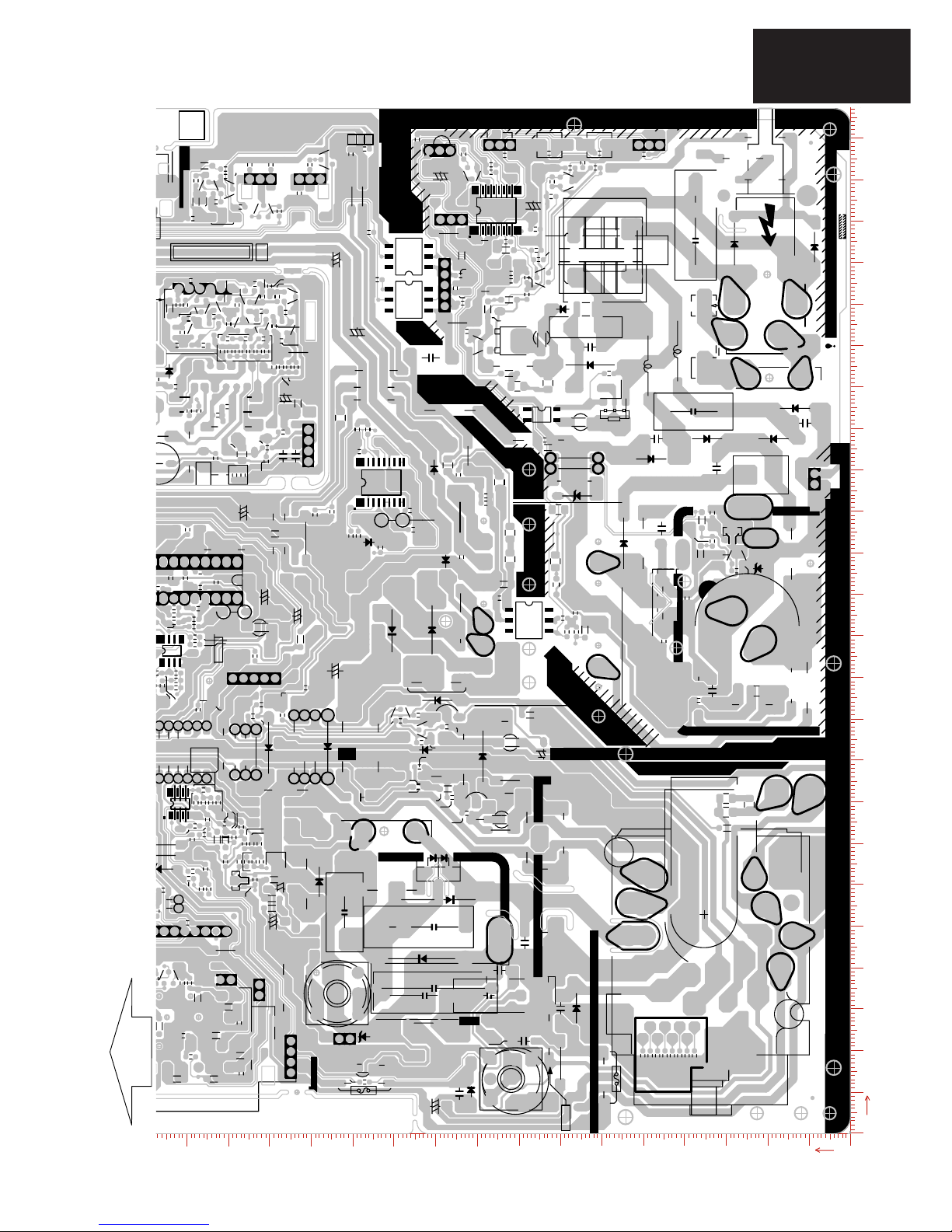

MOTHER UNIT PRINTED WIRING BOARD. Component side.
Page 8
29 30 31 32 3320 21 22 23 24 25 26 27 2817 18 19
22
23
24
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
Y
X
JL14
(K)
91
R815
J228
J234
+
C804
R814 JL27
JL26
JL28
JL12
JL10
(SC)
C305
+
+
C306
C381
C356
R650
.
.
1
(VS)
3
+
C377
(STB1) JL11.
J120
R1019
R1020
X1002
JL17.
J288
J300
C353
J62
+
C1027 JL1.
C1032
+
J24
JL12,,
C644 +
R530
J183
D622
R234
X301
J170
(CC) 1
1
(SS)
3
+
C229
J271
R1055
JL2 J44
L1002
L1001
J309
J201
J200
J199
IC302
10
11
R526
R550
J90
R1008
J91
JF31 J60
L316
L315
J27
R1050
(L3)
R1834
D1809
100Hz
JL12.
R618
J297
J116
J94
GND
GND
GND
JL12.,
JL12..,
FB302
JL15
+
C437
C812 1
+
C818
+
X801
Q502
R230
J303
JL11..
C1031
+
JL6.
L203
R436
J177 R533
J249
J64
J314
+
C511
R534
C524
C821
R231
C820
J221
J222
J241
J242
J32
J305
J31
R1047
J45
J46
L301
J14
J13
J12
J83
C332
+
J301
C205
+
C204
J225
C209
+
R232
R233
C228
J280
R426
R419
J216
15
+
JF19
J158
C514
J137
C365
+
+
C815
J401
J187
J103
J102
R508
J47
C376
KITP7240BMNF
ESPA¥A
F7240BMNF
(YA)(YB)
C1814
(K).
TRC
GND
12
11
10
9
8
7
6
5
J141
J143
J144
J153
J154
J155
J142
C431
C430
J145
J189
+
C210
J160
J161
J162
J151
L803
C343
+
R455
J246
L317
J9
J8
R541
J191
+
C313
+
C314
+
C311
L201
J169
C324
C325
C315
+
C326
+
C329
IC1002
12
61
(SA) (SB)
16
L351
L350
IC203
C215
+
J275
J278
51
SF203
+
C206
CF202 1
J230
J131
+
IC301
1
10
20
52
27 26
1
IC2401
J274
J178
L503
J179
211
R425
R424
1
2
2
1
(AV)
CN3
4
2
6
5
317
TH201
AGC
TU
AS
CL
DA
B+
33V
IF1
IF2
1
612 61 12 61
L501
FB301
J265
J266
+
C218
64
33
32 1
IC305
J129
J128
J127
8
1
IC304
C358
IC801
132
33 64
J232
J231
51
SF201
SF202
15
J198
R306
R307
C220
+
J125
J168
J167
J166
J165
J164
J150
J147
J146
+
C211
J163
JF14
JF6
J136
C322
C323
J157
J48
J49
J50
R501
+
C520
D510
J156
J152
J253
+
C219
J63
J251
J236
R451
J250
+
C415
R1836
J226
J244
J74
J118
J95
J92
J41
J40
R1027
FB303
J252
TP701
TP201
1(FV)
(FV).
1
J202
J203
J223
C362
J39
J117
J61
J72
J75 JL7
J243
J206
R420
J312
J138
J139
JF32
JF33
JF34
JF35
J318
J113
J114
J115
L2401
L2402 J88
J106
J194
J193
J192
(RGB)
J43
J42
J28
J224
C501
JL12,
C822
J322
JL2.
J159
+
C342
J71
J311
J119
J140
R229
R620
X2401
R1832
J212
R519
J190
J185
J180
JL11
C1001
+
+
C825
C426
+
J248
J260
C536
+
J87
R359
C361
+
C363
L352
+
C351
C352
+
C372
JL6
J78
J79
J80
J81
J82
IC1005
13
J93
L318
J130
R315
C341
1
(HD)
3
4
(S)
1
J255
C422
+
R418
R464
+
C433
J331
1
AV
R1003
(RT)
1
J304
R1022
J270
J269
J323
J343
JL2..
50Hz
50Hz
J122
1
(STB3)
3
(STB4)
1
R1058
R1059
J121
R1018
J337
(L2)
JL19
R1064
D623
C368
L353
+
C378
C382
C370
J30
C373
D206
L1801 JL18
J347
J348
J349
JL29
JL29.
JL27.
JL26.
JL28.
J307
J214
L801
+
C802
JL10.
JL7.
J319
D803
JL31.
JL31
10
70GF-63E

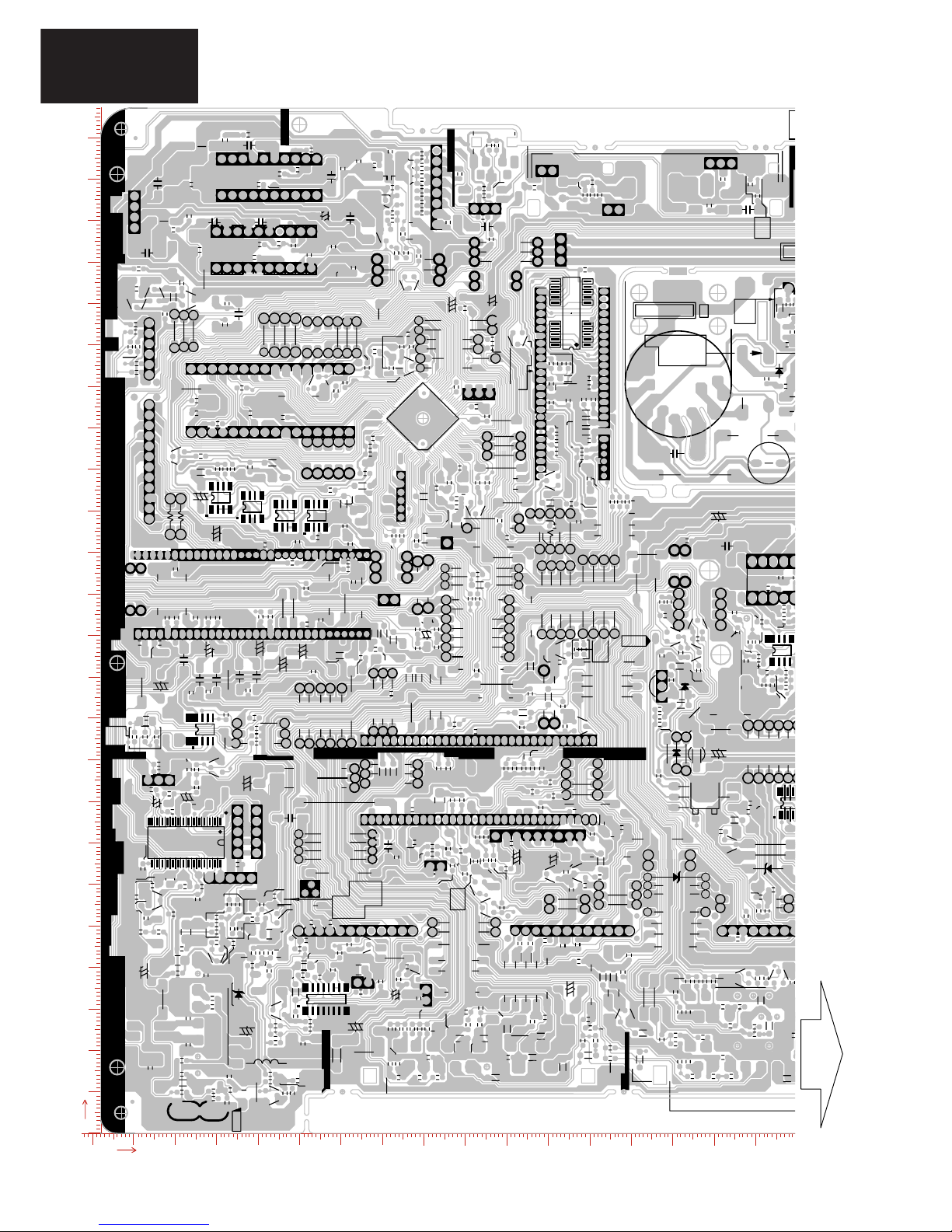

MOTHER UNIT PRINTED WIRING BOARD. Copper side.
Page 11
19 18 1729 28 27 26 25 24 23 22 21 20
33 32 31 30
22
23
24
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
Y
X
D415
K
KD422
(K)
D804
K
R818
C826
R816
R817
Q805
Q804
R815 J228
J234
+
C804
Q803
R811
Q802
R814
R813
R812
R470
C380
J351
J352
J51
JF52
J146
R454
J350
C340
IC503
C383
(SC)
K
D302
D304
K
K
D305
R302 R303
+
C305
+
C306
R301
R304
R468
R458
R461
JF11
R459
R377
J2
C381
C356R351
Q305
R362
R363
R350
Q306
R355
R354
R373
J345
JF20
JF22
JF21
R1061
C441
C440
C439
C4
.
.
(VS)
+
C377
R361
Q303
Q302
(STB1)
J120
KD1009 C1026
R1005
R1032
K
D1003
J335
J294
R1019
R1020
FB1001
X1002
C1022
C203
K
D1810
R1030
R226
R1033
K
D417
D416
K
R547
J288
J300
R648
C516
C360
C353
J302
J62
R1026
+
C1027
Q1001
C1032
+
J24
C644
+
R530
J183
D622
R234
X301
J170
R211
C529
(CC)
C429
(SS)
R2411
R2410
R2412
R255
R256
R257
+
C229
J271
R245
R258
R254
C230
Q210
R1055
R1045
J44
R1049
KD802
J309
J201
J200
J199
FB802
R542
C371
R374
C366
C369 C374
R356
IC302 11
20
K
D303
R320
R319
R808
R554
R526
R550
J218
C606
K
D2403
R1029
R2402
R2406
C1017
J90
R1008
J91
JF31
R1031
C2406
J60
C2404
K
D2401
L316
L315
J27
R1050
R1834
C1809
R
D1809
D615
K
R618
Q608
J297
J116
J94
R204
R1840
FB302
+
C437
JF37
R465
J240
JL14
+
C818
+
C812
X801
J220 C808
C222
L204
C414
C319
R310
R309
C320
R313
R312
BE
Q502
R230
C823
J303
JF30
C1031
+
IC1004
IC1006
IC1007
IC1003
J126
C1822
C1821 R1810 R1811
L203
R436
K
D508
J177
R533
J249
J283
C1029
J64
J314
C511
+
R504
R534
C524
+
D419 K
Q408
C821
R231
R1004
C820
J221
J222
J241
J242
C432
J32
J305
J31
R1021
Q607
R1047
J45
J46
L301
J14
J13
J12
R
R1025
J65
C1014
J83
C332
+
J301
C205
R249
R240
R216
+
C204
J225
JF4
R220
C209
+
R232
R233
C221
R246 C207
C228
R505
R506
K
D507
Q501
R1802
R1835
C1801
R1801
R1804
Q9
J280
R416
R410
R426 R419
J216
IC1001
1
25
26
75
C615
+
JF19
C521
R549
R545
R810
J158
J289
C514
Q503
J137
R548
C365
+
+
C815C617
R411
D420
K
R515
R544
R510
C503
J401
J187
J103
J102
R508
J47
L202
C376
J281
C502
R460
R462
D410
K
R427
(YA) (YB)
C1814
TRC
12
11
109876
5
GND
R235
R236
J141
J143
J144
J153
J154J155
J142
C431
C430
J145
C226
J189
C210
J160
J161
J162
J151
L803
KD617
C343
+
R417
R455
J246
R308
C338
R311
L317
J8
R314 C339
R541
J191
+
C313
+
C314
+
C311
C312
R227
C213
R228
R219
L205
L201
J169C324
C325
C315
+
C326
+
C329
R1024
32
17
16
1
IC1002
(SA)
J342
J341
(SB)
L351
L350
IC203
C215
+
J275
J278
SF203
C208
JF5
R217
+
C206
CF202
C335
C334
J230
J131
C350
C354
C362
+
R352
IC301
11
20
C336
C337
IC2402
14
13
5
52
27
26
1
Q209
R243
R244
C417
J274
R432
C420
R430
R433
R431
C421
IC401
R456
J178
L503
J179
J211
C404
C401
R413
C406
D411
K
IC201
1
28
R425
R424
D409
K
JF2
JF3
R429
R403
C409 R412
C410
R414
C402
IF2
IF1
B+
DA
CL
AS
TU
TH201
R40
C419
C418
R428C416 D405
K
MODULO_DIGITAL
Q404
R450
R434
Q405
R511
R457
R453
FB301
C403
J265
J266
R415
D414
K
Q406
K
D203
J279
+
C218
C2408
64
1
IC305
J129
C331
J128
J127
8
IC304
C358
C309 C310
IC801
1
32
64
J232
J231
SF201
SF202
J198
IC501
11
R306
R307
R237
C227
C220
+
85
4
1
IC202
R2405
J125
J168
J167
J166
J165
J164
J150
J147
+
C211
R322
R321
J163
JF14
JF6
C507
C217
C216
QKITP7240BMNF
IC2401
F
J136
C523
R318
R323
C322
C323
J157
J48
J49
J50
R2408
R501
+
C520
R507
R517
C512 D510
R514
F7241BMNF
J156
J152
J253
R205
+
C219
R247
J63
J251
J236
R451J250
+
C415
R1818
C1803
R1824
R1823
R1817
C1802
R1806
R1836
R1821
R1822
J226
J244
L50
J74
J118
J95
J92
R1041
J41
J40
R1027
C357
R375
FB303
R449
J252
TP701
TP201
(FV)
(FV).
J202
J203
J223
J307
R532
D601
K
J39
J117
J61
J72
J75
J243
R251
R252
R248
R535
R551
C532
C223
R241
R242
C224
C225
R239
J286
R208
R253
J206
R209
R420
C434
C435
C436
J312
C515
R522
R552
C533
Q507
R528
J138
Q505
J139
JF32
JF33
JF34
JF35
J318
J113
J114
J115
R2404
L2401
L2402
J88
J106
J194
J193
J192
C1023
C1024 C1025
Q801
C803
R376
C1002
J43
J42
J28
JF38
JF39
J224
R521
C501
R626
J310
C822
J322
J159
+
C342
K
D1008
D1006
K
C214
C212
Q207
R225
R238
Q208
R1054
R2407
J71
C2402
J311
J119
J140
R229
R620
K
D618
X2401
R1832
J212
R519
C531
J190
J185
J180
R2409
+
C1001
R802
C807
+
C825
R466
C426
+
JF12
C535
J248
C819
KD418
R467
J260
R445
C536
+
J87
R807 C816
C817
C811
R359
Q304
C361
+
C363
L352
R353
C364
C351
+
C352
+
C372
R806
K
D1005
Q1004
R1002
R1001
R1044
J78
J79
J80
J81
J82
IC1005
C1028
R1056 D1010
K
J93
Q1006
R447
C428
R448
L318
C1030
Q606
C636
J130
R644
C643
C2401 C2403
C2407
R2401
C2405
R1051
R1052
D204
R315
C341
(HD)
R317
R316
C359
(S)
41
D301
K
R358
J9
J255
C427
R437 Q403
C422
+
R418
R464
+
C433
Q201
R203
R463
J331
AV
C451
R1003
C1034
C1018
R1042
R1053
(RT)
1
R1057
Q1007 R1043
D2402
K
D2404
K
J304
Q1005
C1019
C1020
R1022
KD1004
J98
J270
J269
J323
J343
J324
J325
FB801
JF44
R1023
J122
(STB3)
(STB4)
R1058
R1059
J339
J338
J121
R1018
J337
C1021
J336
D1011
K
R2403
Q2401
C2409
C438
C443
R1035
R1060
R215
R210
K
D205
R218
D623
C368
C367
L353
+
C378
C382
R372
C370
J30
R360
C379
C373
C375
R357
R378
R259
R469
C813
L1801
J353
C1005
C1033
R1046
J347
J348
J349
K
D407
R423
C444
K
D408
R422 C445
C446
R421
R512
R502
R516
C321
R452
D412
KD413
K
C330
C333
C327
JF7
C328
C317
C318
C316
D801 K
R622
C814
R805
C809
R1028
R803
R804
J219
C412
C413
C411
R405
J354
K
D1007
C405
R404
R406
J214
C801
L801
C802
+
R801
J332
C824
R809
J319
D803
C447
11
70GF-63E
MOTHER UNIT PRINTED WIRING BOARD. Copper side.
Page 10
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
0
10 9 87654321
16 15 14 13 12 11
X
Y
D415
K
422
C1811
C648
03
C539
R559
R555
C537
R557
R524
C518
R556
C538
R558
Q506
R525
R560
R537
R538
JF24
Q603
FB603
JF55
R601
D611
1
(EW)
K
D624JF56 JF57
C743
R745
R746
C746
C527
C442
C745
D708
D701
Q715
+
C724
R767
D707
R769
C702
21
(G)
.
.
JF54
JF53
C742
R747
C741
C735
L705
FB705
JF28
J86
J85
R727
R706
C722
D714
J340
R711
K
R748
16 9
81
IC707
R707
C740
C618
C611A
R763
IC708
1
34
6
Q709
D516
8
0
C645
R647
R648
C646
R646
D503
K
C525
K
D515
D506
K
R527
C517
C516
(MO)
FB701
R713
R730
R627
L601
R625
C529
JF46
JF47
C730
R605
R607 R628
R608
JF15
D619 K
C737
KD728
C528
KD421
J320
J100
R611 R611A
D719
C1807
+
K
D1805
R610
C619
+
D504 K
J264
+
C620
+
R1833
D1809
R606
D614
K
R617
C607
+
D612
R1840
1
(AV).
R401 D401
K
K
D402
R408
R402
JL14.
J284
C504
R553
D726 K
R766R765
L604
C635
R518
R603
J316
R718
R724
JF29
C634
J306
D609 JF8
JF9 D608
822 R1805
R1809
Q903
C1820
C1805
R1814
R1812
Q907
R1807
Q904
M1000
L702
L703
R792
R1017
J10
T702
R741
C710
R715
C703
D702
C534
C508 C505
C616
+
J101
J133
J134
D610
R616
J174
J175
J176
J177
R533
D620
K
C511
+
J4
R739
R736
CF701
THE " " SYMBOL
CAUTION
THE ACTIVE SECTION IS INDICATED WITH
C733 C732 C731
R758
D725
K
R751
R755
Q710
Q712
R754
Q711
R752
1
(H).
R1802
Q908
R1816
R1835 C1808
R1815
Q909
R1813
Q901
R1803
R1804
Q902
Q905
Q906
R1808
+
J173
R749
R613
R407
D420
K
C719
R728
J99
J33
C718
10
JF16
J172
R609
R641
D606
R623
Q604
D621
L606
J171
BE
Q605
JF1
J281
2
D403 K
JF1008
JF1007
JF1006
JF1005
JF1004
JF1003
JF1002
JF1001
(YC)
J209
R717
(K).
J701
Q1003
Q1002
J6
J5
R1012
D713
K
R714
C705
J178
JF10
211
C613
D613
R612
FB601 D603
C610
C601
D604
D605
1
(CW)
C712
1
2
3
4
S701
(AV)
S705
S704
D1001
D1002 LP701
S703
S702
18
10
9
1
T701
T601
1
2
3
45
678
9
10
11
12
R409
C408
IGITAL
R435
Q404
R450
Q701
L701
Q602
Q601
(F)
12
J208
J210
L501
R511
IC502
R733
IC702
18
9
R791
R790
C706
+
6
4
3
1
IC703
IC704
1
3
4
6
IC705
1
34
6
J132
C717
C716
R723
J68
J67
IC706
R742
R1048
R1038
R1040
R1039
R513
C513
R1036
R1037
1
C510
C522
7
F7240BMNF
J69
D711
FB702
C711
C714
C506
L603
R540
E
B
L609
J207
L609A
C770
R1831
1
822
R1820
R743
D718
L502
C530
TP601
TP602
K
D724
32
+
C707
+
C526
C633
R634
R744
R750
(A)
12
3
C515
+
C509
R643
R503
FB501
C715
C639
C642
C611
C641
R520
KD721
+
C723
R509
+
C501
D716
K
D727
R768
R762
C631
+
C720
D720
R720 Q702
C713
D730
K
Q703
R719
R716
D712
J327
R1825
R1819
C1804
C1806
+
C1823
C738
C1015
FB1002
R447
K
D715
R722
C1810
D502
K
JF48
J326
(H)
R536
C638
L612
C637
R614
L611
C701
F701
FB704
FB703
D722
J321
C721
+
J334
R735
J317
R619
JF51
JF50
L605
+
C632
(STB2)
5
POR701
D703 D704
C704
R789
R788
J313
Q714
R740 K
D706 IC701
R732
C728
J17 R708
D731
D734
R721
R778 R703
R771
J344
R737
C725
R738
Q708
R787
+
Q717
R776
R770
R777
D732K
D733
K
R774
R775
D729 K
R712
D710
K
C739
K
D404
R642
D509K
R615
J70
C1812
+
R1837
+
R1841
C1813
R1839
C1824
C1825
D1804
C1815
Q912
C
E
R1830
J346
K
D406
C640
R561
R562
R539
C540
R512
R502
12
70GF-63E

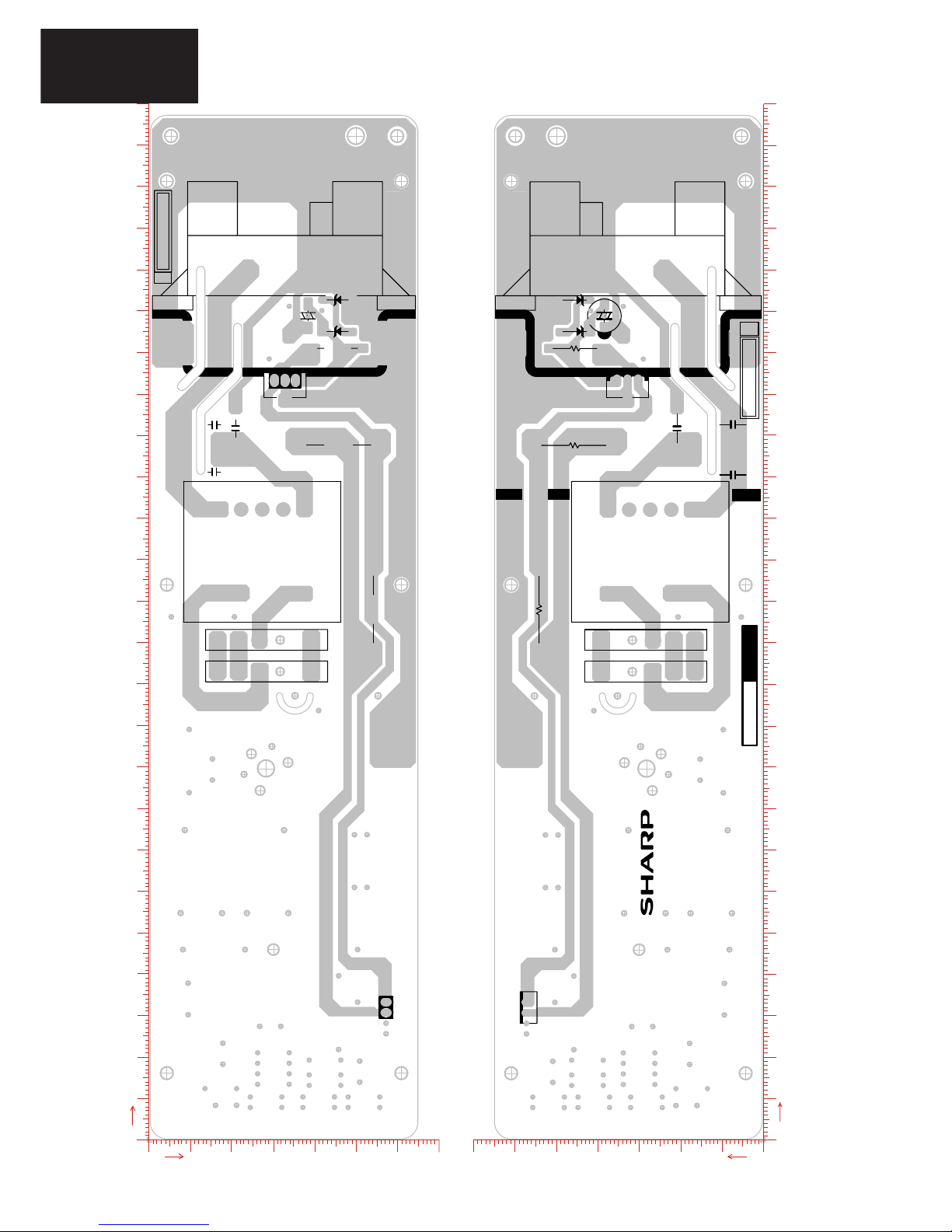

DINAMIC FOCUS UNIT PRINTED WIRING BOARDS.
T1602
C1603
C1602
C1601
(FF)
1
2
3
4
5
5
4
3
2
1
(F)
Q1601
.
FOCO
GND DYN.INPUT
F7314BMN0
1
(EW)
R1602
R1603
D1601
R1601
D1602
C1604
+
01 234 56 7
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
X
Y
Copper side
ESPA¥A
T1602
C1603
C1602
C1601
(FF)
1
2
3
4
55
4
3
2
1
(F)
EB
CQ1601
F7314BMN0 .
FOCO
DYN.INPUT GND
K7314BM
1
(EW) R1602
R1603
D1601
R1601
D1602
C1604 +
7654321
1
0
Y
X
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
2
3
4
5
6
7
8
9
10
component side
13
70GF-63E
C1806
C1805
C1804
C1609
+
K
D1607
1
IC1601
R1843
+
C1825
+
C1812
Q5411
L1603
+
C1608
31
(PU)
R5421
K
D5403
C5417
Q5406
J73
Q5408
B
E
R5420
D5404
D5410
K
C5408
(MO)
+
C5412
L1801
1
(K)
9
(H)
5R1841
E
C
Q912 C1823
+
J327
Q906
Q905
Q902
Q901
Q909
Q908
+
Q903
EBQ5407
R5425
D5405
C5414
R1836
C1814
R1832
R1822
R1821
D1809
J70
(B)
K
D1810
+
C1613
+
R5422
R5428
R5423
4
5
6
7
8910
11
12
CRT
R1834
L1604
.
C5405
Q5410
F7273BMN3
R5426
C1824
+
C1807
(Q)
Q5405
Q1604
Q1603
J78
Q907
Q904
Q5412
C5415
J4
K
D1805
J5
C1610
C1611
C1801
C1802
C1803
C1808
C1809
C1810
C1813
C1815
C1820
C1821
C1822
C5409
C5410
C5411
J71
J74
J75
J76
J77
J79
R1615
R1618 R1619
R1620
R1622
R1624
R1801
R1802
R1803
R1804
R1805
R1806
R1807
R1808
R1809
R1810R1811
R1812
R1813
R1814
R1815
R1816
R1817
R1818
R1819
R1823
R1824
R1825
R1830
R1831
R1833
R1835
R1837
R1839
R1840
R5412
R5413
R5414
R5415
R5416
R5417
R5418
R5419
R5424
R5431
R5432 R5433
R1617
C1830
R1616
R5435R5434

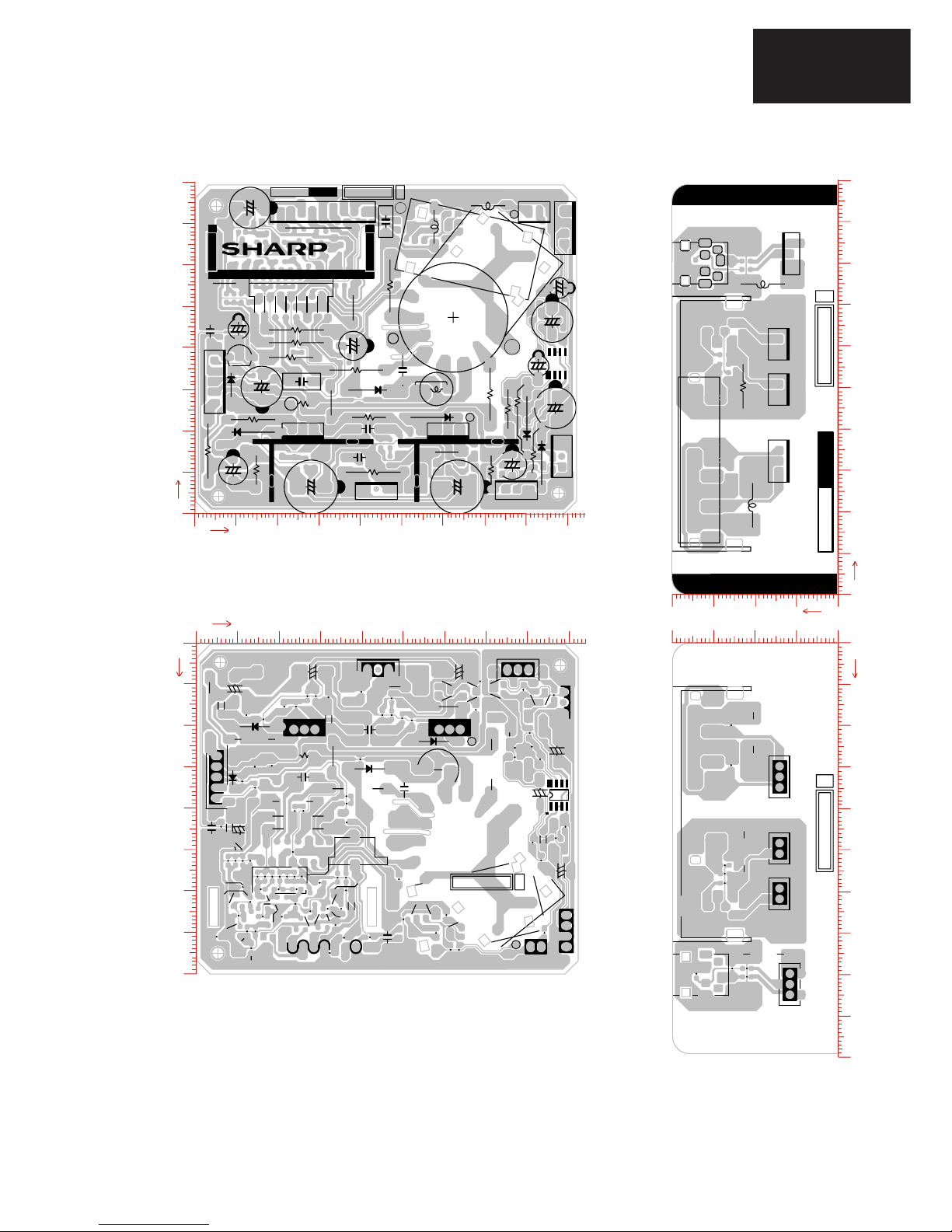

FRONT A/V UNIT PRINTED
WIRING BOARDS.
CRT MODULE UNIT PRINTED WIRING BOARDS.
C1609
+
JL20.
C5413
+
C1825
+
C1812
(L2)
L1603
+
C1608
3
(PU)
1
R5421
C5417
J73
Q5408
BE
R5420
D5404
IC1801
15
12
14
C5408
(MO)
+
C5412
L1801
1
(K)
9
(H)
5R1841
D1804
E
Q912
C
C1823
+
J327
R1820
C1811
+
(L3)
EB
Q5407
R5425
D5405
C5414
R1836
G2
C1814
R1832
R1822
R1821
D1809
J70
(B)
1
J72
+
C1613
C1612
+
(L2)
R5422
R5428
R5423
5
7
6
8
9
12
11
10
4
CRT (RT)
R1834
L1604
C5405
R5426
ESPA¥A
C1824
+
C1807
K7273BM F7273BMN3
R1621
D5411
D5412
1
(Q)
R1623
J78
.
C5415
JL20
R449
(FV) (CC)(SS)
L318
J401
K7318BM
CN4
426
5317
L317
(J)
F7318BMN0 A
R317
R316
JF3
JF2
JF1
C429 C428
C337
R449
(FV)(CC) (SS)
L318
J401
CN4
L317
(J)
1
3
F7318BMN0 A
C336
Y
4321
Y
0
8
7
6
5
4
3
2
1
123456 78 9
Comp. Side
Copper Side
Comp. Side
Copper Side
043 21
10
9
8
7
6
5
4
3
2
1
X
X
0
1
2
3
4
5
6
7
8
9
10
X
1
2
3
4
5
6
7
8
Y
0123456789
X
14
70GF-63E

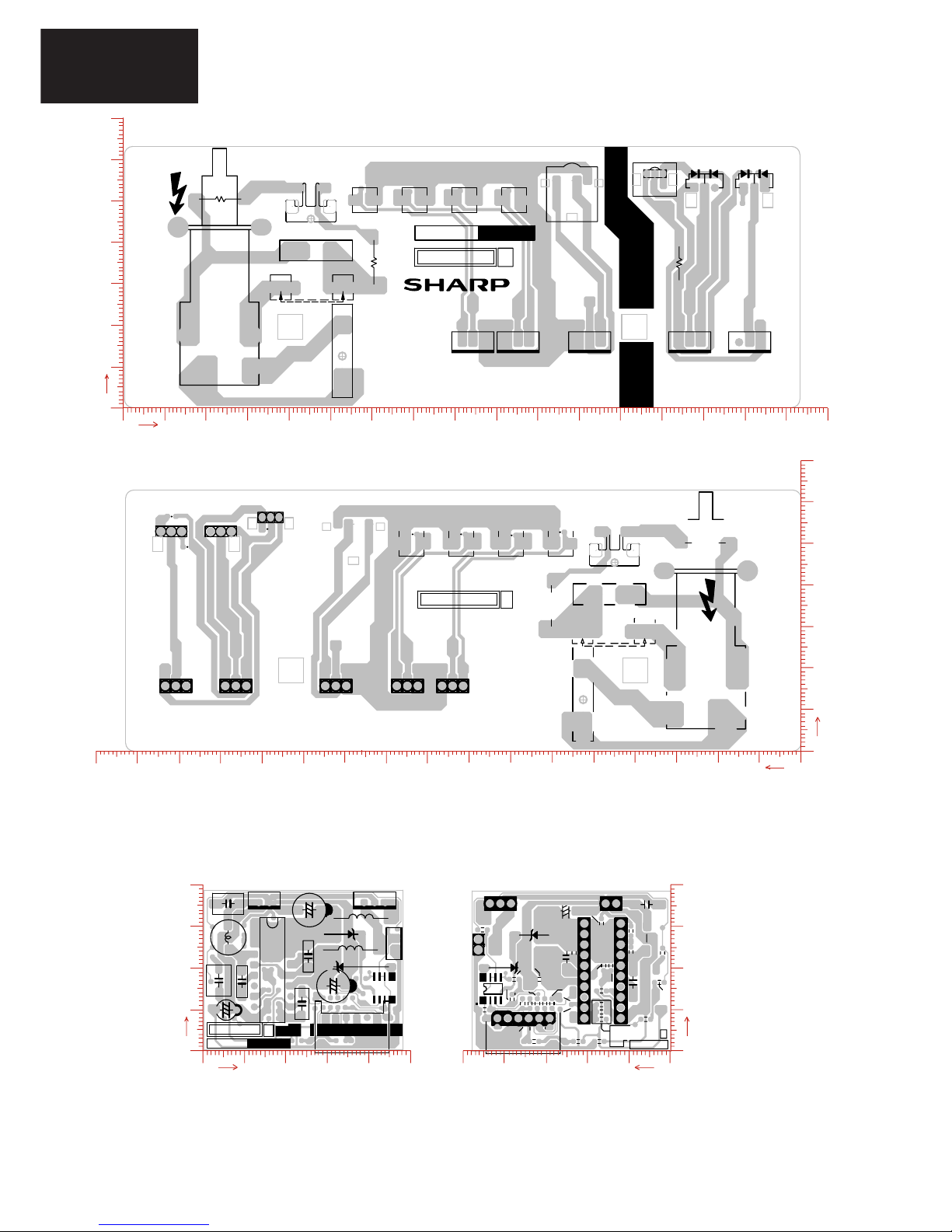

POWER SWITCH UNIT PRINTED WIRING BOARDS.
CENTRAL SPEAKER UNIT PRINTED WIRING BOARDS.
A
3
(VS) 1
+
C1306
C1310
+
C1302
1(SB) 6
IC1302
10
(SF)
1
K7285BM
F7285BMN1
L1303
D1303
D1304
L1302C1315
1
(CS)
C1314
C1316
L1301
+
C1305
C1309
A
31 (VS)
+
C1306
C1313
C1309
R1311
R1307
R1304
R1308
IC1300
C1310
+
C1302
Q1301
R1312
C1312
C1307
1
(SB)
6
IC1302
1
C1311
R1313
(SF)
1
JF1
R1309
10
R1303
L1303
D1303
D1304
L1302 C1315
R1302
R1301
JF2
JF3
(CS)
C1304
C1314
R1315
C1316
L1301
C1317
J1
C1303
R1310
C1308
J2
R1314
+
C1305
F7285BMN1
Comp. Side
1
2
3
4
Y
X
012345
Copper Side
Y
1
2
3
4
0
543 21
X
A
F7317BMN0
R6751
OPC
ST
RC SW2 SW1
F6701
(H)
1
2
3
LP6701
S6702S6703S6704S6705
D6751
D6752
21
(A)
R6702
S6701
R6701
C6702
C6703
C6704C6705
C6715
R6738
R6739
Y
X
1
2
3
4
5
6
7
0
10 9 87654 321
17 16 15 14 13 12 11
A
R6751
OPC ST
RCSW2SW1
F6701
1
2
3
(H)
LP6701 S6702 S6703 S6704 S6705
D6751 D6752
(A)
21
R6702
IC6701
OPC1
K7317BM
F7317BMN0
ESPA¥A
T3.15AH
S6701
R6701
1
2
3
4
5
6
7
Y
X
010 11 12 13 14 15 16 171 23456 78 9
Component Side
Copper Side
15
70GF-63E
F7240NF PWB PARTS ALLOCATION TABLES (component side):
Ref No Xmm Ymm
(A) 19558 182118
(AA) 20066 207010
(AV) 1666 9 12 96
(AV). 1 2 9 3 620
(CC) 220218 231902
(CW) 8636 15773
(EW) 121920 22860
(F) 10 902 72898
(FV) 26 668 36322
(FV). 20 216 22250
(G) 6375 19 310
(H) 1 376 109728
(H). 130657 165760
(HD) 23520 222758
(K) 22250 71628
(K). 1555 9 203606
(L2) 31 960 6858
(MO) 13 87 185 2
(PW) 9652 137 1
(RGB). 236 7 185 2
(RT) 257606 188163
(S) 319786 221996
(SA) 316230 161798
(SB) 316230 188976
(SC) 258318 12852
(SS) 178308 233680
(STB1) 255 73 153 66
(STB2) 97790 20 70
(STB3) 2 3 8 1 3510
(STB ) 236651 178231
(VS) 216916 212852
AV 2 9 28 3327
C1001 271272 1 8082
C1027 233 26 200152
C1031 30378 153 16
C1032 2 3078 1996
C1807 1296 1 176682
C1811 1 3611 161188
C1812 153009 16 90
C181 189331 163728
C1823 136 99 177190
C182 133705 163220
C1825 136753 163220
C20 3172 6 5720
C205 317500 51562
C206 3073 0 81026
C209 317500 39116
C210 313 36 107696
C211 301752 820 2
C215 292608 2 638
Ref No Xmm Ymm
C218 29362 9906
C219 31 52 79502
C220 292608 8 328
C228 310896 61722
C229 291338 51816
C305 255016 12090
C306 2 917 1201 2
C311 27203 11 55
C313 2791 6 116078
C31 283972 113030
C315 289560 1168 0
C322 290322 109982
C323 29 386 109982
C32 29997 109220
C325 30 038 109220
C326 301752 116586
C329 3078 8 11 0 6
C332 29997 1 526
C3 1 23 696 218 0
C3 2 258572 11 55
C3 3 26 668 11 808
C351 273812 220980
C352 267716 220 72
C353 292100 237998
C356 258318 230632
C358 272288 230378
C361 31 198 22885
C362 267716 232156
C363 30505 228600
C365 26695 208280
C368 289306 219 56
C370 300228 197358
C372 27203 213360
C373 300 82 219 56
C376 316738 212090
C377 317500 205 86
C378 305816 21361
C381 258318 235 58
C382 29 6 0 197358
C 15 21 630 3 798
C 22 266 6 2565
C 26 278892 22860
C 30 17170 22250
C 31 181356 22250
C 33 25679 33528
C 37 27 828 2926
C501 159766 1 5796
C50 1 3002 11582
C509 133350 12 71
C511 167132 1 1 78
Ref No Xmm Ymm
C51 17 98 69596
C520 179832 107188
C52 17678 1 1 78
C526 15 686 76581
C528 13360 6736
C536 178816 1 8590
C601 100330 978
C607 7391 91 0
C610 121920 533 0
C611 102616 3327
C611A 100330 35052
C613 1 7066 68072
C615 168656 79502
C616 1 122 129286
C618 81280 3327
C619 139192 5105
C620 137 1 58928
C631 118618 81026
C632 100076 660
C63 78 86 597
C637 69850 30226
C638 9 23 9652
C6 1 87122 3327
C6 2 8 582 39370
C6 178816 91 0
C6 8 787 0 22352
C701 37338 215138
C702 62738 189 8
C703 10922 171196
C70 6736 167386
C705 2 892 122 28
C706 76 5 223520
C707 98806 230632
C710 32258 16027
C711 5 66 1 5796
C713 3581 1 630
C71 3327 106680
C718 118872 1930 0
C719 123952 210566
C720 12 206 111506
C721 116332 16662
C723 1 630 1 9606
C72 90678 209296
C739 87376 198120
C7 5 6375 198628
C7 6 378 6 173990
C770 101092 1869
C802 205232 72390
C80 21869 665 8
C812 2 663 72390
Ref No Xmm Ymm
C815 226822 97790
C818 252 76 69596
C820 28219 759 6
C821 28727 3 290
C822 258572 69088
C825 22758 665 8
CF202 3139 85090
CF701 96266 220218
CN3 23299 2 1985
D1001 130301 229997
D1002 1 2290 229997
D180 1 373 167538
D1809 166725 18125
D510 1869 10 39
D516 120396 23368
D603 98806 5867
D60 103378 216
D605 9931 599
D606 12598 93218
D608 66802 30226
D609 91 0 11938
D610 1 0208 9296
D611 99568 10 39
D612 886 6 90932
D613 128016 60706
D621 102616 9550
D622 188976 9169
D623 166878 6375
D701 13360 17 752
D702 185 2 167386
D703 8006 162560
D70 3 5 167386
D707 62738 185166
D708 6 770 198628
D711 5 610 1 22 0
D712 25908 136906
D71 117856 1 2 9
D716 65887 153670
D718 96012 16027
D719 97536 13995
D720 110 90 12090
D722 100838 121 12
D731 8636 21361
D73 279 0 21 376
D803 188976 61722
F701 35306 19202
FB1 35306 52832
FB1002 117602 227076
FB301 1836 2 37338
FB302 20 978 2057
Ref No Xmm Ymm
FB303 253 92 2 638
FB501 1 8590 125730
FB601 110 90 5867
FB603 10 521 86106
FB701 10 1 107 2
FB702 50038 1 22 0
FB703 93980 12 206
FB70 99822 108712
FB705 110 90 1 7828
IC1002 287020 176530
IC1005 286512 157988
IC1008 118110 239 71
IC1801 1 9199 190398
IC203 29 6 0 33528
IC2 01 21 122 18059
IC2 02 21 376 197612
IC301 28727 230378
IC302 2885 212852
IC30 2 6888 227838
IC305 291338 12979
IC501 159258 133350
IC701 8280 209550
IC706 89 08 159512
IC801 236728 85090
J10 9677 216916
J100 100838 13868
J101 1 0 62 133858
J102 173228 13360
J103 175768 13360
J106 203962 1 018
J113 216916 12852
J11 219202 12852
J115 221 88 12852
J116 233172 1 5796
J117 2 2316 1935 8
J118 235966 1361
J119 235966 13 112
J12 23012 21 630
J120 257810 138938
J121 255778 1 526
J122 255778 1 22 0
J125 26 922 129032
J127 272796 12979
J128 3073 0 12979
J129 31 198 12979
J13 23012 2123
J130 318262 131063
J131 320802 131063
J133 11836 1267 6
J13 11836 121 12
Ref No Xmm Ymm
J136 183388 12 968
J137 183388 122 28
J138 19 056 127000
J139 198628 132588
J1 23012 210058
J1 0 235966 132080
J1 1 236982 12852
J1 2 236982 126238
J1 3 236982 123952
J1 236982 121666
J1 5 268986 127762
J1 6 281 32 126 92
J1 7 283972 126 92
J150 2057 0 107696
J151 220980 105156
J152 232 10 10820
J153 236982 119380
J15 236982 11709
J155 236982 11 808
J156 236220 111760
J157 289306 98806
J158 2 5872 10 902
J159 2 8 12 105156
J160 257556 103886
J161 2598 2 103886
J162 262127 103886
J163 267 62 102870
J16 2697 8 10058
J165 2725 2 10058
J166 27 828 10058
J167 277622 10058
J168 279908 10058
J169 297180 109220
J17 89 08 2029 6
J170 318008 107 2
J171 93218 90170
J172 131572 93218
J173 13 112 93218
J17 15519 919 8
J175 157 80 919 8
J176 159766 919 8
J177 162052 919 8
J178 16662 919 8
J179 17170 919 8
J180 178308 97282
J183 186690 91 0
J185 191262 91 0
J187 2057 0 105156
J189 312166 980
J190 182372 83566
16
70GF-63E
F7240NF PWB PARTS ALLOCATION TABLES (component side):
Ref No Xmm Ymm
J191 211836 8915
J192 211836 8661
J193 211836 8 07
J19 211836 8153
J198 238506 83312
J199 2 8920 83312
J200 257810 88900
J201 257810 8 328
J202 276098 8788
J203 276098 83312
J206 289306 93980
J207 77978 7137
J208 139 6 80010
J209 139 6 77 70
J210 139 6 7 930
J211 166116 73 06
J212 182372 78 86
J21 1935 8 70866
J216 2316 8 80010
J221 271272 72136
J222 271272 7010
J223 270256 79756
J22 280 16 5 86
J225 318516 71628
J226 170180 56388
J228 188976 59690
J230 188976 57658
J231 19075 67056
J232 19075 6 516
J23 203200 57 0
J236 215392 56388
J2 23266 206502
J2 1 271272 68072
J2 2 271272 660 0
J2 3 269367 62738
J2 170180 5 356
J2 6 188976 533 0
J2 8 189230 958
J2 9 203200 55118
J250 205 86 378 6
J251 215392 5 102
J252 220218 37338
J253 2 028 50800
J255 2 028 851
J260 269 9 32258
J26 150622 196
J265 19 310 32765
J266 196850 32765
J269 2 155 1656
J27 253 92 208026
Ref No Xmm Ymm
J270 2 155 39116
J271 287020 3835
J27 26 1 19558
J275 290576 19558
J278 290322 9906
J28 2 1681 186690
J280 209550 3581
J28 1 22 139700
J288 166370 69596
J297 228600 151892
J30 303022 2057 0
J300 166370 67056
J301 312928 32258
J303 25298 1013 6
J30 2537 6 1615
J305 3078 8 19329
J306 69850 17018
J307 27203 85598
J309 257810 8661
J31 305562 19329
J311 230886 13868
J312 196088 139 6
J31 28219 599
J316 1 3256 919 8
J317 9 7 2 195326
J318 21 630 12852
J319 2105 0 792 8
J32 31013 19329
J320 103378 13868
J321 101600 108712
J322 188976 8006
J323 2 028 5 66
J326 133858 107188
J327 133096 18821
J33 11 300 183896
J331 2570 8 216
J33 117856 12 206
J337 261873 152908
J3 3 22250 59182
J3 6 516 23266
J3 7 227838 36576
J3 8 225298 36576
J3 9 222758 36576
J39 2 2316 19583
J 8 07 215138
J 0 2 38 0 191262
J 01 216 58 237998
J 1 2 38 0 188976
J 2 2 38 0 18 0
J 3 260857 192532
Ref No Xmm Ymm
J 266192 191770
J 5 268 78 191770
J 6 27076 191770
J 7 2885 192278
J 8 28092 192278
J 9 283 6 192278
J5 117602 225806
J50 28600 192278
J6 1201 2 225806
J60 217170 175006
J61 230632 16789
J62 23266 17170
J63 280162 1775 6
J6 296 18 176530
J67 665 8 16281
J68 665 8 16027
J69 92202 163322
J70 159359 16 236
J71 21 630 160528
J72 230632 163322
J7 23139 16027
J75 230632 165608
J78 267970 16281
J79 270510 16281
J8 235712 227330
J80 273050 16281
J81 275590 16281
J82 278130 16281
J83 306070 17932
J85 136398 1 526
J86 139192 1 526
J87 18313 1 55 2
J88 203962 1 6558
J9 235712 2250
J90 221996 1 503
J91 217170 1 503
J92 233 26 15519
J93 237236 1 8082
J9 233172 1 122
J95 233 26 15773
J99 11 808 179832
JF1 820 2 85090
JF10 135636 77 70
JF1 289229 96266
JF19 309118 980
JF28 131318 1 3510
JF29 5 102 17 752
JF31 21 630 1 503
JF32 203962 129286
JF33 206502 129286
Ref No Xmm Ymm
JF3 2090 2 129286
JF35 211582 129286
JF 8 128016 12 60
JF50 89916 2311
JF51 102870 26670
JF53 5359 211836
JF5 66802 211836
JF55 113792 93218
JF56 8788 75692
JF57 8 328 73152
JF6 2979 2 8915
JF8 68580 6350
JF9 68580 8890
JL1 1 122 19812
JL1. 237998 197612
JL10 292608 1 5796
JL10. 201676 77216
JL11 20980 15 9 0
JL11. 250291 157911
JL11.. 236880 16027
JL12 213360 30226
JL12, 262382 68072
JL12,, 26822 68072
JL12. 217 2 30226
JL12., 278638 57912
JL12.., 276098 57912
JL1 2 71 2 6 262
JL1 . 150622 3708
JL17 130555 11963
JL17. 19075 11 808
JL18 25557 162585
JL19 319786 11176
JL2 26568 18567
JL2. 168656 60198
JL2.. 23 950 62 8
JL26 2565 0 60706
JL27 2 5110 59 36
JL28 25806 62 8
JL31 179705 59 36
JL31. 17551 8661
JL6 262890 22 790
JL6. 271018 1 1732
JL7 239268 163068
JL7. 201168 6375
L1801 166725 161 2
L201 3139 88900
L203 288036 1676
L2 01 203962 152 00
L2 02 203962 1 9352
L301 288036 1 22 0
Ref No Xmm Ymm
L315 2537 6 210566
L316 2537 6 205 86
L317 265938 2 0792
L318 192786 223012
L350 257556 219 56
L351 257556 215392
L352 303530 2377
L353 31267 219710
L501 163322 116586
L502 150876 1 0716
L503 16916 919 8
L603 123698 33782
L603A 123698 33782
L60 81788 13208
L60 A 80772 12700
L605 100076 18796
L606 105918 86106
L609 82296 820 2
L609A 69088 72390
L611 59 36 13 62
L612 11709 12192
L701 60172 211658
L701A1 59182 212852
L702 8768 18 912
L703 1656 188 68
L705 122936 1 8082
L801 20 978 665 8
L803 218 0 105156
LP701 38506 235991
M1000 98501 2 0 61
MODUL 215392 8768
POR701 62738 179578
Q2 71120 5613
Q502 192532 107696
Q601 71120 5613
Q602 97282 100330
Q605 90170 792 8
Q701 5720 128016
Q701A1 5720 128016
Q711 15138 220726
Q912 136 99 1708 0
R1003 227076 222250
R1008 219 56 1 503
R1018 261873 150368
R1019 257810 133858
R1020 257810 136398
R1022 261873 1 7320
R1027 23266 20 216
R1036 12979 220980
R10 7 275590 191770
Ref No Xmm Ymm
R1050 278130 191770
R1055 273050 191770
R1058 2 8920 13233
R1059 251 60 132029
R1820 1 9199 170332
R1821 153009 177
R1822 153009 173888
R1832 170535 1680 6
R183 173075 1807 6
R1836 18 505 1586 8
R229 22 028 12 60
R230 23266 10 902
R231 289306 2 18
R232 316738 25908
R233 316738 23368
R23 3139 1 78
R306 308610 1 8590
R307 311150 1 8590
R315 2 1808 215138
R359 3106 2 210058
R 08 157226 0386
R 18 2 0792 3 036
R 19 220980 27 32
R 20 230378 36576
R 2 237998 2 638
R 25 237998 27 32
R 26 220980 2 638
R 36 271018 1930
R 51 2029 6 378 6
R 55 188976 505 6
R 6 2570 8 70
R501 176022 100838
R503 15392 11582
R508 183388 1300 8
R518 160020 10 39
R519 182372 81026
R526 1869 136652
R530 18 150 91 0
R533 16 338 919 8
R53 183388 127508
R536 136652 3 798
R5 1 2057 0 110236
R550 189 8 136652
R553 1 2 9 121920
R603 1 8336 919 8
R606 792 8 9931
R608 1 5796 919 8
R609 136906 8280
R610 128778 597
R611 11836 16510
17
70GF-63E
F7240NF PWB PARTS ALLOCATION TABLES:
(copper side)
Ref No Xmm Ymm
C1002 275590 1 3510
C1005 262890 163626
C101 30 800 173 82
C1015 120396 235966
C1017 21 376 151638
C1018 2537 6 192532
C1019 2 2062 150876
C1020 2 2062 152908
C1021 237286 175056
C1022 2 38 0 156718
C1023 21869 81280
C102 22377 82296
C1025 219 56 8 582
C1026 26 160 158953
C1028 291922 160 77
C1029 2918 6 173 82
C1030 289052 3 3
C1033 262890 165531
C103 2 2138 179806
C1801 16027 1996
C1802 1 9606 188 68
C1803 1 0716 188 68
C180 13360 18 658
C1805 1 3510 20 72
C1806 138938 18 658
C1808 150215 175158
C1809 167233 181762
C1810 157073 17 1 2
C1813 1 6 05 1586 8
C1815 1 0817 161950
C1820 13995 20 216
C1821 15011 191516
C1822 162306 189992
C203 31775 6375
C207 303530 59 36
C208 30 5 6 56388
C212 29997 597
C213 29997 50292
C21 30251 38100
C216 306832 27686
C217 306832 21336
C221 315 68 59690
C222 30759 59 36
C223 300736 8382
C22 297 3 7366
C225 296926 13716
C226 31 52 9550
C227 3139 88900
C230 289052 55118
C2 01 217932 165862
Ref No Xmm Ymm
C2 02 217932 163830
C2 03 215138 185 20
C2 0 219202 176022
C2 05 210058 18186
C2 06 215138 176530
C2 07 217170 185 20
C2 08 21107 208026
C2 09 213106 116586
C309 26822 137668
C310 26822 135890
C312 27 828 123698
C316 278130 122682
C317 287020 12 60
C318 289306 12 60
C319 250 230632
C320 250 223520
C321 288290 1 1732
C327 299720 12 206
C328 30505 12 206
C330 309626 12 206
C331 309880 135890
C333 311912 12 206
C33 313690 118110
C335 318516 118110
C336 232 10 237998
C337 23 188 237998
C338 250 23 188
C339 250 227076
C3 0 235712 220726
C350 28981 228600
C35 28 73 2311 0
C357 26568 23 188
C359 27711 236855
C360 2979 2 239268
C36 306070 228600
C366 26695 20853
C367 290830 21107
C369 289560 21 122
C371 277622 211582
C37 281 32 213868
C375 306578 220980
C379 30 038 212852
C380 281686 137 1
C383 26695 1328 2
C 01 176022 25908
C 02 177800 30 80
C 03 18 150 36576
C 0 189230 3 036
C 05 180086 36576
C 06 186182 29210
Ref No Xmm Ymm
C 08 15900 185 2
C 09 180086 13716
C 10 177800 18288
C 11 189230 21590
C 12 18821 17272
C 13 192532 22606
C 1 186182 17272
C 16 250952 13 62
C 17 25806 1676
C 18 2 8920 18288
C 19 256286 1676
C 20 256286 251 6
C 21 2 917 251 6
C 27 270256 3 3
C 28 171196 228600
C 29 177800 229870
C 32 265176 3 036
C 3 220726 6 82
C 35 22 282 5720
C 36 226822 5720
C 38 2603 9 36576
C 39 27838 6 82
C 0 27711 50800
C 1 2725 2 50800
C 2 159766 50800
C 3 277368 2692
C 239776 29210
C 5 236220 30226
C 6 220726 279 0
C 7 2 7396 62 8
C 51 223266 227838
C502 163830 133858
C503 163068 1267 6
C505 157226 126 92
C506 156718 131572
C507 166878 131318
C508 1582 2 123952
C510 152908 1328 2
C512 1930 0 102108
C513 157988 117856
C515 167132 5359
C516 157988 7 168
C517 1586 8 70866
C518 1 7320 65531
C521 172212 113792
C522 156718 135382
C523 19075 128016
C525 155752 7203
C527 150876 7 676
C529 165608 5867
Ref No Xmm Ymm
C530 155956 8280
C531 171196 79502
C532 169 18 11836
C533 172212 5232
C53 1582 2 12217
C535 17 193 6786
C537 1 2 9 69850
C538 1 376 65531
C539 152 00 79756
C5 0 162560 107 2
C606 19329 86106
C617 22631 97790
C633 97282 980
C635 1 018 10058
C636 183896 119126
C639 96012 81026
C6 0 92 56 77216
C6 3 217932 1676 0
C6 5 155 8 6375
C6 6 15 686 58928
C712 958 118618
C715 36576 10 39
C716 6629 125 76
C717 68326 12090
C722 11328 1 122
C725 6 516 23393
C728 81788 205 86
C730 978 235966
C731 60 52 236220
C732 726 236220
C733 83312 235712
C735 118618 1 018
C737 73660 167132
C738 3327 1 9606
C7 0 118872 169672
C7 1 120396 1 018
C7 2 12 968 1 9860
C7 3 106172 15011
C801 21361 77 70
C803 2217 2 78 86
C807 23012 6375
C808 233172 65786
C809 228092 8788
C811 252730 77978
C813 2 3078 8026
C81 2 0792 8026
C816 237 90 9677
C817 252222 7010
C819 279908 50
C823 22 282 105918
Ref No Xmm Ymm
R611A 117602 157 8
R612 8 07 75692
R613 131063 60198
R61 726 23876
R616 151130 92710
R617 820 2 9 23
R618 205232 113538
R619 125 76 131826
R620 22 282 1 272
R623 122 28 93218
R628 1 1986 10 1 0
R6 1 129032 93218
R6 3 135890 1173 8
R703 25908 23 950
R713 1 22 107950
R71 36576 105918
R715 21590 158750
R716 25908 139 6
R721 2057 229870
R723 665 8 157226
R727 133858 1 526
R728 11 808 17678
R730 23622 103378
R7 1 7518 167132
R7 2 96520 17 2
R763 6502 171 50
R770 7 22 191770
R771 81280 18 912
R778 2057 2 0030
R790 78 86 23012
R791 78 86 23266
R792 9677 22 536
R81 229768 59 36
R815 203200 59690
REF10 53695 - 166
REF 238252 166878
S701 20 97 2 7015
S702 851 238201
S703 60502 238201
S70 72517 238201
S705 8 505 238201
SF201 29 89 726
SF202 290322 726
SF203 296672 61 68
T601 33655 51003
T701 7 599 127635
TH201 30 95 5 86
TRC 188569 180 92
X1002 2 5999 15 9 0
X2 01 217678 15392
(component side)
18
70GF-63E
F7240NF PWB PARTS ALLOCATION TABLES (copper side):
Ref No Xmm Ymm
C82 207010 7 676
C826 2156 6 62992
D1003 236 7 132080
D100 2692 0 151638
D1005 30378 159258
D1006 22 282 112522
D1007 253 92 109728
D1008 251206 109728
D1009 26 795 156006
D1010 286512 1615
D1011 2 9986 153 66
D1805 133197 175920
D1810 16 08 198882
D203 308102 12192
D20 31 960 5613
D205 3172 6 98806
D2 01 215138 18186
D2 02 210820 173 82
D2 03 210820 168910
D2 0 210820 171196
D301 310388 201 22
D302 261873 120396
D303 270256 115062
D30 259588 120396
D305 257302 118872
D 01 1 9860 30 80
D 02 157226 32765
D 03 152908 23622
D 0 1 7066 18796
D 05 216 08 16002
D 06 2217 2 23368
D 07 2 1300 22860
D 08 235 58 22860
D 09 229870 251 6
D 10 22377 18288
D 11 23266 13 62
D 12 206756 37592
D 13 20 216 37592
D 1 19710 2 130
D 15 16662 25908
D 16 197866 17780
D 17 210312 18796
D 18 278892 0132
D 19 28092 3 036
D 20 162306 13208
D 21 153 16 13208
D 22 168656 3200
D502 139 6 566 2
D503 138938 6121
D50 139 6 5 356
Ref No Xmm Ymm
D506 150622 70866
D507 187960 10312
D508 18821 112522
D509 132588 119126
D515 15265 70866
D601 175006 75 38
D61 77216 100838
D615 21996 105156
D617 226060 1013 6
D618 219 56 151892
D619 103632 83566
D620 97028 83058
D62 29718 73660
D706 83058 212852
D710 93726 211582
D713 36068 139700
D715 6 008 121 12
D721 13868 1 526
D72 155702 233172
D725 15773 22 536
D726 83566 13233
D727 70866 131826
D728 72898 16535
D729 82296 18313
D730 3581 1 7828
D732 82296 20091
D733 87376 198628
D801 2598 2 87122
D802 257302 87122
D80 20726 65531
FB1001 2 2062 1 6558
FB801 237 90 65531
FB802 2 6126 8026
IC1001 250190 172212
IC1003 2758 1 88
IC100 298958 153162
IC1006 291338 150876
IC1007 283 6 1 88
IC201 3073 0 7010
IC202 302768 97282
IC 01 273558 32258
IC502 163576 116332
IC503 1615 79502
IC702 853 22250
IC703 106 26 20091
IC70 106 26 211328
IC705 77 70 123698
IC707 113030 156972
IC708 7 22 173228
J126 267716 1 1986
Ref No Xmm Ymm
J132 693 2 12 206
J2 25806 236 7
J218 23 950 7137
J219 236982 7137
J220 23 950 65786
J2 0 2 09 68580
J279 308356 9906
J281 16027 133858
J283 293878 179578
J286 290830 100076
J289 296926 55118
J29 236982 128778
J302 23 7 6 172720
J310 23 696 156718
J313 10 39 239522
J32 2 790 69088
J325 2 790 67310
J332 209296 72136
J335 238760 128778
J336 2 6888 155 8
J338 257175 1 39 1
J339 255270 1 39 1
J3 0 93 72 200152
J3 1 319278 185 20
J3 2 319278 183388
J3 5 209296 229108
J3 6 1 0563 165252
J350 233680 215392
J351 319532 1930 0
J352 31902 189 8
J353 27838 131318
J35 316992 9931
J51 320802 189 8
J65 299720 1709 2
J701 93726 138938
J98 268986 1 630
JF1001 37592 18796
JF1002 39370 18796
JF1003 11 8 18796
JF100 2926 18796
JF1005 70 18796
JF1006 6 82 18796
JF1007 8260 18796
JF1008 50038 18796
JF11 285750 25908
JF12 28092 2819
JF15 10 1 0 83566
JF16 103886 88392
JF2 300990 32512
JF20 21107 226060
Ref No Xmm Ymm
JF21 207518 226060
JF22 209296 226060
JF2 108 58 99 66
JF3 300990 30 80
JF30 212598 1 7320
JF37 275082 37592
JF38 216 08 5212
JF39 212852 5 66
JF 308356 50
JF 237 90 65531
JF 6 1 7066 223266
JF 7 1328 2 226568
JF5 29 89 6 770
JF52 319532 19 818
JF7 302006 12 206
L202 309372 1656
L20 311150 6121
L205 3073 0 851
L601 29972 77 70
Q1001 227330 191516
Q1002 126238 23 696
Q1003 1 1 78 222250
Q100 309118 163068
Q1005 237 90 150622
Q1006 253 92 20 978
Q1007 25 203 18 785
Q201 252730 3708
Q207 29997 2926
Q208 29997 88138
Q209 286766 91
Q210 286766 51816
Q2 01 216 08 116586
Q302 31 960 201930
Q303 319278 200 06
Q30 306832 200660
Q305 257810 22 790
Q306 259080 216 08
Q 03 26 668 5 66
Q 0 16 338 37592
Q 05 17297 37338
Q 06 201 22 2819
Q 08 28 988 29718
Q501 176022 69596
Q503 182118 80518
Q505 189915 11963
Q506 1 7828 60960
Q507 18 912 11582
Q603 108 58 100838
Q60 102616 97282
Q606 183896 12217
Ref No Xmm Ymm
Q607 275336 1808 8
Q608 2189 8 157226
Q702 27 32 13868
Q703 28 8 1 780
Q708 68580 229362
Q709 7 168 2062 8
Q710 15 686 227838
Q712 150368 22758
Q71 91186 23139
Q715 81280 191008
Q717 90 2 189992
Q801 2123 980
Q802 23 2 5 356
Q803 236 7 59182
Q80 2189 8 62 8
Q805 2123 62738
Q901 156 6 199390
Q902 15773 19329
Q903 153 16 193802
Q90 150876 199898
Q905 1 6558 19 818
Q906 1 1986 19 818
Q907 1 780 201676
Q908 135128 201676
Q909 135890 19 310
R1001 2979 2 160020
R1002 299720 160020
R100 257810 105918
R1005 2725 2 15 9 0
R1012 11709 237236
R1017 116078 217170
R1021 312 20 197358
R1023 25171 1 27 8
R102 283972 172 66
R1025 30 800 176530
R1026 2 0030 198755
R1028 221 88 8788
R1029 210058 166878
R1030 211328 17678
R1031 2090 2 17678
R1032 236982 13 620
R1033 236982 156718
R1035 233 26 191262
R1037 137668 222250
R1038 139700 233 26
R1039 1 780 233 26
R10 0 130301 233 26
R10 1 2 1300 16027
R10 2 25298 189 8
R10 3 261823 188391
Ref No Xmm Ymm
R10 29616 160020
R10 5 268986 1808 8
R10 6 262255 167 36
R10 8 11 0 6 2057 0
R10 9 263652 18 0
R1051 287020 3 3
R1052 29108 3 3
R1053 255270 189 8
R105 2316 8 1 757
R1056 30378 1631
R1057 257810 18 353
R1060 233 26 189230
R1061 218 0 1 630
R1801 162052 1996
R1802 159512 1963 2
R1803 153 16 196850
R180 161036 1930 0
R1805 155956 189992
R1806 15138 188 68
R1807 1 7828 1996
R1808 1 1986 198120
R1809 1 9860 195072
R1810 1 5796 191516
R1811 1 1 78 191516
R1812 1 1732 201676
R1813 1361 197866
R181 138176 201676
R1815 138938 19 56
R1816 137160 191008
R1817 1 7828 188 68
R1818 1 2 9 188 68
R1819 135382 18 658
R1823 1 6050 188 68
R182 1 272 188 68
R1825 137160 18 658
R1830 136753 169062
R1831 152501 173126
R1833 162661 17998
R1835 159359 17 1 2
R1837 153009 162712
R1839 1 8 37 1586 8
R18 0 15900 205 86
R18 1 1 6659 163728
R203 256032 3708
R20 306578 87630
R205 315722 8280
R208 290322 95758
R209 290322 97536
R210 3172 6 9550
R211 297688 100838
19
70GF-63E
F7240NF PWB PARTS ALLOCATION TABLES (copper side):
Ref No Xmm Ymm
R215 319786 9550
R216 316992 51816
R217 311 0 81788
R218 315976 157 8
R219 309372 38608
R220 310388 52832
R225 295910 5720
R226 29 89 55118
R227 29997 52070
R228 29997 851
R235 308356 17526
R236 308356 1 22
R237 30 800 83312
R238 30 800 87630
R239 237236 111506
R2 0 3139 851
R2 01 219202 185 20
R2 02 211836 16 592
R2 03 217170 113538
R2 0 211328 116586
R2 05 210058 179832
R2 06 211836 16281
R2 07 229870 1 3510
R2 08 219202 18059
R2 09 210058 15773
R2 1 300736 10160
R2 10 20091 1521 6
R2 11 202692 1521 6
R2 12 20 70 1521 6
R2 2 296672 10 1
R2 3 287020 12 6
R2 287020 1 22
R2 5 291338 0386
R2 6 319278 56896
R2 7 3106 2 77 70
R2 8 283 6 9652
R2 9 318262 851
R251 280 16 12700
R252 281686 9652
R253 290322 93980
R25 29 386 9276
R255 291338 51562
R256 29616 9276
R257 28600 57150
R258 28727 8006
R259 3139 87122
R301 2 6888 11709
R302 251 60 1168 0
R303 251 60 121 12
R30 2 6888 121 12
Ref No Xmm Ymm
R308 250 235966
R309 2 1300 2311 0
R310 250 232 10
R311 250 22885
R312 2 09 219 56
R313 250 2217 2
R31 250 225298
R316 235 58 225806
R317 235 58 22758
R318 276606 111252
R319 261619 116586
R320 265176 11 55
R321 302006 106 26
R322 306070 106172
R323 29235 106680
R350 255016 216662
R351 257556 227838
R352 280 16 232156
R353 29235 2 0538
R35 25 25 212090
R355 2565 0 212090
R356 28 988 21 376
R357 310388 217678
R358 318770 208280
R360 308356 20 72
R361 319278 203 5
R362 257556 2217 2
R363 257556 21996
R372 2979 2 19 818
R373 251206 211328
R37 271780 21361
R375 269 9 232 10
R376 280 16 1 2 9
R377 261873 233172
R378 297 3 199898
R 01 1 7320 26670
R 02 159258 36322
R 03 173736 30 80
R 0 182118 36576
R 05 18821 29210
R 06 186182 36576
R 07 1 6812 1 78
R 09 160782 23622
R 10 20980 25 00
R 11 20 978 1803
R 12 175768 13716
R 13 182626 2311
R 1 185166 13716
R 15 189230 23622
R 16 210312 27 32
Ref No Xmm Ymm
R 17 211582 22352
R 21 22377 2692
R 22 236 7 26162
R 23 239268 26162
R 27 229616 18288
R 28 2 663 13 62
R 29 256032 13 62
R 30 25 508 251 6
R 31 250952 251 6
R 32 25806 251 6
R 33 252730 251 6
R 3 169 18 37338
R 35 161036 36322
R 37 267970 5 66
R 5 271907 39370
R 7 169 18 225806
R 8 181102 223520
R 9 26568 39370
R 50 167386 37338
R 52 201930 38862
R 53 170180 23876
R 5 212598 1 02
R 56 200 06 2926
R 57 170180 2565
R 58 285750 218
R 59 2791 6 21590
R 60 20 978 2057
R 61 285750 23876
R 62 20853 22352
R 63 25 000 0132
R 65 2791 6 38100
R 66 277368 251 6
R 67 278892 0386
R 68 28727 39116
R 69 251206 32512
R 70 2565 0 665 8
R502 165862 107950
R50 1836 2 111506
R505 1902 6 109220
R506 187706 10566
R507 1930 0 98552
R509 159766 1 55 2
R510 163068 12 968
R511 163068 123190
R512 167132 110998
R513 157988 11963
R51 191770 12 71
R515 175006 125 76
R516 16789 107950
R517 1930 0 100330
Ref No Xmm Ymm
R520 15 9 0 75692
R521 178308 726
R522 16916 5359
R52 150622 65531
R525 1 3510 6121
R527 1 8590 7137
R528 187960 11582
R532 17170 77 70
R535 17 2 120650
R537 155956 79756
R538 15 178 79756
R539 1 3510 115062
R5 0 157226 102108
R5 2 2 6380 8788
R5 168 02 123190
R5 5 16916 113030
R5 7 192532 115062
R5 8 192532 128016
R5 9 16916 11 808
R551 171196 11836
R552 168656 56896
R55 186 36 1 27 8
R555 1 6050 69850
R556 1 55 2 65531
R557 1 272 69850
R558 1 1986 65531
R559 1 6812 7391
R560 15773 79756
R561 162560 110998
R562 162560 109220
R601 10 1 0 100838
R605 136906 100838
R607 1 1986 103378
R615 11709 12 6
R622 2 09 8788
R625 29972 80772
R626 2711 5 178866
R627 2 38 792 8
R63 103378 9 23
R6 2 131318 107 2
R6 217932 169 18
R6 6 156 6 58928
R6 7 158 96 632 6
R6 8 159512 61 68
R706 105 10 1 55 2
R707 116332 169672
R708 77978 2062 8
R711 95250 203708
R712 93980 206756
R717 39370 129032
Ref No Xmm Ymm
R718 22606 106680
R719 3327 1 27 8
R720 27 32 135636
R722 660 0 12090
R72 8 582 156972
R732 81788 20726
R733 759 6 217932
R735 72136 225806
R736 7518 210566
R737 61 68 23266
R738 6756 23266
R739 75692 212852
R7 0 83058 21 88
R7 3 122936 172 66
R7 97028 161036
R7 5 8788 153670
R7 6 8788 151892
R7 7 129032 1 9098
R7 8 11836 16 338
R7 9 8 582 129032
R750 9 88 158750
R751 150622 232 10
R752 158 96 220 72
R75 152908 22 536
R755 150622 230632
R758 15773 229616
R762 71120 137922
R765 820 2 138 30
R766 820 2 1 780
R767 93218 235966
R768 70358 150368
R769 58166 18313
R77 72898 1808 8
R775 8026 180086
R776 92 56 19329
R777 77978 20218
R787 71882 229362
R788 8661 2316 8
R789 8661 233 26
R801 20 70 71882
R802 22885 69850
R803 22377 8788
R80 225806 8788
R805 23012 8788
R806 2 10 6 68072
R807 2 2570 98552
R808 216 08 102870
R809 20218 73660
R810 215900 980
R811 2311 0 5 356
Ref No Xmm Ymm
R812 2 3078 6 516
R813 2 0030 62 8
R816 21107 59690
R817 21 376 5867
R818 207518 61722
T702 56896 173228
20
70GF-63E
F7314NO PWB PARTS
ALLOCATION TABLES:
Component side:
Ref No Xmm Ymm
(EW) 31750 56896
(F) 120396 38862
(FF) 112776 38862
C1601 163830 12192
C1602 168910 12192
C1603 171 50 2057
C160 198628 38100
D1601 19 818 5212
D1602 202 38 5212
FOCO 213995 32512
Q1601 183007 32512
R1601 19075 5212
R1602 127762 538 8
R1603 167386 5 66
T1602 1 1706 27025
Copper side:
No parts.
Ref No Xmm Ymm
(A) 6228 378 6
(H) 52578 12 6
D6751 1 000 53009
D6752 151993 53009
F6701 5212 28956
IC6701 108000 58978
IC6708 127990 57988
LP6701 5008 53009
OPC 136398 157 8
R6701 2311 50292
R6702 60198 35052
R6751 133858 3 798
RC 112268 157 8
S6701 23012 6 516
S6702 57988 50012
S6703 70002 50012
S670 81991 50012
S6705 9 005 50012
ST 150876 157 8
SW1 8 07 157 8
SW2 9 996 157 8
F7317NOA PWB PARTS
ALLOCATION TABLES:
Ref No Xmm Ymm
C6702 58166 52832
C6703 69850 52070
C670 820 2 5232
C6705 93726 5232
C6715 128778 5359
R6738 151892 566 2
R6739 1 8082 9276
Comp. side: Copper side:
Ref No Xmm Ymm
(CC) 60 26 1 22
(FV) 950 1 22
(J) 82270 1173
(SS) 32232 1 22
CN 7998 0005
J 01 63500 0005
L317 7 955 1808
L318 2156 2057
R 9 50266 22860
Ref No Xmm Ymm
C336 79730 3 290
C337 78 60 2565
C 28 19786 25908
C 29 29 38 25908
JF1 53568 27 32
JF2 55600 27 32
JF3 57886 27 32
R316 78 60 22098
R317 80 92 22098
F7317NOA PWB PARTS
ALLOCATION TABLES:
Comp. side: Copper side:
F7285N1A PWB PARTS
ALLOCATION TABLES:
Comp. side: Copper side:
Ref No Xmm Ymm
(CS) 6 82 2565
(SB) 35560 787
(SF) 1 78 35560
(VS) 11 8 35560
C1302 23622 11176
C1305 533 9652
C1306 25 00 33782
C1309 91 16510
C1310 312 2 15 9
C131 58 2 35306
C1315 251 6 22606
C1316 3556 1676
D1303 33020 279 0
D130 378 6 20066
IC1302 16510 1930
L1301 58 2 27178
L1302 35306 2 130
L1303 378 6 31750
Ref No Xmm Ymm
C1303 1676 11176
C130 23368 23622
C1307 1676 3073
C1308 1676 1 78
C1311 31750 17272
C1312 1 78 2057
C1313 9652 23876
C1317 279 16510
IC1300 2926 1 986
J1 6096 7620
J2 1676 7620
JF1 17272 2286
JF2 3835 12 6
JF3 378 6 17272
Q1301 25 00 11176
R1301 30 80 11 30
R1302 32258 11 30
R1303 958 9906
R130 3581 11 30
R1307 3 036 11 30
R1308 33020 2286
R1309 22352 2286
R1310 1676 9398
R1311 28702 11 30
R1312 16256 2057
R1313 9652 28956
R131 2032 23622
R1315 5 66 29210
Table of contents
Other Sharp TV manuals
Sharp
Sharp LC-42RD2EA User manual
Sharp
Sharp 20GT-15 User manual
Sharp
Sharp 29L-FG1BV User manual
Sharp
Sharp 26PL83M User manual
Sharp
Sharp 29K-FM5M User manual
Sharp
Sharp Aquos LC-65UB30U User manual
Sharp
Sharp LC-32BD6X User manual
Sharp
Sharp LC-60LE822E User manual
Sharp
Sharp 21N52-E1 User manual
Sharp
Sharp Aquos LC 26D4U User manual
Sharp
Sharp 27K-S100 User manual
Sharp
Sharp 32JW-74EES User manual
Sharp
Sharp Aquos LC-32LE600E User manual
Sharp
Sharp 21FL84 User manual
Sharp
Sharp 27N S300 User manual
Sharp
Sharp LC-60LE925X User manual
Sharp
Sharp 20F550 User manual
Sharp
Sharp 13N-M100 User manual
Sharp
Sharp LC-32LB261U User manual
Sharp
Sharp LC-46XL2E User manual
