Sheldon Shel Lab SSI3-2 User manual

SHAKING INCUBATORS
Installation - Operation Manual
SSI3 SSI3-2

2 | Page
The SSI3 incubator requires a 110 – 120-volt NEMA 5-15R power outlet.
The SSI3-2 incubator requires a 220 – 240-volt CEE 7/7 power outlet.
Warning:This product contains chemicals, including triglycidyl isocyanurate, known to the State of
California to cause cancer as well as birth defects or other reproductive harm. For more information,
go to www.P65Warnings.ca.gov.
¡Advertencia! Este producto contiene sustancias químicas, incluido el triglicidil isocianurato, que el
estado de California sabe que causa cáncer, así como defectos de nacimiento u otros daños
reproductivos. Para obtener más información, visite www.P65Warnings.ca.gov.
Avertissement!Ce produit peut vous exposer à des produits chimiques, dont l'isocyanurate de
triglycidyle, reconnu par l'État de Californie pour provoquer le cancer, des anomalies congénitales
ou d'autres problèmes de reproduction. Pour plus d'informations, visitez le site
www.P65Warnings.ca.gov.

3 | Page
SSI Shaking Incubators
SSI3: 110 – 120 Voltage
SSI3-2: 220 – 240 Voltage
Part Number (Manual): 4861492
Revised: January 28, 2020
SHEL LAB is a brand of Sheldon Manufacturing, INC, an ISO 9001
certified manufacturer.
Safety Certifications
These units are CUE listed by TÜV SÜD as orbital shaking incubators for professional, industrial or
educational use where the preparation or testing of materials is done at an ambient air pressure
range of 22.14 – 31.3 inHg (75 – 106 kPa), and no flammable, volatile or combustible materials are
being heated.
These units have been tested to the following standards:
CAN/CSA C22.2 No. 61010-1:2012
CAN/CSA C22.2 No. 61010-2-010 + R:2009
UL 61010-1:2004 + R:2005-07 + R:2008-10
UL 61010A-2-010:2002
UL 61010-1:2012
EN 61010-1:2010
EN 61010-2-010:2003

4 | Page
TABLE OF CONTENTS
INTRODUCTION ........................................................................................................................................................ 5
Read this Manual....................................................................................................................................................................5
Safety Considerations and Requirements ......................................................................................................................5
Contacting Assistance ..........................................................................................................................................................6
Manufacturing Warranty ......................................................................................................................................................6
Engineering Improvements..................................................................................................................................................6
Required Accessories ........................................................................................................................................................... 7
Reference Sensor Device ....................................................................................................................................................8
RECEIVING YOUR UNIT ........................................................................................................................................... 9
Inspect the Shipment.............................................................................................................................................................9
Orientation Images .............................................................................................................................................................. 10
Recording Data Plate Information................................................................................................................................... 12
INSTALLATION .........................................................................................................................................................13
Installation Procedures Checklist .................................................................................................................................... 13
Required Ambient Conditions........................................................................................................................................... 14
Required Clearances........................................................................................................................................................... 14
Power Source Requirements ............................................................................................................................................ 15
Lifting and Handling ............................................................................................................................................................ 16
Removing from the Pallet................................................................................................................................................... 16
Leveling................................................................................................................................................................................... 16
Install the Incubator ..............................................................................................................................................................17
Deionized and Distilled Water...........................................................................................................................................17
Installation Cleaning and Disinfecting ............................................................................................................................17
GRAPHIC SYMBOLS ................................................................................................................................................19
CONTROL OVERVIEW .............................................................................................................................................21
OPERATION.............................................................................................................................................................. 23
Theory of Operation ........................................................................................................................................................... 23
Put the Incubator into Operation .................................................................................................................................... 25
Adjusting Agitation and Platform Load Capacity........................................................................................................27
Install Shaker Accessories................................................................................................................................................ 32
Set the Temperature Setpoint ......................................................................................................................................... 33
Set the Shaker Speed (RPM)............................................................................................................................................ 34
Set the Over Temperature Limit...................................................................................................................................... 35
Set the Timer ........................................................................................................................................................................ 36
Loading Samples..................................................................................................................................................................37
Condensation and the Dew Point .................................................................................................................................. 38
USER MAINTENANCE............................................................................................................................................. 39
Cleaning and Disinfecting................................................................................................................................................. 39
Minimizing Contamination Exposure ............................................................................................................................. 40
Door Components................................................................................................................................................................ 41
Electrical Components........................................................................................................................................................ 41
Storing the Incubator........................................................................................................................................................... 41
Calibrate the Temperature Display................................................................................................................................ 42
UNIT SPECIFICATIONS .......................................................................................................................................... 47
Weight......................................................................................................................................................................................47
Dimensions.............................................................................................................................................................................47
Capacity ..................................................................................................................................................................................47
Temperature ......................................................................................................................................................................... 48
Shaking Platform ................................................................................................................................................................. 48
Power...................................................................................................................................................................................... 48
PARTS LIST............................................................................................................................................................... 49

5 | Page
INTRODUCTION
Thank you for purchasing a SHEL LAB shaking incubator. We know you have many choices in today’s
competitive marketplace when it comes to constant temperature equipment. We appreciate you choosing
ours. We stand behind our products and will be here if you need us.
READ THIS MANUAL
Failure to follow the guidelines and instructions in this user manual may create a protection
impairment by disabling or interfering with the unit safety features. This can result in injury or death.
Before using the unit, read the manual in its entirety to understand how to install, operate, and
maintain the unit in a safe manner. Ensure all operators are given appropriate training before the unit
begins service.
Keep this manual available for use by all operators.
SAFETY CONSIDERATIONS AND REQUIREMENTS
Follow basic safety precautions, including all national laws, regulations, and local ordinances in your
area regarding the use of this unit. If you have any questions about local requirements, please
contact the appropriate agencies.
SOPs
Because of the range of potential applications this unit can be used for, the operator or their
supervisors must draw up a site-specific standard operating procedure (SOP) covering each
application and associated safety guidelines. This SOP must be written and available to all operators
in a language they understand.
Intended Applications and Locations
SSI incubators are intended for constant temperature, non-humidified microbiological shaking
incubation applications in professional, industrial, and educational environments. These units are not
intended for use at hazardous or household locations.
Power
Your unit and its recommended accessories are designed and tested to meet strict safety
requirements.
•The unit is designed to connect to a power source using the specific power cord type
shipped with the unit.
•Always plug the unit power cord into a protective earth grounded electrical outlet
conforming to national and local electrical codes. If the unit is not grounded properly, parts
such as knobs and controls can conduct electricity and cause serious injury.
•Do not bend the power cord excessively, step on it, or place heavy objects on it.
•A damaged cord can be a shock or fire hazard. Never use a power cord if it is damaged or
altered in any way.
•Use only approved accessories. Do not modify system components. Any alterations or
modifications to your unit not explicitly authorized by the manufacturer can be dangerous
and will void your warranty.

6 | Page
INTRODUCTION
CONTACTING ASSISTANCE
Phone hours for Sheldon Technical Support are 6 am – 4:30 pm Pacific Coast Time (west coast of
the United States, UTC -8), Monday – Friday. Please have the following information ready when
calling or emailing Technical Support: the model number, serial number, and part number (see
page 12).
[e-mail]
[phone] extension 4
[phone] extension 4
FAX: [phone]
Sheldon Manufacturing, INC.
P.O. Box 627
Cornelius, OR 97113
USA
MANUFACTURING WARRANTY
For information on your warranty and online warranty registration please visit:
•sheldonmanufacturing.com/warranty
ENGINEERING IMPROVEMENTS
Sheldon Manufacturing continually improves all of its products. As a result, engineering changes and
improvements are made from time to time. Therefore, some changes, modifications, and
improvements may not be covered in this manual. If your unit’s operating characteristics or
appearance differs from those described in this manual, please contact your SHEL LAB dealer or
customer service representative for assistance.

7 | Page
INTRODUCTION
REQUIRED ACCESSORIES
Flask clamps, stationary tube racks, or plate clamps are required to secure samples to the shaking
platform. Clamps and racks must be purchased separately.
The manufacturer offers for sale several types of shaker accessories compatible with this incubator
model. See page 50 for ordering information.

8 | Page
INTRODUCTION
REFERENCE SENSOR DEVICE
Must be purchased separately
A reference sensor device is required for calibrating the unit temperature display.
Reference devices must meet the following standards:
•Accurate to at least 0.1°C
The device should be regularly calibrated, preferably by a third party.
Temperature Probes
Use a digital device with wire thermocouple probes that can be introduced into the unit chamber
through the lid space. Select thermocouples suitable for the application temperature you will be
calibrating at.
Why Probes?
Reference readings taken outside the chamber using wire temperature probes avoid chamber lid
openings. Openings disrupt the chamber temperature. Each disruption requires a minimum 1-hour wait
to allow the atmosphere to re-stabilize before continuing.
No Alcohol or Mercury Thermometers
Alcohol thermometers do not have sufficient accuracy to conduct accurate temperature calibrations.
Never place a mercury thermometer in the unit chamber. Always use thermocouple probes.
Temperature
Reference

9 | Page
RECEIVING YOUR UNIT
INSPECT THE SHIPMENT
•When a unit leaves the factory, safe delivery becomes the responsibility of the carrier.
•Damage sustained during transit is not covered by the manufacturing defect warranty.
•Save the shipping carton until you are certain that the unit and its accessories function
properly.
When you receive your unit, inspect it for concealed loss or damage to its interior and exterior. If you
find any damage to the unit, follow the carrier’s procedure for claiming damage or loss.
1. Carefully inspect the shipping carton for damage.
2. Report any damage to the carrier service that delivered the unit.
3. If the carton is not damaged, open the carton and remove the contents.
4. Inspect the unit for signs of damage. Use the orientation images in this chapter as a
reference.
5. The unit should come with an Installation and Operation Manual.
6. Verify that the correct number of accessory items has been included.
7. Carefully check all packaging for accessories before discarding.
Included Accessories
SSI3 Counterweights Power Cord Leveling Feet
6 1 4
SSI3-2
Counterweights
Power Cord
Leveling Feet
6
1
4

10 | Page
SSI3 &
SSI3-2
RECEIVING
ORIENTATION IMAGES
Control Panel
Shaking Platform
Incubation Chamber
Chamber Lid
Leveling Foot

11 | Page
RECEIVING
Back of Units
Power Cord Inlet with Fuse Holder
Vent
2nd Fuse Holder (SSI3-2 Only)

12 | Page
RECEIVING
RECORDING DATA PLATE INFORMATION
Record the unit model number, serial number, and part number below for future reference. Tech
Support needs this information to provide accurate help during support calls and emails.
•The data plate is located on the lower, right side of the unit, above the power inlet.
MODEL NO:
SERIAL NO:
PART NO:

13 | Page
INSTALLATION
INSTALLATION PROCEDURES CHECKLIST
For installing the unit in a new workspace location.
Pre-Installation
Check that the required ambient conditions for the unit are met, page 14.
Check that the spacing clearance requirements are met, page 14.
•Unit dimensions may be found on page 47.
Check that a suitable electrical outlet and power supply is present, page 15.
Install the incubator in a suitable workspace location
Review the lifting and handling instructions, page 16.
Remove the unit from the pallet, page 16.
Install the unit leveling feet, page 16.
Install the unit in its workspace location, page 17.
Set up the incubator for use
Clean and disinfect the unit (recommended), page 17.

14 | Page
INSTALLATION
REQUIRED AMBIENT CONDITIONS
These units are intended for use indoors at room temperatures between 15°C and 30°C (59°F and
86°F), at no greater than 80% Relative Humidity (at 25°C / 77°F). Operating outside these conditions
may adversely affect the unit temperature performance.
When selecting a location to install the unit, consider all environmental conditions that can adversely
impact its temperature performance. These include:
•Proximity to ovens, autoclaves, and any device that produces significant radiant heat
•Heating and cooling vents or other sources of fast-moving air currents
•High-traffic areas
•Direct sunlight

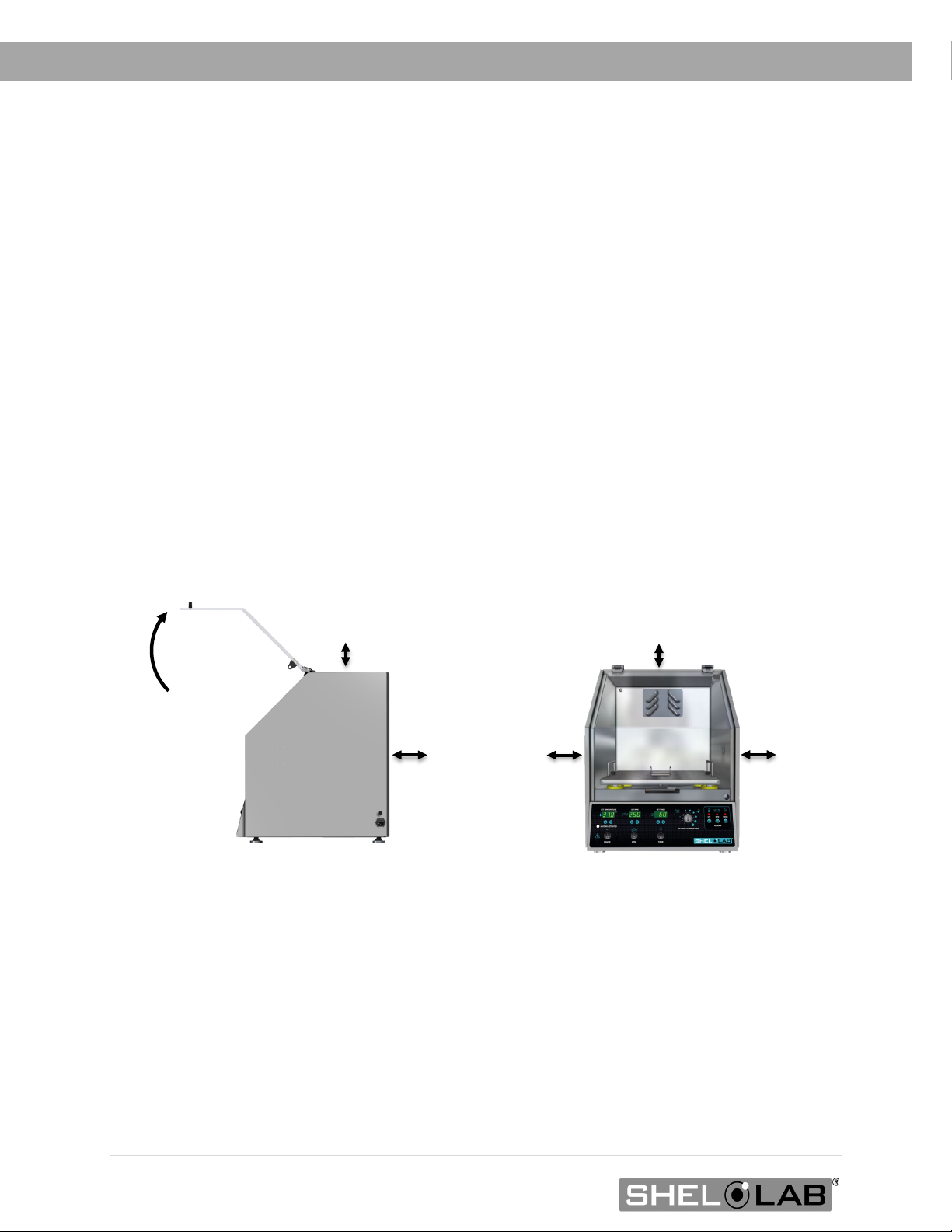

REQUIRED CLEARANCES
These clearances are required to provide airflows for ventilation and cooling.
4 inches (102 mm) of clearance is required on the sides and back.
2.5 inches (60 mm) of headspace clearance is required between the top of the unit and any
overhead partitions.
Ensure that there is sufficient overhead clearance for end-users to fully open the lid.
2.5” (60 mm)
4” (102 mm)
4” (102 mm)
4” (102 mm)
2.5” (60 mm)
Lid Swing

15 | Page
INSTALLATION
POWER SOURCE REQUIREMENTS
When selecting a location for the unit, verify each of the following requirements is satisfied:
Power Source: The power source must match the voltage and amperage requirements listed on the
unit data plate. These units are intended for 50/60 Hz applications at the following voltages and
amperages:
Model Voltage Amperage
SSI3 110 – 120 7.0
SSI3-2 220 – 240 3.5
•The wall power source must be protective earth grounded and single phase.
•The unit may be damaged if the supplied voltage varies by more than 10% from the data
plate rating.
•Use a separate circuit to prevent loss of the unit due to overloading or circuit failure.
•The recommended wall circuit breaker for 110 – 120V units is 15 amps.
•The recommended wall circuit breaker for 220 – 240V units is 20 amps.
•The wall power source must conform to all national and local electrical codes.
Power Cords:
The unit must be positioned so that all end-users can quickly unplug the power cord in the event of
an emergency.
•The SSI3 is provided with a 125 volt, 15 Amp, 9 ft 5 in (2.89 m) NEMA 5-15P power cord.
•The SSI3-2 is provided with a 250 volt, 16 Amp, 2.5 m (8.2 ft) CEE7/7 power cord.
•Always use this cord or an identical replacement.
Fuses
Always find and fix the cause of a blown fuse before putting the unit back into operation.
SSI3:110 – 120-volt units ship with a single fuse installed in the power cord inlet.
•The fuse must be installed and intact for the unit to operate.
•Fuse type:
o250V, T16A, 5x20mm
SSI3-2: 220 – 240 units ship with one fuse installed in the power cord inlet and a second fuse in a
fuse holder adjacent to the inlet.
•Fuse type:
o250V, T6.3A, 5x20mm
Standard
NEMA 5-15R
wall socket
Standard
CEE7/7
wall socket
110 – 120V
220 – 240V

16 | Page
INSTALLATION
LIFTING AND HANDLING
The unit is heavy. Use appropriate lifting devices sufficiently rated for these loads. Follow these guidelines
when lifting the unit.
•Lift the unit only from its bottom surface.
•Doors, handles, and knobs are not adequate for lifting or stabilization.
•Restrain the unit completely while lifting or transporting so it cannot tip.
•Remove all moving parts, such as shelves and trays, and lock the door in the closed position
during transfers to prevent shifting and damage.
REMOVING FROM THE PALLET
The unit comes secured to a shipping pallet with ½” hex bolts inserted through the 4 leveling feet
holes on the bottom of the incubator. Use a socket wrench to remove the bolts and release the unit
from the pallet.
LEVELING
Install the 4 leveling feet in the 4 corner holes on the bottom of the unit. The unit must be level and
stable for safe operation.
Note: To prevent damage when moving the unit, turn all 4 leveling feet so that the leg of each foot
sits inside the unit.
0.5 inch (13 mm)

17 | Page
INSTALLATION
INSTALL THE INCUBATOR
Install the unit in a workspace location that meets the criteria discussed in the previous entries of the
Installation chapter.
DEIONIZED AND DISTILLED WATER
Do not use deionized water to clean the unit, even if DI water is readily available in your laboratory.
•The use of deionized water may corrode metal surfaces and voids the manufacturing
warranty.
•The manufacturer recommends the use of distilled water in the resistance range of 50K
Ohm/cm to 1M Ohm/cm, or a conductivity range of 20.0 uS/cm to 1.0 uS/cm, for cleaning
applications.
INSTALLATION CLEANING AND DISINFECTING
The manufacturer recommends cleaning and disinfecting the chamber prior to installing shaker
accessories in the chamber.
•The unit was cleaned at the factory but may have been exposed to contaminants during
shipping.
•Please see the Cleaning and Disinfecting procedure on page 39 in the User Maintenance
chapter for information on how to clean and disinfect without damaging the unit.

18 | Page
INSTALLATION

19 | Page
GRAPHIC SYMBOLS
The unit is provided with multiple graphic symbols on its exterior. These identify hazards and
adjustable components as well as important notes in the user manual.
Symbol Definition
Consult the user manual
Consulter le manuel d'utilisation
AC Power
Repère le courant alternatif
I/ON O/OFF
I indique que l'interrupteur est en position marche.
O indique que le commutateur est en position d'arrêt.
Timer
Minuteur
Orbital Shaking Platform
Plateforme de agitateur orbital
Adjusts UP and DOWN
Ajuster le haut et vers le bas
Temperature display
Indique l'affichage de la température
Over Temperature Limit system
Thermostat température limite contrôle haute
Manually adjustable
Indique un réglage manuel

20 | Page
SYMBOLS
Symbol Definition
Protective earth ground
Terre électrique
Potential Shock Hazard
Risque de choc électrique
Recycle the unit. Do not dispose of in a landfill.
Recycler l'unité. Ne jetez pas dans une décharge
