Shenzhen Shunxun Electronics SX-EHU100 User manual

Operation instruction
1
Incorporates HDBase-T technology
HDMI Extender
Operating Instruction

2
Operation instruction
Notice
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute the warranty of any kind, express or implied.
Features
Extends HDMI with multi-channel digitial audio, IR and RS232 up to 330 feet (100 meters)
Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30 Hz) and 1080P Full HD
5PlayTM convergence: uncompressed high definition Video and Audio, LAN serving, Power over Ethernet and
USB/RS-232/IR controls
Supports LPCM 7.1 audio, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD® Master Audio™ pass-through
Supports 48bit Deep Color
Supports Bi-directional IR control.
CEC pass-through
Supports HDCP
Package Contents
1xHDBaseT Transmitter
1xHDBaseT Receiver
2xIR-TX cable (no need IR-RX cable)
1x48V/1.25A DC Adaptor
1xUser Manual
1xRS232/Female to 3.5 mm audio jack adapter
1xRS232/Male to 3.5 mm audio jack adapter
1x Pair wall/rack mounts

Operation instruction
3
Specifications
Operating Temperature Range
-5 to +35 (+23 to +95 )℃ ℃
Operating Humidity Range 5 to 90%RH (No Condensation)
Output Video Bandwidth 300MHz/10.2Gbps
Ethernet Speed 100 Mbps
Transmitter ports
1xHDMI (female)-Video Input
3x3.5mm Phone Jack (RS232 debug,RS232 and IR Emitter Port) ,
1xUSB Host(Type B female)
1xLink Connector RJ-45
1xEthernet Port RJ-45
1xDC jack(DC48V)
Receiver Ports
1xHDMI (female)-Video output
3x3.5mm Phone Jack (RS232 debug,RS232 and IR Emitter Port) ,
1xDouble USB (Type A female)
1xLink Connector RJ-45
1xEthernet Port RJ-45
1xDC jack(DC48V)
IR wavelength & frequency Wavelength: 940nm IR Frequency: 38KHz
Resolution outputs up to 4K x 2K (3840 x 2160 @ 24Hz)
Dimensions Transmitter:5.5”W x 3”Hx.96”D(140x77.5x24.5mm)
Receiver:5.59”W x 3”Hx.96”D(142x77.5x24.5mm)
Power consumption Transmitter: 10 W(MAX);Receiver: 10W(MAX)
Transmission Distance 330ft(100m)over Cat-5e(or better) cable
Net Weight Transmitter: 339 g Receiver:343g

4
Panel Description

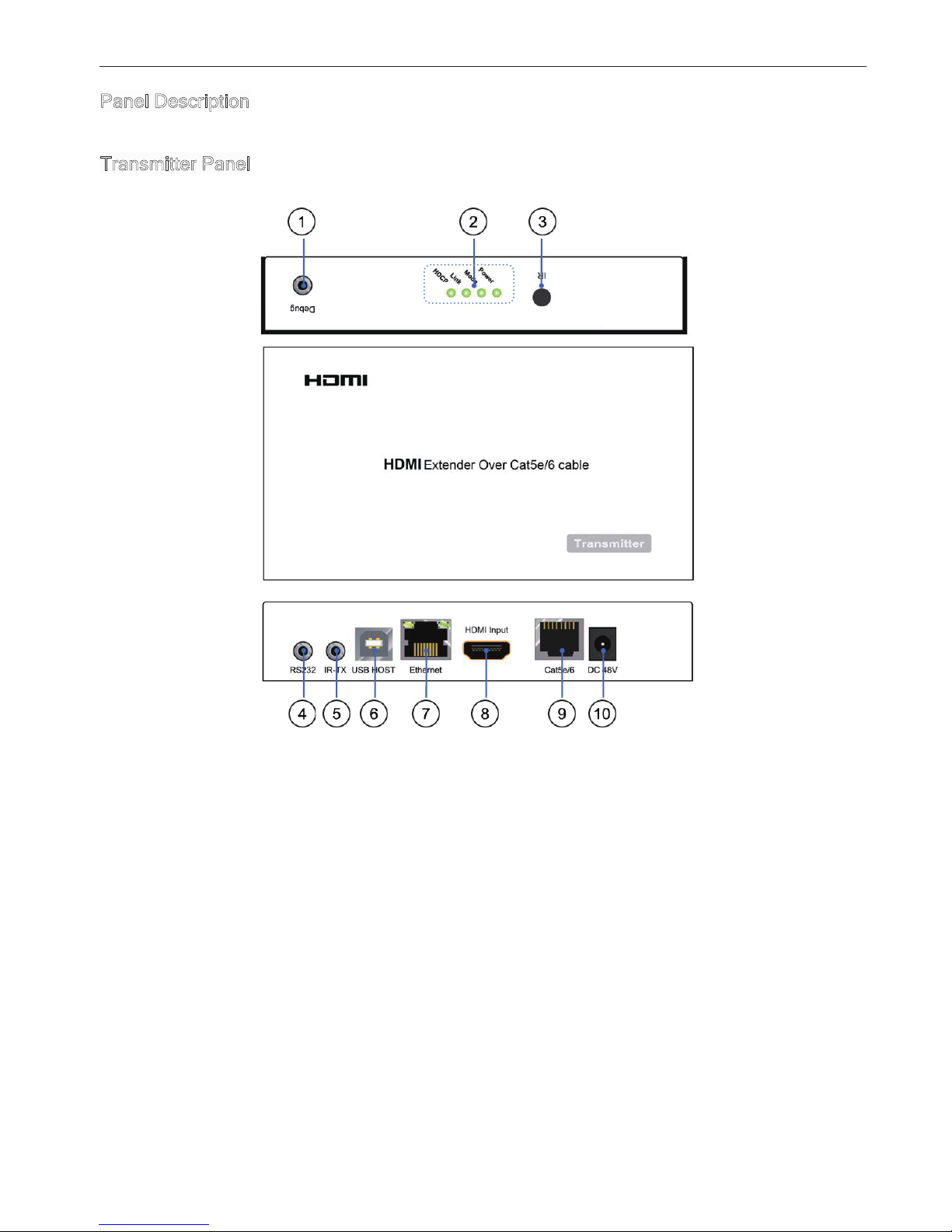

Transmitter Panel
1）Debug port:for firmware update(See default set for update)
2）LED Indicators:
① Power–The PWR LED indicates that power is available to the unit.
② Mode–The FW LED indicates that firmware has been loaded and the system is running.
③ Link–The LINK LED indicates that an HDBaseT link connection has been established between the two
boards over the Cat5e cable.
④ HDCP
a. When the HDCP LED is on, it indicates that video content with HDCP protection is being transferred.
b. When the HDCP LED is blinking, it indicates that video content without HDCP protection is being
transferred.
c. When the HDCP LED is off, it indicates that no video is being transferred.
Operation instruction

Operation instruction
5
3）IR Receiver Window
4）RS232 –This connector is used to deliver RS232 traffic (up to 115200 bps) over the HDBaseT link
5）IR-TX port - This jack can be used for connecting TX blaster cables.
6）USB HOST (B type) -This USB port on the transmitter board connects to the USB HOST (i.e., PC or laptop).
7）Ethernet port–There is one standard Ethernet port
8）HDMI Input port
9）HDBaseT port-This is the Cat5e cable connection between the two units.
10）DC input port- The 48V DC is the power input for the transmitter
if power adapter connects with the transmitter, the transmitter is a PSD, the receiver is a PD.
if power adapter connects with the receiver, the receiver is a PSD, the transmitter is a PD).
Note: To avoid the unit being damaged, DO NOT connect power supply for both of transmitter and
receiver.
Update instruction:
The user should receive a Firmware burn package, containing all software needed for burning①
and updating the Firmware on the EEPROM.
Conne②ct debug port use RS232 cable from RS232 port of unit to PC.
Power the unit.③
Extract the zipped file from the burn package to a directory (e.g. C:④\dir_name).
⑤Browse to the directory (e.g. C:\dir_name\) and double click the batch file Update Source.
bat(for Transmitter) or Update Sink. Bat (for receiver).
A short description of the link created between the PC and the board appears on the screen,⑥
followed by the burn progress percentage report.
A second stage of verifying the content of the EEP⑦ROM follows, also with a progress
percentage report

Operation instruction
6
1) Debug port:for firmware update.(See default set for update)
2) LED Indicators:
① Power–The PWR LED indicates that power is available to the unit.
② Mode–The FW LED indicates that firmware has been loaded and the system is running.
③ Link–The LINK LED indicates that an HDBaseT link connection has been established between the two
boards over the Cat5e cable.
④ HDCP
a. When the HDCP LED is on, it indicates that video content with HDCP protection is being transferred.
b. When the HDCP LED is blinking, it indicates that video content without HDCP protection is being
transferred.
c. When the HDCP LED is off, it indicates that no video is being transferred.
3) IR Receiver Window.
4)RS232 –This connector is used to deliver RS232 traffic (up to 115200 bps) over the HDBaseT link.
5) IR-TX port - This jack can be used for connecting Tx blaster cables.
Receiver Panel
6) Double USB ports (type A) - This USB port on the sink board connects to the USB devices or salave (i.e.,
mouse, keyboard).
7) Ethernet port–There is one standard Ethernet port.
8) HDMI Input port
9) HDBaseT port- Connect a Cat5e /6 cable between transmitter and receiver.
10)DC input port- The 48V DC is the power input for the receiver
if power adapter connects with the transmitter, the transmitter is a PSD, the receiver is a PD.
if power adapter connects with the receiver, the receiver is a PSD, the transmitter is a PD).
To avoid the unit being damaged, DO NOT connect power supply for both of transmitter and receiver.

Operation instruction
7
RS232 control:
illustrates the schematics of the RS232 connector used for the RS232 channel or for the UART debug connector.
TO debug ports
Connection Diagram
Application-1
-2
Application
-2
7
CONNECTING AND OPERATING
1) Connect the HDMI signal sources (Such as DVD, STB etc) to HDMI Transmitter.
2) Connect cat5e/6 cables to both HDBaseT port of the transmitter and HDBaseT port of the Receiver.
3) Connect the HDMI output (Such as HD-LCD, HD-DLP) into the Receiver.
4) Connect the IR-TX cables into transmitter IR-TX portS on the back panel and affix the emitter onto the source IR
windows ,Connect the IR-TX cables into receiver IR-TX portS on the back panel and affix the emitter onto the sink
IR windows.
5) Connect the 48V DC power supply into transmitter power port or receiver power port. (DO NOT connect 48V DC power supply
for both of transmitter and receiver )
Attention: Insert/Extract cables gently.

Operation instruction
8
Safety information
safeguards
To reduce the risk of electric shock, do not expose this product to rain or moisture
PRODUCT SERVICE
1) Damage requiring service: The unit should be serviced by qualified service personnel if:
(a)The DC power supply cord or AC adaptor has been damaged;
(b)Objects or liquids have gotten into the unit;
(c)The unit has been exposed to rain;
(d)The unit does not operate normally or exhibits a marked change in performance;
(e)The unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that described in these operating instructions.
Refer all other servicing to authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the servicer uses parts specified by the manufacturer or
parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric
shock, or other hazards.
4) Safety check: After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in
proper working condition.
WARRANTY
If your product does not work properly because of a defect in materials or workmanship, our Company (referred to
as "the warrantor" ) will , for the length of the period indicated as below, (Parts(2)Year ,Labor(90) Days) which
starts with the date of original purchase ("Limited Warranty period"), at its option either(a) repair your product with
new or refurbished parts, or (b) replace it with a new of a refurbished product. The decision to repair or replace will
be made by the warrantor.
During the "Labor" Limited Warranty period there will be no charge for labor.
During the "Parts" warranty period, there will be no charge for parts. You must mail-in your product during the
warranty period. This Limited Warranty is extended only to the original purchaser and only covers product
purchased as new. A purchase receipt or other proofof original purchase date is required for Limited Warranty
service.
Mail-In Service
When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton.
Include a letter detailing the complaint and provide a day time phone and/or email address where you can be
reached.
