Operating Instructions
1
60M HDMI+USB KVM Extender
Operating Instructions
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please
read these instructions carefully before connecting, operating or adjusting this
product. Please keep this manual for future reference.
FEATURES
Each set includes one transmitter and one receiver
Transmit distance up to 100m over single Cat5e/6 cable under Non-USB mode
Transmit distance up to 60m over single Cat5e/6 cable under USB Mode
USB 2.0 pass through
Support Full HD 1080P
Power Supply DC12V
NOTICE
Our company reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.

Operating Instructions
2
TABLE OF CONTENTS
Specifications
Package Contents
Panel Descriptions
Connecting and Operating
Typical Application
Maintenance
Product Service
Warranty
SPECIFICATIONS
Note1: Specifications are subject to change without notice. Mass and dimensions are
approximate.
PACKING CONTENTS
1) . Main Unit: HDMI Extender( Transmitter& Receiver)
2) . 2x Power Adapter DC 12V
3) . 8x Screws
4) . 4x Detachable Mounting Ears
5) . 1x USB 2.0 AM to BM Cable
6) . 1x User’s Manual
Operating Temperature Range -10 to +50℃(14 to +122℉)
Operating Humidity Range 5 to 90%RH (No Condensation)
Support Video Format
DTV/HDTV: 480P/576P/720P/1080P
VESA:640x480, 800x600, 1024x768, 1280x1024,
1680x1050, 1280x720, 1360x768
Connector on Transmitter 1x HDMI Input , 1x USB B Type
1xRJ45 Output
Connector on Receiver 1xRJ45 Input
1x HDMI Output, 2x USB A Type
Transmission Distance
100m (Max) over single Cat5e/6 /24AWG/Solid under Non-USB Mode
60m(Max) over Single Cat5e/6 /24AWG/Solid under USB Mode
s/tibM084ecnatsiDBSU
Power consumption
Transmitter : 1.2W( Max)
Receiver : 2.6W( Max)
Dimension (L×W×H) L84.2xW75.2xH27.5mm
g502:revieceR;g502:rettimsnarTthgieWteN

Operating Instructions
3

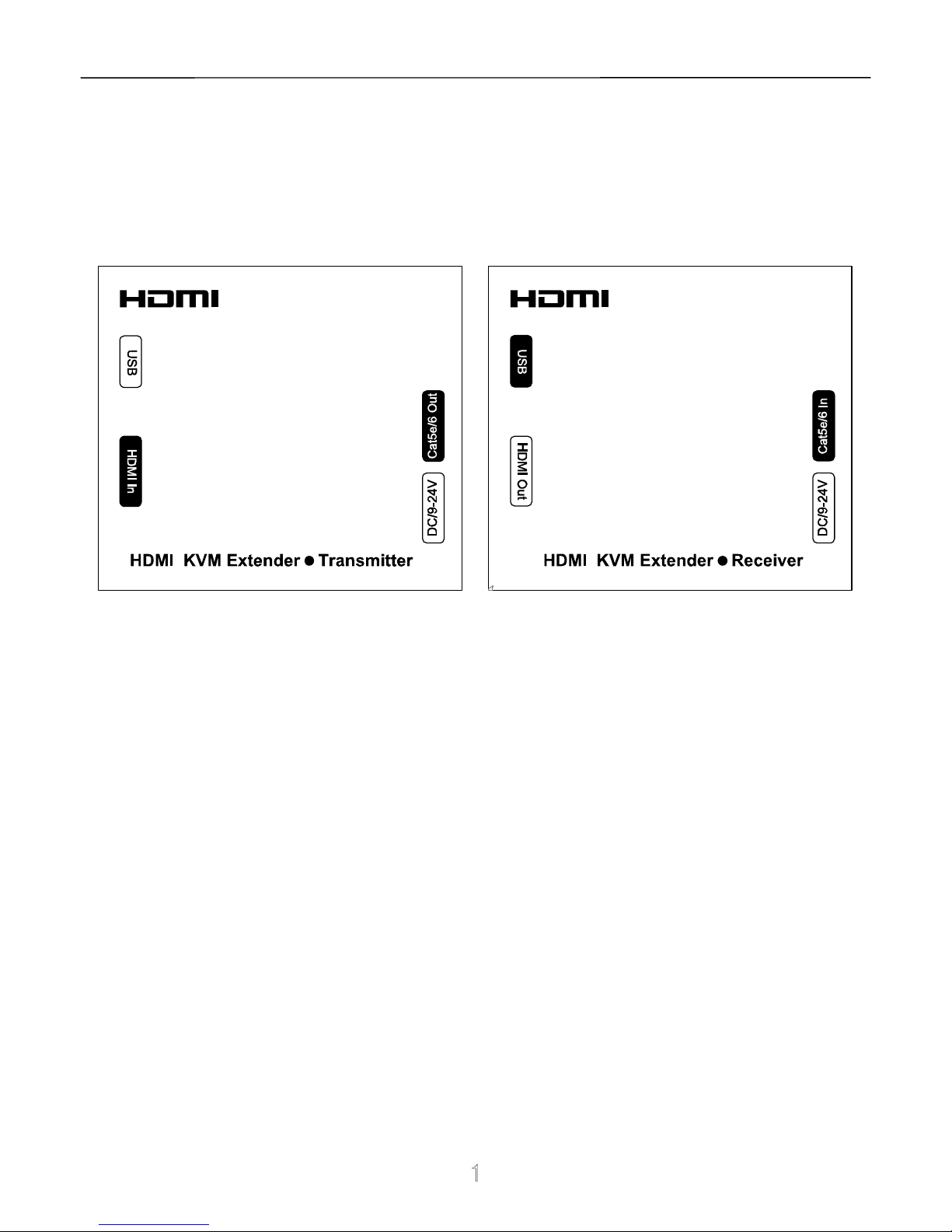

PANEL DESCRIPTIONS
Transmitter Panel
①USB port ②HDMI input port
③Cat5e/6 output port ④Power input port
Receiver Panel
①USB port ②HDMI output port
③Cat5e/6 input port ④Power input port

Operating Instructions
4

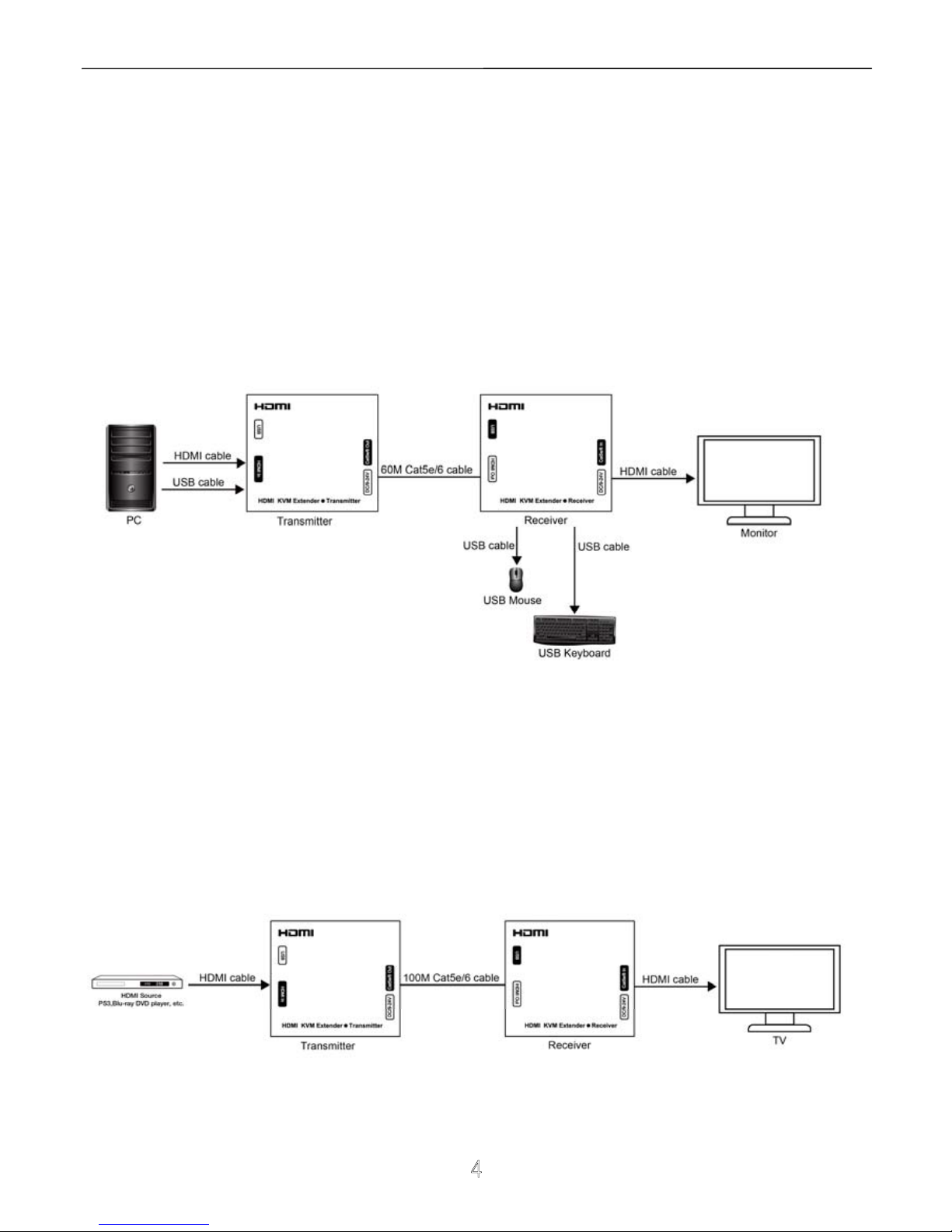

Application 1: KVM
1. Connect one HDMI Cable between the HDMI output port of source device and the
HDMI input port of Transmitter unit
2. Connect one HDMI Cable between the HDMI input port of display and the HDMI
output port of Receiver unit.
3. Connect one UTP Cat5e or better cable between the RJ45 port of Transmitter unit
and RJ45 port of Receiver unit.
4. Connect the PC to the transmitter by USB AM-USB BM cable.
5. Connect keyboard, mouse to the receiver.
6. Connect 12V DC power supplies to both Transmitter unit and Receiver unit.
Application 2:
Point to point configuration:
1. Connect one HDMI Cable between the HDMI outputport of source device and the
HDMI input port of Transmitter unit
2. Connect one Cat5e/6 or better cable between the Transmitter and Receiver
3. Connect one HDMI cable between the HDMI Input of the display device and the
HDMI Output port of the Receiver unit

Operating Instructions
5
MAINTENANCE
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to
clean this unit.
PRODUCT SERVICE
1) Damage requiring service:
The unit should be serviced by qualified service personnel if:
(a) The DC power supply cord or AC adaptor has been damaged;
(b) Objects or liquids have gotten into the unit;
(c) The unit has been exposed to rain;
(d) The unit does not operate normally or exhibits a marked change in performance;
(e) The unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that described in
these operating instructions. Refer all other servicing to authorized servicing
personnel.
3) Replacement parts: When parts need replacing ensure the servicer uses parts
specified by the manufacturer or parts that have the same characteristics as the
original parts. Unauthorized substitutes may result in fire, electric shock, or other
hazards.
4) Safety check: After repairs or service, ask the servicer to perform safety checks
to confirm that the unit is in proper working condition.
WARRANTY
If your product does not work properly because of a defect in materials or
workmanship, our Company (referred to as "the warrantor" ) will, for the length of the
period indicated as below, (Parts(2)Year, Labor(90) Days) which starts with the date
of original purchase ("Limited Warranty period"), at its option either(a) repair your
product with new or refurbished parts, or (b) replace it with a new of a refurbished
product. The decision to repair or replace will be made by the warrantor.
During the "Labor" Limited Warranty period there will be no charge for labor.
During the "Parts" warranty period, there will be no charge for parts. You must mail-in
your product during the warranty period. This Limited Warranty is extended only to the
original purchaser and only covers product purchased as new. A purchase receipt or
other proof of original purchase date is required for Limited Warranty service.
MAIL-IN SERVICE
When shipping the unit carefully pack and send it prepaid, adequately insured and
preferably in the original carton. Include a letter detailing the complaint and provide a
day time phone and/or email address where you can be reached.

Operating Instructions
6
LIMITED WARRANTY LIMITS AND EXCLUSIONS
1) This Limited Warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage.
The Limited Warranty ALSO DOES NOT COVER damages which occurred in
shipment, or failures which are caused by products not supplied by warrantor, or
failures which result from accidents, misuse, abuse, neglect, mishandling,
misapplication, alteration, faulty installation, set-up adjustments, misadjustment of
consumer controls, improper maintenance, power line surge, lightning damage,
modification, or service by anyone other than a Factory Service center or other
Authorized Servicer, or damage that is attributable to acts of God.
2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
"LIMITED WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF
THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRNTY. (As
examples, this excludes damages for lost time, cost of having someone remove or
re-install an installed unit if applicable, travel to and from the service, loss of or
damage to media or images, data or other recorded content. The items listed are not
exclusive, but are for illustration only.)
3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY, ARE YOUR RESPONSIBILITY.
