Sherlotronics Rx4-500 User manual

Programming remotes in

1. Default the unit before you begin a new installation. This erases all previously programmed remotes.

2. Press the LEARN switch once to step to relay 1. (1 x beep sounds)

3. Press the button on the remote control a few times to learn in to the RX4-500 (2x beeps sound)

4. Continue to learn in any additional remote controls until all the remotes are programmed in.

5. Press the LEARN switch again to step to relay 2. (1x beep sounds)

6. Repeat Step 3; 4 & 5 until all the remotes are programmed in to each respective relay.

7. Once Relay 4 is programmed, press the LEARN switch once more to step past relay 4 and exit out

of learn mode. (1 x long beep sounds)

Note: The unit can be programmed with up to 80 remotes. When the memory limit has reached its limit the

RX1-500 will auto exit out of program mode. The unit auto exits out of program mode if nothing is received after

10 -20 seconds.

Code-Hopping Encryption

1 x Relay output

Normally Open / Closed

Weather-proof ABS housing

Frequency stability controlled +/- 75KHz

Order Codes:

This product is approved for use in residential, commercial andlight

Industrial environment and complies with the essential protection

requirements of the R&TTE Directive 1999/EC on the

approximation of the laws of the Member states relating to

electromagnetic compatibility and radio spectrum.

Certifications:

ETSI EN300 220-V2.4.1

ETSI EN301-489-3 V1.4.1

ETSI EN301-489-1 V1.9.2

IEC 60950-1:2005 + A1:2009

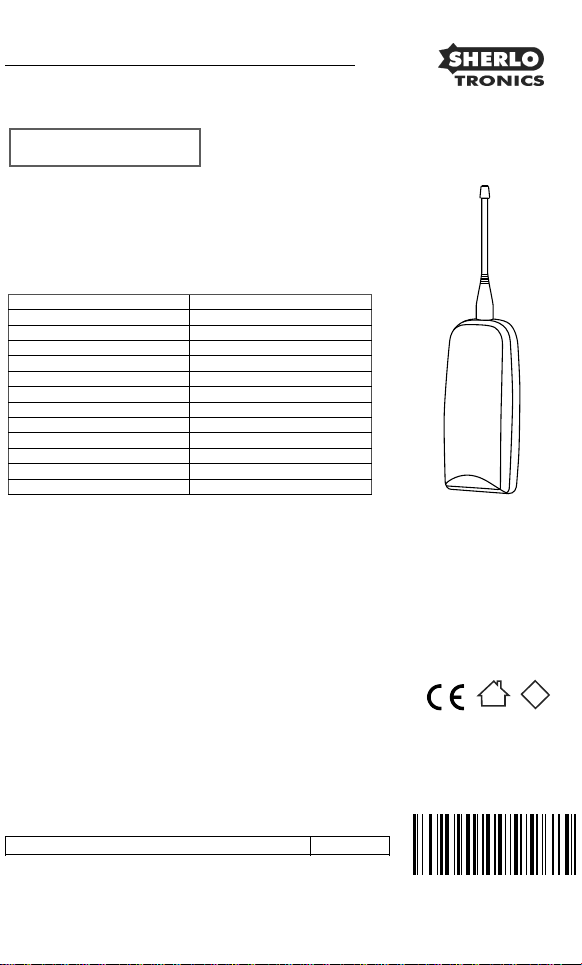

Model No: RX1-500

1 Channel Receiver : 500m Code Hopping

Approvals: * (pending)

Installation Instructions - For Service Persons Only

III

Model:

Encryption type:

Transmission frequency:

Transmission method:

Modulation

Transmission range:

Memory capacity:

Voltage range:

Standby current consumption:

Current consumption all on:

Operating Temperature:

Dimension (lxbxh)

Gross weight:

RX1-500

Code hopping

403MHz (local) 433MHz (export)

OOK

500m “Line of sight”

80 remotes

10V to 16VDC

+/-22mA 10%

+/-126mA 10%

-3°C to 49°C

145 x 66 x 40mm

135g

Technical Specifications:

Features:

For more info visit our web site: www.sherlotronics.com

1 Channel Receiver : 500m Code-hopping RX1-500

English

RX1 - 5 0 0

Warranty

This product is sold subject to our standard warranty conditions and is warrantied against defects in workmanship

for a period of two years.

Customer Support line: +2711 462 5101 E-mail: [email protected]

LEARN Press and hold for more than

10 Seconds. When the beeping

stops the unit is defaulted.

Wait a few seconds until it re-boots.

Note: Please default the unit first before installation.

This will erase any previously programmed factory

test remotes from the memory.

Defaulting the RX4-500

Relay time jumper settings

Programming the ON/OFF function

1. Default the unit before you begin a new installation. This erases all previously programmed remotes.

2. Select the 1 sec & 3 sec relay time jumpers respectively.

3. Press the LEARN switch once to step to relay 1 (ON command) (1 x beep sounds)

4. Press the button on the remote control for the ON command. (2 x short beeps sound)

5. Press the LEARN switch again to advance to the OFF command. (2 x beep sounds)

6. Press the button on the remote control for the OFF command. (2 x short beeps sound)

7. Press the LEARN switch again to advance to the next relay channel.

8. Repeat Step 3 - 6 until all the remotes are programmed in to each respective relay.

7. Once Relay 4 is programmed, press the LEARN switch once more to step past relay 4 and exit out

of learn mode. (1 x long beep sounds)

3 Seconds

Gate &

garage door

automation

Panic

on alarm

panel

Maglock

release /

beam bypass

Arming &

Disarming

alarm panels

1 Second Latch/un-Latch On / Off

Code 1 = ON

Code 2 = OFF

60 Seconds

Siren output

or beam

bypass

1sec

3sec

Latch

1min

3min

On/Off

1sec

3sec

Latch

1min

3min

On/Off

1sec

3sec

Latch

1min

3min

On/Off

3 Min

1sec

3sec

Latch

1min

3min

On/Off

1sec

3sec

Latch

1min

3min

On/Off

1sec

3sec

Latch

1min

3min

On/Off

Erasing individual remotes

1. Link the ERASE jumper

2. Press the LEARN switch

3. Press the remote to be erased

4. Repeat step 2 & 3 for each

remote to be erased.

5. Remove ERASE jumper when

done Press the button

to be erased

Repeat for each remote

to be erased.

You must erase

one remote

at a time.

20 beeps

LEARN

ERASE

Link On

Mag Lock

For more info visit our web site: www.sherlotronics.com

Opening the unit Wiring diagram

The plastic housing is splash proof, and may be mounted externally if

required. The unit should be mounted vertically for best performance.

Ensure that you do not mount the unit close to electric fence cables or

energizers, as these products produce extreme levels of interference

and may reduce the performance of the product. If mounting indoors

try and centralise the unit, and keep it at least 3 metres away from

armed response company’s alarm radio transmitters.

We recommend the unit to be mounted more than 3 metres above the

floor height just above the trap door. For large properties that require

exceptional range, mount the unit externally.

Always conduct a signal range test before you hand over the product

to the client, ensuring that the system works reliably. You may need to

move the unit if you encounter dead spots. In rare cases you may

need to install a booster repeater unit for coverage around large multi

levelled sites.

Remove the Aerial and make sure the screw on the bottom side is removed.

Carefully lift the lid up from the back end and unclip the top.

Screw hole

Mounting advice

B3m

For more info visit our web site: www.sherlotronics.com

Relay time

jumpers

Terminal blocks

Status

LED

LEARN

switch

Relay

output

Aerial

Typical gate motor wiring Typical alarm panel wiring

Typical mag lock Typical panic to radio transmitter

Safe Common

Aux 12V Out

Trg

Ped

Com

FRX

Aux

Status

Com

Motor

12V -

12V +

Aux IO

Lck/Stp

Open

Light

12V DC

Power- supply

YEL

GRN

BLK

AUX -

RED

AUX +

BELL+

BELL-

COM

Positive trip

Panic

ERASE

switch

Mag Lock

For more info visit our web site: www.sherlotronics.com
