Introduction
UNPACKING AND INSTALLATION
Congratulations on Your Purchase!
Your new high fidelity receiver is designed to deliver
maximum enjoyment and years of trouble free service.
Please take a few moments to read this manual
thoroughly. It will explain the features and operation of
your unit and help ensure a trouble free installation.
Please unpack your unit carefully. We recommend that
you save the carton and packing material. They will be
helpful if you ever need to move your unit and may be
required if you ever need to return it for service. Your unit
is designed to be placed in a horizontal position and it is
important to allow at least two inches of space behind
your unit for adequate ventilation and cabling
convenience.
To avoid early damage, never place the unit near
radiators, in front of heating vents, in direct sunlight, or in
excessively humid or dusty locations. Connect your
complementary components as illustrated in the following
section.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the
presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING
To reduce the risk of fire or electric shock, do not expose
this appliance to rain or moisture.
> >
Caution : Do not block ventilation openings or stack
other equipment on the top.
Caution regarding placement
(Except for U.S.A and Canada)
To maintain proper ventilation, be sure
to leave aspace around the unit (from
the largest outer dimensions including projetions)
equal to, or greater than, shown below.
Left and right panels: 5 Cm
Rear panel: 10 Cm
Top panel: 20 Cm
ey

READ THIS BEFORE OPERATING YOUR UNIT |
FOR U.S.A. AND CANADA ........:ssssssssssssssetsessoeeeeeens 120V FOR OTHER COUNTRIES «---.-------+++-- 110 V/220 V
FOR YOUR SAFETY
Units shipped to the U.S.A. and Canada are
designed for operation on 120 V AC only.
Safety precaution with use of a polarized AC plug.
However, some products may be supplied with a
nonpolarized plug.
CAUTION : To prevent electric shock, match wide
blade of plug to wide slot, fully insert.
ATTENTION : Pour eviter les choc electriques,
introduire la lame la plug large de la borne
correspondante de Ia prise et poussre jusqu’au fond.
FOR AUSTRALIA AND EUROPE ..220 V/230 V/240 V
FOR YOUR SAFETY
Units shipped to Australia are designed for operation
on 240 V AC only.
To ensure safe operation, the three-pin plug
supplied must be inserted only into a standard three-
pin power point which is effectively earthed through
the normal household wiring. Extension cords used
with the equipment must be three-core and be
correctly wired to provide connection to earth.
Improper extension cords are a major cause of
fatalities. The fact that the equipment operates
satisfactorily does not imply that the power point is
earthed and that the installation is completely safe.
For your safety, if in any doubt about the effective
earthing of the power point, consult a qualified
electrician.
PAN-EUROPEAN UNIFIED VOLTAGE
All units are suitable for use on supplies 220-240 V
AC.
FOR YOUR SAFETY
Units shipped to countries other than the above
countries are equipped with an AC voltage selector
switch on the rear panel. Refer to the following
paragraph for the proper setting of this switch.
AC VOLTAGE SELECTION
This unit operates on 110-220 V AC. The AC voltage
selector switches on the rear panel are set to the
voltage that prevails in the area to which the unit is
shipped. Before connecting the power cord to your
AC outlet, make sure that the setting position of
these switches match your line voltage. If not, they
must be set to your voltage in accordance with the
following direction.
AC voltage selector switches
AC 220 V AC 110 V
Move switch levers to match your line voltage with a
small screwdriver or other pointed tool.

System Connections
*
Do
not
connect
the
receiver
to
the
wall
AC
outlet
when
plugging
and
unplugging
connection
cords.
+
Be
sure
to
connect
the
white
plugs
to
the
L
(left)
and
the
red
plugs
to
the
R
(right)
jacks
when
making
connections.
+
Change
the
position
of
the
FM
indoor
antenna
until
you
get
the
best
reception of
your
favorite
FM
stations.
« A 75 Q outdoor FM antenna may be used to further improve the reception.
Disconnect the indoor antenna before replacing it with the outdoor one.
+
Place
the
AM
loop
antenna
as
far
as
possible
from
the
receiver,
TV
set,
speaker
cords
and
the
AC
input
cord
and
set
it
to
a
direction
for
the
best
reception.
+
If
the
reception
is
poor
with
the
AM
loop
antenna,
an
AM
outdoor
antenna
can
be
used
with
the
AM
loop
antenna.
+
Make
connections
firmly
and
correctly.
If
not,
it
can
cause
loss
of
sound,
noise
or
damage
to
the
receiver.
+
If
the
electricity
fails
or
the
AC
input
cord
is
left
unplugged
for
about
2
weeks,
the
memorized
contents
will
be
all
cleared.
So you
should
memorize
them
again.
@ CONNECTING ANTENNAS
(OUTDOOR ANTENNA)
FM
(INDOOR ANTENNA)
SUPPLIED ADAPTOR
@ CONNECTING AUDIO COMPONENTS
Tumtable with MM type cartridge
Monitor TV
VIDEO IN
*TV or additional video component
OUT
* The TAPE 2 MONITOR PLAY/REC jacks may also be connected to
the LINE OUTI/IN jacks of an optional graphic equalizer. * The TV/AUX jacks may also be connected to an additional
video component such as a cable TV tuner or a video deck.
Iie aa

ENGLISH
m@ CONNECTING DIGITAL INPUTS
LD player with
DIGITAL RF OUT
Component with
COAXIAL DIGITAL OUT
Component with
OPTICAL DIGITAL OUT
* A digital input should be connected to the components such
as LD player or DVD, etc. capable of outputing Dolby AC-3,
PCM or RF format digital signals.
«When making the COAXIAL DIGITAL connection, be sure to
use a 75Q COAXIAL cord, not a conventional AUDIO cord.
¢ For details, refer to the operating instructions of the
component connected.
CONNECTING SYSTEM CONTROL
Sherwood component
with DIGI LINK II or Ill
CD player
Tape deck
Graphic equalizer
DIGHLINK
* Connect this jack to the DIGI LINK jack of the external
Sherwood component that uses the DIGI LINK {! or Ill remote
control system.
@ CONNECTING SPEAKERS en
Front left i
Front right
Rear right
Rear left
* Never short circuit the + and — speaker cords.
* Be sure to connect speakers firmly and correctly
according to the channel (left and right) and the polarity
(+ and -). :
¢ Be sure to use the speakers with the impedance of over
8Q.
¢ Always connect both rear speakers.
¢ For installing the speakers, refer to "Speaker placement"
on page 13.

@
MAIN
IN
connections
m@
AC
INPUT
CORD
rg Pre amplifier Plug this cord into a wall AC outlet
* When a separate pre amplifier is used for front channels,
connect these jacks to the pre amplifier and connect the front
speakers to this receiver.
m@ PRE OUT connections
Front speakers
Power amplifier
Powered
Center speaker Subwoofer
Power amplifier
Power amplifier
Rear speakers
* Use these jacks if you want to listen at even higher volume levels.
* Connect the PRE OUT jacks to the powered speakers or the power amplifiers
connected to speakers respectively.
* To emphasize the deep bass sounds, connect a subwoofer.
* When you do not use the front MAIN IN and PRE OUT jacks, always connect these
jacks with the supplied jumper plugs.
C
mm SWITCHED AC OUTLET
This outlet is switched on and off by
the STANDBY button on the front
panel or the POWER button on the
remote control. (Maximum total
capacity is 100W)
Standby mode — switched AC outlet ual
Power on mode — switched AC outlet on

Front Panel Controls
DYNAMIC RANGE BUTTON/INDICATOR =
VIDEO LABELS BUTTON =
VCR1 RECORD BUTTON 5
POWER
SWITCH
=
STANDBY BUTTON
REMOTE
SENSOR
TAPE2
MONITOR
BUTTON
STANDBY
INDICATOR
INPUT
SELECTOR
/
INDEX
KNOB
DIGITAL
INPUT
INDICATORS
MASTER
VOLUME
CONTROL
KNOB
pre ee
NUMERIC
FRONT/REAR
AUX
SELECT
BUTTON
HEADPHONE
JACK
—
|
BUTTONS
FRONT
AUX
INDICATOR
(Tuner
only)
SUBWOOFER
LEVEL
UP/DOWN
BUTTONS
SPEAKER
BALANCE
CONTROL
KNOB
ON/OFF
SWITCH
CENTER
LEVEL
UP/DOWN BUTTONS
TREBLE
CONTROL
KNOB
DIGITAL
INPUT
SPEAKER
MODE
BUTTON
‘SELECT
BUTTON
REAR
LEVEL
UP/DOWN
BUTTONS
BASS
CONTROL
KNOB
DOLBY
DIGITAL(AC-3)
FM
MODE
BUTTON
BUTTON
MEMORY/
ENTER
BUTTON
SURROUND
MODE
BUTTON
CINEMA
BASS
BUTTON
SURROUND
OFF
BUTTON
BAND
BUTTON
FREQUENCY
DIRECT
BUTTON
TUNING
UP/DOWN
BUTTON
RDS BUTTONS (R-925 RDS ONLY)
Refer to “Additional function for
R-925 RDS Tuner Only" on page 18
Mi FLUORESCENT DISPLAY ——-
INPUT, FREQUENCY,PRESET, VOLUME LEVEL, OPERATING INFOMATIONS, etc
TP INDICATOR) Ta INDICATOR
EON INDICATOR PTY INDICATOR
RT INDICATOR STEREO INDICATOR
RDS INDICATOR TAPE 2 MONITOR INDICATOR
CINEMA BASS INDICATOR TUNED INDICATOR
AUTO INDICATOR
VCR1 RECORD MEMORY INDICATOR
SOURCE DISPLAY | PRESET INDICATOR
@ AUX/VIDEO INPUT JACKS
AUX/ VIDEO INPUT
VIDEO L~AUDIO-F
Additional video component
SLEEP INDICATOR
CHURCH INDICATOR
STADIUM INDICATOR
HALL INDICATOR
THEATER INDICATOR
O03 Stereo INDICATOR
OO Pro Logic INDICATOR
OOAC-3 INDICATOR
* The AUX/VIDEO jacks may be also connected to an
additional video component such as a camcorder, a video
deck or a video game player, etc.

DIGI LINK Ill System Remote controls
¢ You can remotely contro! not only this receiver but also Sherwood compatible components bearing the DIGI LINK II or
Ill logo.
« For system remote control operation, first make the DIGI LINK connections.
SLEEP BUTTON
POWER BUTTON
m@ CD PLAYER SECTION
DISC(CD changer only) — for disc selection
» — to begin play
nt — for pausing play
m ~to stop play or to clear a program
t«<,»~ — for skipping backward or forward
REPEAT A< >B-to play a specific passage
repeatedly
INTRO SCAN - to preview each track only
for 10 sec
INPUT SELECTOR BUTTONS
In the standby mode, when pressing a input
selector button, the unit is turned on automatically
and the desired input source is selected.
SURROUND MODE BUTTON
DELAY TIME BUTTON
MASTER VOLUME/CENTER LEVEL/REAR
LEVEL / SUBWOOFER LEVEL UP/DOWN
(A/V ) BUTTONS
MUTE BUTTON
PRESET SCAN BUTTON
SYSTEM DISPLAY BUTTON
NUMERIC BUTTONS — for selecting preset stations
or entering frequency directly in tuner mode.
For selecting a track or a disc in CD mode.
When selecting a disc, select disc No. (1~5) within 2
sec. after pressing the DISC button.
m@ TAPE DECK SECTION
DECK SELECTOR A, B — for selecting deck A or B
~«, » — to begin forward or reverse side playback
u —for pausing playback or recording
m —to stop playback or recording
<<, »»— to wind tape reverse or forward
e —for recording
@ EQUALIZER SECTION
PRESET -— for selecting equalizer pattern.
USER — for adjusting equalizer pattem as desired.
FILE —for selecting desired equalizer pattem in the}
preset or in the user mode.
DISPLAY — for selecting equalizer display.
T.MON — for monitoring the sound of recording or
playback on tape deck.
TEST TONE BUTTON
ADJUST BUTTON
* In the DIGI LINK Ii! remote control system, if pressing PLAY,etc. on CD player or tape deck, CD or TAPE 2 MONITOR
is selected automatically without selecting the input source and then PLAY,etc. starts.
In this case,to listen to TAPE 1, switch off the TAPE 2 MONITOR and select the TAPE 1.
Notes:
¢ Some functions for CD player, tape deck or equalizer may not be available.
¢ For details about functions, refer to the operating instructions of each component.
Giese ae

REMOTE CONTROL OPERATION RANGE
et rece Sel,
=
ody
=
©)
=
Ly
« Use the remote control unit within a range of about 7
meters (23 feet) and angles of up to 30 degrees
aiming of the remote sensor.
LOADING BATTERIES
7 |
a
1.
Remove
the
cover.
2.
Load
two
batteries
matching
the
polarity.
+
;
|
2x 1.5V
R6/SUM-3/AA
+ Remove the batteries when they are not used
for a long time.
¢ Do not use the rechargeable batteries(Ni-Cd
type). |

Operations
LISTENING TO A PROGRAM SOURCE |
Before operation
¢ Enter the standby mode.
[=]
« The STANDBY indicator lights up. This means that
the receiver is not disconnected from the AC mains
and a small amount of current is retained to support
the memorized contents and operation readiness.
* To switch the power off, push the POWER switch
again.
¢ Then the power is cut off and the STANDBY
indicator goes off.
@ In the standby mode, turn the power on.
CJ} Bes
STANDB?
t
* Each time the STANDBY button on the recever or
the POWER button on the remote control is pressed,
the receiver is turned on to enter the operating mode
or off to enter the standby mode.
* In the standby mode, if the INPUT SELECTOR
button is pressed on the remote control, the receiver
is turned on automatically and the desired input is
selected. ,
- Switch the speakers on.
SPEAKER
O ovo
i
¢ Then sound can be heard from the speakers
connected to the speaker terminals.
* When using the headphone for private listening,
press the SPEAKER switch again to switch the
speakers off.
INPUT SELECTOR’
Select the desired input source.
1.2 MONITOR
INDEX
« Each time the INPUT SELECTOR/INDEX knob is
rotated, the input source changes as follows :
PHONO +» TUNER + CD PLAYER ~ TAPE 1
[ (frequency display) ]
AUX/TV < VCRI «+ LD PLAYER + DVD
« When the TAPE 2 MONITOR button is set to on so
that “TAPE 2M” indicator lights up, other inputs
can not be heard from the speakers.
To listen to a input source other than TAPE 2
MONITOR, be sure to set the TAPE 2 MONITOR
button to off.
TAPE 2 MONITOR function
You can connect either a tape deck or a graphic
equalizer to the receiver's TAPE 2 MONITOR jacks.
Only when you listen to the component connected to
these jacks, set the TAPE 2 MONITOR button to on.
If you connect a 3-head tape deck, you can listen to the
sound being recorded during recording, not the source
sound.
For further details, refer to the operating instructions
of the component connected.
When the AUX/TV is selected as input source
¢ Select the front AUX/VIDEO or the rear TV/AUX.
AUX SEL
i
* If the front AUX/VIDEO is selected, the FRONT
AUX indicator lights up.

When CD, DVD, LDP or AUX/TV is
selected as input source
+ Select the digital (or the analog) input connected as
desired.
OIGITAL
ANPUT.
¢ Each time this button is pressed,
the corresponding input is
selected as follows;
—In the normal stereo or a
surround mode other than the
Dolby DIGITAL(AC-3) mode.
OPTICAL— COAXIAL > ANA LOG i]
es = =)
~In
the
Dolby
DIGITAL(AC-3)
mode:Not
available
for
CD
fe
(RF:LDP
only)
-
OPTICAL
—
COAXIAL
at
« When the selected optical or coaxial digital input is not
connected, the selected DIGITAL INPUT indicator is
flickering, meaning no sound. (Refer to “Select the
desired surround mode” on page 13)
¢ When DVD, LDP or AUX/TV is selected and the
Dolby DIGITAL(AC-3) mode is selected, regardless of
the input source selected, the Dolby DIGITAL(AC-3)
program sources on the component connected to the
selected digital input can be heard.
Operate the selected component for playback.
« When playing back the program sources
with the surround sound, refer to
“Enjoying surround sounds” on page 13.
Adjust the (overall) volume.
MASTER VOLUME
MASTER VOLUME
Adjust the tone (bass and treble).
DOWN UP
BASS TREBLE
Note : Extreme settings at high volume may damage
your speakers.
oo
Adjust the stereo balance between the left and :
the right channels.
BALANCE
x
n
=i
[o)
=
TT}
Adjust the subwoofer level.
ee | or
* It is adjustable only when the subwoofer is connected
and the subwoofer is set to “YES” . (Refer to
Adjusting the speaker setting” on page 14 )
———————
To enjoy the impressive bass sound.
CINEMA BASS
h
« Press it again to cancel.
To mute the sound.
¢ The “MUTE?” is flickering.
* To resume the previous sound level, press it again.
To listen with the headphones.
PHONES
¢ Ensure that the SPEAKER ON/OFF switch is set to off.
Soest ertenn |
|
j
|
;
|
|
!

SURROUND SOUNDS |

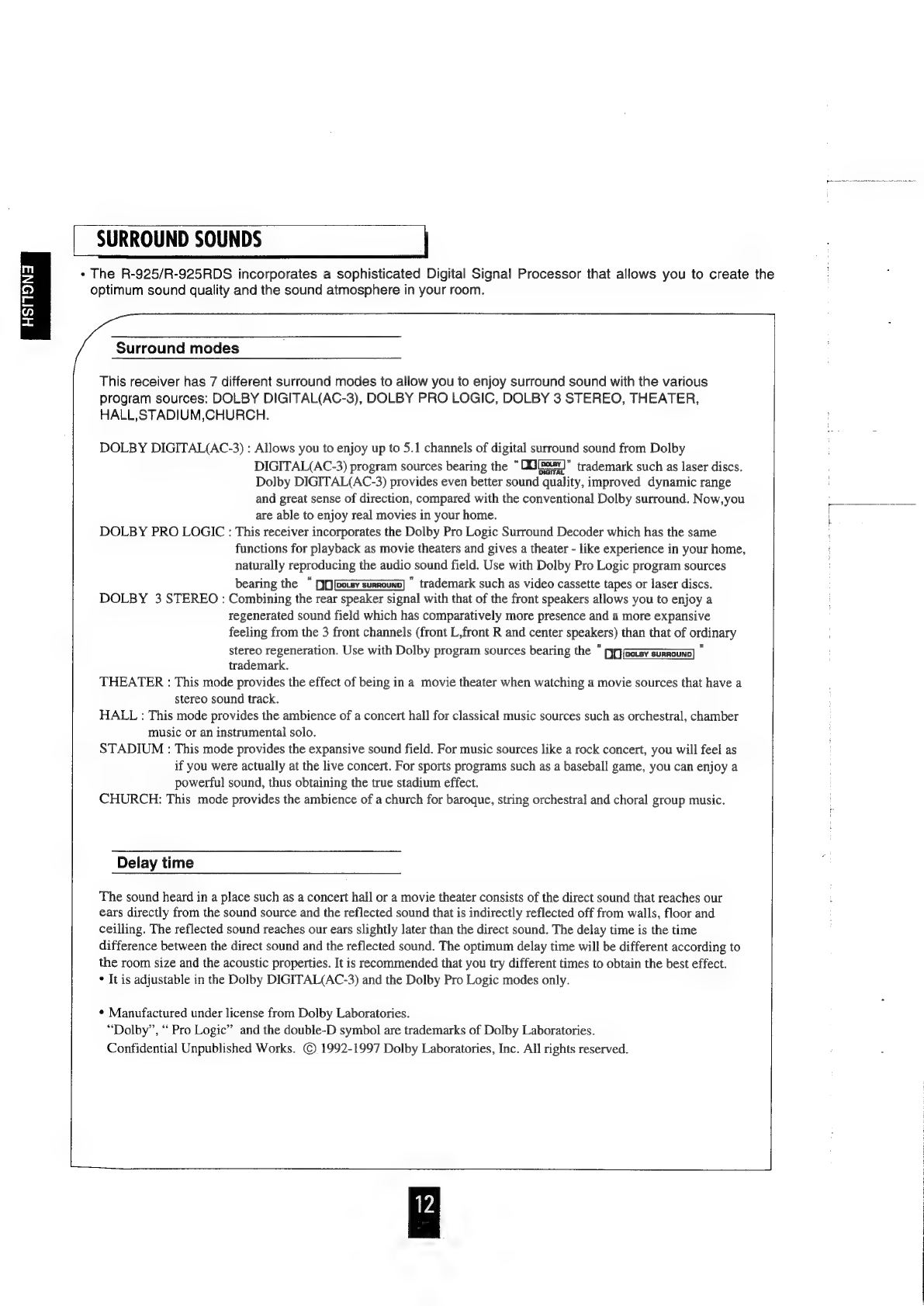

* The R-925/R-925RDS incorporates a sophisticated Digital Signal Processor that allows you to create the
9 Se sian lease
HSITONA
optimum sound quality and the sound atmosphere in your room.
Surround modes
This receiver has 7 different surround modes to allow you to enjoy surround sound with the various
program sources: DOLBY DIGITAL(AC-3), DOLBY PRO LOGIC, DOLBY 3 STEREO, THEATER,
HALL,STADIUM,CHURCH.
DOLBY DIGITAL(AC-3) : Allows you to enjoy up to 5.1 channels of digital surround sound from Dolby
DIGITAL(AC-3) program sources bearing the “OO[82")”" trademark such as laser discs.
Dolby DIGITAL(AC-3) provides even better sound quality, improved dynamic range
and great sense of direction, compared with the conventional Dolby surround. Now,you
are able to enjoy real movies in your home.
DOLBY PRO LOGIC : This receiver incorporates the Dolby Pro Logic Surround Decoder which has the same
functions for playback as movie theaters and gives a theater - like experience in your home,
naturally reproducing the audio sound field. Use with Dolby Pro Logic program sources
bearing the “[()[potavsunrouno] ” trademark such as video cassette tapes or laser discs.
DOLBY 3 STEREO : Combining the rear speaker signal with that of the front speakers allows you to enjoy a
regenerated sound field which has comparatively more presence and a more expansive
feeling from the 3 front channels (front L,front R and center speakers) than that of ordinary
stereo regeneration. Use with Dolby program sources bearing the “ p(](sacevsunnouno] ”
trademark.
THEATER : This mode provides the effect of being ina movie theater when watching a movie sources that have a
stereo sound track.
HALL : This mode provides the ambience of a concert hall for classical music sources such as orchestral, chamber
music or an instrumental solo.
STADIUM : This mode provides the expansive sound field. For music sources like a rock concert, you will feel as
if you were actually at the live concert. For sports programs such as a baseball game, you can enjoy a
powerful sound, thus obtaining the true stadium effect.
CHURCH: This mode provides the ambience of a church for baroque, string orchestral and choral group music.
Delay time
The sound heard in a place such as a concert hall or a movie theater consists of the direct sound that reaches our
ears directly from the sound source and the reflected sound that is indirectly reflected off from walls, floor and
ceilling. The reflected sound reaches our ears slightly later than the direct sound. The delay time is the time
difference between the direct sound and the reflected sound. The optimum delay time will be different according to
the room size and the acoustic properties. It is recommended that you try different times to obtain the best effect.
* It is adjustable in the Dolby DIGITAL(AC-3) and the Dolby Pro Logic modes only.
* Manufactured under license from Dolby Laboratories.
“Dolby”, “ Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.
Confidential Unpublished Works. © 1992-1997 Dolby Laboratories, Inc. All rights reserved.
a

Speaker
placement
FRONT
Ws
FRONT
To obtain the best surround sound effect in your home, place the
speakers as follows;
+
Front
speakers
:
Place
each
front
speaker
about
1m
(40”)
from
the
TV
set.
+ Center speaker : Place the center speaker either above or below the
TV set to assure good visualization of center
channel program.
+
Rear
speakers
:
Place
the
rear
speakers
approximately
1m
above
the
ear
level
of
a
seated
listener
on
the
direct
left
and
right
of
them
or
slightly
behind.
*
Subwoofer
:
Reproduces
powerful
deep
bass
sounds.
Place
a
powered subwoofer anywhere in the front as desired.
+
The
ideal
surround
system
needs
all
the
speakers
listed
above.
However,
if
you
don’t
have
a center
speaker,
a
subwoofer
or
rear
speakers,
select
the
best
possible
surround
mode
with
the
available
speakers.
Note:
To
avoid
interference
with
the
TV
picture,
use
only
magnetically
shielded
center
and
front
speakers.
x
Y
-
oO
z
ii
ENJOYING SURROUND SOUNDS
[ENJOYING SURROUND SOUNDS |
+
Surround
sound
effect
will
not
work
properly
if
the
signal
passes
through
a
graphic
equalizer.
Please
refer
to
your
equalizer
operating
instructions
for
guidance
on
switching
off
(or
defeating)
the
equalizer.
Select
the
desired
surround
mode.
;
m@
When
selecting
a
surround
mode
other
than
the
Dolby DIGITAL(AC-3) mode.
m@ When selecting the Dloby DIGITAL(AC-3) mode.
DIGITAL
or
+
The
Dolby
DIGITAL(AC-3)
mode
is
available
for
the
i
DODIGITAL(AC:3)—>
OO
Pro
Logic
O10
3
eee
|
input
sources
such
as
DVD,
LDP
and
AUX/TV
only.
(OFF)
«-
CHURCH
<
STADIUM
<—
HALL
* To enjoy the Dolby DIGITAL(AC-3), be sure that the
program source to be played back is the Dolby
DIGITAL(AC-3)
program
source
and
the
corresponding
@
When
canceling
the
surround
mode
for
normal
stereo
digital input is selected. If not, no sound will be heard. operation.
« When LDP is selected, RF can be also selected among
the digital inputs in the Dolby DIGITAL(AC-3) mode
i
is
+ Each time the SURROUND MODE button is pressed
the surround mode changes as follows;
“(
)*:Remote
control
only.
only (Refer to “When CD, DVD, LDP or AUX/TV is
selected as input source” on page 11.)

Adjusting the speaker settings
Select the desired subwoofer mode.
« Adjusting the setting of the center speaker and the
subwoofer connected.
SPEAKER
MODE
i
» Each time this button is pressed,the subwoofer
mode changes and flickers as follows;
Press the SPEAKER MODE button for more
than 2 seconds to enter the center speaker
mode.
SPEAKER
MODE
i
¢ In the THEATER, HALL, STADIUM, CHURCH or
normal stereo mode, it will become the subwoofer
mode directly.
YES : When using a subwoofer.
NO : When not using a subwoofer.
Memorize the desired subwoofer mode
while it flickers.
Select the desired center speaker mode.
SPEAKER
MODE
* Each time this button is pressed, the center speaker mode
changes and flickers as follows;
MEMO / ENTER
i
¢ If the subwoofer display goes off, repeat again from
the above step 2.
LARGE : When using a relatively large center speaker.
|
SMALL : When using a relatively small center speaker.
NONE: When not using a center speaker.
* In the Dolby 3 Stereo mode, the NONE mode can not be
selected.
Memorize the desired center speaker mode
while it flickers.
Checking the speaker setting
MEMO / ENTER
:
* The desired center speaker mode is memorized and
then it becomes the subwoofer mode.
If the center speaker display goes off, repeat again
from the above step 2.
SPEAKER
MODE
zz
¢ Each time this button is pressed briefly, the setting
of the center speaker or the subwoofer is displayed.
:
|

In Dolby DIGITAL(AC -3), Dolby Pro
Logic or Dolby 3 Stereo mode
Press the TEST TONE button to adjust the
volume level of each speaker.
+ Test tone will be heard form each speaker for 2
seconds each as follows;
FRONT L>CENTER-FRONT R-REAR R-REAR L-SUB
« The test tone will be heard from the subwoofer only
when subwoofer is set to “YES” in the Dolby
DIGITAL(AC-3) mode.
+ Test tone is not heard from rear speakers in Dolby 3
Stereo mode.
*
Test
tone
is
not
heard
from
center
speaker
when
the
center
speaker
setting
is
adjusted
to
the
NONE
mode.
Adjust the volume levels of the speakers
until they all sound equally loud.
* The rear L and R volume levels are adjusted
repsectively during the test tone function and all
together while enjoying surround sounds.
Cancel the test tone function.
Check the delay time to be adjusted.
° The delay time will be displayed for 5 seconds.
+ In Dolby DIGITAL(AC-3) mode, the corresponding
delay time will be flickering.
+ The center delay time can be adjustable only in
Dolby DIGITAL(AC-3) mode.
° The rear delay time can be adjustable only in Dolby
DIGITAL(AC-3) and Dolby Pro Logic modes.
Adjust the delay time.
+ Each time this button is pressed, the delay time
changes in regular intervals.
« If the delay time disappears, start from the step 10
again
Memorize the delay time.
« In Dolby Pro Logic mode, the
rear delay time can be
memorized without pressing
the DELAY TIME button.
In Dolby DIGITAL(AC-3) mode, repeat
the above steps 11 and 12 to adjust the rear
delay time.
In THEATER, HALL, STADIUM or
CHURCH Mode
Adjust the volume level of the
rear speakers relative to that of
the front speakers.
REAR LEVEL +
__REAR LEVEL
pen ne Bhat ath easy oe
j
|
|

LISTENING TO RADIO BROADCASTS
Select the tuner.
(GX
INPUT SELECTOR’ or
INDEX
Manual tuning
* Manual tuning is useful when you already know the
frequency of the desired transmitter.
Press TUNING - or + repeatedly until the
right frequency has been reached.
TUNING TUNING
- +
Select the desired band. Frequency direct tuning
BAND
Enter the frequency direct tuning mode.
FREQ.ORECT
BAND FREQUENCY th
Each time this button is pressed, the band is
changed to FM or AM. — =
+ When pressing the BAND button without ro eo ee oe id
selecting the TUNER, the tuner will be selected : Z yes -
automatically and operate.
Auto tuning Enter the frequency within 7 seconds for
et
eee
ee
oe
ae
each
digit.
Press TUNING - or + for more than 0.5
second.
Examples)
+ FM 89.15MHz: O-O-O0-O
* FM 100.15 MHz: 6-6-0-6
fh + AM576kHz: 0-0-0
+ AM 1611kHz: 9_6-0-0
* Then AUTO appears on the display. The tuner will + In FM band, If “1” is pressed on the first dight,
now search until a station of sufficient strength has “10” is entered.
been found. The display shows the tuned ¢ With the numeric button on the remote control, you
frequency and “TUNED” can also enter the frequency.
« If the station found is not the desired one, simply * In each digit, if it elapses 7 seconds, press the
repeat this operation. FREQUENCY DIRECT button again to enter the
: |
*
Weak
stations
are
skipped
during
auto
tuning.
megveney:
|

—
‘Presettingradio stations Listening to FM stereo broadcasts
.Y. nae
ou can store up to 30 preferred stations in the + While listening to FM broadcasts.
memory. ada
ie)
Tune in the desired station with auto or
manual tuning, etc. (ny
+ Each time this button is pressed, the FM mode
Press the MEMOR Y/ENTER button. changes as follows;
Stereo mode : “ST” lights up
th
Mono
mode
:
“ST”
goes
off
a
+ When FM stereo broadcasts are poor because of weak
broadcast signals, select the FM mono mode to reduce
the noise, then FM broadcasts are reproduced in
monaural sound
De Sasa
¢ “MEMORY” is flickering for 5 seconds.
Enter a preset number (1~30).
Examples)
a
ee
*
For
“3”:
Scanning
preset
stations
in
sequence
¢
For
“15”:
* The station has now been stored in the memory
« A stored frequency is erased from the memory by
storing another frequency in its place.
* If “MEMORY” goes off, press the
MEMORY/ENTER
button
again
to
enter
a
preset
*
The
receiver
will
start
scanning
the
stations
in
the
number. preset sequence and each station is received for 5
_ | seconds.
Tuning to preset stations
Press the desired preset number. : ; ;
r P At the desired station, press this button
again to stop scanning.
Example)
* For “3”:
m@ MEMORY BACKUP FUNCTION
The following items, set before the receiver is turned off,
are memorized.
If the electricity fails or the AC input cord is
disconnected for about 2 weeks, they are all cleared.
So you should memorize them again.
¢ INPUT SELECTOR settings
«VCR 1 RECORD settings
¢ Surround mode settings
* Preset stations
* Video labels, etc.
¢ For “15”:
* When pressing the numeric buttons on the front
panel without selecting the TUNER, the tuner will be
selected automatically and the preset station will be
tuned in.
=
2
a)
o)
=
Ww
rw en ee

Additional Function for R-925 RDS Tuner Only___
LISTENING TO RDS BROADCASTS (FM only)
RDS (Radio Data System) is a method for sending information signals together with the transmitter signals. Your
tuner is capabie of translating these signals and putting the information on the display. These codes contain the
following informations .Program service name(PS), A list of Program Types(PTY), Traffic Announcement(TA),
Clock Time(CT), Radio Text(RT).
While displaying “TP SEARCH”.
* Use this function to automatically search and
receive the stations offering RDS services. (h
RDS search
In the FM mode, select the RDS search mode. : ’
« The tuner automatically searches for stations
oe broadcasting the traffic program.
¢ “NO TRAFFIC” is displayed if the signal is too weak
or there are no stations broadcasting the traffic
program.
« When “TP SEARCH” is not displayed repeat again
« Each time this button is pressed, the search mode from the above step 1.
changes as follows;
RDS SEARCH—TP SEARCH—PTY SEARCH—>OFF PTY search
¢ Use this function to automatically search and receive
While displaying “RDS SEARCH” the stations broadcasting the desired program type.
In the FM mode, select the PTY search mode.
TUNING TUNING
J
i
¢ The tuner automatically searches stations offering
RDS services and the station name is displayed. While displaying “PTY SEARCH”, select the
*
If
the
station
found
is
not
the
desired
one,
press
the
desired
program
type.
pry
SELECT
TUNIG — or + again while the RDS indicator is 4
¢ “PTY SEARCH” is displayed. fn
flickering.
* If no other RDS station is found, “NO RDS” is
displayed.
:
+
When
“RDS
SEARCH”
is
not
displayed,
repeat
Bri
obnonkianciyal
arin
ager
: es 0 programs Is Selected. : :
Peau trom the above slept: INFORMATION, SPORT, EDUCATION,
DRAMA, CULTURE, SCIENCE, VARIED, POP
TP search MUSIC, ROCK MUSIC, M.O.R. MUSIC, LIGHT
ee MUSIC, SERIOUS MUSIC, OTHER MUSIC,
* Use this function to automatically search and receive ALARM, UNDEFINED)
the stations broadcasting the traffic program. + When “PTY SEARCH?” is not displayed, repeat
again from the above step 1.
In the FM mode, select the TP search mode.
SEARCH
TUNING TUNING
fh ¢ The tuner automatically searches (ny
7 ee a station offering PTY services.
* “TP SEARCH” is displayed. * If no station is found, “NO PROGRAM” is displayed.
18
prec eertnmrncimnne

EON PTY (EON : Enhanced Other
Networks information)
+ Use this function to automatically search and receive
the desired program type while listening toa RDS
station.
In the RDS mode.
i
+ Program type is displayed and the PTY indicator is
flickering.
While the PTY indicator is flickering, select
the desired program type.
PTY SELECT
i
« If one of the preset stations is broadcasting the
selected program type, it will be tuned in while
listening to a RDS station.
+ If the station stops broadcasting the selected program
type, the tuner will find other stations repeatedly.
+ If no station is found, the previous RDS station will
be tuned in.
¢ When the PTY indicator goes off, repeat again from
the above step 1.
* Press the EON PTY button to cancel the EON PTY
mode.
[
EON TA
¢ Use this function to automatically search and receive
the traffic announcement while listening to traffic
x
Y
|
oO
2
ii
program.
In the TP mode.
EON TA
i
* Traffic program is displayed and the TA indicator
lights up.
+ If the preset station broadcasting traffic announcement
is found, it will be tuned in while listening to traffic
program.
« If the station stops broadcasting traffic announcement,
the tuner will find other stations repeatedly.
¢ If no station is found, the previous traffic program
station will be tuned in.
¢ Press the EON TA button to cancel the EON TA
mode.
DISPLAY
In the FM mode.
DISPLAY
+ Each time this button is pressed, the display mode
changes as follows;
Program Program Clock | Radio
Frequency || Servicename || Type i-{ Time |) Text
9 em | | en | @ |
« If the signals are too weak or no RDS service is
available, “NO NAME DATA”, “NO PTY DATA”,
“NO TIME DATA” or “NO TEXT DATA” will be
displayed.

AUDIO RECORDING
The digital signals from optical, coaxial or RF digital input can be heard but cannot be recorded
Recording with TAPE 1
Select the desired input as recording source
except for TAPE! and TAPE 2 MONITOR.
Recording with TAPE 2 MONITOR
Select the desired input as recording source
except for TAPE 2 MONITOR.
/fX»
INPUT SELECTOR’
INDEX or
INPUT SELECTOR/
INDEX
* Be sure that the TAPE 2 MONITOR indicator goes off.
Start recording on the TAPE 1.
Start play on the desired input. Start recording on the TAPE 2 MONITOR.
Start play on the desired input.
¢ When the TAPE 1 is selected as recording source,
dubbing will start from TAPE 1 to TAPE 2
MONITOR.
+ It is not possible to dub from TAPE 2 MONITOR to
TAPE 1.
« For tape 2 monitor function, refer to “TAPE 2
MONITOR function” on page 10.
