Shift Labs DRIPASSIST User manual
DRIPASSIST
Quick Guide

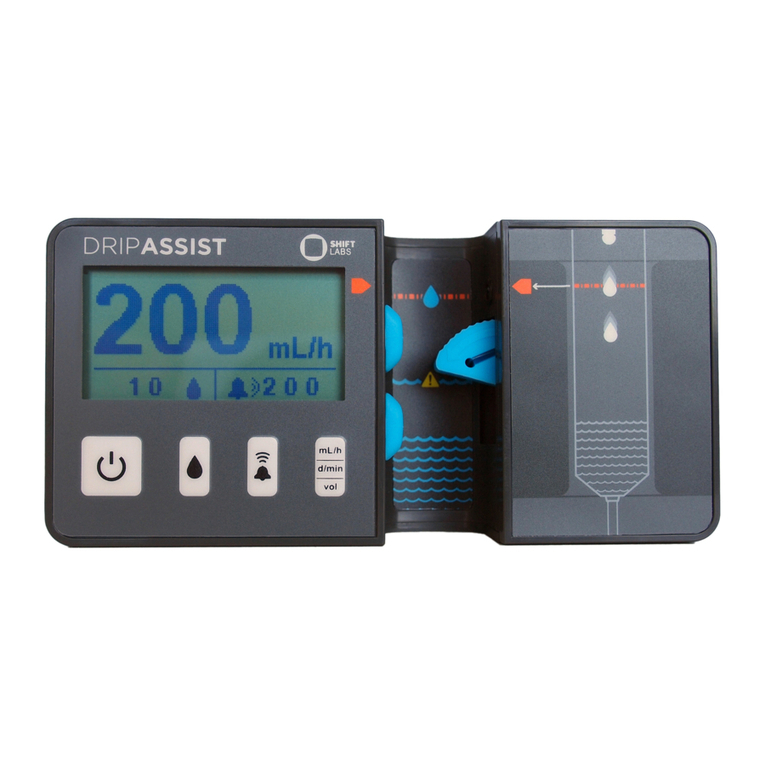

Place the DripAssist on the infusion chamber of the IV set by sliding it
upwards from tubing to chamber. Position it so that the drops cross the
indicator line, as shown to the left. Ensure the fluid level in the chamber is
low enough so that drops fall cleanly through the sensor pathway.
Avoid drop formation or splashing in the region of the indicator line.
Once the DripAssist is correctly positioned, turn it on.
Press the power button to turn the DripAssist on and off.
When first powered on, the device will display four gtt/mL sizes. See next
step.
Positioning
Power
Set Tubing Drip Factor
Begin The Infusion
Alarm
Display Units Mode
The DripAssist supports IV sets with drip factors of 10, 15, 20, and 60
gtt/mL. The bottom left message on the LCD “Set [drop]” is displayed once
the unit is turned on, and the four tubing sizes are displayed. Press the
Drip Factor button to select a drip factor of 10, 15, 20, or 60 to match the
tubing set you are using. Pause for two seconds to select the desired
number.
Using the IV set's built-in roller clamp, begin the infusion process
following standard operating procedures.
Once you have set the flow rate to your desired target, you can activate
the alarm function by pressing the alarm button. We recommend waiting
about 30 seconds before activating the alarm, as this allows the flow
rate to stabilize. Whatever flow rate is registered when the alarm button
is activated becomes the alarm set-point. If the flow rate changes by
more than 13% from the set-point, the alarm will sound. Press the alarm
mode button again to disable it.
The DripAssist has three measurement modes. You can see the flow
rate as mL/hr or as drops/minute. You can also see the total volume
dispensed since the infusion began by using the vol display. Press the
display units button to toggle between these displays.
d/min
mL/h
vol
DRIPASSIST
Battery Installation
Open Battery Door
Install Battery
Replace Door
First, slide the battery door in the direction shown
by pressing firmly on the inside edge.
Next, place AA battery into the device,
using the +/- symbols for orientation.
Finally, replace the door by inserting the tabs on the door into the holes
and pushing towards the center of the device until it clicks into place.
This product is for veterinary use only.
Limited Warranty:
Shift Labs Inc. warrants its products to be free from defects in material and/or workmanship for a period of one(1)
year from the original date of purchase. If within one (1) year from the original date of purchase this product fails
due to defect in material or workmanship, Shift Labs Inc. will repair or replace any defective part at their option. The
purchaser must contact Shift Labs Inc. and provide a description of the defective part, including digital pictures if
requested, with the original purchase documentation as validation of warranty coverage date. Defective products
must be returned to the manufacturer freight prepaid as requested under the terms of this warranty. The cost of
freight of all warrantee products from Shift Labs Inc. shall be the responsibility of the purchaser.
Exceptions that may result in denial or a warranty claim:
1. Damage caused by careless handling, improper repackaging, or shipping.
2. Damage due to misapplication, misuse, abuse or failure to operate equipment as specified in the
owner’s manual.
3. Damage due to unauthorized product modifications.
4. Damage caused by negligence or failure to properly maintain products as specified in the owner’s
manual.
5. Accidental damage caused by Force Majeure such as fire, acts of God, or other circumstances outside
the control of Shift Labs.
Contact: [email protected]
Shift Labs, 1752 NW Market St. #211, Seattle, WA 98107 USA
Shift Labs is a small company with a passion to provide great products at
very affordable prices. We strive to make our customers happy, and we want
to hear from you. Your feedback and suggestions would be greatly
