Operator’s Manual
Specifications, descriptions and illustrative material in this literature are as
accurate as known at the time of publication, but are subject to change without
notice. Illustrations may include optional equipment and accessories, and may
not include all standard equipment.
66001
Multi-Tool Trimmer
Attachment
FOR MODELS: M262, M235
Users of this equipment risk injury to themselves and
others if the unit is used improperly and/or safety
precautions are not followed. ECHO provides an
operator’s manual. It must be read and understood for
proper and safe operation. Failure to do so could result in
serious injury.

TABLE OF CONTENTS 66001
2 X7712093101
© 8/2017 ECHO Inc.
TABLE OF CONTENTS
Introduction ................................................................................................. 3
The Operator’s Manual ........................................................................ 3
Servicing Information .................................................................................. 3
Parts/Serial Number ............................................................................ 3
Service................................................................................................. 3
Consumer Product Support................................................................. 4
Product Registration ............................................................................ 4
Additional or Replacement Manuals.................................................... 4
Safety.......................................................................................................... 4
Manual Safety Symbols and Important Information............................. 4
International Symbols.......................................................................... 5
Personal Condition and Safety Equipment .......................................... 6
Equipment.......................................................................................... 10
Description................................................................................................ 12
Contents.................................................................................................... 13
Assembly................................................................................................... 13
Power Head Shaft to Lower Shaft Assembly ..................................... 13
Operation .................................................................................................. 14
To Advance Trimmer Line (Automatic Line Head Models)................. 14
Maintenance ............................................................................................ 15
Skill Levels......................................................................................... 15
Maintenance Intervals........................................................................ 15
Lubrication ......................................................................................... 15
Nylon Line Replacement.................................................................... 16
Storage...................................................................................................... 18
Storage Hook Installation................................................................... 18
Specifications............................................................................................ 19
Product Registration.................................................................................. 20
Notes......................................................................................................... 22

66001 INTRODUCTION
X7712093101 3
© 8/2017 ECHO Inc.
ENGLISH
INTRODUCTION
Welcome to the SHINDAIWA family. This SHINDAIWA product was
designed and manufactured to provide long life and on-the-job
dependability. Read and understand this manual. You will find it easy to use
and full of helpful operating tips and SAFETY messages.
The Operator’s Manual
Keep it in a safe place for future reference. Contains specifications and
information for safety, operation, maintenance, storage and assembly
specific to this product.
SERVICING INFORMATION
Parts/Serial Number
Genuine SHINDAIWA Parts and
Assemblies for your SHINDAIWA
products are available only from an
Authorized SHINDAIWA Dealer.
When you do need to buy parts
always have the Model Number and
Serial Number of the unit with you.
You can find these numbers on the
engine housing. For future
reference, write them in the space
provided below.
Model No. _________________ Serial No. _________________
Service
Service of this product during the warranty period must be performed by an
Authorized SHINDAIWA Service Dealer. For the name and address of the
Authorized SHINDAIWA Service Dealer nearest you, ask your retailer or
call: 1-877-986-7783. Dealer information is also available on
WWW.SHINDAIWA-USA.COM. When presenting your unit for Warranty
service/repairs, proof of purchase is required.

SAFETY 66001
4 X7712093101
© 8/2017 ECHO Inc.
Consumer Product Support
If you require assistance or have questions concerning the application,
operation or maintenance of this product you may call the SHINDAIWA
Consumer Product Support Department at 1-877-986-7783 from 8:00 am to
5:00 pm (Central Standard Time) Monday through Friday. Before calling,
please know the model and serial number of your unit.
Product Registration
To ensure trouble free warranty coverage it is important that you register
your SHINDAIWA equipment on-line at WWW.SHINDAIWA-USA.COM or by
filling out the product registration sheet included in this manual. Registering
your product confirms your warranty coverage and provides a direct link
between you and ECHO if we find it necessary to contact you.
Additional or Replacement Manuals
Replacement Operator and Parts Catalogs are available from your
SHINDAIWA dealer or at WWW.SHINDAIWA-USA.COM or by contacting
the Consumer Product Support Department (1-877-986-7783). Always
check WWW.SHINDAIWA-USA.COM for updated information.
SAFETY
Manual Safety Symbols and Important Information
Throughout this manual and on the product itself, you will find safety alerts
and helpful, informational messages preceded by symbols or key words.
The following is an explanation of those symbols and key words and what
they mean to you.
The safety alert symbol accompanied by the word “DANGER”
calls attention to an act or condition which WILL lead to serious
personal injury or death if not avoided.
The safety alert symbol accompanied by the word “WARNING”
calls attention to an act or condition which CAN lead to serious
personal injury or death if not avoided.

66001 SAFETY
X7712093101 5
© 8/2017 ECHO Inc.
ENGLISH
The safety alert symbol accompanied by the word “CAUTION”
calls attention to an act or condition which may lead to minor or
moderate personal injury if not avoided.
The enclosed message provides information necessary for the
protection of the unit.
Note: This enclosed message provides tips for use, care and
maintenance of the unit.
CIRCLE AND SLASH SYMBOL
This symbol means the specific action shown is prohibited.
Ignoring these prohibitions can result in serious or fatal injury.

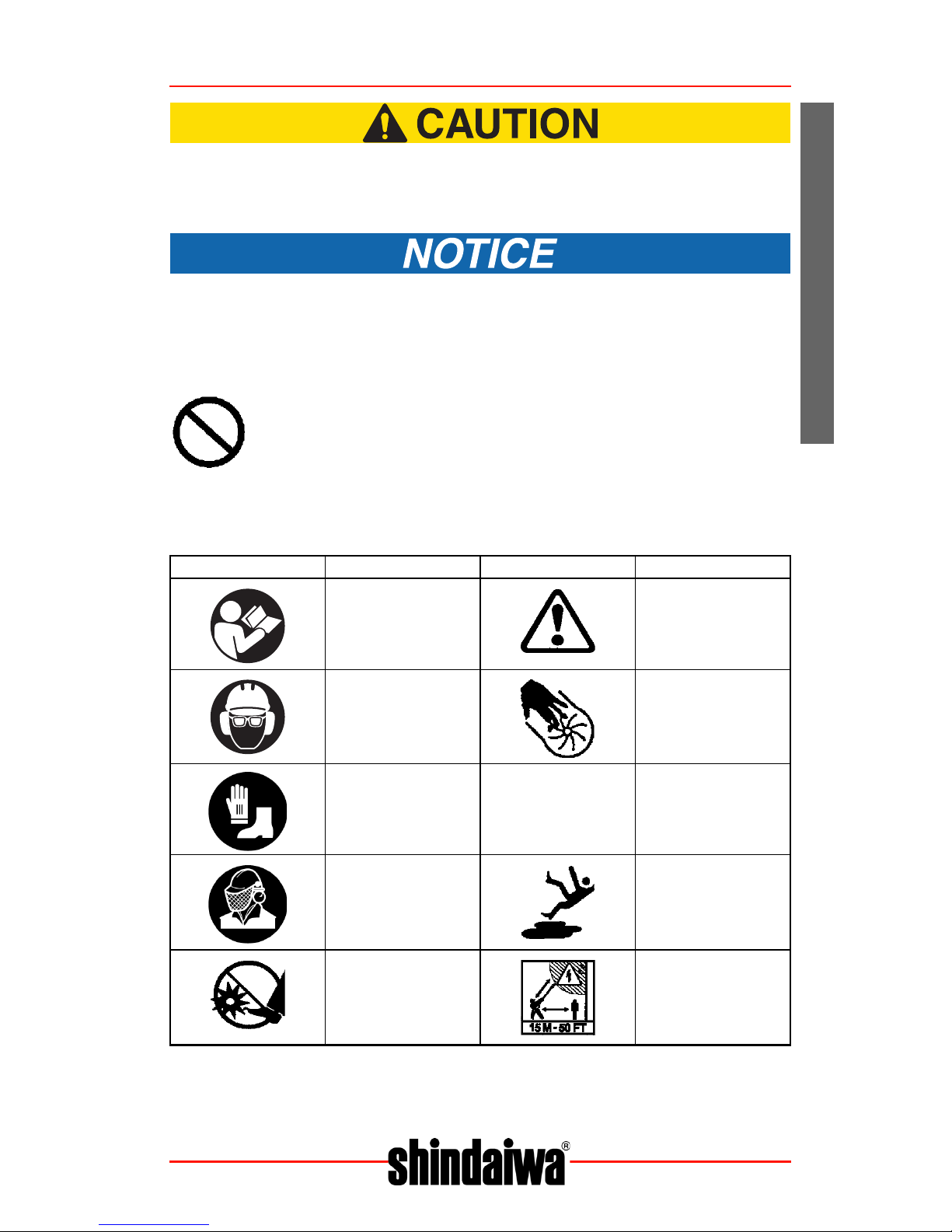

International Symbols

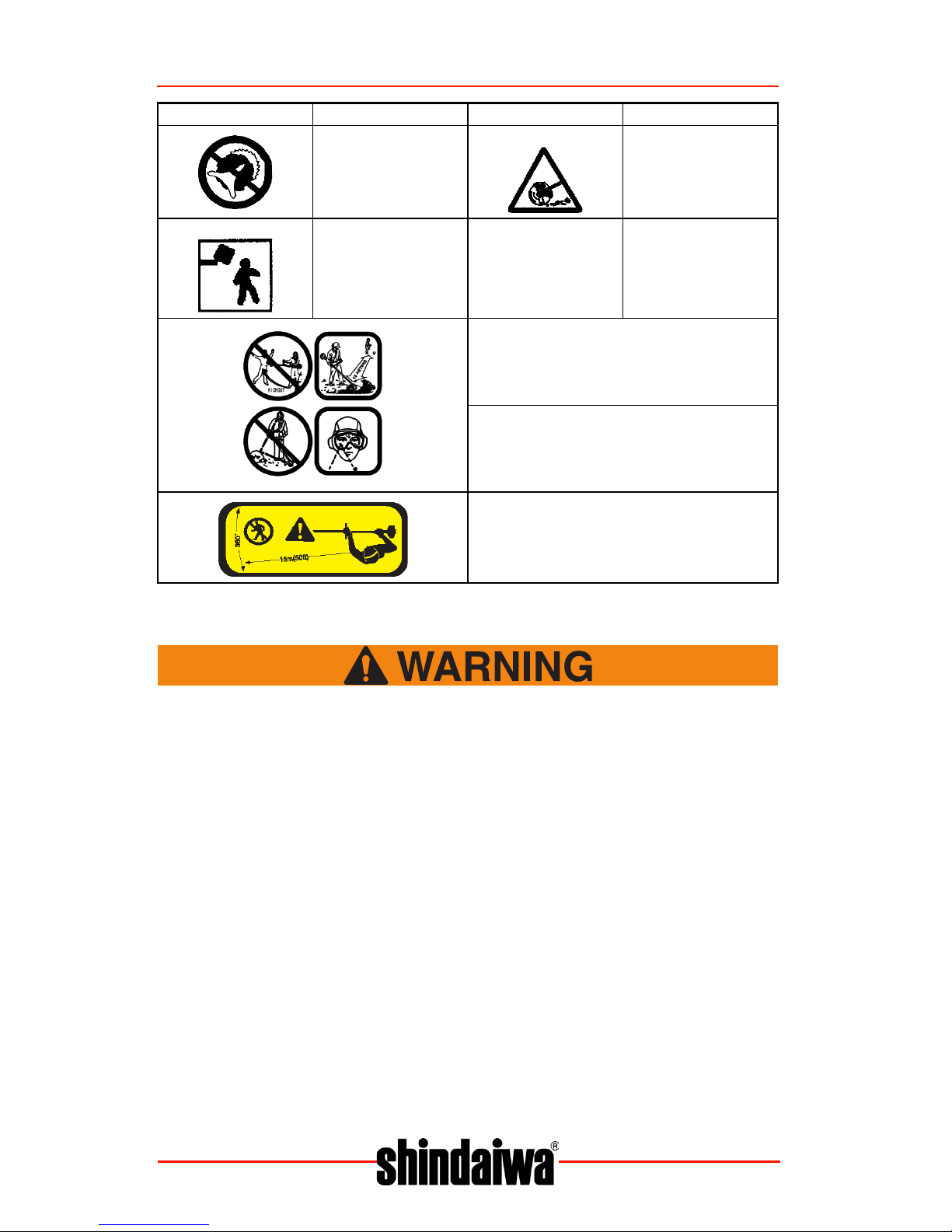

Symbol Description Symbol Description
Warning, See
Operator’s Manual Safety / Alert
Wear Eye, Ear and
Head Protection Finger Severing
Wear Hand and Foot
Protection Rotating Cutting
Attachment
Wear Face Shield Wear Slip Resistant
Footwear
Keep Feet Away From
Blade
Do not operate closer
than 15 m (50 ft.) from
electrical hazards.
Keep bystanders at
least 15 m (50 ft.)
away.

SAFETY 66001
6 X7712093101
© 8/2017 ECHO Inc.
Personal Condition and Safety Equipment
Users of this product risk injury to themselves and others if the
unit is used improperly and/or safety precautions are not
followed. Proper clothing and safety gear must be worn when
operating unit.
Physical Condition
Your judgment and physical dexterity may not be good:
• If you are tired or sick
• If you are taking medication
• If you have taken alcohol or drugs
Operate unit only if you are physically and mentally well.
DO NOT USE
BLADES - Line Head
Only Thrown Objects
Plan retreat path from
falling objects. Hot Surface
AVOID KICKOUT
Keep Bystanders At Least
15 m (50 ft.) Away
Beware Thrown Objects
Wear Eye Protection
Keep Bystanders and Helpers
Away 15 m (50 ft.)
Symbol Description Symbol Description

66001 SAFETY
X7712093101 7
© 8/2017 ECHO Inc.
ENGLISH
Eye Protection
◆Eye protection that meets ANSI Z87.1 or CE requirements
must be worn whenever you operate the unit.
◆For additional safety, a full-face shield may be worn over
safety glasses or goggles to provide protection from sharp
branches or flying debris.
Hand Protection
Wear sturdy, no-slip, rubber work gloves to improve your grip on the
handles. Gloves also provide protection against cuts and scratches, cold
environments, and reduce the transmission of machine vibration to your
hands.
Hearing/Ear Protection
ECHO recommends wearing hearing protection whenever unit is used.
Breathing Protection
Operators who are sensitive to dust or other common airborne allergens
may need to wear a dust mask to prevent inhaling these materials while
operating unit. Dust masks can provide protection against dust, plant debris,
and other plant matter such as pollen. Make sure the mask does not impair
your vision, and replace the mask as needed to prevent air restrictions.
Proper Clothing
Wear snug-fitting, durable clothing:
• Pants should have long legs, shirts should have long sleeves.
• DO NOT WEAR SHORTS.
• DO NOT WEAR TIES, SCARVES, JEWELRY, or clothing with loose or
hanging items that could become entangled in moving parts or
surrounding growth.
• Keep clothing buttoned or zipped, and keep shirt tails tucked in.
Wear sturdy work shoes with nonskid rubber soles:
• DO NOT WEAR OPEN TOED SHOES.
• DO NOT OPERATE UNIT BAREFOOTED.
Keep long hair away from engine and air intake. Retain hair with cap or net.

SAFETY 66001
8 X7712093101
© 8/2017 ECHO Inc.
Heavy protective clothing can increase operator fatigue, which may lead to
heat stroke. Schedule heavy work for early morning or late afternoon hours
when temperatures are cooler.
The components of this machine generate an electromagnetic
field during operation, which may interfere with some
pacemakers. To reduce the risk of serious or fatal injury,
persons with pacemakers should consult with their physician
and the pacemaker manufacturer before operating this
machine. In the absence of such information, ECHO does not
recommend the use of this machine by anyone who has a
pacemaker.
Extended Operation / Extreme Conditions
Prolonged exposure to cold and/or vibration may result in
injury. Read and follow all safety and operation instructions to
minimize risk of injury. Failure to follow instructions may result
in painful wrist/hand/arm injuries.
It is believed that a condition called Raynaud’s Phenomenon, which affects
the fingers of certain individuals, may be brought about by exposure to
vibration and cold. Exposure to vibration and cold may cause tingling and
burning sensations, followed by loss of color and numbness in the fingers.
The following precautions are strongly recommended, because the
minimum exposure, which might trigger the ailment, is unknown.
• Keep your body warm, especially
the head, neck, feet, ankles,
hands, and wrists.
• Maintain good blood circulation by
performing vigorous arm
exercises during frequent work
breaks, and also by not smoking.
• Limit the hours of operation. Try to
fill each day with jobs where
operating the unit or other hand-
held power equipment is not
required.

66001 SAFETY
X7712093101 9
© 8/2017 ECHO Inc.
ENGLISH
• If you experience discomfort, redness, and swelling of the fingers followed
by whitening and loss of feeling, consult your physician before further
exposing yourself to cold and vibration.
Repetitive Stress Injuries
(RSI)
It is believed that overusing the
muscles and tendons of the fingers,
hands, arms, and shoulders may
cause soreness, swelling,
numbness, weakness, and extreme
pain in those areas. Certain
repetitive hand activities may put
you at a high risk for developing a
Repetitive Stress Injury (RSI). An
extreme RSI condition is Carpal
Tunnel Syndrome (CTS), which
could occur when your wrist swells
and squeezes a vital nerve that runs
through the area. Some believe that
prolonged exposure to vibration may contribute to CTS. CTS can cause
severe pain for months or even years.
To reduce the risk of RSI/CTS, do the following:
• Avoid using your wrist in a bent, extended, or twisted position. Instead try
to maintain a straight wrist position. Also, when grasping, use your whole
hand, not just the thumb and index finger.
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed and force with which you do the repetitive movement.
• Do exercises to strengthen the hand and arm muscles.
• Immediately stop using all power equipment and consult a doctor if you
feel tingling, numbness, or pain in the fingers, hands, wrists, or arms. The
sooner RSI/CTS is diagnosed, the more likely permanent nerve and
muscle damage can be prevented.
All over head electrical conductors and communications wires
can have electricity flow with high voltages. This unit is not
insulated against electrical current. Never touch wires directly
or indirectly, otherwise serious injury or death may result.

SAFETY 66001
10 X7712093101
© 8/2017 ECHO Inc.
Do not operate this product indoors or in inadequately
ventilatedareas.Engineexhaustcontainspoisonousemissions
and can cause serious injury or death.
Read the Manuals
• Provide all users of this equipment with the Operator’s Manual for instruc-
tions on safe operation.
Clear the Work Area
• Spectators and fellow workers must be warned, and children and animals
prevented from coming nearer than 15 m (50 ft.) while the unit is in use.

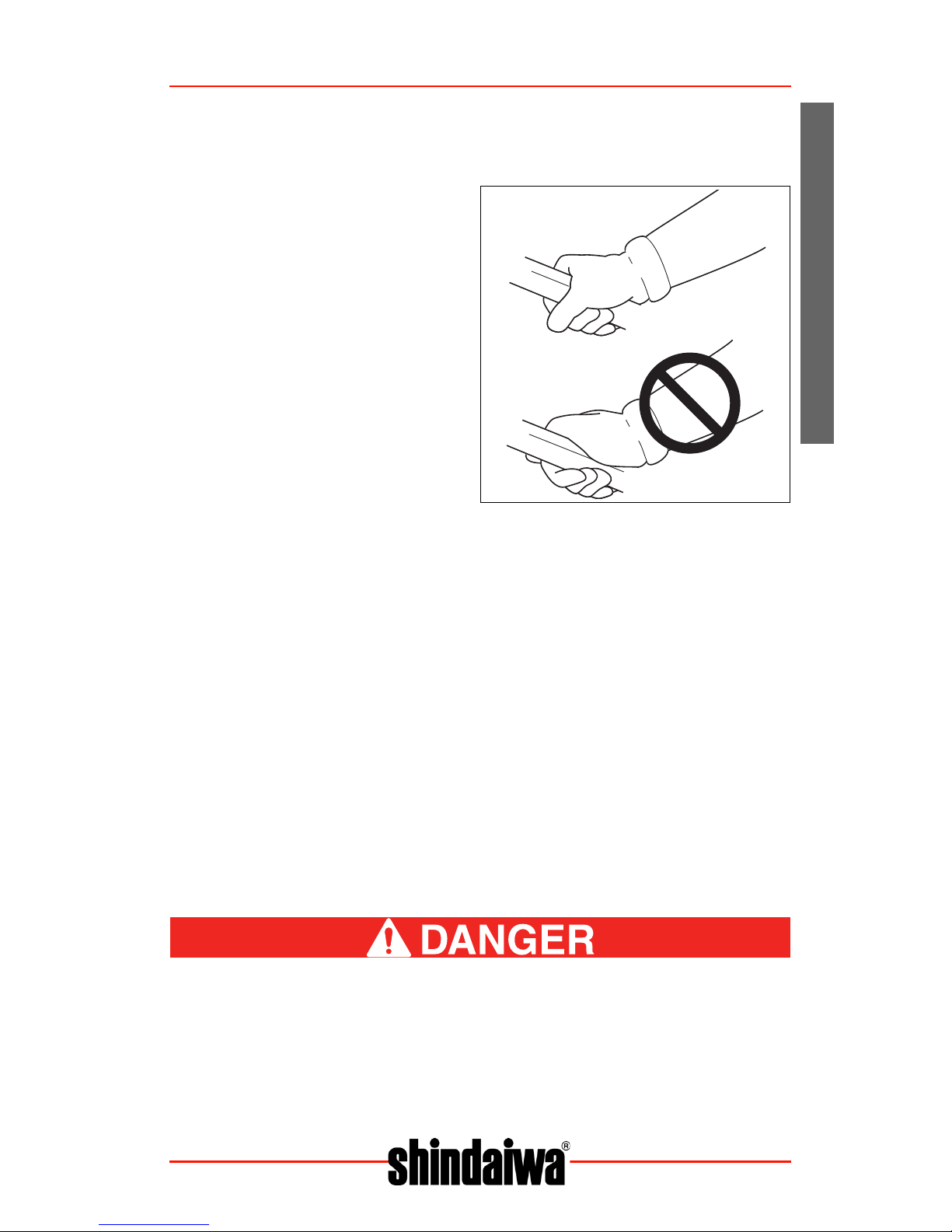

Keep a Firm Grip
• Always hold throttle handle and support handle with thumbs and fingers
tightly encircling the handles.
Keep a Solid Stance
• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on ladders.
Do not over reach.
Avoid Hot Surfaces
• During operation, the drive shaft housing and
attachment bearing housing may become very hot,
too hot to touch. Avoid contact during and
immediately after operation.
Equipment
Use this attachment with SHINDAIWA approved models only.
Serious injury may result from the use of this attachment
combined with a non approved SHINDAIWA product.
◆Check unit for loose/missing nuts, bolts, and screws.
Tighten and/or replace as needed.
◆Inspect shield for damage and ensure that the cut-off knife
is securely in place. Replace if either is damaged or
missing.

66001 SAFETY
X7712093101 11
© 8/2017 ECHO Inc.
ENGLISH
◆Check that the cutting attachment is firmly attached and in
safe operating condition.
Note: ECHO, INC. will not be responsible for the failure of cutting
devices, attachments or accessories which have not been
tested and approved by SHINDAIWA.
Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and loose objects away from all openings.
◆ALWAYS stop engine, disconnect spark plug, and make
sure all moving parts have come to a complete stop before
removing obstructions, clearing debris, or servicing unit.
◆DO NOT start or operate unit unless all guards and
protective covers are properly assembled to unit.
◆NEVER reach into any opening while the engine is running.
Moving parts may not be visible through openings.

DESCRIPTION 66001
12 X7712093101
© 8/2017 ECHO Inc.
DESCRIPTION
Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and
that you understand and follow the instructions on it. If a decal cannot be
read, a new one can be ordered from your SHINDAIWA dealer. Safety label
is for example only. Your label may appear slightly different.
1. Lower Drive Shaft Assembly
2. Flexible Drive Cable
3. Debris Shield With Cut-Off Knife
4. Cut-Off Knife
5. Nylon Cutting Attachment
1
2
3
4
5

66001 CONTENTS
X7712093101 13
© 8/2017 ECHO Inc.
ENGLISH
CONTENTS
The SHINDAIWA product you purchased has been factory pre-assembled
for your convenience. Due to packaging restrictions, some assembly may be
necessary.
After opening the carton, check for damage. Immediately notify your retailer
or SHINDAIWA Dealer of damaged or missing parts. Use the contents list to
check for missing parts.
ASSEMBLY
Power Head Shaft to Lower Shaft Assembly
Do not perform maintenance or assembly procedures with
engine running.
1. Set Power Head/Shaft Assembly on a level surface.
2. Pull locater pin (A) out, and turn counter-clockwise ¼ turn to lock-out
position.
3. Remove vinyl cap from attachment drive shaft.
4. Remove cardboard spacer, if necessary.
Note: Your coupler may appear different than coupler shown.
1Multi-Tool Trimmer Attachment
1Operator's Manual
1Warranty Sheet
1Storage Hook Assembly
1Safety Glasses
Parts Required: Multi-Tool Power Head Shaft and Coupling

OPERATION 66001
14 X7712093101
© 8/2017 ECHO Inc.
5. Carefully fit attachment drive
shaft assembly into coupler (B)
to decal assembly line (C),
making sure that the inner
lower drive shaft engages the
square upper drive shaft
socket.
Note: Earlier model power
heads may have shorter
couplings.
Note: Lower bearing housing
and head assembly must be in line with the engine.
6. Rotate locater pin (A) ¼ turn
clockwiseto engage lower shaft
hole. Insure locater pin is fully
engaged by twisting lower drive
shaft. Locater pin should snap
flush in coupler. Full
engagement will prevent further
shaft rotation.
7. Secure lower shaft assembly to
coupler by tightening clamping
knob (D).
OPERATION
Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and looseobjects away fromall openings.
Always stop engine, disconnect spark plug, and make sure all
moving parts have come to a complete stop before removing
obstructions, clearing debris, or servicing unit. Allow unit to
cool before performing service.
Note: Refer to your Multi-Tool power source Operator's Manuals for
correct engine fueling, starting and stopping instructions.
To Advance Trimmer Line (Automatic Line Head
Models)
See Maintenance Section for nylon line replacement.
To advance trimmer line, tap trimmer head against the ground while the
head is turning at normal operating speed.
B
A
C
D
A

66001 MAINTENANCE
X7712093101 15
© 8/2017 ECHO Inc.
ENGLISH
MAINTENANCE
Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and looseobjects away fromall openings.
Always stop engine, disconnect spark plug, and make sure all
moving parts have come to a complete stop before removing
obstructions, clearing debris, or servicing unit. Allow unit to
cool before performing service. Wear gloves to protect hands
from sharp edges and hot surfaces.
Your SHINDAIWA unit is designed to provide many hours of trouble free
service. Regular scheduled maintenance will help your unit achieve that
goal. If you are unsure or are not equipped with the necessary tools, we
recommend that you take your unit to a SHINDAIWA Servicing Dealer for
maintenance. To help you decide whether you want to DO-IT-YOURSELF or
have the SHINDAIWA Dealer do it, each maintenance task has been
graded. If the task is not listed, see your SHINDAIWA Dealer for repairs.
Skill Levels
Level 1 = Easy to do. Common tools may be required.
Level 2 = Moderate difficulty. Some specialized tools may be required.
Level 3 = See your dealer.
Maintenance Intervals
IMPORTANT - Time intervals shown are maximum. Actual use and your
experience will determine the frequency of required maintenance.
1Apply lithium based grease.
Lubrication
Level 1.
Component/
System Maintenance Procedure Skill Level Interval
Drive Shaft Grease 1
Every 25 hours of use1
Gear Housing Every 50 hours of use1
Screws/Nuts/Bolts Inspect/Tighten/
Replace Before Each Use

MAINTENANCE 66001
16 X7712093101
© 8/2017 ECHO Inc.
Gear Housing
1. Clean all loose debris from gear
case.
2. Remove plug (A) and check
level of grease.
3. Add grease if necessary. DO
NOT over-fill.
4. Install plug (A).
Drive Shaft (Lower)
1. Loosen screw (B) and remove
locating screw (C). Pull gear
case and shield from drive shaft
housing.
2. Pull flexible cable from the drive
shaft housing, wipe clean and
re-coat with 15 ml (0.5 oz.) of
grease.
3. Slide the flexible cable back in
the drive housing. DO NOT get
dirt on the flex cable.
4. Install the gear housing and
shield assembly.
Nylon Line Replacement
Wear gloves or personal injury may result:
◆Cutoff knife is sharp.
◆Gearcase and surrounding area may be hot.
Parts Required: Lithium Based Grease.
A
B
C

66001 MAINTENANCE
X7712093101 17
© 8/2017 ECHO Inc.
ENGLISH
1. Cut one piece of line to recom-
mended length.
2.0 mm (0.080 in.) diameter
6 m (20 ft.).
2.4 mm (0.095 in.) diameter
6 m (20 ft.).
2. Align arrows on top of knob with
openings in eyelets.
3. Insert one end of trimmer line
into an eyelet, and push line
equal distance through trimmer
head.
4. Hold trimmer head while turn-
ing knob clockwise to wind line
onto spool until about 13 cm
(5 in.) of each line remains
exposed.
Trimmer head is now fully loaded
and ready for operation.

STORAGE 66001
18 X7712093101
© 8/2017 ECHO Inc.
When the wear indicators
located at the bottom of the
Speed-Feed® head are worn
smooth, or if holes appear,
replacement of the cover or the
entire Speed-Feed® head is
required.
STORAGE
Storage Hook Installation
1. Insert small end of hook into
locating hole on attachment
shaft.
2. Slide plastic cap onto end of
attachment shaft.

66001 SPECIFICATIONS
X7712093101 19
© 8/2017 ECHO Inc.
ENGLISH
SPECIFICATIONS
MODEL 66001
Shaft Length (without cutter head) 828 mm (32.60 in.)
Attachment Width 265 mm (10.40 in.)
Attachment Height 247 mm (9.49 in.)
Weight (without cutter head) 1.18 kg (2.6 lb.)
Drive Shaft 6.35 mm (0.25 in.) flexible shaft
Direction of Rotation Counterclockwise (viewed from the top)
Gear Case Ratio 1.62:1
Cutter Head Semi-automatic nylon head
(Speed-Feed 400)
Shield Plastic with cut-off knife

PRODUCT REGISTRATION 66001
20 X7712093101
© 8/2017 ECHO Inc.
PRODUCT REGISTRATION
Thank you for choosing Shindaiwa Power Equipment
Please go to http://www.shindaiwa-usa.com to register your new product on-
line. It's FAST and EASY! NOTE: your information will never be sold or
misused by ECHO, Inc. Registering your purchase enables us to contact
you in the unlikely event of a service update or product recall, and verifies
your ownership for warranty consideration.
If you do not have access to the Internet, you can complete the form below
and mail to:
ECHO Inc., Product Registration, PO Box 1139, Lake Zurich IL 60047.
