Shinemate BC18-2A User manual

OPERATOR'S MANUAL
MANUAL del OPERADOR
WARNING
To reduce the risk of injury, user must read and understand operator's manual.
ADVERTENCIA
Para reducir el riesgo de lesiones, el usuario debe leer y entender el manual.
Dual Channel Rapid Charger
For Li-iron Battery Pack
BC18-2A
使用说明书
警告
为了降低受伤风险，用户必须阅读并理解使用说明书

IMPORTANT SAFETY INSTRUCTIONS
WARNING
READ AND UNDERSTAND ALL INSTRUCTIONS.
below, may result in electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
1. SAVE THESE INSTRUCTIONS - THIS MANUAL CONTAINS IMPORTANT SAFE TY AND OPERATING
INSTRUCTIONS FOR THE SHINEMATE LI-ION CHARGER.
2. BEFORE USING THE BATTERY PACK AND CHARGER, READ THIS OPERATOR'S MAN UAL, YOUR TOOL
OPERATOR'S MANUAL, AND ALL LABELS ON THE BATTERY PACK, CHARGER AND TOOL.
3. TO REDUCE THE RISK OF IN JURY, CHARGE SHINEMATE RECHARGEABLE LI-ION BATTERIES ONLY IN
SHINEMATE CHARGERS. Other types of batter ies may burst causing personal injury and damage. Do not wire a
battery pack to a power supply plug or car cigarette lighter. Batteries will be permanently disabled or damaged.
4. USE SHINEMATE LI-ION PACKS ONLY ON COMPATIBLE SHINEMATE LI-ION TOOLS. Use with other tools may
result in a risk of fire, electric shock or personal injury.
5. AVOID DANGEROUS ENVIRONMENTS. Do not charge battery pack in rain, snow, damp or wet locations. Do not
use battery pack or charger in the presence of explosive atmospheres (gaseous fumes, dust or flammable
materials) because sparks may be generated when inserting or removing bat tery pack, possibly causing fire.
6. CHARGE IN A WELL VENTILATED AREA. Do not block charger vents. Keep them clear to allow proper
ventilation. Do not allow smoking or open flames near a charging battery pack. Vented gases may explode.
7. MAINTAIN CHARGER CORD. When unplugging charger, pull plug rather than cord to reduce the risk of damage
to the electrical plug and cord. Never carry charger by its cord. Keep cord from heat, oil and sharp edges. Make
sure cord will not be stepped on, tripped over or subjected to damage or stress. Do not use charger with
damaged cord or plug. Have a damaged charger replaced immediately.
8. DO NOT USE AN EXTENSION CORD UNLESS IT IS ABSOLUTELY NECESSARY. Using the wrong, damaged or
improperly wired extension cord could result in the risk of fire and electrical shock. If an extension cord must
be used, plug the charger into a properly wired 16 gauge or larger extension cord with pins that are the same
number, size and shape as the pins on the charger. Make sure that the extension cord is in good electrical
condition.
9. CHARGER IS RATED FOR 100-240 VOLT AC. Charger must be plugged into an appropriate receptacle.
10. USE ONLY RECOMMENDED ATTACHMENTS. Use of an attachment not recommended or sold by the battery
charger or battery pack manufacturer may result in a risk of fire, electric shock or personal injury.
11. UNPLUG CHARGER WHEN NOT IN USE. Remove battery packs from unplugged chargers.
12. TO REDUCE THE RISK OF ELECTRIC SHOCK, always unplug charger before cleaning or maintenance. Do not
allow water to flow into AC/DC plug. Use a Ground Fault Circuit Interrupter (GFCI) to reduce shock hazards.
13. DO NOT BURN OR INCINERATE BATTERY PACKS. Battery packs may explode, causing personal injury or
damage. Toxic fumes and materials are created when battery packs are burned.
14. DO NOT CRUSH, DROP, OR DAMAGE battery pack. Do not use a battery pack or charger that has received a
sharp blow, been dropped, run over, or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped
on).
15. DO NOT DISASSEMBLE. Incorrect reassembly may result in the risk of electric shock, fire or exposure to
battery chemicals. If it is damaged, take it to a SHINEMATE service facility.
16. BATTERY CHEMICALS CAUSE SERIOUS BURNS. Never allow contact with skin, eyes, or mouth. If a damaged
battery pack leaks battery chemicals, use rubber or neoprene gloves to dispose of it. If skin is exposed to
battery fluids, wash with soap and water and rinse with vinegar. If eyes are exposed to battery chemicals,
immediately flush with water for 20 minutes and seek medical attention. Remove and dispose of contaminated
clothing.
17. DO NOT SHORT CIRCUIT. A short-circuited battery pack may cause fire, personal injury, and product damage.
A battery pack will short circuit if a metal object makes a connection between the positive and negative
contacts on the battery pack. Do not place a battery pack near anything that may cause a short circuit, such as
coins, keys or nails in your pocket.
18. DO NOT ALLOW FLUIDS TO FLOW INTO BATTERY PACK. Corrosive or conductive fluids, such as seawater,
certain industrial chemicals, and bleach or bleach containing products, etc., can cause a short circuit.
19. STORE YOUR BATTERY PACK AND CHARGER IN A COOL, DRY PLACE. Do not store battery pack where
temperatures may exceed 104°F (40°C) such as in direct sunlight, a vehicle or metal building during the
summer.
20. THIS CHARGER AND BATTERY PACK ARE NOT INTENDED FOR USE BY CHILDREN AND PERSONS WITH
PHYSICAL, SENSORY OR MENTAL LIMITATIONS OR A LACK OF EXPERIENCE OR KNOWLEDGE.
Failure to follow all instructions listed

SPECIFICATIONS
Art. No.
Input
Rated Power
Output
..................................................
....................................................
..........................................
..................................................
BC18-2A
100-240 VAC
150 W
18 VDC
Max. 6.5 Amps
Recommended Ambient ................... +4°C to +40°C
FUNCTIONAL DESCRIPTION
Continuous: Charging is complete (with Pack)
Continuous: Battery is too hot/cold, chargingwill
begin when battery reaches correct charging
temperature
Flashing: Damaged or faulty battery pack
SYMBOLOGY
7
8
2
1
6
3
5
4

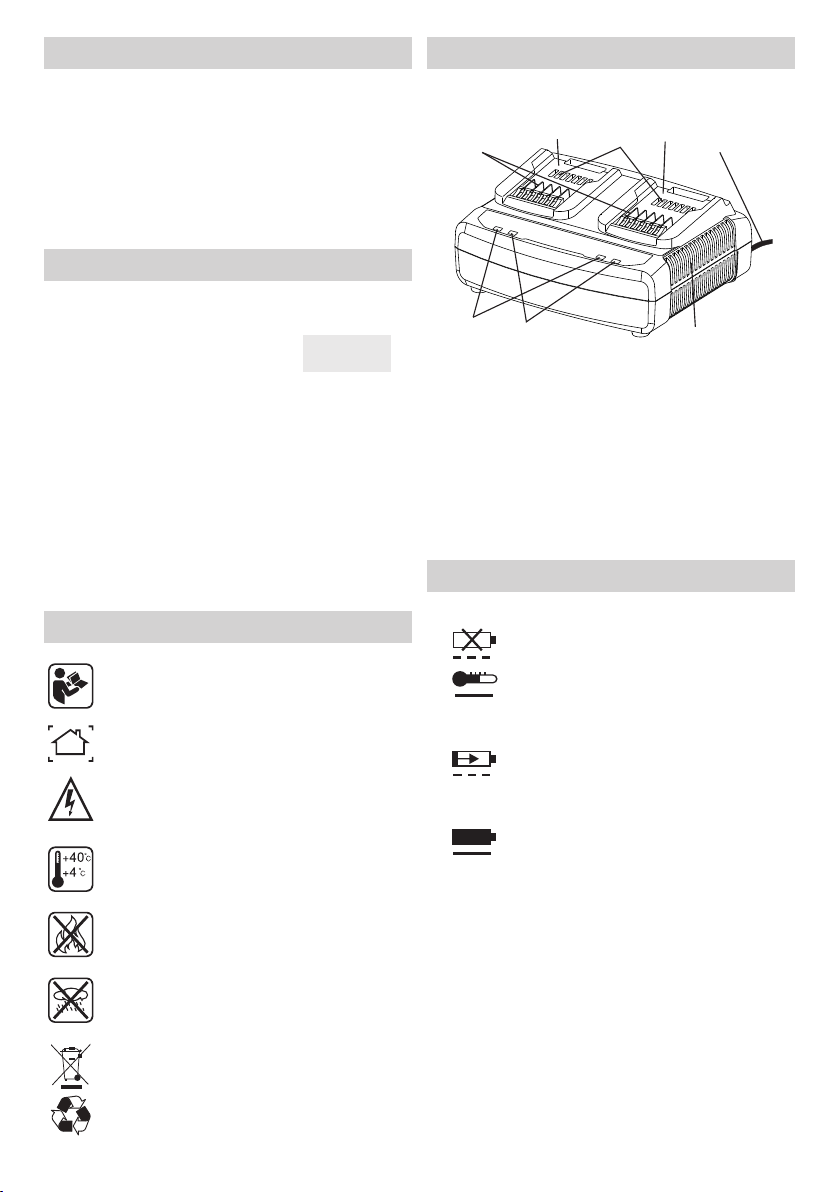

1. Red Lights
2. Green Lights
3. Bay-1
4. Bay-2
5. Electrical Contacts
6. Vents for Battery Cooling
7. Charger Vents
8. Cord
1. Red Lights
2. Green Lights
100%
Slow flashing: Approaching full charge
Fast flashing: Charging
Stand by(without pack)
Faulty Charger: 4 lights flash at the same time
Faulty Charger Cooling fan: Red light flashes like ^^_^^_
Very slow flashing: Waiting, charging will begin
when the first pack is fully charged
Recycling raw materials instead of waste disposal.
Do not throw the electric power tools into the
household waste! Power tools must be collected
separately and recycled in an environmentally
friendly manner.
Before switching on the power tool, read the
operating manual!
Device is suitable for use indoors only. Store
electric power tool and batteries in dry rooms.
Protect the battery from heat, e.g.
from continuous exposure to sunlight and fire.
There is a risk of explosion.
Do not throw battery in the fire.
There is a risk of explosion.
Do not expose the device to rain, keep the device
away from water.
There is a risk of electric shock in case of inco-
rrect use.
INTENDED USE
4 lights flash in turns
The battery charger is designed for charging SHINEMATE
batteries of types:
- B1825A 18V (2.5 Ah)
- B1850A 18V (5.0 Ah)
- B1860A 18V (6.0 Ah)
- B1880A 18V (8.0 Ah)
- B1890A 18V (9.0 Ah)
(compliant types are not limited to the above listed)
The battery voltage must match the battery charging
voltage of the charger. Otherwise there is danger of fire
and explosion.
Depending on charge state, heavily cycled batteries may
take longer to charge completely.
▶ If the charger faulty sign appears, or if the stand-by
sign does not come on, remove pack(s) and unplug
charger for at least 2 minutes. After 2 minutes, plug
charger back in and insert pack. If the problem
persists, contact the service center for check.
▶ If the battery pack faulty sign appears, try to reinsert the
pack, if the faulty sign happens on all other good packs,
the charger may be in faulty, contact the service center.
STATUS INDICATION
3. Self-check
50/60 Hz
4. Charger Faulty Indication
30 min
60 min
75 min
100 min
120 min
...................
...................
...................
...................
...................
Estimated
Charging Time

We declare under our sole responsibility that the
product described under “Technical Data” conforms to
the following standards or normative documents:
EN 60335-1, EN 60335-2-29, EN 55014-1,
EN 55014-2, EN 61000-3-2, EN 61000-3-3,
2014/35/EU, 2014/30/EC
Zhang Yong
General Manager
Jan 1st,2020
Yongkang Meiloy-K&FP Tools Co.,Ltd.
No.218 Meilong Rd., Yongkang, Zhejiang, China
www.ShineMate.com
.
The manufacturer and his representative are not liable
for any damage and lost profit due to interruption in
business caused by the product or by an unusable
product.
The manufacturer and his representative are not liable
for any damage which was caused by improper use of
the power tool or by use of the power tool with
products from other manufacturers.
STORAGE AND MAINTENANCE
▶ New battery pack need to be charged before use.
▶ Remove the battery pack from the tool for charging
when convenient for you and your job. SHINEMATE
batteries do not develop a "memory" when charged
after only a partial discharge. It is not necessary to
run down the battery pack before placing it on the
charger.
▶ The battery packs not in often use need to be
charged for each 3 months.
▶ The long-time uncharged battery pack may enter
into a "sleep" status due to the gradually dropping
down of voltage, charger may not be able to reactivate
it. Such battery pack needs to be sent to the service
center to reactivate with special equipment. The
reactivation is not guaranteed to be successful
subject to battery condition.
▶ Align the battery pack with the bay and slide the
battery pack into the charger until it is locked.
▶ The red light may come on, either continuous
(battery pack is too hot or cold), or flashing (battery
pack is faulty).
▶ The green light will come on, flashing quickly(pack
is charging)
▶ The green light come to flashing slowly(charging is
approaching full), this pack is 80% full, it can use
now, but it is suggested to continue the charging until
it is fully charged.
▶ When charging starts at any of the bays, the
corresponding cooling fan starts to run.
▶ After charging is complete, the green light will
come continuous on.
▶ Use the level indicate button on the battery pack to
show the how fully charged the pack is.
▶ The charger will keep the battery pack fully
charged if it is left on the charger.
▶ The charger will charge the 2 battery packs in
turns, the first pack been inserted in will be charged
firstly, the green light near the 2nd pack flashing very
slowly (battery pack is waiting for another pack to
finish charging)
▶ Mounting to the Wall: Use the wall mount guides to
mark the hanging points.
WHEN TO CHARGE THE BATTERY PACK
HOW TO CHARGE THE BATTERY PACK
EXEMPTION FROM LIABILITY
CE-DECLARATION OF CONFORMITY
▶ Store your charger in a cool, dry place.
▶ Unplug battery chargers and remove batteries when not
in use.
WARNING
To reduce the risk of injury, always unplug the
charger and remove the battery from the charger
before performing any maintenance.
Never disassemble the battery or charger. Contact
a SHINEMATE service facility for ALL repairs.
▶ Clean out dust and debris from charger vents and
electrical contacts by blowing with compressed air.
▶ Remove dirt and dust from the housing with a paint
brush or dry cloth, keeping away from all electrical
contacts.
▶ Never use flammable or combustible solvents around
batteries, charger, or tools.
▶ Never immerse your battery or charger in liquid or allow
a liquid to flow inside them.

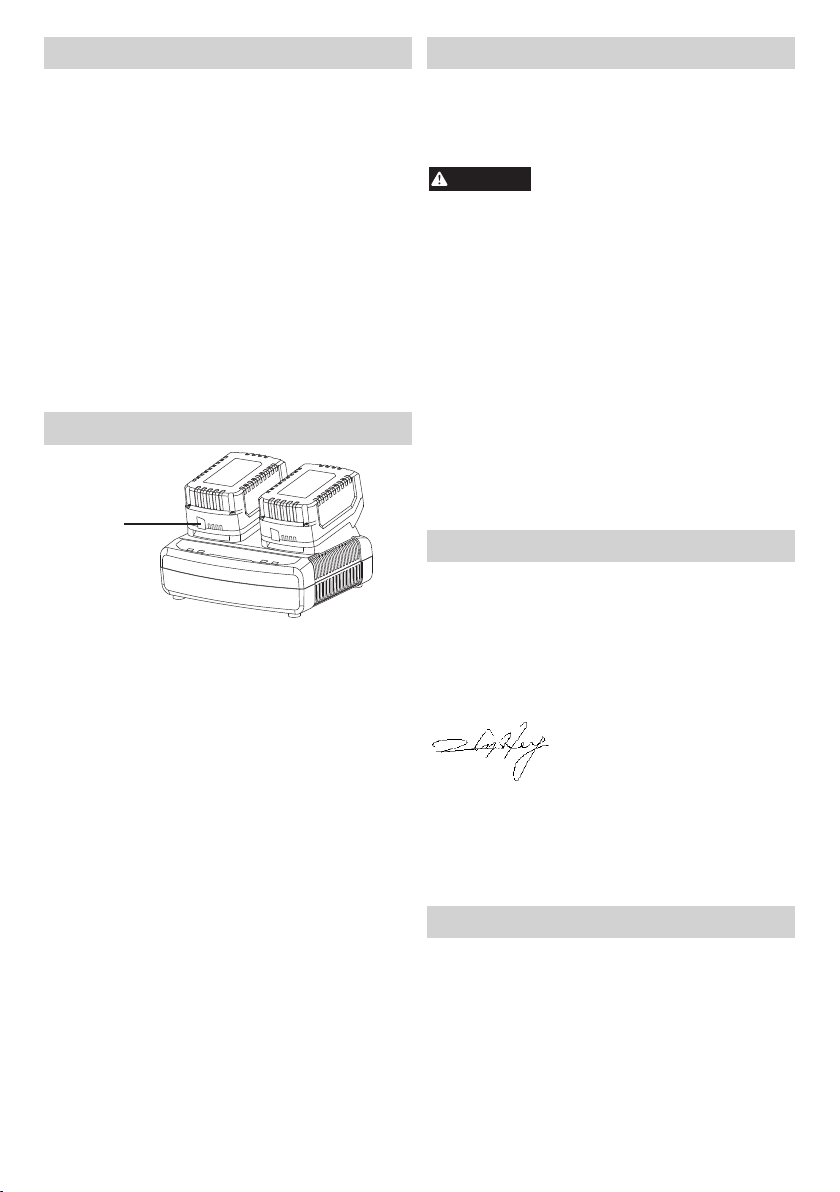

Level Indicator
Button
