ANI-ETHVGA
ETHERNET/USB to HDMI/
VGA Display Converter
Operation Manual

Disclaimers
Copyright Notice
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
The information in this manual has been carefully checked and is
believed to be accurate. We assume no responsibility for any
infringements of patents or other rights of third parties which may
result from its use.
We assume no responsibility for any inaccuracies that may be
contained in this document. We also makes no commitment to
update or to keep current the information contained in this
document.
Our company reserves the right to make improvements to this
document and/or product at any time and without notice.
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer file, in any form or by any means -
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise - without express written permission and consent from
us.
© Copyright 2011. All Rights Reserved.
Version 1.0 July 2011

Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
 Always follow basic safety precautions to reduce the risk of
re, electrical shock and injury to persons.
 To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
 Never spill liquid of any kind on or into this product.
 Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
 Do not attach the power supply cabling to building surfaces.
 Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
 To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.

Table of Contents
1
1
1
1
2
3
4
4
5
6
6
6
7
8
11
11
15
15
17
18
1. Introduction
2. Applications
3. Package Contents
4. System Requirements
5. Features
7. Operation Controls and Functions
7.1 Front Panel
7.2 Back Panel
8. Software Installation
8.1 Install DispalyLink Software
8.2 Install USB Server Software
8.3 Using USB Server
8.4 IP Property Setting
9. Using DisplayLink Manager
9.1 Using DisplayLink Manager
9.2 Using More DisplayLink manager
10. Uninstall the Device Driver
11. Connection and Installation
12. Troubleshooting

1 of 18
1. Introduction
The device that can send audio/video signals from a Notebook/PC over a
localarea network through regular Ethernet cables to a TV which can be
used as the primary display. When a keyboard and mouse are plugged in,
the device will lets you to edit word processing documents and play your
music/movies on a TV. Supporting a direct connection up to 100 meters
away when using network cables, this gadget also includes two USB ports
which let users operate printers, scanners and other USB devices at the same
time, just like a PC. This is useful in many different scenarios, for example:
During meetings each attendee would be able to access a projector from
their laptop without having to fumble with any cables as long as they are
connected to the network. This device can also be used as a simple USB to
HDMI signal converter thanks to its mini USB input port.
2. Applications
 Educational teaching
 Home entertainment

 Household network
3. Package Contents
 Ethernet/USB to HDMI/VGA Converter
 5V/2.6A DC power adaptor
 User Manual
 Driver CD
4. System Requirements
 System Hardware Requirements: 2.4 GHz single core CPU with at least
1GB RAM for optimal performance
 Operating Systems:
Windows XP Home or Professional 32 bits SP2
Windows Vista 32 bits
Windows 7
Note:
•1080p resolution workds best with an USB connection up to 2M long
•The ethernet interface does not support MAC OS whereas the USB
can support Mac OS x v10.4.11 and v10.5.6
USB Port Extension:
•An available USB 2.0 port with USB to mini USB cable
Network Extension:
•An available Ethernet port at home or a commercial network with
RJ-45 cable

2 of 18
5. Features
 Supports HDMI & VGA outputs
 16/32-bit Color for high-quality images
 HD resolution up to 1920 x 1080
 HDMI and RGB display connectivity
 EDID selection with switch for VGA or HDMI output
 Experience the complete PC environment on a TV from 100M away
 Allows a TV to act as the primary PC display and use keyboard and
mouse to browse the internet, Micorsoft Of ce, watch/listen to movies/
music from any networked computer
 Supports high performance 16-bit stereo, 48KHz audio sampling
 Supports TCP/IP ethernet protocols
 Supports 10/100/1000Mbps Ethernet
 Extend or mirror audio and video through a network or USB cable to an
HDMI display
 Share HDMI display with multiple users through your existing of ce or
home IP network
 Add an HDMI display to your computer through a USB 2.0 port
 Supports mirror and extended video modes

3 of 18
Video Resolution Up to 1600 x 1200 /1920 x 1080 (wide)
Video Input 1 x Ethernet RJ-45; 1 x USB 2.0
Network Protocol TCP/IP
Video Output Ports 1 x HDMI, 1 x D-Sub 15pin VGA
Extender Ports 2 x USB Hubs (A type)
Audio Output 1Vp-p 47KΩ3.5Ø Phone jack
OperatingSystemSupport Windows, XP SP2, Vista 32bits and Window 7
Power Supply 5V DC/2.6A (US/EU standards, CE/FCC/UL certi ed)
ESD Protection Human body model: ±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions (mm) 119(W) x 88(D) x 25(H)
Weight(g) 120
Chassis Material Plastic
Silkscreen Color Black
Power Consumption 11W
Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F
Relative Humidity 20~90% RH (non-condensing)

4 of 18
7. Operation Controls and Functions
The following sections describe the hardware components of the unit, include
a step by step installation guide and other suggested settings.
7.1 Front Panel
1 2 3 4 5
①
DC 5V: This slot is where you plug the 5V DC power supply into the unit
and connect the adaptor included in the package to an AC wall outlet.
②
INPUT LAN/USB Switch: This switch allows users to choose input source
signal from ethernet or PC/laptop.
③
LAN IN: This slot is to connect with CAT5e/6 cable from your network
system.
④
USB PORT: These ports act like a USB hub, allowing users to connect an
External Hard Drive, Keyboard, or Mouse.
Note:
•These two USB ports cannot be connected to a USB extension hub,
doing so will trigger the system to detect the external Hub and will
cause a system failure.
•Before removing the USB device, the user must follow the USB devices
hardware removal procedure. Failure to do so will cause the system
to crash.
⑤ Mini USB IN: This port support mirror or video extension (via USB cable)
from the PC/laptop source device to your HDMI display, including both
video and audio output signals.

5 of 18
7.2 Back Panel
1 2 3 4
①HDMI OUT: This slot is to plug the output HDMI display with HDMI cable for
video and audio output.
②EDID control switch: The default setting for this switch is on HDMI, leave
the switch here as long as the connected display is compatible. When
switch to off it'll allows users to use the built in EDID, the device must
re-powered in order to execute this function. However, from off to
HDMI/VGA will not require such action. Built in EDID as follow: 640 x 480,
720 x 480, 768 x 576, 800x 600, 1024 x 768, 1280 x 720, 1280 x 1024, 1360 x
768, 1366 x 768, 1440 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080.
③AUDIO OUT: This slot is to connect with two side 3.5 phone jack cable to
active speakers or PC monitor with speaker output for audio signal
output.
④VGA OUT: This slot is to connect to display monitor or TV that has D-Sub 15
pin input for video signal output.

6 of 18
8. Software Installation
The following sections list the procedures to follow when installing the USB to
HDMI and USB device drivers. Insert the provided CD into your CD-ROM drive
then begin the USB Install Disc and follow the below steps to install the driver.
8.1 Install DispalyLink Software
Insert the CD driver included in the package and double click on the
DisplayLink icon to execute the setup.
8.2 Install USB Server Software
Double click on the USBServer Setup icon to execute the set up and click
nish when the setup is complete.

7 of 18
When both DisplayLink and USBServer has been installed completely the
USB Server’s icon should appear on the desktop and the button right side
of the desktop.
8.3 Using USB Server
Double click on the Launch USB Server icon from the desktop or from the
button right side and the USB Server window will appear on the desktop.
Connect both PC/Laptop and the device with RJ-45 cable and click on
Search and switch the INPUT switch on the device to LAN.
Once the connection is done click on Connect Device next to the Search
for both Display and Media. When the connection is done the Status will
appear with “”mark. When disconnecting click on “Disconnect Device”.

8 of 18
8.4 IP Property Setting
When selecting LAN INPUT a special IP setting is required. Please follow the
setting below to make the correct setting.

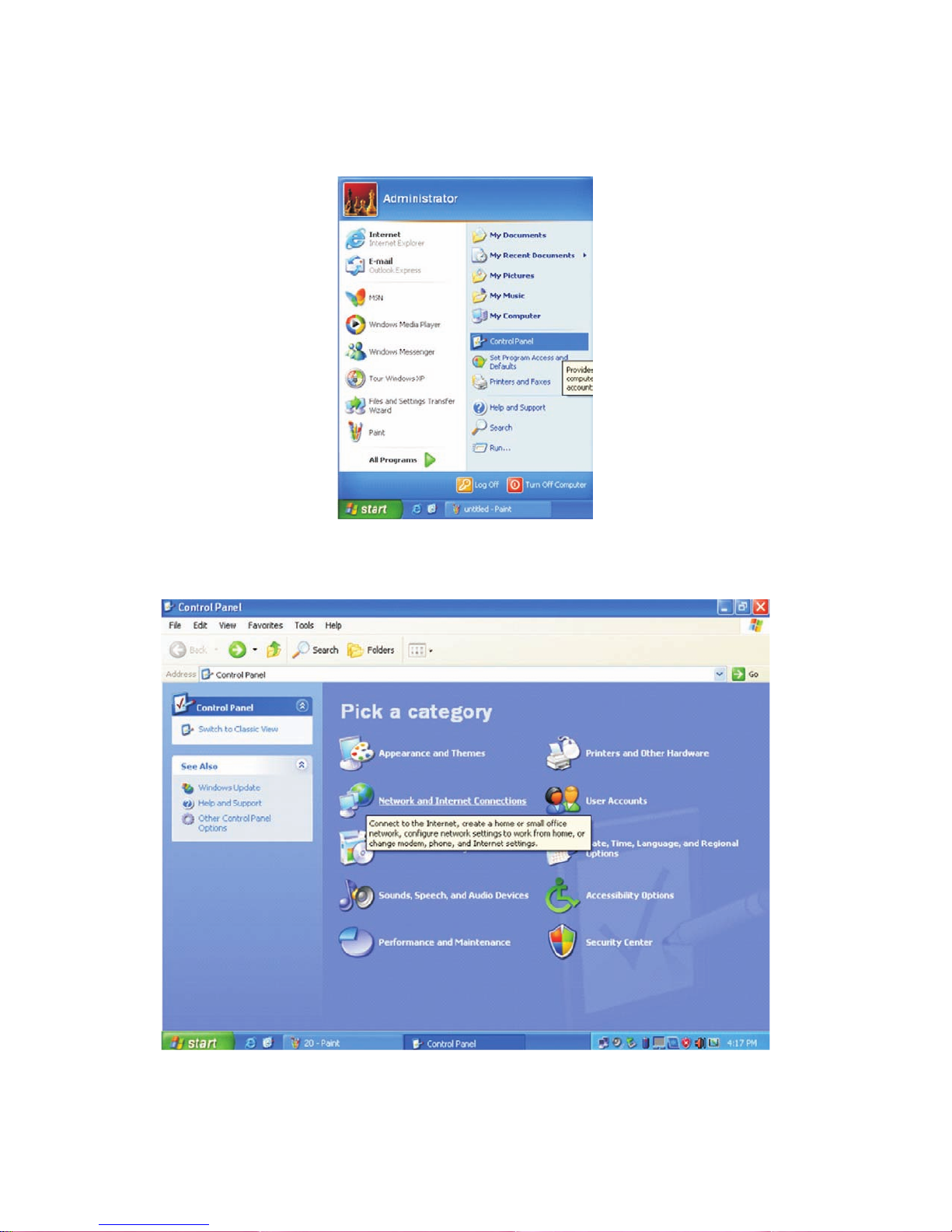

Click Control Panel from the Window’s start.

9 of 18
Click on the Network and Internet Connection and select Network
Connections.

10 of 18
Double click on the Local Area Connection
Double click on the Internet Protocol (TCP/IP)
Click on “Use the follow IP address”and set the IP address and Subnet
mask. The IP address setting should remain at 169.254.10.X (X can be 0~255)
and Subnet mask can remain as 255.255.0.0

11 of 18
9. Using DisplayLink Manager
9.1 Using DisplayLink Manager
After the driver is installed, a utility (DisplayLink Manager) will
automatically appear in the system tray. The utility allows you to quickly
change the settings and resolution for DisplayLink Manager. Right click
on the icon will bring out the context menu.
 Screen Resolution: Select the screen resolution (available only in
extended mode).
NOTE: When the display has a built in EDID the screen will show the
display's resolution, if no EDID is present the screen has the following
resolution (see below image)

12 of 18
 Color Quality: Select the screen color quality (available only in
extended mode).
 Screen Rotation: Rotate the screen on the additional monitor by 90, 18
or 270 degrees.
 Extend to: Reposition the extended screen to the top, bottom, left or
right of the primary display.

13 of 18



Set As Main Monitor: Set the monitor to be the main monitor.
Extend: Set the DisplayLink Manager to Extended mode.

14 of 18

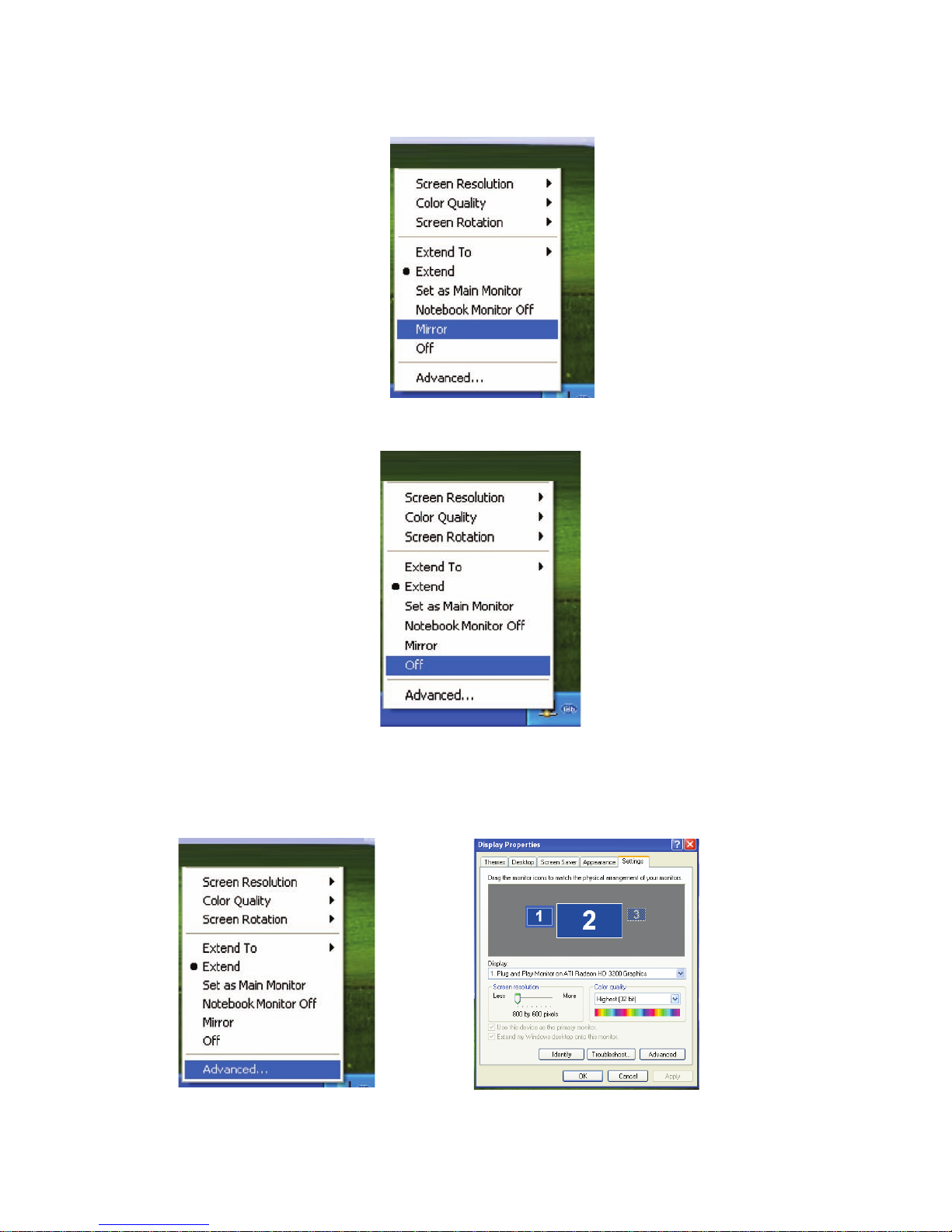

 Mirror: Set the DisplayLink Manager to Mirror mode. You can see the
same desktop image on the additional monitor.
 Off: Disable the DisplayLink Manager on the system.

Advanced Display Properties: Opening the display will allow you
to adjust the resolution, color, quality, position and refresh rate.

15 of 18
9.2 Using More DisplayLink manager
You don’t have to install a new driver as long as you have completed
the above installation process in advance. It will automatically de ne
the ID of the new Display Link Manager and will list everything in the
Display properties or the display manager menu.
NOTE: When connecting more DisplayLink Manager to a computer, a
system with higher CPU performance is recommended.
10. Uninstall the Device Driver
Follow the steps below to uninstall the Multi View driver.
Step 1: Open the Control Panel: Start → Control Panel → Add or Remove
Programs.
Step 2: Select DisplayLink Core Software and click Remove.

16 of 18
Step 3: Click Yes to con rm the removal.
Step 4: Click Yes to restart your computer.
Then select DisplayLink Graphics and click Remove. Finally, select USB Server
and click Remove.
