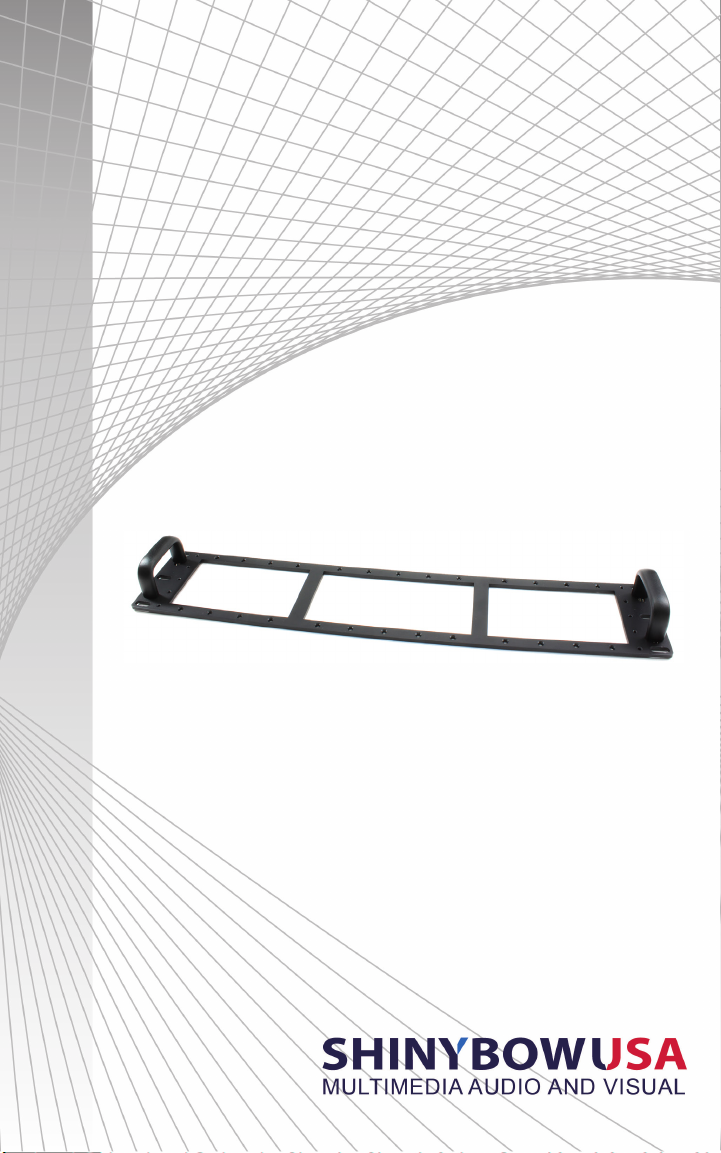

Shinybow USA SB-6001 User manual

SB-6001
Rackmount Bracket for
SB-6333T3, SB-6333T, SB-6333R3 & SB-6333R
INSTRUCTION MANUAL

SAFETY INFORMATION
1. To ensure the best results from this product, please read this manual and all other documentation before
operating your equipment. Retain all documentation for future reference.
2. Follow all instructions printed on unit chassis for proper operation.
3. To reduce the risk of re, do not spill water or other liquids into or on the unit, or operate the unit while standing
in liquid.
4. Make sure power outlets conform to the power requirements listed on the back of the unit. Keep unit protected
from rain, water and excessive moisture.
5. Do not attempt to clean the unit with chemical solvents or aerosol cleaners, as this may damage the unit. Dust
with a clean dry cloth.
6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so
that they are not likely to be walked on or pinched by items placed upon or against them, paying particular
attention to cords and plugs, convenience receptacles, and the point where they exit from the appliance.
7. Do not force switched or external connections in any way. They should all connect easily, without needing to
be forced.
8. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions
should be taken so that the means of grounding of a piece of equipment is not defeated.
9. AC voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection
to improper AC voltage is not covered by any warranty.
10. Turn power off and disconnect unit from AC current before making connections.
11. Never hold a power switch in the “ON” position.
12. This unit should be installed in a cool dry place, away from sources of excessive heat, vibration, dust,
moisture and cold. Do not use the unit near stoves, heat registers, radiators, or other heat producing
devices.
13. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment
which may impede the normal ow of air around the unit, such as a bed, rug, carpet, or completely enclosed
rack. If the unit is used in an extremely dusty or smoky environment, the unit should be periodically “blown
free” of foreign dust and matter.
14. To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside.
Refer all servicing to qualied service personnel. There are no user serviceable parts inside.
15. When moving the unit, disconnect input ports rst, then remove the power cable; nally, disconnect the
interconnecting cables to other devices.
16. Do not drive the inputs with a signal level greater than that required to drive equipment to full output.
17. The equipment power cord should be unplugged from the outlet when left unused for a long period of time.
18. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever
need to ship the unit, use only the original factory packing.
19. Service Information Equipment should be serviced by qualied service personnel when:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the equipment.
C. The equipment has been exposed to rain.
D. The equipment does not appear to operate normally, or exhibits a marked change in performance.
E. The equipment has been dropped, or the enclosure damaged.
THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED
BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL.

1
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate this equipment and before connecting
the power supply. Please keep the following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of re, electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain, moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may
damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk
on it.
• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide
ventilation and allow for sufcient space for air to circulate around the unit.
DISCLAIMERS
The information in this manual has been carefully checked and is believed to be accurate. We assume no
responsibility for any infringements of patents or other rights of third parties which may result from its use.
We assume no responsibility for any inaccuracies that may be contained in this document. We make no
commitment to update or to keep current the information contained in this document.
We reserve the right to make improvements to this document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of
its part translated into any language or computer le, in any form or by any means — electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise — without the express written permission and consent.
© Copyright 2020. All Rights Reserved.
Version 2.2 APR 2020
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be trademarks of the companies with which they
are associated.
www.shinybowusa.com
122 Rose Ln. Suite 303 | Frisco, Texas 75036
[email protected]

2
INTRODUCTION & CONTENTS .......................................................................................2
FEATURES......................................................................................................................3
INSTALLING DIAGRAM .....................................................................................................4
INTRODUCTION
HDBaseT™ Transmitter and Receiver EXTENDER PANEL.
19 INCH 2U-13P RACK MOUNT
Optional for the SB-63XX series
PACKAGE CONTENTS
Check that you have the following components;
• SB-6001 Rack Mount
• (13) 2U Ear mount pairs
• (13) Blank Panels
• HDMI Locking Post Replacement Screws
• Users Guide
As product improvements are continuous, specications are subject to change without
notice.
TABLE OF CONTENTS

3

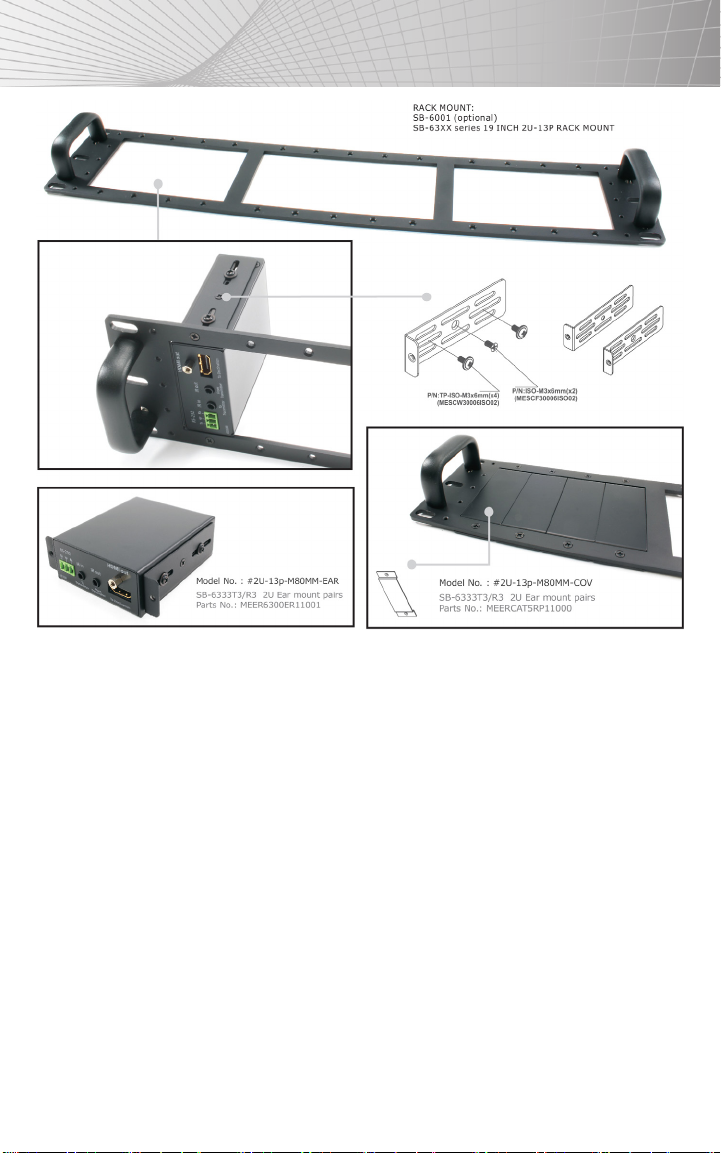

FEATURES

4

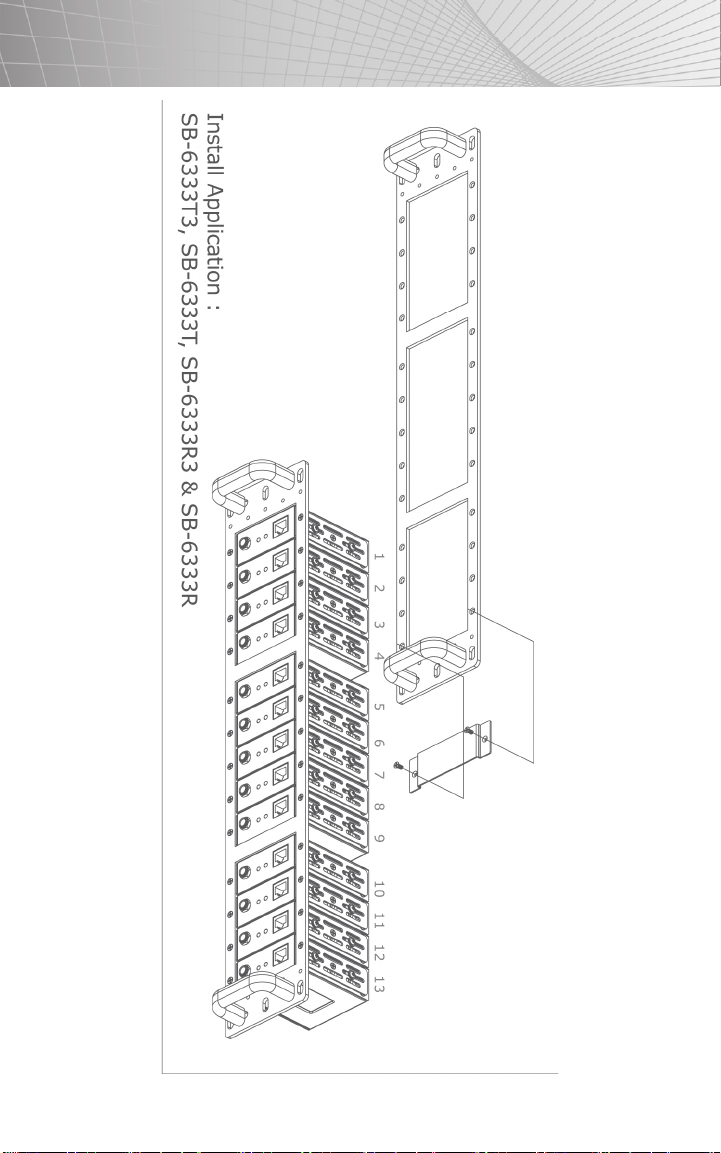

INSTALLING DIAGRAM

THIS PAGE IS INTENTIONALLY LEFT BLANK.
