Shiro SC3113 User manual

•User Manual •
SC3113
Caller ID Phone

SC3113 User Guide
1
FEATURES：
• DTMF/FSK Compatible
• LCD display date and week and 5 level contrast adjustable
• 3 one-touch Memory Recall
• LED indicator for incoming call
• Calculator function
!
• Please ensure the phone is placed in a dry and ventilated place without corrosive air.
• Please install 2 x AAA batteries for viewing the LCD display. If the LCD does not display
clearly, please change the batteries.
• Please check if you had applied caller ID service from Telecom provider for caller ID
display.

SC3113 User Guide
2
TABLE OF CONTENT
PRODUCT OVERVIEW..................................................................................... 3
1. INSTALLING OR REPLACING THE BATTERY ......................................................... 4
2. SWITCH OPERATION................................................................................... 4
RINGER HI/LO Switch .................................................................................4
HANDSFREE Volume Slider ...........................................................................4
3. SOFTWARE SETTING .................................................................................. 5
4. FUNCTION KEY OPERATION .......................................................................... 6
CHECK key.............................................................................................. 6
DEL key ................................................................................................. 6
CALLBACK key ......................................................................................... 6
SPEED DIAL Memory key (SAVE) ..................................................................... 6
SPEED DIAL Memory key (CALL) .....................................................................6
FLASH key (600ms).................................................................................... 6
REDIAL key ............................................................................................. 6
HANDSFREE (HF) key..................................................................................7
PAUSE key .............................................................................................. 7
CAL key .................................................................................................7
5. ADDITIONAL NOTES ...................................................................................7
INCOMING CALL LCD INDICATOR ..................................................................... 7
RING / INCOMING CALL LED INDICATOR ............................................................ 7
H.F LED INDICATOR....................................................................................7
IN USE LED INDICATOR ................................................................................7
LCD BACKLIGHT FUNCTION .......................................................................... 7
TROUBLESHOOTING GUIDE.............................................................................. 8
DECLARATION OF CONFORMITY ........................................................................ 8

SC3113 User Guide
3
PRODUCTOVERVIEW
Description:
1. LCD display 16. H.F (HANDSFREE) key
2. UP key 17. Handset Cord jack
3. PAUSE key 18. CALLBACK key
4. SET key 19. IN USE LED indicator
5. M1 key 20. H.F (HANDSFREE) LED indicator
6. M2 key 21. RING LED indicator
7. M3 key 22. DEL key
8. CAL key 23. CHECK key
9. DOWN key 24. TEL line jack
10. HANDSFREE VOLUME slider 25. RINGER HI/LO switch
11. #/- key
12. FLASH key
13. 0-9 key
14. REDIAL key
15. */. key
1
2
3
4
5
6
7
8
11
12 13 14
15 16
17
18
19
20
21
22
23
25
9
10
24

SC3113 User Guide
4

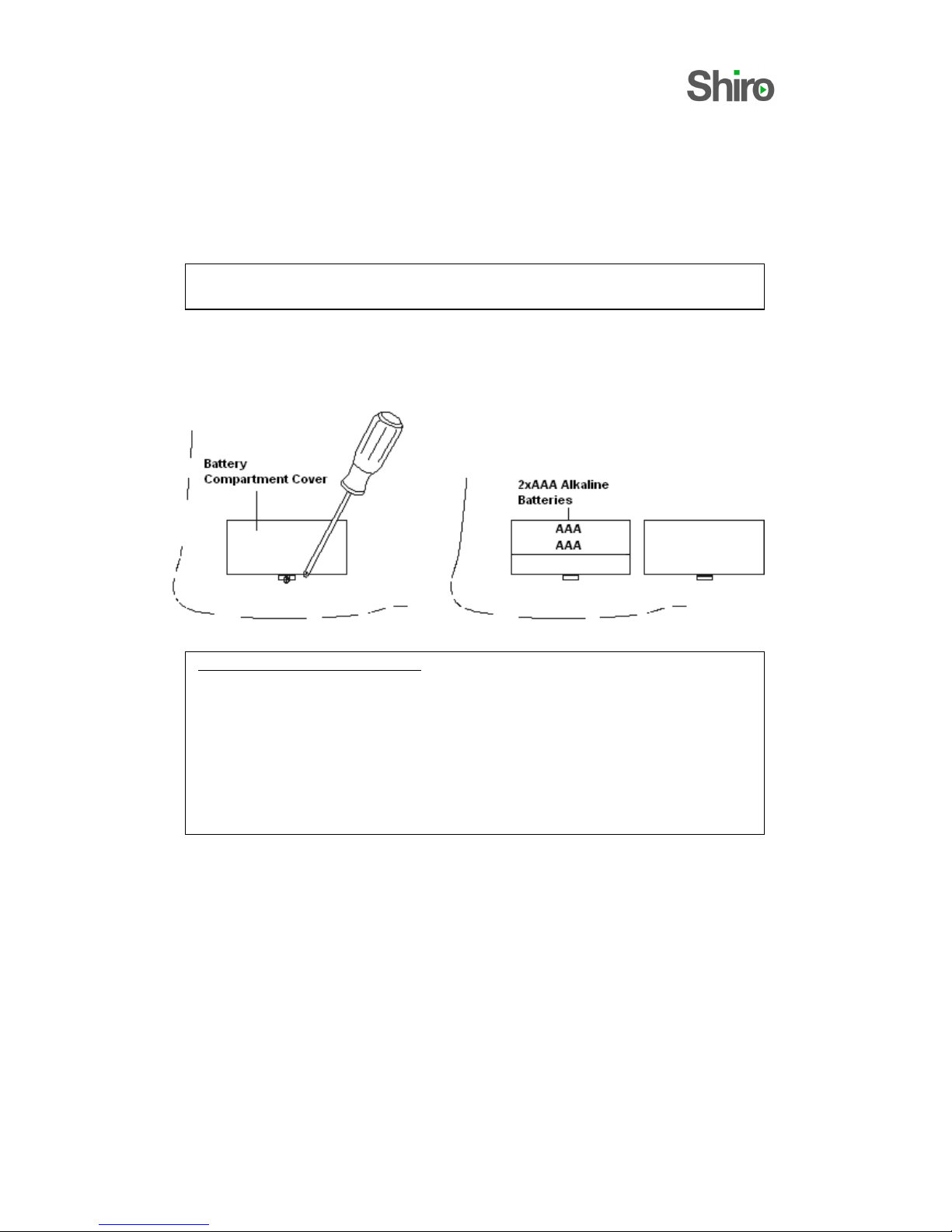

1. INSTALLING OR REPLACING THE BATTERY
Use screwdriver to remove the screw in the battery compartment cover on the bottom of the
base unit.
IMPORTANT—before removing the battery compartment cover, ensure the base unit
is disconnected from the telephone line.
 Install 2 Alkaline AAA batteries into the battery compartment and re-fit the cover before
use.
Warning: If no batteries are fitted, the LCD display will have no display while on-hook.
Connection and conditions for use
You can connect your SC3113, to public networks in the United Kingdom or to an
approved PBX using DTMF signaling. Each item of telephone equipment (phones, fax
machines, etc.) has a ringer equivalence numbers (REN). The RENs of all
equipment connected to an exchange line must not add up to more than 4
otherwise, one or more phones may not ring and/or answer calls correctly.
SC3113 has a REN of 1, and most other telephones have a REN of 1 unless marked
otherwise.
2. SWITCH OPERATION
RINGER HI/LO Switch
Select your preferred ringer volume either HI or LO. The selection is at the back of the
telephone.
HANDSFREE Volume Slider
Select your preferred Handsfree volume through the adjustment slider located at the side of
the telephone.

SC3113 User Guide
5
3. SOFTWARE SETTING
In on-hook position, press SET key to begin settings. You would see the LCD panel display
SE12345678 flashing. Press UP/DOWN or number key to change the settings. To set each
item, press SET key. To exit menu, press SET key.
SET ITEM OPERATIONS
DATE/TIME Press SET key. Press 1to display 1-dATE 2-CL.
Press 1 to set the date. The year, month and date will be flashing on
the LCD. Press number key to input the date. Once done, press SET key.
OR
Press 2 to set the time. The hour and minute will be flashing on the
LCD. Press number key to input the time. Once done, press SET key.
To exit press HF key.
FLASH or
PULSE/TONE
Press SET key. Press 5to display 1-F 2-PT on the LCD. Press 1 or 2 to
set Flash time or Pulse/Tone function.
For Flash time function:
Select 1 then press UP/DOWN key to choose flash time. Once
done, press SET key.
For PULSE/TONE function:
Select 2 then press UP/DOWN key to choose flash time. Once done,
press SET key.
To exit press HF key.
LOCAL CODE
Or
LONG DISTANCE
Press SET key. Then press 6 key to display 1-LOC 2-0L on the LCD. Press
1 or 2 key to set local code or long distance code.
Local Code Setting:
Select 1 then press number key to enter the code. Once done, press
SET key.
Long Distance Setting:
Select 2 and OUT OFF will be displayed on the LCD. Press number key
to enter the code. Once done, press SET key. Once this feature is
turned on, for any phone number that begins with “0”, the phone will
auto-add the long distance code.
LCD Contrast Press SET key. Press 7 keys to display LCD CON 3 on the LCD. Press
UP/DOWN key to adjust LCD contrast. Once done, press SET key. There
are 5 levels and by default, it is set to level 3.

SC3113 User Guide
6
AUTO-IP Press SET key. Press 8 keys to display 1-AU 2-3-IP on the LCD.
Select 2or 3to key the number and press SET to confirm. Then select
1, the LCD display AUTO IP OFF and OFF will flash, use UP key to
select the IP number.
Auto IP allows you to replace a sequence of number with single 0. E.g.
Setting 1455 as Auto IP, therefore when you need to dial 1455, just put
0 in front (pre-dial mode), 0 2334565 will be dialed as 1455 2334565.
4. FUNCTION KEY OPERATION
CHECK key
Press CHECK key to check incoming and outgoing calls. Press UP/DOWN key to navigate
forward and backward.
DEL key
In any mode, when checking the incoming and outgoing call, press DEL key to delete the
number you are checking.
CALLBACK key
Press CALLBACK key and hold for 3 seconds to dial out the number displayed on the LCD
panel with a “0” append in front of the number.
SPEED DIAL Memory key (SAVE)
In on-hook position, press the number you would like to save. Once done, press and hold
M1/M2/M3 key to save. You will see SAVE displayed on the LCD if it is saved successfully. If
you need to dial out and append a “0” in front of the number, press CALLBACK and hold for 3
seconds.
SPEED DIAL Memory key (CALL)
Press M1/M2/M3 key and the corresponding number will appear on the LCD panel. Press
CALLBACK or HF key to dial out the number. If you need to dial out and append a “0” in front
of the number, press CALLBACK and hold for 3 seconds.
FLASH key (600ms)
In the on-hook mode, press this key to auto-hang up, after that you can press REDIAL key or
dial out another number.
REDIAL key
In the on-hook mode, press this key to redial the last dialed number.

SC3113 User Guide
7
HANDSFREE (HF) key
While on-hook, press the HANDSFREE key to go into handsfree mode. You can talk through
the microphone and listen from the speakerphone without lifting the handset. While off-hook,
press the HANDSFREE key and put down the handset to go into handsfree mode.
PAUSE key
To insert a 3.6 second of pause while dialing, press PAUSE key and it will display P on the LCD
panel.
CAL key
In off-hook position, press CAL key to enter calculator mode. You can use －, ×, and ÷ key
to calculate:
• CALLBACK/÷key is ÷
• CHECK/×key is ×
• DOWN/+ key is +
• UP/－key is －
• */. key is radix point
• #/ = key is =
5. ADDITIONAL NOTES
INCOMING CALL LCD INDICATOR
When there is incoming call, the unit will be automatically display the caller number, date
and time, and also display its serial number. If the incoming call is in private mode, it will
display “__p__”; it will display “__0__” if exchange cannot determine the number; it will
display “—E—“ if the call signal contains error.
RING / INCOMING CALL LED INDICATOR
When there is incoming call, the LED will blink.
H.F LED INDICATOR
When the telephone is in handsfree mode, the H.F LED and IN USE LED indicator will turn on
simultaneously.
IN USE LED INDICATOR
When the handset is off hook, the LED will turn on.
LCD BACKLIGHT FUNCTION
When there is incoming call or handset is off-hook, the LCD backlight will lit up. It will be on
for about 6 seconds before going off. Without batteries, LCD backlight will not lit up at all.

SC3113 User Guide
8
TROUBLESHOOTING GUIDE
(Q) I do not hear any dial tone from the handset.
(A) Ensure the handset cord is connected correctly from the handset to the handset cord jack
at the base. Ensure you have plug in the telephone cable from the telephone to the wall
socket correctly. If the problem persists, please check with your local dealer.
(Q) I could not see the caller’s number on the LCD when there is incoming call.
(A) Ensure that you have subscribed Caller ID service from your local telecom provider.
(Q) There is no LCD Display / Backlight after I have connected the telephone line. I can
call out normally.
(A) Ensure that you have inserted the batteries on the battery compartment. If there is still
no display, change the batteries and ensure it is not empty. If the problem persists, please
check with your local dealer.
DECLARATION OF CONFORMITY
The telephone complies with the essential protective requirements and objectives of:
• EC R& TTE Directive 1999/5/EC
• EC Low Voltage Directive 73/23/EEC
• EC EMC Directive 89/336/EEC
And conforms to the following relevant harmonized standards:
• EMC: EN55022, EN55024
• Safety: EN 60950
Created on 28th
October 2005. SC3113 Caller ID Phone.
Please visit us at www.shirocorp.com.
