Cameo STUDIO PAR 4 G2 User manual

STUDIO PAR 4 G2
LED PAR SPOTLIGHT WITH 12 X RGBW 4-IN-1 LED
CLPST4G2
STUDIO PAR 6 G2
LED PAR SPOTLIGHT WITH 12 X RGBAWUV 6-IN-1 LED
CLPST6G2
USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D`UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D‘ USO
RGBW

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ /
CONTENUTO
ENGLISH
INFORMATION ON THIS USER MANUAL 6
INTENDED USE 6
DEFINITIONS AND SYMBOL EXPLANATIONS 6
SAFETY INSTRUCTIONS 7
NOTES FOR MOBILE INDOOR DEVICES 10
INCLUDED 10
INTRODUCTION 11
CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 12
OPERATION 14
SETUP AND INSTALLATION 24
MOUNTING THE FILTER FRAME 25
CARE, MAINTENANCE AND REPAIR 26
TECHNICAL DATA 27
MINIMUM DISTANCE TO ILLUMINATED SURFACE 28
MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 28
DISPOSAL 29
MANUFACTURER’S DECLARATIONS 29

DEUTSCH
INFORMATIONEN ZU DIESER BEDIENUNGSANLEITUNG 31
BESTIMMUNGSGEMÄSSER GEBRAUCH 31
BEGRIFFS- UND SYMBOLERKLÄRUNGEN 31
SICHERHEITSHINWEISE 32
HINWEISE FÜR ORTSVERÄNDERLICHE INDOOR-GERÄTE 35
LIEFERUMFANG 35
EINFÜHRUNG 36
ANSCHLÜSSE, BEDIEN- UND ANZEIGEELEMENTE 37
BEDIENUNG 39
AUFSTELLUNG UND MONTAGE 49
FILTERRAHMEN MONTIEREN 50
PFLEGE, WARTUNG UND REPARATUR 51
TECHNISCHE DATEN 52
MINDESTABSTAND ZUR BELEUCHTETEN FLÄCHE 53
MINDESTABSTAND ZU NORMAL ENTFLAMMBAREN MATERIALIEN 53
ENTSORGUNG 54
HERSTELLERERKLÄRUNGEN 54
FRANÇAIS
INFORMATIONS CONCERNANT CE MANUEL D’UTILISATION 55
UTILISATION CONFORME 55
EXPLICATIONS DES TERMES ET DES SYMBOLES 55
CONSIGNES DE SÉCURITÉ 56
REMARQUES CONCERNANT LES APPAREILS D’INTÉRIEUR MOBILES 60
CONTENU DE LA LIVRAISON 60
INTRODUCTION 60
RACCORDEMENTS, ÉLÉMENTS DE COMMANDE ET D’AFFICHAGE 62
UTILISATION 64
INSTALLATION ET MONTAGE 74
MONTAGE DU CADRE DE FILTRE 75
ENTRETIEN, MAINTENANCE ET RÉPARATION 76
CARACTÉRISTIQUES TECHNIQUES 77
DISTANCE MINIMALE PAR RAPPORT À LA SURFACE ÉCLAIRÉE 79
DISTANCE MINIMALE PAR RAPPORT AUX MATÉRIAUX NORMALEMENT
INFLAMMABLES 79
ÉLIMINATION 79
DÉCLARATIONS DU FABRICANT 80
CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ /
CONTENUTO

ESPAÑOL
INFORMACIÓN SOBRE ESTE MANUAL DE INSTRUCCIONES 81
USO PREVISTO 81
TÉRMINOS Y SÍMBOLOS 81
INSTRUCCIONES DE SEGURIDAD 82
INDICACIONES PARA EQUIPOS PORTÁTILES DE INTERIOR 86
VOLUMEN DE SUMINISTRO 86
INTRODUCCIÓN 86
CONEXIONES, ELEMENTOS DE MANEJO Y ELEMENTOS DE VISUALIZACIÓN 88
MANEJO 90
INSTALACIÓN Y MONTAJE 101
MONTAJE DEL PORTAFILTROS 102
CUIDADO, MANTENIMIENTO Y REPARACIÓN 103
DATOS TÉCNICOS 104
DISTANCIA MÍNIMA CON RESPECTO A LA SUPERFICIE ILUMINADA 105
DISTANCIA MÍNIMA CON RESPECTO A MATERIALES NORMALMENTE
INFLAMABLES 105
ELIMINACIÓN 106
DECLARACIONES DEL FABRICANTE 106
POLSKI
INFORMACJE DOTYCZĄCE NINIEJSZEJ INSTRUKCJI OBSŁUGI 108
UŻYTKOWANIE ZGODNE Z PRZEZNACZENIEM 108
OBJAŚNIENIA TERMINÓW I SYMBOLI 108
ZASADY BEZPIECZEŃSTWA 109
UWAGI DOTYCZĄCE PRZENOŚNEGO SPRZĘTU DO STOSOWANIA W
POMIESZCZENIACH 113
ZAKRES DOSTAWY 113
WPROWADZENIE 113
PRZYŁĄCZA, ELEMENTY OBSŁUGI I WSKAŹNIKI 115
OBSŁUGA 117
USTAWIANIE I MONTAŻ 127
MONTAŻ RAMY FILTRA 128
CZYSZCZENIE, KONSERWACJA I NAPRAWY 129
DANE TECHNICZNE 130
MINIMALNA ODLEGŁOŚĆ OD POWIERZCHNI OŚWIETLANEJ 132
MINIMALNA ODLEGŁOŚĆ OD NORMALNIE ŁATWOPALNYCH MATERIAŁÓW 132
UTYLIZACJA 132
OŚWIADCZENIA PRODUCENTA 133

ITALIANO
INFORMAZIONI SUL PRESENTE MANUALE D'USO 134
UTILIZZO CONFORME 134
SPIEGAZIONE DI CONCETTI E SIMBOLI 134
INDICAZIONI SULLA SICUREZZA 135
AVVERTENZE PER DISPOSITIVI INDUSTRIALI PORTATILI 138
FORNITURA 138
INTRODUZIONE 139
CONNETTORI, ELEMENTI DI COMANDO E VISUALIZZAZIONE 140
UTILIZZO 142
INSTALLAZIONE E MONTAGGIO 152
INSTALLAZIONE DEL PORTAFILTRO 153
PULIZIA, MANUTENZIONE E RIPARAZIONE 154
DATI TECNICI 155
DISTANZA MINIMA DALLA SUPERFICIE ILLUMINATA 157
DISTANZA MINIMA DAI MATERIALI NORMALMENTE INFIAMMABILI 157
SMALTIMENTO 157
DICHIARAZIONI DEL PRODUTTORE 158
DMX
DMX CONTROL / DMX STEUERUNG / PILOTAGE DMX / CONTROL DMX / STEROWANIE DMX / CON-
TROLLO DMX 159

6
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
ENGLISH
YOU HAVE MADE THE RIGHT CHOICE!
This device has been developed and manufactured to the highest quality standards to ensure
many years of problem-free operation. Please read this user manual carefully to be able to use
your new Cameo product quickly and optimally. Further information about Cameo Light is avail-
able on our website CAMEOLIGHT.COM.
INFORMATION ON THIS USER MANUAL
• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
• Always keep the user manual within reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is an
integral part of the product.
INTENDED USE
The product is a device for event technology!
This product has been developed for professional use in the field of event technology and is not
suitable for use as domestic lighting!
Furthermore, this product is only intended for qualified users with specialist knowledge of event
technology!
Use of the product outside the specified technical data and operating conditions is considered
inappropriate!
Liability for damage and third-party damage to persons and property due to inappropriate use is
excluded!
The product is not suitable for:
• Use by persons (including children) with limited physical, sensory or mental abilities or lack of
experience and knowledge.
• Children (children must be instructed not to play with the device).
DEFINITIONS AND SYMBOL EXPLANATIONS
1. HAZARD: The word HAZARD, possibly in combination with a symbol, indicates situations in
which there is an immediate danger or risk of potentially fatal injury.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates situations in
which there is an immediate danger or risk of potentially fatal injury.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or
conditions that could result in injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations
or conditions that could result in damage to property and/or the environment.

7
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
This symbol identifies hazards that can cause electric shock.
This symbol identifies hazardous areas or hazardous situations.
This symbol indicates hazards caused by hot surfaces.
This symbol indicates hazards caused by intense light sources.
This symbol indicates a device in which there are no user-replaceable parts.
This symbol indicates additional information on the operation of the product.
SAFETY INSTRUCTIONS
HAZARD:
1. Do not open the device and do not perform any modifications.
2. If your device no longer functions properly, if liquids or objects get inside it or if it
has been damaged in any other way, switch it off immediately and unplug it from
the power source. The device may be repaired only by authorised repair techni-
cians.
3. For devices of protection class 1, the protective conductor must be connected
correctly. Never disconnect the protective conductor. Devices of protection class 2
do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.
WARNING:
1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the device's power cable is damaged, the device may not be used.
4. Permanently connected power cables may only be replaced by a qualified person.

8
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
ATTENTION:
1. Do not switch on the device if it has been exposed to extreme temperature fluctu-
ations (for example, following transport). Moisture and condensation can damage
the device. Switch on the device only when it has reached room temperature.
2. Ensure that the voltage and frequency of the mains supply match the values spec-
ified on the device. If the device has a voltage selector switch, do not connect the
device until it has been set correctly. Use only suitable power cables.
3. To disconnect the device from the mains on all poles, it is not sufficient to press the
on/off switch on the device.
4. Make sure that the fuse used corresponds to the type printed on the device.
5. Ensure that suitable measures have been taken against overvoltage (e.g. lightning
strikes).
6. Observe the specified maximum output current on devices with a Power Out con-
nection. Ensure that the total current consumption of all connected devices does
not exceed the specified value.
7. Replace plug-in power cables with original cables only.
HAZARD:
1. Choking hazard! Plastic bags and small parts must be kept out of reach of persons
(including children) with reduced physical, sensory or mental capabilities.
2. Risk of falling! Make sure that the device is securely installed and will not fall
down. Only use suitable stands or mounts (particularly for fixed installations).
Ensure that accessories are properly installed and secured. Ensure that applicable
safety regulations are observed.
WARNING:
1. Use the device in the prescribed manner only.
2. Operate the device using only accessories of the type recommended and supplied
by the manufacturer.
3. Observe safety regulations applicable in your country during installation.
4. After connecting the device, ensure that all cables are routed so as to avoid dam-
age or accidents, such as from tripping.
5. Always observe the specified minimum distance to normally flammable materials!
Unless explicitly stated, the minimum distance is 0.3m.

9
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
CAUTION:
1. Moving components such as mounting brackets may become jammed.
2. In the case of devices with motor-driven components, there is a risk of injury due
to the movement of the device. Sudden movement of the device can cause shock
reactions.
3. The housing surface of the device can become very hot during regular operation.
Ensure that accidental touching of the housing is not possible. Always allow the
device to cool sufficiently before removal, maintenance work and charging etc.
ATTENTION:
1. Do not install or use the device in the vicinity of radiators, accumulators, stoves, or
other heat sources. Ensure that the device is always installed in such a way that it
is sufficiently cooled and cannot overheat.
2. Do not place any ignition sources, such as burning candles, near the device.
3. Ventilation openings must not be covered and fans must not be blocked.
4. For transport, use the original packaging or packaging provided by the manufactur-
er.
5. Avoid any impacts to or shaking of the device.
6. Observe the IP rating and the ambient conditions such as temperature and humidi-
ty according to the specifications.
7. Devices can be continuously further developed. In the event of deviating informa-
tion on operating conditions, performance or other device properties between the
user manual and the device labelling, the information on the device always has
priority.
8. The device is not suitable for tropical climate zones or for operation over 2,000m
above sea level.
9. Unless explicitly stated, the device is not suitable for operation under marine
conditions.
PLEASE NOTE:
For conversion or retrofit sets or accessories provided by the manufacturer, it is
essential to observe the instructions included.
CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!
1. Never look directly into the beam of light, not even for a short period of time.
2. Never look into the beam of light using optical devices such as a magnifying glass.

10
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
3. Stroboscopic effects may cause epileptic seizures in susceptible individuals!
4. Permanently installed lamps are built into these lighting units. These may not be
replaced by the user. The lamps contained in this lighting unit may only be replaced
by the manufacturer, its service partner, or a similarly qualified person.
NOTES FOR MOBILE INDOOR DEVICES
1. Temporary operation! Event equipment is generally only designed for temporary
operation.
2. Continuous operation or permanent installation can impair the functioning of the
device and cause premature ageing.
INCLUDED
Remove the product from the packaging and remove all packaging material.
Please check the completeness and integrity of the delivery and notify your distribution partner
immediately after purchase if the delivery is not complete or if it is damaged.
Included with the CLPST4G2:
X1x STUDIO PAR 4 G2 spotlight
X1x filter frame (pre-assembled)
X1x power cable
XUser manual
Included with the CLPST6G2:
X1x STUDIO PAR 6 G2 spotlight
X1x filter frame (pre-assembled)
X1x power cable
XUser manual

11
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
INTRODUCTION
12 X 8W RGBW STUDIO PAR G2 SPOTLIGHT
CLPST4G2
12 X 12 W RGBWA+UV STUDIO PAR G2 SPOTLIGHT
CLPST6G2
CONTROL FUNCTIONS:
CLPST4G2: 1-channel DIM UC, D3-channel macro, 4-channel RGBW, 4-channel strobe macro,
D8-channel strobe macro, 10-channel macro control, D6-channel direct 8 bit, 10-channel direct
16 bit and 14-channel full access DMX control
CLPST6G2: 1-channel DIM UC, D3-channel macro, 4-channel strobe macro, 6-channel RGBWAUV,
D10-channel strobe macro, 12-channel macro control, D9-channel direct 8 bit, 14-channel direct
16 bit, 18-channel full access DMX control
Master / slave operation
Standalone functions
W-DMX connection via optional iDMX stick
FEATURES:
3-pin DMX connections. Power Twist mains connections IN and OUT. OLED display.
PWM frequency adjustable. Connection for iDMX stick. Installation double bracket included. Oper-
ating voltage 100-240 V AC.
The spotlight features the RDM standard (Remote Device Management). Remote device manage-
ment allows the user to view the status and configuration of RDM terminals via an RDM-capable
controller.

12
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
CONNECTIONS, OPERATING AND DISPLAY ELEMENTS
1
3
4 5
6
7
8
9
2

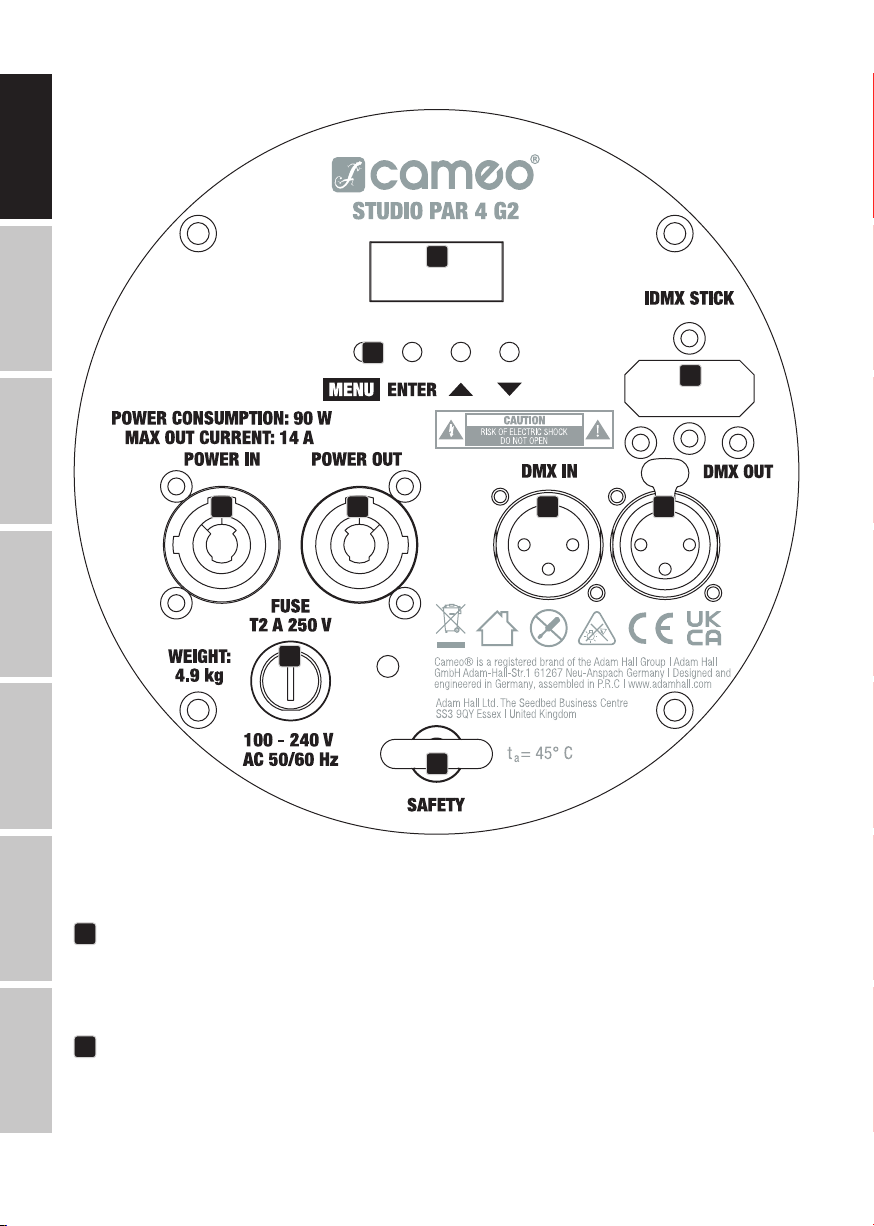

The STUDIO PAR 4 G2 and STUDIO PAR 6 G2 models feature identical connections, operating and display elements.
1POWER IN
Blue Power Twist mains input socket. Operating voltage 100–240 V AC/50–60 Hz.
A suitable power cable with Power Twist plug is included.
2POWER OUT
White Power Twist mains output socket. Facilitates power supply to other CAMEO spotlights. Ensure
that the total power consumption of all devices connected to the device does not exceed the given
ampere (A) value.

13
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
3FUSE
for 5 x 20mm fuses. IMPORTANT: Replace the fuse only with a fuse of the same type and value.
In the event of repeated fuse failure, please contact an authorised service centre.
4DMX IN
Male 3-pin XLR socket for connection to a DMX control device (e.g. DMX console).
5DMX OUT
Female 3-pin XLR socket for sending the DMX control signal.
6IDMX STICK
Connection for the optional iDMX stick for W-DMX™ connection
(plug in the iDMX stick with the antenna facing upwards).
7OLED DISPLAY
The OLED display shows the currently activated mode (main display), the menu items in the menu
and the numerical value or operational status in certain menu items. If there is no input for ap-
prox. 30 seconds, the display automatically returns to the main display. Note regarding the main
display in operating modes with external control: As soon as the control signal is interrupted, the
characters in the display begin to flash. When there is a control signal again, the flashing stops.
Briefly pressing the button when in the main display rotates the display by 180°.
8CONTROL KEYS
MENU – Press MENU to access the main menu. Press again or repeatedly to return to the main
display. Pressing MENU without confirming a value or status change with ENTER restores the
previously confirmed value or status.
ENTER – press ENTER to access the menu levels, to make value changes, and to access the
submenus. Confirm value or status changes by pressing ENTER.
and – Select individual menu items in the main menu (DMX address, DMX mode etc.) and
in the submenus. Allows you to change the value of a menu option, such as the DMX address, as
desired (long press = quick value change).
9SAFETY
Securing lug for attaching the spotlight.

14
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
OPERATION
NOTES
• As soon as the spotlight is correctly connected to the power supply, the following are displayed
in succession: "Software Update Please Wait" (for service purposes only), "Welcome to Cameo,"
the model name and the software version. After this process, the spotlight is operational and the
previously activated operating mode is launched.
• The main display is activated automatically if no input is made within approximately 30 sec-
onds. To navigate one level up in the submenus, briefly press MENU.
• Briefly pressing when in the main display rotates the display by 180°.
• To quickly change a value (e.g. DMX start address), press and hold or .
MAIN DISPLAY DMX OPERATING MODE
The display shows the DMX address and current DMX start address
(in the example 001).
DMX Address
001
MAIN DISPLAY STANDALONE MODE
The display shows the currently activated standalone mode (Mode Auto, Mode Static, Mode Color
Preset, Mode Loop).
Mode
Auto
Mode
Static
Mode
Color Preset
Mode
Loop
MAIN DISPLAY SLAVE MODE
The display shows Mode Slave.
Mode
Slave

15
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
CONFIGURING DMX START ADDRESS (DMX Address)
Starting from the main display, press MENU to enter the main menu. Nowuse or to select the
menu item DMX address and confirm with ENTER. Now use the or buttons to configure the
desired DMX start address and press ENTER to confirm (highest value dependent upon activated
DMX mode).
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Address
001 - 512
CONFIGURING DMX MODE (DMX Mode)
Starting from the main display, press MENU to enter the main menu. Nowuse or to select
the menu item DMX Mode and confirm with ENTER. Again use or to select the desired DMX
mode and confirm with ENTER (DMX modes with DMX delay channel are identified with "D"). Ta-
bles with the channel assignment of the different DMX modes can be found in these instructions
under DMX CONTROL.
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Mode
1CH DIM UC1
D3CH Macro
4CH RGBW
4CH Strobe Macro
D8CH Strobe
10CH Control
D6CH 8Bit
10CH 16Bit
14CH Full Access
CLPST4G2
DMX Mode
1CH DIM UC1
D3CH Macro
4CH Strobe Macro
6CH RGBWAuV
D10CH Strobe
12CH Control
D9CH 8Bit
14CH 16Bit
18CH Full Access
CLPST6G2

16
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
DMX DELAY
The DMX Delay function is a simple way to create a running light effect with a large number of
spotlights that are all the same model and that are all running the same software version. This
is otherwise only achievable with a suitable DMX controller and time-consuming programming.
All the spotlights used (same models, same software version) are set to the same DMX operating
mode with DMX delay channel and controlled via the same DMX start address.
Setting the DMX delay:
Starting from the main display, press MENU to enter the main menu. Now use or to select
the menu item DMX Delay and confirm 2x with ENTER.
Assign the spotlights to one of up to 24 groups (plus Group 0) according to preference, whereby
several spotlights can be assigned to one group. The group number is also the factor by which the
set delay time set in the DMX controller is multiplied. Confirm each entry by pressing ENTER.
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group
Group
00 - 24
The delay time (delay time of the DMX signal) is set by means of a DMX controller in the separate
DMX delay channel of the corresponding DMX mode (0.0s to 2.0s in 0.1s increments).
Setup example:
DMX Delay
Group 0
DMX Delay
Delay Group 0
no Delay
Delay Group 1
0,5s Delay
Delay Group 2
1s Delay
Delay Group 3
1,5s Delay
Delay Group 4
2s Delay
Delay Group 5
2,5s Delay
DMX
Controller
DMX Delay 0.5s Group 1
DMX Delay
Group 2
DMX Delay
Group 3
DMX Delay
Group 3
DMX Delay
Group 3
DMX Delay
Group 4
DMX Delay
Group 5

17
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
AUTO STANDALONE MODE
The 6 available auto programs partly comprise non-editable colour change sequences and partly
random scenes. Brightness and running speed can be set separately for each program.
Starting from the main display, press MENU to enter the main menu. Using and , select the
menu item Stand Alone, confirm with ENTER, then select Static, confirm with ENTER, then
select the desired program and confirm once again with ENTER.
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Program
1
|
6
Auto x
Dimmer
Speed
Delay
Stand Alone
Auto
Static
Color Preset
Playback Loop
Edit User Color
Edit Loop
This will take you to the submenu for setting the submenu items (see table, select with and
, confirm with ENTER, change value with and , confirm with ENTER). The settings for each
programme are made separately and are retained even after restarting the device.
Dimmer Sets brightness 0-100
Speed Sets running speed 0-100
Delay Sets the delay time for slave units 0.0 - 2.0 s
STATIC STANDALONE MODE
The standalone mode static allows the dimmer, strobe, R, G, B and W values (CLPST4G2) or the
R, G, B, W, A and UV values (CLPST6G2) to be set directly on the device, in a similar way to with
a DMX controller. In this way, an individual scene can be created without an additional DMX
controller.
Starting from the main display, press MENU to enter the main menu. Using and , select the
menu item Stand Alone and confirm with ENTER, then select Static and confirm once again with
ENTER. Using and , now select the menu item that you wish to edit and confirm with ENTER.
Use and to set the desired value. Confirm all entries with ENTER.
Static
Dimmer
Strobe
Red
Green
Blue
White
000 - 100
000 - 255
000 - 100
000 - 100
000 - 100
000 - 100
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Auto
Static
Color Preset
Playback Loop
Edit User Color
Edit Loop
Static
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
000 - 100
000 - 255
000 - 100
000 - 100
000 - 100
000 - 100
000 - 100
000 - 100
CLPST4G2 CLPST6G2

18
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
COLOUR PRESET STANDALONE MODE
15 different colour presets plus 4 individually adjustable user presets are available. The brightness
and a strobe effect can be set at a higher level.
Starting from the main display, press MENU to enter the main menu. Using and , select the
menu item Stand Alone and confirm with ENTER, then select Colour Preset and confirm once
again with ENTER. Now use and to select the menu option with the currently activated preset
and confirm with ENTER. The desired preset can now be selected with and ; confirm the
selection with ENTER. Now select the Dimmer or Strobe using and , confirm with ENTER and
make the settings as desired. Confirm all entries with ENTER
Color Preset
Red
Dimmer
Strobe
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Auto
Static
Color Preset
Playback Loop
Edit User Color
Edit Loop
Colour Preset
Red
|
Cold White
User Colour 1
|
User Colour 4
Dimmer 000-100
Strobe 000-255
PLAYBACK LOOP STANDALONE MODE
Starting from the main display, press MENU to enter the main menu. Using and , select the
menu item Stand Alone, confirm with ENTER, then select Playback Loop and confirm again
with ENTER. Now use and to select Loop, confirm, then select one of the four available loops
for playback and confirm again. All four loops can be edited individually (Main Menu -> Stand
Alone -> Edit Loop). A delay time for slave units can also be set (Loop Delay).
Playback Loop
Loop
Loop Delay
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Auto
Static
Color Preset
Playback Loop
Edit User Color
Edit Loop
Loop Selection of
colour change
programs
Loop 1
|
Loop 4
Loop
Delay
Sets the delay
time for slave
units
0.0-2.0 s

19
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
EDITING USER PRESETS (Edit User Colour)
The four user presets available in the standalone mode Colour Preset can be edited individually.
Starting from the main display, press MENU to enter the main menu. Using and , select the
menu item Stand Alone, confirm with ENTER, then select Static and confirm once again. Now
use and to select the desired preset and confirm with ENTER. You can now create an individ-
ual colour mix of Red, Green, Blue and White (CLPST4G2) or Red, Green, Blue, White, Amber and
UV (CLPST6G2) with values ranging from 0 to 100 each (select colour with and , confirm with
ENTER, change value with and , confirm with ENTER).
1
2
3
4
Edit User Color
Red
Green
Blue
White
000 - 100
000 - 100
000 - 100
000 - 100
User Color x
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Auto
Static
Color Preset
Playback Loop
Edit User Color
Edit Loop
Red
Green
Blue
White
Amber
UV
000 - 100
000 - 100
000 - 100
000 - 100
000 - 100
000 - 100
User Color x
CLPST4G2 CLPST6G2
EDIT LOOP (Edit Loop)
Brightness, step duration and fade time can be set separately for all four loops. Starting from the
main display, press MENU to enter the main menu. Using and , select the menu item Stand
Alone, confirm with ENTER, then select Edit Loop and confirm once again. Using and , now
select the desired loop for editing and confirm with ENTER.
Loop x
Dimmer
t-Step
t-Fade
Step 1
|
Step 8
0 - 100
0 - 255
0 - 255
1
2
3
4
Edit Loop
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Auto
Static
Color Preset
Playback Loop
Edit User Color
Edit Loop
This will take you to the submenu for setting the submenu items (see table, select with and
, confirm with ENTER, change value or status with and , confirm with ENTER). The settings for
each loop are made separately and are retained even after restarting the device.
Edit Loop (Loop 1 - Loop 4)
Dimmer Sets brightness 0-100
t-step Sets step time 0-255
t-fade Sets fade time 0-255
Step 1 15 colours from Colour Preset Red-Cold White
4 colours from User Colour User Color 1 – User Color 4
Blackout Black
Step 2 “ “

20
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
Step 3 15 colours from Colour Preset Red-Cold White
4 colours from User Colour User Color 1 – User Color 4
Blackout Black
Skip step Skip Step
Step 4 “ “
Step 5 “ “
Step 6 “ “
Step 7 “ “
Step 8 “ “
SLAVE MODE
Standard Slave mode: Starting from the main display, press MENU to enter the main menu.
Now use and to select the menu item Slave, confirm with ENTER, select Slave Group 0 and
again confirm with ENTER. Connect the slave and the master units (same model, same software
version) using a DMX cable, and enable one of the standalone modes on the master unit (Auto,
Static, Colour Preset, Play Loop). The slave unit will now follow the master unit.
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Slave Group
00
Advanced slave mode: If you wish to control the slave units in master/slave mode using one of
the Auto or Playback Loop standalone modes, the control signal can be reproduced with a time
delay of up to 24 steps. The delay is set in the submenu item Delay in the relevant standalone
mode; the delay factor is set in the slave menu of the corresponding spotlight. This is a simple
way to create a running light effect with a large number of spotlights that are all the same model
and have the same software version. This is otherwise only possible using a suitable DMX control-
ler and time-consuming programming.
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Slave Group
00 - 24
