Show Tec LED Police Light V1 User manual

LED Police Light V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 30862
MANUAL
ENGLISH

1
Ordercode: 30862
LED Police Light
Table of contents
Warning...........................................................................................................................................................................2
Safety Instructions .....................................................................................................................................................2
Operating Determinations.......................................................................................................................................4
Rigging........................................................................................................................................................................4
Return Procedure......................................................................................................................................................6
Claims .........................................................................................................................................................................6
Description of the device.............................................................................................................................................7
Overview....................................................................................................................................................................7
Installation ......................................................................................................................................................................7
Set Up and Operation...................................................................................................................................................7
Maintenance..................................................................................................................................................................8
Replacing the Fuse...................................................................................................................................................8
Troubleshooting .............................................................................................................................................................9
No Light.......................................................................................................................................................................9

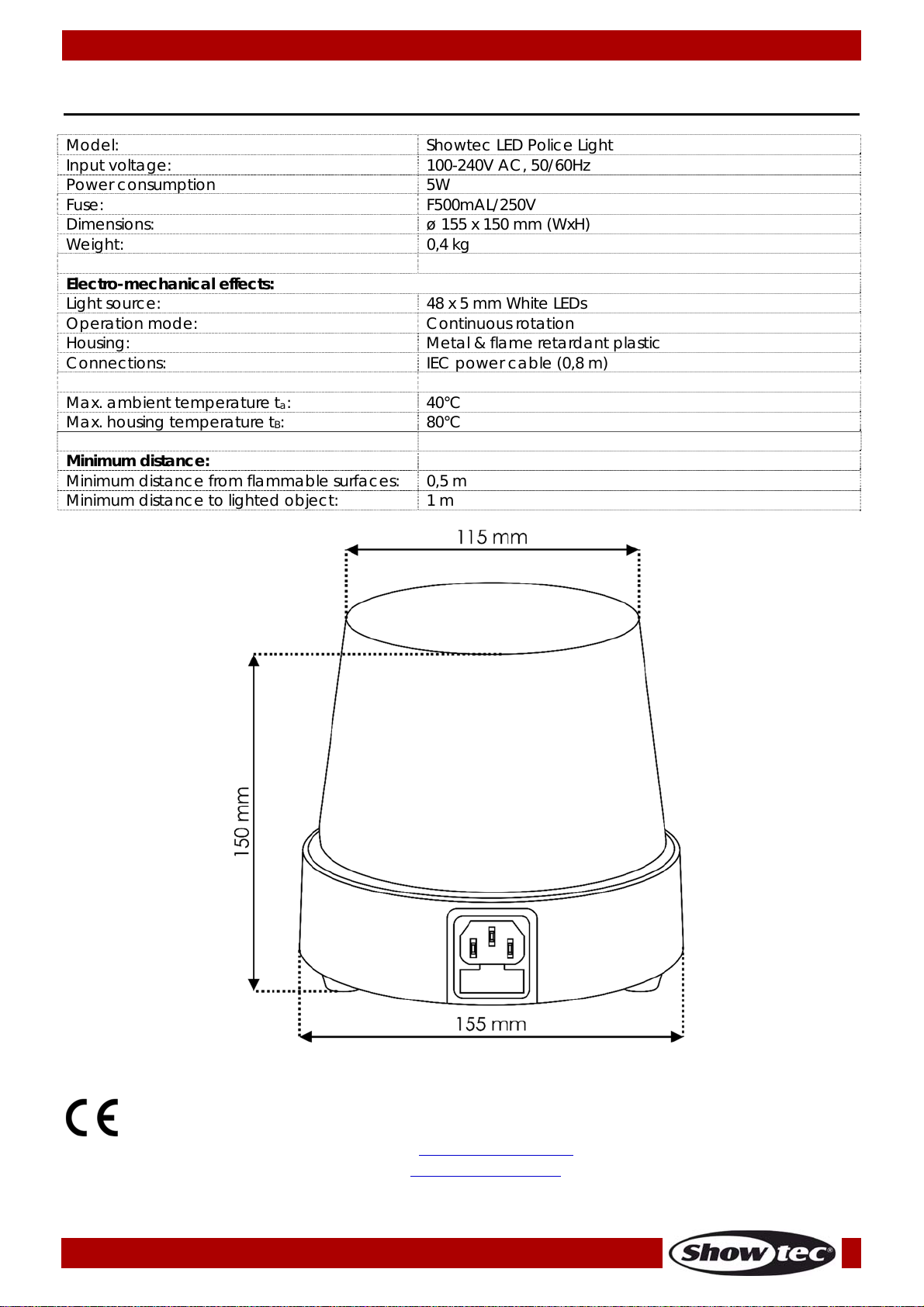

Product Specifications................................................................................................................................................10

2
Ordercode: 30862
LED Police Light

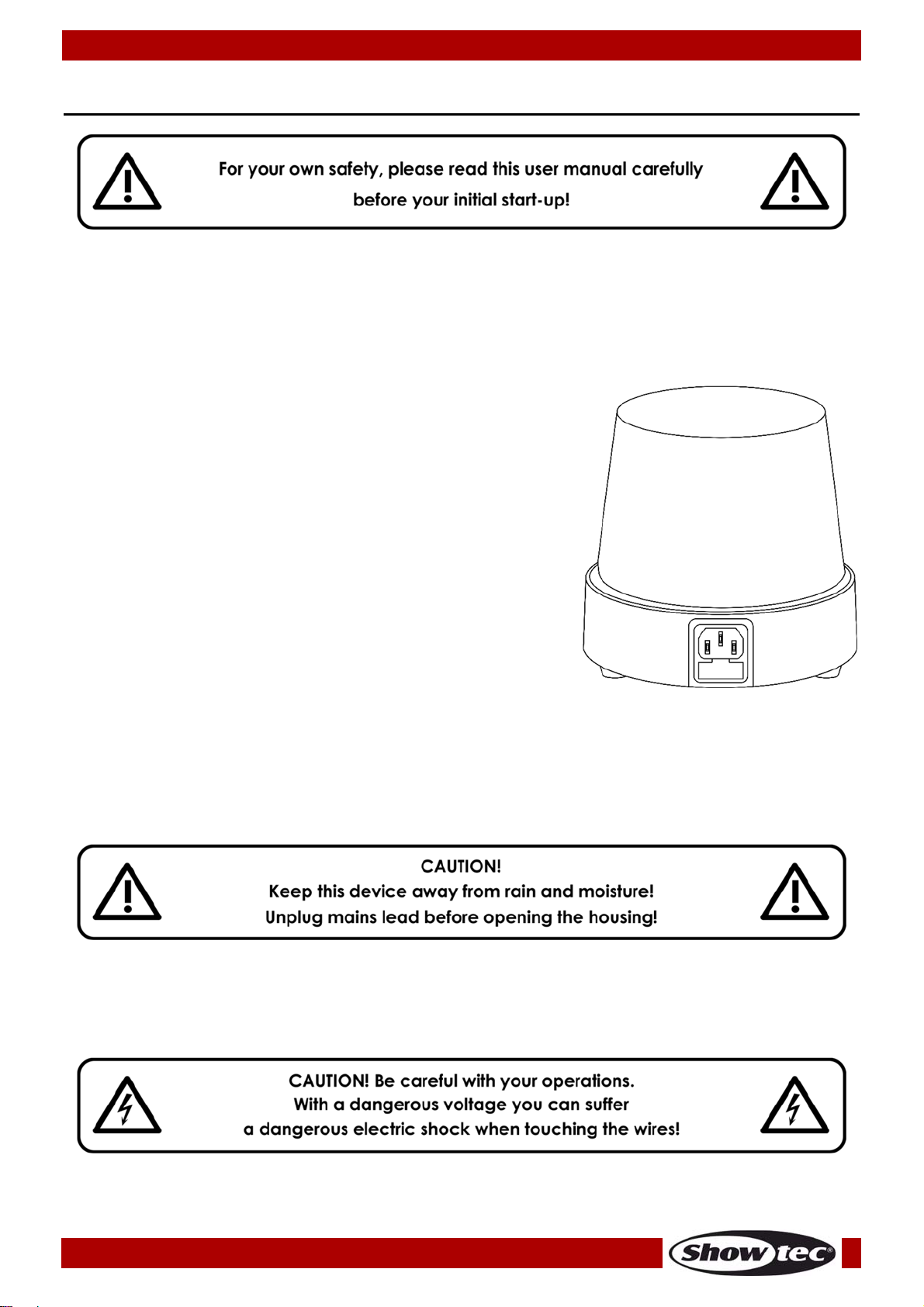

Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
Showtec LED Police Light
IEC power cable (0,8 m)
User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower
operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
be qualified
follow the instructions of this manual

3
Ordercode: 30862
LED Police Light
Before the initial start-up, please make sure that there is no damage caused by transportation.
Should there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes contained in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
•Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
•Never remove warning or informative labels from the unit.
•Never use anything to cover the ground contact.
•Never place any material over the lens.
•Never look directly into the light source.
•Never leave any cables lying around.
•Do not connect this device to a dimmer pack.
•Do not switch the device on and off in short intervals, as this will reduce the device’s life.
•Do not shake the device. Avoid brute force when installing or operating the device.
•Only use the device indoors, avoid contact with water or other liquids.
•Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly
fastened.
•Only operate the device after having familiarized with its functions.
•Avoid flames and do not put close to flammable liquids or gases.
•Always keep the case closed while operating.
•Always allow a free air space of at least 50 cm around the unit for ventilation.
•Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
•Make sure that the device is not exposed to extreme heat, moisture or dust.
•Make sure that the available voltage is not higher than stated on the rear panel.
•Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
•If the lens is obviously damaged, it has to be replaced.
•If device was dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
•If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
•For adult use only. The fixture must be installed beyond the reach of children. Never leave the unit
running unattended.
•Never attempt to bypass the thermostatic switch or fuses.
•For replacement use fuses of same type and rating only.
•The user is responsible for correct positioning and operating of the LED Police Light. The manufacturer
will not accept liability for damages caused by the misuse or incorrect installation of this device.
•This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
•Repairs, servicing and electric connection must be carried out by a qualified technician.
•WARRANTY: Till one year after date of purchase.

4
Ordercode: 30862
LED Police Light
Operating Determinations
•This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
•The minimum distance between light output and the illuminated surface must be bigger than 1
meter.
•The maximum ambient temperature ta= 40°C must never be exceeded.
•The relative humidity must not exceed 50 % with an ambient temperature of 40° C.
•If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
•Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !

5
Ordercode: 30862
LED Police Light
The LED Police Light can be placed on a flat stage floor.
Improper installation can cause serious injuries and/or damage of property!
Connection with the mains
Connect the device to the mains with the power-plug.
Always check if the right color cable is connected to the right place.
International EU Cable UK Cable US Cable Pin
L BROWN RED YELLOW/COPPER PHASE
N BLUE BLACK SILVER NEUTRAL
YELLOW/GREEN GREEN GREEN PROTECTIVE GROUND
Make sure that the device is always properly connected to the earth!
Improper installation can cause serious injuries and/or damage of property!

6
Ordercode: 30862
LED Police Light
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short-
comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to report and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
agreed otherwise in writing.
Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of
the invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement from which the obligation is resulting.

7
Ordercode: 30862
LED Police Light
Description of the device
Features
The LED Police Light is a light fixture with high output and great effects.
Input voltage: 100-240V AC, 50/60Hz
Power consumption: 5W
Light source: 48 x 5 mm White LEDs
Operation mode: Continuous rotation
Housing: Metal & flame retardant plastic
Connections: IEC power cable (0,8 m)
Fuse: F500mAL/250V
Dimensions: ø 155 x 150 mm (WxH)
Weight: 0,4 kg
Overview
Fig. 01
01) 48 x 5 mm White LEDs
02) 100-240V IEC power connector IN + Fuse F500mAL/250V
Installation
Remove all packing materials from the LED Police Light. Check if all foam and plastic padding is
removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply.

8
Ordercode: 30862
LED Police Light
Maintenance
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by an expert after every year in the course of an acceptance test.
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
01) All screws used for installing the device or parts of the device have to be tightly connected and
must not be corroded.
02) There may not be any deformations on housings, fixations and installation spots.
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
04) The electric power supply cables must not show any damages or material fatigue.
The LED Police Light requires almost no maintenance. However, you should keep the unit clean.
Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and
then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and
a soft cloth. Do not use alcohol or solvents.
The front lens will require weekly cleaning, as smoke-fluid tends to build up residues, reducing the light
output very quickly.
Please clean internal components once a year with a light brush and vacuum cleaner.
Make sure connections are thoroughly dry before supplying electric power.
Replacing the Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out.
If the fuse burns out, the product will not function whatsoever. If this happens, follow the directions below:
01) Unplug the unit from electric power source.
02) Insert a flat-headed screwdriver into a slot in the fuse cover. Gently pry up the fuse cover. The fuse
will come out.
03) Remove the used fuse. If brown or unclear, it is burned out.
04) Insert the replacement fuse into the holder. Reinsert the fuse cover. Be sure to use a fuse of the
same type and specification. See the product specification label for details.

9
Ordercode: 30862
LED Police Light
Troubleshooting
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit
operates properly, do not carry out following steps.
No Light
If the light effect does not operate properly, refer servicing to a technician.
Suspect three potential problem areas as: the power supply, the LEDs, the fuse.
01) Power supply. Check if the unit is plugged into an appropriate power supply.
02) The LEDs. Return the device to your Showtec dealer.
03) The fuse. Replace the fuse. See page 8 for more information.
04) If all appears to be O.K., plug the unit in again.
05) If you are unable to determine the cause of the problem, do not open the Stagebeam, as this may
damage the unit and the warranty will become void.
06) Return the device to your Showtec dealer.
Problem Probable cause(s) Solution
One or more
fixtures do not
function at all
No power to the fixture
• Check if power is switched on and
cables are plugged in
Primary fuse blown • Replace the fuse
No light or LEDs
cut out
intermittently
Fixture is too hot • Allow the fixture to cool down
• Turn up the air conditioning
LEDs are damaged • Return the device to your Showtec
dealer
The power supply settings do not
match local AC voltage and
frequency
• Disconnect fixture. Check settings
and correct if necessary

10
Ordercode: 30862
LED Police Light
Product Specifications
Model: Showtec LED Police Light
Input voltage: 100-240V AC, 50/60Hz
Power consumption 5W
Fuse: F500mAL/250V
Dimensions: ø 155 x 150 mm (WxH)
Weight: 0,4 kg
Electro-mechanical effects:
Light source: 48 x 5 mm White LEDs
Operation mode: Continuous rotation
Housing: Metal & flame retardant plastic
Connections: IEC power cable (0,8 m)
Max. ambient temperature ta: 40°C
Max. housing temperature tB: 80°C
Minimum distance:
Minimum distance from flammable surfaces: 0,5 m
Minimum distance to lighted object: 1 m
Design and product specifications are subject to change without prior notice.
Website: www.Showtec.info
Email: [email protected]

©2017 Showtec
