ProLite Digi-Brite G3i User manual

WARNING
Before beginning installation,
confirm your power supply model.
MODELS SP-150-12 OR SP-320-12
Instructions begin on Page 1
MODELS CLG-100-12
Instructions begin on Page 17

INSTALLER NOTICE:
Pro-Lite is not responsible for the wiring of the Gas Price sign, installer must reference UL SAM manual for installation requirements. Pro-Lite can only
recommend which Class 2 Power Supply to use and cautions you, the installer, which type of wiring is NOT allowed by UL. Please reference UL SAM
manual for proper wiring instructions. The power supplys shown in this manual are for reference only.
Pro-Lite, Inc., 3505 Cadillac Ave., Bldg. D, Costa Mesa, California 92626 •www.PRO-LITE.com •800-223-9223

READ ME FIRST –DO’S AND DON’TS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SP-SECTION 1 –SAFETY NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
3
SP-SECTION 2 –POWER SUPPLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
SPECIFICATIONS –SP-150-12
SPECIFICATIONS –SP-320-12
MOUNTING REQUIREMENTS
CONFIGURATION NOTES
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
SP-SECTION 3 –USAGE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
SP-SECTION 4 –CONFIGURATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
6”/8”/12” – SINGLE SIDED CONFIGURATION
6”/8”/12” – DOUBLE SIDED CONFIGURATION
16”/18”/24” – SINGLE SIDED CONFIGURATION
16”/18”/24” – DOUBLE SIDED CONFIGURATION
30”/36” – SINGLE SIDED CONFIGURATION
30”/36” – DOUBLE SIDED CONFIGURATION
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
SP-SECTION 5 –POWER SUPPLY AC CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
SP-SECTION 6 –COMPLETION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PRODUCT WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
34
Page 1

DON’TS
Do not cut into the Gas Pricer PCB at any point.
Do not drill into the Gas Pricer PCB.
Do not cut/modify any part of the Gas Pricer extrusion.
Do not cut/modify any part of the Gas Pricer mounting brackets.
Do not use any other power supply type to power the Gas Pricer units other than the ones supplied.
Do not use the provided power supplies to power any other lighting in the sign cabinet.
Do not install the provided power supplies lower than 2” from the bottom of the cabinet.
Do not touch the Gas Pricer LED bulbs during installation.
Do not install the provided power supplies more than 15 feet away from the Gas Pricer units.
DO’S
Do mount the provided power supplies in the lower half of the cabinet at least 2” from bottom.
Do handle the Gas Pricer units by the corners.
Do install forced or passive venting to keep the cabinet temperature below 160˚F.
Do make sure there is no exterior water dripping into the cabinet
Do make sure that the brightness level setting of the Gas Pricer units are set to 1.
Page 2

READ INSTRUCTIONS
Make sure you read and understand all instructions.
Retain instructions for future reference.
Follow all warnings and instructions indicated in this wiring guide including those marked on the
product.
BEFORE WIRING
During installation do not allow the AC power to be connected inadvertently.
DURING OPERATION
Keep dry and away from damp or wet environments.
Do not make modifications while in operation. Risk of electrical shock can cause serious injury.
Page 3

Page 4
Model: SP-150-12
AC Voltage Input : 110 ~ 120VAC
AC Amperage : 2.5A
DC Voltage Output : 12VDC
UNITS: MM

Page 5
Model: SP-320-12
AC Voltage Input : 110 ~ 120VAC
AC Amperage : 5A
DC Voltage Output : 12VDC
UNITS: MM

REQUIREMENTS
1) TEMPERATURE
a. Operational temperature range: -25˚C to 70˚C. (-13˚F to 160˚F)
b. Forced or passive venting is required on all installations to keep the cabinet temperature below
160˚F.
2) LOCATION
a. Mount power supplies in the lower half of the cabinet.
b. In compliance with UL 48, keep power supplies at least 2” from the bottom of the cabinet.
3) SPACING
a. 4” spacing between each power supply or in accordance with SAM manual.
b. 24” away from any transformer or AC power source.
c. No farther than 15 feet away from Sign.
4) CIRCUIT
a. Do not share the power source with any neon or other fixtures which employs a flasher on the
same circuit.
5) PROTECTION
a. A Water Cover must be installed 1~2” on top of SP Power Supplies to prevent any water from
dripping into the Power Supplies.
ALWAYS double check your connections before going to the next step.
Any installation not in accordance to Pro-Lite requirements will void the Warranty.
Page 6

GAS PRICER SIGN SIZE DETERMINES WHICH SP POWER SUPPLY TO USE
SP-150-12 SP-320-12
For use with sign sizes 6”, 8”, and 12”. For use with sign sizes 16”, 18”, 24”, 30”, and 36”.
PLEASE NOTE YOUR APPLICATION TYPE BELOW AND REFER TO USAGE CHART IN SP-SECTION 3
Single-Sided Double-Sided
Page 7

Page 2 Page 8
Make sure you received the correct SP power supply quantities for your application.
SINGLE SIDED
DOUBLE SIDED
Gas Pricer
Sign Size
SP-150-12
SP-320-12
SP-150-12
SP-320-12
6"
1
0
1
0
8"
1
0
1
0
12"
1
0
1
0
16"
0
1
0
1
18"
0
1
0
1
24"
0
1
0
1
30"
0
1
0
2
36"
0
1
0
2

Page 2 Page 9
Your 110VAC source should not be hot until all connections are completed.
Sign Panel
Spare connection for
Double-Sided Configuration ONLY.
SP-150-12

Page 2 Page 10

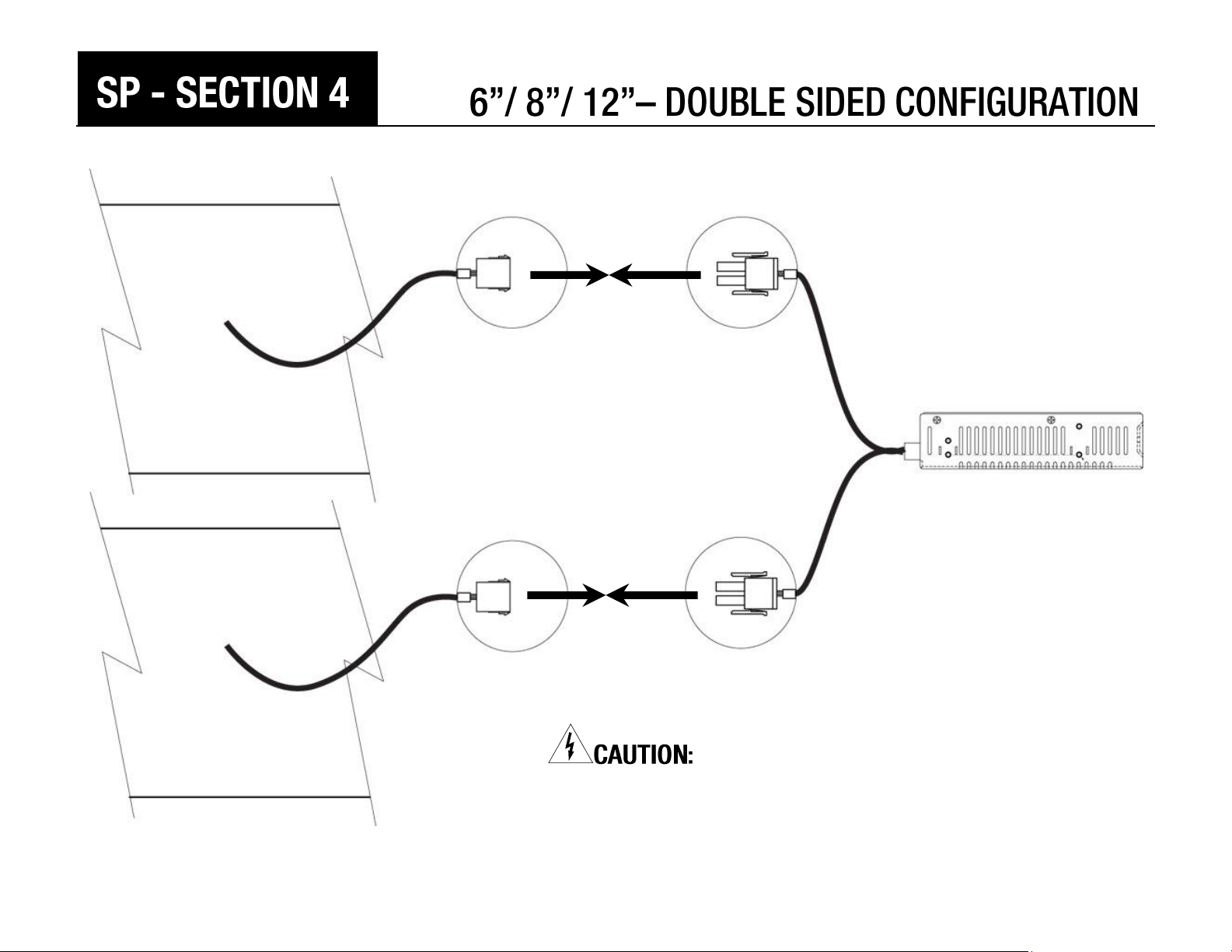

Sign Panel 1
Sign Panel 2
SP-150-12
Your 110VAC source should not be hot until all
connections are completed.

Page 2 Page 11

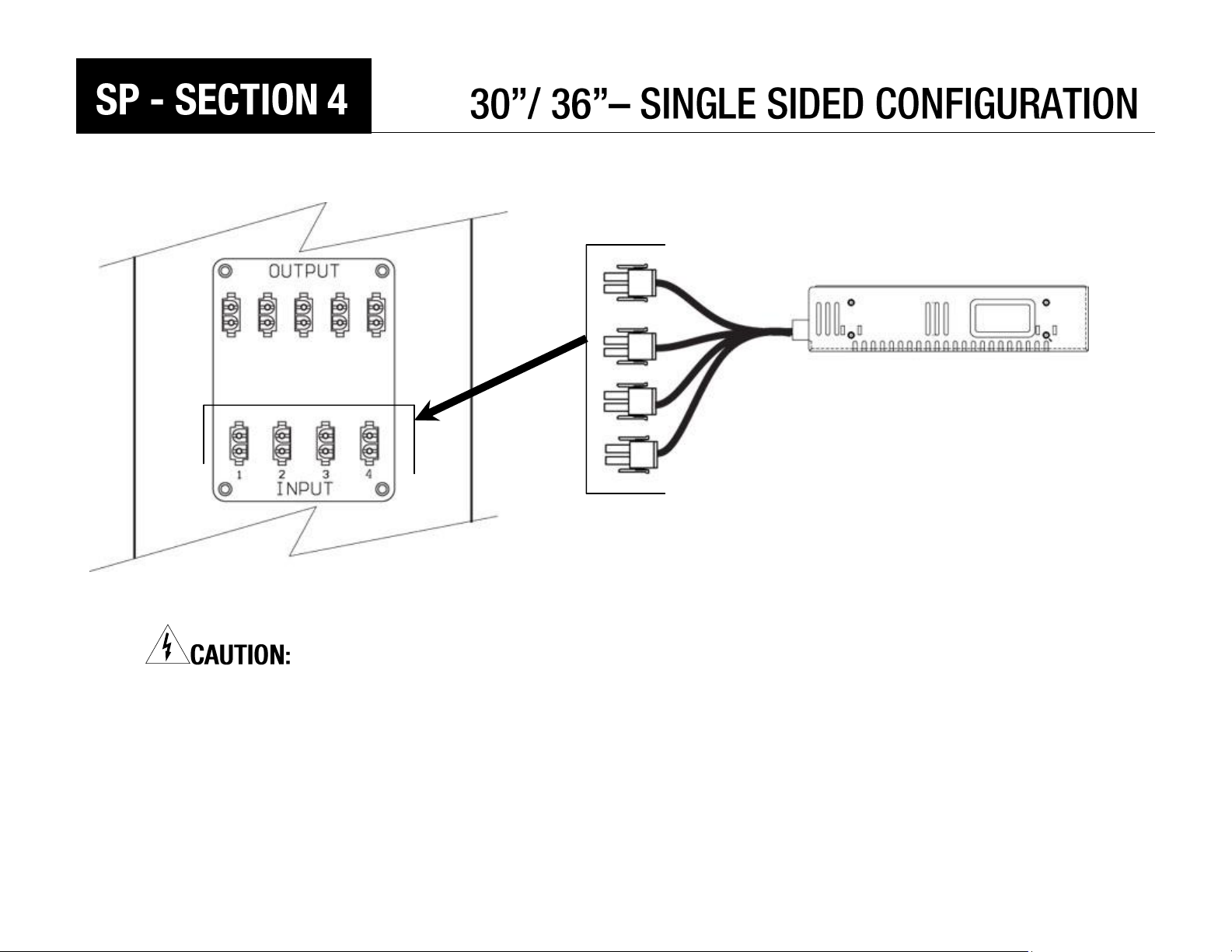

Your 110VAC source should not be hot until all connections are completed.
Decimal Panel
SP-320-12
Spare connections for
Double-Sided Configuration ONLY.

Page 2

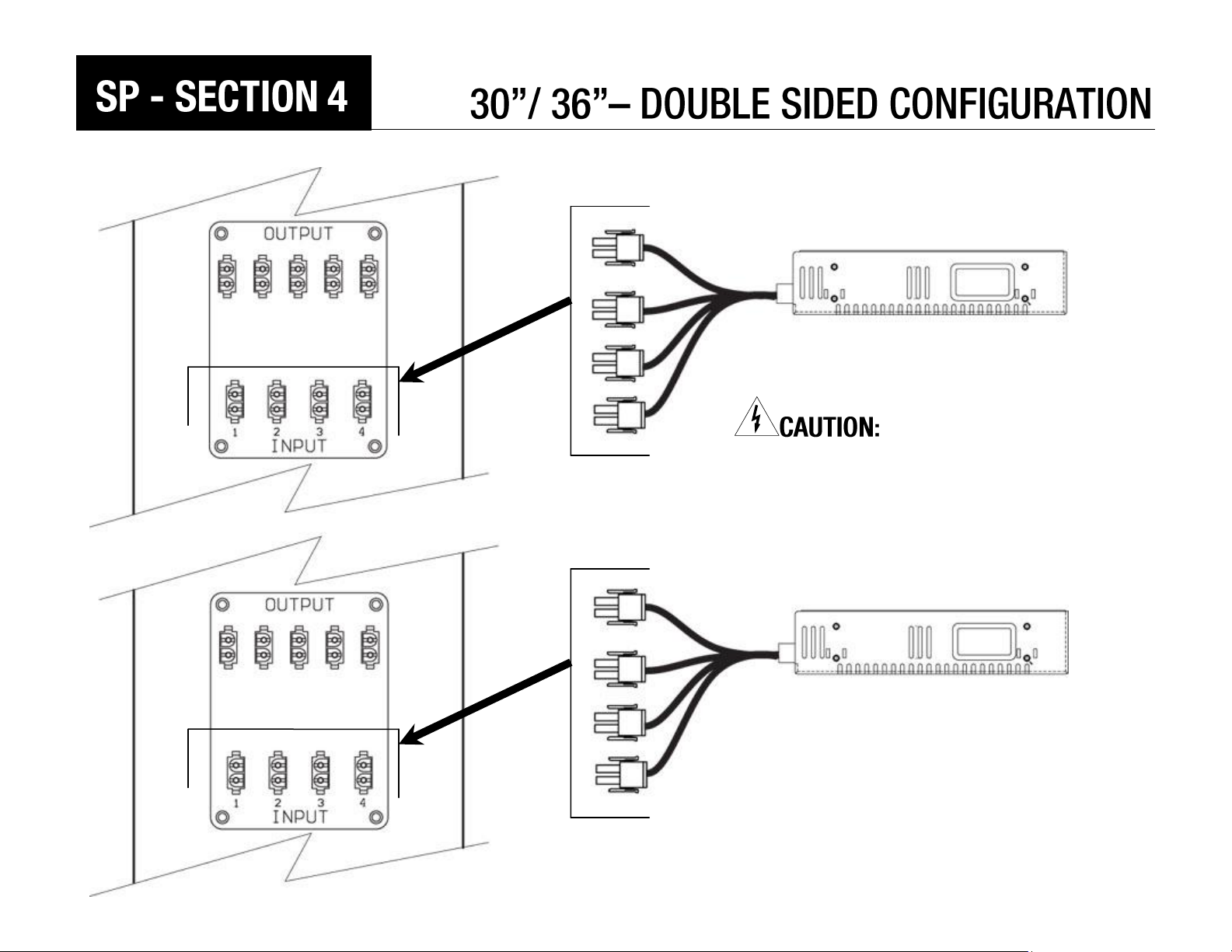

SP-320-12
Decimal Panel 1
Decimal Panel 2
Your 110VAC source
should not be hot until all
connections are completed.
Page 12

Page 2 Page 13
Your 110VAC source should not be hot until all connections are completed.
Decimal Panel
SP-320-12

Page 2 Page 14
SP-320-12
Decimal Panel 1
Decimal Panel 2
Your 110VAC source
should not be hot until all
connections are completed.
SP-320-12

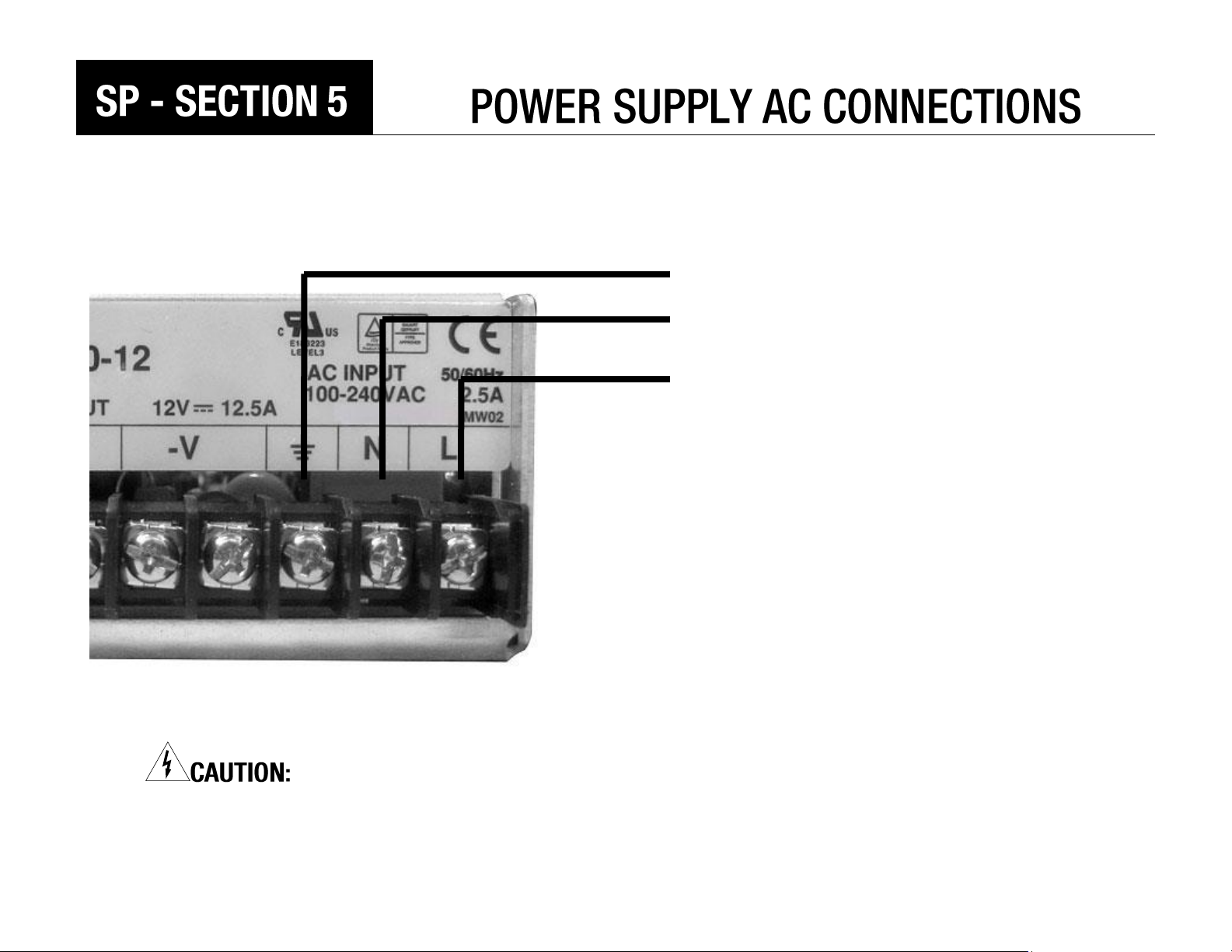

AC cable must be provided by installer. Use only appropriate gauge cable for the installation application as
stated in the SAM manual.
AC wiring is identical for both the SP-150-12 and SP-320-12.
Your 110VAC source should not be hot until all connections are completed.
Page 4 Page 15
GROUND
NEUTRAL
LIVE

Page 16
Please go through the following checklist before powering up the power supply(s).
The installation meets the requirements in Section 2.
Make sure all connections to the terminal blocks are secure (potential danger of short circuit).
Label your AC and DC wiring accordingly so that any service personnel can identify them easily.
Do not make modifications while in operation. Risk of electrical shock can be fatal.
Any Questions? Call Us.

READ ME FIRST –DO’S AND DON’TS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLG-SECTION 1 –SAFETY NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
18
CLG-SECTION 2 –POWER SUPPLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
SPECIFICATIONS –CLG-100-12
MOUNTING REQUIREMENTS
CONFIGURATION NOTES
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
CLG-SECTION 3 –USAGE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
CLG-SECTION 4 –CONFIGURATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
6” – SINGLE SIDED CONFIGURATION
6” – DOUBLE SIDED CONFIGURATION
8”/12” – SINGLE SIDED CONFIGURATION
8”/12” – DOUBLE SIDED CONFIGURATION
16”/18”/24” – SINGLE SIDED CONFIGURATION
16”/18”/24” – DOUBLE SIDED CONFIGURATION
30” –SINGLE SIDED CONFIGURATION
30” – DOUBLE SIDED CONFIGURATION
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
CLG-SECTION 5 –POWER SUPPLY AC CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
CLG-SECTION 6 –COMPLETION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PRODUCT WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33
34
Page 17

DON’TS
Do not cut into the Gas Pricer PCB at any point.
Do not drill into the Gas Pricer PCB.
Do not cut/modify any part of the Gas Pricer extrusion.
Do not cut/modify any part of the Gas Pricer mounting brackets.
Do not use any other power supply type to power the Gas Pricer units other than the ones supplied.
Do not use the provided power supplies to power any other lighting in the sign cabinet.
Do not install the provided power supplies lower than 2” from the bottom of the cabinet.
Do not touch the Gas Pricer LED bulbs during installation.
Do not install the provided power supplies more than 15 feet away from the Gas Pricer units.
DO’S
Do mount the provided power supplies in the lower half of the cabinet at least 2” from bottom.
Do handle the Gas Pricer units by the corners.
Do install forced or passive venting to keep the cabinet temperature below 160˚F.
Do make sure there is no exterior water dripping into the cabinet
Do make sure that the brightness level setting of the Gas Pricer units are set to 1.
Page 18
