Sony REA-C1000 User manual

Edge Analytics
Appliance
Operating Instructions
Software Version 1.00
Before operating the unit, please read this manual thoroughly
and retain it for future reference.
REA-C1000
© 2018 Sony Corporation
5-000-618-11 (1)

2
Table of Contents
Overview
Using This Manual ................................................ 3
Precautions for Preventing Access to the Unit by
an Unintended Third Party .................................. 4
Features .................................................................. 4
Location and Function of Parts ........................... 5
System Configuration ........................................... 6
Installation and Connection
Installing ................................................................ 7
Mounting using mounting screws ................... 7
Connecting ............................................................. 7
Connecting to AC power supply ..................... 7
Initial Setup
Setting Up a Computer ......................................... 8
Accessing the Unit from a Web Browser ............ 8
Screen Structure .................................................... 9
Configuring Initial Setup Items ........................... 9
Enabling option functions ............................... 9
Starting applications ..................................... 10
Checking notifications .................................. 10
Unit Setup (Common Settings)
Basic Operations in the Common Settings
Menu .................................................................... 11
Input/Output ....................................................... 11

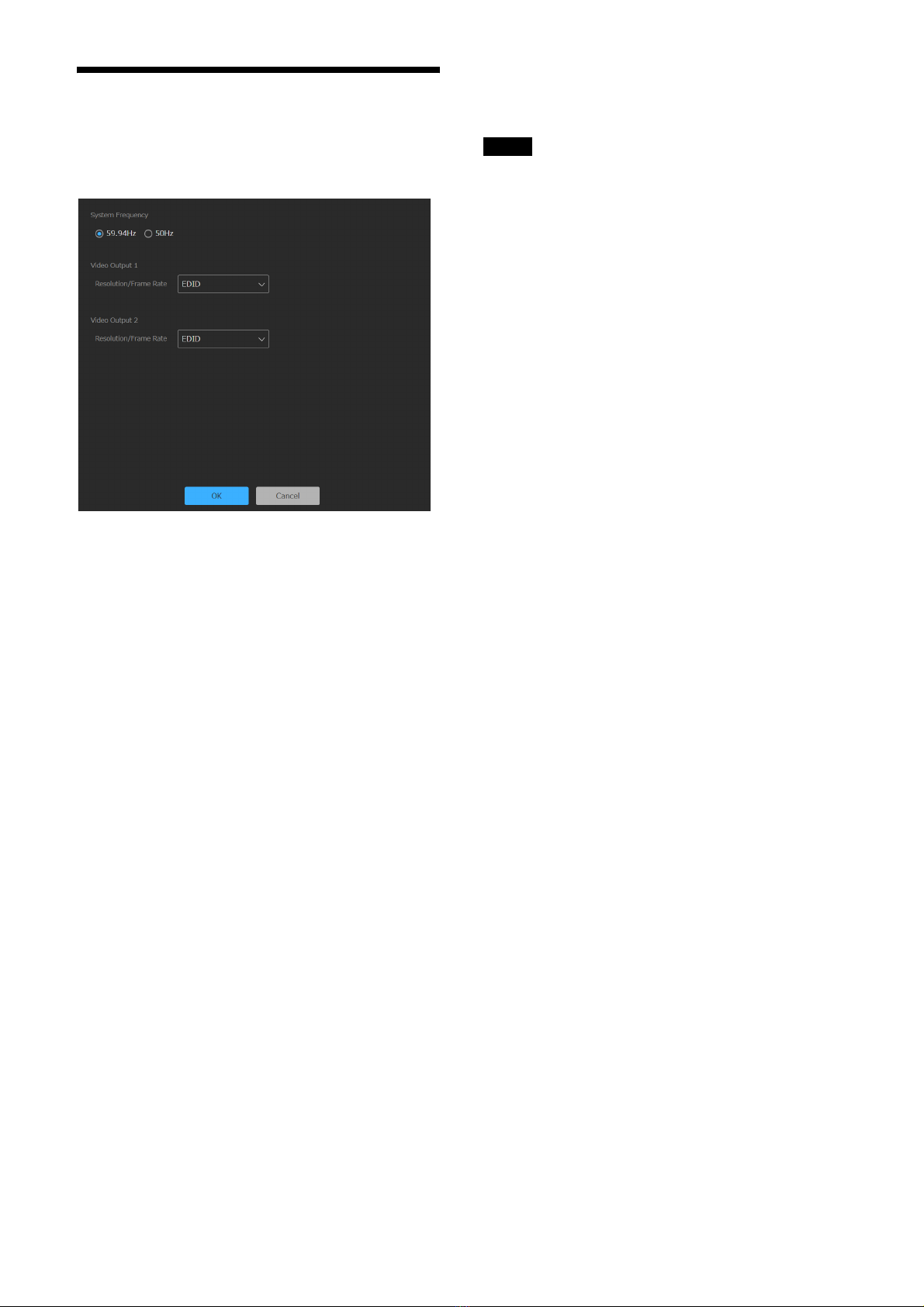

Video ..................................................................... 12

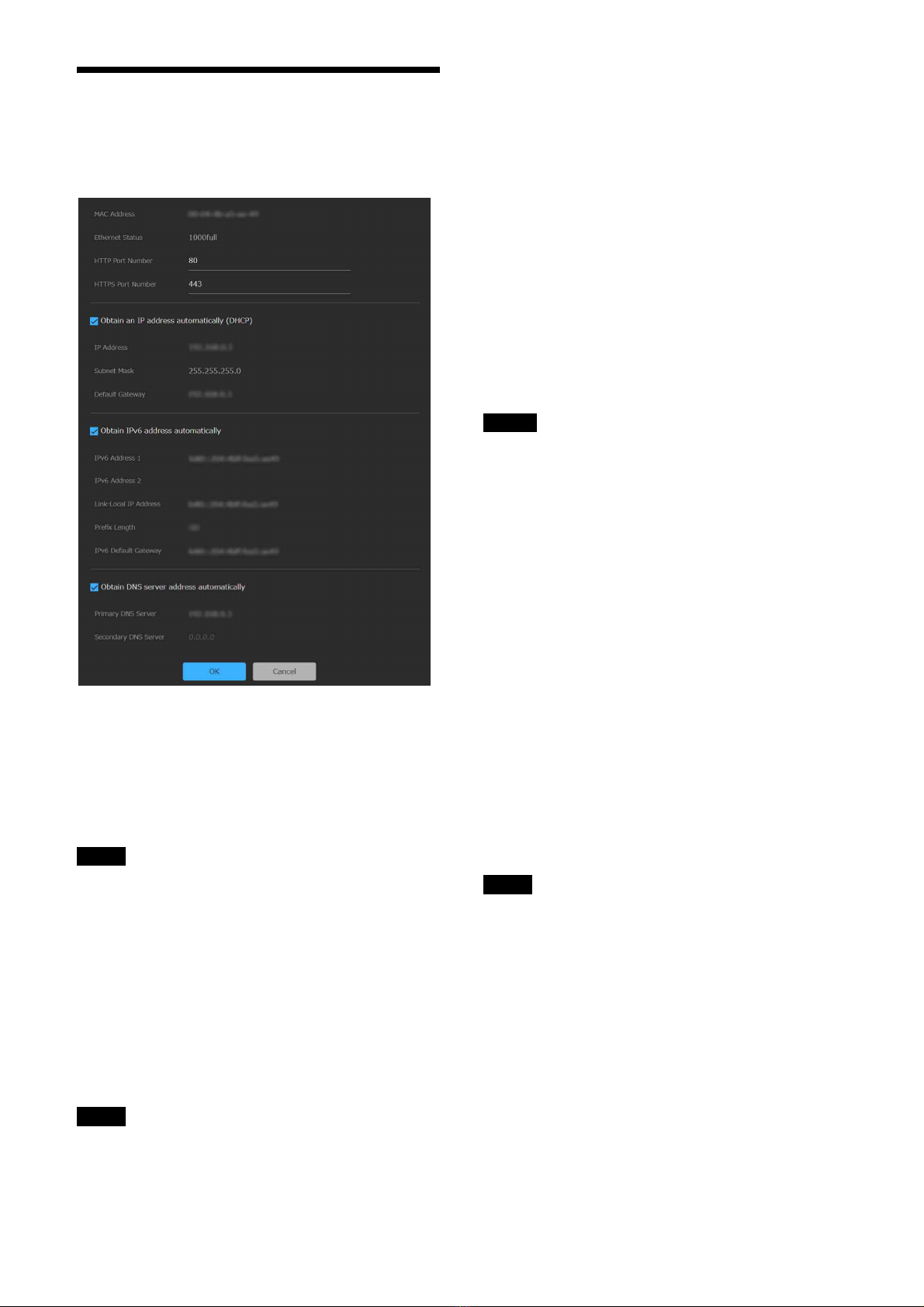

Network ................................................................ 13
Security ................................................................ 14

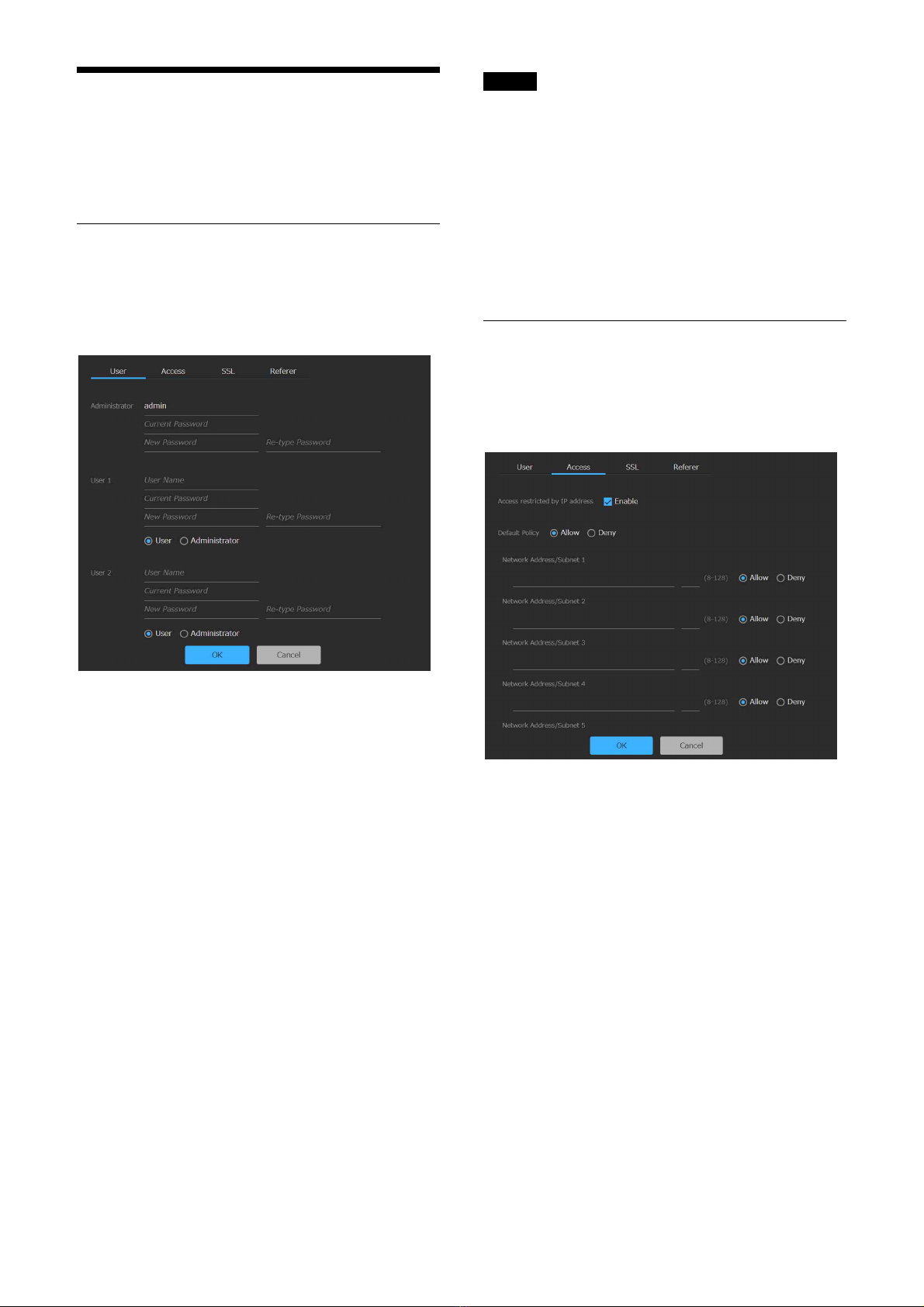

[User] tab ...................................................... 14
[Access] tab .................................................. 14
[SSL] tab ....................................................... 15
[Referer] tab .................................................. 16
License .................................................................. 17
[License] tab ................................................. 17
[History] tab .................................................. 18
System .................................................................. 18
[Information] tab ........................................... 18
[Date & Time] tab ......................................... 19
[Initialize] tab ............................................... 19
[Update] tab .................................................. 19
[EULA] tab ................................................... 20
[Software] tab ............................................... 20
Application Setup and Operation
Configuring an Application ................................21
Common application setup operation ...........21
Running an application .................................21
Handwriting Extraction Application .................22
Preparation before setup ................................22
Configuring the Handwriting Extraction
application .....................................................22
Running the Handwriting Extraction
application .....................................................23
PTZ Auto Tracking Application .........................24
Preparation before setup ................................24
Configuring the PTZ Auto Tracking
application .....................................................24
Running the PTZ Auto Tracking
application .....................................................27
Close-up by Gesture Application .......................28
Preparation before setup ................................28
Configuring the Close-up by Gesture
application .....................................................28
Running the Close-up by Gesture
application .....................................................29
Real-time Cropping Application ........................29
Preparation before setup ................................29
Configuring the Real-time Cropping
application .....................................................29
Running the Real-time Cropping
application .....................................................30
Appendix
Message List .........................................................31
LED indicators ..............................................31
Web browser display .....................................31
Troubleshooting ...................................................32
About Use of GNU GPL/LGPL Software .........33
Specifications ........................................................33
External Dimensions .....................................34

3
Overview
Safety Regulations (supplied)
Describes the important points for safe use of the unit.
Be sure to read it.
Operating Instructions (This document/
Web)
These operating instructions describe the names of the
various parts of the unit, and installation, connection,
and operation methods.
Using This Manual
The Operating Instructions document is designed to be
read on a computer display.
The content you need to know in order to use the unit is
described here.
Read it before you operate the unit.
Jumping to a related page
When you read the instructions on a computer display
and click on the related part of the relevant page that is
being displayed, you jump to the related page. Relevant
pages can be searched easily.
Software display examples
The software displays described in this manual are
explanatory examples. Note that some displays may be
different from the ones that actually appear.
Printing the Operating Instructions
Depending on your system, certain displays or
illustrations in the Operating Instructions, when printed
out, may differ from those that appear on your screen.
NOTICE TO USERS
© 2018 Sony Corporation.
All rights reserved. This manual or the software
described herein, in whole or in part, may not be
reproduced, translated or reduced to any machine
readable form without prior written approval from
Sony Corporation.
SONY CORPORATION PROVIDES NO
WARRANTY WITH REGARD TO THIS
MANUAL, THE SOFTWARE OR OTHER
INFORMATION CONTAINED HEREIN AND
HEREBY EXPRESSLY DISCLAIMS ANY
IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR ANY
PARTICULAR PURPOSE WITH REGARD TO
THIS MANUAL, THE SOFTWARE OR SUCH
OTHER INFORMATION. IN NO EVENT SHALL
SONY CORPORATION BE LIABLE FOR ANY
INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES, WHETHER BASED ON TORT,
CONTRACT, OR OTHERWISE, ARISING OUT
OF OR IN CONNECTION WITH THIS MANUAL,
THE SOFTWARE OR OTHER INFORMATION
CONTAINED HEREIN OR THE USE THEREOF.
Sony Corporation reserves the right to make any
modification to this manual or the information
contained herein at any time without notice. The
software described herein may also be governed by
the terms of a separate user license agreement.
• The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing Administrator, Inc. in the United States
and other countries.
• Microsoft, Windows, and Internet Explorer are
registered trademarks of United States Microsoft
Corporation in the United States and/or other
countries.
• JavaScript is a trademark or registered trademark of
Oracle Corporation, its affiliates or subsidiaries in
the United States and other countries.
• Adobe, Adobe Reader and Adobe Flash are
trademarks of Adobe Systems Incorporated.
• Google Chrome is a registered trademark of
Google Inc.
Other system names, product names appearing in this
document are trademarks or registered trademarks of
their respective manufacturers. Trademarked items
are not indicated by ® or ™ symbols in this
document.

4
Precautions for
Preventing Access to
the Unit by an
Unintended Third Party
The unit may be accessible by an unintended third party
on the network, depending on the usage environment.
Changing the user name and password of the
administrator from the default settings is highly
recommended for security reasons. For details about
changing the user name and password, see “Security”
(page 14).
If the unit is accessed by an unintended third party, there
may be undesired effects, such as operations or settings
that may interfere with operation of the unit.
The unit can be fraudulently accessed in a network
environment where a device is connected or connectable
to the network without the administrator’s permission,
or a computer or other network device connected to the
network can be used without any permission. Connect to
these environments at your own risk. Also, use the SSL
function, Referer check function, or other security
measures to prevent unauthorized access to the unit. For
details about functions, see “Security” (page 14).
The China model does not support the SSL function.
Features
The REA-C1000 is a device that analyzes video that is
input from a camera, computer, or other device, and
automatically generates video content in real-time that
previously would have required significant time and
human resources, and been expensive to create.
REA-C1000 configuration and application operation
can be controlled intuitively using a simple screen
displayed in a web browser on a computer connected to
the network.
The unit features the following applications.
Handwriting Extraction
This application identifies and extracts text and
diagrams drawn on a whiteboard or blackboard in real-
time, and renders them so that they appear in front of the
speaker.
PTZ Auto Tracking
This application tracks a moving target, and
automatically moves a remote camera to maintain
optimum composition while shooting.
For details about supported remote cameras, contact
your distributor.
Close-up by Gesture
This application interprets specific gestures of people in
the video, and automatically zooms in on the
corresponding area. You can display two images (a wide
angle view and zoomed view) in real-time.
Real-time Cropping
This application simultaneously displays a wide-angle
view and a cropped view, from a single camera, by
cutting out a desired portion of the whole view in real-
time.
Note
Note

5
Location and Function
of Parts
A12 V (DC power input) connector
Connect to an AC adapter (not supplied).
For details about supported AC adapters (not
supplied), contact your distributor. Use of other AC
adapters may cause a fire or malfunction.
BLAN (network) connector (RJ-45)
Connect to a 10BASE-T, 100BASE-TX, or
1000BASE-T switching hub using a LAN cable (not
supplied, category 5 or higher, shielded twisted
pair).
For safety, do not connect the connector for
peripheral device wiring that might have excessive
voltage to this port. Follow the instructions for this
port.
CEXTERNAL connector
Not supported in the current software version.
DHDMI OUT 1/HDMI OUT 2 connectors
Connect to the HDMI input connectors of a display,
projector, or other video device to display the output
video from the unit.
ESTATUS button/LED
•STATUS button
Press and hold the button for 5 seconds with the
unit turned so that the POWER LED starts
flashing green. Press and hold the POWER button
for 3 seconds while the LED is flashing to restart
the unit and restore all settings, including
network settings, to their factory default settings.
•STATUS LED
Lights in green when the unit is operating
normally.
Lights in red when not connected to the network.
Flashes in red when an error (such as an over-
temperature alarm) occurs in the unit.
FPOWER button/LED
Power is supplied and the POWER LED lights in
green when the unit is connected to an outlet using
an AC adapter (not supplied) and power cord.
To turn the unit off, press and hold the button for 3
seconds. The POWER LED goes out when the unit
turns off.
To turn the unit on again, press the POWER button.
The POWER LED lights in green.
GHDMI IN 1/HDMI IN 2 connectors
Connect to the HDMI output connectors of a
camera, computer, or other video device.
Audio from connected devices is not supported in
the current software version.
HMIC IN connector
Connect to the audio output connector of an audio
device.
Not supported in the current software version.
IMounting screw holes (four locations on
bottom panel)
Use to mount the unit.
For details, see “Mounting using mounting screws”
(page 7).
JRatings label (bottom panel)
This label shows the name of the unit and its
electrical ratings.
Note
Note
Note
12 3 456
78
0
9 9
Note
Note
Important

6
System Configuration
The unit can be arranged into various system configurations with other devices (not supplied). The diagram below
shows a typical system configuration.
We recommend that you build a 1000BASE-T network to provide for future function expansion.
Camera
Monitor
Router
Computer
HDMI cable
LAN cable (category 5e or higher, shielded twisted pair)
REA-C1000
Tip

7
Installation and Connection
Installing
Install the unit on a level surface, such as a desktop.
If, unavoidably, you need to mount the unit on an
inclined surface, mount the unit using the mounting
screw holes on the bottom panel to prevent the unit from
falling.
• Cables may catch on the connector shell of other
cables connected to adjacent connectors and not be
connected properly, depending on the cables used.
Check that the cables can be used with the unit
beforehand.
• Mount the unit so that no strong force is applied to the
cables connected to the unit. Cables may be pulled out
or the unit may malfunction.
• Notes about temperature rise of the unit
– The unit may become hot during use. This is not a
malfunction.
– Avoid use where the unit is in direct contact with
exposed skin for extended periods.
– The temperature rise may occur quickly in high-
temperature environments.
Mounting using mounting screws
Attach the unit using the four mounting holes (for M3
screws) on the bottom panel. Use M3 screws that meet
the following criteria. Attach the unit with the screws
against a flat surface, without ridges or undulations, and
tighten securely.
4=3 mm to 8 mm
Connecting
Connecting to AC power supply
Connect to the AC power supply using an AC adapter
(not supplied) and power cord.
The POWER LED lights green when power is supplied.
After the unit has powered up, the STATUS LED lights
green when access from a web browser becomes
enabled.
• For details about supported AC adapters (not
supplied), contact your distributor. Use of other AC
adapters may cause a fire or malfunction.
• Connect the power supply to the unit only after
powering on the other peripheral devices.
Notes
M3 screw
Notes

8
Initial Setup
Perform the following configuration when starting the
unit for the first time. This configuration is performed by
the administrator.
Setting Up a Computer
Prepare a computer and connect it to the network. The
recommended operating environment is given below.
OS: Windows 10 Pro (32-bit version/64-bit version)
Web browser: Google Chrome Ver. 70 or later
• Turn off tablet mode.
• Do not use the Back button of the browser.
• JavaScript is used for the web page display when
accessing the unit. The web page may not display
correctly if your computer uses certain software, such
as anti-virus software.
Accessing the Unit from
a Web Browser
Perform the following configuration to enable access of
the unit from a web browser.
1 Assign an IP address to the unit using
RM-IP Setup Tool.
The IP address of the unit is obtained automatically
using DHCP, but you can change it using RM-IP
Setup Tool if required.
For details about setting the IP address, refer to the
RM-IP Setup Tool guide.
Download RM-IP Setup Tool and the RM-IP Setup
Tool guide separately from the following website.
www.sony.net/CameraSystem
2 Check the IP address of the unit.
You can check the IP address using RM-IP Setup
Tool.
For details about checking the IP address, refer to
the RM-IP Setup Tool guide.
3 Start a web browser on the computer, and
enter the IP address of the unit in the
address bar.
4 Access the unit.
User name and password authentication is required
to access the unit. The user name and factory-set
password of the unit are given below.
User name: admin
Password: Admin_1234
In RM-IP Setup Tool, the unit is detected on the
“Camera” tab. You can check and set the name and IP
address of the unit from RM-IP Setup Tool in the same
way as for a remote camera. By default, “Device0” is
displayed as the name of the unit.
Notes Tip
Tip

9
Screen Structure
The following screen appears in the web browser when
you access the unit.
You can configure the unit, and configure and run
applications from this screen.
The initial setup screen appears by default when you
access the unit in its factory default state.
A[Applications]
Click to select, configure, or run an application.
Clicking displays the available applications.
Selecting an application displays the setup and run
screen of the application.
BCommon settings menu
Click to configure common settings of the unit, such
as video and network settings.
COperation/settings area
Displays the selected menu item screen or
application setup screen.
DNotifications button
A red indicator is displayed on the notifications
button when there is a notification relating to the
status of the unit. Click it to display the notifications
dialog.
Configuring Initial Setup
Items
Access the unit in the factory default state, and configure
the following items.
[EULA]
Displays the EULA (End User License Agreement).
[Language]
Specify the display language of the screen. For details
about configuration, see “System” (page 18).
[Administrator]
Set [User Name] and [Password] for the administrator.
For details about configuration, see “Security”
(page 14).
[Network]
Configure the network settings for connection between
the unit and a computer. For details about configuration,
see “Network” (page 13).
[Date & Time]
Set the date and time on the unit. For details about
configuration, see “System” (page 18).
[System Frequency]
Set the system frequency for the unit to support. For
details about configuration, see “Video” (page 12).
• Be sure to change the default user name and password
used when you first start the unit. After changing the
user name and password, reauthentication using the
new user name and password is required.
• If the network settings are changed, access the unit
again using the changed network information.
• The unit must be restarted after completing the initial
setup.
Enabling option functions
Option functions must be enabled before configuring or
running an application. To enable an option function,
you must activate a pre-installed license or purchase and
install a license. For details about installing a license,
see “License” (page 17).
Licenses
The following option function licenses are available for
the unit.
• REA-L0100 Handwriting Extraction license
Enables the Handwriting Extraction function.
• REA-L0200 PTZ Auto Tracking license
Enables the PTZ Auto Tracking function.
• REA-L0300 Close-up by Gesture license
Enables the Close-up by Gesture function.
Note
Notes

10
Pre-installed licenses
You can trial test option functions by activating pre-
installed licenses on the unit, without having to purchase
and install any licenses.
For details about activation, see “License” (page 17).
• Activating pre-installed licenses enables you to trial
test option functions for a limited time only.
• For details about purchasing licenses, contact your
distributor.
Starting applications
Access the unit from a web browser to select and run an
application.
A license may need to be enabled to run an application.
For details about configuring applications, see
“Application Setup and Operation” (page 21).
If the unit is turned off normally while an application is
running, the application will automatically restart the
next time the unit is turned on.
Checking notifications
You can check the status of the unit and the status of
connections with external devices in the notifications
dialog.
The notifications dialog is displayed automatically
when the status of the unit changes. You can also display
the dialog by clicking the notifications button at the top
right of the screen.
For details about notifications, see “Message List”
(page 31).
Notes
Tip
