1. Introduction
SIC4340 is NFC tag type 2 with built-in ADC for physical sensor measurement for 3-
channels selectable. These built-in ADC can drive the current from 1µA to 504µA and measure
the electrical value (e.g. voltage, resistance, and capacitance). The measured value is provided
with 10-bit resolution. SIC4340 Development kit board with SIC4340 Tools application is
developed to help the user learn how to use SIC4340 features with many sensors such as light
sensor, gas sensor or temperature sensor. In the app, the user can set the bias current for each
channel and measure the result from SIC4340 IC. The voltage and resistance result will be
displayed on the app after measurement.
Silicon Craft Technology PLC. (SIC) creates this document to describe how to get start
with SIC4340 development kit board and how to install and use SIC4340 Tools application on
both Android and IOS platform.
2. Instruments
To get start with SIC4340 development kit board, there are some instruments
required as below.
1. NFC mobile which can be a. or b.
a. Android mobile with Android operation version 4.1 (Jelly Bean) or above.
b. iPhone with IOS13 or above.

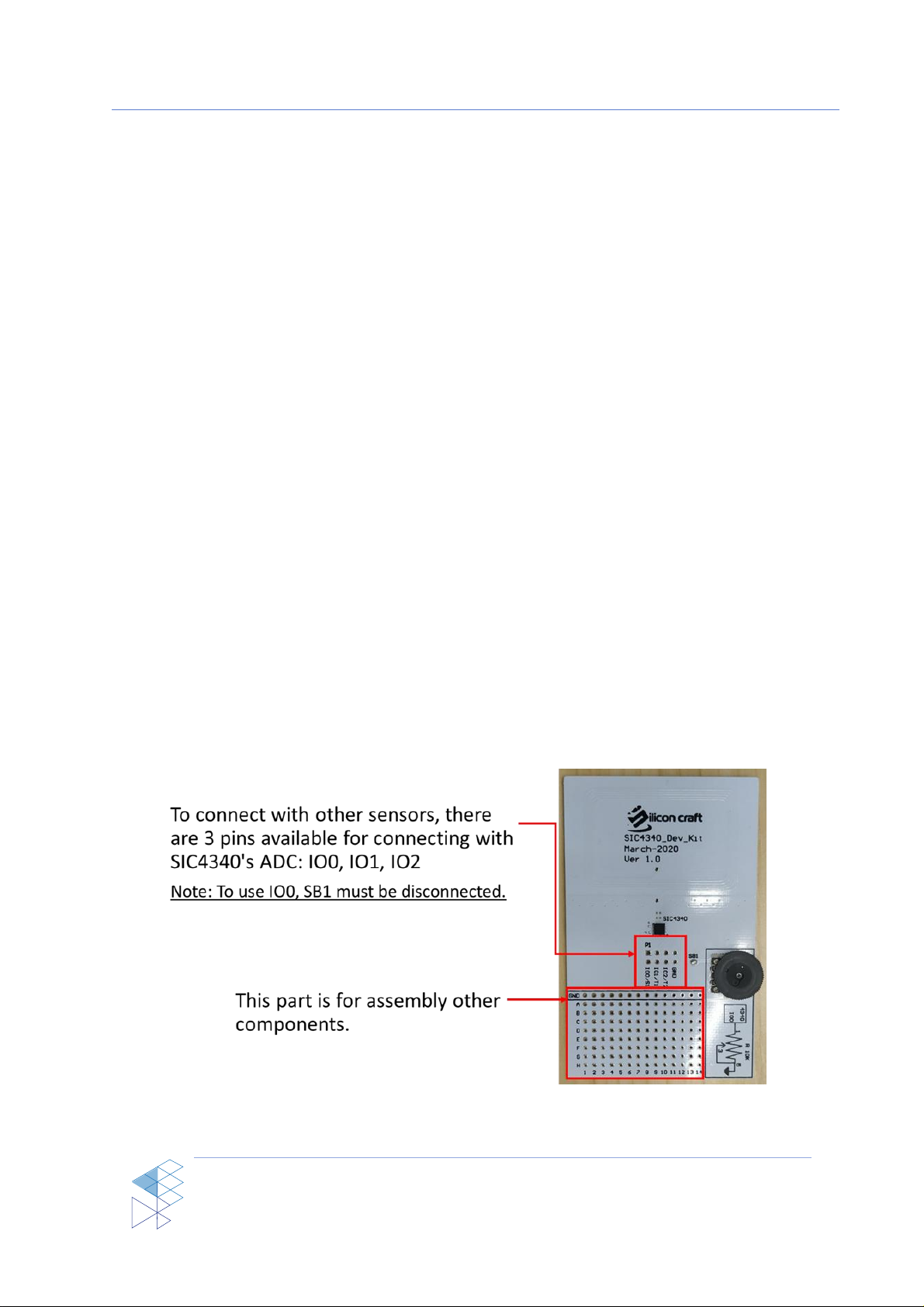

2. SIC4340 Development kit board as Figure 1
Figure 1: Detail of SIC4340 development kit board

Installation
SIC4340 USER MANUAL
SIC4340 Development Kit
PROPRIETARY AND CONFIDENTIAL
6
USER MANUAL SIC4340
DEC, 2020
V1.0
Copyright © 2020 Silicon Craft Technology PLC
3. Installation
There are SIC4340 Tools application available on both Android and IOS Platform.
3.1 Installation on Android
For SIC4340 Tools application on Android. It can be downloaded and installed from
Google Store link: https://play.google.com/store/apps/details?id=com.sic.sic4340rmeas or
search for ‘SIC4340 Tools’ in Google Play Store.
Figure 2: SIC4340 Tools app on Google Play Store

Installation
SIC4340 USER MANUAL
SIC4340 Development Kit
PROPRIETARY AND CONFIDENTIAL
7
USER MANUAL SIC4340
DEC, 2020
V1.0
Copyright © 2020 Silicon Craft Technology PLC
3.2 Installation on IOS
For SIC4340 Tools application on IOS, It can be downloaded and installed from App
Store link: https://apps.apple.com/us/app/sic4340-tools/id1518973827 or search for ‘SIC4340
Tools’ in IOS App Store.
Figure 3: SIC4340 Tools APP on IOS App Store

Application Demonstration
SIC4340 USER MANUAL
SIC4340 Development Kit
PROPRIETARY AND CONFIDENTIAL
8
USER MANUAL SIC4340
DEC, 2020
V1.0
Copyright © 2020 Silicon Craft Technology PLC
4. Application Demonstration
This part demonstrates how to use SIC4340 Development kit board with SIC4340 Tools
application. The content in this part includes setting, NFC communication, result display, and
blank NDEF setting.
4.1 Setting
In the setting page of SIC4340 Tools, user can enable or disable each pin and set the
bias current separately for each pin as shown in Figure 4

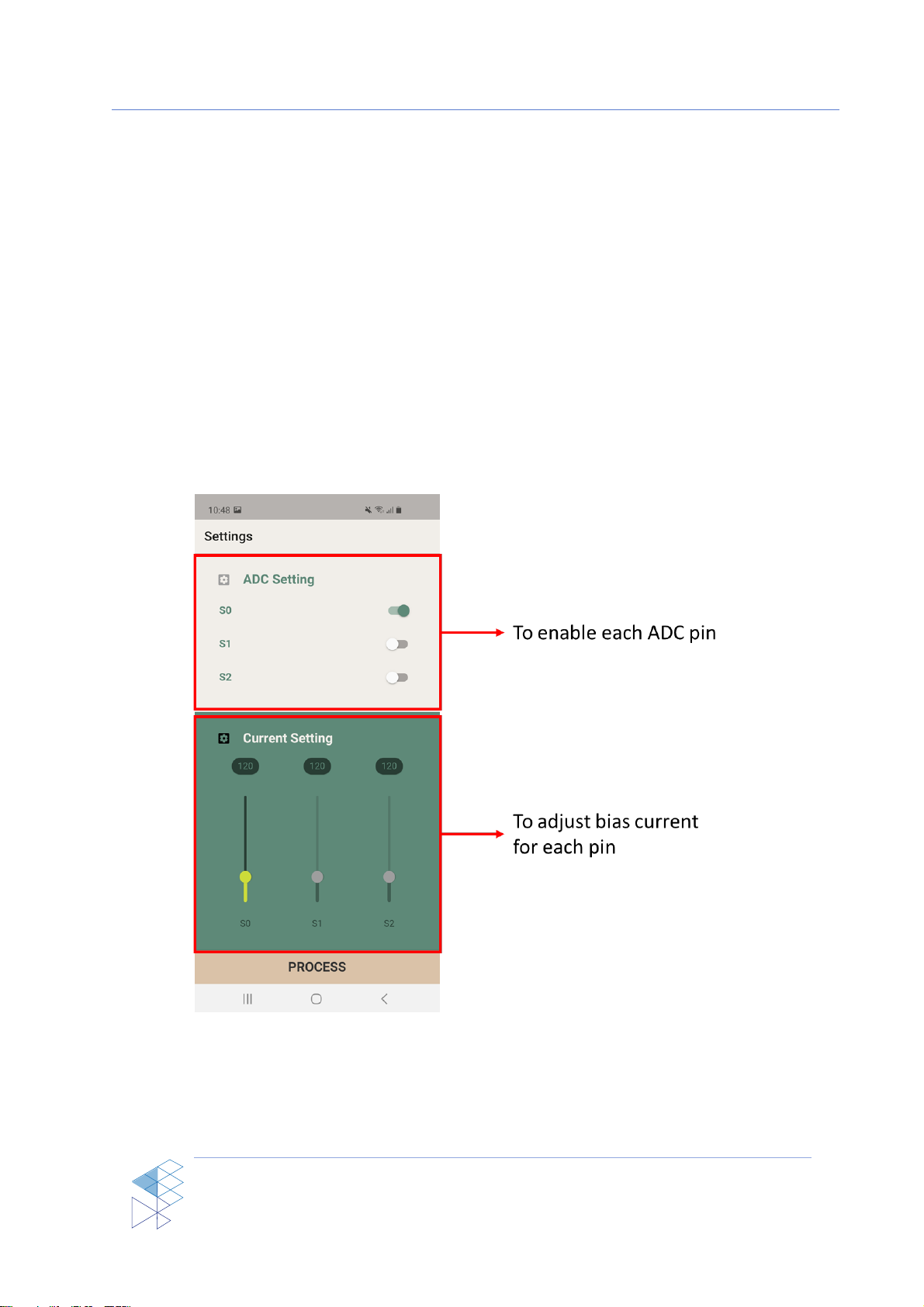

Figure 4: Setting page of SIC4340 Tools

Application Demonstration
SIC4340 USER MANUAL
SIC4340 Development Kit
PROPRIETARY AND CONFIDENTIAL
9
USER MANUAL SIC4340
DEC, 2020
V1.0
Copyright © 2020 Silicon Craft Technology PLC

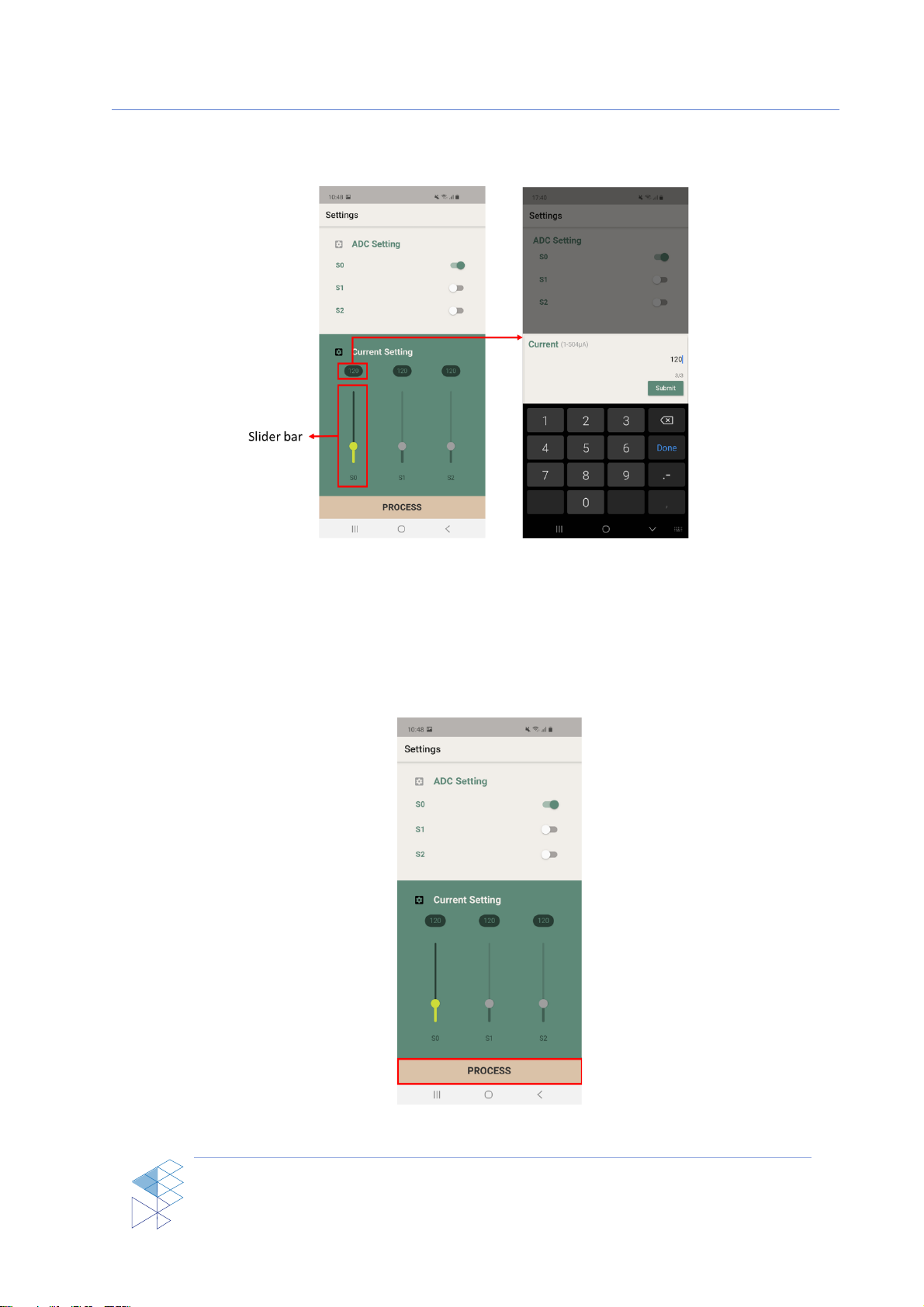

The bias current can be set from slider bar or click the value on the top of slider bar to
manually type the value as shown in Figure 5
Figure 5: Bias current setting
4.2 NFC Communication
After finished the setting, push ‘PROCESS’ button to start the NFC session as shown in
Figure 6
Figure 6: tap on 'PROCESS' to start NFC session

Application Demonstration
SIC4340 USER MANUAL
SIC4340 Development Kit
PROPRIETARY AND CONFIDENTIAL
10
USER MANUAL SIC4340
DEC, 2020
V1.0
Copyright © 2020 Silicon Craft Technology PLC

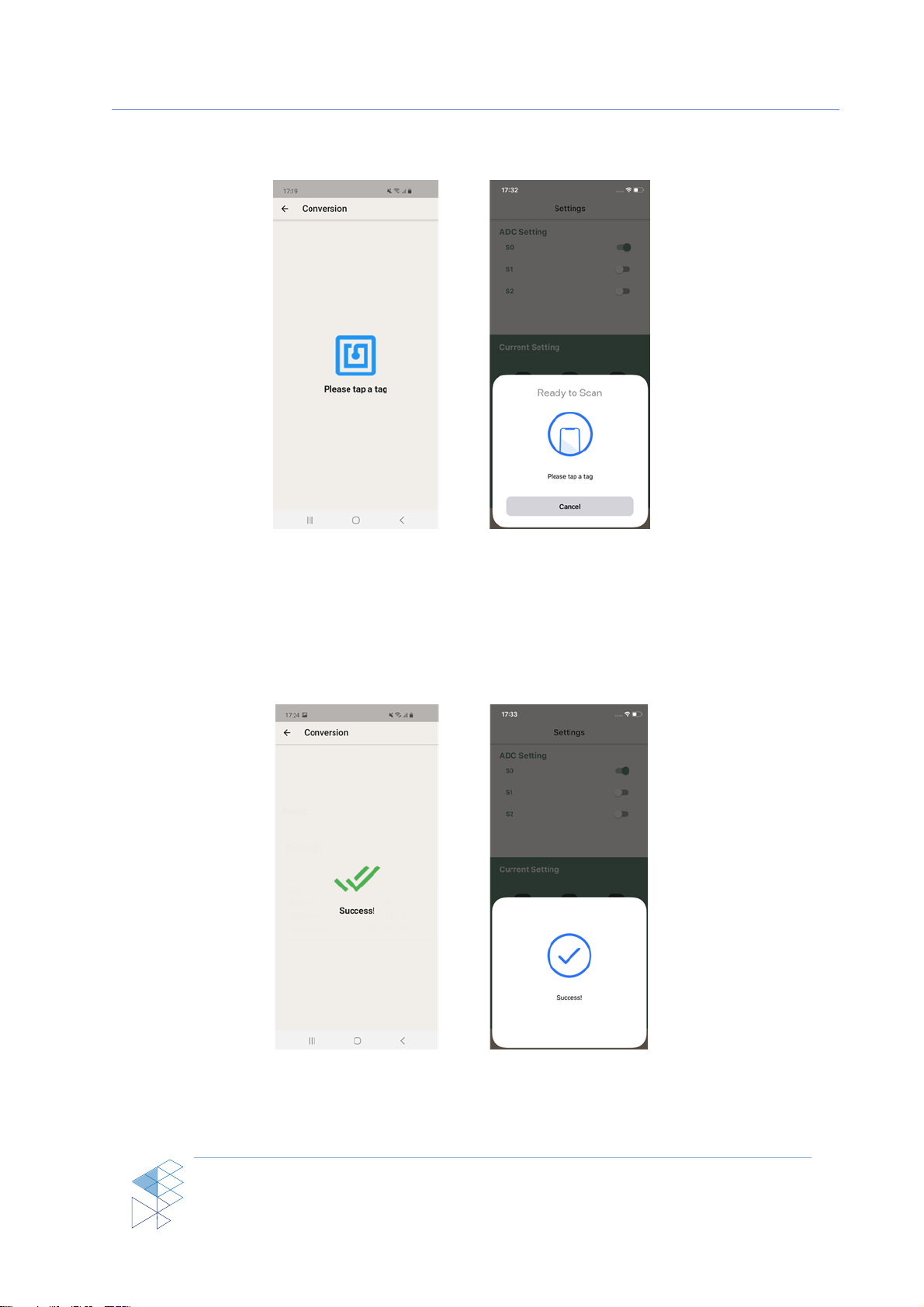

After the NFC session has started, the NFC dialog will show the status as in Figure 7 (a)
for Android and Figure 7 (b) for iPhone.
Figure 7: Tap a tag status
After the status has shown as in Figure 7, user have to tap and hold the mobile on the
antenna of SIC4340 development kit board until the status changed to success as in Figure 8
(a) for Android and Figure 8 (b) for iPhone
Figure 8: Success status
(a)
(b)
(a)
(b)

Application Demonstration
SIC4340 USER MANUAL
SIC4340 Development Kit
PROPRIETARY AND CONFIDENTIAL
11
USER MANUAL SIC4340
DEC, 2020
V1.0
Copyright © 2020 Silicon Craft Technology PLC
If something went wrong before finished an NFC communication, the error status will
be shown as in Figure 9 (a) for Android and Figure 9 (b) for iPhone. If this error status has
shown, user can tap mobile on the board again.
Figure 9: Error status

Application Demonstration
SIC4340 USER MANUAL
SIC4340 Development Kit
PROPRIETARY AND CONFIDENTIAL
12
USER MANUAL SIC4340
DEC, 2020
V1.0
Copyright © 2020 Silicon Craft Technology PLC
4.3 Result Display
After finished an NFC communication and status shown ‘Success’ as Figure 8, the
page in application will be automatically change to result page.

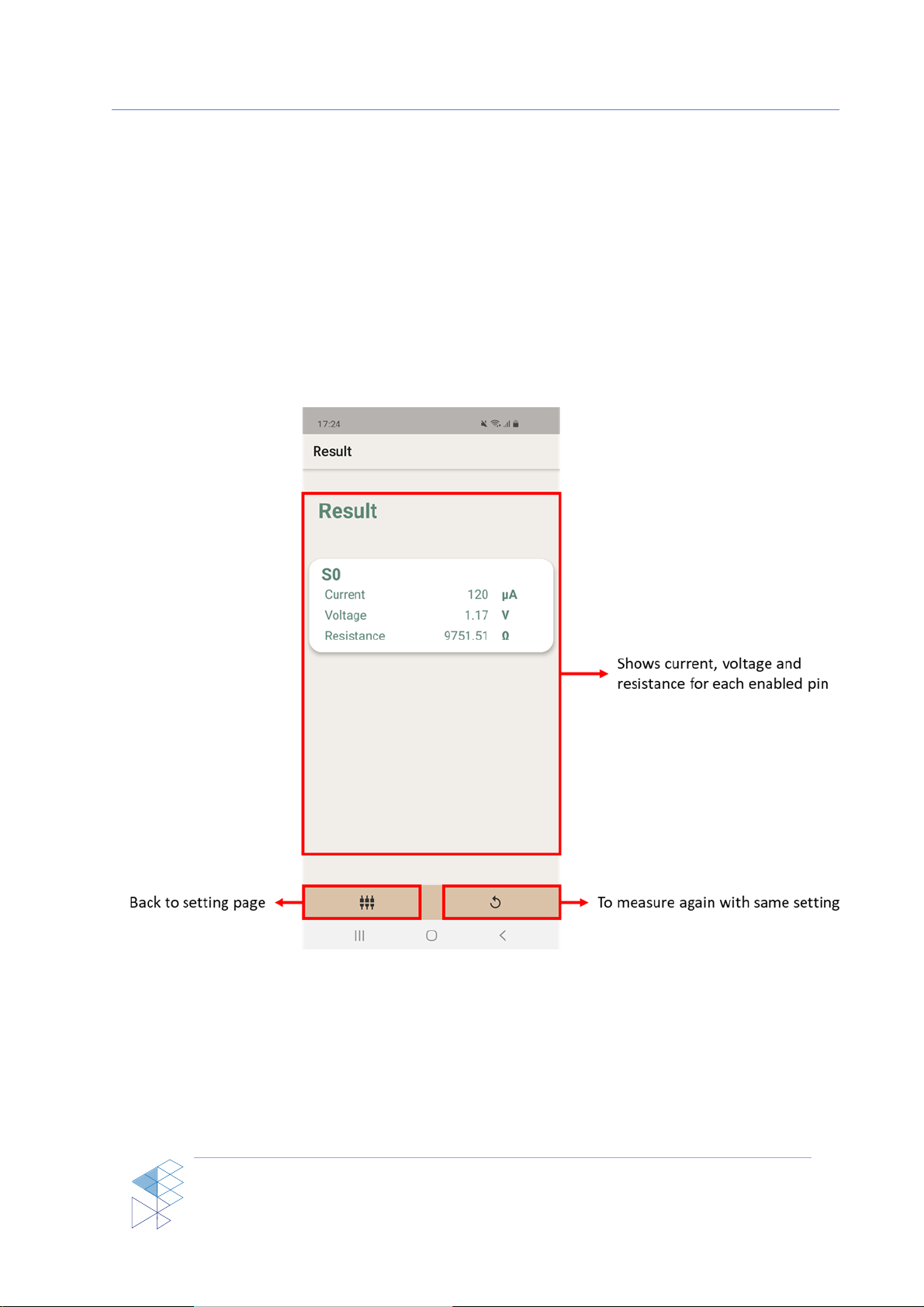

In the Result page bias current, voltage and resistance for each enabled pin will be
displayed. The bottom bar contains 2 buttons, one for go back to setting page and one for
measuring again with the same setting as shown in Figure 10
Figure 10: Result page

Application Demonstration
SIC4340 USER MANUAL
SIC4340 Development Kit
PROPRIETARY AND CONFIDENTIAL
13
USER MANUAL SIC4340
DEC, 2020
V1.0
Copyright © 2020 Silicon Craft Technology PLC
4.4 Blank NDEF setting
SIC4340 Tools app includes the hidden function to write blank NDEF. This function will
format the CC page and write blank NDEF data to SIC4340 memory. The advantage of this
function is to initial SIC4340 to support NDEF message or to clear the NDEF message inside
its memory.
This function can be accessed by tapping the setting icon in the left of ‘ADC Setting’
title. After tapping on this setting sign, the warning dialog will be shown to make sure that
user actually need to clear the NDEF message inside SIC4340’s memory as shown in Figure 11.

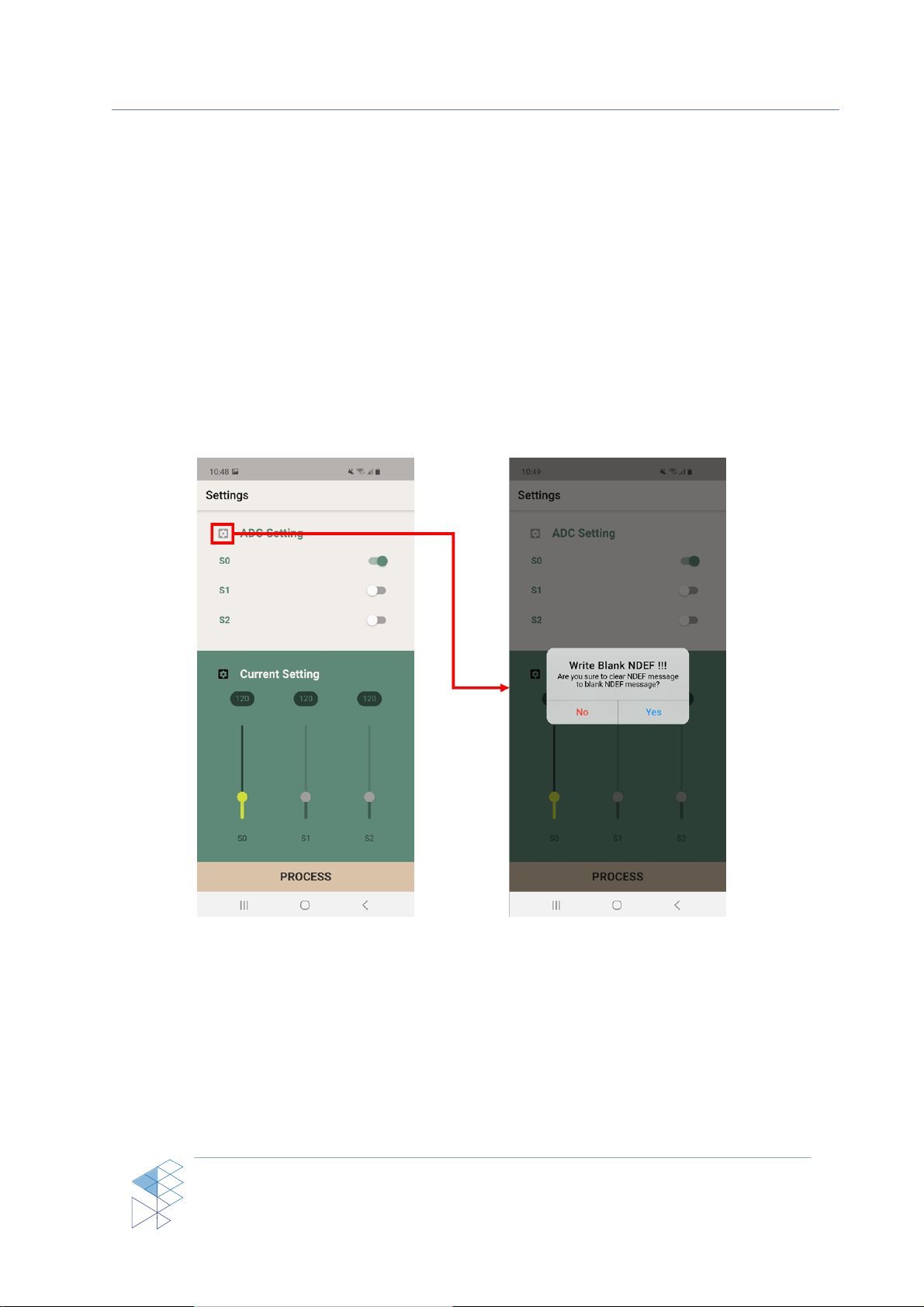

Figure 11: Write Blank NDEF feature
