SICE RADIOLINK EVOLUTION 906U User manual

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
Operator‟s Manual
RADIOLINK EVOLUTION
High Capacity Ethernet over Radio System
Release 3.1
ZZZA500013AB PQ A –Ed. 01
December 21, 2011
Copyright (C) SICE 2011
Technical modifications are possible.
Technical specifications and features are binding only insofar as they are specifically and expressly
agreed upon in a written contract.
All rights reserved. Passing on and copying of this document, use and communication of its
contents not permitted without written authorization from SICE.
Other product and brand names are trademarks of their respective owners.

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
Contents
Foreword ....................................................................................................................................
1.1. Customer documentation organization................................................................................
1.2. Handbook applicability .......................................................................................................
1.3. Purpose of the document .....................................................................................................
1.4 Handbook structure .............................................................................................................
1.5. Regulatory Issues ................................................................................................................
1.5.2 Use of Unlicensed Bands ................................................................................................
1.5.3 Declarations and Marking ...............................................................................................
1.6. Handbook history ................................................................................................................
2Functions and Handling of the Craft Terminal (CT) ............................................................
Introductory Note ............................................................................................................................
2.1. Overview .............................................................................................................................
2.2. Hardware and Software Configuration .............................................................................
2.3. Installation.........................................................................................................................
2.4. Getting the Connection and setting Date and Time ..........................................................
2.5. Setting Date and Time.......................................................................................................
2.6. CT Screen Layout..............................................................................................................
2.7. Main Window....................................................................................................................
2.7.1 Summary System Status ............................................................................................................
2.7.2 Main Menu ................................................................................................................................
2.7.3 System Status.............................................................................................................................
2.8. Radio Interface ..................................................................................................................
2.8.1 Radio Frequency Seeker ............................................................................................................
2.9. Ethernet Interface ..............................................................................................................
2.10. System Settings .............................................................................................................
2.11. Inventory and Housekeeping.........................................................................................
2.12. Logs...............................................................................................................................
2.13. Statistics ........................................................................................................................
2.14.

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
Performances.................................................................................................................
2.15. Configuration Files........................................................................................................
2.15.1 Back-up .................................................................................................................................
2.15.2 Restore...................................................................................................................................
2.16. External Links ...............................................................................................................
2.17. Admin............................................................................................................................
2.17.1 Upgrade .................................................................................................................................
2.17.2 Change Password ..................................................................................................................
2.17.3 Logout ...................................................................................................................................
3Perform Configuration by CT ...............................................................................................
4Supervision by RCT or OS.....................................................................................................
4.1. General ..............................................................................................................................
4.2. Configuring the equipment connected to RCT or OS .......................................................
4.3. Working with the RCT......................................................................................................
4.4. Working with the OS.........................................................................................................
4.5. Recovery from abnormal conditions .................................................................................
5Fault Management ..................................................................................................................
5.1. General Fault Management Functions ..............................................................................
5.2. Equipment and Transmission Alarm List..........................................................................

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
5.3. Replacing Faulty Parts ......................................................................................................
5.3.1 Replacing the ODU ...................................................................................................................
5.3.2 Replacing the IDU (PSE/W or PSE/L).....................................................................................
Replacing the PSM (only for PSE/W) .......................................................................................
6Safety Rules and Precautions ................................................................................................
6.1. First Aid for Electric Shocks.............................................................................................
6.2. Artificial Respiration.........................................................................................................
6.3. Treatment of Burns............................................................................................................
6.4. Safety Rules.......................................................................................................................
6.4.1. General Rules ........................................................................................................................
6.4.2. Warnings for the electrical safety..........................................................................................
6.4.3. Microwave radiations............................................................................................................
6.4.4. Dangerous materials..............................................................................................................
6.5. ESDS Precautions .............................................................................................................
7Annex - Front Panel and Connectors ....................................................................................
7.1. PSE/W Front Panel............................................................................................................
7.2. PSE/L Front Panel.............................................................................................................
7.3. AC/DC Front Panel ...........................................................................................................
7.4. General Connectors ...........................................................................................................
8List of abbreviations................................................................................................................

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
Figures

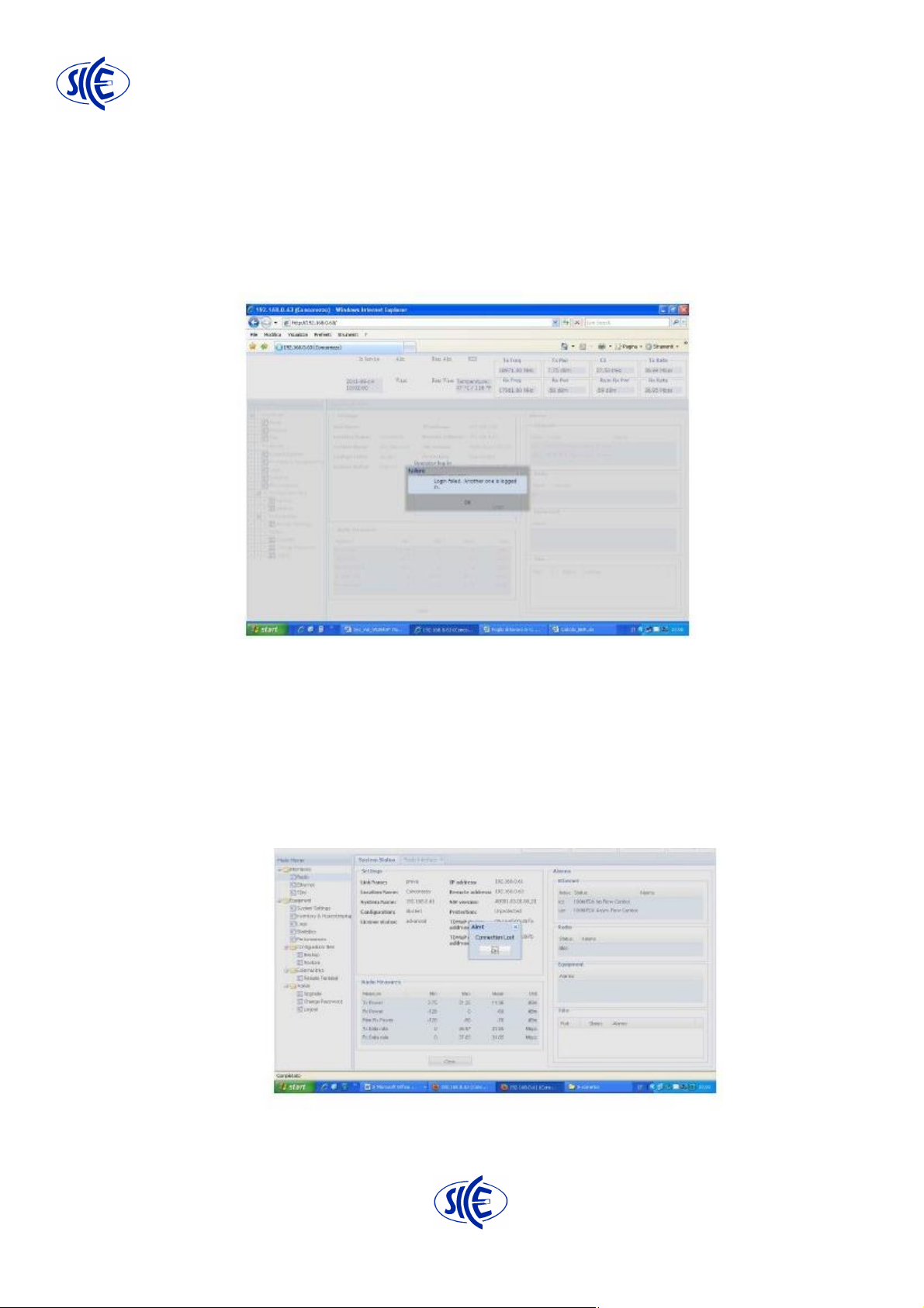

Figure 2-1: Login Window................................................................................................................
Figure 2-2: Login Window - Alerts...................................................................................................
Figure 2-3: CT screen functional areas .............................................................................................
Figure 2-4: Main Window.................................................................................................................
Figure 2-5: Radio Interface Window ................................................................................................
Figure 2-6: Radio Frequency Seeker window for Unlicensed Bands ...............................................
Figure 2-7: Ethernet Interface window .............................................................................................
Figure 2-8: System Settings window ................................................................................................
Figure 2-9 Info pop-up window about SW licence ...........................................................................
Figure 2-10: Inventory and Housekeeping window..........................................................................
Figure 2-11: Logs window ................................................................................................................
Figure 2-12: Pop-up window for file export .....................................................................................
Figure 2-13: Statistics window..........................................................................................................
Figure 2-14: Performances window: Radio Link..............................................................................
Figure 2-15: Performances window: Rx Power ................................................................................
Figure 2-16: Pop-up window opened to perform MIB Back-up......................................................
Figure 2-17: Pop-up window opened to perform MIB Restore .......................................................
Figure 2-18: Upgrade window ..........................................................................................................
Figure 2-19: SW Download pop-up window ....................................................................................
Figure 2-20: Change Password window ...........................................................................................
Figure 6-21: Artificial respiration procedure (1/4) ...........................................................................
Figure 6-22: Artificial respiration procedure (2/4) ...........................................................................
Figure 6-23: Artificial respiration procedure (3/4) ...........................................................................
Figure 6-24: Artificial respiration procedure (4/4) ...........................................................................
Figure 7-25: PSE/W Front Panel and Connectors.............................................................................
Figure 7-26: PSE/L Front Panel and Connectors ..............................................................................
Figure 7-27: AC/DC Front Panel and Connectors ............................................................................
Figure 7-28: Scheme of RJ45 Wire Pair Colour ...............................................................................
Figure 7-29: Power Connector (-48/60 V Battery) ...........................................................................

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
Tables
Table 1.1: RADIOLINK EVOLUTION Product Releases ...............................................................................................

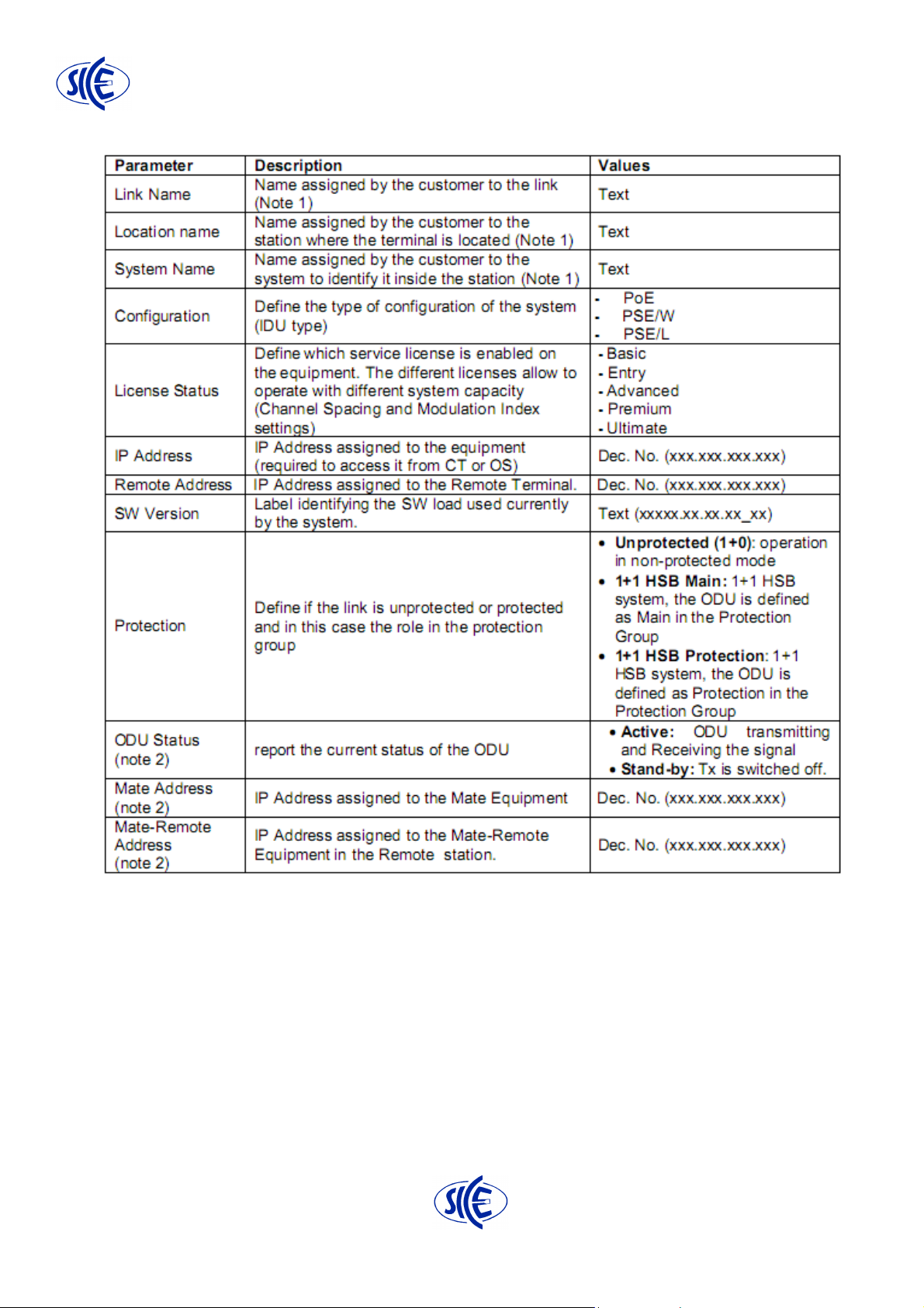

Table 2-2 Parameters displayed in the System Status - Settings ......................................................
Table 2-3: Status and Alarm information in System Status/Alarms .................................................
Table 2-4: Parameters displayed in the Radio Interface/Radio Info .................................................
Table 2-5: Parameters displayed in the Radio Interface/Radio Config.............................................
Table 2-6: Ethernet Interfaces supported for each configuration......................................................
Table 2-7 –Ethernet Interface parameters (cont.).............................................................................
Table 2-8: Ethernet Interface parameters ..........................................................................................
Table 2-9: System Settings parameters .............................................................................................
Table 2-10: System Settings parameters ...........................................................................................
Table 2-11: Data recorded for each Statistics set of counters ...........................................................
Table 2-12: Counters reported by the Performances –Radio Link ..................................................
Table 2-13: Counters reported by the Performances –Rx Power.....................................................
Table 3-14: System Configuration ....................................................................................................
Table 3-15: System Configuration (optional features)......................................................................
Table 3-16: Setting the Radio Channel (Licensed Bands) ...............................................................
Table 3-17: Estimation of radio Interferences from other systems - Unlicensed Bands...................
Table 3-18: Scan result display of the Frequency Seeker .................................................................
Table 3-19: Setting the Radio Channel (manually) - Unlicensed Bands ..........................................
Table 3-20: Setting Radio Channel (using Radio Frequency Seeker) - Unlicensed Bands ..............
Table 3-21: Setting Radio Channel (using Radio Frequency Seeker) - Unlicensed Bands ..............
Table 3-22: Ethernet Data Interface configuration ...........................................................................
Table 5-23: Internal Alarm Contacts.................................................................................................
Table 5.24: Housekeeping Contacts..................................................................................................
Table 5.25: Housekeeping Alarms ....................................................................................................
Table 5-26: Alarm List (Ethernet Interface, Equipment and others) ................................................
Table 5-27: Alarm List (Radio Interface) .........................................................................................
Table 7-28: Interface to the User (Network).....................................................................................
Table 7-29: ODU External Interface.................................................................................................
Table 7-30: Interface to LCT (LCT connector –RJ45) ...................................................................
Table 7-31: Ethernet Interface to the Mate equipment in 1+1 configuration....................................
Table 7-32: Alarm and Housekeeping Interface ...............................................................................

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
1 Foreword
1.1. Customer documentation organization
The Customer Documentation for RADIOLINK EVOLUTION Rel 3.1 High Capacity Ethernet over Radio System is
subdivided into the following documents:
ZZZA500011AB PN A Technical Description (TED)
The Technical Description TED gives an overview of the application, composition, performance,
features, interfaces, functions and maintenance of the RADIOLINK EVOLUTION product.
It also contains the most important technical data.
The Technical Description does not contain any instructions to be carried out.
ZZZA500012AB PP A Installation and Test Manual (ITMN)
The Installation and Test Manual ITMN contains instructions about mounting, connecting and
commissioning the RADIOLINK EVOLUTION product, connecting and commissioning the CT operating terminals.
Any work using the Installation and Test Manual ITMN presumes knowledge of the Operator’s
Manual OMN.
ZZZA500013AB PQ A Operator‟s Manual (OMN)
The Operator’s Manual document provides information on how to operate, monitor and maintain
the RADIOLINK EVOLUTION product using the Element Manager software (Application Software) running on the
CT operating terminal.
In addition to Graphical User Interface (GUI) window descriptions and task instructions, the
Operator’s Manual describes remedial actions to be followed in the case of alarms.
ZZZA500014AB DA A Product Feature List (PFL)
The Product Feature List gives an overview of the main features of the product.

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
1.2. Handbook applicability
This handbook is applicable to the following products of the RADIOLINK EVOLUTION series listed in Table 1 -1:
Title Part Number Comment
PRAM000033xx
RADIOLINK EVOLUTION 906U
PRAM000011xx
RADIOLINK EVOLUTION 907
PRAM000020xx
RADIOLINK EVOLUTION 908
PRAM000024xx
RADIOLINK EVOLUTION 910
PRAM000034xx
RADIOLINK EVOLUTION 911
System RADIOLINK EVOLUTION
PRAM000021xx
RADIOLINK EVOLUTION 913
PRAM000012xx
RADIOLINK EVOLUTION 915
PRAM000022xx
RADIOLINK EVOLUTION 917
PRAM000013xx
RADIOLINK EVOLUTION 918
PRAM000014xx
RADIOLINK EVOLUTION 923
PRAM000028xx
RADIOLINK EVOLUTION 924
Table 1.1: RADIOLINK EVOLUTION Product Releases
Moreover the present edition of the document is valid for the following Software Package versions:
Title Part Number Comment
SW Package
SWAA000233AB
SWP RADIOLINK EVOLUTION Release 3.1

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
1.3. Purpose of the document
The document aims at providing information how to operate and maintain RADIOLINK EVOLUTION system in the
field, to be used by the customer together with the other manuals (Installation and Test Manual
and Technical Manual) to manage in the most effective way the product.
1.4. Handbook structure
The handbook is structured in the basic parts:
Handbook guide part: providing information about the document (chap. 1)
Functions and handling of the Operating Terminal (CT) part: giving information and
instructions how to operate the system by the CT (chap.2)
How to perform the most common configuration actions part: giving the procedures
most commonly required to configure the system (chap. 3)
How to control the system remotely part: describing how the system can be controlled
by a remote location either by a remote CT or an OS (chap. 4)
Fault Management part: dedicated to alarms and consequent actions useful for
maintenance purposes (chap. 5)
Safety Rules and Precautions summarized in chap. 6

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
1.5. Regulatory Issues
1.5.2 Use of Unlicensed Bands
Special regulations apply to the use of RADIOLINK EVOLUTION 917 and RADIOLINK EVOLUTION 924 in the unlicensed
frequency bands 17,1 –17,3 GHz and 24,00 –24,25 GHz in EU countries: specifically they must
conform to the applicable regulations for the Equivalent Isotropic Radiated Power (EIRP) and
therefore the Max allowed Transmit Power is equal to EIRP limit - antenna gain + cable loss.
Limits of EIRP and applicable regulations are shown on ERC/REC 70-03:

100mw (+ 20dBm) for frequency band 17,10 –17,30 GHz and 24,00 –24,25 GHz
Operators should note that regulations are subject to change.
In order to be compliant with such regulations SICE strongly suggests to use antennas with
diameter equal or less than 0.3m (1ft).
In case of 24 GHz the max antenna diameter recommended is 0.2 m.
RADIOLINK EVOLUTION 917 equipment may be used in the following EU states and EFTA countries (lists of
countries as for ISO3166 2 letter code):
AT, BG, DK, EE, FI, GR, IS, IE, IT, LV, LI, LT, MT, NL, NO, PL, PT, RO, CH, SE, BA, HR, MK, ME,
RS, (CZ, HU, planned) (GE, limited implementation).
RADIOLINK EVOLUTION 924 equipment may be used in the following EU states and EFTA countries (lists of
countries as for ISO3166 2 letter code):
AT, BE, BG, CZ, CY, DK, EE, FI, DE, GR, HU, IS, IE, IT, LV, LI, LT, LU, MT, NL, NO, PL, PT, RO,
SK, SI, ES, CH, SE, BA, GE, HR, MK, ME, RS, TR, UA, (FR, GB, limited implementation).
(Annexes 1 & 3: date 6 August 2010)
1.5.3 Declarations and Marking
Hereby, SICE S.r.l , declares that this RADIOLINK EVOLUTION system is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity
may be consulted at www.SICE.it.
All the equipment except the RADIOLINK EVOLUTION917 are marked
RADIOLINK EVOLUTION 917 is marked
1.6. Handbook history
In this paragraph there is shown the history of technical handbook document across the
successive editions with reference to the main chapters.

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
2 Functions and Handling of the Craft Terminal
(CT)
Introductory Note
The current Manual supports equipment running Rel. 3.1 and replaces the previous Manual
supporting Rel. 3.0. From this Release the CT presentation has been significantly changed using
more modern SW technology to support screen presentation, with the purpose to make more user
friendly the use of CT and to increase the CT capabilities with the addition of new functions.
Note: The new CT is therefore quite different from the previous version and in case of migration to Rel.3.1
proper operator training has to be planned.
2.1. Overview
The equipment is composed by on Outdoor Unit (ODU) and an Indoor Equipment (IDU).
IDU is used to indicate the following types of Indoor units.
PSE: the User/Network Equipment is connected to the ODU via an Indoor Power Supply
Equipment (PSE). This configuration supports IP traffic (up to about 400 Mbps) entering the
system through a GE interface. Two variants of PSE can be used PSE/W or PSE/L (see
TED RADIOLINK EVOLUTION cap. 2.2.3 and 2.2.4)
The PSE provides to the system:
power feeding
interface for a LCT locally connected to the equipment
visual indications (LED) and housekeeping signals
PoE: unit supplied by the customer providing power feeding to the ODU.
For more details about the different system configurations please refer to TED –Cap. 2.3.
In the following reference is made to the basic configurations as shown in Fig. 2.1.
The CT (Operating Terminal) can be connected in Local Mode (LCT) to the LCT port on PSE to
supervise the local terminal of the radio link (local terminal) or the remote terminal of the link
(remote terminal).
It is possible to configure the system to be supervised:
- by CT only: in this case the SNMP interface is inhibited and cannot control the equipment
- by OS and CT: an OS (connected via SNMP protocol) and CT work simultaneously and
there is no exclusion rule between the two.

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
2.2. Hardware and Software Configuration
To run the RADIOLINK EVOLUTION System User Interface a standard PC is required supporting the following SW
configuration:
− Windows Operating System ≥ Windows 2000
− Java Browser Internet Explorer, Version ≥ 7.0
− Browser Firefox, Version ≥4.0
− Java Virtual Machine, Version ≥ 1.6
2.3. Installation
The PC (Ethernet LAN port) implementing the LCT function has to be connected to the LCT
connector on the front panel of the IDU by means of a standard Ethernet cable with RJ45
connectors. A RCT can be connected to any of the terminals of the link via the IP network the radio
link is included within.
Each terminal of the link can be accessed by the PC implementing the CT function using the IP
address which has to be defined uniquely in the IP network for each equipment.
At the factory all equipment are preloaded with the following IP addressing:
IP Address
192.168.0.50
Subnet Mask
255.255.255.0
Default Gateway
192.168.0.1

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
Which can be used at the installation to connect each equipment from the CT (either LCT or RCT).
Before any other action, after having opened a session (see par 2.4), the IP addressing has to be
modified assigning the unique IP address defined by the customer according to the network
addressing plan. This can be done using the “System Settings/Management Interface” window
(see par. 2.10).
The IP address loaded during this session has to be used to control the equipment until modified
using the same procedure.
2.4. Getting the Connection and setting Date and Time
Before opening any session as CT, the LAN port of the PC used as CT has to be assigned an IP
Address belonging to the same Subnet defined for the equipment.
The user can set up the required IP configuration by means of the following procedure:
1. Open “Network Connections” in the Control Panel of the PC
2. Select “LAN Connection” and with the right button of the mouse open the window
3. Click on “Properties”
4. In the window “General” select “Internet Protocol” and open “Properties”
5. Enter the IP address consistent with the Subnet of the equipment
6. Close (OK) the transaction
To open a session as LCT or RCT, the main window of the CT web interface can be get using a
standard browser and writing the Terminal IP address in the “Address” field:
1. Open the Browser (e.g. Internet Explorer)
2. Enter the IP Address of the Terminal as defined at installation or previously assigned (see
par. 2.3) and open the connection.
3. Enter Username and Password in the pop-up login window which opens (Fig. 2.2).
Figure 2-1: Login Window
The Username has the default value “operator” which cannot be changed.
The default value for the Password is “o”. The Password can be changed by the operator through
the procedure detailed in par. 2.17.2)
If another user is already logged, instead of the Login window the pop-up window of Fig. 2.3-a will
be opened and the user cannot login.

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
If an existing connection with the CT is lost, the alert of Fig. 2.3-b is displayed and the connection
can be re-established clicking on the browser tab and re-entering Username and Password.
Note: After a period of about 30 minutes when the CT has been inactive the CT connection is released. If
the operator reopens again the CT afterwards, the login windows of Fig. 2.3 is displayed and the operator
user has to login again to access the system, inserting Username and Password.
a –Alert: another user is already logged
b –Alert: connection is lost
Figure 2-2: Login Window - Alerts
Note: To access the Remote Terminal of a link (or the Mate and Remote Terminals in case of 1+1 HSB
configuration) from a CT it is possible to establish the connection to the Local terminal and clicking the link
“External Links→Remote Terminal/Mate Terminal” available in the Main Menu (see par. 2.16).
The Remote Terminal of the link can be reached only if the radio link is in normal operation.
Warning: Obviously, using the RCT, any terminal can be reached using its own IP address, but in
this case the operator must be careful not to issue commands that could put out of service the

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
remote system because the system is not able to filter dangerous operations. Otherwise cutting
the radio link makes in this case the terminal unreachable and a manual local intervention in the
terminal to restore service becomes necessary.
2.5. Setting Date and Time
During system installation it is required to set the date and time of the ODU in order to have valid
timestamps in the log files and performance files. The date and time can be set in two different
modes by using the “System Settings” menu (see par. 2.10), locked to the
Local PC time
NTP server: in this case the user need to enter the IP address of an NTP (Network Time
Protocol) server and the ODU contacts the server to synchronize its clock with it.
Note: The system doesn’t have a backup battery and therefore the date and time is lost every time the
system is restarted. To maintain time and date the ODU automatically attempts a re-synchronization with the
NTP server (if defined) every 30 minutes. Moreover an automatic re-synchronization with the NTP server is
executed when the system is restarted,
2.6.
Figure 2-3: CT screen functional areas
In Fig. 2.4 the main areas of the screen are defined.
1) Browser Area. Proprietary of the specific browser used by the customer. Includes the IP
address area where the IP address of the equipment is displayed. If more equipment have

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
been opened, tabs are available for each of them and it is possible to switch between the
equipment by clicking on the appropriate tab. In each tab SystemName (LocationName) is
displayed to identify the equipment.
2) Logo Area. The Logo of the equipment is displayed.
3) Summary System Status. This area is always displayed providing the key information
about the current system operation. It is therefore possible to supervise continuously the
operation of the system, to have a summary view of the system status and to have
immediate alert when any abnormal condition appears in any phase of the CT operation.
4) Menu Area. In this area links are provided to open the required specific window in the
Variable Window area by clicking on the relevant line of the menu.
5) Variable Window area. Here the different windows can be opened to perform all
management actions and enquires supported by the CT. One window is displayed at a
time, but for all open windows a tab is present in the top line of the area allowing to switch
between the open windows simply by clicking on the tab. A window is displayed until it is
closed or a new one is opened.
The System Status window is displayed by default and its tab is always present.
For all windows the following general rules apply.
Each window is made of one or several functional areas
In a window there can be displayed:
o Information to the operator. Areas only displaying values of system parameters
that cannot be modified have a light blue background.
These items are marked in the following Tables with “I”.
o Parameters configurable by the operator: the current value can be modified by the
operator entering the new value, but the modification (new configuration) is
executed only when the <Apply> button associated to the window is clicked.
These items are marked in the following Tables with “M”.
o Buttons to directly execute some standard operation by clicking them.
Combo-box fields are used to represent attributes that can assume several values.
A Text area is used for attributes with a list of possible values. (i.e. alarm list)
To facilitate understanding of the displayed information, colors are used with the following
meaning:
o Green indicates no problem and normal operation of the system
o Red indicates a critical or urgent alarm status
o Yellow indicates non urgent alarms, warning or abnormal conditions
Detailed information about the areas are included in the following paragraphs.
2.7. Main Window
When a session is opened accessing the CT from the browser (par. 2.4) the Main Window as
shown in Fig. 2.5 is displayed.
The Main Window is normally displayed when no specific actions by CT are required with the key
reporting of the system operation.
From the Main Window, clicking on the suitable links in the Main Menu (left area of the screen) it is
possible to open in the Variable Window area the dedicated windows implementing the different
functions of the CT.
Note: in case the system is Unprotected (1+0 links) some fields in the Settings area are not displayed.

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
Figure 2-4: Main Window
2.7.1 Summary System Status
In the upper Summary System Status area the following info is displayed and continuously
refreshed every few seconds:
i. 7 LED: used to display summary alarms and functionality of the system reporting the
status of the Local and Remote Ends of the radio link:
for the Local End
o In Service (Transmitter On)
o Alm (Major Alarm)
o Warn (Warning Information)
o RDI (Remote Defect Indicator)
o Loop (RF Loop enabled)
for the Remote End:
o RemAlm (Major Alarm)
o RemWarn (Warning information)
Date field: reports (yyyy/mm/dd hh:mm:sec format) the system date and hour. The
System Date can be updated and/or aligned to a reference Date using the System
Settings menu.
Temperature: indication of the current temperature of the ODU.

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
Tx/Rx Radio parameters:
Tx Freq. - Transmitter frequency (MHz)
Rx Freq. - Receiver frequency (MHz)
Tx Pwr - Transmitted power (dBm)
Rx Pwr - Received power (dBm)
CS –Channel spacing between Tx and Rx (MHz)
Rem Rx Pwr - Received power by the Far-End terminal of the link (dBm)
Tx Rate –Net Data rate transmitted (link load) (Mbps)
Rx Rate - Net Data rate received (link load) (Mbps)
QAM (tx) –Current Modulation Index used by the Transmitter
QAM (rx) –Current Modulation Index used by the Receiver
Note: For Power measurements --- is displayed in case of signal below measuring threshold
Note: the QAM index can have values 4 –1024.
In case of Fixed Modulation the index is labeled “Fixed” and reports the operator’s setting.
In case of Adaptive Modulation the index reports the current value used by the system and it is labeled
“auto”.
2.7.2 Main Menu
In the left Main Menu area the following links (grouped in functional classes) are displayed and
can be used to open the relevant Variable Windows or perform the required operations by clicking
on the name: Interfaces
Radio –management of ODU Tx/Rx parameters (see par. 2.8)
Ethernet –management of Ethernet User Network Interfaces available on the
system (see par. 2.9)
Equipment
System Settings –management of system information (see par. 2.10)
Inventory and Housekeeping –management of inventory information and
housekeeping interfaces (see par. 2.11)
Logs –access to log files (see par. 2.12)
Statistics –access and management of statistical counters to monitor traffic on
the system (see par. 2.13)
Performances –access and management of counters and indicators
monitoring the quality of service (see par. 2.14)
Configuration Files
Backup –create backup files of the system configuration (see par. 2.15.1)
Restore –recover system configuration from the backup files (see par. 2.15.2)
External Links (par. 2.16)
Remote Terminal –allows to open and access directly the CT of the Remote
Terminal of the link (i.e. the equipment of the radio link located in the Remote
station). In case of 1+1 radio links, the Remote Terminal is defined as the
equipment of the remote station with the same protection role in the protection
group.
Mate Terminal –available only in 1+1 HSB configuration. Allows to open and
access directly the CT of the Mate Terminal of the link (i.e. the equipment of the
radio link collocated in the same Local station)
Mate-Remote Terminal –available only in 1+1 HSB configuration. Allows to
open and access directly the CT of the Mate-Remote Terminal of the link (i.e.
the Equipment of the radio link located in the Remote station and with the
opposite protection role in the protection group)

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
Admin
Upgrade –management of download of new SW loads (see par. 2.17.1)
Change Password –allows to modify the system password (see par. 2.17.2)
Logout –closes the CT session (see par. 2.17.3)
2.7.3 System Status
In the Variable Window area System Status is displayed by default when no other windows are
open or by clicking on the System Status tab in the top line of the area.
Three functional areas are displayed.
a) Settings
The parameters displayed in this area are described in Table 2.2.
Note: All parameters cannot be modified in this window, but to perform any change it is
necessary to open the System Setting window (link “Equipment→System Setting” in the Main
menu) (see par. 2.10)
b) Radio Measures
For the following radio parameters displayed in the Summary System Status
Tx Power
Rx Power
RemRx Power
Tx Data rate
Rx Data rate
there are reported the min, max and mean value measured in the last 15 min. period (moving
measuring window). The operator can restart measurements by the <Clear> button at the
bottom of the area.
c) Alarms
The current status of the functional blocks of the equipment and the active alarms can be
monitored in this area, subdivided by the following functional areas. The display is
automatically refreshed. Alarm and warning indications are in red.
Ethernet
There is a row for each Ethernet port equipped in the system (depending on the system
configuration: lct, user, mate, poe) where the current status is displayed and active alarms
are indicated. The current status is a function of the port settings (see par. 2.9) and of the
result of autonegotiation on the interface if enabled.
Radio
There is a row where the current status of the radio subsystem (settings are defined in par.
2.8) is displayed and active alarms are indicated.
Equipment
There is a row where the other active alarms of the equipment are indicated. Housekeeping
Sensors signal are also indicated in this area when the Active.
In Table 2.3 there is reported the list of the Status and Alarms values used in each area.

SOCIETA’ ITALIANA COSTRUZIONI ELETTRONICHE S.r.l.
VIA TAZIO NUVOLARI,n°53 -55061 CARRAIA - (LU)
Web site : www.sicetelecom.it
ISCRIZ. TRIBUNALE LUCCA N. 8661-C.C.I.A.A. N.103668
P. IVA 00871160461 - Tel. [phone] - Fax [phone]
E-Mail: [e-mail]
Note 1) These parameters can be optionally defined by the customer
Note 2) Only displayed in 1+1 HSB configurations:
Table 2-2 Parameters displayed in the System Status - Settings
