Siemens CCMX1315-LP Instruction sheet

Building Technologies
Fire Safety & Security Products

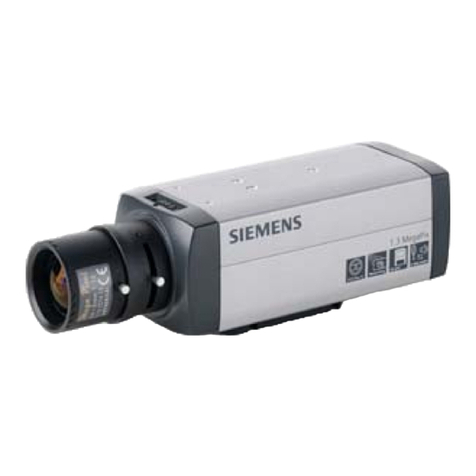

CCMx1315-LP
1/3” 1.3 Megapixel
CCD Colour IP Camera
Configuration Manual

Liefermöglichkeiten und technische Änderungen vorbehalten.
Data and design subject to change without notice. / Supply subject to availability.
© 2009 Copyright by
Siemens Building Technologies
Wir behalten uns alle Rechte an diesem Dokument und an dem in ihm dargestellten Gegenstand vor. Der Empfänger erkennt diese Rechte
an und wird dieses Dokument nicht ohne unsere vorgängige schriftliche Ermächtigung ganz oder teilweise Dritten zugänglich machen oder
außerhalb des Zweckes verwenden, zu dem es ihm übergeben worden ist.
We reserve all rights in this document and in the subject thereof. By acceptance of the document the recipient acknowledges these rights
and undertakes not to publish the document nor the subject thereof in full or in part, nor to make them available to any third party without our
prior express written authorization, nor to use it for any purpose other than for which it was delivered to him.
Copyright
Copyright 2009 © Fire & Security Products GmbH & Co. oHG. All rights reserved.
Siemens Fire & Security Products GmbH & Co. oHG confers upon the purchaser
the right to use the software.
It is not permitted to reproduce this document in whole or in part or translate it into
another language without our written consent.
Trademarks
CCMx1315-LP is a trademark of Fire & Security Products GmbH & Co. oHG.
Microsoft is a registered trademark and Windows a trademark of Microsoft
Corporation. All other products or company names referred to explicitly in this
manual are mentioned only for purposes of identification or description and may be
trademarks or registered trademarks of their respective owners.
Contacting us
If you have questions or suggestions regarding the product or this documentation,
please contact your local SIEMENS representative.
Siemens Building Technologies
Fire & Security Products GmbH & Co. oHG
D-76181 Karlsruhe
You can also visit our Web site at www.sbt.siemens.com.
Training courses
Siemens Fire Safety & Security Products provides training courses for all products.
About this document
This manual provides the information you will need in order to install and configure
a Solaris™ Dome unit. We recommend that you read through it at least once
before you begin the installation.
Orientation guide
Tips and information

3
Siemens Building Technologies
Fire Safety & Security Products 01.2009
Contents
1Safety .......................................................................................................6
1.1 Target readers...........................................................................................6
1.2 General safety precautions .......................................................................6
1.2.1 Transport...................................................................................................6
1.2.2 Installation .................................................................................................6
1.2.3 Cleaning ....................................................................................................7
1.3 Meaning of the signal words .....................................................................7
1.4 Meaning of the hazard symbols................................................................7
2EU directives ...........................................................................................8
3Specifications..........................................................................................9
4Ordering data.........................................................................................10
4.1 Package contents....................................................................................10
5Camera part and connector definition................................................11
5.1 Camera part definition.............................................................................11
5.2 Connector pin definition ..........................................................................12
5.2.1 Digital I/O terminal...................................................................................12
5.2.2 DC Auto Iris port......................................................................................12
5.2.3 Power IN connector.................................................................................12
5.2.4 Video output connector ...........................................................................12
5.2.5 IP/TV switch ............................................................................................12
5.2.6 Default/reset buttons...............................................................................12
6Installing the camera ............................................................................13
6.1 Precautions .............................................................................................13
6.2 Concept of the network camera..............................................................14
6.3 Setting network camera environment .....................................................14
6.4 Connecting the camera and personal computer via network .................15
6.5 Using the camera search application "IpFinder".....................................17
6.6 Using the camera search application "Web cam IP manager" ...............18
6.7 Log-in screen ..........................................................................................19
6.8 Viewing and listening ..............................................................................19
7Configuration.........................................................................................22
7.1 Compression...........................................................................................22
7.2 Network settings......................................................................................26
7.2.1 Basic Settings .........................................................................................26
7.2.2 DDNS Settings........................................................................................27
7.2.3 FTP Server..............................................................................................27
7.3 Image parameters...................................................................................28
7.3.1 Camera - Basic setting............................................................................28
7.3.2 Camera-mask zone settings ...................................................................30
7.3.3 Camera cropping settings .......................................................................31
7.3.4 Camera OSD settings .............................................................................33
7.4 Alarm.......................................................................................................33
7.4.1 External digital input 1.............................................................................34
7.4.2 External digital input 2.............................................................................34
7.4.3 Motion detection settings ........................................................................35
7.4.4 Alarm output............................................................................................36
7.4.5 Audio Event.............................................................................................36

4
Siemens Building Technologies
Fire Safety & Security Products 01.2009
7.5 Record.....................................................................................................37
7.5.1 FTP recording .........................................................................................37
7.5.2 SD recording ...........................................................................................40
7.5.3 Emailing recording ..................................................................................42
7.5.4 NAS recording.........................................................................................44
7.6 Audio .......................................................................................................46
7.7 Date/Time................................................................................................47
7.8 Access protection....................................................................................48
7.8.1 Administrator ...........................................................................................49
7.8.2 User list ...................................................................................................49
7.9 Firewall....................................................................................................50
7.9.1 IP Address Filter......................................................................................50
7.9.2 Forbidden Ports.......................................................................................50
7.9.3 Forbidden Protocol..................................................................................51
7.10 System ....................................................................................................51
7.10.1 Setting .....................................................................................................51
7.10.2 Update.....................................................................................................51
7.10.3 Configuration...........................................................................................52
7.10.4 Backfocus................................................................................................53
7.10.5 Remote....................................................................................................53
7.10.6 Temperature............................................................................................53
7.11 Log ..........................................................................................................54
7.12 Notice ......................................................................................................54
8Utility program application...................................................................55
8.1 NAS player setup ....................................................................................55
8.2 Audio record setup ..................................................................................55
8.3 Firmware update setup ...........................................................................56
9Maintenance...........................................................................................57
10 Disposal .................................................................................................57
11 Keyword index.......................................................................................58

5
Siemens Building Technologies
Fire Safety & Security Products 01.2009

Safety
6
Siemens Building Technologies
Fire Safety & Security Products 01.2009
1 Safety
1.1 Target readers
The instructions in this document are designed only for the following target
readers:
Target readers Qualification Activity Condition of the
product
Operational startup
personnel
Technical training for
building or electrical
installations.
Training on the product
is recommended.
Puts the product into
operation for the first
time, or changes the
existing configuration.
The product is installed
but not yet configured,
or the existing
configuration is to be
changed.
1.2 General safety precautions
zRead the general safety precautions before installing, configuring and operating
the device.
zKeep this document for reference.
zAlways pass this document on together with the product.
zPlease also take into account any additional country-specific, local safety
standards or regulations concerning project planning, operation and disposal of
the product.
zFollow all warnings and instructions marked on the device.
Liability claim
zDo not make any changes or modifications to the device unless they have been
approved by the manufacturer.
zUse only spare parts and accessories that have been approved by the
manufacturer.
1.2.1 Transport
Damage during transport
zKeep the packaging material for future transportation.
zDo not expose the device to mechanical vibrations or shocks.
1.2.2 Installation
zIt is recommended that all preparatory work (e.g. fitting of accessories) be
carried out in a workshop prior to final installation.
Radio interference with other devices in the environment
zWhen handling modules that are susceptible to electrostatic discharge, please
observe the ESD guidelines.

Safety
7
Siemens Building Technologies
Fire Safety & Security Products 01.2009
Damage due to unsuitable mounting location
zThe environmental conditions recommended by the manufacturer must be
observed. See Section 3: Specifications.
zDo not operate the device in dusty places.
zDo not expose the device to mechanical vibrations or shocks.
zProtect the device against moisture.
zPlace the unit on a stable surface that will hold its weight.
zThe mounting surface must be solid and non-combustible.
zDo not operate the device close to sources of powerful electromagnetic
radiation.
Danger of electrical shock due to incorrect connection
zConnect the device only to power sources with the specified voltage. Voltage
supply requirements can be found on the mains adapter.
zMake sure the device is permanently connected to the electricity supply; a
readily accessible disconnect device must be provided.
zThis device is designed to work with 12 V DC / 24 V AC-systems or PoE. Do not
connect the device to any other power systems.
1.2.3 Cleaning
Do not touch the imaging surface of sensor. Use a soft cloth moistened with
alcohol to clean the surface if it is touched accidentally.
1.3 Meaning of the signal words
The severity of a hazard is indicated by the following written signal words.
Signal word Type of risk
DANGER Imminent danger of death or severe bodily injury
WARNING Possible danger of death or severe bodily harm
CAUTION There is a risk of minor to medium injuries or damage to property.
IMPORTANT Malfunctioning may result
1.4 Meaning of the hazard symbols
The nature of the hazard is indicated by icons.
Warning of a hazard
Warning of dangerous electrical voltage
Tips and information

EU directives
8
Siemens Building Technologies
Fire Safety & Security Products 01.2009
2 EU directives
The product complies with the requirements of the following EU directives. The EU
declaration of conformity is available from:
Siemens Building Technologies
Fire & Security Products GmbH & Co. oHG
76181 Karlsruhe
Germany
European Directive 2004/108/EC “Electromagnetic Compatibility”
Compliance with the European Directive 2004/108/EC has been proven by testing
according to the following standards:
Emitted interference: EN 61000-6-3
EN 55022 Class B
Resistance to interference: EN 50130-4

Specifications
9
Siemens Building Technologies
Fire Safety & Security Products 01.2009
3 Specifications
Image System Description
Image sensor 1/3” progressive ExviewHAD CCD, 1.3 Megapixels
Effective pixels 1280 (H) x 960 (V)
Image compression method Motion JPEG/ MPEG4
Image frame rate SXGA: 1280 x 960 at 12.5 fps max.
VGA: 640 x 480, QVGA: 320 x 240 at 25 fps max
Cropping window Simultaneous video transmission of up to 5 independent cropping windows, free configuration
in size and position at 5 fps max. (MJPEG mode only)
Video out(for installation) 1 Vpp, 75 Ohm BNC composite video, (either CVBS or IP video selectable by switch)
Electronic
Sync system Internal
Lens mount CS mount
Gamma correction 0.45/1.0
Min illumination Colour 0.4 lx (F1.2, AGC ON), BW 0.2 lx (AGC ON) (CCBS1315-LP only)
White balance Auto (2500 K - 10000 K) / Manual (1500 K - 15000K) / Preset
Electronic shutter 1/25 - 1/10,000 sec; support long shutter up to 4 s
BLC On/off, BLC1 - BLC6
Audio Two way Audio; Full duplex, G.726 selectable
Alarm 1x Alarm in, 1x Alarm out, 1 x B/W switch in
RS-485 Yes
SD card slot Support up to 2 GB SD card (2 GB SD-card included at delivery)
Internal Microphone Yes
Motion detection MD window selected by mouse & 3 level sensitivity
Power Supply
Power requirement 12 V DC / 24 V AC, 50 Hz or PoE
Power consumption CCMC1315-LP: < 7 W,
CCMS1315-LP: < 8.5 W
Power connector Screw-less terminal block
Environment
Operating temperature -10 to +50 ℃
Operating humidity 80 % RH
Storage temperature -20 to +60 ℃
Network
Ethernet 1 x 10/100 based-T Ethernet connection for LAN/WAN
Internet protocol TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, ARP, ICMP, DDNS, FTPc, FTPs, DHCPc,
RTSP, RTCP, RTP, IGMPv3
Security Multiple password for Admin, Advanced Users and Users
Control interface IE browser 6.0 or above
I/O connector
Network port RJ45 with control LED
Video output BNC (CVBS out selectable by switch)
AI lens connector 1 x 4 pin jack (located on side)
Audio in & out connector 3.5 mm phone jack
Alarm connector 2 x alarm in / 1x alarm out
Power connector 3 pins spring terminal block
LED Orange stand for Network online, Green stand for system ready
RS485 2- pin spring terminal (for Telemetry Receiver using SCU protocol)
Mechanism
Dimensions (LxWxH) 150 x 66 x 64 mm
Weight 0.55 kg

Ordering data
10
Siemens Building Technologies
Fire Safety & Security Products 01.2009
4 Ordering data
Type Part no. Designation Weight
CCMC1315-LP S54561-C80-A1 1/3” 1.3 MP Colour IP Camera
12 V DC / 24 V AC, 50 Hz or PoE
0.55 kg
CCMS1315-LP S54561-C80-A2 1/3” 1.3 MP Day/Night IP Camera
12 V DC / 24 V AC, 50 Hz or PoE
0.55 kg
Accessories, not included in delivery
CLVD1316/3-8 S54561-B300-A1 1/3" Megapixel varifocal lens, direct-drive
iris, F1.0, 3 - 8 mm
0.08 kg
CLVM1316/3-8 S54561-B301-A1 1/3" Megapixel varifocal lens, manual iris,
F1.0, 3 - 8 mm
0.07 kg
CLVD1316/5-50 S54561-B302-A1 1/3" Megapixel varifocal lens, direct-drive
iris, F1.4, 5 - 50 mm
0.08 kg
CLVM1316/5-50 S54561-B303-A1 1/3" Megapixel varifocal lens, manual iris,
F1.4, 5 - 50 mm
0.06 kg
4.1 Package contents
zCCD IP camera
zDocumentation CD
zUtilities CD
zInstallation instruction (English, German, French, Spanish, Italian)
zSD card (2 GB)
zHexagonal wrench
zTorx wrench T6
zLens connector

Camera part and connector definition
11
Siemens Building Technologies
Fire Safety & Security Products 01.2009
5 Camera part and connector definition
5.1 Camera part definition
Fig. 1 Camera part definition
1 Back-focus ad
j
ust rin
g
10 Di
g
ital I/O terminal
2 Back-focus lock screw 11 IP/TV selection
3 RJ45 Ethernet connector 12 SD card slot
4 Audio in
p
ut
(φ
3.5mm
)
13 SD card
p
rotection
5 Audio out
(φ
3.5mm
)
14 1/4” inch tri
p
od mount hole
6 SW for default 15 BNC connector
7 SW for reset 16 IRIS connector
8 Power indicator 17 Micro
p
hone
9 DC12V/AC24V
p
ower terminal

Camera part and connector definition
12
Siemens Building Technologies
Fire Safety & Security Products 01.2009
5.2 Connector pin definition
5.2.1 Digital I/O terminal
GND
AI2
1.External alarm input-2
2.Becoming BW/CL enforced input when the Digital
Input Mode is set to BW Mode in the Configuration-
Alarm page
RS485- / + RS485 signal output port for telemetry control
COM
AO Alarm output port
GND
Al1 External alarm input-1
5.2.2 DC Auto Iris port
PIN 1 Damp -
PIN 2 Damp +
PIN 3 Drive +
PIN 4 Drive
5.2.3 Power IN connector
RED: Power +
WHITE: Power -
Power: 12 V DC or 24 V AC
5.2.4 Video output connector
Video Signal Output Composite video output
5.2.5 IP/TV switch
IP Video out through Ethernet
TV BNC composite video out for installation purposes
5.2.6 Default/reset buttons
DEFAULT Return to factory default by pressing button for 5
seconds
RESET System re-start

Installing the camera
13
Siemens Building Technologies
Fire Safety & Security Products 01.2009
6 Installing the camera
6.1 Precautions
SD memory card
Please install the SD memory card before switching on the camera as the system cannot detect the
insertion of an SD card during operation.
zThere is a limit to the number of rewrites that is possible with the SD memory
card. Replacing the SD memory card when performing periodic maintenance of
the camera is recommended.
zThe camera supports the following SD memory cards. Do not use memory cards
with other specifications. SD memory card: 64, 128, 256, and 512 MB, 1 and 2
GB SD memory cards (3.3 V) supported.
Physical interface: Part 1. Physical Layer Specification; Version 1.01
zImages may not be recorded or read correctly if an unsupported SD memory
card is used with the camera.
zCarefully read the manual, precautions on use, and any other information
supplied with a purchased memory card.
zAn SD memory card can be used for the loop recording of images. The life-span
(number of rewrites possible) of an SD memory card is greatly affected by the
capacity of the SD memory card. The use of a 128, 256, or 512 MB, 1 or 2 GB
large-capacity SD memory card is recommended for loop recording.
zDo not use a memory card containing the data recorded by another device with
the camera as this may result in the camera not functioning correctly.
zDo not modify, overwrite the data, or change the folder name of an SD memory
card. It may result in the camera not functioning correctly.
zData recorded with the camera do not comply with the image file format Exit and
the DCF standard. If the SD memory card is to be removed to play images, use
a personal computer to play the images. Other devices may not be capable of
doing so.
Power adaptor
CAUTION
Be sure to use only a suitable power adapter. Using a wrong power adapter
may cause the camera to malfunction, heat up, or catch fire. Before using the
power adapter, carefully read and observe the Important Safety Instructions and
the notes below.
zDo not allow the connectors on the power adapter to come into contact with any
other metal object as this may result in short circuit.
zTo connect the power adapter, firmly insert the plug end of the cable into the
power terminal. Do not insert the plug into other jacks as this may cause a
malfunction.
zWhen removing the connection cable, disconnect the cable by holding its plug.
Do not disconnect the cable by pulling on the cable.
zDo not drop the power adapter or subject it to strong impact.
zDo not use the power adapter in hot and humid places.

Installing the camera
14
Siemens Building Technologies
Fire Safety & Security Products 01.2009
zTemperature increasing on the surface of the adapter is normal. Before moving
the adapter to another location, unplug it from the wall outlet, and wait until its
temperature decreases.
zBuzzing noises may come from inside. This does not indicate malfunction.
zUsing the power adapter near a radio, TV, or cell phone may cause interference.
Use the adapter at sufficient distances from these devices.
Specifications
Power requirement
Rated input: AC 24V /DC 12V, 1A
6.2 Concept of the network camera
The network camera can deliver video images and audio in real time using the
Internet or an intranet. The camera is equipped with Ethernet (RJ-45) 10BASE-
T/100BASE-TX network interfaces.
It can be used in various indoor environments.
6.3 Setting network camera environment
Items needed for network camera monitoring system
zAdministrator's personal computer
The personal computer that is given all authorities for setting, operating,
monitoring and other functions with the network camera is called the
"administrator's personal computer" in this manual.
zRecommended personal computer operating conditions
– Windows Vista or XP as OS
– Internet Explorer Version 6.0 or later
– CPU: Intel Pentium 4.2 GHz or higher
– Memory: 512 MB or more
zNetwork camera
Please purchase the required and appropriate number of cameras
corresponding to the desired camera installation locations.
zConnection equipment such as a hub and router suiting the network system
environment and LAN cable, a Cat 5e LAN cable is recommended.
zCamera search application "IpFinder"
Install this application from the CD-ROM supplied as an accessory. (Double-click
"ipfinder_Setup.exe" in the CD-ROM and install the application in accordance
with the instructions on the screen)
SIEMENS
SIEMENS
SIEMENS
SIEMENS
Hub PC
Ethernet
Hub
Switch

Installing the camera
15
Siemens Building Technologies
Fire Safety & Security Products 01.2009
6.4 Connecting the camera and personal computer via network
IP address
To connect to the network, the administrator needs to set the network camera IP
address.
There are two options to set the IP address.
– Entering an IP address manually (factory default)
– Obtaining an IP address automatically from the DHCP server
zEntering the IP address manually.
Your camera is set to this mode at the factory with the IP address: 192.168.0.10,
so you need to enter this IP number manually to access the camera for the first
time.
zObtaining an IP address automatically from the DHCP server
If your network uses a DHCP server, you do not need to change the IP address
of the camera. But be sure to set DHCP ON/OFF to ON in "Network
settings/Basic".
NOTE
The IP address of the network camera is sometimes updated or changed from time to time when the
DHCP server is used. For this reason, the network camera sometimes cannot be connected due to an
IP address change if the network camera is accessed using the previously set IP address.
To enable accessing the network camera in this case, a fixed IP address needs to be set with the
network camera by setting an IP address through manual input. Please read the instruction manuals
of the network system equipment – such as the router, hub and modem – also carefully.
When entering the IP address manually, set DHCP ON/OFF to OFF in "Network/Basic Settings" and
enter the IP address, subnet mask, default gateway, primary DNS and secondary DNS.
Connection configuration
Two configurations are available for connection of network cameras.
zCrossover connection
zConnection via a hub, switch, or router
NOTE
zYou do not need to assign an IP address to a hub.
zThe IP address of your camera after purchasing from the store is automatically set to 192.168.0.10
in case DHCP is not used. Set the IP address of your personal computer in the same subnet. (The
network segment must be the same segment when directly connecting using a cross cable or
connecting through the hub.) When connecting more than one camera, connect each camera using
IP address 192.168.0.10 and change the IP addresses of the second and subsequent cameras to
other IP addresses, such as 192.168.0.11.
zYou can also use the LAN port of your broadband router. However, when using the broadband
router, if the DHCP server function is set to "ON", turn on the power after connecting the camera
with the router. The camera gets the IP address from the router's DHCP server and it may not be
192.168.0.10.
For more information, read your user's guide for broadband router.
It is also recommended to set the computer's IP address from the router's DHCP
server.
For more information, read your computer's user's guide.

Installing the camera
16
Siemens Building Technologies
Fire Safety & Security Products 01.2009
Connecting camera and personal computer
1. Connect LAN cable and turn the power on.
Connect the LAN cable (straight cable) connected to the camera to the hub.
Or, connect the camera to a personal computer with the power turned on
using the LAN cable (cross cable). Connect AC 24V/DC 12V to the power
terminal.
2. Set the IP address of the personal computer.
– Set the IP address which you are not using other than 192.168.0.10 (camera's
IP address).
– Set the IP address to 192.168.0.20 (and subnet mask to 255.255.255.0) as an
example.
– For details on the procedure, refer to the user's guide of the personal
computer.
3. Test the camera connection using ping.
– Start a command prompt. Type "ping 192.168.0.10" and press the "Enter"
key.
– If the "Reply from..." message appears, the connection is correctly
established.
4. Search the camera by "IpFinder" explained and view a camera image.
– Start "IpFinder" and click the "Search" button.
Confirm that the camera name "nwcam05" is displayed in the camera list.
– Click "nwcam05" to select.
The camera name, IP address and HTTP port no. are displayed in the
"Network Camera Lists" field.
– Double-click the camera in the camera list you wish to log-in.
The screen for inputting the user name and password will appear. Input the
administrator log-in ID and password. (See "Log-in Screen")
– A camera image screen of the network camera will appear.
NOTE
zTo view images without using "IpFinder," launch the Internet browser, enter URL
http://192.168.0.10/ in the address box and press "ENTER."
zIt takes about 10 seconds to activate the camera.
zIf a port number other than "80" is set, designate the port number by suffixing it after ":" as in
http://192.168.0.10:88.

Installing the camera
17
Siemens Building Technologies
Fire Safety & Security Products 01.2009
6.5 Using the camera search application "IpFinder"
The "IpFinder" is an application for searching network cameras that can currently
be viewed from the administrator's personal computer or a user's personal
computer, and connecting to those cameras.
Setting up "IpFinder"
1. Insert the CD in the CD-ROM drive of the personal computer.
2. Double-click the "ipfinder_Setup" file in the CD-ROM and install "IpFinder" in
accordance with the instructions on the screen.
IMPORTANT "IpFinder" is compatible only with Windows Vista and Windows XP. Glitches
may occur with your personal computer if it is operated by other OS. Do not
install "IpFinder" with other OS.
Using "IpFinder (Web-Cam IP Manager Version 3.0)" to search for a camera
1. Start the Web-Cam IP Manager by loading IP Manager.exe. This application
is found on the CD included with delivery.
ÎThe Web-Cam IP Manager program window will open:
2. Click the Start button.
ÎThe Web-Cam IP Manager program window will now display a list of all the
devices available for communication along with their IP and MAC addresses.
Each device's IP address or MAC address is unique.
3. Select the device whose home page you want to access.
4. Click the Home page of selected device button.
ÎThe home page of the selected device will appear. See Section 6.8: Viewing
and listening.
5. To exit without performing log-in, click the Exit button.
NOTE
Set the personal computer to "Administrator authorization" when using "IpFinder."

Installing the camera
18
Siemens Building Technologies
Fire Safety & Security Products 01.2009
6.6 Using the camera search application "Web cam IP manager"
This assumes that:
The Web-Cam IP Manager and all the units are located in the same network
segment. If a device and the Web-Cam IP Manager are not located in the same
network segment, you must ensure that the associated gateway (router) passes
the SSDP multicast messages sent by the Web-Cam IP Manager to the network
segment where the device is located.
SSDP (Simple Service Discovery Protocol / network protocol)
1. Start the Web-Cam IP Manager by loading IP Manager.exe. This application
is found on the CD included with delivery.
ÎThe Web-Cam IP Manager program window will open:
2. Click the Start button.
ÎThe Web-Cam IP Manager program window will now display a list of all the
devices available for communication along with their IP and MAC addresses.
Each device's IP address or MAC address is unique.
3. Select the device whose home page you want to access.
4. Click the Home page of selected device button.
ÎThe home page of the selected device will appear. See Section 6.8: Viewing
and listening.

Installing the camera
19
Siemens Building Technologies
Fire Safety & Security Products 01.2009
6.7 Log-in screen
1. Open the Internet Explorer.
2. Enter the default IP address: 192.168.0.10.
You can also use Mozilla Firefox. In that case, you have to download the IE Tab
plug-in from the Mozilla Firefox homepage.
This product regards a person who has performed Administrator Log-in as an
"administrator". Administrator Log-in can perform all functions.
Administrator Log-in
1. Search the camera by "IpFinder", double-click the camera you wish to log-in.
ÎThe screen for inputting the user name and password will appear.
2. Input the administrator log-in ID and password in the user name and
password fields and click the OK button.
ÎThe administrator log-in screen and camera image screen will appear.
And the administrator log-in ID and password are set to "admin" and to
"admin" respectively by default.
IMPORTANT
Administrator Log-in allows rewriting of all settings. Be certain to change the
administrator log-in ID and password already set in the camera by default, to
ensure camera security. Keep the new administrator log-in ID and password
handy for future use. To change the administrator log-in ID and password, see
"Access protection” section.
6.8 Viewing and listening
Images of the network camera can be viewed through the Internet browser of your
personal computer.
Preparations before displaying
zEnable cookies
zSet "Browser setting when proxy server is used" when a proxy server is used.
zChange "security" in Internet options as follows:
1. Click "Internet Option" on the tool menu.
2. Click the Security tab.
3. Click the "Intranet" icon if the camera to be operated is inside the intranet,
clicking the "Internet" icon if the camera is on the Internet.

Installing the camera
20
Siemens Building Technologies
Fire Safety & Security Products 01.2009
4. Click "Level customize".
5. Check the following radio buttons in the displayed list:
– "Enable" for "ActiveX control and plug in execute"
– "Enable" for "Execution of script of ActiveX control marked safe even when
script is executed"
– "Enable" for "Download of signed ActiveX control"
6. Click "OK."
Log-in the camera
zEnter the camera IP address (default: 192.168.0.10) in the browser address bar
to launch the camera login screen.
zSee "Log-in Screen" portion for the log-in method.
zWhen the security warning screen (VeriSign) appears on the first use of the
system, click "Yes."
NOTE
Administrator authorization is needed to install "Active-X control." Install "Active-X control" after
changing the personal computer setting to "Administrator authorization."
Browser setting when proxy server is used
In case a proxy server is used, setting of the browser to bypass the proxy server
during communication with the network camera is recommended.
1. Launch the browser.
2. Choose "Internet option" on the tool menu.
3. Click "Connect" tab.
4. Click "LAN Setting".
ÎThe screen for setting a local area network (LAN) will appear.
5. Check if the checkbox "Will use a proxy server" is checked.
– If the checkbox is not ticked
The browser is not set to use a proxy server. Click "Cancel" and quit setting.
– If the checkbox is checked
Click "Detail setting." A proxy setup screen will appear.
6. Enter the IP addresses of the network cameras in the field marked "Do not
use the proxy server with addresses started with the following.
7. Click "OK".
When Windows XP SP2 is used: Click "Install" for "Active-X control".
NOTE
●A proxy server protected by a firewall sometimes cannot be connected to the network camera.
Consult the network administrator so as to avoid impacts on network camera operations.
●Communication with the network cameras via a proxy server may cause some problem. Install the
network cameras after consulting the network administrator.
●Using the network cameras via a proxy server sometimes takes a long time till images are displayed
after log-in or reduces the frame rate of delivered images.
