The SCO-2081R is a discreet general purpose analog camera suitable
for a wide range of applications. It incorporates the 6th generation
Winner engine from Samsung Techwin that features premium level
resolution at 700TV lines in sharp mode and other core functionalities
such as SSNR III , day & night(ICR), and defog. It can capture images
within 50 meters in extremely low or no lighting using its built-in IR
LED lamps, the SCO-2081R would be a perfect solution for who is
looking for a cost effective high quality video surveillance camera.
SCO-2081R
SCO-2081R
• High resolution of 700TV lines
• Min. Illumination 0Lux (IR LED on), IR distance 50m
• 3.6x varifocal lens (2.8 ~ 10mm)
• Day & Night (ICR), SSNR III , Defog
• Coax : Pelco-C (Coaxitron), Dual power
• IP66
Premium Resolution Weatherproof IR Camera
Upgraded
image quality

I.E-1304
DISTRIBUTED BY
SAMSUNG TECHWIN CO., LTD. 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do Korea 463-400
Tel : [phone]~8749, 8752~8760 Fax : [phone] www.samsungsecurity.com www.samsungcctv.com
SAMSUNG TECHWIN EUROPE LTD.
2st floor No5. The Height, Brookland, Weybridge, Surrey, U.K.
KT13 0NY
Tel : [phone] Fax: [phone]
SHANGHAI SAMSUNG TECHWIN CO., LTD.
32F, Blk B, International Business Center,
No. 391 Guiping Rd., Shanghai, China, 200233
Tel : [phone] Fax : [phone]
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : [phone] Direct : [phone]
Fax : [phone]
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
Design and specifications are subject to change without notice.

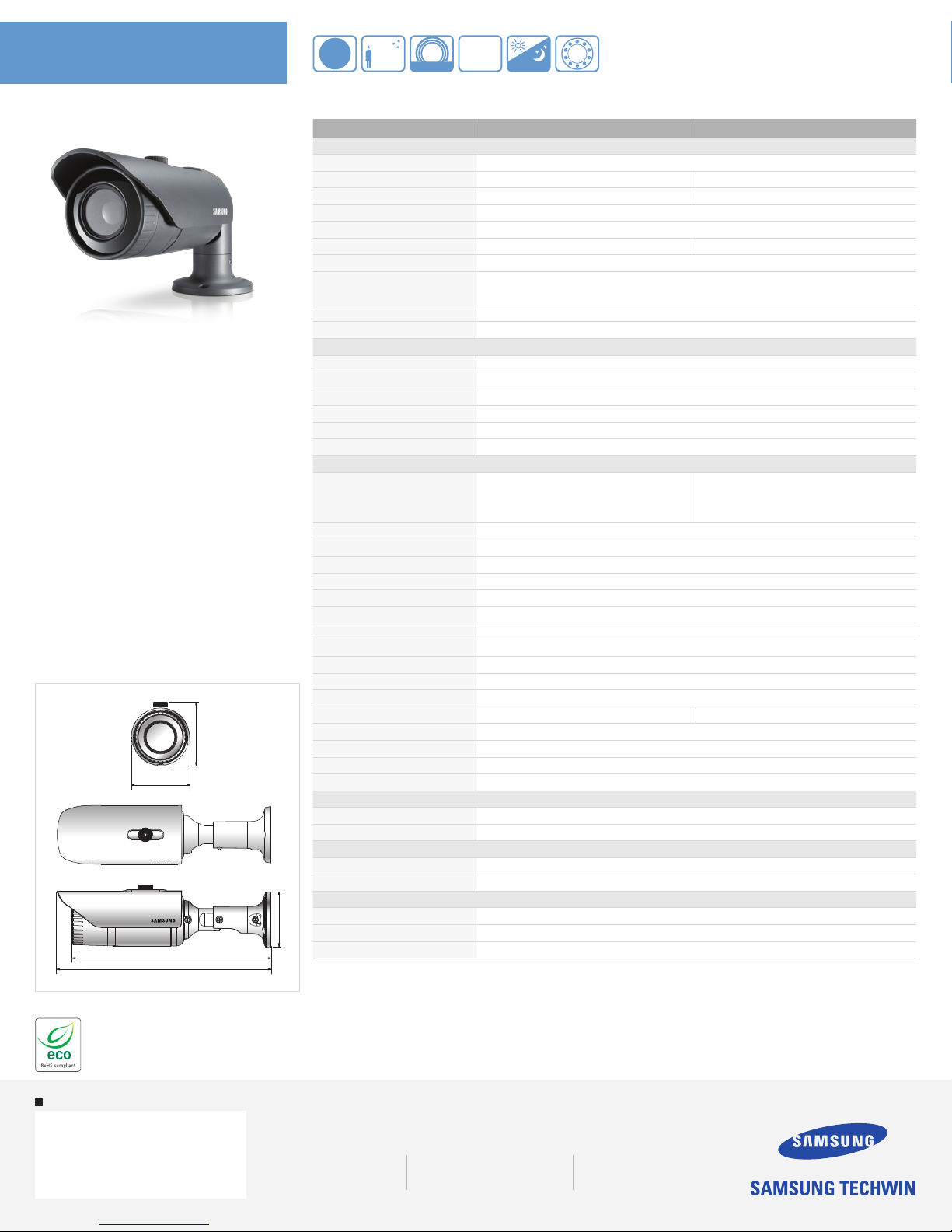

Specifications
Premium Resolution Weatherproof IR Camera
SCO-2081R
Dimensions
Unit : mm (inch)
700TVL Defog
D&N ICR
IR LED
3.8mm
V/F Lens
3.6x
0Lux
77.1 280.2
260.5
73.4
82.4
77.1 280.2
260.5
73.4
82.4
280.2 (11.03")
77.1 (3.04")
260.5 (10.26")
73.4 (2.89")
82.4 (3.24")
SCO-2081RN SCO-2081RP
VIDEO
Imaging Device 1/3" Super HAD CCD
II
Total Pixels 1,020(H) x 508(V) 1,020(H) x 596(V)
Effective Pixels 976(H) x 494(V) 976(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution 700TV lines (ER mode)
Min. Illumination Color : [email protected] (50IRE), 0.0002Lux (Sens-up, 512x)
B/W : 0 LUX (IR LED on)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vp-p / 75Ωcomposite
LENS
Focal Length (Zoom Ratio) 2.8 ~ 10mm (3.6x)
Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele)
Angular Field of View H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele)
Min. Object Distance 0.2m (0.66ft)
Focus Control Manual
Lens Type DC auto iris
OPERATIONAL
On Screen Display English, Japanese, Spanish,
French, Portuguese, Korean
English, French, German, Spanish, Italian, Chinese,
Russian, Polish, Czech, Romanian, Serbian, Swedish,
Danish, Turkish, Portuguese
Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (ICR) / Color / B/W / External D/N
Backlight Compensation Off / BLC / HLC
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNR
III (Off / On)
Defog Off / Auto / Manual
Motion Detection Off / On
Privacy Masking Off / On (8 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / Middle / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,800°K ~ 10,500°K)
Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Reverse H-Rev (Off / On)
Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
IR Distance 50m (IR LED 36ea)
ENVIRONMENTAL
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Ingress Protection IP66 grade
ELECTRICAL
Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Power Consumption Max. 7.2W
MECHANICAL
Color / Material Grey / Plastic
Dimensions (WxHxD) 77.1 x 82.4 x 280.2mm (3.04" x 3.24" x 11.03")
Weight 500g (1.1 lb)
