Honeywell 2450Cm Series User manual

Performance Series Cameras
H4W4PER3 WDR 4 MP IR Rugged Dome Camera
Quick Installation Guide
Document 800-23289 - Rev B - 06/2017
Thank you for purchasing a Honeywell Performance
Series IP camera. Follow the instructions in this
guide to install and log in to your camera. For
instructions on configuring the camera, refer to the
user guide on the CD that came with your camera. If
you require additional assistance, call the number
listed for your region on the back cover.
Warnings and Cautions
WARNING To ensure compliance with electrical safety standards this product is intended for
use with a Listed Power Adapter marked with "Limited Power Source", "LPS", on the
unit, output rated 12 VDC, minimum 0.33A, Tma=60Deg.C or from Power over
Ethernet (PoE) provided by Listed Information Technology Equipment meeting the
IEEE 802.3af PoE standard.
CAUTION The Ethernet connection is not intended to be connected to exposed (outside plant)
networks. Do not connect two power sources to the camera at the same time.
CAUTION Invisible LED radiation (850 nm). Avoid exposure to beam.
Important Safeguards
• Read and keep these instructions.
• Confirm the installation surface can support at least three times the weight of the camera.
• Do not apply power to the camera before completing installation.
• Do not aim the camera toward a bright light source for extended periods to prevent damage to the
imager.
• Avoid operating the unit under or close to unstable light sources (may cause flickering), or close to
fluorescent lamps or objects reflecting light.
• Do not touch the camera lens.
• Do not drop the camera or subject it to physical shock.
• Do not use a strong or abrasive detergent when cleaning the camera.
• Avoid operating or storing the unit in extremely humid, dusty, hot/cold environments, where the
operating temperature is outside the recommended range of -22°F to 140°F (-30°C to 60°C).
Before You Begin
Before you begin, check that you have received all of the parts listed below. If any parts are missing or
damaged, contact your dealer immediately.
CAUTION Installation and servicing should be performed only by qualified and experienced
technicians to conform to all local codes and to maintain your warranty.
Preparing the Mounting Surface
1. Apply the mounting template to the mounting surface.
2. Using the mounting template as a guide, drill three pilot holes in the mounting surface.
3. Hammer the supplied anchors into the holes.
4. Drill a cable entry hole in the mounting surface.
5. Pull the required cables through the cable entry hole.
CAUTION THIS SYMBOL INDICATES THAT
DANGEROUS VOLTAGE
CONSTITUTING A RISK OF
ELECTRIC SHOCK IS PRESENT
WITHIN THE UNIT.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE THE COVER.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
THIS SYMBOL INDICATES THAT
IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS
ACCOMPANY THIS UNIT.
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
•Camera
• Installation CD
• Allen key (L-wrench)
• Self-tapping screws (×3)
• Plastic anchors (×3)
• Mounting template

2700 Blankenbaker Pkwy, Suite 150
Louisville, KY, 40299, USA
www.honeywell.com/security
[phone]
(North America only)
Aston Fields Road, Whitehouse Industrial Estate
Runcorn, Cheshire, WA7 3DL, UK
www.honeywell.com/security/uk
[phone]
(Europe only)
35F Tower A, City Center, 100 Zunyi Road
Shanghai, 200051, China
www.asia.security.honeywell.com
[phone]
(Asia Pacific only)
Document 800-23289 – Rev B – 06/2017
© 2017 Honeywell International Inc. All rights reserved. No part of this publication may be reproduced by any means without written permission from Honeywell. The information in this publication is believed to be accurate in all respects. However, Honeywell cannot assume responsibility for any consequences
resulting from the use thereof. The information contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to incorporate such changes.
Mounting and Aiming the Camera
1. Remove the dome cover from the camera
assembly using the supplied Allen key.
2. Connect the Ethernet cable to the RJ-45 port
on the camera.
3. If the other end of the Ethernet cable is not
connected to a PoE (Power-over-Ethernet)
switch or NVR, connect the power connector
of the camera to a 12 VDC power source.
4. Fix the camera assembly to the mounting
surface using the supplied screws.
5. Aim the camera lens in the desired direction,
then tighten the lock screw on the camera
assembly.
6. Reattach the dome cover.
Logging On to the Camera
If the camera is connected to the PoE port of a Honeywell Embedded NVR, it can be configured using
the NVR.
To log on remotely from a PC, install the Honeywell Config Tool from the software and documentation
CD, find the camera on the network, and then open the web browser with the Honeywell Config Tool. The
default user name is admin (case-sensitive) and the default password is 1234.
Recommended Recorders
Regulatory Statements
FCC Compliance
Information to the User: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.
Manufacturer’s Declaration of Conformance
North America The equipment supplied with this guide conforms to UL 60950-1 and CSA C22.2 No. 60950-1.
Europe The manufacturer declares that the equipment supplied is compliant with the European Parliament and
Council Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(2011/65/EU), General Product Safety Directive (2001/95/EC), and the essential requirements of the EMC directive
(2014/30/EU), conforming to the requirements of standards EN 55032 for emissions, EN 50130-4 for immunity, and
EN 60950-1 for electrical equipment safety.
WEEE (Waste Electrical and Electronic Equipment)
Correct disposal of this product (applicable in the European Union and other European countries with
separate collection systems). This product should be disposed of, at the end of its useful life, as per applicable
local laws, regulations, and procedures.
HEN*4 8/16/32/64-channel Focus 4K NVRs (H.264 and H.265)
HEN*2 4/8/16-channel Performance Series NVRs (H.264)
HRHT4* 4/8/16-channel 4 MP HQA/IP/CVBS Hybrid DVRs (H.264)
HRHQ1* 4/8/16-channel 1080p HQA 5-in-1 DVRs (H.264)

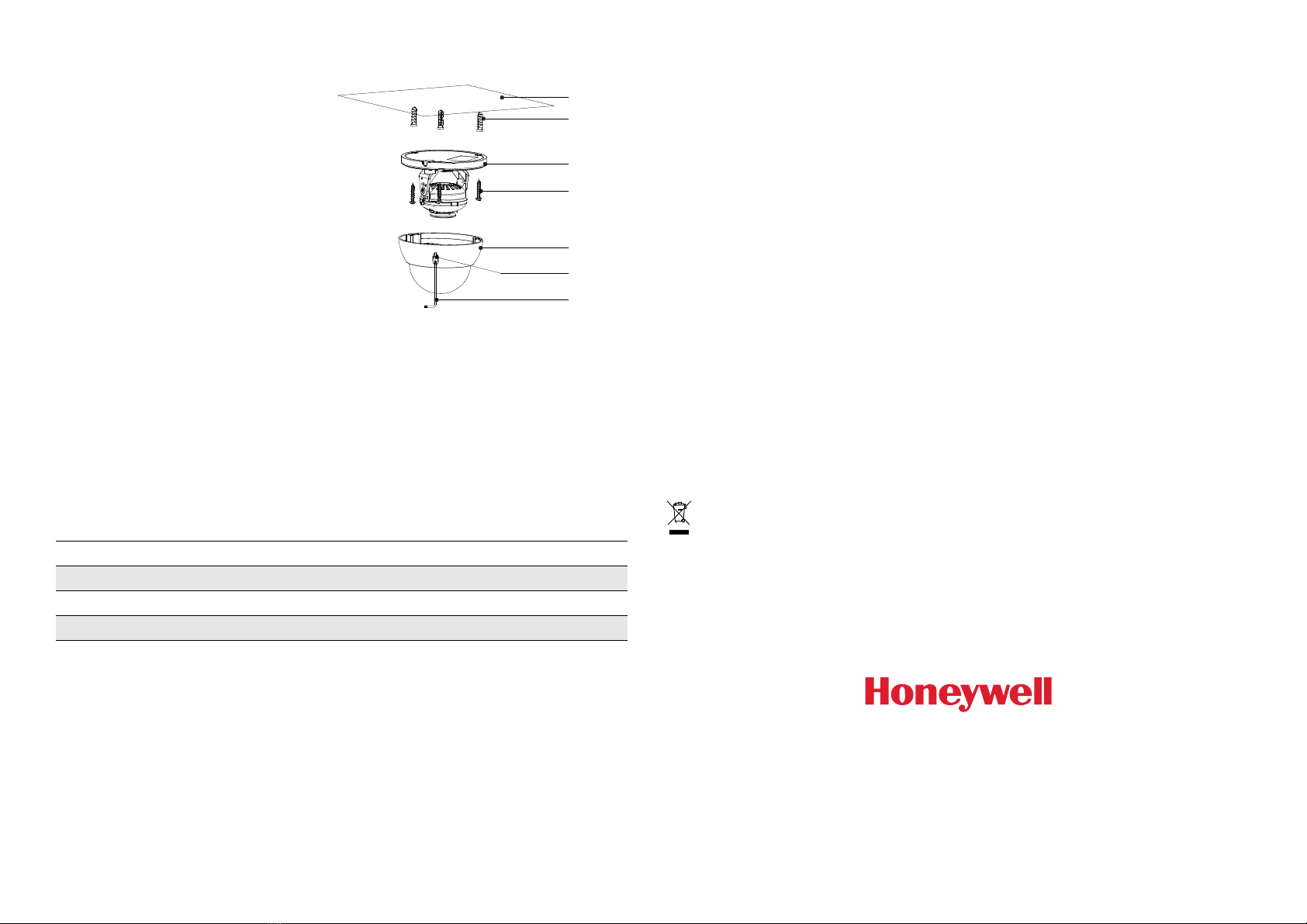

Ceiling or wall
Anchors
Camera assembly
Self-tapping
screws
Dome cover
Security screw
Allen key
