SITOP power supplies
SITOP UPS1600 / UPS1100
Manual
SITOP UPS1600 10 A
6EP4134
-3AB00-0AY0
6EP4134
-3AB00-1AY0
6EP4134
-3AB00-2AY0
SITOP UPS1600 20
A
6EP4136
-3AB00-0AY0
6EP4136
-3AB00-1AY0
6EP4136
-3AB00-2AY0
SITOP UPS1600 40 A
6EP4137
-3AB00-0AY0
6EP4137
-3AB00-1AY0
6EP4137
-3AB00-2AY0
SITOP UPS1100
Battery module 1.2
Ah
6EP4131
-0GB00-0AY0
Battery module 2.5 Ah
6EP4132
-0GB00-0AY0
Battery module 3.2 Ah
6
EP4133-0GB00-0AY0
Battery module 5 Ah
6EP4133
-0JB00-0AY0
Battery module 7 Ah
6EP4134
-0GB00-0AY0
Battery module 12 Ah
6EP4135-0GB00-0AY0
04.2016
A5E37775406
-6-76
Overview
Safety instructions
1
Description, device design,
dimension drawing
2
Engineering and remote
access
3
Troubleshooting
4
Mounting/removing
5
Mounting position, mounting
clearances
6
Installation
7
Technical data
8
Safety, approvals, EMC
9
Environmental conditions
10
Environment
11
Service & Support
12

Siemens AG
Division Process Industries and Drives
Postfach 48 48
90026 NÜRNBERG
GERMANY
A5E37775406-6-76
Ⓟ
05/2016 Subject to change
Copyright © Siemens AG 2016.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

SITOP UPS1600 / UPS1100
Manual, 04.2016, A5E37775406-6-76 3
Overview
Description
The DC-UPS modules augment the SITOP 24 V power supply units for uninterruptible rated
currents up to 40 A from the UPS1100 battery modules based on maintenance-free lead or
LiFePo batteries. SITOP UPS1600 with its integrated electronics automatically detects the
battery type that it charges with the optimum temperature-controlled charging characteristic
curve. The intelligent battery management monitors all relevant data, also for parallel-
connected battery modules. The Ethernet/PROFINET interface is used to output the battery
status and various actual values, such as voltage and current. Thanks to the integrated web
server, remote diagnosis is also possible.
The low profile SITOP UPS1600 DC-UPS module provides a dynamic overload behavior, for
example, to switch on industrial PCs. The high charging current quickly restores the buffer
readiness after a supply system failure. And for the deployment in stand-alone operation, the
UPS can be activated from the battery for missing supply system voltage, e.g. to start the
generators.
The key benefits of the product include:
●Compact SITOP UPS1600 24 V/10 A, 20 A and 40 A DC-UPS modules with digital
inputs/outputs, optional with USB or two Ethernet/PROFINET interfaces
●SITOP UPS1100 24 V/1.2 Ah, 2.5 Ah, 3.2 Ah, 7 Ah and 12 Ah battery modules with
maintenance-free lead-gel batteries or 5 Ah with LiFePo batteries and integrated
electronics; intelligent battery management with automatic detection of the battery
modules and selection of the optimum, temperature-controlled charging characteristic
curve; monitoring of the operating readiness, battery supply cable, aging and charging
state.
●All diagnostic data and alarm messages are available via USB and Ethernet/PROFINET
●High dynamic overload capability: 3-fold rated current for 30 ms and 1.5-fold rated current
for 5 seconds per minute
●High charging currents
●Start from battery modules for missing supply system voltage

Overview
SITOP UPS1600 / UPS1100
4Manual, 04.2016, A5E37775406-6-76
●Remote monitoring with integrated web server
●SITOP UPS Manager (free software download) supports the configuration and monitoring
for PC-based systems
●Complete integration in TIA: User-friendly engineering in the TIA Portal, S7 function
blocks for integration in user programs and WinCC faceplates
Ordering data
The following device options are available:
SITOP UPS1600 uninterruptible power supply
Type
Order number
Input 24 V DC
Output 24 V DC / 10 A
6EP4134-3AB00-0AY0
Input 24 V DC
Output 24 V DC / 10 A
With USB interface
6EP4134-3AB00-1AY0
Input 24 V DC
Output 24 V DC / 10 A
With PROFINET (PN) interface
6EP4134-3AB00-2AY0
Input 24 V DC
Output 24 V DC / 20 A
6EP4136-3AB00-0AY0
Input 24 V DC
Output 24 V DC / 20 A
With USB interface
6EP4136-3AB00-1AY0
Input 24 V DC
Output 24 V DC / 20 A
With PROFINET (PN) interface
6EP4136-3AB00-2AY0
Input 24 V DC,
Output 24 V DC / 40 A
6EP4137-3AB00-0AY0
Input 24 V DC,
Output 24 V DC / 40 A
With USB interface
6EP4137-3AB00-1AY0
Input 24 V DC,
Output 24 V DC / 40 A
With PROFINET (PN) interface
6EP4137-3AB00-2AY0

Overview
SITOP UPS1600 / UPS1100
Manual, 04.2016, A5E37775406-6-76 5
SITOP UPS1100 battery module
Type
Order number
Battery module 1.2 Ah
6EP4131-0GB00-0AY0
Battery module 2.5 Ah
6EP4132-0GB00-0AY0
Battery module 3.2 Ah 6EP4133-0GB00-0AY0
Battery module 5 Ah
6EP4133-0JB00-0AY0
Battery module 7 Ah 6EP4134-0GB00-0AY0
Battery module 12 Ah
6EP4135-0GB00-0AY0
Accessories
Type
Order number
Device identification labels 20 mm × 7 mm, pastel
turquoise
3RT1900-1SB20

Overview
SITOP UPS1600 / UPS1100
6Manual, 04.2016, A5E37775406-6-76

SITOP UPS1600 / UPS1100
Manual, 04.2016, A5E37775406-6-76 7
Table of contents
Overview................................................................................................................................................. 3
1 Safety instructions................................................................................................................................. 11
2 Description, device design, dimension drawing...................................................................................... 13
2.1 Device description...................................................................................................................13
2.1.1 SITOP UPS1600.....................................................................................................................13
2.1.2 SITOP UPS1100.....................................................................................................................16
2.2 Connections and terminal designation....................................................................................17
2.2.1 SITOP UPS1600.....................................................................................................................17
2.2.1.1 Power terminals ......................................................................................................................17
2.2.1.2 Signal terminal ........................................................................................................................18
2.2.1.3 USB port .................................................................................................................................19
2.2.1.4 PROFINET/Ethernet connection.............................................................................................19
2.2.2 SITOP UPS1100.....................................................................................................................21
2.2.2.1 Power terminals ......................................................................................................................21
2.3 Operator controls ....................................................................................................................22
2.3.1 SITOP UPS1600.....................................................................................................................22
2.3.1.1 Rotary coding switch, switch-in threshold...............................................................................22
2.3.1.2 Rotary coding switch, backup time .........................................................................................22
2.3.1.3 Jumper variants ......................................................................................................................23
2.3.2 SITOP UPS1100.....................................................................................................................26
2.3.2.1 Buttons for battery replacement..............................................................................................26
2.4 Operating displays and signaling............................................................................................27
2.4.1 SITOP UPS1600.....................................................................................................................27
2.4.1.1 LEDs .......................................................................................................................................27
2.4.1.2 Relay outputs ..........................................................................................................................30
2.4.2 SITOP UPS1100.....................................................................................................................31
2.4.2.1 LEDs .......................................................................................................................................
31
2.5 Block diagram .........................................................................................................................32
2.5.1 SITOP UPS1600.....................................................................................................................32
2.5.2 SITOP UPS1100.....................................................................................................................33
2.6 Dimensions and weight...........................................................................................................34
2.6.1 SITOP UPS1600.....................................................................................................................34
2.6.2 SITOP UPS1100.....................................................................................................................36
3 Engineering and remote access ............................................................................................................ 41
3.1 General ...................................................................................................................................41
3.2 Overview of application examples ..........................................................................................42
3.3 SIMATIC STEP 7 in the TIA Portal .........................................................................................43
3.3.1 Introduction .............................................................................................................................43
3.3.2 Installing the Hardware Support Package (HSP) ...................................................................43
3.3.3 Installing the generic station description file (GSD)................................................................45

Table of contents
SITOP UPS1600 / UPS1100
8Manual, 04.2016, A5E37775406-6-76
3.3.4 Inserting SITOP UPS1600 into a project ............................................................................... 45
3.3.5 Assigning the SITOP UPS1600 to a controller ...................................................................... 47
3.3.6 Assigning a battery module SITOP UPS1100 to the basic device SITOP UPS1600............ 48
3.3.7 Parameterizing the UPS1600 ................................................................................................ 51
3.3.8 Loading the configuration (commissioning) ........................................................................... 55
3.3.9 Diagnostics............................................................................................................................. 60
3.3.10 Firmware update .................................................................................................................... 62
3.3.11 Restore factory settings ......................................................................................................... 65
3.4 SIMATIC STEP 7 ................................................................................................................... 66
3.4.1 Introduction ............................................................................................................................ 66
3.4.2 Installing the generic station description file (GSD) ............................................................... 66
3.4.3 Inserting SITOP UPS1600 into a project ............................................................................... 67
3.4.4 Parameter assignment........................................................................................................... 70
3.4.4.1 Parameters of the basic device and battery module.............................................................. 70
3.4.4.2 Parameterizing SITOP UPS1600........................................................................................... 70
3.4.5 Loading the configuration to the SITOP UPS1600 (commissioning)..................................... 75
3.4.6 Diagnostics............................................................................................................................. 77
3.4.7 Firmware update .................................................................................................................... 78
3.4.8 Restore factory settings ......................................................................................................... 80
3.5 SITOP UPS Manager............................................................................................................. 82
3.5.1 Functions of the SITOP UPS Manager.................................................................................. 82
3.5.2 OPC UA server ...................................................................................................................... 83
3.5.3 The user interface of the SITOP UPS Manager .................................................................... 91
3.5.4 Installation/uninstallation........................................................................................................ 92
3.5.5 Options of establishing a connection to the SITOP UPS1600............................................... 94
3.5.6 Establishing a connection via Ethernet.................................................................................. 94
3.5.7 Establishing a connection via USB ........................................................................................ 99
3.5.8 Configuration in the SITOP UPS Manager .......................................................................... 100
3.5.8.1 General settings ................................................................................................................... 100
3.5.8.2 Configuring the SITOP UPS1600 ........................................................................................ 101
3.5.9 Behavior of the SITOP UPS Manager ................................................................................. 103
3.5.10 Display and visualization...................................................................................................... 106
3.5.11 Determining the firmware version ........................................................................................ 110
3.5.12 Firmware update .................................................................................................................. 111
3.6 Web server........................................................................................................................... 113
3.6.1 Accessing the web server .................................................................................................... 113
3.6.2 The web server user interface ............................................................................................. 114
3.6.3 Functions of the web server................................................................................................. 115
3.6.4 View the data of the SITOP UPS1600 (basic device).......................................................... 115
3.6.5 Viewing the energy storage data ......................................................................................... 116
3.6.6 Alarm monitoring.................................................................................................................. 116
3.6.7 Determining the firmware version ........................................................................................ 118
3.6.8 Web server settings / user administration............................................................................ 119
3.7 Cyclic and acyclic data......................................................................................................... 122
3.7.1 Input and output data ........................................................................................................... 122
3.7.2 Reading and writing data sets.............................................................................................. 123
3.7.2.1 Data sets .............................................................................................................................. 124
4 Troubleshooting ...................................................................................................................................135

Table of contents
SITOP UPS1600 / UPS1100
Manual, 04.2016, A5E37775406-6-76 9
5 Mounting/removing ............................................................................................................................. 139
5.1 SITOP UPS1600...................................................................................................................139
5.1.1 Signal connector ...................................................................................................................140
5.1.2 USB connector......................................................................................................................140
5.1.3 PROFINET/Ethernet connector ............................................................................................141
5.2 SITOP UPS1100...................................................................................................................142
6 Mounting position, mounting clearances.............................................................................................. 145
6.1 SITOP UPS1600...................................................................................................................145
6.1.1 Standard mounting position ..................................................................................................145
6.1.2 Other mounting positions......................................................................................................146
6.2 SITOP UPS1100...................................................................................................................147
6.2.1 Standard mounting position ..................................................................................................147
6.2.2 Other mounting positions......................................................................................................147
6.3 Altitude derating ....................................................................................................................148
7 Installation .......................................................................................................................................... 149
7.1 Connecting the SITOP UPS1600 at its input........................................................................150
7.2 Connecting the SITOP UPS1600 at its output......................................................................151
7.3 Connecting the BAT SITOP UPS1600 .................................................................................151
7.4 USB interface........................................................................................................................152
7.5 PROFINET/Ethernet connection...........................................................................................152
7.6 SITOP UPS1100 connections ..............................................................................................152
7.7 Maintenance .........................................................................................................................153
7.7.1 Battery...................................................................................................................................153
7.7.2 Battery replacement..............................................................................................................153
8 Technical data .................................................................................................................................... 155
8.1 Input ......................................................................................................................................155
8.1.1 SITOP UPS1600...................................................................................................................155
8.1.2 SITOP UPS1100...................................................................................................................156
8.2 Output ...................................................................................................................................157
8.2.1 SITOP UPS1600...................................................................................................................157
8.2.2 SITOP UPS1100...................................................................................................................158
8.3 Backup times ........................................................................................................................158
8.4 Efficiency...............................................................................................................................159
8.5 Protection and monitoring.....................................................................................................159
8.6 MTBF ....................................................................................................................................160
8.7 Mechanical system ...............................................................................................................160
8.7.1 SITOP UPS1600...................................................................................................................160
8.7.2 SITOP UPS1100...................................................................................................................162
8.8 Dimension drawing ...............................................................................................................164

Table of contents
SITOP UPS1600 / UPS1100
10 Manual, 04.2016, A5E37775406-6-76
9 Safety, approvals, EMC .......................................................................................................................165
9.1 Safety ................................................................................................................................... 165
9.2 Test voltage.......................................................................................................................... 166
9.3 Approvals ............................................................................................................................. 167
9.4 EMC ..................................................................................................................................... 168
10 Environmental conditions .....................................................................................................................169
11 Environment ........................................................................................................................................173
12 Service & Support ................................................................................................................................175

SITOP UPS1600 / UPS1100
Manual, 04.2016, A5E37775406-6-76 11
Safety instructions
1
WARNING
Correct handling of the devices
When operating electrical devices, it is inevitable that certain components will carry
dangerous voltages.
Therefore, failure to handle the units properly can result in death or serious physical injury
as well as extensive property damage.
Only appropriately qualified personnel may work on or in the vicinity of this equipment.
Perfect, safe, and reliable operation of this equipment is dependent on proper
transportation, storage, installation and mounting.
Before installation or maintenance work can begin, the system's main switch must be
switched off and measures taken to prevent it being switched on again.
If this instruction is not observed, touching live parts can result in death or serious injury.
Siemens provides products and solutions with industrial security functions that support the
secure operation of plants, solutions, machines, equipment and/or networks. They are
important components in a holistic industrial security concept. With this in mind, Siemens’
products and solutions undergo continuous development. Siemens recommends strongly
that you regularly check for product updates.
For the secure operation of Siemens products and solutions, it is necessary to take suitable
preventive action (e.g. cell protection concept) and integrate each component into a holistic,
state-of-the-art industrial security concept. Third-party products that may be in use should
also be considered. You can find more information about industrial security under:
http://www.siemens.com/industrialsecurity
To stay informed about product updates as they occur, sign up for a product-specific
newsletter. You can find additional information on this at:
http://support.automation.siemens.com.

Safety instructions
SITOP UPS1600 / UPS1100
12 Manual, 04.2016, A5E37775406-6-76

SITOP UPS1600 / UPS1100
Manual, 04.2016, A5E37775406-6-76 13
Description, device design, dimension drawing
2
2.1
Device description
2.1.1
SITOP UPS1600
The SITOP UPS1600 10 A, 20 A and 40 A are built-in devices of the SITOP series for
mounting on TH35-15/7.5 standard mounting rails (EN 60715). When installing the
SITOP UPS1600 devices and SITOP UPS1100 battery modules, the relevant DIN/VDE
regulations or country-specific regulations (e.g. VDE 0510 Teil 2 / EN 50272-2) must be
carefully complied with.
See Section Installation (Page 149)
In combination with the SITOP UPS1100 battery modules, they are used to buffer the load
current from the 24 V load power supplies of the SITOP series.
With their high dynamic overload capability up to the 300% rated current for 30 ms or up to
the 150% rated current for 5 seconds per minute, they are suitable for applications with
programmable logic controllers (PLCs) and industrial PCs, because they permit high switch-
on currents even in buffer operation.
The input of the SITOP UPS1600 DC-UPS module must be connected with the output of the
supplying 24 V DC power supply unit. The UPS1100 battery module is connected to the BAT
terminals. The loads to be buffered are supplied via the output of the SITOP UPS1600 DC-
UPS module with the voltage connected at the input.
The Energy Storage Link is new. This is an additional two-wire connection between the
SITOP UPS1600 base device and the coded SITOP UPS1100 battery modules.
Furthermore, the base device detects and manages as many as six battery modules and
selects the optimum, temperature-controlled charging characteristic curve. The latter
provides the basis for a long service life of the battery modules. The Energy Storage Link
also monitors the operational readiness as well as the supply cables (wire breakage) and the
charge state (voltage, current) of the rechargeable batteries.
The connection to the SITOP UPS1100 battery module is checked every 20 seconds (for
voltage, reverse polarity protection). A test with a defined load of the lead or LiFePo batteries
is also performed automatically every four hours (basic setting).
Battery modules of other type series and manufacturers can also be used, although with
limited diagnostic functions, such as the display of the charging current or the end-of-charge
voltage and without the possibility of temperature-controlled charging.
In the event of failure of the 24 V DC supply voltage or voltage dip below the set switch-in
threshold, the loads are supplied by switching over to the battery module. Buffering is
realized until the line supply returns or until the buffer time, set using the rotary coding
switch, has expired. If the buffer time has been set to MAX, then shutdown is realized when
the exhaustive discharge threshold is reached.
Using the output voltage interrupt function you can select as to whether the output voltage is
interrupted once the set buffer time expires if, in the meantime, the input voltage returns.

Description, device design, dimension drawing
2.1 Device description
SITOP UPS1600 / UPS1100
14 Manual, 04.2016, A5E37775406-6-76
(Delivery state: the output voltage is not interrupted). For devices without interface, the
interruption lasts 5 s. For devices with interface, the interruption duration can be adjusted.
For the "Maximum buffer time" setting, the output voltage is only interrupted by the UPS
Manager. In this case, the rotary coding switch "Connection threshold" must be set to REN.
Rotary switches can be used to set the battery module switch-in threshold and the buffer
time. The charging current for the battery modules is set automatically, and can be changed
using the interface (only for types -1AY0 and -2AY0), as well as via the signal connector.
Eight LEDs, two potential-free changeover contacts and one floating NO contact indicate the
SITOP UPS1600 status.
The USB interface (only -1AY0) or PROFINET/Ethernet interface (only -2AY0) handles the
communication to the PC/controllers.
For details, see Sections Connections and terminal designation (Page 17) and Operator
controls (Page 22).
Operating data and diagnostic data can be transferred using two integrated Industrial
Ethernet/PROFINET ports and visualized or further processed externally as an alternative to
the proven USB connection. An integrated web server allows authorized users to export
relevant data remotely via a web browser without requiring any additional software to be
installed on the remote system. When delivered, the web server is not active (applies from
version V2.1 and higher). Using the two rotary coding switches, the web server can be
activated, and a temporary Internet address assigned, see SITOP UPS1600 (Page 22).
The free-of-charge SITOP UPS Manager, which runs on Windows XP and Windows 7
systems (32 and 64 bit), allows full access. This allows the overall DC-UPS installation to be
configured and monitored easily using a PC. The software tool provides many possibilities
for the visualization of operating and diagnostic information, such as in the form of alarm lists
or easily understandable trend diagrams which, for example, provide a view of the
chronological change of the charging current or load current of the DC-UPS at a glance.
The SITOP UPS1600 is fully integrated in Totally Integrated Automation (TIA), the Siemens
open system architecture for integrated automation solutions. The engineering is performed
in the TIA Portal and reduces to just a few clicks for the user. The UPS modules can be
selected directly in the hardware catalog and transferred into the graphic network
representation.
For applications without network connection, the SITOP UPS1600 is available in the variants
with USB interface or digital inputs/outputs.
For stand-alone operation, the DC-UPS can be activated without input voltage from the
battery, for example, to start a generator via a directly supplied controller. (see Chapter
Jumper variants (Page 23))

Description, device design, dimension drawing
2.1 Device description
SITOP UPS1600 / UPS1100
Manual, 04.2016, A5E37775406-6-76 15
①
DC input X1
②
DC output X1
③
BAT X1
④
Signal connector X2
⑤
PROFINET (Ethernet) interface X3 (only for ... - 2AY0)
⑥
USB interface X3 (only for ... - 1AY0)
⑦
Rotary coding switch, switch-in threshold
⑧
Rotary coding switch, buffer time
⑨
Signaling (LEDs)
⑩
DIN rail slider
⑪
Convection
⑫
Clearance above/below
Image 2-1 SITOP UPS1600 design (example 6EP4136-3AB00-2AY0)

Description, device design, dimension drawing
2.1 Device description
SITOP UPS1600 / UPS1100
16 Manual, 04.2016, A5E37775406-6-76
2.1.2
SITOP UPS1100
The SITOP UPS1100 battery modules consist of a battery holder with two maintenance-free,
closed lead or LiFePO batteries with terminals for the connection cables to the
SITOP UPS1600 uninterruptible power supply. The UPS1100 contains a printed-circuit
board for monitoring the battery functions and the communication with the SITOP UPS1600.
A green LED lights continually to indicate that there is a communication connection to the
SITOP UPS1600. The LED flashes when the batteries are being replaced or for faults and
alarms.
Up to 6 SITOP UPS1100 of the same type can be connected in parallel with a
SITOP UPS1600.
When replacing a battery, see Chapter Battery replacement (Page 153).
①
DC input X1
②
Signal terminal X2
③
Fuses F1/F2 (F2 only for 7 Ah and 12 Ah)
④
Signaling (LED)
⑤
Mounting rail holder (not for the 7 Ah and 12 Ah versions)
⑥
Natural convection
⑦
Clearance above

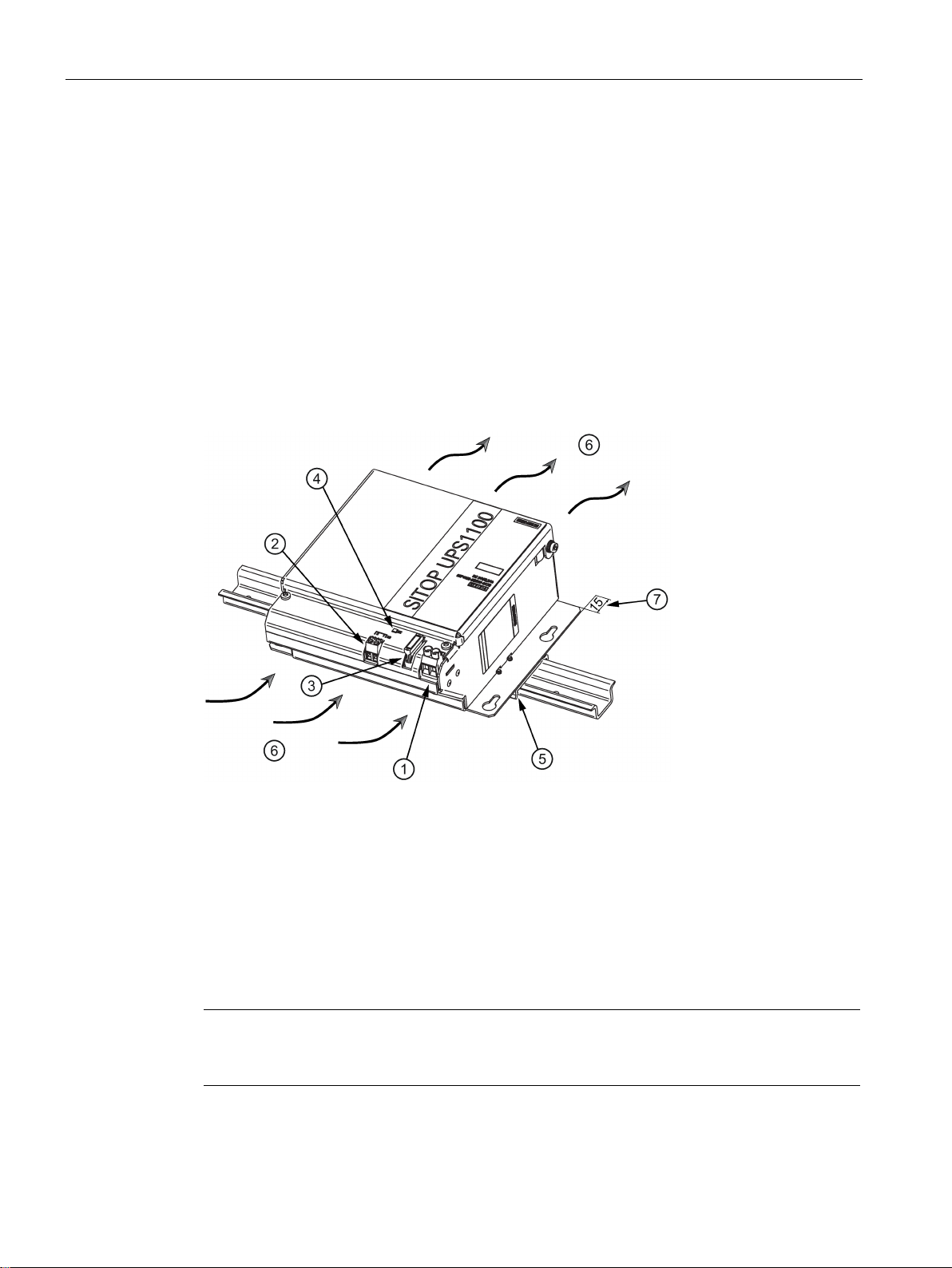

Image 2-2 SITOP UPS1100 design (example 6EP4133-0GB00-0AY0)
Note
For the UPS1100, clearance is required above it in order to open the cover. Clearance below
is not required for thermal reasons
- however, space is required to feed in the cable.

Description, device design, dimension drawing
2.2 Connections and terminal designation
SITOP UPS1600 / UPS1100
Manual, 04.2016, A5E37775406-6-76 17
2.2
Connections and terminal designation
2.2.1
SITOP UPS1600
2.2.1.1
Power terminals
The input terminals ①can be used to establish the connection to the supply voltage. The
output terminals ②are used to connect to the supplied loads.
Cables must be used that are suitable for at least 90° C (only when UL508 must be complied
with).
The UPS1100 battery modules are connected via BAT ③.
(see also Chapter Installation (Page 149))
Connections and terminal designations (see Image 2-1 SITOP UPS1600 design (example 6EP4136-
3AB00-2AY0) (Page 15))
①
DC input IN+, IN- One screw terminal each
②
DC output OUT+, OUT- One screw terminal each
③
BAT+, BAT- One screw terminal each
④
Signal connector Connector with 14 screw terminals
⑤
PROFINET (Ethernet) connection RJ45 plug-in contact (only for ...-2AY0)
⑥
USB connection USB-B plug-in contact (only for...-1AY0)
Image 2-3 Terminal data SITOP UPS1600 10 A, 20 A

Description, device design, dimension drawing
2.2 Connections and terminal designation
SITOP UPS1600 / UPS1100
18 Manual, 04.2016, A5E37775406-6-76
Image 2-4 Terminal data SITOP UPS1600 40 A
2.2.1.2
Signal terminal
Image 2-5 Signal connector
Image 2-6 Signal connector connection schematic
Pin
Terminal designation
Function
1
BAT.
24 V DC OK / BAT
REL1 (changeover contact):
Energized state: Normal operation
Quiescent state: Buffer mode or off
2
-
3 OK
4
ALARM
Ready for buffer operation / alarm
REL2 (changeover contact):
Energized state: Buffer mode is possible
Quiescent state: Not ready for buffering
Cycle 0.25 Hz: Defective battery
5
-
6 RDY TO BUFFER
7
BAT. > 85 %
Battery > 85%

Description, device design, dimension drawing
2.2 Connections and terminal designation
SITOP UPS1600 / UPS1100
Manual, 04.2016, A5E37775406-6-76 19
Pin
Terminal designation
Function
8 - REL3 (NO contact):
Energized state: Buffering of the selected buffer time is possible, or charge state
>85%
9 ON/OFF On/Off (buffer operation permitted/prevented)
10
-
-
11
BAT. X2.1
Battery communication or charging current setting
12
BAT. X2.2
Battery supply or charging current setting
13
INTERRUPT
Interrupt (interruption of the output voltage)
14
START
Start from the battery
Relay contact: Maximum contact rating 30 V DC / 1 A or 125 V AC / 0.3 A
The jumper (4a) (see Image 2-5 Signal connector (Page 18)) between pin 9 and 10 is
necessary to operate the device in buffer mode.
Delivery state: Jumper between pin 9 and 10
2.2.1.3
USB port
Image 2-7 USB port
The USB interface (type B) ⑥fully conforms to the USB 2.0 standard (12 MBd). Strain relief
(see Section USB connector (Page 140)) is implemented using a defined cable/connector
(Y-Con USB - Yamaichi).
2.2.1.4
PROFINET/Ethernet connection
Image 2-8 PROFINET/Ethernet connection
Ethernet interface ⑤corresponds to the standard full duplex with up to 100 Mbit/s electrical
(100BASE-TX) according to IEEE 802.3..

Description, device design, dimension drawing
2.2 Connections and terminal designation
SITOP UPS1600 / UPS1100
20 Manual, 04.2016, A5E37775406-6-76
Properties of the Ethernet interface:
●Transfer rate 10/100 Mbit/s
●Two RJ45 sockets, i.e. integrated switch, for RJ45 connector
●Cable type 100Base-TX (CAT5)
●Auto negotiation
●Auto crossover communication via TCP/IP and PROFINET
The strain relief (see Section PROFINET/Ethernet connector (Page 141)) is implemented
using a Siemens IE FastConnect RJ45.
The physics of the Ethernet interface is implemented so that PROFINET IO according to
standards IEC 61158 and IEC 61784-2 is possible. For PROFINET, conformance class B
must be maintained as a minimum.
The Ethernet/PROFINET interface permits:
●Configuration and monitoring using the SITOP UPS Manager
●Monitoring via the Web server
●Integration and communication of the DC-UPS with other automation components from
Siemens and the open environment, e.g. IPC, PLC, HMI
●Firmware update of the device via UPS Manager, web server or STEP 7
