Instruction manual
Extractor hood
LF16VA570, LF16VA570B

en
3
Table of contents
Instruction manual
(Important safety information . . . . . . . . . . . . . . . 3
7Environmental protection . . . . . . . . . . . . . . . . . . 6
Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Environmentally-friendly disposal . . . . . . . . . . . . . . . . . 6
ÇOperating modes . . . . . . . . . . . . . . . . . . . . . . . . . 7
Exhaust air mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1Operating the appliance . . . . . . . . . . . . . . . . . . . 7
Hob extractor system . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Before using the appliance for the first time. . . . . . . . . 8
Switching the appliance on and off . . . . . . . . . . . . . . . 8
Intensive setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Run-on function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

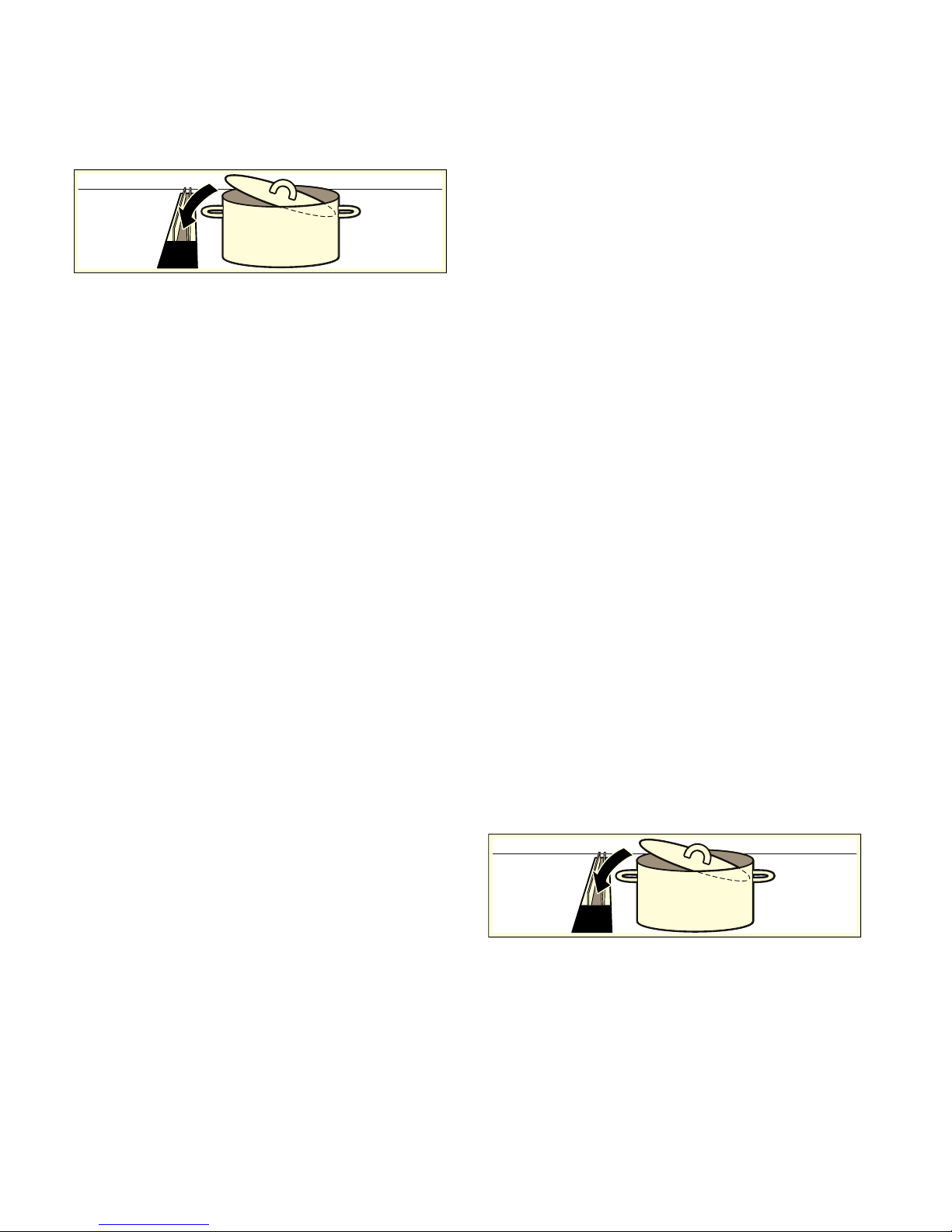

Cooking with gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2Cleaning and maintenance . . . . . . . . . . . . . . . . 10
Saturation display. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

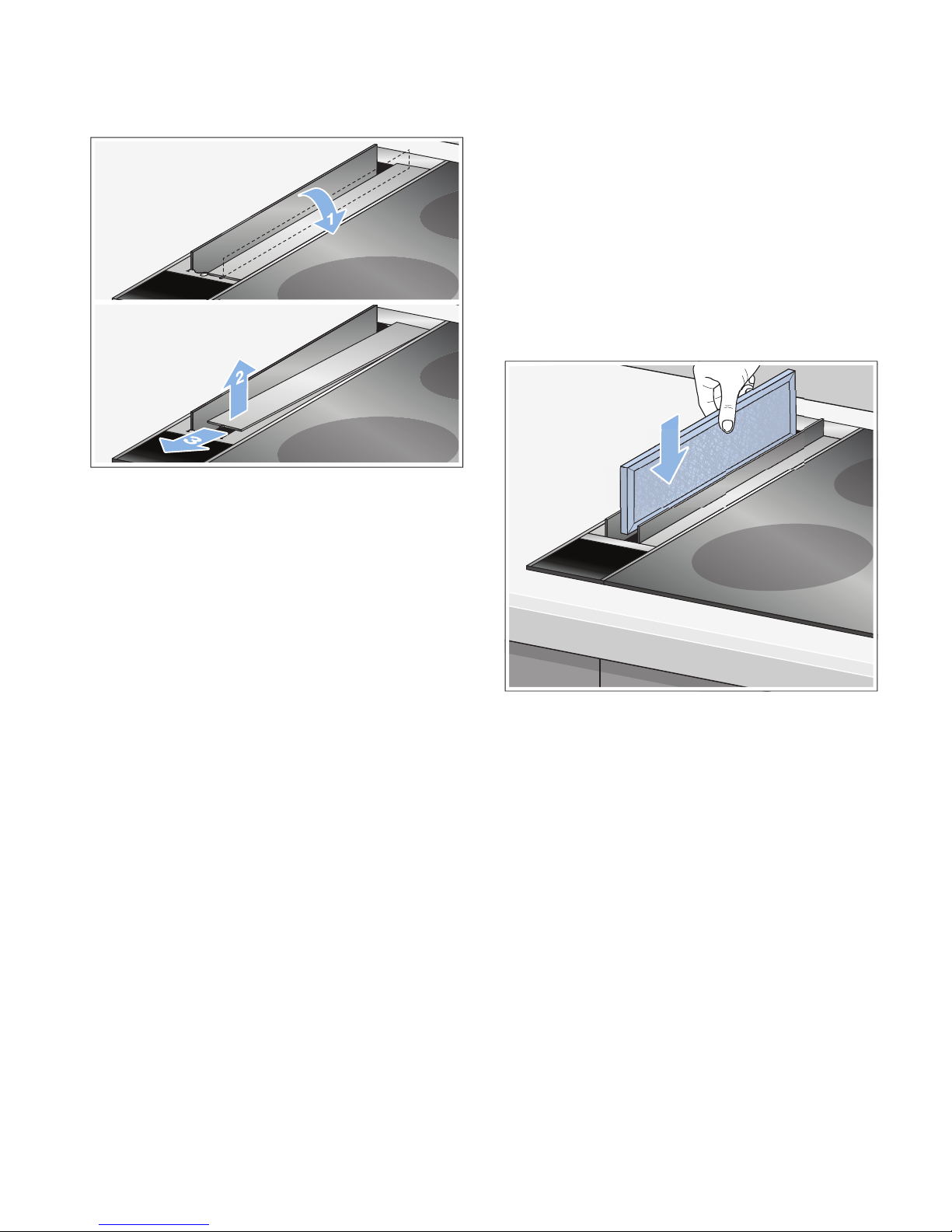

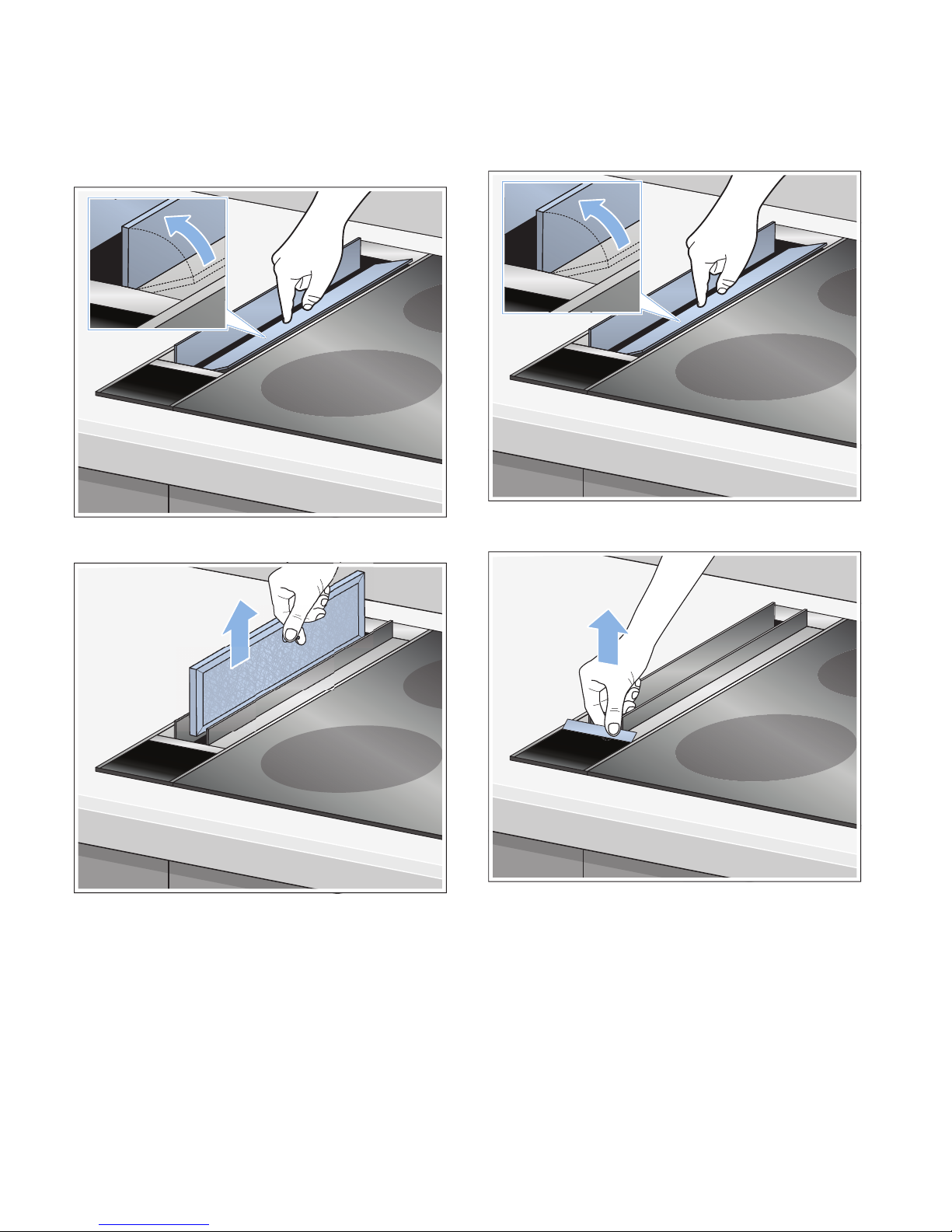

Removing and installing the filter . . . . . . . . . . . . . . . . 10
3Trouble shooting . . . . . . . . . . . . . . . . . . . . . . . . 13
Fault table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4Customer service . . . . . . . . . . . . . . . . . . . . . . . . 13

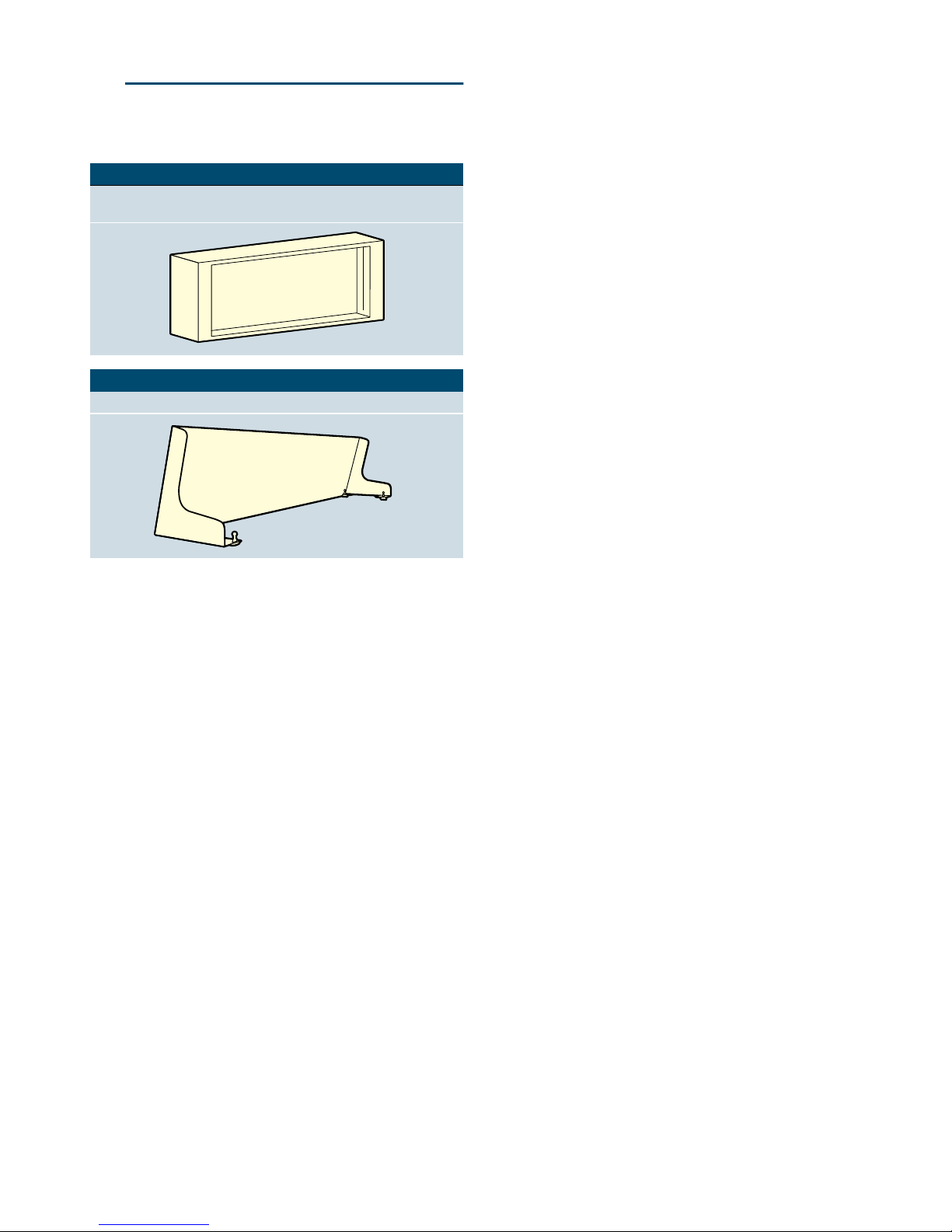

_Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Produktinfo
Additional information on products, accessories,
replacement parts and services can be found at
www.siemens-home.com and in the online shop
www.siemens-eshop.com
(Important safety
information
Importantsafetyinformation Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for future
use or for subsequent owners.
The appliance can only be used safely if it is
correctly installed according to the safety
instructions. The installer is responsible for
ensuring that the appliance works perfectly at
its installation location.
This appliance is intended for domestic use
and the household environment only. The
appliance is not intended for use outside. Do
not leave the appliance unattended during
operation. The manufacturer is not liable for
damage which is caused by improper use or
incorrect operation.
This appliance is intended for use up to a
maximum height of 2000 metres above sea
level.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance by
a person responsible for their safety.
Children must not play with, on, or around the
appliance. Children must not clean the
appliance or carry out general maintenance
unless they are at least 8 years old and are
being supervised.
Keep children below the age of 8 years old at
a safe distance from the appliance and power
cable.
Dangerous or explosive materials and vapours
must not be extracted.
Make sure that small parts and liquids do not
find their way into the appliance. Try to avoid
allowing your pans to boil over.
Check the appliance for damage after
unpacking it. Do not connect the appliance if it
has been damaged in transport.
This appliance is not intended for operation
with an external clock timer or a remote
control.

en Important safety information
4
:Warning – Danger of suffocation!
Packaging material is dangerous to children.
Never allow children to play with packaging
material.
:Warning – Danger of death!
Risk of poisoning from flue gases that are
drawn back in.
Always ensure adequate fresh air in the room
if the appliance is being operated in exhaust
air mode at the same time as room air-
dependent heat-producing appliance is being
operated.
Room air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and discharge
the exhaust gases into the open air through an
exhaust gas system (e.g. a chimney).
In combination with an activated vapour
extractor hood, room air is extracted from the
kitchen and neighbouring rooms - a partial
vacuum is produced if not enough fresh air is
supplied. Toxic gases from the chimney or the
extraction shaft are sucked back into the living
space.
■Adequate incoming air must therefore
always be ensured.
■An incoming/exhaust air wall box alone will
not ensure compliance with the limit.
Safe operation is possible only when the
partial vacuum in the place where the heat-
producing appliance is installed does not
exceed 4 Pa (0.04 mbar). This can be
achieved when the air needed for combustion
is able to enter through openings that cannot
be sealed, for example in doors, windows,
incoming/exhaust air wall boxes or by other
technical means.
In any case, consult your responsible Master
Chimney Sweep. He is able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures to
you.
Unrestricted operation is possible if the vapour
extractor hood is operated exclusively in the
circulating-air mode.
:Warning – Risk of fire!
■Grease deposits in the grease filter may
catch fire.
Clean the grease filter at least every
2 months.
Never operate the appliance without the
grease filter.
Risk of fire!
■Grease deposits in the grease filter may
catch fire. Never work with naked flames
close to the appliance (e.g. flambéing). Do
not install the appliance near a heat-
producing appliance for solid fuel (e.g.
wood or coal) unless a closed, non-
removable cover is available. There must
be no flying sparks.
Risk of fire!
■Hot oil and fat can ignite very quickly. Never
leave hot fat or oil unattended. Never use
water to put out burning oil or fat. Switch off
the hotplate. Extinguish flames carefully
using a lid, fire blanket or something similar.
Risk of fire!
■Fatty deposits in the grease filter may catch
fire. If the appliance is to be operated next
to a gas-fired appliance, a gas deflector
must be fitted before you begin cooking.
The gas deflector improves extraction for
gas-fired appliances. The gas deflector
prevents small flames from being blown out
by the draught.
Risk of fire!
■Fatty deposits in the grease filter may catch
fire. Operating a gas wok gives rise to a
great deal of heat. The appliance must not
be combined with a gas wok.
:Warning – Risk of burns!
The accessible parts become very hot when in
operation. Never touch hot parts. Keep
children at a safe distance.

Important safety information en
5
:Warning – Risk of burns, risk of electric
shock!
from appliance. Always leave appliance to
cool down before cleaning or servicing. Switch
off fuse or pull out mains plug.
:Warning – Risk of burns!
The appliance will become hot during
operation. Allow it to cool down before
touching the flaps and other components.
:Warning – Risk of injury!
Components inside the appliance may have
sharp edges. Wear protective gloves.
:Warning – Risk of electric shock!
■A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
Risk of electric shock!
■Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained after-sales technicians. If the
appliance is defective, unplug the appliance
from the mains or switch off the circuit
breaker in the fuse box. Contact the after-
sales service.
Risk of electric shock!
■Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
:Warning – Risk of electric shock!
Penetrating moisture may result in an electric
shock. Clean the appliance using a damp
cloth only. Before cleaning, pull out the mains
plug or switch off the circuit breaker in the
fuse box.
:Warning – Electromagnetic hazards!
■This appliance complies with safety and
electromagnetic compatibility standards.
However, people with pacemakers or
insulin pumps must refrain from using this
appliance. It is impossible to ensure that all
of these devices available on the market
comply with current electromagnetic
compatibility standards, and that
interference which may prevent the device
from working correctly will not occur. It is
also possible that people with other types of
devices, such as a hearing aids, could
experience some discomfort.
Hazard due to magnetism!
■The removable control element is magnetic
and may affect electronic implants, e. g.
heart pacemakers or insulin pumps. For
people with electronic implants: never carry
the control element in clothing pockets. The
minimum distance to heart pacemaker
should be 10 cm.
Hazard due to magnetism!
■The retractable control element is magnetic
and may affect electronic implants,
e.g. heart pacemakers or insulin pumps.
For wearers of electronic implants:
Do not stand right up against the appliance
when you are making settings or cleaning.
Hazard due to magnetism!
■Permanent magnets are used in the control
panel or in the control elements. They may
affect electronic implants, e.g. heart
pacemakers or insulin pumps. Wearers of
electronic implants must stay at least 10 cm
away from the control panel.

en Environmental protection
6
Causes of damage
Caution!
Risk of damage due to corrosion. Always
switch on the appliance while cooking to avoid
condensation. Condensate can produce
corrosion damage.
Risk of damage due to ingress of humidity into
the electronic circuitry. Never clean operator
controls with a wet cloth.
Surface damage due to incorrect cleaning.
Clean stainless steel surfaces in the direction
of the grain only. Do not use any stainless
steel cleaners for operator controls.
Surface damage due to strong or abrasive
cleaning agents. Never use strong and
abrasive cleaning agents.
Risk of damage from returning condensate.
Install the exhaust duct in such a way that it
falls away from the appliance slightly
(1° slope).
7Environmental protection
Environmentalprotection Your new appliance is particularly energy-efficient. Here
you can find tips on how to save even more energy
when using the appliance, and how to dispose of your
appliance properly.
Saving energy
■Only switch the ventilation on when necessary. You
do not need to switch the ventilation on when
cooking something for a short time that does not
have a strong smell.
■Select a fan setting according to what you are
cooking.
■Switch the ventilation off again after cooking.
■Cleaning the grease filter regularly will increase the
efficiency of the ventilation.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly
manner.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning
used electrical and electronic appliances
(waste electrical and electronic equipment -
WEEE). The guideline determines the
framework for the return and recycling of
used appliances as applicable throughout the
EU.

Operating modes en
7
ÇOperating modes
Operatingmodes Exhaust air mode
Note: The air must not be discharged into a flue that is
used for exhausting fumes from appliances burning gas
or other fuels (not applicable to appliances that only
discharge the air back into the room).
■Before conveying the exhaust air into a non-
functioning smoke or exhaust gas flue, obtain the
consent of the heating engineer responsible.
■If the exhaust air is conveyed through the outer wall,
a telescopic wall box should be used.
Air recirculation
Note: To bind odours in air recirculation mode, you
must install an activated carbon filter. The different
options for operating the appliance in air recirculation
mode can be found in the brochure. Alternatively, ask
your dealer. The required accessories are available
from specialist retailers, from customer service or from
the Online Shop.
1Operating the appliance
Operatingtheappliance :Warning – Risk of burns!
The appliance will become hot during operation.Allow it
to cool down before touching the fan flaps and other
components.
Note: Switch on the extractor hood when you start
cooking and switch it off again several minutes after you
have finished cooking. This is the most effective way of
removing the kitchen fumes.
Hob extractor system
The air which is drawn in is cleaned
by the grease filters and conveyed to
the exterior by a pipe system.
The air which is drawn in is cleaned by
the grease filters and an activated
carbon filter, and is conveyed back into
the kitchen.
(Metal grease filter
0Fan flaps
8Control panel




en Operating the appliance
8
Controls
Control panel
Operating buttons
Indicators/symbols
Before using the appliance for the first time
Before you can use your new appliance, you must apply
certain settings.
Follow the instructions below before using the
appliance for the first time:
Notes
■Thoroughly clean the appliance and accessories.
■If your hob is a gas hob, fit the gas deflector to the
appliance. To do this, refer to the printed
supplement.
Initial use
Switching over the display for circulating-air mode
For circulating-air mode, the electronic controller
indicator must be switched over accordingly:
1. Check whether the extractor hood is connected and
switched off.
2. Press and hold the @button until ’flashes twice on
the display panel.
This will switch the electronic controller over to
circulating-air mode.
Switching over the display for exhaust air mode
1. Check whether the extractor hood is connected and
switched off.
2. Press and hold the @button until ’flashes once on
the display panel.
This will switch the electronic controller over to air
extraction mode.
Switching the appliance on and off
Note: Before you switch on the appliance, open both
fan flaps by pressing on them lightly.
Note: Always adjust the setting according to the current
conditions. To eliminate strong cooking smells, select a
high fan setting.
Button Explanation
#Switches the extractor hood on and off
xSwitches on the run-on function
AReduces the power level/resets the
metal grease filter and activated
charcoal filter saturation indicators
@Increases the power level
Indicator/
symbol
Explanation
û(x)* Run-on function
û(!)** Metal grease filter saturation indicator
û(")** Activated charcoal filter saturation
indicator
‚Power level 1
ƒPower level 2
„Power level 3
›Intensive mode
*LED lights up next to the symbol in brackets
**LED lights up underneath the symbol in brackets

Operating the appliance en
9
Note: When using pans for cooking, use the
appropriate pan lid. If necessary, place the lid on the
pan at a slight angle, with the gap facing the worktop-
mounted ventilation system. This improves the
extraction behaviour of the table ventilation.
Switching on the appliance
Press the #button.
The extractor hood starts at fan setting 1.
The fan setting that is selected will be shown on the
display panel.
Selecting the fan setting
Press the @or Abutton to set the corresponding fan
setting.
The fan setting that is selected will be shown on the
display panel.
Switching off the appliance
Press the #button.
Intensive setting
Activate intensive mode to eliminate strong smells and
odours. In this mode, the extractor hood operates at its
maximum fan setting for a short time. After a short time,
it automatically switches back to a low setting.
Switching on
Press and hold the @button until ›appears on the
display panel.
Intensive mode is now activated.
Note: After 6 minutes, the extractor hood automatically
switches back to the fan setting that was set
beforehand.
Switching off
Press the Abutton to set a different fan setting.
Run-on function
The run-on function allows the table ventilation to
continue running for a few minutes after it has been
switched off. This eliminates any remaining cooking
smells. The run-on prevents moisture from collecting in
the table ventilation and in the air recirculation in the
cabinet and toe kick. The table ventilation then switches
itself off automatically.
Switching on
Notes
■If intensive mode has been activated, the run-on
function is not available.
■The fan flaps must remain closed while the run-on
function is active.
1. Select the fan setting.
2. Press the xbutton.
The LED ûbeside the xsymbol will light up. The
fan will continue to run at this setting for 15 minutes
and then switch off automatically once this time has
elapsed.
Switching off
Press the #or xbutton.
This will deactivate the run-on function immediately.
Cooking with gas
:Warning – Risk of fire!
Fatty deposits in the grease filter may catch fire. If the
appliance is to be operated next to a gas-fired
appliance, a gas deflector must always be fitted before
you begin cooking.
Note: The gas deflector reduces deflection/disruption
of the gas flames from the burners on the cooktop and
prevents them from being blown out by draughts.
:Warning – Risk of burns!
The appliance will become hot during operation.Allow it
to cool down before touching the fan flaps, gas
deflector and other components.
Note: When the gas deflector is fitted, select intensive
mode or setting 3. This improves the extraction
performance of the worktop-mounted ventilation
system.
Note: When using pans for cooking, use the
appropriate pan lid. If necessary, place the lid on the
pan at a slight angle, with the gap facing the worktop-
mounted ventilation system. This improves the
extraction behaviour of the table ventilation.

en Cleaning and maintenance
10
2Cleaning and maintenance
Cleaningandmaintenance :Warning – Risk of burns!
The appliance becomes hot during operation. Allow the
appliance to cool down before cleaning.
:Warning – Risk of electric shock!
Penetrating moisture may result in an electric shock.
Clean the appliance using a damp cloth only. Before
cleaning, pull out the mains plug or switch off the circuit
breaker in the fuse box.
:Warning – Risk of electric shock!
Do not use any high-pressure cleaners or steam
cleaners, which can result in an electric shock.
:Warning – Risk of injury!
Components inside the appliance may have sharp
edges. Wear protective gloves.
Cleaning agents
To ensure that the different surfaces are not damaged
by using the wrong cleaning agent, observe the
information in the table. Do not use any of the following:
■Harsh or abrasive cleaning agents,
■Cleaning agents with a high alcohol content,
■Hard scouring pads or cleaning sponges,
■High-pressure cleaners or steam cleaners.
Wash new sponge cloths thoroughly before use.
Follow all instructions and warnings included with the
cleaning agents.
Saturation display
When the metal grease filters or activated charcoal
filters are saturated, the corresponding symbol will light
up:
■Metal grease filter: LED ûunderneath the !symbol
■Activated charcoal filter: LED ûunderneath the
"symbol
■Metal grease filter and activated charcoal filter:
LEDs ûunderneath the !and "symbols
Do not wait any longer to clean the metal grease filters
or replace or regenerate the activated charcoal filters.
Removing and installing the filter
The filter must be serviced regularly in order to
guarantee efficient filtration of odours and grease.
Metal grease filter
The metal grease filters must be cleaned every
100 operating hours or at least every two months.
:Warning – Risk of fire!
Grease deposits in the grease filter may catch fire.
Clean the grease filter at least every 2 months.
Never operate the appliance without the grease filter.
:Warning – Risk of damage!
Small parts may damage the appliance if they fall into it.
The appliance may only be operated if the metal
grease filter has been inserted and the fan flaps have
been fitted.
Activated charcoal filter (only in circulating-air mode)
The activated charcoal filters must be replaced or
regenerated regularly. The saturation indicator on your
appliance will tell you how frequently this needs to be
done.
Area Cleaning agent
Stainless steel Hot soapy water:
Clean with a dish cloth and then dry with a
soft cloth.
Clean stainless steel surfaces in the grind
direction only.
Special stainless steel cleaning products are
available from our after-sales service or from
specialist retailers. Apply a very thin layer of
the cleaning product with a soft cloth.
Painted surfaces Hot soapy water:
Clean using a damp dish cloth and dry with a
soft cloth/towel.
Do not use any stainless steel cleaners.
Aluminium and plastic Glass cleaner:
Clean with a soft cloth.
Glass Glass cleaner:
Clean with a soft cloth. Do not use a glass
scraper.
Controls Hot soapy water:
Clean using a damp dish cloth and dry with a
soft cloth/towel.
Risk of electric shock caused by penetrating
moisture.
Risk of damage to the electronics from pene-
trating moisture. Never clean operating con-
trols with a wet cloth.
Do not use any stainless steel cleaners.
Area Cleaning agent

Cleaning and maintenance en
11
Removing metal grease filter
The metal grease filters filter the grease out of kitchen
steam. To keep them in good working order, the filters
should be cleaned at least every two months.
1. Open the fan flaps.
2. Take hold of the metal grease filter with two fingers
at its edge and remove it.
Caution!
Risk of damage when lifting out and setting down
the fan flaps.Pull the metal grease filter straight up to
remove it and make sure that you do not scratch the
surfaces of the appliance.
3. Clean the metal grease filter and filter cover.
Cleaning the inside of the appliance
You can remove the fan flaps in order to clean the
appliance thoroughly.
1. Open the fan flaps.
2. Remove the magnetic strip from the front end of the
fan flaps.

en Cleaning and maintenance
12
3. Now close one of the fan flaps, slightly lift it out of
the holder at the front and then slide it out towards
you. Repeat the process with the other fan flap.
Caution!
Risk of damage when lifting out and setting down
the fan flaps.Pull the fan flaps up to remove them
and make sure that you do not scratch the surfaces
of the appliance.
4. Once the fan flaps and filter have been removed,
clean the inside of the appliance.
5. Once you have finished cleaning the appliance, refit
the fan flaps and the magnetic strip and insert the
metal grease filter.
Cleaning the metal mesh grease filters
Notes
■Do not use any aggressive, acidic or alkaline
cleaning agents.
■When cleaning the metal mesh grease filters, also
clean the holder for the metal mesh grease filters in
the appliance using a damp cloth.
■The metal mesh grease filters can be cleaned in the
dishwasher or by hand.
By hand:
Note: You can use a special grease solvent for
stubborn dirt. It can be ordered via the Online Shop.
■Soak the metal mesh grease filters in a hot soapy
solution.
■Clean the filters with a brush and then rinse them
thoroughly.
■Leave the metal mesh grease filters to drain.
In the dishwasher:
Note: Slight discolouration may occur if the metal
grease filters are cleaned in the dishwasher. This has
no effect on the performance of the metal grease filters.
■Do not clean heavily soiled metal grease filters
together with cookware.
■Place the metal grease filters in the dishwasher,
leaving plenty of space around them. The metal
grease filters must not be wedged in.
■Place the metal grease filters in the dishwasher with
the opening facing down.
■Wash the fan flaps and gas deflector by hand, and
not in the dishwasher.
Installing the metal mesh grease filter
Position the metal grease filter correctly and insert it.
Note: Place the filter into the groove.
Replacing or regenerating the activated charcoal
filters
Activated charcoal filters trap the odour-causing
compounds in cooking smells. They are only used for
circulating-air mode.
Notes
■The air recirculation module and activated charcoal
filters are not included with the appliance. The air
recirculation module and activated charcoal filters
are available from specialist retailers, from our after-
sales service or from our online shop.
■Only use genuine replacement filters. This will
ensure that the appliance performs optimally.
■Refer to the printed supplement for information
about the regenerability of the activated charcoal
filters and about replacing them.
Resetting the saturation displays
Once you have cleaned or replaced the relevant filters,
reset the saturation indicator so that the symbols go
out.
Press and hold the Abutton until ‰flashes three times
on the display panel.The saturation indicators for the
metal grease filter and the activated charcoal filter have
now been reset.

Trouble shooting en
13
3Trouble shooting
Troubleshooting Malfunctions often have simple explanations. Please
read the following notes before calling the after-sales
service.
:Warning – Risk of electric shock!
Incorrect repairs are dangerous. Repairs may only be
carried out and damaged power cables replaced by
one of our trained after-sales technicians. If the
appliance is defective, unplug the appliance from the
mains or switch off the circuit breaker in the fuse box.
Contact the after-sales service.
Fault table
--------
4Customer service
Customerservice When calling us, please quote the product number (E
no.) and the production number (FD no.) so that we can
provide you with the correct advice. The rating plate
bearing these numbers can be found on the fan
module.
You can make a note of the numbers of your appliance
and the telephone number of the after-sales service in
the space below to save time should it be required.
Please be aware that a visit by an after-sales engineer
will be charged if a problem turns out to be the result of
operator error, even during the warranty period.
Please find the contact data of all countries in the
enclosed customer service list.
To book an engineer visit and product advice
Rely on the professionalism of the manufacturer. You
can therefore be sure that the repair is carried out by
trained service technicians who carry original spare
parts for your appliances.
Problem Possible cause Solution
The appliance
does not work
The plug is not
plugged into the
mains
Connect the appliance to the
power supply
Power cut Check whether other kitchen
appliances are working
The fuse is faulty Check in the fuse box to make
sure that the fuse for the
appliance is in working order
The button illumi-
nation does not
work.
The control unit is
faulty.
Call the aftersales service.
Appliance is mak-
ing noises
All the fan flaps
are closed
Open all the fan flaps
The grease filter/
activated char-
coal filter indica-
tor is lit.
The grease filter/
activated char-
coal filter is satu-
rated.
Clean the filter. ~"Cleaning
and maintenance"
on page 10
Liquid in the appli-
ance
Liquid has found
its way into the
fan opening
Switch on the appliance and
leave it running at setting 1
for approx. 30 minutes.
Cleaning the inside of the
appliance ~Page 11
E no. FD no.
After-sales serviceO
GB 0344 892 8999
Calls charged at local or mobile rate.
IE 01450 2655
0.03 € per minute at peak. Off peak 0.0088 €
per minute.

en Accessories
14
_Accessories
Accessories Special accessories
--------
Accessories Order number
Air recirculation module for
LF16VA570
LZ58000
Accessories Order number
Gas deflector for LF16VA570 LZ58010

6

0DQXIDFWXUHGE\%6++DXVJHUlWH*PE+XQGHU7UDGHPDUN/LFHQVHRI6LHPHQV$*
%6++DXVJHUlWH *PE+
&DUO:HU\6WU
VLHPHQVKRPHFRP
0QFKHQ*(50$1<
*9001175272*
9001175272
960725
