Siemens LC67JHM60 User manual

Extractor hood
LC67JHM60, LC87JHM60
en User manual and installation instructions
Register your product on My Siemens and discover exclusive ser-
vices and offers.
siemens-home.bsh-group.com/welcome
The future moving in.
Siemens Home Appliances

en Safety
2
Table of contents
INFORMATION FOR USE
1 Safety....................................................................2
2 Avoiding material damage...................................4
3 Environmental protection and saving en-
ergy .......................................................................4
4 Operating modes .................................................5
5 Familiarising yourself with your appliance ........6
6 Basic operation ....................................................6
7 Cleaning and servicing........................................6
8 Troubleshooting...................................................9
9 Disposal................................................................9
10 Customer Service.................................................9
11 Accessories........................................................10
12 INSTALLATION INSTRUCTIONS .......................10
12.4 Secure installation .............................................11
1 Safety
Observe the following safety instructions.
1.1 General information
¡Read this instruction manual carefully.
¡Keep the instruction manual and the
product information safe for future refer-
ence or for the next owner.
¡Do not connect the appliance if it has been
damaged in transit.
1.2 Intended use
This appliance is designed only to be built
into kitchen units. Read the special installation
instructions.
The appliance can only be used safely if it is
correctly installed according to the safety in-
structions. The installer is responsible for en-
suring that the appliance works perfectly at its
installation location.
Only use this appliance:
¡For extracting cooking vapour.
¡In private households and in enclosed
spaces in a domestic environment.
¡Up to an altitude of max. 2000m above
sea level.
Do not use the appliance:
¡With an external timer.
1.3 Restriction on user group
This appliance may be used by children aged
8 or over and by people who have reduced
physical, sensory or mental abilities or inad-
equate experience and/or knowledge,
provided that they are supervised or have
been instructed on how to use the appliance
safely and have understood the resulting
dangers.
Children must not play with the appliance.
Children must not perform cleaning or user
maintenance unless they are at least 15 years
old and are being supervised.
Keep children under the age of 8 years away
from the appliance and power cable.
1.4 Safe use
WARNING‒Risk of suffocation!
Children may put packaging material over
their heads or wrap themselves up in it and
suffocate.
▶Keep packaging material away from chil-
dren.
▶Do not let children play with packaging ma-
terial.
Children may breathe in or swallow small
parts, causing them to suffocate.
▶Keep small parts away from children.
▶Do not let children play with small parts.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch
fire.
▶Never operate the appliance without a
grease filter.
▶Clean the grease filters regularly.
▶Never work with naked flames close to the
appliance (e.g. flambéing).
▶Do not install the appliance near a solid
fuel heating appliance (e.g. wood- or coal-
burning) unless the heating appliance has
a sealed, non-removable cover. There must
be no flying sparks.
Hot oil or grease ignites very quickly.
▶Always supervise hot oil and fat.
▶Never extinguish burning oil or fat with wa-
ter. Switch off the cooking zone. Extinguish
flames carefully using a lid, fire blanket or
something similar.

Safety en
3
When gas burners are in operation without
any cookware placed on them, they can build
up a lot of heat. A ventilation appliance in-
stalled above the cooker may become dam-
aged or catch fire.
▶Only operate the gas burners with cook-
ware on them.
Operating multiple gas hobs at the same time
generates a great deal of heat. A ventilation
appliance installed above the cooker may be-
come damaged or catch fire.
▶Only operate the gas hobs with cookware
on them.
▶Select the highest fan setting.
▶Never operate two gas hobs simultan-
eously on the highest flame for longer than
15 minutes. Two gas hobs correspond to
one large burner.
▶Never operate large burners of more than
5kW with the highest flame for longer
than 15minutes, e.g. a wok.
WARNING‒Risk of burns!
The accessible parts of the appliance become
hot during operation.
▶Never touch these hot parts.
▶Keep children at a safe distance.
The appliance becomes hot during operation.
▶Allow the appliance to cool down before
cleaning.
WARNING‒Risk of injury!
Components inside the appliance may have
sharp edges.
▶Carefully clean the appliance interior.
Items placed on the appliance may fall off.
▶Do not place any objects on the appliance.
Changes to the electrical or mechanical as-
sembly are dangerous and may lead to mal-
functions.
▶Do not make any changes to the electrical
or mechanical assembly.
The filter cover may swing out.
▶Open the filter cover slowly.
▶Take hold of the filter cover after opening
until it no longer swings out.
▶Close the filter cover slowly.
Risk of injury when opening and closing the
hinges.
▶Keep your hands away from the hinges.
The light emitted by LED lights is very
dazzling, and can damage the eyes (risk
group 1).
▶Do not look directly into the switched-on
LED lights for longer than 100seconds.
WARNING‒Danger: Magnetism!
The appliance contains permanent magnets.
They may affect electronic implants, e.g.
pacemakers or insulin pumps.
▶Persons with electronic implants must
stand at least 10cm away from the appli-
ance.
WARNING‒Risk of electric shock!
If the appliance or the power cord is dam-
aged, this is dangerous.
▶Never operate a damaged appliance.
▶Never pull on the power cord to unplug the
appliance. Always unplug the appliance at
the mains.
▶If the appliance or the power cord is dam-
aged, immediately unplug the power cord
or switch off the fuse in the fuse box.
▶Call customer services. →Page9
Incorrect repairs are dangerous.
▶Repairs to the appliance should only be
carried out by trained specialist staff.
▶Only use genuine spare parts when repair-
ing the appliance.
▶If the power cord of this appliance is dam-
aged, it must be replaced by trained spe-
cialist staff.
An ingress of moisture can cause an electric
shock.
▶Before cleaning, pull out the mains plug or
switch off the fuse in the fuse box.
▶Do not use steam- or high-pressure clean-
ers to clean the appliance.
WARNING‒Risk of explosion!
Highly caustic alkaline or highly acidic clean-
ing agents in conjunction with aluminium parts
in the interior of the appliance may cause ex-
plosions.
▶Never use highly caustic alkaline or highly
acidic cleaning agents. In particular, do not
use commercial or industrial cleaning
agents in conjunction with aluminium parts,
e.g. grease filter on extractor hoods.

en Avoiding material damage
4
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch
fire.
▶Clean the grease filters regularly.
WARNING‒Risk of injury!
Improper repairs are dangerous.
▶Repairs to the appliance should only be
carried out by trained specialist staff.
▶If the appliance is defective, call Customer
Service.
WARNING‒Risk of electric shock!
Penetrating moisture may cause an electric
shock.
▶Do not use wet sponge cloths.
2 Avoiding material damage
ATTENTION!
Condensate may cause corrosion damage.
▶To prevent condensation from building up, switch on
the appliance during cooking.
If moisture gets into the controls, this may result in
damage.
▶Never clean controls with a wet cloth.
Incorrect cleaning damages the surfaces.
▶Follow the cleaning instructions.
▶Do not use harsh or abrasive detergents.
▶Clean stainless steel surfaces in the direction of the
finish only.
▶Never clean controls with stainless steel cleaners.
Condensation that flows back in may damage the ap-
pliance.
▶The air extraction duct must be installed with a
gradient of at least 1° from the appliance.
If you put incorrect stress on the design elements, they
may break off.
▶Do not pull design elements.
▶Do not place objects on the design elements or
hang objects from them.
There is a risk of surface damage if you do not peel off
the protective film.
▶Remove the protective film from all parts of the ap-
pliance before using for the first time.
3 Environmental protection and saving energy
3.1 Disposing of packaging
The packaging materials are environmentally compat-
ible and can be recycled.
▶Sort the individual components by type and dispose
of them separately.
Information about current disposal methods are
available from your specialist dealer or local author-
ity.
3.2 Saving energy
If you follow these instructions, your appliance will use
less power.
Adjust the fan speed to the amount of steam pro-
duced during cooking.
¡The lower the fan speed, the less energy is con-
sumed.
Only use the intensive mode as required.
If cooking produces large amounts of steam, select a
higher fan speed in good time.
¡The odours are distributed around the room less.
Switch off the lighting if it is no longer required.
¡When the lighting is switched off, it does not con-
sume any energy.
Clean or replace the filters at regular intervals.
¡The effectiveness of the filter is retained.
Put the cooking lid on.
¡The cooking vapours and condensation are re-
duced.
Only use the additional functions if required.
¡Switching off additional functions reduces power
consumption.

Operating modes en
5
4 Operating modes
4.1 Air recirculation mode
The air which is drawn in is cleaned by the grease fil-
ters and an odour filter, and conveyed back into the
room.
To bind odours in circulating-air mode,
you must install an odour filter. The dif-
ferent options for operating the appli-
ance in circulating-air mode can be
found in our catalogue. Alternatively,
ask your dealer. The required accessor-
ies are available from specialist retail-
ers, from customer service or from the
Online Shop.

en Familiarising yourself with your appliance
6
5 Familiarising yourself with your appliance
5.1 Controls
You can use the control panel to configure all functions
of your appliance and to obtain information about the
operating status.
Switching the appliance on or off
Switching on fan setting1
Switching on fan setting2
Switching on fan setting3
Switching intensive mode on or off
Switching the lighting on or off
6 Basic operation
6.1 Switching on the appliance
▶Press ⁠.
aThe appliance starts at fan setting2.
6.2 Switching off the appliance
▶Press ⁠.
6.3 Selecting a fan setting
▶Press ⁠, ⁠or ⁠.
6.4 Switching on intensive mode
If particularly strong odours or vapours develop, you
can use intensive mode.
▶Press ⁠.
aAfter approx. 6 minutes, the appliance automatically
switches to fan setting 3.
6.5 Switching on the lighting
The lighting can be switched on and off independently
of the ventilation system.
▶Press ⁠.
6.6 Setting the PowerBoost position
On some appliances, the filter cover can be adjusted to
an intermediate position. The intermediate position can
be used to eliminate particularly strong cooking smells
and large amounts of steam.
▶Take hold of the filter cover in the centre and open it
carefully.
7 Cleaning and servicing
To keep your appliance working efficiently for a long
time, it is important to clean and maintain it carefully.
7.1 Cleaning products
You can obtain suitable cleaning products from after-
sales service or the online shop.
WARNING‒Risk of electric shock!
An ingress of moisture can cause an electric shock.
▶Before cleaning, pull out the mains plug or switch
off the fuse in the fuse box.
▶Do not use steam- or high-pressure cleaners to
clean the appliance.
WARNING‒Risk of burns!
The appliance becomes hot during operation.
▶Allow the appliance to cool down before cleaning.
ATTENTION!
Unsuitable cleaning products may damage the sur-
faces of the appliance.
▶Do not use harsh or abrasive detergents.
▶Do not use cleaning products with a high alcohol
content.
▶Do not use hard scouring pads or cleaning
sponges.
▶Do not use any special cleaners for cleaning the ap-
pliance while it is hot.
▶Only use glass cleaners, glass scrapers or stainless
steel care products if recommended in the cleaning
instructions for the relevant part.
▶Wash sponge cloths thoroughly before use.

Cleaning and servicing en
7
7.2 Cleaning the appliance
Clean the appliance as specified. This will ensure that
the different parts and surfaces of the appliance are
not damaged by incorrect cleaning or unsuitable clean-
ing products.
WARNING‒Risk of explosion!
Highly caustic alkaline or highly acidic cleaning agents
in conjunction with aluminium parts in the interior of the
appliance may cause explosions.
▶Never use highly caustic alkaline or highly acidic
cleaning agents. In particular, do not use commer-
cial or industrial cleaning agents in conjunction with
aluminium parts, e.g. grease filter on extractor
hoods.
WARNING‒Risk of electric shock!
An ingress of moisture can cause an electric shock.
▶Before cleaning, pull out the mains plug or switch
off the fuse in the fuse box.
▶Do not use steam- or high-pressure cleaners to
clean the appliance.
WARNING‒Risk of burns!
The appliance becomes hot during operation.
▶Allow the appliance to cool down before cleaning.
WARNING‒Risk of injury!
Components inside the appliance may have sharp
edges.
▶Carefully clean the appliance interior.
1. Observe the information regarding the cleaning
agents.
→"Cleaning products", Page6
2. Clean as follows, depending on the surface:
‒Clean stainless steel surfaces in the direction of
the finish using a sponge cloth and hot soapy
water.
‒Clean painted surfaces using a damp sponge
cloth and hot soapy water.
‒Clean aluminium using a soft cloth and glass
cleaner.
‒Clean plastic using a soft cloth and glass
cleaner.
‒Clean glass using a soft cloth and glass cleaner.
3. Dry with a soft cloth.
4. Apply a thin layer of the stainless steel cleaning
product to stainless steel surfaces using a soft
cloth.
You can obtain stainless steel cleaning products
from the after-sales service or the online shop.
7.3 Cleaning controls
WARNING‒Risk of electric shock!
Penetrating moisture may cause an electric shock.
▶Do not use wet sponge cloths.
1. Observe the information regarding the cleaning
agents.
→"Cleaning products", Page6
2. Clean using a damp sponge cloth and hot soapy
water.
3. Dry with a soft cloth.
7.4 Removing the grease filter
WARNING‒Risk of injury!
Risk of injury when opening and closing the hinges.
▶Keep your hands away from the hinges.
The filter cover may swing out.
▶Open the filter cover slowly.
▶Take hold of the filter cover after opening until it no
longer swings out.
▶Close the filter cover slowly.

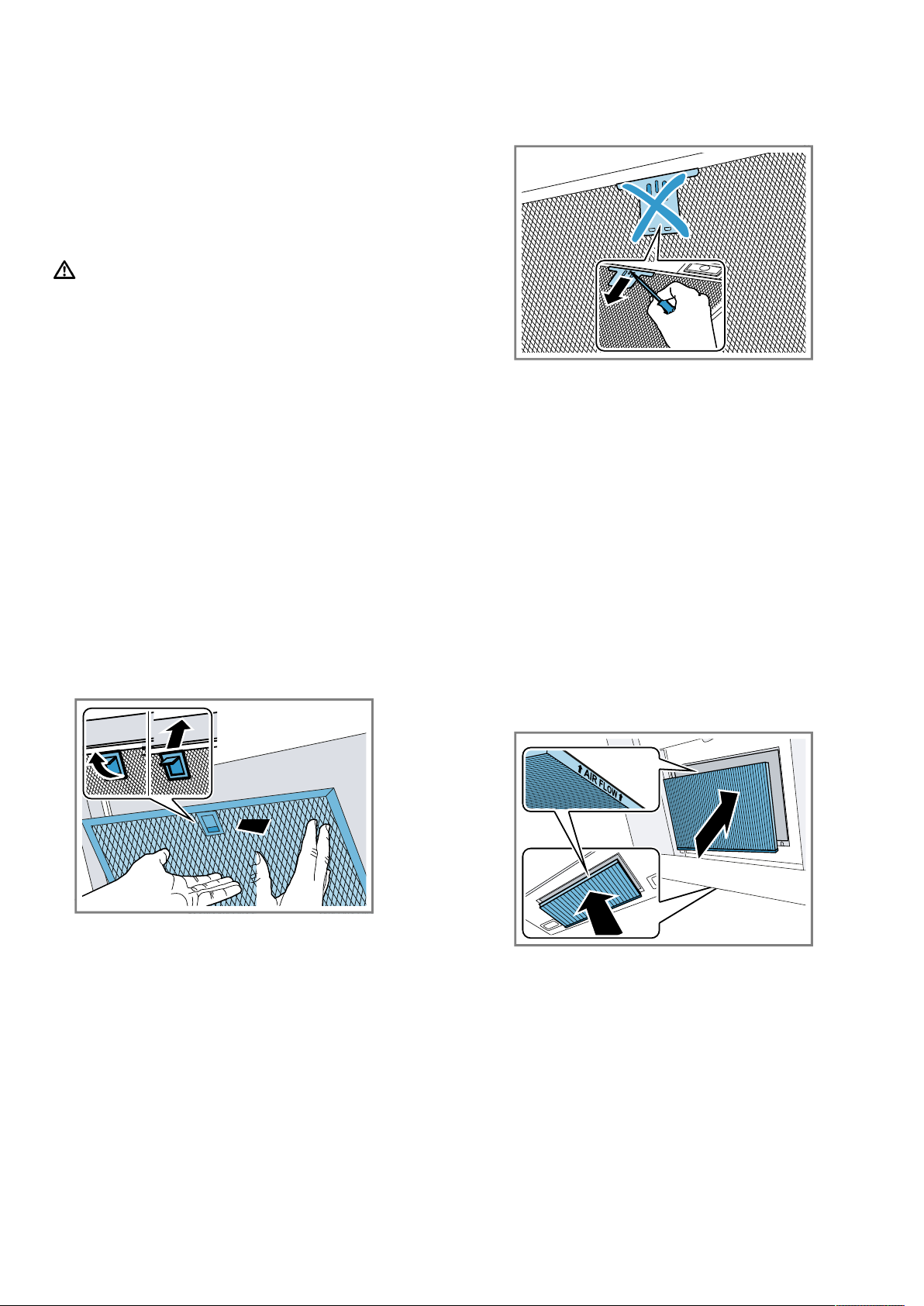

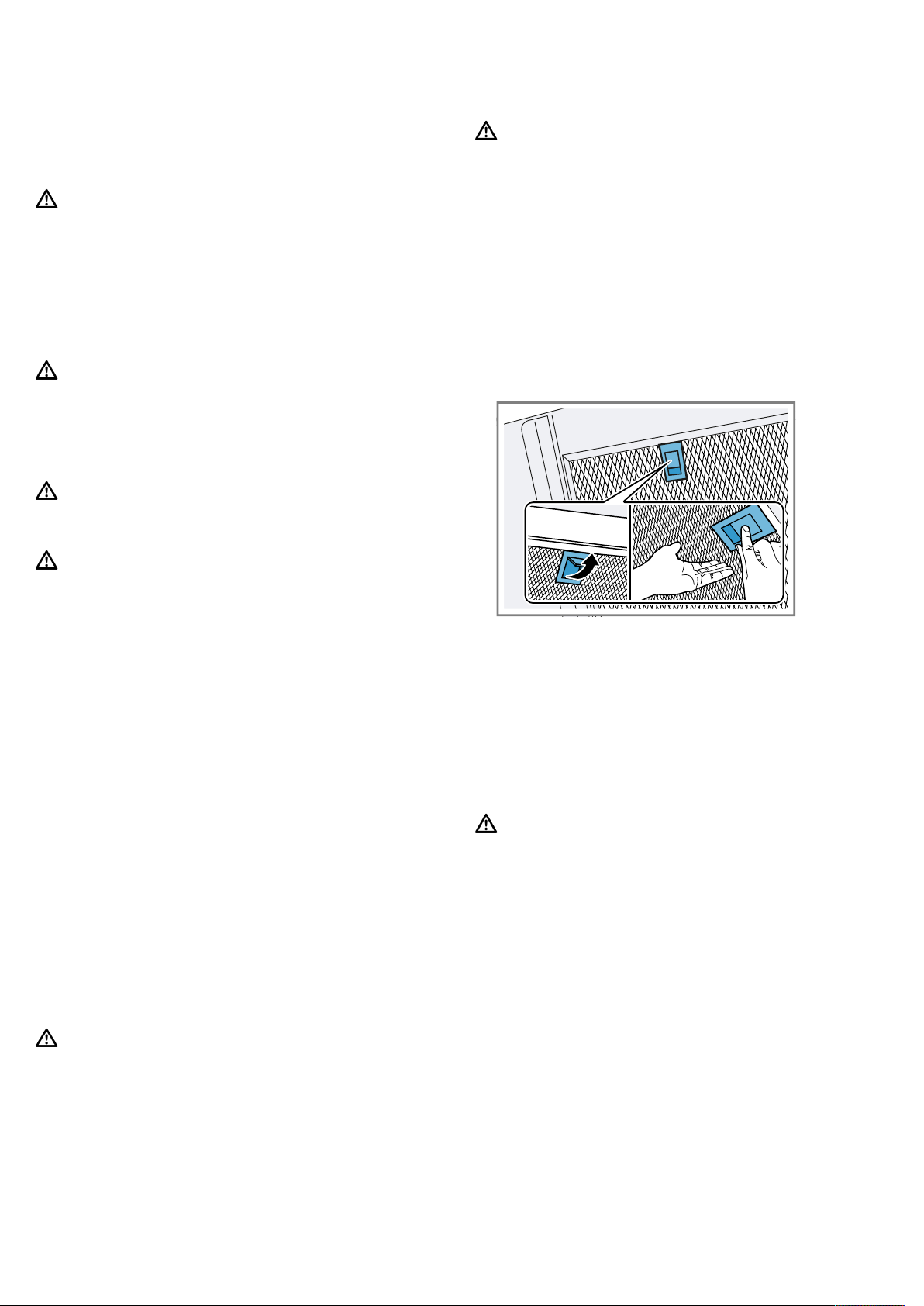

1. Take hold of the filter cover in the centre and open it
fully.
2. ATTENTION!
Falling grease filters may damage the hob below.
▶Grip below the grease filter with one hand.
Open the lock on the grease filter and fold down the
grease filter.
3. Remove the grease filters from the holders.
To prevent grease from dripping, hold the grease fil-
ter horizontally.
7.5 Cleaning grease filters in the
dishwasher
The grease filters filter the grease from the cooking va-
pour. Regularly cleaned grease filters guarantee a high
level of grease removal. We recommend cleaning the
grease filters every two months.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch fire.
▶Clean the grease filters regularly.
ATTENTION!
The grease filters may become damaged if they are
squeezed.
▶Do not squeeze the grease filters.
Note:When cleaning the grease filter in the dish-
washer, light discolouration may occur. This discoloura-
tion has no effect on the performance of the metal
grease filters.
Requirement:The grease filters have been removed.
→"Removing the grease filter", Page7
1. Observe the information regarding the cleaning
agents.
→"Cleaning products", Page6
2. Place the grease filters loosely into the dishwasher.
Do not clean heavily soiled grease filters with
utensils.
Use special grease solvent for stubborn dirt. You
can obtain grease solvents from after-sales service
or the online shop.

en Cleaning and servicing
8
3. Start the dishwasher.
Select a temperature of no more than 70°C.
4. Allow the grease filters to drain.
7.6 Cleaning grease filters manually
The grease filters filter the grease from the cooking va-
pour. Regularly cleaned grease filters guarantee a high
level of grease removal. We recommend cleaning the
grease filters every two months.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch fire.
▶Clean the grease filters regularly.
Requirement:The grease filters have been removed.
→"Removing the grease filter", Page7
1. Observe the information regarding the cleaning
agents.
→"Cleaning products", Page6
2. Soak the grease filter in hot soapy water.
Use special grease solvent for stubborn dirt. You
can obtain grease solvents from after-sales service
or the online shop.
3. Use a brush to clean the grease filters.
4. Rinse the grease filters thoroughly.
5. Allow the grease filters to drain.
7.7 Fitting the grease filters
1. ATTENTION!
Falling grease filters may damage the hob below.
▶Grip below the grease filter with one hand.
Note:Note the correct position of the grease filter.
Insert the grease filter.
2. The lock on the grease filter clicks into place.
3. If the grease filter has been inserted incorrectly,
carefully push the lock forwards, remove the grease
filter and insert it correctly.
7.8 Odour filter for recirculating air mode
Odour filters bind odorous substances in air recircula-
tion mode. Regularly replaced odour filters guarantee a
high level of odour removal.
With normal use (approx.onehour a day), the odour fil-
ter must be replaced every 12 months. The odour filter
cannot be cleaned or regenerated.
You can obtain odour filters from the after-sales service
or the online shop. Only use original odour filters.
→"Accessories", Page10
7.9 Replacing the odour filter
To bind odours in circulating-air mode, you must install
an odour filter.
Requirement:The grease filters have been removed.
→"Removing the grease filter", Page7
1. Remove the old odour filter.
2. Insert the new odour filter.
3. Dispose of old odour filters with the residual waste.
The odour filters do not contain any harmful sub-
stances.

Troubleshooting en
9
8 Troubleshooting
You can rectify minor faults on your appliance yourself.
Read the troubleshooting information before contacting
after-sales service. This will avoid unnecessary costs.
WARNING‒Risk of injury!
Improper repairs are dangerous.
▶Repairs to the appliance should only be carried out
by trained specialist staff.
▶If the appliance is defective, call Customer Service.
WARNING‒Risk of electric shock!
Incorrect repairs are dangerous.
▶Repairs to the appliance should only be carried out
by trained specialist staff.
▶Only use genuine spare parts when repairing the
appliance.
▶If the power cord of this appliance is damaged, it
must be replaced by trained specialist staff.
8.1 Malfunctions
Fault Cause and troubleshooting
The appliance is not
working.
The mains plug of the power cord is not plugged in.
▶Connect the appliance to the power supply.
The circuit breaker in the fuse box has tripped.
▶Check the circuit breaker in the fuse box.
There has been a power cut.
▶Check whether the lighting in your kitchen or other appliances are working.
The LED lighting
does not work.
Different causes are possible.
▶Defective LED lights may be replaced by the manufacturer, their customer service or a
qualified technician (electrician) only.
▶Call the after-sales service.
→"Customer Service", Page9
The button illumina-
tion does not work.
The control unit is faulty.
▶Call the after-sales service.
→"Customer Service", Page9
9 Disposal
Find out here how to dispose of old appliances cor-
rectly.
9.1 Disposing of old appliance
Valuable raw materials can be reused by recycling.
1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally
friendly manner.
Information about current disposal methods are
available from your specialist dealer or local author-
ity.
This appliance is labelled in accord-
ance with European Directive
2012/19/EU concerning used elec-
trical and electronic appliances
(waste electrical and electronic equip-
ment - WEEE).
The guideline determines the frame-
work for the return and recycling of
used appliances as applicable
throughout the EU.
10 Customer Service
If you have any queries on use, are unable to rectify
faults on the appliance yourself or if your appliance
needs to be repaired, contact Customer Service.
Function-relevant genuine spare parts according to the
corresponding Ecodesign Order can be obtained from
Customer Service for a period of at least 10 years from
the date on which your appliance was placed on the
market within the European Economic Area.
Note:Under the terms of the manufacturer's warranty
the use of Customer Service is free of charge.
Detailed information on the warranty period and terms
of warranty in your country is available from our after-
sales service, your retailer or on our website.
If you contact Customer Service, you will require the
product number (E-Nr.) and the production number
(FD) of your appliance.
The contact details for Customer Service can be found
in the enclosed Customer Service directory or on our
website.

en Accessories
10
This product contains light sources from energy effi-
ciency class F. These light sources are available as a
spare part and should only be replaced by trained spe-
cialist staff.
10.1 Product number (E-Nr.) and production
number (FD)
You can find the product number (E-Nr.) and the pro-
duction number (FD) on the appliance's rating plate.
Depending on the model, the rating plate can be found:
¡Inside the appliance (remove grease filters for ac-
cess).
¡On top of the appliance.
Make a note of your appliance's details and the Cus-
tomer Service telephone number to find them again
quickly.
11 Accessories
You can buy accessories from the after-sales service,
from specialist retailers or online. Only use original ac-
cessories, as these have been specifically designed for
your appliance.
Accessories vary from one appliance to another. When
purchasing accessories, always quote the exact
product number (E no.) of your appliance. →Page10
You can find out which accessories are available for
your appliance in our catalogue, in the online shop or
from our after-sales service.
siemens-home.bsh-group.com
Accessories Order number
Standard no-flue circu-
lated air set (flat hood)
LZ10AFT00
Accessories Order number
Standard odour filter (re-
placement, flat hood)
LZ10AFA00
Standard no-flue circu-
lated air set (angled can-
opy hood)
LZ10AKT00
Standard odour filter (re-
placement, angled can-
opy hood)
LZ10AKA00
Long Life no-flue circu-
lated air set (flat hood)
LZ10AFR00
Long Life no-flue circu-
lated air set (angled can-
opy hood)
LZ10AKR00
12 Installation instructions
Observe this information when installing the appliance.
12.1 Scope of delivery
After unpacking all parts, check for any damage in
transit and completeness of the delivery.

Installation instructions en
11
12.2 Safety clearances
Comply with the safety clearances for the appliance.
For Australia and New Zealand the minimum safety
clearance above electrical cooktops must be 600 mm.
12.3 Installation recommendation
We recommend fitting the appliance such that the
lower edge of the glass screen is in line with the lower
edges of the adjacent wall-hung cabinets.
B
B
Maintain the safety clearances to the hob. →Page11
12.4 Secure installation
Follow these safety instructions when in-
stalling the appliance.
WARNING‒Risk of suffocation!
Children may put packaging material over
their heads or wrap themselves up in it and
suffocate.
▶Keep packaging material away from chil-
dren.
▶Do not let children play with packaging ma-
terial.
WARNING‒Risk of fire!
Grease deposits in the grease filter may catch
fire.
▶The specified safety clearances must be
complied with in order to prevent a build-up
of heat.
▶Observe the specifications for your cooking
appliances. If the installation instructions for
the cooking appliances specify a different
clearance, the larger of the two must al-
ways be provided for. If gas hobs and elec-
tric hobs are operated together, the largest
specified clearance applies.
▶The appliance must be installed with no
more than one side directly next to a high-
sided unit or a wall. The distance between
the appliance and wall or high-sided unit
must be at least 50mm.
Grease deposits in the grease filter may catch
fire.
▶Never work with naked flames close to the
appliance (e.g. flambéing).
▶Do not install the appliance near a heat-
producing appliance for solid fuel (e.g.
wood or coal) unless a closed, non-remov-
able cover is available. There must be no
flying sparks.
WARNING‒Risk of injury!
Components inside the appliance may have
sharp edges.
▶Wear protective gloves.
The appliance may fall down if it has not been
properly fastened in place.
▶All fastening components must be fixed
firmly and securely in place.
Risk of injury from glass splinters.
▶Protect the filter cover against impact.
▶Do not drop the filter cover.
▶Wear protective goggles during installation.

en Installation instructions
12
The appliance is heavy.
▶The appliance must not be fitted directly
onto plasterboard or similar lightweight ma-
terials.
▶To ensure correct installation, you must use
a material which is sufficiently stable and
suitable for both the structural conditions
and the weight of the appliance.
Changes to the electrical or mechanical as-
sembly are dangerous and may lead to mal-
functions.
▶Do not make any changes to the electrical
or mechanical assembly.
The filter cover may swing out.
▶Open the filter cover slowly.
▶Take hold of the filter cover after opening
until it no longer swings out.
▶Close the filter cover slowly.
Risk of injury when opening and closing the
hinges.
▶Keep your hands away from the hinges.
WARNING‒Risk of electric shock!
Sharp-edged components inside the appli-
ance may damage the connecting cable.
▶Do not kink or trap the connecting cable.
If the appliance or the power cord is dam-
aged, this is dangerous.
▶Never operate a damaged appliance.
▶Never pull on the power cord to unplug the
appliance. Always unplug the appliance at
the mains.
▶If the appliance or the power cord is dam-
aged, immediately unplug the power cord
or switch off the fuse in the fuse box.
▶Call customer services. →Page9
Incorrect repairs are dangerous.
▶Repairs to the appliance should only be
carried out by trained specialist staff.
▶Only use genuine spare parts when repair-
ing the appliance.
▶If the power cord of this appliance is dam-
aged, it must be replaced by trained spe-
cialist staff.
Incorrect installation is dangerous.
▶Connect and operate the appliance only in
accordance with the specifications on the
rating plate.
▶Connect the appliance to a power supply
with alternating current only via a properly
installed socket with earthing.
▶The protective conductor system of the do-
mestic electrical installation must be prop-
erly installed.
▶Never equip the appliance with an external
switching device, e.g. a timer or remote
control.
▶When the appliance is installed, the mains
plug of the power cord must be freely ac-
cessible. If free access is not possible, an
all-pole isolating switch must be installed in
the permanent electrical installation accord-
ing to the conditions of Overvoltage Cat-
egory III and according to the installation
regulations.
▶When installing the appliance, check that
the power cable is not trapped or dam-
aged.
12.5 Instructions for the electrical
connection
In order to safely connect the appliance to the elec-
trical system, follow these instructions.
WARNING‒Risk of electric shock!
It must always be possible to disconnect the appliance
from the electricity supply. The appliance must only be
connected to a protective contact socket that has been
correctly installed.
▶The mains plug for the mains power cable must be
easily accessible after the appliance is installed.
▶If this is not possible, an all-pole isolating switch
must be integrated into the permanent electrical in-
stallation according to the conditions of overvoltage
category III and according to the installation regula-
tions.
▶The permanent electrical installation must only be
wired by a professional electrician. We recommend
installing a residual-current circuit breaker (RCCB)
in the appliance's power supply circuit.
Sharp-edged components inside the appliance may
damage the connecting cable.
▶Do not kink or trap the connecting cable.
¡The connection data can be found on the rating
plate. →Page10
¡The connecting cable is approx.1.30m long.
¡This appliance complies with the EC interference
suppression regulations.
¡The appliance corresponds to protection class 1.
You should therefore only use the appliance with a
protective earth connection.
¡Do not connect the appliance to the power supply
during installation.

Installation instructions en
13
¡Ensure that the protection against contact is guaran-
teed during installation.
12.6 Information on the installation situation
¡Install this appliance on the kitchen wall.
¡To install additional special accessory parts, ob-
serve the enclosed installation instructions.
¡The appliance must be installed with no more than
one side directly next to a high-sided unit or a wall.
The distance between the appliance and wall or
high-sided unit must be at least 50mm.
¡The width of the extractor hood must correspond at
least with the width of the hob.
¡To optimally detect the cooking vapours, install the
appliance in the middle of the hob.
12.7 General information
Follow these general instructions during the installation.
¡For the installation, observe the currently valid build-
ing regulations and the regulations of the local elec-
tricity and gas suppliers.
¡When discharging the exhaust air, the official and
legal regulations, such as the regional building
code., must be observed.
¡In order to freely access the appliance for servicing,
select an easy-to-reach installation site.
¡The surfaces of the appliance are sensitive. Avoid
damaging them during installation.
12.8 Installation
Checking the wall
1. Check whether the wall is horizontal and adequately
load-bearing.
The maximum weight of the appliance is 40kg.
2. Drill the hole depth in accordance with the length of
the screws.
3. Use the enclosed screws and wall plugs.
The screws and wall plugs enclosed are suitable for
use with solid brickwork. Use suitable fastening
parts for other structures, e.g. plasterboard, porous
concrete, poroton bricks.
4. Install the appliance with a fixing material which is
sufficiently stable and has been adjusted accord-
ingly for both the structural conditions and the
weight of the appliance.
5. Check the cut-out area for existing cables of other
appliances.
Preparing the wall
1. Observe the information on the installation situation.
→Page13
2. Ensure that there are no electrical wires, gas pipes
or water pipes in the area where holes are to be
drilled.
3. Cover the hob to prevent damage.
4. Determine the position of the extractor hood and
lightly mark where the lower edge of the appliance
should be on the wall.
‒Determine the centre of the hob.
‒Comply with the safety clearances for the hob.
→Page11
We recommend fitting the extractor hood such that
the lower edge of the glass screen is in line with the
lower edges of the adjacent wall-hung cabinets.
5. Place the template against the line drawn on the
wall and secure it in place.
6. Mark the positions for the screws.
7. For the installation with the flue cover, separate the
template along the marked cut line.
8. Drill the 8mmdiameter holes to a depth of 80mm
for the fastenings.
9. Remove the template.
10. Insert the wall plugs flush with the wall.

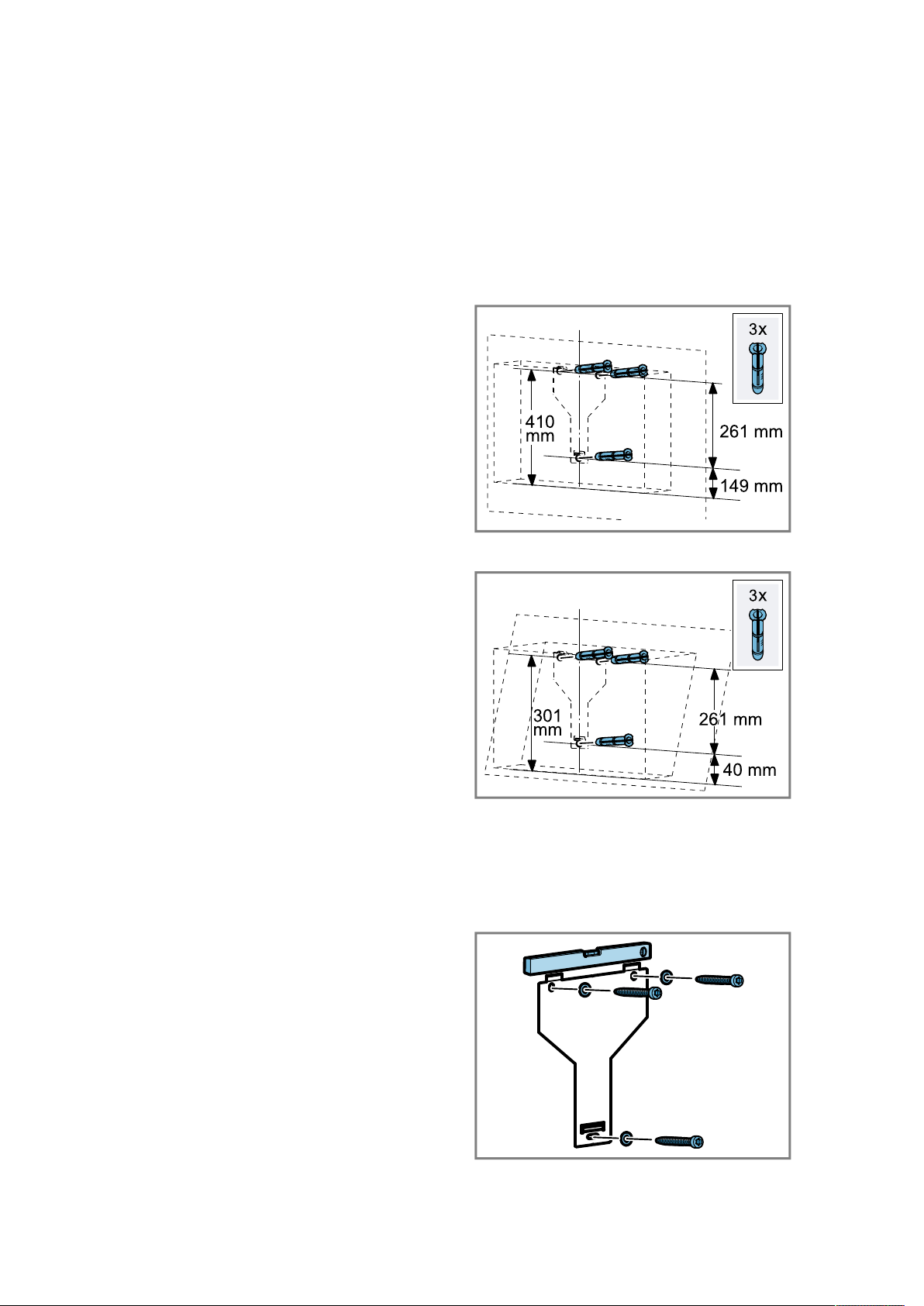

Variant A: Flat extractor hood without flue cover
Variant B: Sloped extractor hood without flue cover
Installing the appliance bracket
1. Screw on the appliance bracket for the extractor
hood hand-tight.
2. Use a spirit level to align the appliance bracket hori-
zontally and screw it firmly in place.
Installing the appliance
1. Remove the protective film from the rear.

en Installation instructions
14
‒Once the appliance is installed, fully remove the
protective film.
2. Hook the appliance into the appliance bracket in
such a way that it clicks firmly into place.
3. To align the appliance, slide the appliance to the
right or to the left as required.
4. Tighten the safety screws.

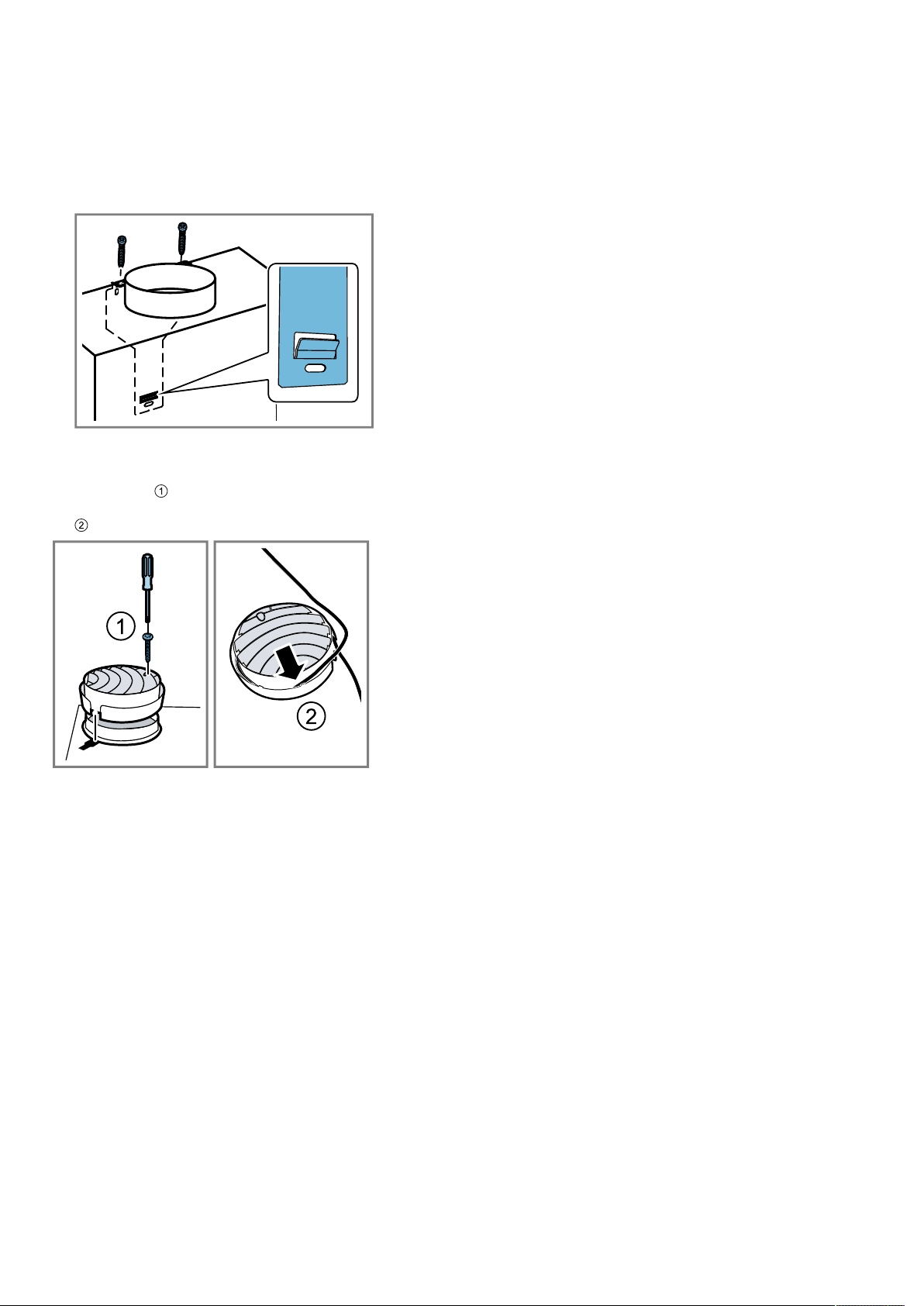

Fitting the air recirculation deflector
1. Screw the air recirculation deflector to the air-pipe
connector. ⁠
2. Wind up the cable on the air recirculation deflector.
⁠

*9001615103*
9001615103 (020407)
en
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
siemens-home.bsh-group.com
Valid within Great Britain:
Imported to Great Britain by
BSH Home Appliances Ltd.
Grand Union House
Old Wolverton Road
Wolverton, Milton Keynes
MK12 5PT
United Kingdom
Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG
