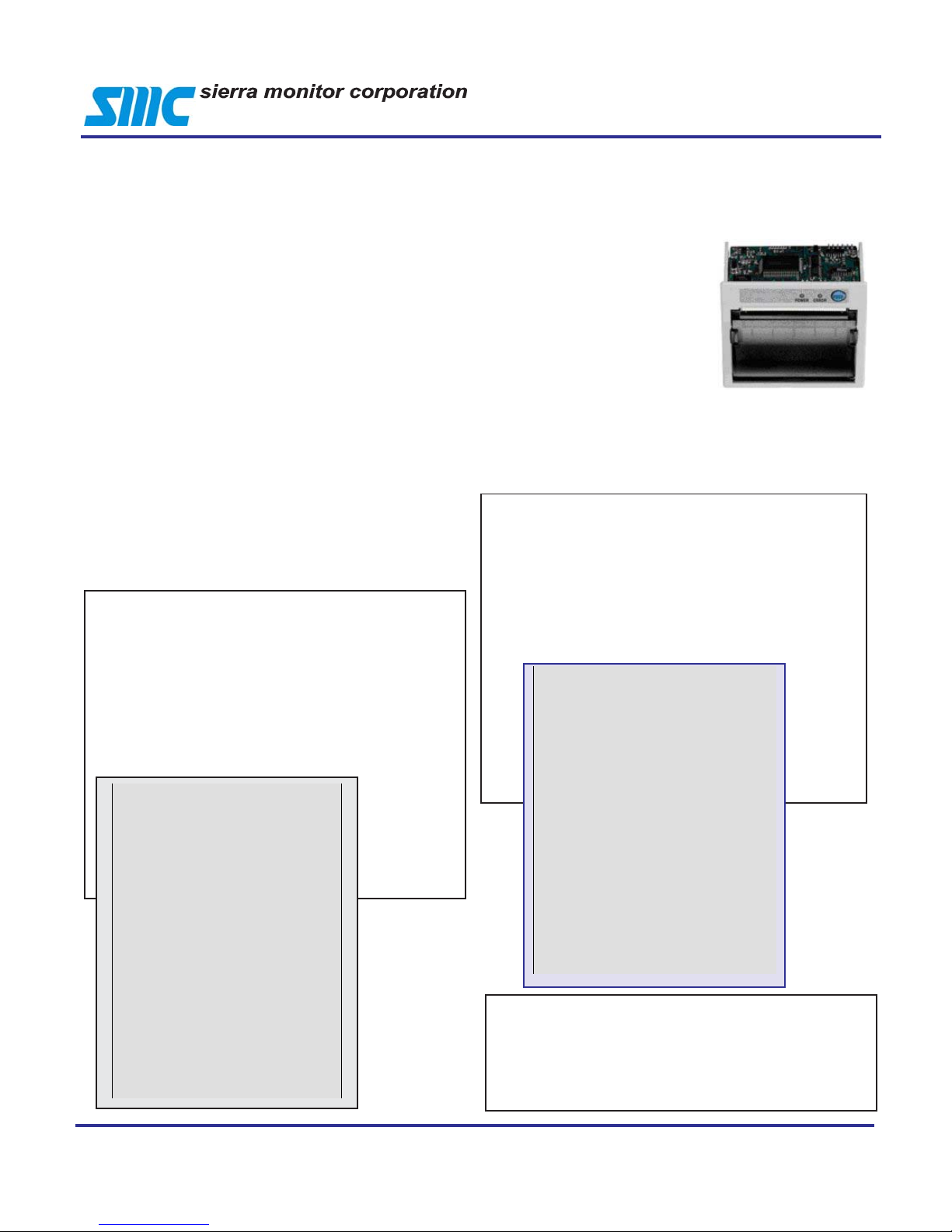

The Sentry Printer Option aids in management of
your gas risk with the ability to print a variety of
completereports.
Sentry's preformatted reports provide critical information
foranalyzinggasexposureandevaluating system reliabil-
ity. Report selection criteria are user definable. These
reports:
•Helpusermakebetterdecisionsduringagasleak
•Providehistory to analyzeall exposure events
•Substantiateduediligenceincomplyingwithregu-
lations
•Confirm the reliability of the system.
WithoptionalSentryprintersoftware,preformattedreports
canbeprintedvia the RS232 portontheSentryconnector
panel. Output is either directly from one controller to a
printeror,via the SentryMaster and Subordinatenetwork
system,from several controllersto oneprinter.
STATUS REPORT
Status Reports show a snapshot of the gas concen-
trationandalarms. The reporting intervalisuserpro-
grammable from 1 hour to 7 days. The first line indi-
cates the controller ID and date/time. The second
lineindicatesthe sensor numberandalarmcondition
(“L” for low alarm and “H” for high alarm). The third
lineindicatesthecurrentconcentration and thefourth
line indicates the gas type.
SYSTEM REPORT
The System Report lists all the system parameters
includingthesoftwareconfigurationofthesystem,cali-
brationconfiguration,printerconfigurationandconfigu-
rationforeachmodule:on/offcondition,calibrationsta-
tus,relay latching configuration,alarmlevels, module
type, the controller channel to which it is connected,
andcalibration conditions andfactors.
Sentry
Printer Option
Sierra Monitor Corp. 1991 Tarob Ct., Milpitas, CA 95035, USA, 408-262-6611, 800-727-4377, FAX: [phone]
Web Site: http://www.sierramonitor.com E-Mail: [e-mail]
©2009by Sierra MonitorCorporation
The Sentry Printer is a modern, high-speed, quiet, ultra
compact,state-of-the-artprinterthat can operate aseither
a serial or parallel output printer.
Thisprinterutilizesthermal paper
and thus no ink! It has minimal
moving parts, easy maintenance
with self-diagnostics, and easy
paperloadingwithaclamshellde-
sign. Standardpowerforthe5301-
10 is 12-24 VDC. An optional
power supply is available to en-
able an operator to use 120VAC
power..
Printer (5301-10)
5301-10 Serial/ParallelCompact Printer
SPL69207 120V Power Supply
SPL69205 Thermal Paper for Compact Printer
DIAGNOSTIC REPORT
TheDiagnosticReportliststhe critical voltage conditions
foreachmoduleand can beselectedtoprint periodically
at intervals from 1 to 90 minutes.
--------------------------------
<STATUS REPORT>
ID:A STATUS = 01 HOUR 12/17 15:00
1 2 3 4 5 6 7 8
03 04 20.9 20.9 08 08 18 19
H2S COMB OXY OXY COMB COMB COMB COMB
---------------------------------
<STATUS REPORT>
ID:A STATUS = 01 HOUR 12/17 16:00
1L 2 3 4 5 6 7 8
03 04 20.9 20.9 08 09 08 08
H2S COMB OXY OXY COMB COMB COMB COMB
---------------------------------
<STATUS REPORT>
ID:A STATUS = 01 HOUR 12/17 17:00
1 2 3 4 5 6 7 8
13 04 20.9 20.9 08 09 22 19
H2S COMB OXY OXY COMB COMB COMB COMB
--------------------------------------
<STATUS REPORT>
ID:A STATUS = 01 HOUR 12/17 18:00
1H 2 3L 4 5 6 7L 8
23 04 19.5 20.9 08 06 40 19
H2S COMB OXY OXY COMB COMB COMB COMB
---------------------------------
<SYSTEM REPORT>
ID:A USER # = 1 12/17 15:08
M5000 VER:4.19
PN 8C
CALIBRATION CONFIGURATION:
LC: OFF CAL FREQ= 90 DAYS
H2S = 20 CAL DUE = 88 DAYS
COMB= 60 CAL DUE = 89 DAYS <SEL>
PRINTER CONFIGURATION:
PRINTER: ON STATUS = 07 DAYS HIST:YES
H2S : MIN. CONC. = 05 CHANGE = 03
COMB: MIN. CONC. = 08 CHANGE = 13
MODULE CONFIGURATION :
MODULE 1 IS ON H2S CHANNEL=1
LA= 10 NLATCH HA= 20 LATCH
FACTOR(S)= 100 150 200
MODULE 2 IS ON COMB CHANNEL 2

PRINTER
ACCESSORIES
KEY EVENT REPORT
When any module reading exceeds a preset minimum
level an Event Report is generated. After the sensor is
abovetheminimumlevel,anychangegreaterthanapre-
set change concentration will cause another Event Re-
port to print. The Event Report prints all module num-
bersandtheir present reading. Thisconciserecord pro-
vides information for better decision-making before an
alarmlevelis reached.
CALIBRATION REPORT
TheCalibrationReportprintsautomaticallyuponcomple-
tion of calibration. The report indicates which gas type
was calibrated, the gas concentration and the planned
frequencyofcalibration. Foreachmodulethereportlists
thepercent change duringcalibration,the peak concen-
tration and the zero and span sensor voltages. Module
sensitivity is also checked. Proper sensitivity requires
thatthevoltagedifferenceobtainedinair(1st voltage)and
with span gas (2nd voltage) is sufficient to get adequate
resolution.
HISTORY REPORT
The History Report lists the last time each significant
event has occurred. This includes system power inter-
ruption, history reset, alarm and concentration informa-
tionforeachsensor,calibrationtime for each sensorand
anerrorlog. AHistoryReportcanbe printed eachtimea
programmedStatusReportisprinted.These recordsare
usefulin establishing thepresenceof gasduringthe pe-
riodanddocumenting the company’sduediligence in its
gasmonitoringefforts.
WARM START REPORT
At any time the system is warm started due to a power
failure, a report is generated to show the system soft-
ware configuration, the result of an internal diagnostic
sequence and the power down and power up date and
times.
----------------------------------------
ID:A <KEY EVENT REPORT> 12/17 14:27
1 2 3 4 5 6 7 8
05 03 23 29 07 02 01 02
----------------------------------------
ID:A <KEY EVENT REPORT> 12/17 14:35
1 2 3 4 5 6 7 8
07 03 23 25 08 02 01 02
----------------------------------------
ID:A <KEY EVENT REPORT> 12/17 14:37
1L 2 3 4 5L 6 7 8
11 03 23 25 12 02 02 03
----------------------------------------
ID:A <KEY EVENT REPORT> 12/17 14:40
1H 2 3 4 5L 6 7 8
21 04 23 24 12 03 09 02
----------------------------------------
ID:A <KEY EVENT REPORT> 12/17 14:45
1H 2 3 4 5L 6 7L 8
35 04 22 24 13 03 20 02
----------------------------------------
ID:A <KEY EVENT REPORT> 12/17 14:56
1H 2 3 4 5 6 7L 8
----------------------------
<CALIBRATION REPORT>
ID:A USER # =0 12/18 10:03
GAS TYPE : COMB
CALIB CONC= 60
CAL FREQ= 90 DAYS
GLOBAL CALIB: OFF
>MODULE # = 2
% CHANGE = +01 %FS
PEAK CONC. = 61
1ST VOLTAGE = +0.073
2ND VOLTAGE = +0.810
>MODULE # = 3
% CHANGE = -15 %FS
PEAK CONC. = 45
1ST VOLTAGE = +1.649
2ND VOLTAGE = +1.395
>MODULE # = 4
LOW SENSIVITY
% CHANGE = +01 %FS
PEAK CONC. = 61
1ST VOLTAGE = +0.073
2ND VOLTAGE = +0.816
----------------------------------------
<HISTORY REPORT>
ID:A USER # =1 12/17 15:08
HISTORY RESET AT: 02/01 10:59
POWER DOWN AT:12/17 13:34
POWER UP AT:12/17 13:44
MODULE 1 PPM H2S
LOW ALARM 12/13 05:07
HIGH ALARM 12/17 15:07
LOWEST CONC = 00 12/16 10:59
HIGHEST CONC = 23 12/17 15:07
LAST CALIBRATED :02/15 14:33
MODULE 2 %LEL COMB
LOW ALARM 12/10 12:08
HIGH ALARM 00/00 00:00
LOWEST CONC = 00 12/16 11:36
HIGHEST CONC = 45 12/10 12:35
LAST CALIBRATED :02/16 11:35
MODULE 3 %LEL COMB
LOW ALARM 12/10 11:57
HIGH ALARM 12/10 12:20
LOWEST CONC = 00 03/16 10:59
Sierra Monitor Corp. 1991 Tarob Ct., Milpitas, CA 95035, USA, 408-262-6611, 800-727-4377, FAX: [phone]
Web Site: http://www.sierramonitor.com E-Mail: [e-mail]
©2009by Sierra MonitorCorporation
Sentry Printer
SPECIFICATIONS for Printer 5301-10
PRINTING: DirectThermal
CHARACTERSperLINE: 16 cpi, 24 cpi, 32 cpi, 42 cpi
CHARACTERSIZE 9x24 dots, 12x24 dots, 16x24 dots,
24x24 dots
RESOLUTION 203 dpi, 8 dots/mm
PRINTWIDTH 2-inch (48 mm)
PRINTINGSPEED 50 mm/sec
INTERFACES
Sentry Controller SerialRS232
Sentry Commander Parallel
FieldServer SerialRS232
DIMENSIONS 3.2 x 3.95 x 2.2 inches (80 x 75 x 55
mm)
PAPER Thermal Roll 57 mm wide; 40 mm
diameter, spproximately 20m long
POWER 12V-24V DC
OPERATIINGTEMP. 32 - 113oF (0-45oC)
