Sierra SRF-35/40 User manual

WWW.MVPGROUPCORP.COM
1
OPERATOR’S MANUAL
Sierra Fryers
Model SRF-35/40
(3 Burner Fryer)
! WARNING
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or
death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing
this equipment.

WWW.MVPGROUPCORP.COM
2
SAFETY PRECAUTIONS
Before installing and operating this equipment, be sure everyone involved in its operation is fully trained and
aware of precautions. Accidents and problems can be caused by failure to follow fundamental rules and
precautions.
The following symbols, found throughout this manual, alert you to potentially dangerous conditions to the
operator, service personnel, or to the equipment.
!DANGER
This symbol warns of immediate hazards that will result in severe injury or
death.
!WARNING
This symbol refers to a potential hazard or unsafe practice that could result in
injury or death.
!CAUTION
This symbol refers to a potential hazard or unsafe practice that could result in
injury, product damage, or property damage.
NOTICE
This symbol refers to information that needs special attention or must be fully
understood, even though not dangerous.
!WARNING
FIRE HAZARD
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
Keep area around appliances free and clear of combustibles.
Purchaser of equipment must post in a prominent location, detailed
instructions to be followed in the event the operator smells gas. Obtain the
instructions from the local gas supplier.
!WARNING
BURN HAZARD
Contact with hot oil will cause severe burns. Always use caution. Oil at 200F is more dangerous than
boiling water.
!WARNING
In the event a gas odor is detected, shut down equipment at the combination gas valve and contact
the local gas company or gas supplier for service.

WWW.MVPGROUPCORP.COM
3
NOTICE
Sierra Fryers are intended for commercial use only. Not for household use.
Warranty will be void if service work is performed by other than a qualified technician, or if other than
genuine Sierra replacement parts are installed.
Be sure this Operator’s Manual and important papers are given to the proper authority to retain for
future reference.
Congratulations! You have purchased one of the finest pieces of commercial cooking equipment on the
market.
You will find that your new equipment, like all Sierra equipment, has been designed and manufactured to
meet the toughest standards in the industry. Each piece of Sierra equipment is carefully engineered and
designs are verified through laboratory tests and field installations. With proper care and field maintenance,
you will experience years of reliable, trouble-free operation. For best results, read this manual carefully.
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
MODELS
This manual is for Sierra Fryers with 35-40-lb. capacity frypots. The capacity is described on the serial plate
that is located inside the front door on the left side.
Table of Contents
Specifications .........................................................................................................................4
Installation ..............................................................................................................................5
Operation..............................................................................................................................11
Cooking Hints .......................................................................................................................13
Cleaning ...............................................................................................................................13
Service (for authorized service technician only)..................................................................15
Parts .....................................................................................................................................20
Fryer warranty (NONE TRANSFERABLE)...........................................................................24
Read these instructions carefully before attempting installation. Installation and initial startup should be
performed by a qualified installer. Unless the installation instructions for this product are followed by a
qualified service technician (a person experienced in and knowledgeable with the installation of commercial
gas and/or electric cooking equipment) then the terms and conditions on the Manufacturer’s Limited
Warranty will be rendered void and no warranty of any kind shall apply.

SIERRA FRYERS SPECIFICATIONS
WWW.MVPGROUPCORP.COM
4
SPECIFICATIONS
SPECIFICATIONS

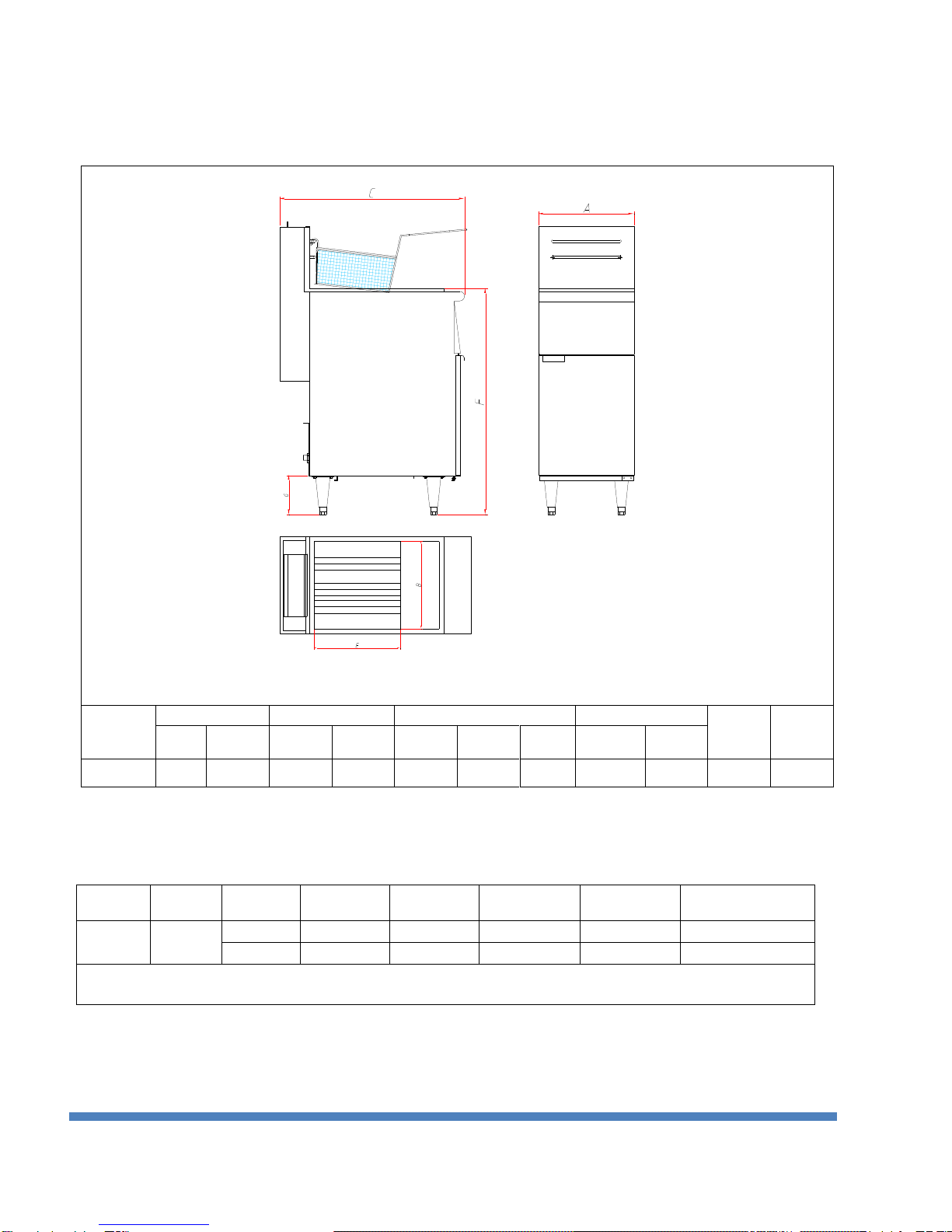

DIMENSIONS
Note: for mm, multiply inches by 25.4
Model
Width (in)
Depth (in)
Height (in)
Gas Connection (in)
Total
BTU/hr.
Crated
Weight
(lbs)
A
B
C
D
E
F
G
H
I
SRF-35/40
15.5
14.0
30.3
14.0
47.2
36.2
6.0
4.2
8.0
90,000
150
GAS SUPPLY AND BURNER INFORMATION
Supply pressure should be minimum of 4" W.C. for natural gas or 10" W.C. for propane. The fryer comes with ¾”
NPT male connector on a ½” pipe, allowing you to connect with either ¾” or ½” NPT female connector.
Model
Burners
Gas Type
Manifold
Pressure
Number of
heat tube
Rate Each
BTUs / Hour
Total Rate
BTUs / Hour
Orifice Size
SRF-35/40
Main
Natural
4" W.C.
3
30,000
90,000
#39
Propane
10" W.C.
3
30,000
90,000
#52
* Minimum supply pressure is 4" W.C. for natural gas and 10" W.C. for propane.
** Orifice sizes are for units installed at altitudes between 0 and 2000 feet above sea level.

SIERRA FRYERS SERVICE
WWW.MVPGROUPCORP.COM
5
SERVICE
INSTALLATION
NOTICE
Installation must conform with local codes, or in the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1, Natural Gas Installation Code, CAN/CGA-B149.1, or the Propane
Installation Code, CAN/CGA-B149.2, as applicable.
NOTICE
These installation procedures must be followed by qualified personnel or warranty will be void.
Local codes regarding installation vary greatly from one area to another. The National Fire Protection
Association, Inc. states in its NFPA 96 latest edition that local codes are the “authority having
jurisdiction” when it comes to installation requirements for equipment.
Step 1: Unpack
IMMEDIATELY INSPECT FOR SHIPPING DAMAGE
All containers should be examined for damage before and during unloading. The freight carrier has
assumed responsibility for safe transit and delivery. If damaged equipment is received, either
apparent or concealed, a claim must be made with the delivering carrier.
Apparent damage or loss must be noted on the freight bill at the time of delivery. The freight bill must
then be signed by the carrier representative (Driver). If the bill is not signed, the carrier may refuse
the claim. The carrier can supply the necessary forms.
A request for inspection must be made to the carrier within 15 days if there is concealed damage or
loss that is not apparent until after the equipment is uncrated. The carrier should arrange an
inspection. Be certain to hold all contents plus all packing material.
1. Uncrate carefully. Report any hidden damage to the freight carrier IMMEDIATELY.
2. Do not remove any tags or labels until unit is installed and working properly.

SIERRA FRYERS SERVICE
WWW.MVPGROUPCORP.COM
6
SERVICE
Step 2: Install the Legs (or Casters) and Restraints
A set of legs (or optional casters) is packed with the fryer. Mounting fasteners are pre-mounted on the base
plates.
1. Raise fryer sufficiently to allow legs or casters to be screwed into the base plate. For safety,
“shore up” and support the fryer with an adequate blocking arrangement strong enough to
support the load.
2. Screw the four legs or casters to the plate on the bottom of the fryer. When casters have been
ordered, the casters having a locking-brake should be attached under the front of the fryer.
3. Lower the fryer gently. Never drop or allow the fryer to fall.
4. Use a level to make sure that the fryer is level. Each caster, or the tubular-end of each leg, can
be screwed in or out to lower or raise each corner of the fryer.
5. If optional casters are installed, attach restraints as required by local codes. (See notice below)
NOTICE
Unit must be level to assure maximum performance. Improper leveling may void warranty.
NOTICE
When this appliance is installed with casters, it must be installed with the casters supplied, a
connector complying with either ANSI Z21.69 CSA 6.16 and a quick-disconnect device complying
with ANSI Z21.41 CSA 6.9. It must also be installed with restraining means to guard against
transmission of strain to the connector, as specified in the appliance manufacturer instructions.
!WARNING
If disconnection of the restraint is necessary to move the appliance for cleaning, etc., reconnect it
when the appliance is moved to its original installed position.
!WARNING
When this appliance is installed with casters, it must be installed with the casters supplied, a
connector complying with either ANSI Z21.69 or CAN/CGA-6.16 and a quick disconnect device
complying with either ANSI Z21.41 or CAN1-6.9. It must also be installed with restraining means to
guard against transmission of strain to the connector, as specified in the appliance manufacturer's
instructions.
!WARNING
All fryers must be restrained to prevent tipping in order to avoid the splashing of hot liquid. The means
of restraint may be the manner of installation.

SIERRA FRYERS SERVICE
WWW.MVPGROUPCORP.COM
7
SERVICE
Step 3: Flue Installation
1. Unpack the flue box and flue wrap
2. Slide the flue box over the flue and secure it with the two self-tapping screws using a 5/16” socket
3. Slide the flue wrap over the flue

SIERRA FRYERS SERVICE
WWW.MVPGROUPCORP.COM
8
SERVICE
4. Secure it with four self-tapping screws two on the back and one on each side using a 5/16” socket

SIERRA FRYERS SERVICE
WWW.MVPGROUPCORP.COM
9
SERVICE
Step 4: Check Clearances and Ventilation
Select a firm, level location for your fryer. Leave clearance, whenever possible, so that access from the rear
is possible to permit cleaning. If the unit is to be set on non-combustible flooring, such as a concrete slab, 3
inches minimum toe room must be provided to prevent restriction of the air opening in the bottom of the unit.
!WARNING
There must be adequate clearance between fryer(s) and construction. Clearance must also be
provided in front for servicing and for operation.
Minimum Clearances:
From Combustible Construction
Sides 6 inches
Rear 6 inches
ALL SIERRA FRYERS SHALL BE INSTALLED WITH AT LEAST A 16 INCH SPACE BETWEEN THE
FRYER AND SURFACE FLAMES FROM ADJACENT EQUIPMENT. A FLAME GUARD IS
ACCEPTABLE IF ALLOWED UNDER LOCAL CODE.
No additional side and rear clearance is required for service as the fryer is serviceable from the front.
!WARNING
Improper ventilation can result in personal injury or death. Ventilation that fails to properly remove flue
products can cause headaches, drowsiness, nausea, or could result in death.
Unit Must be installed under a ventilation hood
All units must be installed in such a manner that the flow of combustion and ventilation air is not
obstructed. Provisions for adequate air supply must also be provided. Do NOT obstruct the bottom
front of the unit, as combustion air enters through this area. Be sure to inspect and clean the
ventilation system according to the ventilation equipment manufacturer’s instructions.
Due to the variety of problems that can be caused by outside weather conditions, venting by canopies or wall
fans is preferred over any type of direct venting. It is recommended that a canopy extend 6" past the
appliance and the bottom edge be located 6'6" from the floor. Filters should be installed at an angle of 45° or
more from the horizontal. This position prevents dripping of grease and facilitates collecting the run-off
grease in a drip pan, unusually installed with a filter. A strong exhaust fan tends to create a vacuum in the
room and may interfere with burner performance or may extinguish pilot flames. Fresh air openings
approximately equal to the fan area will relieve such a vacuum. In case of unsatisfactory performance on
any appliance, check the appliance with the exhaust fan in the “OFF” position. Do this only long enough to
check equipment performance, then turn hood back on and let it run to remove any exhaust that may have
accumulated during the test.
The exhaust fan should be installed at least 2 feet above the vent opening at the top of the fryer.
Make sure all ventilation meet local code requirement
This unit is not intended to be connected directly to an outside flue.

SIERRA FRYERS SERVICE
WWW.MVPGROUPCORP.COM
10
SERVICE

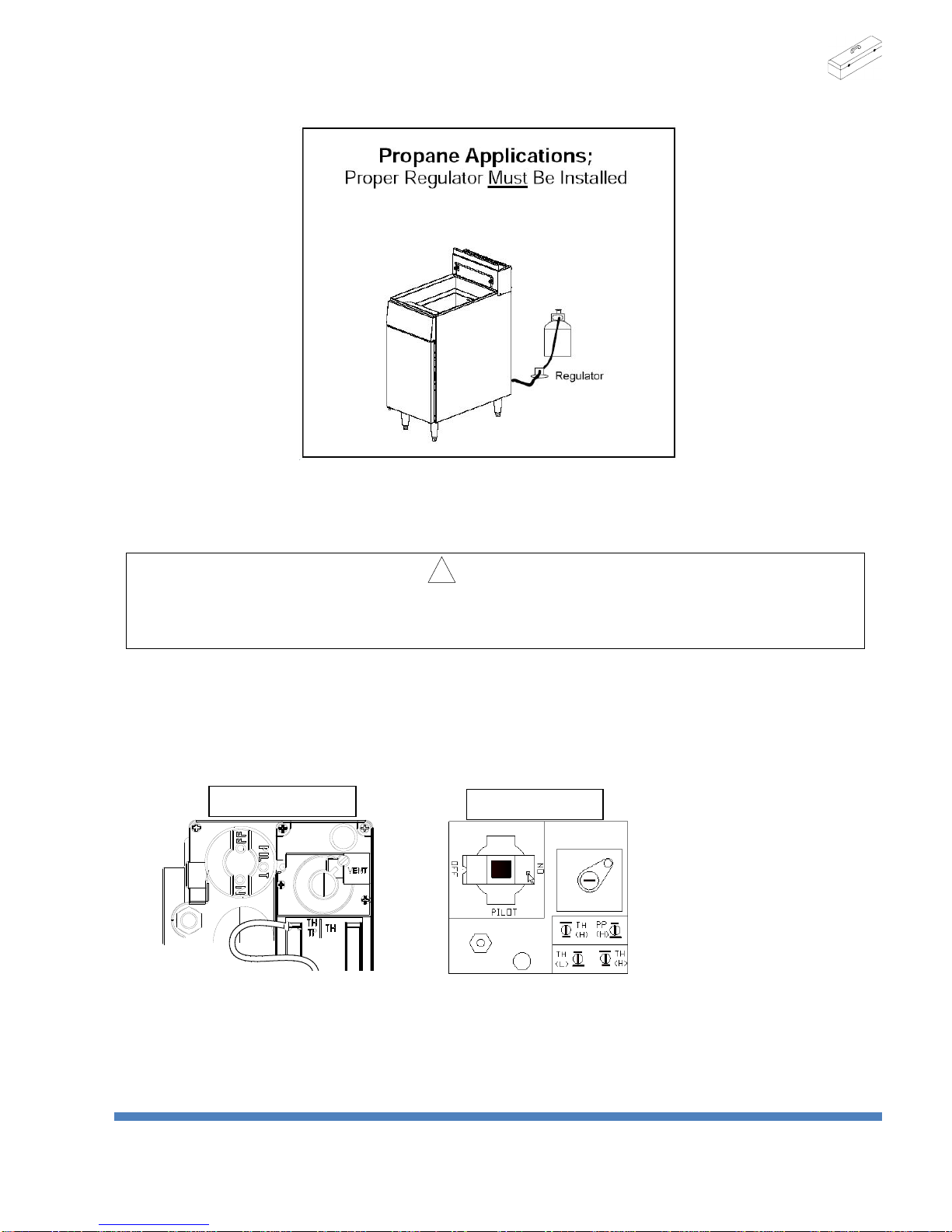

Step 5: Gas Connection
A 3/4" male NPT line for the gas connection is located near the lower right rear corner of the fryer. The serial
plate (located inside the front door of the fryer) indicates the type of gas the unit is equipped to burn (natural
gas or propane). The fryer should be connected ONLY to the type of gas for which it is equipped.

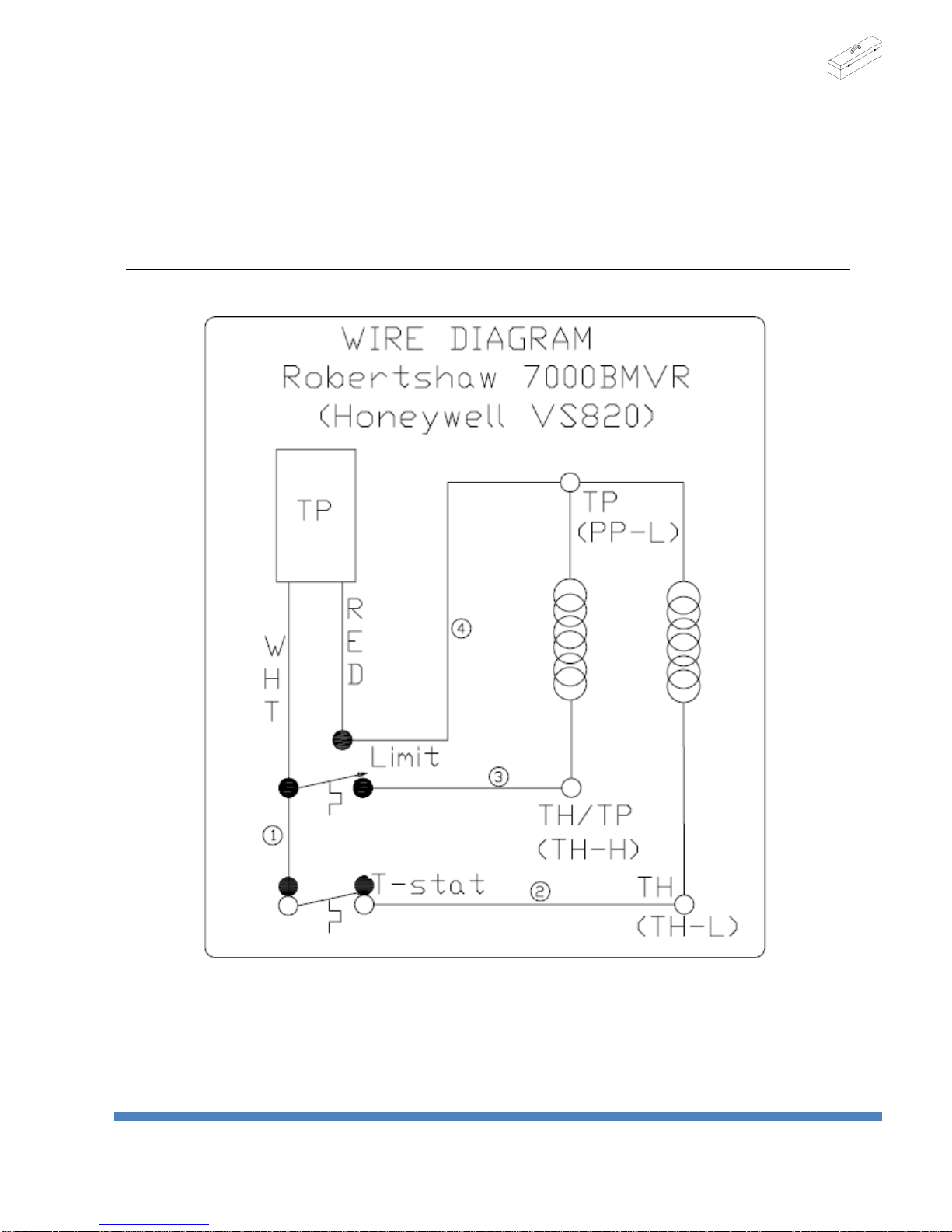

A circuit diagram is located inside the front door of the fryer.
All SIERRA equipment is adjusted at the factory; however, pilot height should be checked at installation and
adjusted, if necessary.
For orifice sizes and pressure regulator settings, see the chart on page 4. If the fryer is being installed at over
2,000 feet altitude and that information was not specified when ordered, contact the appropriate authorized
SIERRA Service Representative or the SIERRA Service Department. Failure to install with proper orifice
sizing will result in poor performance and may void the warranty.
If applicable, the vent line from the gas appliance pressure regulator shall be installed to the outdoors in
accordance with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI
Z223.1, Natural Gas Installation Code, CAN/CGA-B149.1, or the Propane Installation Code, CAN/CGA-
B149.2, as applicable.
An adequate gas supply is imperative. Undersized or low pressure lines will restrict the volume of gas
necessary for satisfactory performance. A combination gas valve and pressure regulator, which is provided
with each unit, is set to maintain a 4" W.C. manifold pressure for natural gas or 10.0" W.C. manifold pressure
for propane gas. However, to maintain these conditions the pressure on the supply line, when all units are
operating simultaneously, should not drop below 7" W.C. for natural gas or 11" W.C. for propane gas.
Fluctuations of more than 25% on natural gas or 10% on propane gas will create problems and affect burner
operating characteristics. A 1/8" tap to measure the manifold pressure is located on the combination gas
valve, which is on the burner manifold located directly below the burners inside the cabinet.
Purge the supply line to clean out dust, dirt, or other foreign matter before connecting the line to the unit.
It is recommended that an individual manual shutoff valve be installed in the gas supply line to the unit.
Use pipe joint compound that is suitable for use with both natural and LP gas on all threaded connections.
!CAUTION
ALL PIPE JOINTS AND CONNECTIONS MUST BE TESTED THOROUGHLY FOR GAS LEAKS.
USE ONLY SOAPY WATER FOR TESTING ON ALL GASES. NEVER USE AN OPEN FLAME TO
CHECK FOR GAS LEAKS. ALL CONNECTIONS MUST BE CHECKED FOR LEAKS AFTER THE
UNIT HAS BEEN PUT INTO OPERATION. TEST PRESSURE SHOULD NOT EXCEED 14" W.C.
!CAUTION
THIS APPLIANCE AND ITS INDIVIDUAL COMBINATION GAS VALVE MUST BE DISCONNECTED
FROM THE GAS SUPPLY PIPING SYSTEM DURING ANY PRESSURE TESTING OF THAT
SYSTEM AT TEST PRESSURES IN EXCESS OF 14”WC (1/2 PSIG or 3.45 kPa).
If the incoming gas pressure is in excess of 14"WC (1/2PSI, 3.45 kPa), a proper
step-down regulator will be required. See PHOTO 1 for LP application
Connect the gas supply directly to the 3/4" male NPT connector located near the lower left rear corner of the
fryer. When tightening the supply pipe, be sure to hold the mating connector extending from the unit securely
with a wrench. This will prevent any damage or distortion to the internal piping and controls of the unit.
After connecting the gas supply, check again that the fryer is level. Use a long spirit level four ways; across
the front and rear of the frypot, and along each edge.

SIERRA FRYERS SERVICE
WWW.MVPGROUPCORP.COM
11
SERVICE
PHOTO 1
OPERATION
LIGHTING
!CAUTION
IF YOU SMELL GAS DURING THE LIGHTING PROCEDURE, IMMEDIATELY SHUT OFF THE GAS
SUPPLY UNTIL THE LEAK HAS BEEN CORRECTED.
Open the burner compartment door and do the following:
1. Turn thermostat to “OFF”
2. Press down the knob of the combination gas valve, turn it counterclockwise to the “PILOT” position
(shown), and continue to press the knob down.
3. While pressing the knob down, use a lit match to ignite the pilot. Continue to press the knob
down for about 30 seconds. If the pilot does not stay lit when the knob is released, repeat the
lighting procedure and keep the knob down longer. Adjustment of pilot flame may be necessary.
4. When the pilot stays lit, turn the knob counterclockwise to the “ON” position. Do not press down
on the knob in this step.
Invensys 7000BMVR
Honeywell VS8200

SIERRA FRYERS SERVICE
WWW.MVPGROUPCORP.COM
12
SERVICE
5. Do NOT turn the thermostat “ON” until the frypot is filled with liquid shortening.
6. Once the frypot is filled with shortening, set the thermostat to the desired temperature
FILLING THE FRYPOT
1. Close drain valve completely before filling the frypot.
2. When the fryer is new, fill the frypot with water and clean thoroughly (see “Weekly Cleaning” on
page 14) in order to remove protective coatings and any foreign matter.
3. The recommended solid shortening capacity for the frypot (35lbs) is described on the serial plate
(which is located inside the front door).
4. Remove the basket support frame when filling the frypot with solid shortening.
5. When solid shortening is used, be careful not to bend, break, or twist the thin capillary wires of
the sensing elements located in the frypot.
6. Pack solid shortening into the zone below the tubes, all spaces between the tubes, and at least
an inch above the top of the tubes before lighting the fryer. If any air spaces are left around the
heat tube surfaces when the heat is turned on, the tube surfaces will become red hot, burn the
solid shortening, weaken the frypot, and could result in a fire. Gradual heating is required for
solid shortening.
!CAUTION
NEVER ATTEMPT TO MELT A SOLID BLOCK OF SHORTENING ON TOP OF THE HEAT TUBES.
NEVER START THE BURNERS WHEN THE FRYPOT IS EMPTY.
7. To prevent burning or scorching the solid shortening, keep the thermostat set at the lowest
temperature until all the solid shortening between and above the tubes has been melted.
Additional solid shortening can then be added until the desired frying depth has been reached.
8. Replace the basket support frame over the frypot heat tubes.
SHUTDOWN PROCEDURE
Standby: Turn knob on the combination gas valve to the “PILOT” position. At this setting, only the pilot burner
will remain ignited.
Complete Shutdown: Turn knob on the combination gas valve clockwise, press down on the knob and
continue to turn to the “OFF” position.
RELIGHTING
!WARNING
In the event of a main burner ignition failure, a five minute purge period must be observed prior to re-
establishing the ignition source.
1. Shut off all gas.
2. Wait five minutes.
3. Follow the “Lighting” procedure described on page 11.

SIERRA FRYERS SERVICE
WWW.MVPGROUPCORP.COM
13
SERVICE
AUTOMATIC PILOT VALVE (SAFETY SHUT-OFF VALVE)
The Automatic Pilot Valve provides an automatic safety shutoff for the fryer when the pilot flame is
extinguished. When the pilot flame is burning, the valve is held open electromagnetically by the electrical
current from a thermopile in the pilot flame. When the pilot flame goes out, generation of current ceases and
the valve closes automatically.
HIGH LIMIT CONTROL
SIERRA Fryers are equipped with a secondary heat control that prevents the oil temperature from rising
above 450F. (Because of the accuracy tolerance of the sensor, the oil temperature may reach as high as
475F.)
In the event the fryer shuts down due to this condition, the oil must be cooled to below 400F before the pilot
burner can be re-ignited. When the oil has cooled, use the “Lighting” procedure on page 11 to place the fryer
back in operation. If the problem persists, contact your SIERRA Service Representative or the SIERRA
Service Department.
COOKING HINTS
USER TIPS
•Smoking oil means that the temperature is too high, or that the oil has broken down.
•Gum in frypot denotes a need for thorough cleaning (see “Weekly Cleaning” on page 14)
•Use different oil for oily foods (fish, heavily seasoned foods, etc.) than for foods with water-soluble
flavors (potatoes, onions, etc.).
•Taste cool oil for quality. Replace it regularly.
•Poor oil cannot produce good food.
CLEANING
SIERRA equipment is constructed with the best quality materials and is designed to provide durable service
when properly maintained. To expect the best performance, your equipment must be maintained in good
condition and cleaned daily. Naturally, the frequency and extent of cleaning depends on the amount and
degree of usage.
Following daily and more extensive periodic maintenance procedures will increase the life of your equipment.
Climatic conditions (e.g., salt air) may result in the need for more thorough and more frequent cleaning in
order to keep equipment performing at optimal levels.
!WARNING: BURN HAZARD
If necessary to move the fryer for cleaning, etc., drain oil first to avoid death or serious injury.
!WARNING
If disconnection of the restraint is necessary to move the appliance for cleaning, etc., reconnect it
when the appliance is moved to it originally installed position.

SIERRA FRYERS SERVICE
WWW.MVPGROUPCORP.COM
14
SERVICE
DAILY CLEANING
1. Turn thermostat knob to “OFF” position.
2. Place hot-oil safe container under the drain.
3. Open drain valve and drain frypot shortening completely.
4. Remove the basket support frame (if applicable) and flush out any sediment remaining in the
frypot with a little hot oil.
5. Wipe off the basket support frame and the inside of the frypot with a clean cloth.
!CAUTION
SOME AREAS OF THE FRYPOT MAY BE HOT!
6. Close drain valve and strain the oil back into the frypot through several thicknesses of
cheesecloth, or filter it back using a filter machine.
7. Replace the basket support frame (if applicable)
8. Add oil or shortening to MIN oil level mark on rear of frypot.
9. To resume cooking, turn the combination gas valve knob to “ON” position.
WEEKLY CLEANING
1. Follow steps 1 through 4 of the Daily Cleaning procedure (see previous section).
2. Close drain valve and fill frypot with a solution of warm water and boil-out compound
3. Relight the fryer and bring the solution to a gentle boil for at least five minutes.
4. Turn off main burners and let the solution stand until the gum deposits are softened and the
carbon spots and burned grease spots can be rubbed off.
5. Scrub the frypot walls and heat tubes with an approved high temperature cleaning brush/tool,
then drain out frypot and rinse it with clean water.
6. Refill the frypot with clean water and boil again.
7. Turn off gas and drain and rinse well until clean.
8. Wipe dry with a clean cloth.
9. Refill as specified in the “Filling the Frypot” section (see page 13).
MONTHLY CLEANING
1. Perform the Weekly Cleaning procedure (see previous section).
2. Clean around burner and orifices if lint has accumulated.
3. Visually check that burner carry-over ports are unobstructed.
CLEANING STAINLESS STEEL SURFACES
To remove normal dirt, grease and product residue from stainless steel use ordinary soap and water (with or
without detergent) applied with a sponge or cloth. Dry thoroughly with a clean cloth. Never use vinegar or
any corrosive cleaner.
To remove grease and food splatter or condensed vapors that have baked on the equipment apply cleanser
to a damp cloth or sponge and rub cleanser on the metal in the direction of the polishing lines on the metal.

SIERRA FRYERS SERVICE
WWW.MVPGROUPCORP.COM
15
SERVICE
Rubbing cleanser, as gently as possible, in the direction of the polished lines will not mar the finish of the
stainless steel. NEVER RUB WITH A CIRCULAR MOTION. Soil and burnt deposits that do not respond to
the above procedure can usually be removed by rubbing the surface with SCOTCH-BRITE brand scouring
pads or STAINLESS scouring pads. DO NOT USE ORDINARY STEEL WOOL, as any particles left on the
surface will rust and further spoil the appearance of the finish. NEVER USE A WIRE BRUSH, STEEL
SCOURING PADS (EXCEPT STAINLESS), SCRAPER, FILE OR OTHER STEEL TOOLS. Surfaces that are
marred collect dirt more rapidly and become more difficult to clean. Marring also increases the possibility of
corrosive attack. Refinishing may then be required.
Darkened areas, called “heat tint,” sometimes appear on stainless steel surfaces where the area has been
subjected to excessive heat. These darkened areas are caused by thickening of the protective surface of the
stainless steel and are not harmful. Heat tint can normally be removed by the above cleaning techniques, but
tint which does not respond to that procedure calls for a vigorous scouring in the direction of the polish lines,
using SCOTCH-BRITE brand scouring pads or a STAINLESS scouring pad in combination with a powered
cleanser. Heat tint action may be lessened by not applying or by reducing, heat to equipment during slack
periods.
SERVICE (FOR AUTHORIZED SERVICE TECHNICIAN ONLY)
NOTICE
Warranty will be void and the manufacturer is relieved of all liability if:
(A) Service work is performed by other than a qualified technician (see page 30 for detail)
OR
(B) Other than approved SIERRA replacement parts are installed.
!WARNING
Adjustments and service work may be performed only by a qualified technician who is experienced in,
and knowledgeable with, the operation of commercial gas cooking equipment. However, to assure
your confidence, contact your SIERRA Service Representative for reliable service, dependable
advice or other assistance, and for genuine factory parts.
All units are adjusted at the factory. In case of problems in operation at initial installation, check type of gas
and manifold pressure and compare with information listed on the serial plate.
A mill voltage circuit diagram is located inside the front door of the fryer, and also on page 19.

SIERRA FRYERS SERVICE
WWW.MVPGROUPCORP.COM
16
SERVICE
CHECKING AND ADJUSTING MAIN BURNERS
The main burners should burn with a steady blue flame, and the inner cone of the flame from each port
should be about 3/4" long. The flame from each main burner should enter each heat tube without
touching the front of the frypot or the sides, top, or bottom of each tube.

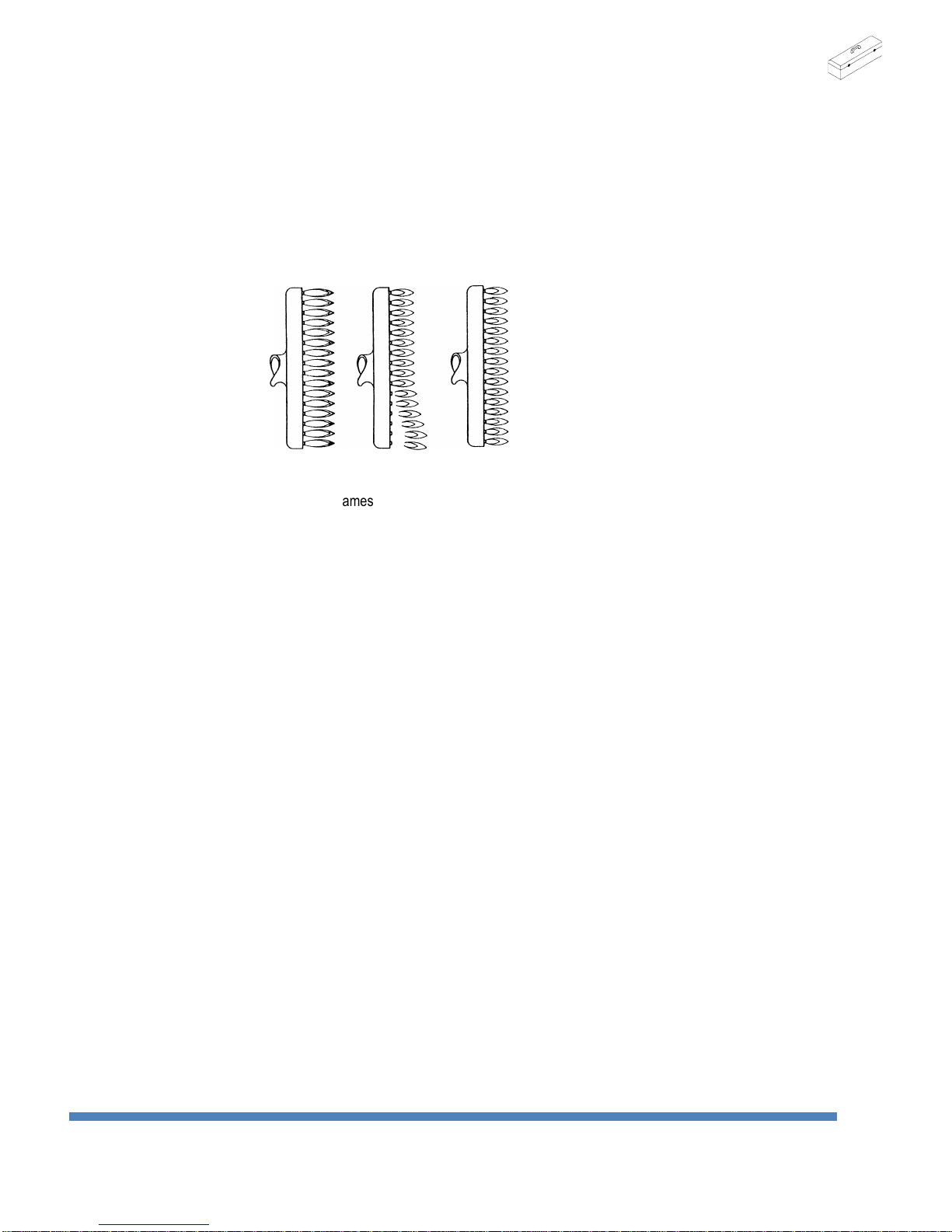

Normal Flame
Blowing or Lifting
Flames
(too much air)
Yellow Tips
(too little air or too much gas)

SIERRA FRYERS SERVICE
WWW.MVPGROUPCORP.COM
17
SERVICE
CHECKING AND ADJUSTING PRESSURE REGULATOR
The combination gas valve (includes pressure regulator) is factory set at 4" W.C. for natural gas and 10"
W.C. for propane gas. To check the manifold pressure, do the following:
1. Turn thermostat “OFF” and combination gas valve knob to the “PILOT” setting.
2. Remove pressure tap plug from burner manifold located directly below the burners in the
cabinet.
3. Install a fitting appropriate to connect a manometer.
4. Turn combination gas valve to “ON” position and thermostat to “ON.” The burners will ignite. Be
certain that sufficient oil is covering the tubes.
5. With burners on, read manometer.
6. If the manometer does not read 4" W.C. for natural gas, or 10" W.C. for propane gas, adjust
regulator.
7. Remove regulator adjustment screw cap (see diagram on page 15).
8. With small screwdriver rotate adjustment screw “CLOCKWISE” to increase or
“COUNTERCLOCKWISE” to decrease pressure. Be sure to adjust with burners “ON.”
9. Turn thermostat “OFF” and set combination gas valve knob to “PILOT” position.
10. Remove manometer and replace pressure tap plug.
11. Replace adjustment screw cap.
CHECKING AND ADJUSTING CALIBRATION OF THERMOSTAT
All thermostat controls are carefully calibrated at the factory (i.e., the dial is properly set to control appliance
temperatures accurately). Only a qualified appliance service technician should perform this adjustment.
1. To check appliance temperatures, use a thermocouple-type temperature test instrument or
reliable thermometer. Place the thermocouple of test instrument or thermometer in the center of
the frypot.
2. Turn the control dial to the temperature setting requiring the greatest accuracy. Allow enough
time for temperature to stabilize, or until several temperature readings are identical.
3. Recalibrate if setting and actual temperature differ by more than 10F.
4. Remove dial from dial shaft “B.” Be careful
that dial shaft does not rotate in either
direction (which would change the dial
setting).
5. Hold dial shaft “B” steady and with a
screwdriver turn calibration screw “A”
clockwise to decrease the temperature, or
counterclockwise to increase the
temperature.
6. Replace dial. Let the appliance operate
until the temperature has stabilized before
a final check is made to determine whether
or not the calibration has been corrected.
7. Once correct, seal the calibration screw
with glyptol.

SIERRA FRYERS SERVICE
WWW.MVPGROUPCORP.COM
18
SERVICE
CHECKING AND ADJUSTING AUTO SAFETY PILOT
The pilot flame should surround the thermopile for 1/2". It must be large and sharp enough to cause the
thermopile to glow a dull red, or sufficient to hold the safety valve open.
1. Remove pilot adjustment cap
2. Adjust pilot key to provide
properly sized flame shown
in diagram B.
Diagram A shows an improperly
adjusted pilot
3. Replace pilot adjustment cap.
TROUBLESHOOTING
Problem
Likely Cause
Burners do not come on
Gas supply to unit off.
Combination gas valve is in “OFF” or “PILOT” position.
Pilot not ignited.
Thermostat not “ON.”
Inadequate gas pressure
Pilot will not stay ignited
Combination gas valve is in “OFF” position.
Pilot gas not adjusted properly.
Gas supply to unit off.
Bad thermopile.
Dirty thermopile connections at combination gas valve or high limit.
Clogged orifice.
Draft condition.
Air in gas line.
Inadequate gas pressure
Improper ventilation system.
Pilot produces carbon deposits
Unit connected to wrong gas supply.
Pressure not adjusted correctly.
Pilot gas not adjusted correctly.
Burners produce carbon deposits
Wrong size orifices.
Connected to wrong gas supply.
Pressure not adjusted correctly.
Flue obstructed.

SIERRA FRYERS SERVICE
WWW.MVPGROUPCORP.COM
19
SERVICE
NOTE: Vibrations or shock caused by shaking or pounding baskets on top surface or by slamming door may
cause Hi-Limit Control Switch to open. If this condition persists, additional cushioning may be added to the
rubber grommets supporting this control to absorb these shocks.
Wiring Diagram

SIERRA FRYERS
WWW.MVPGROUPCORP.COM
20
PARTS
NOTICE
INSTALLATION OF OTHER THAN GENUINE SIERRA PARTS WILL VOID THE WARRANTY ON
THIS EQUIPMENT.
The serial plate is located inside the front door on the left side.
Replacement parts may be ordered either through a SIERRA Authorized Parts Distributor or a SIERRA
Authorized Service Agency.
When ordering parts, please supply the Model Number, Serial Number, Part Number, and Description.
Index of Part Diagrams
Page Number
Description
21
Gas Parts
22
Tank Parts
23
Other parts (Legs, Casters, baskets, doors, magnet)
