SIGEYI AXO PM01 User manual

)
AXO/AXOccPower Meter
User Guide
For Model AXOPM01/AXOPM012/AXOPM013/AXOcc PM014 English)
)
AXO/AXOccPower Meter
User Guide
For Model AXOPM01/AXOPM012/AXOPM013/AXOccPM014 English)
)
AXO/AXOccPower Meter
User Guide
For Model AXOPM01/AXOPM012/AXOPM013/AXOccPM014 English)
)
AXO/AXOccPower Meter
User Guide
For Model AXOPM01/AXOPM012/AXOPM013/AXOccPM014 English)

CONTENT
CONNECT TO CYCLING-
COMPUTER AND SMART PHONE
SLEEP MODE
INSTALLATION
CALIBRATION/ZERO RESET
AXOor AXOccPower Meter×1
Stickers×1
User Guide×1
Magnetic Charging Cable×1 for AXO
CR2032×1, Cell Cover×2 for AXOcc
Thoroughly clean up the surfacebetween
the crank and spider till no grease or dust
on it.
Please install the spiderto the crankarm
according to the tightening torque marked
on the spider.
Please install the chainringto the spider
according to the tightening torque printed
on the chainringʼs instruction book.
After correctly install, use the power meter
for 1 or 2 times, it would beaccurate as it
should.
Please make sure that the crankarm is on
the right side of the charging port when
you install AXO.Damage caused by
incorrect installation isbeyond the scope
of the warranty.
Rotate the crankarm backward at any
time.
When Power Meter is under no-load
(Feet leave from pedals and pedals do
not touch anything), pressthe cycling-
computerʼsʻ calibrateʼ button to
perform zeroreset.
AXO/AXOccPower Meter will enter into sleep
mode automatically after 5 minutes
of inactivity to save power. Rotate the
crankarm to activate it.
AXO/AXOccPower Meter is a precision
mechanical measuringequipment.
Please note to keep clean and accuracy
during installing.
AXO/AXOccPower Meter can be zeroed
without any manual operation. If
manual zeroreset is needed, there are
2 ways:
Rotate the crankarm to activate AXO
power meter.
Cycling computer
Turn on the cycling-computer,search
power meters and connect AXO/AXOcc
directly, or enter itʼs ANTID to connect.
Phone
When connectingto a smart phone,
please turn on smart phoneʼs Bluetooth
and choose AXO/AXOccinAPP directly.
DO NOT pair in the Bluetooth Setting of
the smart phone.
·
·
·
·
·
CONTENT
CONNECT TO CYCLING-
COMPUTER AND SMART PHONE
SLEEP MODE
INSTALLATION
CALIBRATION/ZERO RESET
AXOor AXOccPower Meter×1
Stickers×1
User Guide×1
Magnetic Charging Cable×1 for AXO
CR2032×1, Cell Cover×2 for AXOcc
Thoroughly clean up the surfacebetween
the crank and spider till no grease or dust
on it.
Please install the spiderto the crankarm
according to the tightening torque marked
on the spider.
Please install the chainringto the spider
according to the tightening torque printed
on the chainringʼs instruction book.
After correctly install, use the power meter
for 1 or 2 times, it would beaccurate as it
should.
Please make sure that the crankarm is on
the right side of the charging port when
you install AXO.Damage caused by
incorrect installation is beyond the scope
of the warranty.
Rotate the crankarm backward at any
time.
When Power Meter is under no-load
(Feet leave from pedals and pedals do
not touch anything), pressthe cycling-
computerʼsʻ calibrateʼ button to
perform zeroreset.
AXO/AXOccPower Meter will enter into sleep
mode automatically after 5 minutes
of inactivity to save power. Rotate the
crankarm to activate it.
AXO/AXOccPower Meter is a precision
mechanical measuringequipment.
Please note to keep clean and accuracy
during installing.
AXO/AXOccPower Meter can be zeroed
without any manual operation. If
manual zeroreset is needed, there are
2 ways:
Rotate the crankarm to activate AXO
power meter.
Cycling computer
Turn on the cycling-computer,search
power meters and connect AXO/AXOcc
directly, or enter itʼs ANTID to connect.
Phone
When connectingto a smart phone,
please turn on smart phoneʼs Bluetooth
and choose AXO/AXOccinAPP directly.
DO NOT pair in the Bluetooth Setting of
the smart phone.
·
·
·
·
·
CONTENT
CONNECT TO CYCLING-
COMPUTER AND SMART PHONE
SLEEP MODE
INSTALLATION
CALIBRATION/ZERO RESET
AXOor AXOccPower Meter×1
Stickers×1
User Guide×1
Magnetic Charging Cable×1 for AXO
CR2032×1, Cell Cover×2 for AXOcc
Thoroughly clean up the surfacebetween
the crank and spider till no grease or dust
on it.
Please install the spiderto the crankarm
according to the tightening torque marked
on the spider.
Please install the chainringto the spider
according to the tightening torque printed
on the chainringʼs instruction book.
After correctly install, use the power meter
for 1 or 2 times, it would beaccurate as it
should.
Please make sure that the crankarm is on
the right side of the charging port when
you install AXO.Damage caused by
incorrect installation is beyond the scope
of the warranty.
Rotate the crankarm backward at any
time.
When Power Meter is under no-load
(Feet leave from pedals and pedals do
not touch anything), pressthe cycling-
computerʼsʻ calibrateʼ button to
perform zeroreset.
AXO/AXOccPower Meter will enter into sleep
mode automatically after 5 minutes
of inactivity to save power. Rotate the
crankarm to activate it.
AXO/AXOccPower Meter is a precision
mechanical measuringequipment.
Please note to keep clean and accuracy
during installing.
AXO/AXOccPower Meter can be zeroed
without any manual operation. If
manual zeroreset is needed, there are
2 ways:
Rotate the crankarm to activate AXO
power meter.
Cycling computer
Turn on the cycling-computer,search
power meters and connect AXO/AXOcc
directly, or enter itʼs ANTID to connect.
Phone
When connectingto a smart phone,
please turn on smart phoneʼs Bluetooth
and choose AXO/AXOccinAPP directly.
DO NOT pair in the Bluetooth Setting of
the smart phone.
·
·
·
·
·
CONTENT
CONNECT TO CYCLING-
COMPUTER AND SMART PHONE
SLEEP MODE
INSTALLATION
CALIBRATION/ZERO RESET
AXOor AXOccPower Meter×1
Stickers×1
User Guide×1
Magnetic Charging Cable×1 for AXO
CR2032×1, Cell Cover×2 for AXOcc
Thoroughly clean up the surfacebetween
the crank and spider till no grease or dust
on it.
Please install the spiderto the crankarm
according to the tightening torque marked
on the spider.
Please install the chainringto the spider
according to the tightening torque printed
on the chainringʼs instruction book.
After correctly install, use the power meter
for 1 or 2 times, it would beaccurate as it
should.
Please make sure that the crankarm is on
the right side of the charging port when
you install AXO.Damage caused by
incorrect installation is beyond the scope
of the warranty.
Rotate the crankarm backward at any time.
When Power Meter is under no-load
(Feet leave from pedals and pedals do
not touch anything), pressthe cycling-
computerʼsʻ calibrateʼ button to
perform zeroreset.
AXO/AXOccPower Meter will enter into sleep
mode automatically after 5 minutes
of inactivity to save power. Rotate the
crankarm to activate it.
*Please performmanually calibration after power
meter installation or changing the chainring.
AXO/AXOccPower Meter is a precision
mechanical measuringequipment.
Please note to keep clean and accuracy
during installing.
AXO/AXOccPower Meter can be zeroed
without any manual operation. If manual
zero reset is needed, there are 2 ways:
Rotate the crankarm to activate AXO
power meter.
Cycling computer
Turn on the cycling-computer,search
power meters and connect AXO/AXOcc
directly, or enter itʼs ANTID to connect.
Phone
When connectingto a smart phone,
please turn on smart phoneʼs Bluetooth
and choose AXO/AXOccinAPP directly.
DO NOT pair in the Bluetooth Setting of
the smart phone.
·
·
·
·
·

SPECIFICATIONS
BATTERY
Accuracy:±1%
Power Measurement Range: 0~2000W
Cadence Measurement Range: 30~220RPM
Operation Temp: -20℃~50℃
Battery Life: 300hours
(for given temperature of 25°C)
Standby Time: >1year
Data Protocol: ANT+,Bluetooth 4.0
Waterproof Level: IP67
Weight: 101g AXO SRAM-3-4-110Version
Data: Power/Cadence/LRbalance
Warranty: 2 years
AXO
AXOcc
Check Battery Level
The AXOPower Meter should be charged
with a 5VACUSB adapter and a paired
magnetic chargingcable. Oncecharging
begins, the LED will light up. When
charging is completed, the LED will go off.
It takes 3~4hours to fully charge the
battery.
When battery is very low, data accuracy
may decrease.Please charge in time.
Use CR2032button battery, battery life
depends on the battery capacity.
When battery is very low, data accuracy
may decrease.Please change battery in
time.
Battery level can be checked inʻ Power
Meter Detailsʼ on the cycling computer or
SIGEYI App.
battery is very low,
please charge
battery is very low,
please charge
battery is Low
battery is OK
battery is Good
battery is NEW
When power meter
is woken up :

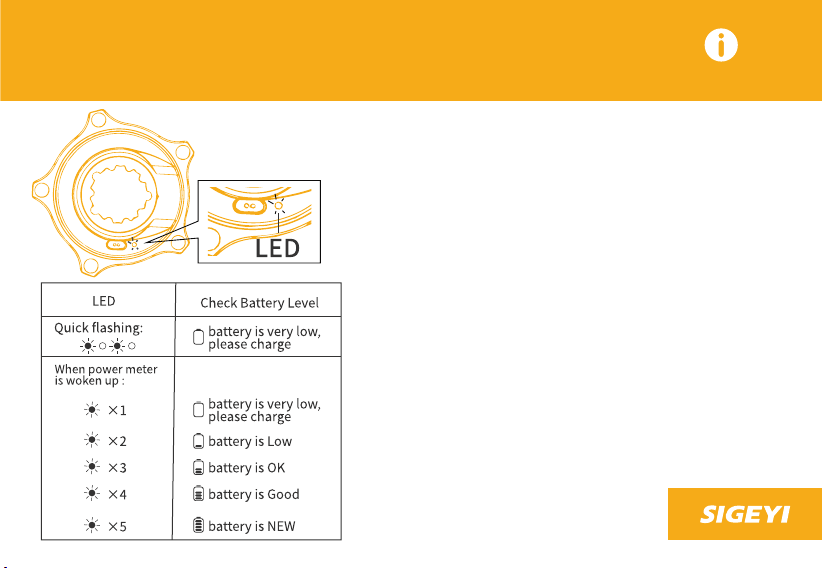

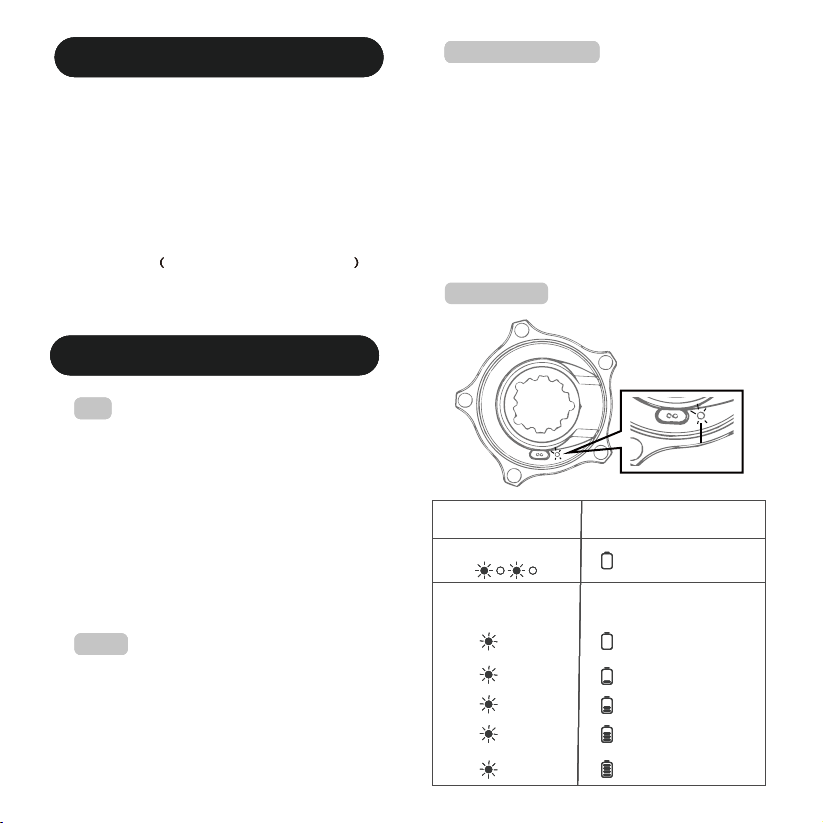

LED Check Battery Level
× 2
× 1
× 3
× 4
× 5
Quick flashing:
SPECIFICATIONS
BATTERY
Accuracy:±1%
Power Measurement Range: 0~2000W
Cadence Measurement Range: 30~220RPM
Operation Temp: -20℃~50℃
Battery Life: 300hours
(for given temperature of 25°C)
Standby Time: >1year
Data Protocol: ANT+,Bluetooth 4.0
Waterproof Level: IP67
Weight: 101g AXO SRAM-3-4-110Version
Data: Power/Cadence/LRbalance
Warranty: 2 years
AXO
AXOcc
Check Battery Level
The AXOPower Meter should be charged
with a 5VACUSB adapter and a paired
magnetic chargingcable. Oncecharging
begins, the LED will light up. When
charging is completed, the LED will go off.
It takes 3~4hours to fully charge the
battery.
When battery is very low, data accuracy
may decrease.Please charge in time.
Use CR2032button battery, battery life
depends on the battery capacity.
When battery is very low, data accuracy
may decrease.Please change battery in
time.
Battery level can be checked inʻ Power
Meter Detailsʼ on the cycling computer or
SIGEYI App.
battery is very low,
please charge
battery is very low,
please charge
battery is Low
battery is OK
battery is Good
battery is NEW
When power meter
is woken up :
LED Check Battery Level
× 2
× 1
× 3
× 4
× 5
Quick flashing:
SPECIFICATIONS
BATTERY
Accuracy:±1%
Power Measurement Range: 0~2000W
Cadence Measurement Range: 30~220RPM
Operation Temp: -20℃~50℃
Battery Life: 300hours
(for given temperature of 25°C)
Standby Time: >1year
Data Protocol: ANT+,Bluetooth 4.0
Waterproof Level: IP67
Weight: 101g AXO SRAM-3-4-110Version
Data: Power/Cadence/LRbalance
Warranty: 2 years
AXO
AXOcc
Check Battery Level
The AXOPower Meter should be charged
with a 5VACUSB adapter and a paired
magnetic chargingcable. Oncecharging
begins, the LED will light up. When
charging is completed, the LED will go off.
It takes 3~4hours to fully charge the
battery.
When battery is very low, data accuracy
may decrease.Please charge in time.
Use CR2032button battery, battery life
depends on the battery capacity.
When battery is very low, data accuracy
may decrease.Please change battery in
time.
Battery level can be checked inʻ Power
Meter Detailsʼ on the cycling computer or
SIGEYI App.
battery is very low,
please charge
battery is very low,
please charge
battery is Low
battery is OK
battery is Good
battery is NEW
When power meter
is woken up :
LED Check Battery Level
× 2
× 1
× 3
× 4
× 5
Quick flashing:
SPECIFICATIONS
BATTERY
Accuracy:±1%
Power Measurement Range: 0~2000W
Cadence Measurement Range: 30~220RPM
Operation Temp: -20℃~50℃
Battery Life: 300hours
(for given temperature of 25°C)
Standby Time: >1year
Data Protocol: ANT+,Bluetooth 4.0
Waterproof Level: IP67
Weight: 101g AXO SRAM-3-4-110Version
Data: Power/Cadence/LRbalance
Warranty: 2 years
AXO
AXOcc
Check Battery Level
LED Flashing
The AXOPower Meter should be charged
with a 5VACUSB adapter and a paired
magnetic chargingcable. Oncecharging
begins, the LED will light up. When
charging is completed, the LED will go off.
It takes 3~4hours to fully charge the
battery.
When battery is very low, data accuracy
may decrease.Please charge in time.
Use CR2032button battery, battery life
depends on the battery capacity.
When battery is very low, data accuracy
may decrease.Please change battery in
time.
Battery level can be checked inʻ Power
Meter Detailsʼ on the cycling computer or
SIGEYI App.
Please try to avoid the battery level below
10%. Battery over dischargewill cause
irreversible damage to the battery. If you
do not ride for a long time, please fully
charge the battery first.
battery is very low,
please charge
battery is very low,
please charge
battery is Low
battery is OK
battery is Good
battery is NEW
When power meter
is woken up :
LED Check Battery Level
× 2
× 1
× 3
× 4
× 5
LED
Quick flashing:

FIRMWARE UPGRADE
CONTACT
DISCLAIMER
SIGEYI provides a dedicated app for
firmware updates.
For firmware update procedures, please
visit SIGEYI oicial website: www.sig-
eyi.cn.
Email [e-mail]
Oicial website www.sigeyi.cn
INS: sigeyi_cycling
The company reserves the right to change
product specifications without notifying
the individual user.
Except for charging and daily cleaning, no
attempt should be made to adjust or alter
the power meter.
When cleaning the power meter, use only
neutral detergent water dampened cloth to
wipe off dirt and debris.Never use any
harsh cleaning chemicals that may damage
the plastic housing or corrode the
magnetic chargingmetal contacts.
AXOand AXOccare designed tobe fully
waterproof to withstand wet weather
conditions. However, do not place the
power meter into water.Do not spray the
power meter directly with high pressure
water.
The operating temperature range for AXO
or AXOcc is ‒20°Cto 50°C.Do not use it in
temperatures outside this range, otherwise
it may cause damage to the power meter.
Do not subject the crankset or the power
meter to strong shocks, otherwise it may
cause damage.
Make sure the power meter and related
parts are installed correctly.
For AXOcc,after cleaning or wet weather
condition using,please open the Cell
Cover, clean up and dry the inside. The
normal operation of the power meter will
not be affected by the water entering the
cell case, but the battery life may shorten.
Sweat may corrodethe metal parts of the
power meter.Please clean it, especially
after usingthe bike trainer.
MAINTENANCE
·
·
·
·
·
·
·
·
FIRMWARE UPGRADE
CONTACT
DISCLAIMER
SIGEYI provides a dedicated app for
firmware updates.
For firmware update procedures, please
visit SIGEYI oicial website: www.sig-
eyi.cn.
Email [e-mail]
Oicial website www.sigeyi.cn
INS: sigeyi_cycling
The company reserves the right to change
product specifications without notifying
the individual user.
Except for charging and daily cleaning, no
attempt should be made to adjust or alter
the power meter.
When cleaning the power meter, use only
neutral detergent water dampened cloth to
wipe off dirt and debris.Never use any
harsh cleaning chemicals that may damage
the plastic housing or corrode the
magnetic chargingmetal contacts.
AXOand AXOccare designed tobe fully
waterproof to withstand wet weather
conditions. However, do not place the
power meter into water.Do not spray the
power meter directly with high pressure
water.
The operating temperature range for AXO
or AXOcc is ‒20°Cto 50°C.Do not use it in
temperatures outside this range, otherwise
it may cause damage to the power meter.
Do not subject the crankset or the power
meter to strong shocks, otherwise it may
cause damage.
Make sure the power meter and related
parts are installed correctly.
For AXOcc,after cleaning or wet weather
condition using,please open the Cell
Cover, clean up and dry the inside. The
normal operation of the power meter will
not be affected by the water entering the
cell case, but the battery life may shorten.
Sweat may corrodethe metal parts of the
power meter.Please clean it, especially
after usingthe bike trainer.
MAINTENANCE
·
·
·
·
·
·
·
·
FIRMWARE UPGRADE
CONTACT
DISCLAIMER
SIGEYI provides a dedicated app for
firmware updates.
For firmware update procedures, please
visit SIGEYI oicial website: www.sig-
eyi.cn.
Email [e-mail]
Oicial website www.sigeyi.cn
INS: sigeyi_cycling
The company reserves the right to change
product specifications without notifying
the individual user.
Except for charging and daily cleaning, no
attempt should be made to adjust or alter
the power meter.
When cleaning the power meter, use only
neutral detergent water dampened cloth to
wipe off dirt and debris.Never use any
harsh cleaning chemicals that may damage
the plastic housing or corrode the
magnetic chargingmetal contacts.
AXOand AXOccare designed tobe fully
waterproof to withstand wet weather
conditions. However, do not place the
power meter into water.Do not spray the
power meter directly with high pressure
water.
The operating temperature range for AXO
or AXOcc is ‒20°Cto 50°C.Do not use it in
temperatures outside this range, otherwise
it may cause damage to the power meter.
Do not subject the crankset or the power
meter to strong shocks, otherwise it may
cause damage.
Make sure the power meter and related
parts are installed correctly.
For AXOcc,after cleaning or wet weather
condition using,please open the Cell
Cover, clean up and dry the inside. The
normal operation of the power meter will
not be affected by the water entering the
cell case, but the battery life may shorten.
Sweat may corrodethe metal parts of the
power meter.Please clean it, especially
after usingthe bike trainer.
MAINTENANCE
·
·
·
·
·
·
·
·
FIRMWARE UPGRADE
CONTACT
DISCLAIMER
SIGEYI provides a dedicated app for
firmware updates.
For firmware update procedures, please
visit SIGEYI oicial website: www.sig-
eyi.cn.
Email [e-mail]
Oicial website www.sigeyi.cn
Ocial Distribution for Switzerland,
Germany and Austria:
Veloparts GmbH
Im Giessen 25
8868 Oberurnen
www.velo-parts.ch
The company reserves the right to change
product specifications without notifying
the individual user.
Except for charging and daily cleaning, no
attempt should be made to adjust or alter
the power meter.
When cleaning the power meter, use only
neutral detergent water dampened cloth to
wipe off dirt and debris.Never use any
harsh cleaning chemicals that may damage
the plastic housing or corrode the
magnetic chargingmetal contacts.
AXOand AXOccare designed tobe fully
waterproof to withstand wet weather
conditions. However, do not place the
power meter into water.Do not spray the
power meter directly with high pressure
water.
The operating temperature range for AXO
or AXOcc is ‒20°Cto 50°C.Do not use it in
temperatures outside this range, otherwise
it may cause damage to the power meter.
Do not subject the crankset or the power
meter to strong shocks, otherwise it may
cause damage.
Make sure the power meter and related
parts are installed correctly.
For AXOcc,after cleaning or wet weather
condition using,please open the Cell
Cover, clean up and dry the inside. The
normal operation of the power meter will
not be affected by the water entering the
cell case, but the battery life may shorten.
Sweat may corrodethe metal parts of the
power meter.Please clean it, especially
after usingthe bike trainer.
MAINTENANCE
·
·
·
·
·
·
·
·

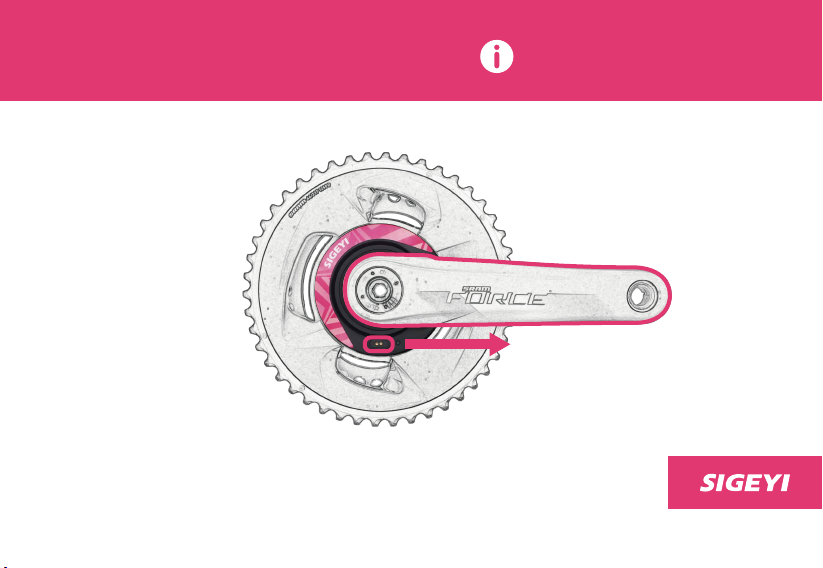

Crank position direction
Charging port
Horizontal right
Installation Notes
Please install the crank in the direction shown above.

AXO/AXOccPowerMeter will enter into sleep
mode automatically after 5 minutes of
inactivity to save power.Rotate the crankarm
to activate it.
·
Youcan also check the battery level through
the cyclingcomputer or SIGEYI APP.
For details, please refer to the power meter
user guide.
·
Please try to avoid the battery level below 10%.
Battery over discharge will cause irreversible
damage to the battery. If you do not ride for
a long time, please fully charge the battery first.
·
How to check battery level?
View by LED

How to calibrate/zero rest
Just ride
AXO/AXOcccanbe zeroed without any manual operation.
No need to care about whether your ridingwill affect itor not.
How to calibrate?
Forget it
It's auto
Important notice Please performmanually calibration after
power meter installation or changing the chainring.
For the procedure of manually calibration, please check the
Calibration/ZeroReset procedurein the user manual.
