SIGLENT TECHNOLOGIES SSA3000X Series User manual

SSA3000X Series
Spectrum Analyzer
Quick Guide

SSA3000X Series Spectrum Analyzer
SIGLENT TECHNOLOGIES CO., LTD. All Rights Reserved.
Information in this publication replaces all previously corresponding material.
SIGLENT reserves the right to modify or change parts of or all the specications or pricing policies at company’s sole decision.
Any way of copying, extracting or translating the contents of this manual is not allowed without the permission of SIGLENT.
Copyright
Information

SSA3000X Series Spectrum Analyzer
Carefully read the following safety precautions to avoid any personal injury
or damage to the instrument and any products connected to it. To avoid
potential hazards, please use the instrument as specied.
Use Proper AC Power Line
Only the power cord designed for the instrument and authorized by local
country should be used.
Ground the Instrument
The instrument is grounded through the protective earth conductor of the
power line. To avoid electric shock, please make sure the instrument is
grounded correctly before connecting its input or output terminals.
Connect the Probe Correctly
If a probe is used, do not connect the ground lead to high voltage since it has
isobaric electric potential as the ground.
Look Over All Terminals’ Ratings
To avoid re or electric shock, please look over all ratings and sign instruction
of the instrument. Before connecting the instrument, please read the manual
carefully to gain more information about the ratings.
Use Proper Overvoltage Protection
Make sure that no overvoltage (such as that caused by a thunderstorm)
can reach the product, or else the operator might be exposed to danger of
electrical shock.
General
Safety
Summary
Electrostatic Prevention
Operate the instrument in an electrostatic discharge protective area
environment to avoid damages induced by static discharge. Always ground
both the internal and external conductors of the cable to release static before
connecting.
Maintain Proper Ventilation
Inadequate ventilation may cause increasing of the instrument’s temperature,
which will eventually damage the instrument. So keep well ventilated and
inspect the intake and fan regularly.
Avoid Exposed Circuit or Components
Do not touch exposed contacts or components when the power is on.
Do Not Operate Without Covers
Do not operate the instrument with covers or panels removed.
Use Only the Specied Fuse.
Keep Product Surfaces Clean and Dry
To avoid the influence of dust and/or moisture in the air, please keep the
surface of the device clean and dry.
Do Not Operate in Wet Conditions
In order to avoid short circuiting to the interior of the device or electric shock,
please do not operate the instrument in a humid environment.
Do Not Operate in an Explosive Atmosphere
In order to avoid damage to the device or personal injury, it is important to
operate the device away from an explosive atmosphere.

SSA3000X Series Spectrum Analyzer
General
Safety
Summary
Safety Terms and Symbols
Terms on the product. These terms may appear on the product:
DANGER Indicates direct injuries or hazards that may happen.
WARNING Indicates potential injuries or hazards that may happen.
CAUTION Indicates potential damages to the instrument or other property that may happen.
Warning Hazardous
Voltage
Protective
Earth Ground
Earth
Ground
Chassis
Ground
Symbols on the product. These symbols may appear on the product:

SSA3000X Series Spectrum Analyzer
General
Care
and Cleaning
Care
Do not store or leave the instrument in direct sunshine for extended periods of time.
Notice:
To avoid damages to the instrument, please do not leave it in fog, liquid, or solvent.
Cleaning
Please perform the following steps to clean the instrument regularly according to its operating conditions.
1. Disconnect the instrument from all power sources, and then clean it with a soft wet cloth.
2. Clean the loose dust on the outside of the instrument with a soft cloth. When cleaning the LCD, take care to avoid scratching it.
Notice:
To avoid damages to the surface of the instrument, please do not use any corrosive liquid or chemical cleanser.
Make sure that the instrument is completely dry before restarting it to avoid short circuits or personal injuries.

SSA3000X Series Spectrum Analyzer
General
Inspection
1.Inspect the shipping container
Keep the damaged shipping container or cushioning material until the contents of the shipment have been completely checked and the instrument has passed both
electrical and mechanical tests.
2. Inspect the instrument
If the instrument is found to be damaged, defective or fails in electrical or mechanical tests, please contact SIGLENT.
3. Check the accessories
Please check the accessories according to the packing list. If the accessories are incomplete or damaged, please contact your SIGLENT sales representative.

SSA3000X Series Spectrum Analyzer
Appearance
and
Dimension
Figure 1 Front View Figure 2 Top View

SSA3000X Series Spectrum Analyzer
Adjust the
Supporting
Legs
Adjust the supporting legs properly to use them as stands to tilt the Spectrum Analyzer upwards for stable placement as well as easier operation and observation of
the instrument.
Before adjusting After adjusting

SSA3000X Series Spectrum Analyzer
Connect to
AC Power
Supply
The Spectrum Analyzer accept 100-240V, 50/60/440Hz AC power supply. Please use the power cord provided as accessories to connect the instrument to the power
source as shown in the gure below.

SSA3000X Series Spectrum Analyzer
General
Description
SSA3000X series spectrum analyzer has a frequency range from 9 kHz up to 2.1 GHz/3.2 GHz. It is lightweight, small and precise, offering a user friendly interface,
clear display with plenty of RF measurement functions. The product can be used for research and development, education, production, maintenance and other
relevant applications.
1
3
4
5
6
811 10 9 7
2
1、User Graphical Interface
2、Menu Control Keys
3、Function Keys
4、Numeric Keyboard
5、Knob
6、Arrow Keys
7、RF Input
8、TG Output
9、Earphone interface
10、USB Host
11、Power Switch
The Front Panel

SSA3000X Series Spectrum Analyzer
Details of the Various Functions:
Frequency: Sets the Center Freq\Start Freq\Stop Freq\Freq Step
Span: Sets the Span\Full Span\Zero Span\Zoom In\Zoom Out\Last Span
Amplitude: Used to Set the REF Level\Attenuator\Preamp\Amplitude
Auto Tune: Automatically sets the optimal parameters according to the characteristics of the signal
BW: Used to adjust the RBW,VBW,VBW/RBW Rate,Average Type (Logpower\Power\Voltage)
Trace: Selects Trace\Trace setup\Trace math
Sweep: Selects the Sweep time\Sweep Rule\Sweep Mode
Detect: Selects the Detector type
Trigger: Used in Selecting the Free Trigger\Video Trigger\External Trigger
Limit: Sets the Pass\Fail Limit
TG: Sets the TG Level\TG Level offset\Normalize
Demod: Used to set the Parameters of the AM and FM
Marker: Used to Select the Mark Trace and Marker math
Marker→:Sets all types of Markers to Freq
Marker Fn: Selects the Noise Marker\N dB BW\Freq Counter\Read out of Freq
Peak: Searches for the Peak Signal and Counts the Peak Frequency

SSA3000X Series Spectrum Analyzer
Meas: Selects the Channel Power\ACPR\Occupied BW\T-Power
Meas Setup: Used to Choose the Parameters Details of Channel Power\ACPR\Occupied BW\T-Power
System: Selects the Language\Power on/Preset\Interface\Calibration\system information\Data&Time\Self Test
Mode: Selects the opretion Mode
Display: Used to Adjust the Grid Brightness\Display Line
File: Use to Select the File system
Preset: Sets the system to default status
Couple: Used to Select the RBW\VBW\Attenuator\Freq Step\Sweep time mode
Help: Help Information Switch
Save: Save Shortcut Key

SSA3000X Series Spectrum Analyzer
1
2
3
4
5
6
78
The Rear
Panel
1、Handle
2、USB Device
3、LAN Interface
4、10MHz REF Input
5、10MHz REF Output
6、Trigger In
7、Safety Lock Hole
8、AC Power Socket

SSA3000X Series Spectrum Analyzer
1. RF INPUT
To avoid damage to the instrument, make certain that the input signal to the RF input port does not contain more than 50 Volts DC. The AC (radio frequency) input
signal component should not exceed a maximum continuous power level of +30dBm.
2. TG OUTPUT
To avoid damage to the tracking generator, The reverse DC voltage must not exceed 50V
Opertion
Notices
WARNING
WARNING

SSA3000X Series Spectrum Analyzer
User
Graphical
Interface
1、SIGLENT LOGO
2、4、5：Parameters setting area
3、Menu setting area
6、Active parameter
7、Display area
12
3
4
5
6
7

SSA3000X Series Spectrum Analyzer
For More
Product
Information
You can obtain the instrument information including model, serial number as well as hardware and software version numbers through System →Information.
For more information of this product, please refer to the following manuals (provided in the “CD” in the accessories; you can also download them from the SIGLENT
Web site):
SSA3000X Series User Manual: provides detailed introductions of the functions of this product;

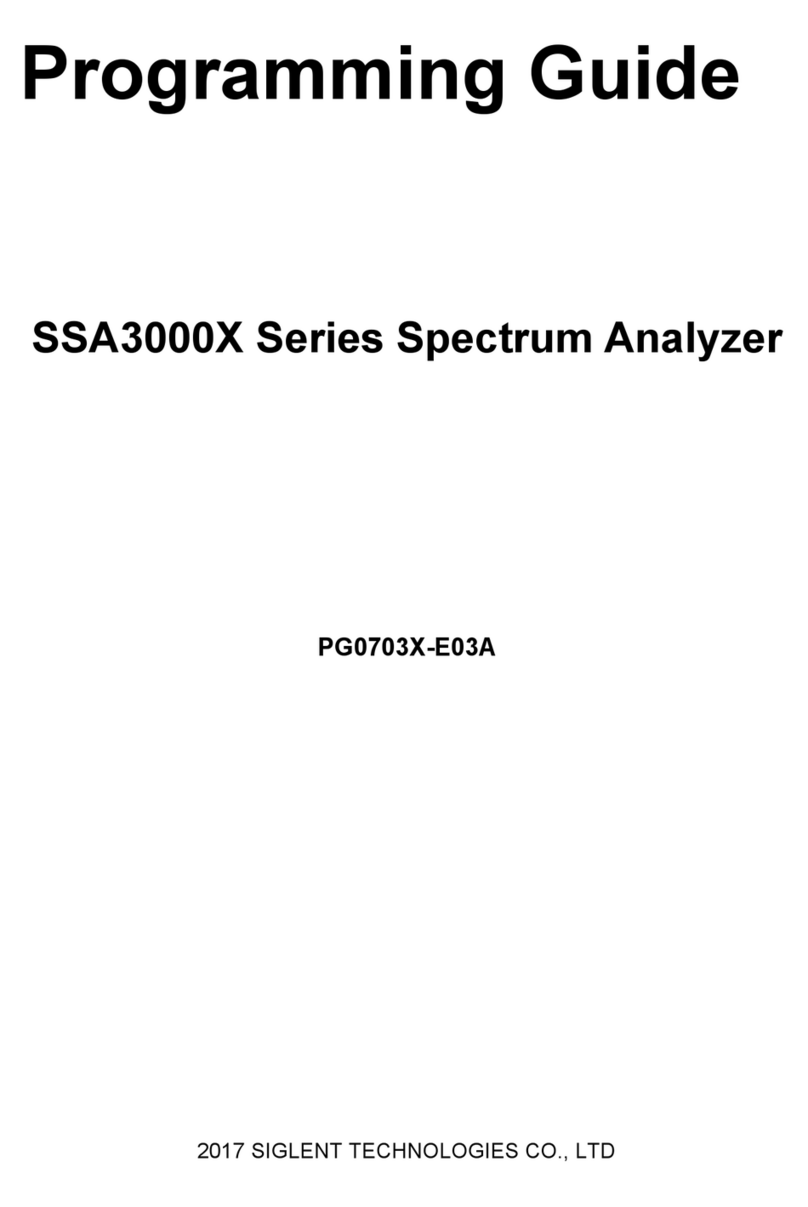

SSA3000X Series Programming Guide: provides detailed introductions of the SCPI commands and programming of this product;
SSA3000X Series Datasheet: provides the main characteristics and specications of this product;

SSA3000X Series Spectrum Analyzer
