SIGLENT TECHNOLOGIES SDS2000 Series Operator's manual

SDS2000X HD
Series
Digital Storage
Oscilloscope
Quick Start
EN01A

SDS2000X HD Quick Start I
Copyright Information
Declaration
SIGLENT products are protected by patent law in and outside of P.R.C.
SIGLENT reserves the right to modify or change parts of or all the specifications or
pricing policies at the company’s sole decision.
Information in this publication replaces all previously corresponding material.
Any method of copying, extracting or translating the contents of this manual is not
allowed without the permission of SIGLENT.
Note: SIGLENT is the registered trademark of SIGLENT TECHNOLOGIES CO.,
LTD

II SDS2000X HD Quick Start
Contents
COPYRIGHT INFORMATION ................................................................................. I
GENERAL SAFETY SUMMARY ............................................................................ 1
SAFETY TERMS AND SYMBOLS ......................................................................... 2
GENERAL CARE AND CLEANING ....................................................................... 3
GENERAL INSPECTION ....................................................................................... 4
QUICK START ....................................................................................................... 5
FRONT OF OSCILLOSCOPE ................................................................................ 7
BACK OF OSCILLOSCOPE .................................................................................. 8
PROBE COMPENSATION ..................................................................................... 9
USER INTERFACE .............................................................................................. 10
BASIC OPERATIONS .......................................................................................... 17

SDS2000X HD Quick Start 1
General Safety Summary
Carefully read the following safety precautions to avoid any personal injury or
damage to the instrument and any products connected to it. To avoid potential
hazards, please use the instrument as specified.
Use Proper Power Cord
Only the power cord designed for the instrument and authorized by local
government regulations should be used.
Ground the Instrument
The instrument is grounded through the protective earth conductor of the power
cord. To avoid electric shock, please make certain the instrument is grounded
correctly before connecting its input or output terminals.
Connect the Signal Cable Correctly
The potential of the signal cable ground is equal to the earth ground. Do not connect
the signal wire to a high voltage.
Look Over All Terminals’ Ratings
To avoid fire or electric shock, please look over all ratings and sign instructions of
the instrument. Before connecting the instrument, please read the manual carefully
to gain more information about the ratings.
Use Proper Overvoltage Protection
Make sure that no overvoltage (such as that caused by a thunderstorm) can reach
the product, or else the operator might be exposed to the danger of electrical shock.
Electrostatic Prevention
Operate in an electrostatic-protected area environment to avoid damages induced
by static discharge. Always ground both the internal and external conductors of the
cable to release a static charge before connecting.

2SDS2000X HD Quick Start
Maintain Adequate Ventilation
Inadequate ventilation may cause an increase in temperature, which may eventually
damage the instrument. Maintain suitable ventilation and inspect the fan and intake
regularly.
Avoid Exposed Circuits and Components
Do not touch exposed contacts or components when the instrument's power is on.
Use Only the Specified Fuse
Do Not Operate Without Covers
Do not operate the instrument with covers or panels removed.
Safety Terms and Symbols
Terms used in this product. These terms may appear in the product:
DANGER
Indicates direct injury or hazards that may happen.
WARNING
Indicates potential injury or hazards that may happen.
CAUTION
Indicates potential damage to the instrument or other property that
may happen.
Symbols used in this product. These symbols may appear on the product:
Hazardous
Voltage
Protective
Earth Ground
Warning
Earth
Ground
Power
Switch

SDS2000X HD Quick Start 3
General Care and Cleaning
Care
Do not store or leave the instrument in direct sunshine for extended periods of time.
To avoid damages to the instrument or probes, please do not expose them to fog,
liquid, or solvents.
Cleaning
Please perform the following steps to clean the instrument and probes regularly in
accordance with its operating conditions.
1. Disconnect the instrument from all power sources and then clean with a soft
wet cloth.
2. Clean the loose dust on the outside of the instrument and probe with a soft
cloth. When cleaning the LCD, take care to avoid scratching it.
To avoid damage to the surface of the instrument and probe, please do not use any
corrosive liquid or chemical cleansers.
Make sure that the instrument is completely dry before restarting it to avoid potential
short circuits or personal injury.

4SDS2000X HD Quick Start
General Inspection
1. Inspect the shipping container
Keep the damaged shipping container or cushioning material until the contents of
the shipment have been completely checked and the instrument has passed both
electrical and mechanical tests.
The consigner or carrier will be responsible for damages to the instrument resulting
from shipment. SIGLENT would not provide free maintenance or replacement if the
instrument has been damaged in shipment.
2. Inspect the instrument
If there are instruments found damaged, defective or failure in electrical and
mechanical tests, please contact SIGLENT.
3. Check the accessories
Please check the accessories according to the packing list. If the accessories are
incomplete or damaged, please contact your SIGLENT sales representative.

SDS2000X HD Quick Start 5
Quick Start

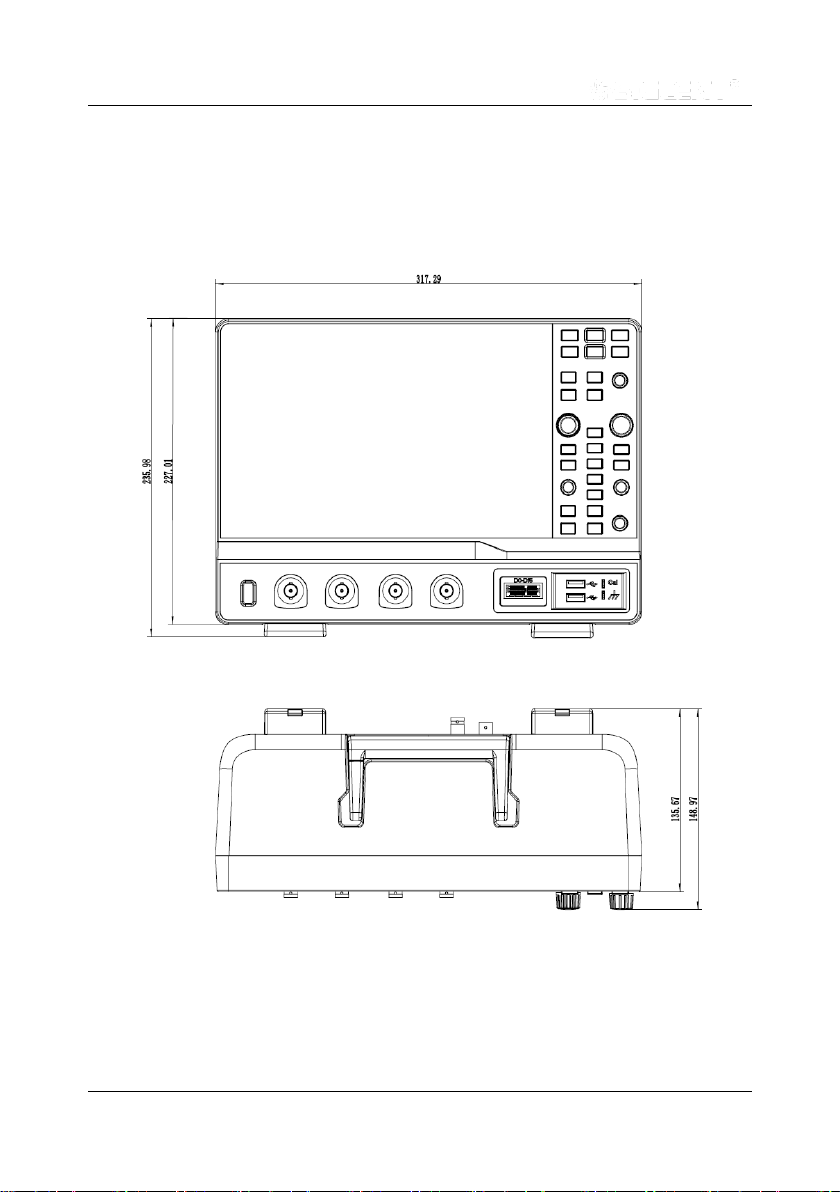

Mechanical Dimension
Front View
Top View

6SDS2000X HD Quick Start
Adjust the Supporting Legs
Adjust the supporting legs properly to use them as stands to tilt the oscilloscope
upwards for stable placement as well as easier operation and observation of the
instrument.
Connecting to Power Supply
The standard power supply for the instrument is 100~240 V, 50/60 Hz. Please use
the power cord provided with the instrument to connect it to AC power.

SDS2000X HD Quick Start 7
Front of Oscilloscope
Touch Screen Display The
display and major functions
area. See "User Interface" for
more details
USB 2.0 Host Ports Connect
to USB storage devices for
data transfer or USB
mouse/keyboard for control
Front Panel Includes knobs
and buttons. See "Front Panel"
for more details
Digital Input Connector
Analog Input Connectors
Probe Compensation /
Ground Terminal
Power Switch
Supporting Legs

8SDS2000X HD Quick Start
Back of Oscilloscope
Ext Trigger Input
USB 2.0 Device Connects with
a PC for remote control
Built-in Waveform Generator
Output
USB 2.0 Host Connect with a
USB storage device or USB
mouse/keyboard
Auxiliary Out Outputs the
trigger indicator. When Mask
Test is enabled, outputs the
pass / fail signal
AC Power Input
Handle
100M LAN Port Connect the
port to the network for remote
control

SDS2000X HD Quick Start 9
Probe Compensation
All oscilloscope probes should be properly compensated before their first use with
the oscilloscope. A non-compensated or inadequately compensated probe may
cause inaccurate measurement. The following steps illustrate the proper probe
compensation procedure.
1. Use the probe to connect the CH1 Input Terminal and the Compensation
Signal Output Terminal on the front panel. Connect the ground alligator
clip of the probe to the “Ground Terminal” under the compensation signal
output terminal.
2. Check the displayed waveforms and compare them with the following figure.
Under
Compensated
Compensated
Correctly
Over
Compensated
3. Use a nonmetallic flat-head screwdriver to adjust the low-frequency
compensation adjustment hole on the probe until the waveform matches the
“Compensated Correctly” waveform above.

10 SDS2000X HD Quick Start
User Interface
Menu Bar
Grid Area displays the waveform traces. Traces can be moved by dragging
them and re-scaled by pinch and spread
Channel descriptor boxes include analog channels (C1 ~ C4), digital
channels (D), math (F1-F2) and reference (Ref). They show the
parameters of the corresponding traces. Touching the boxes creates a
dialog box
Timebase and Trigger Descriptor Boxes show the parameters of timebase
and trigger respectively. Touching the boxes creates a dialog box
Dialog Box is the main area to select the parameters for a chosen specific
function
Trigger Delay Indicator locates where the trigger is on the horizontal axis
Trigger Level Indicator shows the level where the waveform triggers
Cursors show where measurement points have been set

SDS2000X HD Quick Start 11
Channel Descriptor Box
Channel Index
Coupling and Input Impedance
Vertical Scale
Vertical Offset
Bandwidth Information
Probe Attenuation Factor
Timebase and Trigger Descriptor Boxes
Trigger delay
Horizontal scale（timebase）
# Samples
Sample Rate
Trigger source
Trigger coupling
Trigger mode
Trigger level
Trigger type
Trigger slope

12 SDS2000X HD Quick Start
Dialog Box
The dialog box on the right side of the screen is the main area for setting the
parameters of the selected function.
Title bar. Touching the bar can hide the
dialog box, and touching again can
open the dialog box
Parameter setting area
Scroll bar. When parameters are more
than the displayed range, the blue
scrollbar will be displayed. By sliding
the dialog area up and down, or rolling
the mouse wheel, it can scroll to the
area not displayed

SDS2000X HD Quick Start 13
To Set Parameters
Several different ways are provided to set parameters:
Switch – sets parameters with two states,
such as to enable or disable a function.
Touch the switch region to change from
one state to the other.

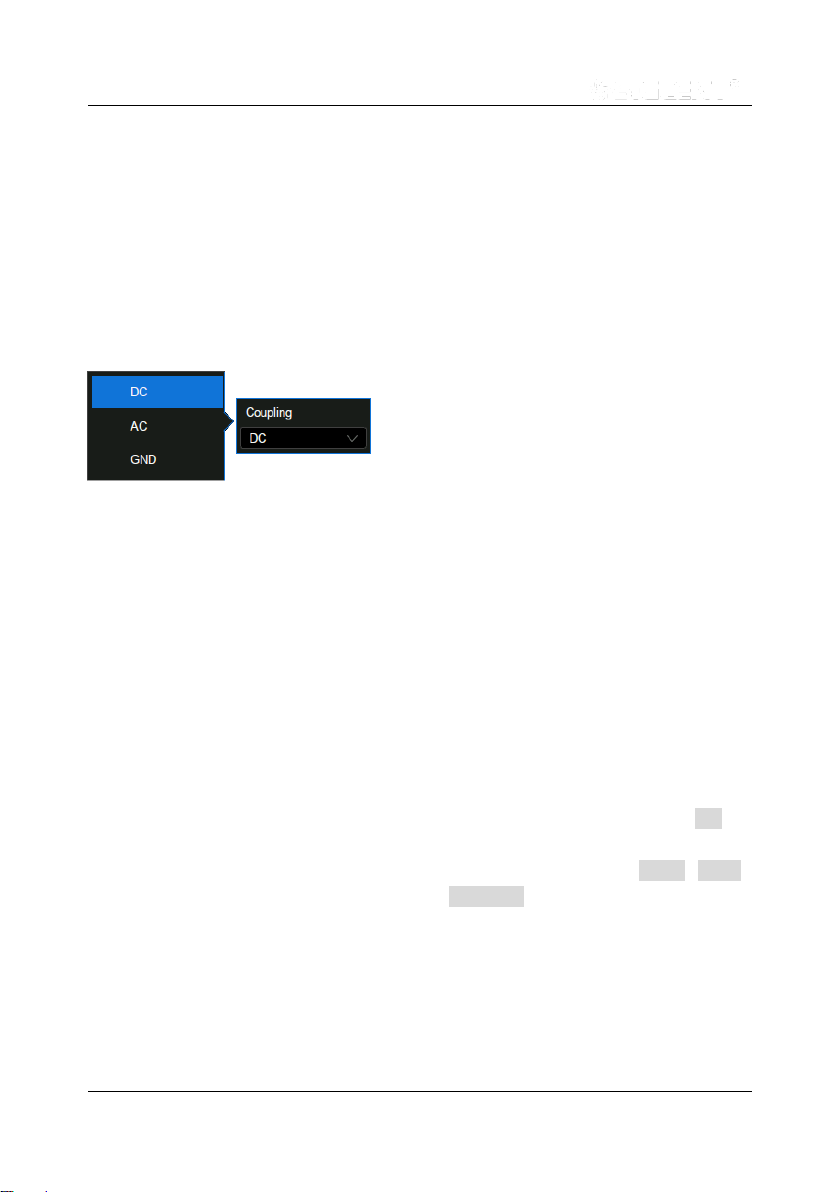

List – sets parameters with more than two
options, such as the coupling mode of
channels. Touch the parameter region,
and then select the expected option from
the pop-up list.
Virtual Keypad – Sets parameters with a
numerical value. Touch the parameter
region, and the parameter can be adjusted
by the universal knob on the front panel;
touch the region again, then the virtual
keypad appears;
To use the operation of setting “deskew” of
the channel as an example: If the expected
value is 65 ns, input “65” on the virtual
keypad, and then choose the unit n to
complete the operation. On the virtual
keypad, touching the button Max , Min ,
and Default quickly sets the parameter
to its maximum, minimum and default
values.

14 SDS2000X HD Quick Start
Touch Gestures
Waveforms, cursors and trigger level can be adjusted by touch gestures in the grid
area.
Drag the waveform left and right to
move it on the horizontal axis
Pinch and spread the waveform
horizontally to re-scale the timebase
Drag the waveform up and down to
move it on the vertical axis
Pinch and spread the waveform
vertically to re-scale the vertical gain

SDS2000X HD Quick Start 15
Touch and drag the cursor to move it
Touch and drag the cursor
information region to move the pair
of cursors simultaneously
Draw a rectangular box to create a
zone or a histogram region. At the
beginning of the gesture keep the
angle close to 45° so it can be
recognized as the drawing box
gesture

16 SDS2000X HD Quick Start
Front Panel
The front panel is designed to operate the basic
functions without having to open the software
menu. Most of the front panel controls duplicate
functionality available through the touch screen
display but the operation is more quickly achieved
Automatically sets the waveform to
adapt the display according to its
frequency and amplitude
Resets the oscilloscope to the
default configuration
Enables or disables the touch
screen. When it is lighted the
functionality is enabled
Rotate the universal knob to set the
value of the activated parameter, or
to move the selected cursor. Push to
select a different cursor
Choosing the Language
Utility ＞ Menu ＞ System setting ＞ Language
