Govo Telecom GW3100 Series User manual

Shanghai Govo Telecom Co.,Ltd
Contact :Ms Veronica Zhao Skype ID:govochina E-MAIL: [e-mail]
Company Address: Room 616,North Building,Fortune 108 Square, 1839# Qixin Road, Shanghai, 201101,China
Website: www.gwfiber.com MOBILE:[phone] TEL:[phone] FAX:[phone]
1

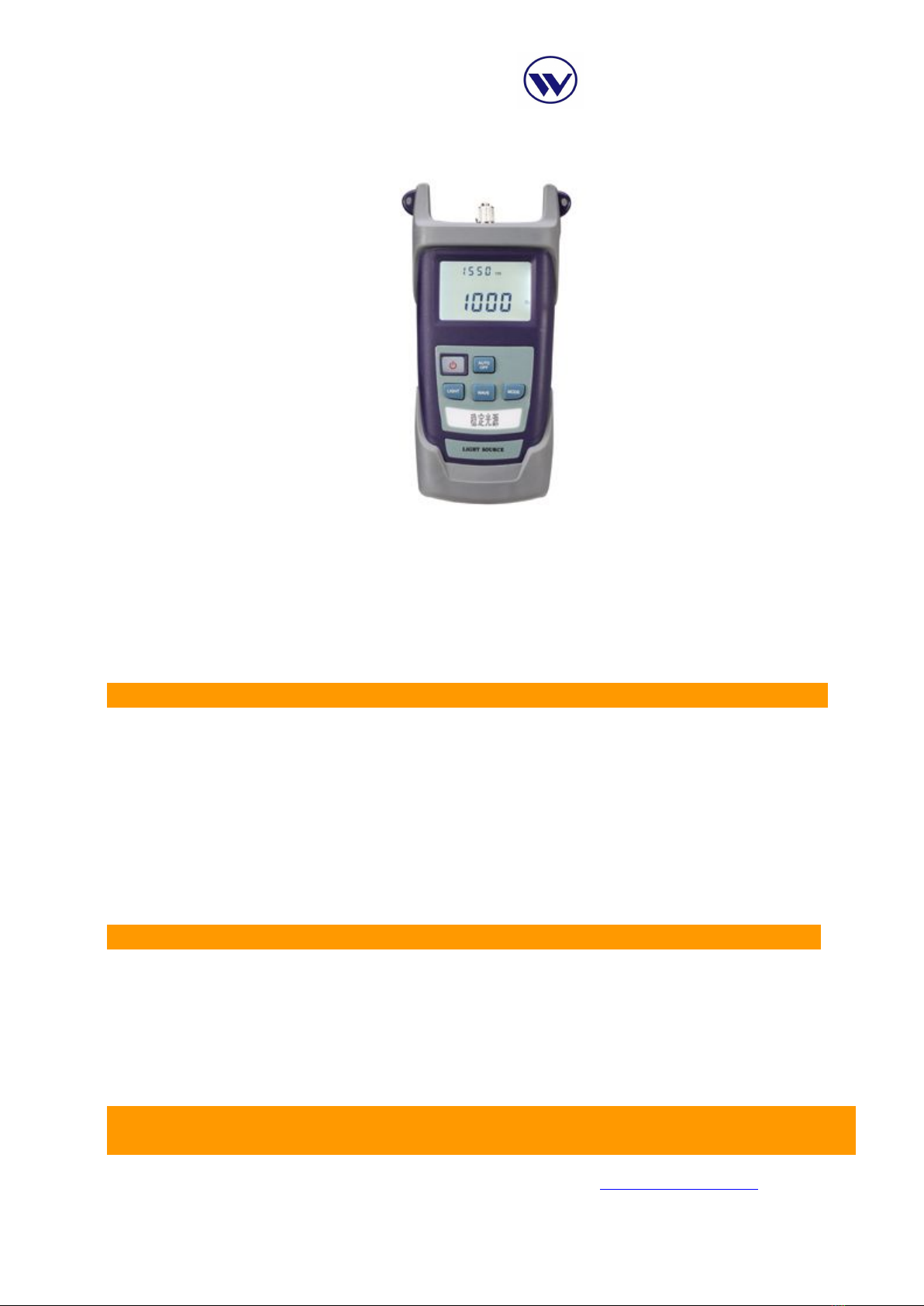

GW3100 Optical Light Source
GW3100 optical light source can provide 1 to 4 output wavelengths to meet specific requirements,
including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the
850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer
needs. Together with the GW3200 optical power meter, it is a perfect solution for the fiber optic
network characterization.
Features
Provides 1~4 output wavelengths which can be optional according to customers needs
CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz
modulation output at other wavelengths.
High stability of the output power
Stable output wavelength
Backlight LCD display supports night operation
Compact size and decent appearance
Large LCD, easy operation
Applications
Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements
Specifications

Shanghai Govo Telecom Co.,Ltd
Contact :Ms Veronica Zhao Skype ID:govochina E-MAIL: [e-mail]
Company Address: Room 616,North Building,Fortune 108 Square, 1839# Qixin Road, Shanghai, 201101,China
Website: www.gwfiber.com MOBILE:[phone] TEL:[phone] FAX:[phone]
2
Item General
configurations
Special
configurations for
PON light source
Other Options
Calibrated wavelength
(nm)
GW3100A:
1310/1550
GW3100B:
1310/1490/1550
GW3100C: 850/1300/1310/1550
GW3100D:1310/1550/1490/1625
GW3100E: 850/1310/1550
GW3100F: 1310/1550/1625
Light-emitting device FP-LD
Optical output power
(dBm) -7/-7 -7/-7/-7 0DB-7DB
Modulation CW/270/1K/2K
Type of optical fibre SM，MM
Connector FC/PC
Working temperature (℃) -10～+60
Storage temperature (℃) -25～+70
Auto power-off time (min) 10
Dimensions (mm) 190×100×48
Power supply Rechargeable lithium battery
Weight (g) 400
INSTRCUTION MANUAL
Function Description
1. Optical output
Connect FC optical fibre
connector to the signal
receiver of the device to
be measured.
2. LCD
LCD displays the length
of optical wave.
3. ON/OFF
While in power-off state,
press it to power on the
device.
While in power-on state,
short press it (for less
than 3 seconds) to
enable or disable
AUTOOFF function. If
the icon “AUTOOFF” appears in the screen, the device will automatically turn off if there are no
operations within 10 minutes. If the icon “AUTOOFF” doesn’t appear in the screen, it indicates that the
“AUTOOFF” function has been disabled.
While in power-on state, long press ON/OFF key (for at least 3 seconds) to turn off the light source.
4. WAVE

Shanghai Govo Telecom Co.,Ltd
Contact :Ms Veronica Zhao Skype ID:govochina E-MAIL: [e-mail]
Company Address: Room 616,North Building,Fortune 108 Square, 1839# Qixin Road, Shanghai, 201101,China
Website: www.gwfiber.com MOBILE:[phone] TEL:[phone] FAX:[phone]
3
Press the key to select output wavelength, the value will appear in LCD.
5. MODE
Switch the modulation frequency of light source between CW, 270Hz, 1000Hz and 2000Hz.
6. LIGHT
Press this key to turn on/off the backlight.
Operating Instructions
1. Connect the optical fibre connector to output port.
2. Press ON/OFF, the working indicator turns on.
3. Press WAVE key to adjust modulation
4. frequency of light source.
5. Press MODE key to adjust modulation
6. frequency of light source.
7. All status indicators of portable stabilized light source will appear in LCD. when the battery is going to run
out, the power volume indicator will blink once a second, the device will automatically power off after the

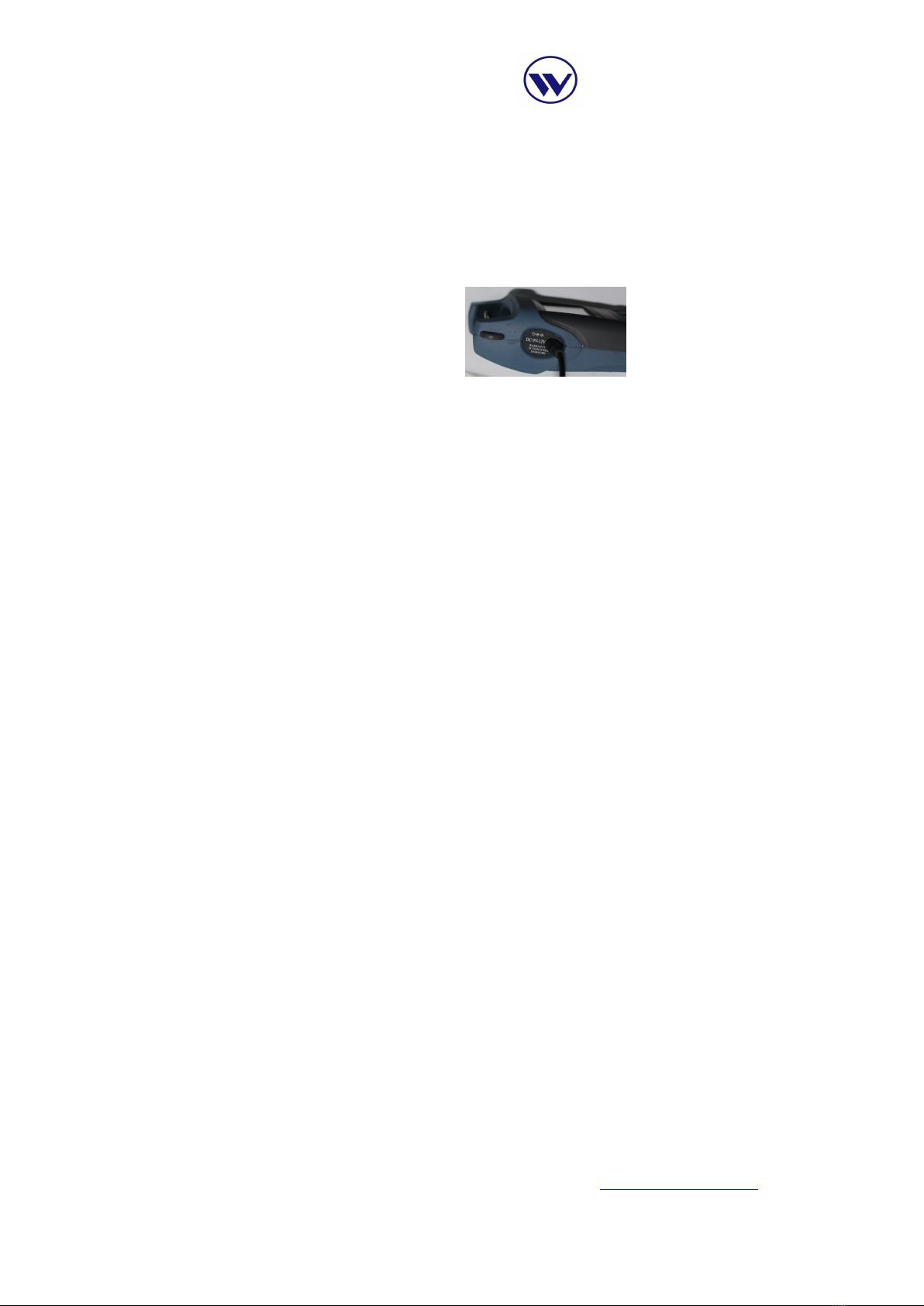

indicator blinks for ten times; if so, you can insert the device into supplied charger for charging (see the
Figure on the right).
8. Power Off: Press ON/OFF on the panel, the indicator turns in dark, information disappears from LCD, the
device is powered off.
Standard Package
1.The main body
2.Dry battery
3.Warranty card
4. Soft carrying bag
5. Battery Charger
6. Certificate
Maintenance
Precautions
1. Don’t watch the output port with eyes while it is running, the laser will hurt your eyes.
2. If you are not going to use the tester for long time, cover the dust-proof cap immediately to
keep the end clean, don’t expose it in air for long time, otherwise dust may gather polluting the
output end.
3. After the stabilized light source works for a time, dirt or dust may gather at output end reducing
output optical power, if so, user can gently wipe the surface using cotton swab dipped with alcohol,
then remove the contaminants with dry cotton swab. If end still look dirty after doing so, please
contact us.
4. If you are not going to use the tester for long time, please take out the battery, so as to prolong
life of battery.
5. For any other fault, please immediately contact our technician, don’t open the cabinet of the
device to repair it by yourself, otherwise more serious problems may occur. We will not repair any
product that have been disassembled by user himself.
Troubleshooting

Shanghai Govo Telecom Co.,Ltd
Contact :Ms Veronica Zhao Skype ID:govochina E-MAIL: [e-mail]
Company Address: Room 616,North Building,Fortune 108 Square, 1839# Qixin Road, Shanghai, 201101,China
Website: www.gwfiber.com MOBILE:[phone] TEL:[phone] FAX:[phone]
4
SN Diagnosis Solution
1 Output light is found unsteady Please replace the battery
2 The terminal of adapter is
dirty
Clean it gently with alcohol
3 The output optical power is
unsteady after startup.
Pre-warm the device for 15 minutes
before using it.
