Hioki FT6380-90 User manual

EN
EN
FT6380-50
CLAMP ON EARTH TESTER
Instruction Manual
Feb. 2021 Revised edition 1
FT6380B981-01 21-02H
FT6380-50
CLAMP ON EARTH TESTER
Instruction Manual
Feb. 2021 Revised edition 1
FT6380B981-01 21-02H
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

i
Contents
Introduction .......................................................................... 1
Verifying Package Contents ................................................ 2
Option (sold separately) ....................................................... 3
Safety Information ................................................................ 4
Operating Precautions ......................................................... 8
Chapter 1 Overview 13
1.1 Product Overview .............................................. 13
1.2 Features ............................................................ 14

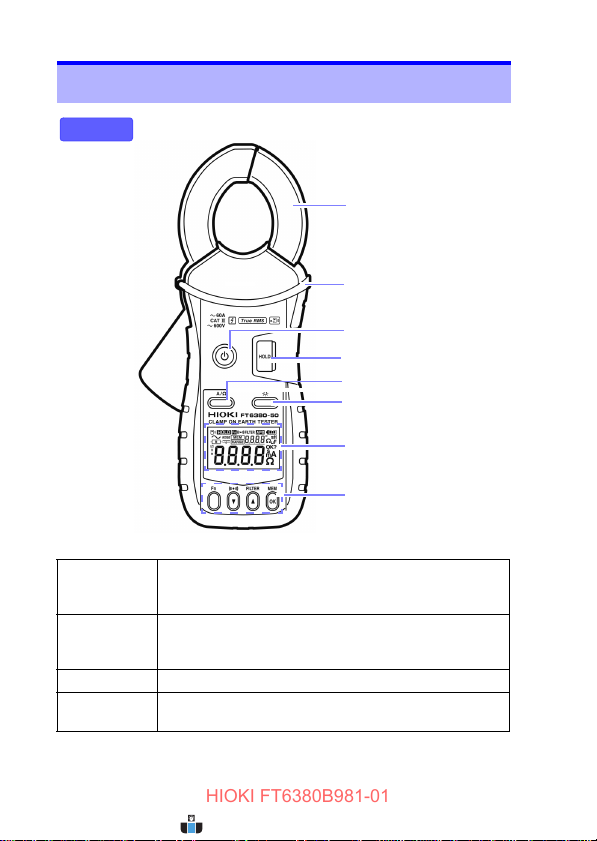

1.3 Names and Functions of Parts .......................... 16

Operation key ............................................................ 18
 Display Indicators ...................................................... 19
Chapter 2 Measurement 21
2.1 Measurement process ....................................... 21
2.2 Preparing for Measurement .............................. 22

Attaching the Strap .................................................... 22
 Installing (or Replacing) the Battery and
Wireless Adapter ....................................................... 23
2.3 Pre-Operation Inspection .................................. 26

Using the included resistance check loop to
inspect the instrument................................................ 27
2.4 Measurement Procedure ................................... 28

Resistance Measurement.......................................... 29
 Current Measurement ................................................ 33
2.5 Convenient function .......................................... 37

Data hold function (Holding the measured value) ..... 37
 Backlight function
(Making measurements in a dark location) ................ 37
 Filter function (Rejecting noise) ................................. 38
 Alarm function
(Judging measured values and sounding an alarm) .. 39
FT6380B981-01
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

ii
 Memory function (Saving measurement data) ........... 42
 Wireless Communication Function
(GENNECT Cross)..................................................... 46
 Useful functionality of the Z3210 ................................49
 Function mode ...........................................................50
2.6 Advanced Settings and Functions .....................51

Enabling/disabling the measurement range
display function .......................................................... 52
 Enabling/disabling the auto-power-saving (APS)
function....................................................................... 53
 Reverting the instrument to factory settings
(system reset) ............................................................ 54
Chapter 3 Specifications 55
3.1 General Specifications .......................................55
3.2 Input, Output, and Measurement Specifications 56
3.3 Function specifications ......................................62
Chapter 4 Maintenance and Service 63
4.1 Cleaning ............................................................63
4.2 Troubleshooting .................................................64

Inspection and Repair ................................................ 64
 Before returning for repair .......................................... 64
4.3 Errors and Operating Status ..............................65
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Introduction
1
Thank you for purchasing the Hioki FT6380-50 Clamp on Earth
Tester. To obtain maximum performance from the instrument,
please read this manual first, and keep it handy for future refer-
ence.
Introduction
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Verifying Package Contents
2
Confirm that these contents are provided.
Use the original packing materials when transporting the instrument, if
possible.
For other transportation notes, refer to the “Transporting” (p.64).
Verifying Package Contents
When you receive the instrument, inspect it carefully to ensure
that no damage occurred during shipping. In particular, check
the accessories, panel switches, and connectors. If damage is
evident, or if it fails to operate according to the specifications,
contact your authorized Hioki distributor or reseller.
□ FT6380-50 Clamp on Earth Tester
□ Instruction Manual (this manual)
□ Carrying case
□ Resistance check loop
(1 Ω ±2%, 25 Ω ±1%)
□ LR6 Alkaline battery ×2
□ Strap
□ Operating Precautions
(0990A907)
Accessories
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Option (sold separately)
3
The option listed below is available for the instrument. To order
an option, please contact your authorized Hioki distributor or
reseller. Options are subject to change. Check Hioki’s website
for the latest information.
Option (sold separately)
□ Z3210 Wireless Adapter
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Safety Information
4
This instrument is designed to conform to IEC 61010 Safety
Standards and has been thoroughly tested for safety prior to
shipment. However, using the instrument in a way not described
in this manual may negate the provided safety features. Care-
fully read the following safety notes before using the instrument.
Safety Information
Mishandling instrument could result in bodily injury or
even death, as well as damage to the instrument.
Familiarize yourself with the instructions and precautions
in this manual before use.

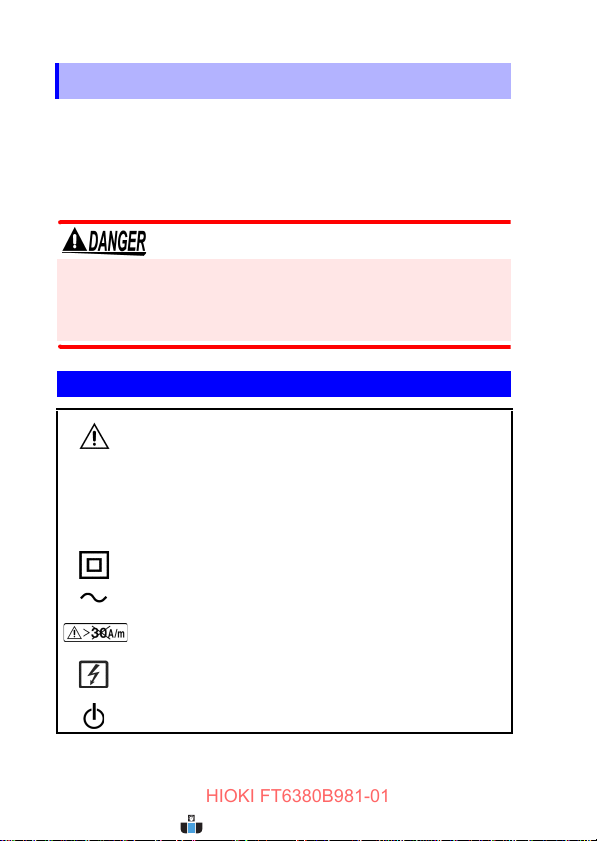

Symbols on equipment
Indicates the need for caution or the presence of a
hazard. For more information about locations
where this symbol appears on instrument compo-
nents, see “Operating Precautions” (p.8), warning
messages listed at the beginning of operating
instructions, and the document entitled “Operating
Precautions” that comes with the instrument.
Indicates a double-insulated device.
Indicates AC (Alternating Current).
Indicates that using the instrument in an external
magnetic field of exceeding 30 A/m is prohibited.
Indicates that the instrument may be connected to
or disconnected from a live circuit.
Indicates whether the power is on or off.
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Safety Information
5

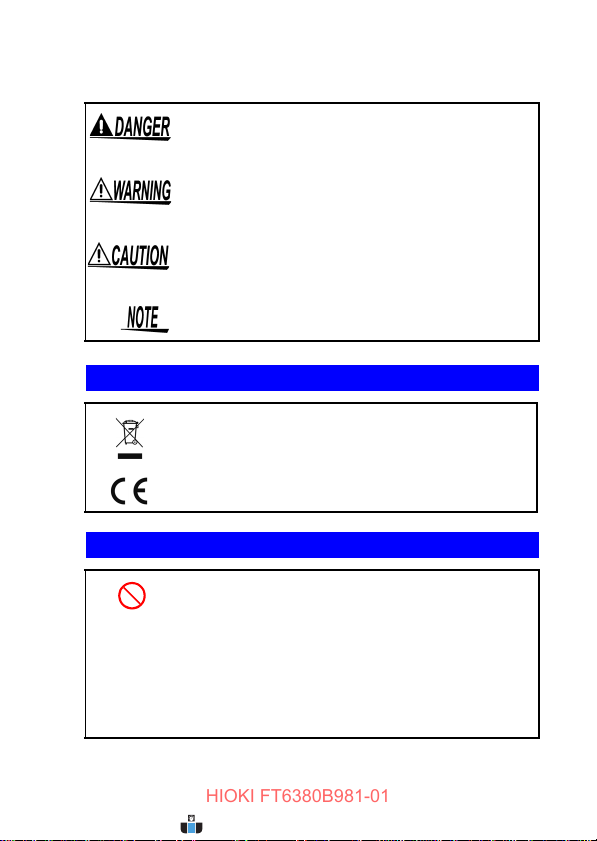

The following symbols in this manual indicate the relative impor-
tance of cautions and warnings.
Indicates an imminently hazardous situation
that, if not avoided, will result in death of or
serious injury to the operator.
Indicates a potentially hazardous situation that,
if not avoided, could result in death of or seri-
ous injury to the operator.
Indicates a potentially hazardous situation that,
if not avoided, could result in minor or moder-
ate injury to the operator.
Indicates the possibility of equipment damage.
Symbols for Various Standards
Indicates the Waste Electrical and Electronic
Equipment Directive (WEEE Directive) in EU
member states.
Indicates that the instrument complies with stan-
dards imposed by EU directives.
Other Symbols
Indicates a prohibited action.
(p. #)
Indicates the location of reference information.
[ ] Information displayed on the screen is enclosed
in brackets.
Fn
(bold
characters)
Bold text indicates alphanumeric characters
shown on operation keys.
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Safety Information
6

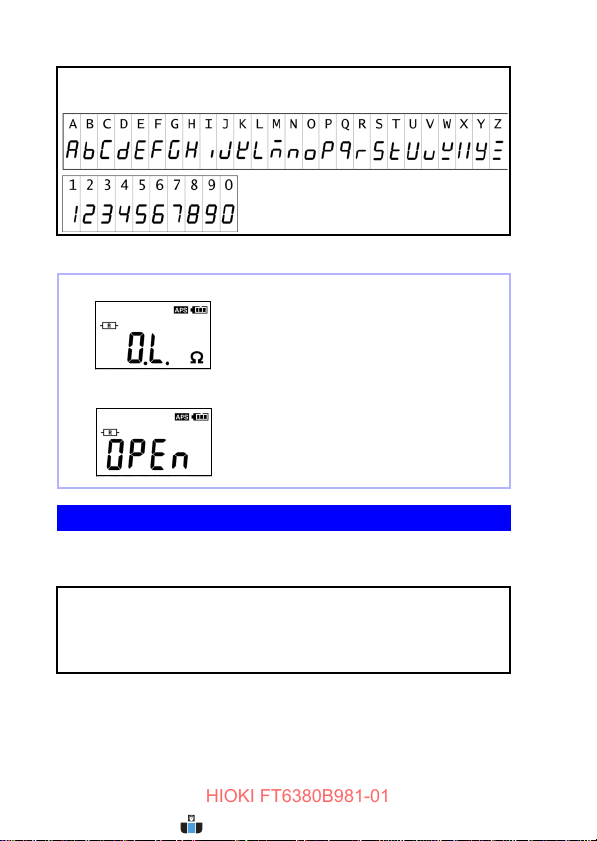

Screen displays that differ from the above notation:
Hioki expresses accuracy as error limit values specified in terms
of percentages of reading.
The screen of this instrument displays characters in the fol-
lowing manner.
Symbols for Various Standards
Over-range display
Open display
Resistance measurement: When the read-
ing exceeds 1,600 Ω
Current measurement: When the reading
exceeds 60.0 A.
This screen is displayed when the clamp
sensor is not completely closed during use
of the resistance measurement function.
Reading
(displayed
value)
Refers to the displayed value of the measur-
ing instrument. The limit values of reading
errors are expressed in percent of reading
(% of reading, % rdg).
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Safety Information
7
This instrument complies with CAT IV safety requirements.
To ensure safe operation of measurement instruments IEC
61010 establishes safety standards for various electrical envi-
ronments, categorized as CAT II to CAT IV, and called measure-
ment categories.
Using a measurement instrument in an environment designated
with a higher-numbered category than that for which the instru-
ment is rated could result in a severe accident, and must be
carefully avoided.
Use of a measurement instrument that is not CAT-rated in CAT II
to CAT IV measurement applications could result in a severe
accident, and must be carefully avoided.

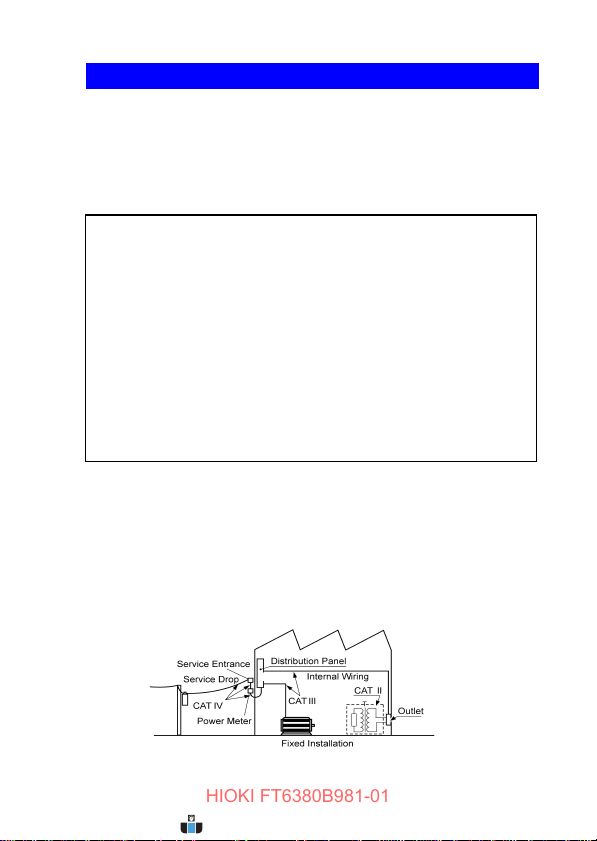

Measurement categories
CAT II
Primary electrical circuits in equipment connected
to an AC electrical outlet by a power cord (portable
tools, household appliances, etc.)
CAT II covers directly measuring electrical outlet
receptacles.
CAT III
Primary electrical circuits of heavy equipment
(fixed installations) connected directly to the distri-
bution panel, and feeders from the distribution
panel to outlets.
CAT IV
The circuit from the service drop to the service
entrance, and to the power meter and primary
overcurrent protection device (distribution panel).
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Operating Precautions
8
Follow these precautions to ensure safe operation and to obtain
the full benefits of the various functions.
Use of the instrument should confirm not only to its specifica-
tions, but also to the specifications of all accessories, options,
batteries, and other equipment in use.
Before using the instrument for the first time, verify that it oper-
ates normally to ensure that no damage occurred during storage
or shipping. If you find any damage, contact your authorized
Hioki distributor or reseller.
Operating temperature: -10°C to 50°C (14°F to 122°F)
(Be sure to use batteries that are suited for use under the envi-
ronmental conditions in which you are using the instrument.)
Operating humidity: 80% RH or less (non condensating)
Operating Precautions
Preliminary Checks

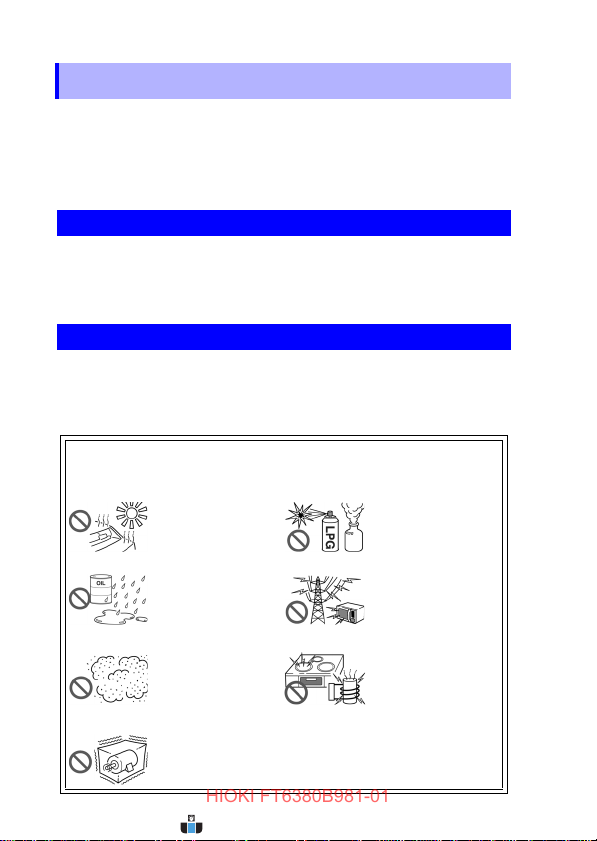

Instrument Installation
Avoid the following locations that could cause an accident or
damage to the instrument.
Exposed to direct
sunlight
Exposed to high tem-
perature
In the presence of cor-
rosive or explosive
gases
Exposed to water, oil,
other chemicals, or
solvents Exposed to
high humidity or con-
densation
Exposed to strong
electromagnetic fields
Near electromagnetic
radiators
Exposed to high lev-
els of particulate dust
Near electromagnetic
radiators (e.g., high-
frequency induction
heating systems and
IH cooking utensils)
Subject to vibration
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Operating Precautions
9
Handling the Instrument
• To avoid short circuits and potentially life-threatening
hazards, never attach the clamp to a circuit that operates
at more than 600 V AC, or over bare conductors.
• The maximum rated voltage between input terminals and
ground is 600 V AC. Measuring a voltage in excess of this
rating relative to ground could damage the instrument
and result in bodily injury.
• To avoid electric shock, do not remove the instrument's
case. The internal components of the instrument carry
high voltages and may become very hot during operation.
• When the clamp sensor is opened, do not allow the metal
part of the clamp sensor to touch any exposed metal, or
to short between two lines, and do not use over bare con-
ductors.
To avoid electric shock when measuring live lines, wear
appropriate protective gear, such as insulated rubber
gloves, boots and a safety helmet.
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Operating Precautions
10
• Do not input a current in excess of the maximum allowable
current. Doing so may damage the instrument or cause burns.
The maximum allowable current is 100 A AC continuous or

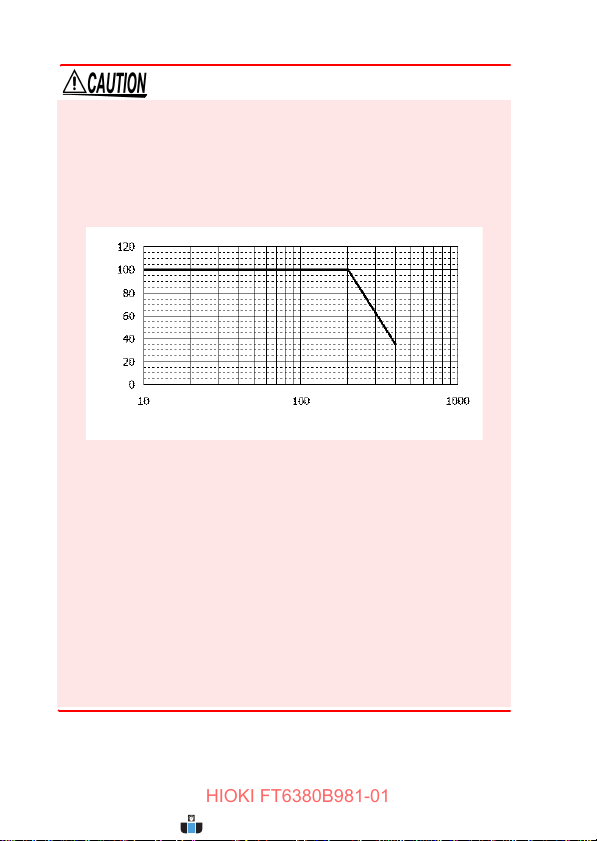

200 A AC within 2 minutes at 50 Hz/60 Hz. For more informa-
tion about the frequency derating characteristics during con-
tinuous input, see the following diagram:
• To avoid damage to the instrument, protect it from physical
shock when transporting and handling. Be especially careful
to avoid physical shock from dropping.
• Be careful to avoid dropping the instrument or otherwise sub-
jecting them to mechanical shock, which could damage the
mating surfaces of the core and adversely affect measure-
ment.
• Although this instrument is dust resistant, it is not completely
dust- or waterproof. To prevent possible damage, avoid using
in dusty or wet environments.
• Do not slant the instrument or place it on top of an uneven sur-
face. Dropping or knocking down the instrument can cause
injury or damage to the instrument.
Frequency [Hz]
Current [A]
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Operating Precautions
11
*: IP40
This indicates the degree of protection provided by the enclo-
sure of the device against use in hazardous locations, entry of
solid foreign objects, and the ingress of water.
4: Protected against access to hazardous parts with wire mea-
suring 1.0 mm in diameter. The equipment inside the enclo-
sure is protected against entry by solid foreign objects larger
than 1.0 mm in diameter.
0: The equipment inside the enclosure is not protected against
the harmful effects of water.
• The protection rating for the enclosure of the instrument
(based on EN 60529) is IP40*. (The rating applies to the clamp
sensor when in the closed position.)
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

Operating Precautions
12
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

1.1 Product Overview
13
The FT6380-50 Clamp on Earth Tester makes grounding resis-
tance measurements simply by being clamped to multiple-
grounded ground wires. No auxiliary grounding rod is needed,
and there is no need to disconnect the ground wire from the
grounding rod.
The instrument also provides AC current measurement function-
ality and can measure currents ranging from leakage current on
the order of several mA to load currents of up to 60 A.
Overview Chapter 1
1.1 Product Overview
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

1.2 Features
14
1.2 Features
Compact, low-profile sensor
The compact, low-profile sensor can be used to clamp ground wires
with ease. The sensor design dramatically speeds the measurement
process by eliminating the need to pull out ground wires for clamping
or dig around the ground rod or wire.
Broad dynamic range
The instrument can easily measure grounding resistance of up to
0.02 Ωto 1,600 Ωwith its auto-range function. Current measurement
ranges from small leakage current (maximum resolution 10 A) to a
maximum of 60 A.
Noise check function (p.31)
The instrument automatically detects noise that may affect ground-
ing resistance measurement and displays a [ ] mark.
True RMS display
True RMS calculation allows the instrument to accurately measure
distortion waveform currents.
Data hold function (p.37)
A large button that is easy to push lets you hold the measured value.
The button notifies the user of the hold status by lights up while the
value is being held.
Backlight function (p.37)
The instrument uses a white LED for excellent visibility so that dis-
play values can be read clearly, even in dark locations.
Auto-power-save (APS) function (p.53)
An auto-power-save function keeps batteries from running down
when you forget to turn off the instrument.
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

1.2 Features
15
Alarm function (p.39)
By setting a threshold, you can have the instrument make a PASS/
FAIL judgment and notify you of the result with a buzzer. You can set
threshold values as you prefer for each resistance and current and
choose between two judgment conditions: when the measured value
exceeds the threshold (High) and when it falls below the threshold
(Low).
Filter function (p.38)
Widespread use of switching power supplies and inverters has led to
cases where harmonic components are superimposed on leakage
current waveforms. The instrument’s filter function allows it to per-
form two types of measurement: leakage current as related to deg-
radation of insulation, and leakage current including this harmonic
component.
Internal memory (p.42)
The instrument’s internal memory can record up to 2,000 measured
values.
Automatic measurement report function using your
mobile communication device (p.46)
The wireless communication function enables your mobile commu-
nication device to create measurement reports on-site easily.
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

1.3 Names and Functions of Parts
16
1.3 Names and Functions of Parts
Barrier
Front
Clamp sensor
Power key
HOLD key (p.37)
A/Ωkey
Backlight key (p.37)
Display indicator (p.19)
Operation key (p.18)
Power key • Used to turn the instrument on and off.
• To temporarily cancel the auto-power-save function,
press the power key while holding down the HOLD key.
HOLD key • Holds the measured value display or cancels hold mode.
• To cancel auto-power-save mode, press the power key
while holding down the HOLD key.
Backlight key • Turns the backlight on and off.
A/Ωkey • Switches between resistance measurement mode and
current measurement mode.
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30

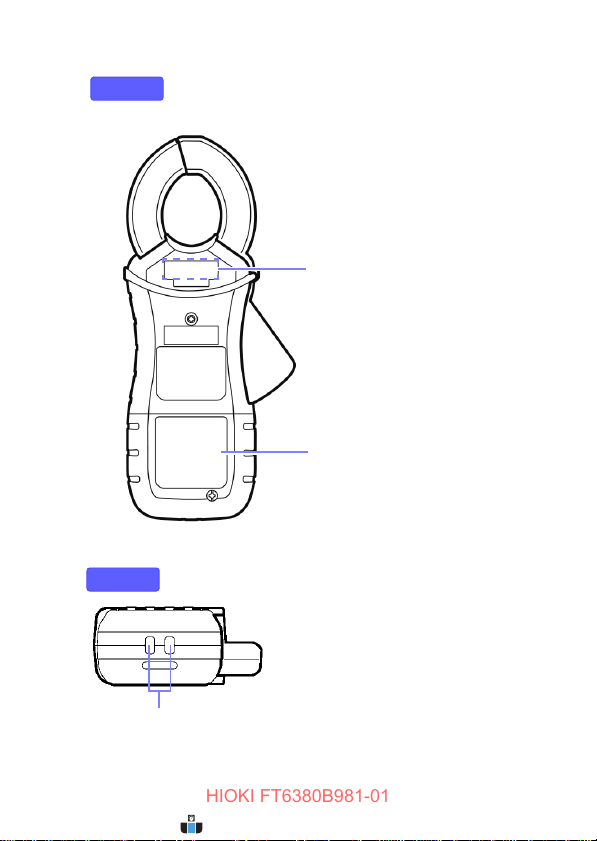

1.3 Names and Functions of Parts
17
Battery cover (p.23)
Back
Strap hole
(p.22)
Bottom
Serial No.
The serial number consists of nine
digits. The first two digits indicate
the year of manufacture, while the
second two digits indicate the month
of manufacture.
Do not remove this sticker as the
number is important.
HIOKI FT6380B981-01
www.calcert.com [e-mail]1.800.544.2843 0
5
10
15
20
25
30
