SIGLENT SHS800X Series User manual

SHS800X
SHS1000X
Handheld Digital
Oscilloscope
QS_EN01D
Quick Start

SHS800X&SHS1000X Quick Start I
Copyright Information
Declaration
SIGLENT products are protected by patent law in and outside of P.R.C.
SIGLENT reserves the right to modify or change parts of or all the specifications or pricing policies at
the company's sole decision.
Information in this publication replaces all previously corresponding material.
Any method of copying, extracting or translating the contents of this manual is not allowed without the
permission of SIGLENT.
Note: SIGLENT is the registered trademark of SIGLENT TECHNOLOGIES CO., LTD.

SHS800X&SHS1000X Quick Start II
Contents
COPYRIGHT INFORMATION..............................................................................................................I
GENERAL SAFETY SUMMARY........................................................................................................1
SAFETY TERMS AND SYMBOLS.....................................................................................................1
MEASUREMENT CATEGORY...........................................................................................................2
QUICK START ....................................................................................................................................3
INTRODUCTION OF SCOPE PANEL................................................................................................7
INTRODUCTION OF METER PANEL..............................................................................................12
INTRODUCTION OF RECORDER PANEL......................................................................................14
INTERFACE GLANCE......................................................................................................................17
TROUBLE SHOOTING.....................................................................................................................18

SHS800X/SHS1000X Quick Start 1
General Safety Summary
Carefully read the safety precautions in user’s manual to avoid any personal injury or damage the
instrument and avoid any products connected to it. To avoid potential hazards, please use the
instrument as specified.

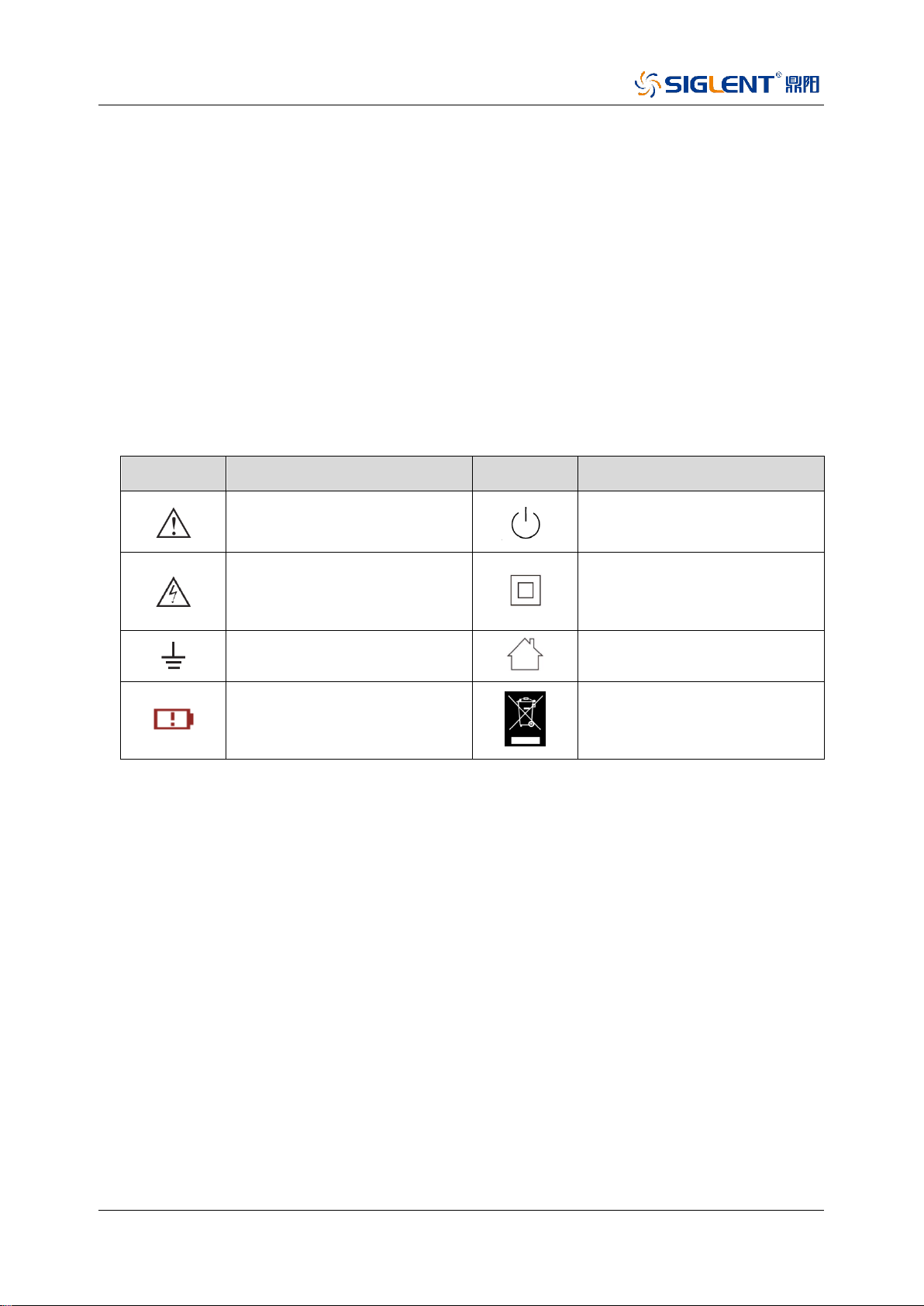

Safety Terms and Symbols
The meaning of symbols
symbol
meaning
symbol
meaning
Warning
Power Switch
Hazardous Voltage
Equipment meeting double
insulation or reinforced
insulation
EarthGround
Indoor use only
Lithium battery failure
EU label for separately
recycled electrical and
electronic equipment
Cue and its meaning
DANGER
Indicates direct injury or hazards that may happen.
WARNING
Indicates potential injury or hazards that may happen.
CAUTION
Indicates potential damage to the instrument or other property that may happen.

2 SHS800X/SHS1000X Quick Start
Measurement Category
IEC61010-2-030 defines the measurement category to rate the ability of measuring instruments to
withstand short-term transient overvoltage outside of the working voltage. This product and its
accessories can only be used in the environment of the nominal measurement category.
0-An instrument with no rated measurement category is used to measure circuits that are not
directly connected to the mains, such as a circuit board powered by a battery or a secondary
circuit with special protection. This measurement category is also called CATⅠ.
CAT II：
For measurements installed in buildings, such as junction boxes, circuit breakers, distribution
boards and equipment permanently connected to fixed installations.
CAT III:
Used for measurements installed in buildings, such as junction boxes, circuit breakers,
distribution boards and equipment that are permanently connected to fixed installations.
CAT IV:
It is used for measuring at the source of low-voltage devices, such as electricity meters and
primary overcurrent protection devices.

SHS800X/SHS1000X Quick Start 3
Quick Start

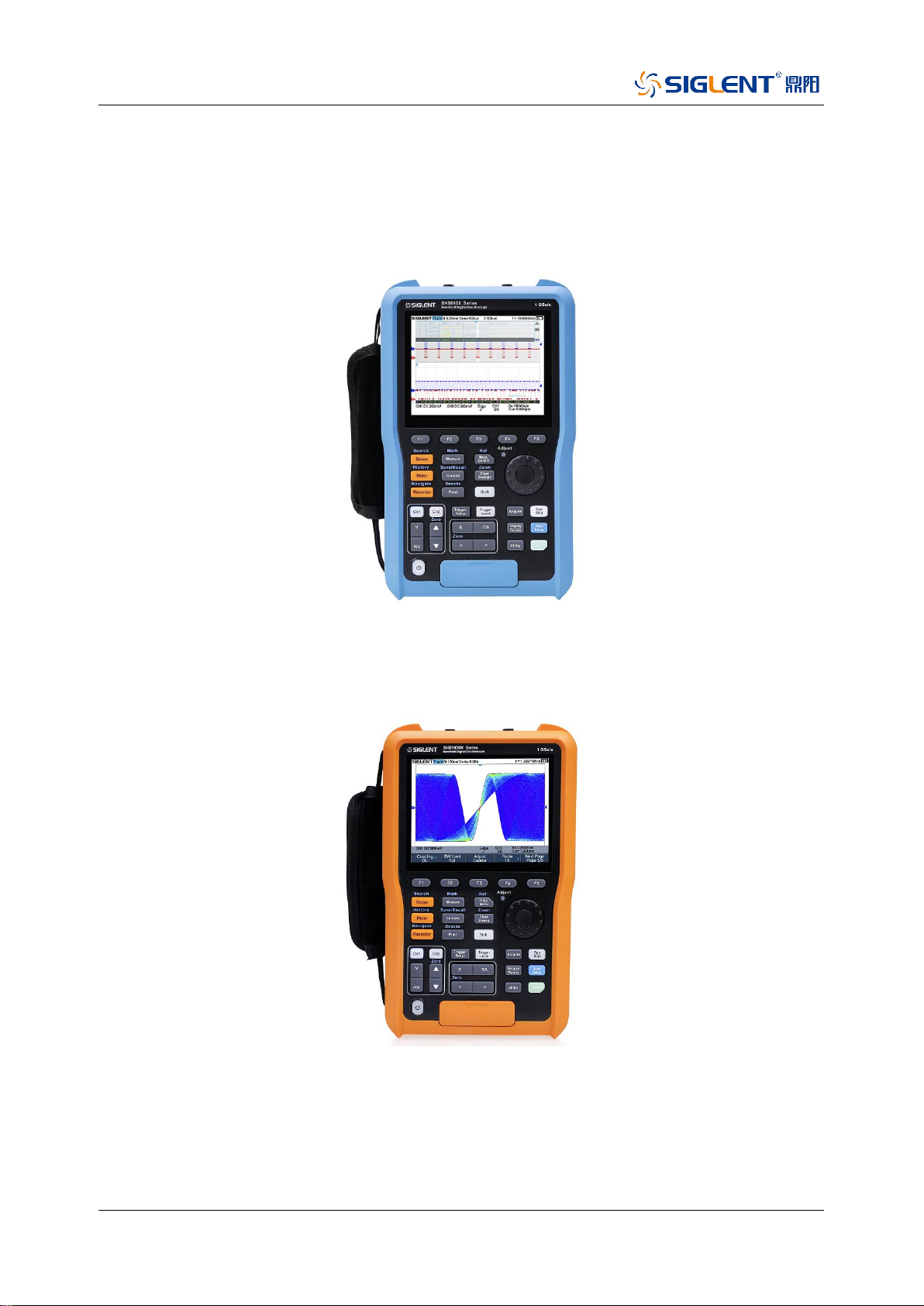

Product Appearance
SHS800X
SHS1000X

4 SHS800X/SHS1000X Quick Start
Battery Installation
To protect the battery from over discharging, the battery may be delivered separately. Please install
the battery before use as follows:
1. Remove the three screws on the battery cover with a screwdriver, as shown in Figure 1.
2. Remove the battery cover, as shown in Figure2.
3. Put the battery into the battery slot, as shown in Figure3.
4. Lock the screws with the screwdriver, as shown in Figure 1, and then turn on the oscilloscope to
check whether the battery is installed successfully.
5. Connect the DC-DC adapter to the connector on the left side (top view) of the oscilloscope and
charge the battery to a full state the first time power on.
Figure 1
Figure 2
Figure 3

SHS800X/SHS1000X Quick Start 5
Measurement Connection
The SHS800X and SHS1000X series handheld oscilloscope measurement accessories include
oscilloscope probes, multimeter probes, current adapters.
1. Oscilloscope probe
All oscilloscope probes should be properly compensated before their first use with the oscilloscope.
The following steps illustrate the proper probe compensation procedure.
1) Connect probe to the CH1 Input Terminal and the Compensation Signal Output Terminal on the
right side panel.
2) Check the displayed waveforms and compare them with the following figure.
3) Adjust the probe until the waveform matches the "Compensated Correctly”waveform above.
Under
Compensated
Compensated
Correctly
Over
Compensated

6 SHS800X/SHS1000X Quick Start
2. Multimeter probe
Before using the multimeter probe，please select the measuring range of the multimeter first, then
plug the red probe and black ( grounding terminal ) probe into the corresponding input terminals
according to the marking prompt of the front panel. When measuring the current, please select the
correct accessories according to the current.

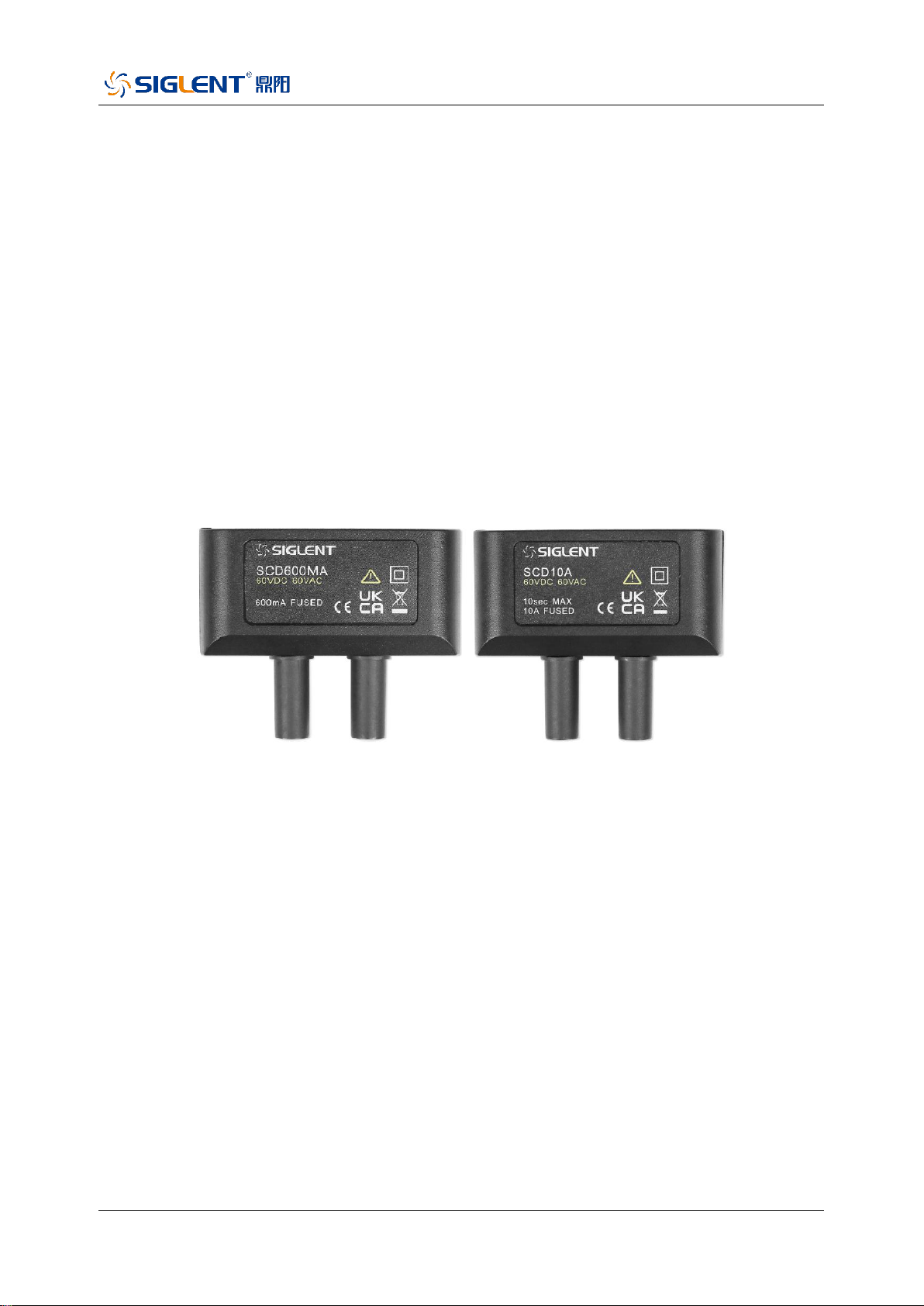

3. Current Adapter
To test current, insert a current adapter between the meter input and the meter probe. There are two
different adapters, SCD600MA and SCD10A, which have built-in sampling resistors and fuses, can
be used with the multimeter's mA meter and Ameter respectively.

SHS800X/SHS1000X Quick Start 7

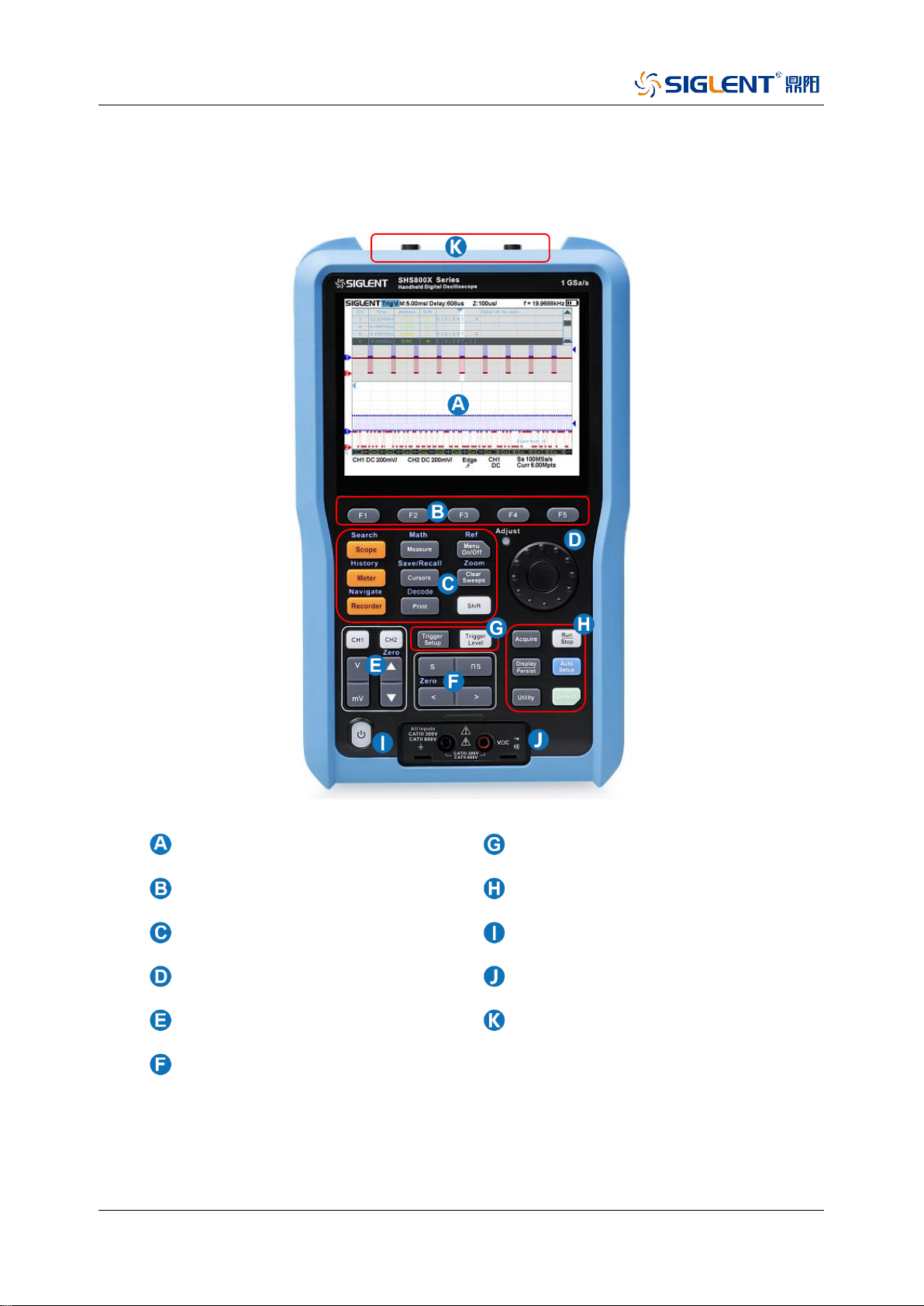

Introduction of Scope Panel
LCD Display
Trigger Control
Menu Softkey
Single function Control Buttons
Multifunction Control Buttons
Power Button
Universal Knob
Multimeter Inputs
Vertical Control
Oscilloscope Analog Inputs
Horizontal Control

8 SHS800X/SHS1000X Quick Start
Vertical Control
Analog channel on/off or channel is selected to change.
Push to increase the vertical scale of selected channel
Push to decrease.
Push to increase the vertical offset of selected channel
Push to decrease.
When is lit, press to set offset to zero quickly.
Horizontal Control
Push to increase the timebase
Push to decrease
Push to move the waveform to left
Push to move to right.
When is lit, press to set delay to zero quickly.
Trigger Control
Push to open trigger menu. This oscilloscope
provides various trigger types. Detailed usage of
trigger control is described in the user manual.
Push to light up the button light, adjusting the
universal knob can change the trigger level
Universal Knob
During menu operation, when the light in the upper left corner of the knob is
on, you can turn the knob to select among the submenus under the current
menu, and press down to select the current submenu.Additionally, it can also
be used to modify parameters and input filenames.
For more detailed usage information, please refer to the user manual.

SHS800X/SHS1000X Quick Start 9
Introduction of Multifunction Menu
Button
Description
Shift
Press it to light up the button light, and then by pressing the multifunction button
one can active the alternate function shown above the function button.
When the shift light is off, press these buttons to enter/exit the following functions.
Scope
Push this button can enter to the scope mode.
Meter
Push this button can enter to the meter mode. It provides eight measurement
types.
Recorder
Push this button can enter to the recorder mode. It provides two modes, Sample
Logger and Measurement Logger.
Measure
This menu provides various measurement types and measurement statistics
functions.
Cursors
This menu provides manual and track cursor mode.
Print
Quick print picture. It is preferentially stored in USB flash disk or local path
Menu On/Off
Controls the hiding and display of the screen menu.
Clear Sweeps
Press this button to clear the measurement statistics, clear the persistence,
refresh the waveform and other clear functions.
When the shift light is on, press these buttons to enter/exit the following functions.
Search
This button can open search function. It can search the acquired data for a user-
specified event, which is displayed with a black triangle symbol.
History
This button can open history function. In history mode, It can record up to 80000
frames of waves.
Navigate
This button can open navigate function. It supports three navigate types: time,
search event, history frame.
Math
This menu provides various math operation which includes adding, subtracting,
multiplying, dividing, FFT, integral, differential and square root.

10 SHS800X/SHS1000X Quick Start
Save/Recall
Save and recall function. The storable file types include Setups, Reference
Waveforms, Picture, CSV and FileConverter tool. Recallable file types include
setup and reference waveform files.
Decode
Supports two serial buses including 1 and 2 for analog signal decoding. The
protocols include IIC, SPI, UART, CAN and LIN.
Ref
Save the reference waveform.
Zoom
This button can open the zoom window.
Introduction of Singlefunction Menus
Button
Description
Acquire
Push this button to open the acquire menu. You can set the acquisition mode
( Normal / Peak-Detect / Average / Eres ), interpolation mode ( Sinx/X or
linear )and memory depth. You could enable the XY function and sequence
function
Display / Persist
This button can quickly enabled the persist function. User can set the grid,
intensity, graticule, transparency.
Utility
This menu can set system functions or parameters, such as sound, language ,
Pass / Fail, Do Self Calibration, Update firmware.
Auto Setup
Push the button can automatically set the waveform to adapt the display
according to its frequency and amplitude.
Default
Push the button can reset the oscilloscope to the default configuration.
Run / Stop
This button provides the ability to enable or stop waveform acquisition.

SHS800X/SHS1000X Quick Start 11
Scope User Interface
Company Logo.
Channel label/waveform, different channels are marked with different colors, the color of the
waveform is consistent with the color of the channel.
Working state, including Arm, Ready, Trig’d, Stop, FStop, Auto and Roll.
Horizontal time base, indicating the duration of each grid is 200us.
Delay, the time of the screen center position relative to the waveform trigger position.
The waveform trigger position, press to move to the left or right.
The frequency meter, indicating the frequency of the trigger source.
Power icon.When the icon is green, it indicates that the battery is charging, and when it is red,
it indicates that the battery is low.
Real-time display.
Trigger level position, press , and adjust the universal knob to modify the trigger level.
Indicates the USB flash drive is connected.
Indicates the current sample rate and memory depth of the oscilloscope.
:Indicates the trigger source selected, different labels are displayed when different trigger
source are selected and the color of the trigger parameter area will change accordingly. :
Indicates the current trigger coupling mode is DC coupling, Indicates the current trigger
type is rising edge trigger.
:Indicates CH1 open, Indicates the channel is in DC coupling mode, Indicates
the voltage of each grid is 2V.
Softkey function menu.

12 SHS800X/SHS1000X Quick Start
Introduction of Meter Panel
Meter Button
Universal Knob
Menu Softkey
Hold Button

SHS800X/SHS1000X Quick Start 13
Introduction of Function Menus
Button
Description
Meter Button
Press to enter multimeter mode.
F1~F5
Press to active Relative, Auto Range, Manual Range, Measurement logger
function.
Universal
Knob
Press to switch measurement ranges in manual mode. Use the knob to quickly
switch between ranges and meter functions.
Run/Stop
Button
Press the Run/Stop buttonto stop the meter measurement. The status ‘HOLD’ will
be displayed on the upper left of the screen.
Meter User Interface
Coupling type of the meter is DC.
Measurement range is set in manual
mode.
Measurement value.
Measurement range.
Relative measurement value.
Measurement type menu.
Relative function menu. When the status
is on, it takes a transient input value as a
reference value and then measure
base on it. The actual input value =
relative value + measured value; When
off, actual input value = measured value.
Auto / manual selection menu.
Measurement range selection menu.
Measurement Logger function menu.

14 SHS800X/SHS1000X Quick Start

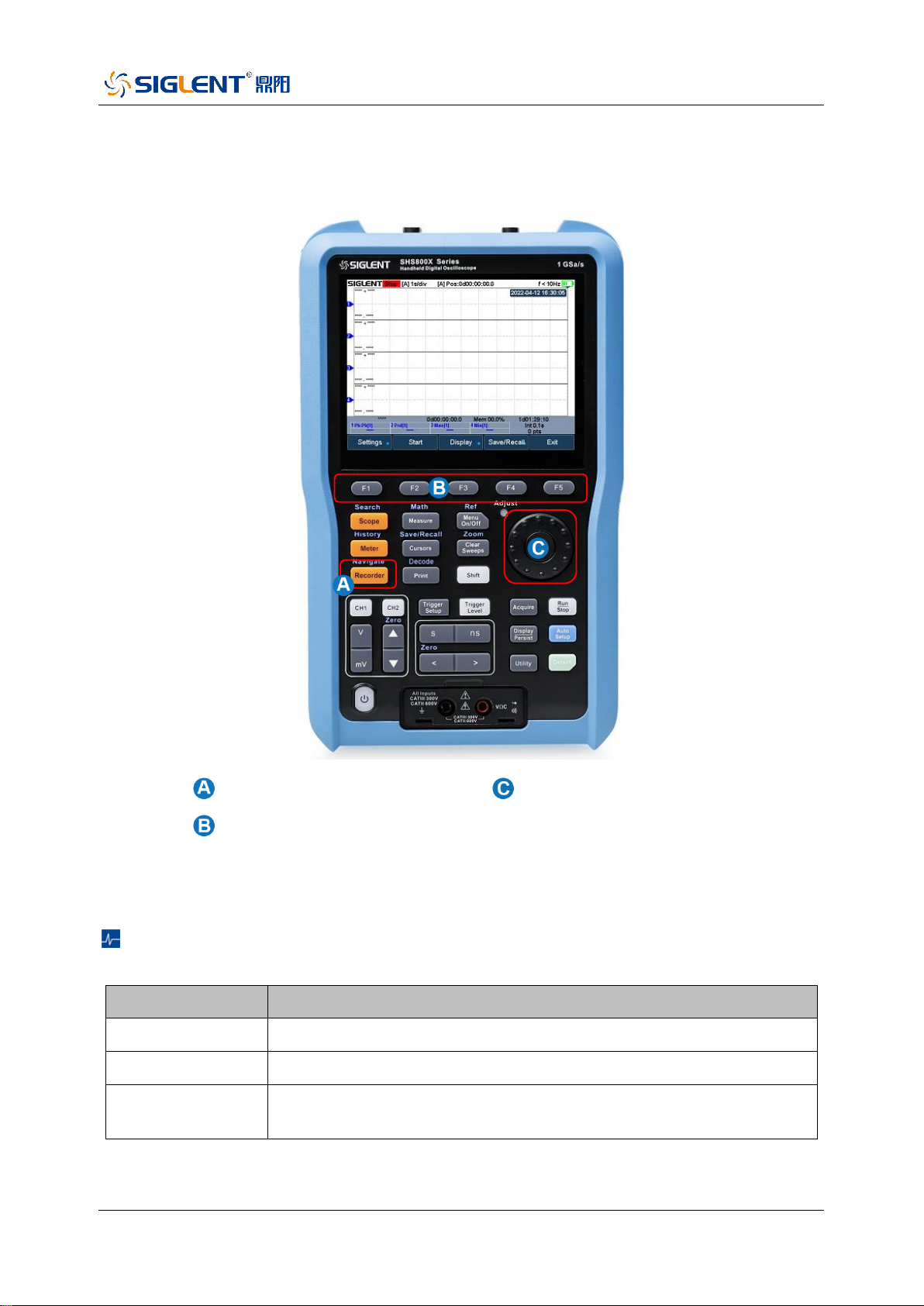

Introduction of Recorder Panel
Recorder Button
Universal Knob
Menu Softkey
Introduction of Function Menus
Button
Description
Recorder Button
Press to enter Recorder mode.
F1~F5
Press to active sample logger or measurement logger.
Universal Knob
Use the knob to quickly select the recorder interval in measurement logger
and sample logger mode.

SHS800X/SHS1000X Quick Start 15
Sample Logger User Interface
Company Logo.
Waveform of samples.
Recorder status. Stop indicates stop recording，Run indicates it is recording.
Indicate that each time grid is 16s.
Indicates how long it took to record data.
Indicates how long the data can be recorded in the remaining storage space at the current
sampling rate. If it is in the playback mode, it indicates the total time of the data.
Indicate the status of the data source.
Indicates the time that recorder starts working.
Indicate the trigger status of the data source.
Sampling rate and total number of samples.
Indicates the file name of the saved or recalled data.
Setup menu. Including sampling rate setting, data storage mode selection. Read the user
manual for details.
Start/Stop recorder menu.
Recall data menu.

16 SHS800X/SHS1000X Quick Start
Measure Logger User Interface
Trend chart display area: Four parameters can be recorded at the same time.
The current status of the recorder: Stop means stop recording, and Run means recording.
Indicates that the length of each grid is 10s.
The length of time the starting point is relative to the reference position.
Horizontal reference position.
Indicates the time that recorder starts working.
Indicates how long it took to record data.
Indicates memory usage.
The first line represents the total available time of the remaining storage space, the second
line represents the recording interval, and the third line represents the total number of
recorded samples.
Display area of the measurement trend chart. 790mV is the value corresponding to the
vertical center of the trend label. ±1V is the display range relative to the center position.
Measurement parameters.
Measurement Logger function menu, read the user manual for details.
