Black Box CCTVTEST User manual

BL A C K B O X®
Tests camera video output, signal strength, and
PTZ functions. Also acts as a video pattern
generator, cable mapper, and multimeter.
CCTV Tester
June 2010
CCTVTEST
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.
call 724-746-5500) • FREE technical support 24 hours a day, 7 days a
week: Call 724-746-5500 or fax [phone] • Mailing address:
Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [email protected]
Customer
Support
Information
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com
Page 2
CCTV Tester

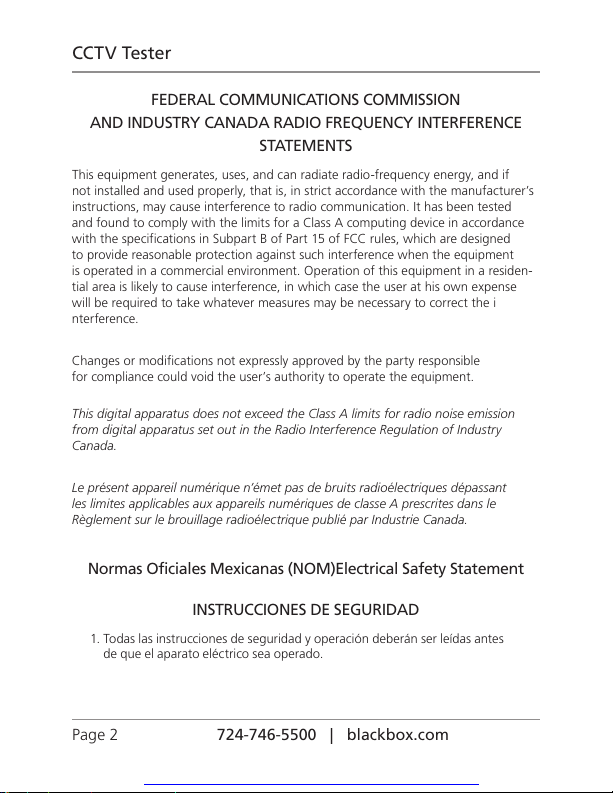

FEDERAL COMMUNICATIONS COMMISSION
AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE
STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy, and if
not installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested
and found to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart B of Part 15 of FCC rules, which are designed
to provide reasonable protection against such interference when the equipment
is operated in a commercial environment. Operation of this equipment in a residen-
tial area is likely to cause interference, in which case the user at his own expense
will be required to take whatever measures may be necessary to correct the i
nterference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission
from digital apparatus set out in the Radio Interference Regulation of Industry
Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant
les limites applicables aux appareils numériques de classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par Industrie Canada.
Normas Oficiales Mexicanas (NOM)Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com Page 3
NOM Statement
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que
sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá a
lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe colocar
en libreros o gabinetes que impidan el flujo de aire por los orificios de
ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización
del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen del
aparato.
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com
Page 4
CCTV Tester

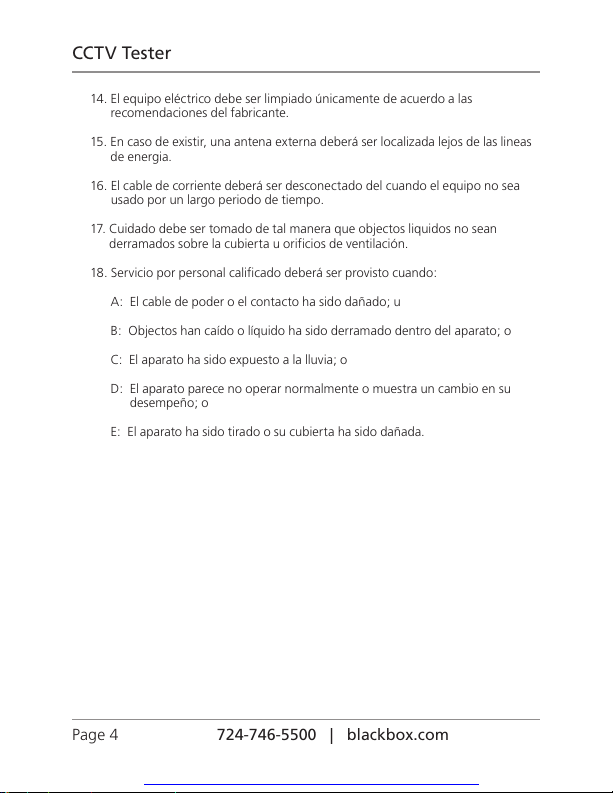

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas
de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com Page 5

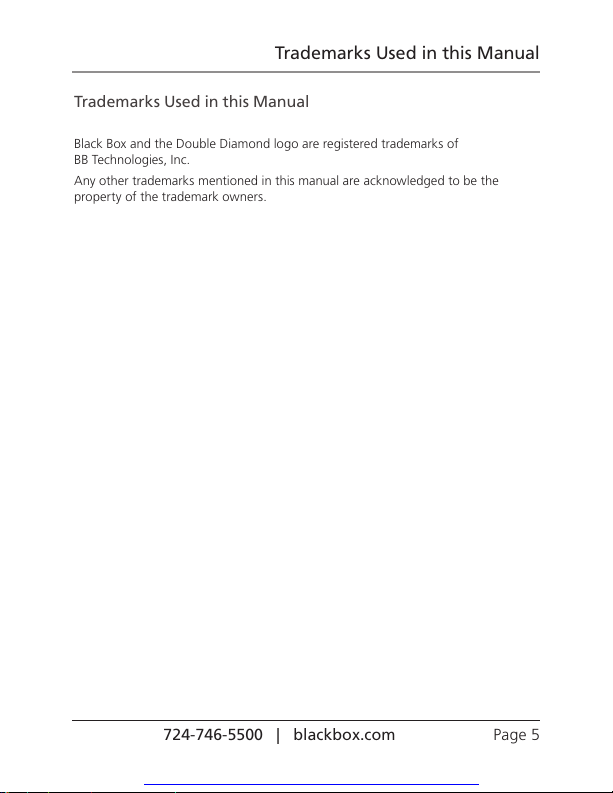

Trademarks Used in this Manual
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be the
property of the trademark owners.
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com
CCTV Tester
Page 6

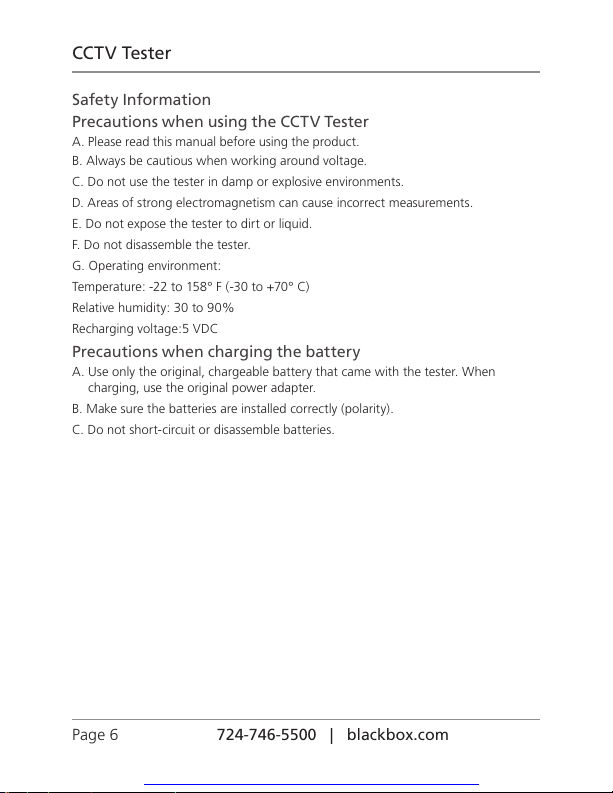

Safety Information
Precautions when using the CCTV Tester
A. Please read this manual before using the product.
B. Always be cautious when working around voltage.
C. Do not use the tester in damp or explosive environments.
D. Areas of strong electromagnetism can cause incorrect measurements.
E. Do not expose the tester to dirt or liquid.
F. Do not disassemble the tester.
G. Operating environment:
Temperature: -22 to 158° F (-30 to +70° C)
Relative humidity: 30 to 90%
Recharging voltage:5 VDC
Precautions when charging the battery
A. Use only the original, chargeable battery that came with the tester. When
charging, use the original power adapter.
B. Make sure the batteries are installed correctly (polarity).
C. Do not short-circuit or disassemble batteries.
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com

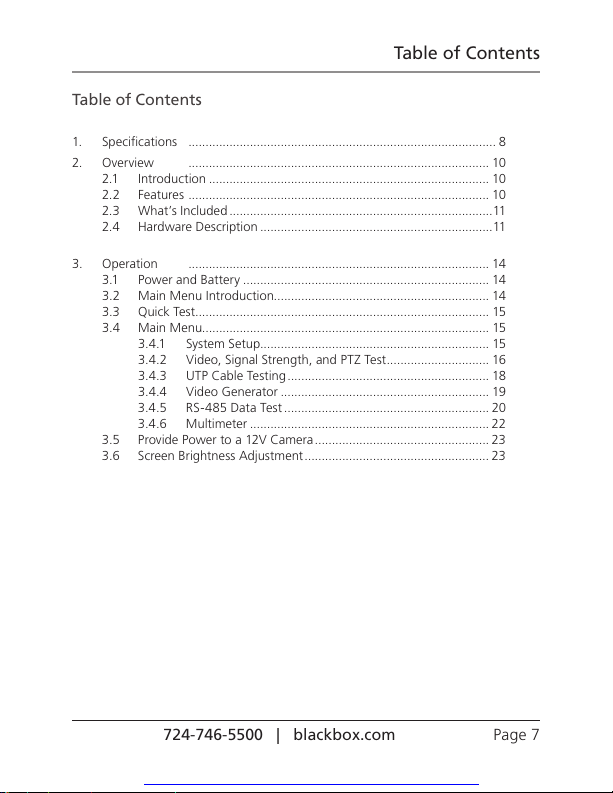

Table of Contents
Page 7
Table of Contents
1. Specifications .......................................................................................... 8
2. Overview ........................................................................................ 10
2.1 Introduction .................................................................................. 10
2.2 Features ........................................................................................ 10
2.3 What’s Included .............................................................................11
2.4 Hardware Description ....................................................................11
3. Operation ........................................................................................ 14
3.1 Power and Battery ........................................................................ 14
3.2 Main Menu Introduction............................................................... 14
3.3 Quick Test...................................................................................... 15
3.4 Main Menu.................................................................................... 15
3.4.1 System Setup................................................................... 15
3.4.2 Video, Signal Strength, and PTZ Test.............................. 16
3.4.3 UTP Cable Testing........................................................... 18
3.4.4 Video Generator ............................................................. 19
3.4.5 RS-485 Data Test ............................................................ 20
3.4.6 Multimeter ...................................................................... 22
3.5 Provide Power to a 12V Camera................................................... 23
3.6 Screen Brightness Adjustment...................................................... 23
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com
1. Specifications
Table 1-1. CCTV Tester specifications.
Feature Description
Video testing Signal mode NTSC/PAL compatible
LCD display 2.5" LCD screen, 960 x 240 resolution
Signal strength Max. Vpp, ave. Vpp, and Sync V
Video input 1 channel BNC
Video output 1 channel BNC
LCD brightness Adjustable from keypad
PTZ test and Communication RS-232, RS-422 simplex and RS-485
control protocol Includes 20 manufacturer’s protocols
Baud rate 2400, 4800, 9600, 19200
Built-in DC voltage test Max.: 1000 V, Precision: 0.1 mV
multimeter AC voltage test Max: 750 V, Precision: 0.1 mV
Resistance test Max.: 40 Mohm, Precision: 0.1 ohm
Power to camera Voltage 12 VDC
Working time 4-5 hours to normal camera
Max. current 200 mA
Other functions UTP cable test Test UTP (CAT5/6) cables
Signal generator Test security monitors
RS-485 data test Display RS-485 data from device
OSD menu English OSD menu
Keypad Easy to operate. Uses number buttons.
Power and battery Power adapter 5 VDC
Battery 3000 mAh rechargeable battery inside
Rechargeable 6 hours recharging time
Low consumption Sleep mode. Power status display.
Operating time 10 hours
Page 8
CCTV Tester
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com Page 9

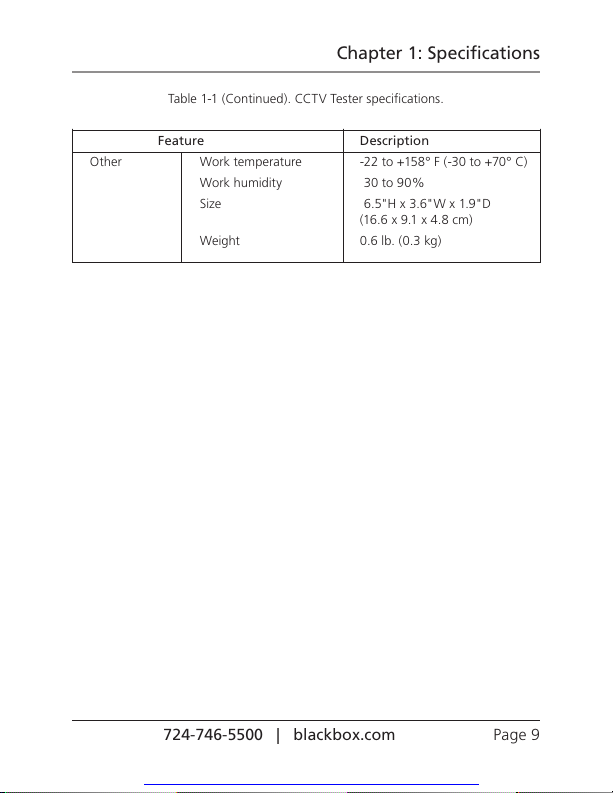

Chapter 1: Specifications
Table 1-1 (Continued). CCTV Tester specifications.
Feature Description
Other Work temperature -22 to +158° F (-30 to +70° C)
Work humidity 30 to 90%
Size 6.5"H x 3.6"W x 1.9"D
(16.6 x 9.1 x 4.8 cm)
Weight 0.6 lb. (0.3 kg)
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com
CCTV Tester
Page 10
2. Overview
2.1 Introduction
The CCTV Tester tests camera video output, signal strength, and PTZ functions. It
also acts as a video pattern generator, cable mapper, and digital multimeter.
2.2 Features
A. Camera video testing (Visual). See page 16. Test a CCTV camera’s video
output visually by displaying it on the tester’s color LCD screen or loop the signal
through to a video monitor.
B. Camera video testing (Signal strength). See page 17. Perform a signal
attenuation test with the touch of a button. The video signal’s voltage (max and
average Vpp) is displayed as sync voltage. Perfect for detecting weak signals. Also
measures sync voltage.
C. Camera motion testing (PTZ). See page 17. Test a PTZ camera’s pan, tilt, and
zoom directly from the tester’s keypad. Complete with preset settings and speed
adjustment. Supports RS-232, RS-422 simplex and RS-485 connections. Baud
rates of 2400, 4800, 9600 and 19,200. RS-485 protocol includes: Pelco D,P,
Samsung, Panasonic, Molynx, and more.
D. Monitor testing (Video signal generator). See page 15. Inspect monitors and
DVRs by driving them with a known good video signal from the tester. It can
output color bars and separate colors. The Camera Wizard only supports NTSC
format.
E. Keyboard testing (RS-485 serial data test). See page 20. Test the RS-485 data
sent from a control device by displaying its hexadecimal data.
F. Digital multimeter. See page 22. Detect AC/DC voltages and measure
resistance using a built-in DMM. Useful in measuring and isolating circuit
problems.
G. Power to camera. See page 23. The tester can supply 12 VDC (200 mA) power
to a CCTV camera. Use when no camera power supply is available.
H. UTP (CAT5 or CAT6) cable test. See page 18. Test CAT5 or 6 cables for opens
and shorts. Remote terminator included.
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com
Chapter 2: Overview
Page 11
2.3 What’s Included
Your package should include the following items. If anything is missing or damaged,
contact Black Box Technical Support art 724-746-5500 or [e-mail].
• CCTV Tester with rechargeable battery
• Charger
• UTP cable terminator
• BNC connect cable
• BNC to RCA adapter
• PTZ terminal block/alligator adapter
• DMM test leads
• Lanyard
• 12-VDC power cable
• This user’s manual
2.4 Hardware Description
Figures 2-1 through 2-4 illustrate the CCTV Tester and describe its components.
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com
CCTV Tester
Page 12

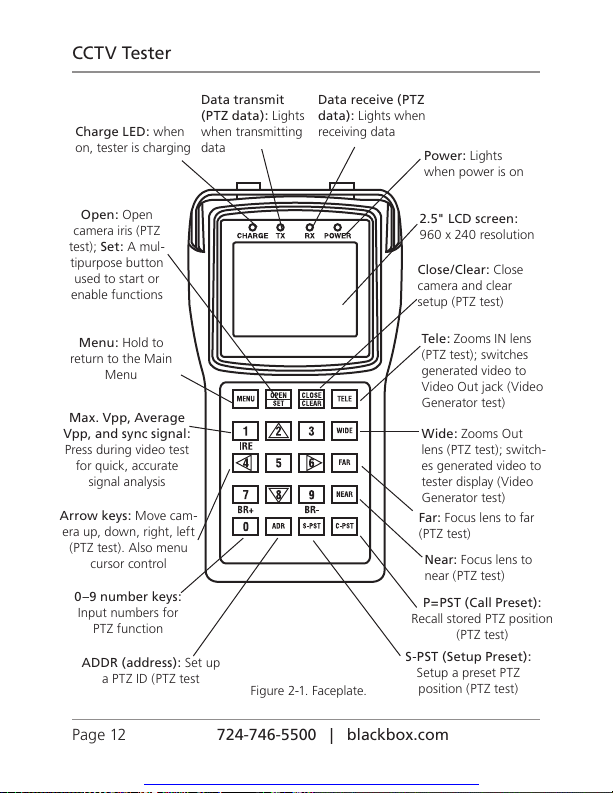

Data transmit
(PTZ data): Lights
when transmitting
data
Data receive (PTZ
data): Lights when
receiving data
Power: Lights
when power is on
Charge LED: when
on, tester is charging
2.5" LCD screen:
960 x 240 resolution
Close/Clear: Close
camera and clear
setup (PTZ test)
Tele: Zooms IN lens
(PTZ test); switches
generated video to
Video Out jack (Video
Generator test)
Far: Focus lens to far
(PTZ test)
Wide: Zooms Out
lens (PTZ test); switch-
es generated video to
tester display (Video
Generator test)
Near: Focus lens to
near (PTZ test)
P=PST (Call Preset):
Recall stored PTZ position
(PTZ test)
S-PST (Setup Preset):
Setup a preset PTZ
position (PTZ test)
ADDR (address): Set up
a PTZ ID (PTZ test
0–9 number keys:
Input numbers for
PTZ function
Arrow keys: Move cam-
era up, down, right, left
(PTZ test). Also menu
cursor control
Max. Vpp, Average
Vpp, and sync signal:
Press during video test
for quick, accurate
signal analysis
Menu: Hold to
return to the Main
Menu
Open: Open
camera iris (PTZ
test); Set: A mul-
tipurpose button
used to start or
enable functions
Figure 2-1. Faceplate.
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com
Chapter 2: Overview
Page 13

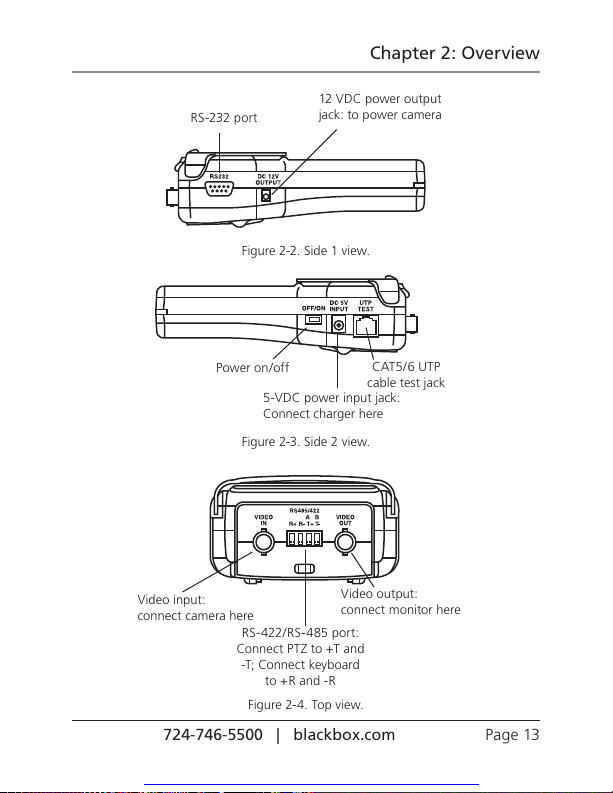

RS-232 port
12 VDC power output
jack: to power camera
Figure 2-2. Side 1 view.
Power on/off
5-VDC power input jack:
Connect charger here
CAT5/6 UTP
cable test jack
Figure 2-3. Side 2 view.
Video input:
connect camera here
RS-422/RS-485 port:
Connect PTZ to +T and
-T; Connect keyboard
to +R and -R
Video output:
connect monitor here
Figure 2-4. Top view.
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com
Page 14
CCTV Tester

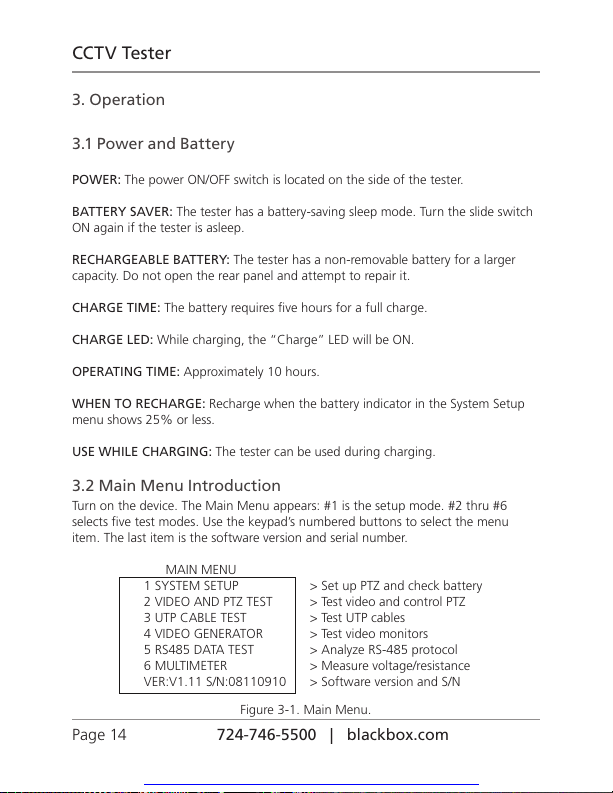

3. Operation
3.1 Power and Battery
POWER: The power ON/OFF switch is located on the side of the tester.
BATTERY SAVER: The tester has a battery-saving sleep mode. Turn the slide switch
ON again if the tester is asleep.
RECHARGEABLE BATTERY: The tester has a non-removable battery for a larger
capacity. Do not open the rear panel and attempt to repair it.
CHARGE TIME: The battery requires five hours for a full charge.
CHARGE LED: While charging, the “Charge” LED will be ON.
OPERATING TIME: Approximately 10 hours.
WHEN TO RECHARGE: Recharge when the battery indicator in the System Setup
menu shows 25% or less.
USE WHILE CHARGING: The tester can be used during charging.
3.2 Main Menu Introduction
Turn on the device. The Main Menu appears: #1 is the setup mode. #2 thru #6
selects five test modes. Use the keypad’s numbered buttons to select the menu
item. The last item is the software version and serial number.
MAIN MENU
1 SYSTEM SETUP > Set up PTZ and check battery
2 VIDEO AND PTZ TEST > Test video and control PTZ
3 UTP CABLE TEST > Test UTP cables
4 VIDEO GENERATOR > Test video monitors
5 RS485 DATA TEST > Analyze RS-485 protocol
6 MULTIMETER > Measure voltage/resistance
VER:V1.11 S/N:08110910 > Software version and S/N
Figure 3-1. Main Menu.
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com
Chapter 3: Operation
Page 15
3.3 Quick Test
A
B
Figure 3-2. Quick test setup.
A. Viewing a camera image: Follow diagram A to connect a CCTV camera (includ-
ing PTZ control) to the tester. The camera’s video output connects to the tester’s
VIDEO IN BNC connector. The camera’s PTZ control wires connect to tester’s
RS-485/422 control block (using the terminal block/alligator clip adapter provided
with the tester). Turn ON the tester and select menu item “2.” The camera’s video
will display on the tester screen. More detailed instructions follow in this manual.
B. Connecting a monitor: Follow diagram B to connect a CCTV monitor to the
tester. The tester’s VIDEO OUT BNC connects to the monitor’s video input connector.
You can drive the monitor with the video signal generated by the tester (menu item
#4, then TELE) or in “looped mode” with a camera’s video connected to the tester’s
VIDEO IN BNC (menu item #4, then WIDE). More detailed instructions follow in this
manual.
3.4 Main Menu (in order of appearance)
3.4.1 Selection 1: System Setup: Display battery status, set auto-off time, and set
up PTZ parameters to match your CCTV camera.
NOTE: If you are not using the PTZ (pan/tilt/zoom) test feature, there is no need to
set the PTZ parameters.
ENTERING AND EXITING: Press “1” to enter the setup screen. Press “MENU” to
return to the Main Menu. A typical configuration is as shown in Figure 3-3.
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com
Page 16
CCTV Tester
PROTOCOL Pelco P > PTZ protocol of camera
COM 485 > PTZ communication port type
RATE 4800 > PTZ baud rate: 2400/4800/9600/19200
SPEED 016 > PTZ pan and tilt speed
IDLE TIME 000 > Battery saver turn off time (minutes)
BATTERY 090 > Battery status (%):100/90/75/50/25/5
Figure 3-3. Typical configuration.
MODIFYING THE SETTINGS:
ENTER SETUP MODE: Press “SET.” In this mode you 1) modify the PTZ settings
(Protocol, Com, Rate and Speed) to match the camera you are testing and 2) set the
battery saver turnoff time (when no activity).
SELECT THE ITEM: Press the “UP and DOWN arrows” to blink the line you wish to
modify. Battery status (% remaining) cannot be modified.
ADJUST THE PARAMETER: Press the “UP/DOWN/RIGHT arrow.”
SAVE/EXIT. Press the “LEFT arrow” to save the setting. Press the “LEFT arrow”
again to stop the blinking. Exit by holding the “MENU key” to return to the Main
Menu.
NOTE: The CCTVTEST has 20 PTZ protocols and 17 speed settings (1 is the slowest
and 16 is the fastest).
3.4.2 Selection 2: Video, Signal Strength, and PTZ Test
A. Display a camera’s video signal on the LCD and monitor:
CONNECTION: Connect the camera to the tester as shown in Figure 3-1. The
camera connects to the tester’s VIDEO IN jack.
Display camera video: Press “2” on the keypad to turn ON the tester’s video and PTZ
feature. The camera’s video appears on the color LCD display. The camera’s video
will also appear on a monitor (if connected to the tester’s VIDEO OUT jack). Study
the image for proper focus and viewing angle. Study the voltage readout (below)
for proper amplitude. And use the tester’s PTZ feature (below) to control pan, tilt,
and zoom.
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com
Chapter 3: Operation
Page 17
Adjust LCD brightness: Use keys number 7 (BR+) and 9 (BR-) to adjust the LCD
screen’s brightness.
B. Measure signal strength (Vpp) and attenuation:
Video signal strength (attenuation): With the tester displaying the video signal
(see A), press the “1” (IRE) key. The following is displayed:
MAX Vpp: The peak-to-peak amplitude of the video signal. The larger the video
signal, the brighter the picture. 1 Vpp is minimum.
AVERAGE Vpp: The average peak-to-peak amplitude of the video signal.
SYNC SIGNAL: A camera’s sync pulses synchronize the camera with the monitor.
NO VIDEO: No signal, “No Video” will be displayed.
Example of attenuation: If the Vpp at the camera is 1.25 Vpp, and the Vpp at the
end of the cable is 1.15 V, the attenuation is 8%.
C. Testing and controlling the camera motion (PTZ):
Connection. Connect the camera to the tester as shown in Figure 3-2, diagram A.
The camera’s PTZ wires plug into the T+ and T- ports on the tester’s RS-422/485 jack
(use the terminal block/alligator adapter).
ADDRESS:001 > Enter the PTZ camera’s ID (001–255)
VIDEO: NULL > Video format PAL/NTSC/NULL
Enter the camera’s ID.
Press “ADDR” and input the PTZ camera’s ID.
Press “SET” to save the address.
Press “MENU” to hide the menu display.
Hold “MENU” to exit the video/PTZ function and return to the Main Menu.
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com
Page 18
CCTV Tester
NOTE: See Section 3.4.1, System Setup to match the tester’s PTZ protocol, com type,
and baud rate to that of the camera.
Controlling the camera’s PTZ (pan/tilt/zoom):
Press “UP/DOWN/LEFT/RIGHT” to control the movement.
Press “OPEN/CLOSE” to control the iris.
Press “FAR/NEAR” to adjust focus.
Press “WIDE/TELE” to zoom the camera lens in and out.
Saving and Calling Preset positions:
The Video Wizard can Save and Call preset positions.
To Save: Press “S-PST” and input a position number. Press “SET” to save.
To Call: Press “C-PST” and input the position number. Press “SET” to call.
Multiple preset positions can be saved.
3.4.3 Selection 3: UTP Cable Testing: Testing a UTP cable (CAT5/6) for proper
connection.
NOTE: “UTP” means unshielded twisted pair. UTP is the most common type
of CAT5 and 6 cable.
CONNECTION: Connect the CAT5/6 UTP cable to the UTP TEST socket on the right
side of the tester. Connect the Remote Terminator to the far end of the cable.
Testing a CAT5
or CAT6 cable
(UTP)
Remote
terminator
Figure 3-4. Testing UTP cable setup.
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com Page 19
Chapter 3: Operation
SELECT UTP CABLE TEST MODE: Press the “3” key to enter the UTP test mode.
START TEST: Press “SET.” The CAT5/6 UTP cable wire map will be displayed on the
LCD screen.
RETURN TO MAIN MENU: Hold the MENU key to return to the Main Menu.
UTP CABLE TEST
TESTER SIDE 1 ---------------------- 1 REMOTE
PIN NUMBERS 2 ---------------------- 2 PIN NUMBERS
3 ---------------------- 3
Typical CAT5/6 4 ---------------------- 0 ”0” means open
Cable (UTP) 5 ---------------------- 0 Two “0”s is a
Wiremap 6 ---------------------- 6 short circuit
7 ---------------------- 7
8 ---------------------- 8
Figure 3-5. UTP cable test wiremap.
3.4.4 Selection 4: Video Generator: Testing a monitor using the VIDEO OUT port.
Connection. Connect the monitor to the tester using the VIDEO OUT jack:
Without camera With camera
Figure 3-6. Video generator test setup.
Drive the monitor with the tester’s video generator. Or drive the monitor
with a camera “looped” through the tester.
SELECT VIDEO GENERATOR MODE: Press the “4” key to turn ON the video
generator.
Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com
Page 20
CCTV Tester

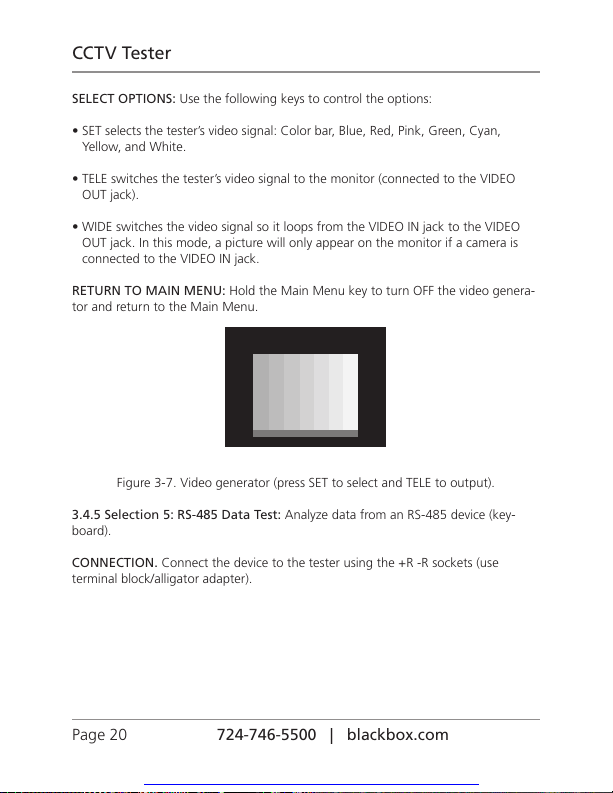

SELECT OPTIONS: Use the following keys to control the options:
• SET selects the tester’s video signal: Color bar, Blue, Red, Pink, Green, Cyan,
Yellow, and White.
• TELE switches the tester’s video signal to the monitor (connected to the VIDEO
OUT jack).
• WIDE switches the video signal so it loops from the VIDEO IN jack to the VIDEO
OUT jack. In this mode, a picture will only appear on the monitor if a camera is
connected to the VIDEO IN jack.
RETURN TO MAIN MENU: Hold the Main Menu key to turn OFF the video genera-
tor and return to the Main Menu.
Figure 3-7. Video generator (press SET to select and TELE to output).
3.4.5 Selection 5: RS-485 Data Test: Analyze data from an RS-485 device (key-
board).
CONNECTION. Connect the device to the tester using the +R -R sockets (use
terminal block/alligator adapter).
Get other manuals https://www.bkmanuals.com
