Sigma RC 14.11 User manual

PT
RC 14.11
www.sigmasport.com
RUNNING COMPUTER
SPEED – DISTANCE – LAP CouNT
ruNNINg CoMPuTEr
DEUS/GBFRITPT ESNL

50 www.sigmasport.com
1 Foreword 52
2 Packaging contents 52
3 Safety guidelines 53
4 Overview 54
4.1 Activating the running computer 54
4.2 Attaching the R3 transmitter 54
4.2.1 Attaching the chest belt 54
4.2.2 Attaching the HipClip 55
4.3 Before training 56
4.4 Pressing and holding down buttons 57
4.5 Overview of modes and functions 58
4.5.1 Sleep mode 59
4.5.2 Training mode 59
4.5.3 Lap view 60
4.5.4 Setting mode 61
5 Setting mode 62
5.1 Activating the setting mode 62
5.2 Display setup 62
5.3 Button assignment in the setting mode 62
5.4 Brief guide to device settings 63
5.5 Establishing device settings 63
5.5.1 Setting the language 63
5.5.2 Setting the measuring unit 63
5.5.3 Calibration 63
5.5.4 Correction factor 63
5.5.5 Setting the date 64
5.5.6 Setting the time 65
5.5.7 Setting the gender 66
5.5.8 Setting the date of birth 66
5.5.9 Setting the weight 66
5.5.10 Setting the max. HR 66
5.5.11 Setting the training zone 67
5.5.12 Training with training zones 68
5.5.13 Setting up an individual training zone 68
5.5.14 Setting the total distance 70
5.5.15 Setting the total running time 71
5.5.16 Setting the total calories 71
5.5.17 Setting the contrast 71
5.5.18 Log interval 72
5.5.19 Logbook 73
CONTENTS

51
US/GB
5.5.20 Setting the button tones 73
5.5.21 Turning the zone alarm on and off 73
6 Calibration and correction factor 74
6.1 Why calibrate? 74
6.2 Calibration function 74
6.3 Activating calibration 75
6.4 Calibrating 76
6.4.1 Preparing for calibration 77
6.4.2 Carrying out calibration runs 78
6.5 Correction factor 79
7 Training mode 80
7.1 Activating the training mode 80
7.2 Display setup 80
7.3 Button assignment in the training mode 81
7.4 Functions while training 82
7.5 Radio link with the R3 transmitter 82
7.6 Starting a training session 83
7.7 Interrupting a training session 84
7.8 Ending a training session 84
7.9 Training values after training 85
7.10 Resetting and saving the training values 85
8 Training with laps 86
8.1 Using lap training 86
8.2 Summary of the last lap 87
8.3 Lap view 87
8.3.1 Activating the lap view mode 88
8.3.2 Display setup 88
8.3.3 Button assignment for the lap view 89
8.3.4 Displaying values for individual laps 90
9 Data transfer 90
9.1 Connecting the RC 14.11 to the docking station watch 91
10 Maintenance and cleaning 92
10.1 Changing the battery 92
10.2 Washing the COMFORTEX+ textile chest belt 93
10.3 Disposal 94
11 Technical data 94
12 Warranty 97
CONTENTS

52 www.sigmasport.com
1 FOREWORD
Thank you for purchasing the SIGMA SPORT® RC 14.11 running
computer. Your new running computer will be a faithful training partner
for many years to come. You can use your running computer for many
different activities, including:
kRunning
kWalking and Nordic Walking
kHiking
kSwimming (HR measurement only)
The RC 14.11 running computer is a technically advanced instrument
that measures not only your heart rate but also your distance and
speed.
Please read these instructions carefully to familiarize yourself with the
many functions of your new running computer and prepare for their use.
SIGMA SPORT®wishes you the best of fun with your running computer.
2 PACKAGING CONTENTS
RC 14.11 running computer
incl. battery
Battery compartment tool
For activating the battery and battery changes.
Tip: If you lose this tool, the battery compartment
can also be opened with the aid of a ballpoint pen.
COMFORTEX+ chest belt
For heart rate measurement and attaching the R3
transmitter

53
US/GB
2 PACKAGING CONTENTS
R3 transmitter incl. battery
For measuring your speed and heart rate.
The R3 transmitter sends coded digital signals to
your RC 14.11.
HipClip for R3 transmitter
To train without heart rate measurement but with
speed.
DATA CENTER 2
Software for analyzing your training data.
Docking station with USB connection
For reading the RC 14.11 training data in
the DATA CENTER 2 software on the computer.
Please install the DATA CENTER 2 software
before connecting the docking station!
3 SAFETY GUIDELINES
kConsult your doctor before starting training in order to avoid health
risks. This particularly applies if you suffer from any cardiovascular
diseases or have not done any sport for a long time.
kPlease do not use the running computer for diving;
it is only suitable for swimming.
kDo not press any buttons while under water.

54 www.sigmasport.com
4 OVERVIEW
4.2.1 ATTACHING THE CHEST BELT
Press the R3 transmitter into the snaps of the chest
belt.
Important: Detach the R3 transmitter from the belt
after training in order to save the battery. The trans-
mitter is always active if a current is flowing between
the two contacts. This is the case when the chest belt
is worn on the skin, or, for instance, if the chest strap
and/or the R3 transmitter lies on a wet towel. When
the LED flashes, the R3 transmitter is on.
Before you can train with your new RC 14.11,
you need to activate it. To do this, use the
appropriate tool to set the battery compartment
to ON.
Your RC 14.11 will automatically change to setting
mode. Use the PULSE (-) and SPEED (+) buttons
to scroll through the basic settings. Press the SET
button to confirm your entry. Set the basic settings
such as the language, measuring unit, date and time.
Press and hold the SET button to exit the
setting mode.
For further information, please see section 5 “Setting
mode”.
You can wear the R3 transmitter either on the chest belt or the HipClip.
kWorn on chest belt
It measures the heart rate, speed and distance.
kWorn on HipClip
It measures the speed and distance, but not the heart rate.
4.1 ACTIVATING THE RUNNING COMPUTER
4.2 ATTACHING THE R3 TRANSMITTER

55
US/GB
4 OVERVIEW
Place the belt below the chest muscle or breasts.
Important: The R3 transmitter faces forward.
Adjust the length of the belt.
Important: The belt should fit snug, but not too tight.
Wet the surface of the laminated electrodes,
which rest on the skin
Important: The heart rate measurement is only
reliable if the laminated electrodes are moist.
Attach the HipClip to the center of your pants.
Important: Speed and distance are only measured
correctly if you wear the HipClip on the front center.
4.2.1 ATTACHING THE CHEST BELT
4.2.2 ATTACHING THE HIPCLIP
Snap the R3 transmitter into the HipClip.
Important: Detach the R3 transmitter from the
HipClip after training in order to save the battery.
The transmitter becomes active when it is clipped
on the HipClip or if current can flow between the
contacts (press buttons). When the LED flashes,
the R3 transmitter is on.
Note: The R3 transmitter can only be used in one
direction.

56 www.sigmasport.com
4 OVERVIEW
4.3 BEFORE TRAINING
3 The running computer automatically switches
to training mode. Wait until your heart rate is
displayed before you start training.
1 Put on the chest belt or HipClip and the
RC 14.11.
4 Start training.
Press the START/STOP button to start training.
Before you can start training, you need to prepare
the running computer in the following manner:
2 Activate the RC 14.11 by pressing and holding
down any button.

57
US/GB
4 OVERVIEW
4.3 BEFORE TRAINING
5To finish training, simply press the START/STOP
button. The stopwatch stops. To reset the values
to zero, press and hold the START/STOP button.
To exit the training mode, press and hold the
PULSE (-) button.
4.4 PRESSING AND HOLDING DOWN BUTTONS
The buttons on the running computer perform different actions
depending on how long you press them:
kPress button briefly
Activate or scroll through functions.
kPress and hold
Switch to another mode, reset training values,
or synchronize the R3 transmitter and the RC 14.11.
Example: You have finished training and want to activate the sleep mode.
Hold down the PULSE (-) button.
Keep the PULSE (-) button held down.
The display will flash twice, indicating that
the training mode is deactivated.

58 www.sigmasport.com
4 OVERVIEW
4.5 OVERVIEW OF MODES AND FUNCTIONS
The heart rate monitor has three main modes (training mode,
setting mode and sleep mode). You can switch between these
modes by pressing and holding a button.
Sleep mode
Lap view Setting mode
Training mode
The sleep mode will be displayed.
Release the PULSE (-) button.
4.4 PRESSING AND HOLDING DOWN BUTTONS

59
US/GB
4 OVERVIEW
You will train in this mode.
*Note: To provide you with a clearer
overview while training, the total
values are only displayed if the
stopwatch is not running.
PULSE
kAverage heart rate
kMaximum heart rate
kCalories
kRemaining log time
kTotal Kcal*
SET
kDistance (in km)
kSpeed
(in km/h or min/km)
kRunning time
START/STOP
kStopwatch
LAP
kLaps/
intervals
SPEED
kLap time
kLap distance
kAverage speed
kMaximum speed
kTime
kTotal distance*
kTotal running time*
4.5.1 SLEEP MODE
4.5.2 TRAINING MODE
In sleep mode, only the time and date are displayed.
To switch from sleep mode to training mode,
press and hold down any button.

60 www.sigmasport.com
4 OVERVIEW

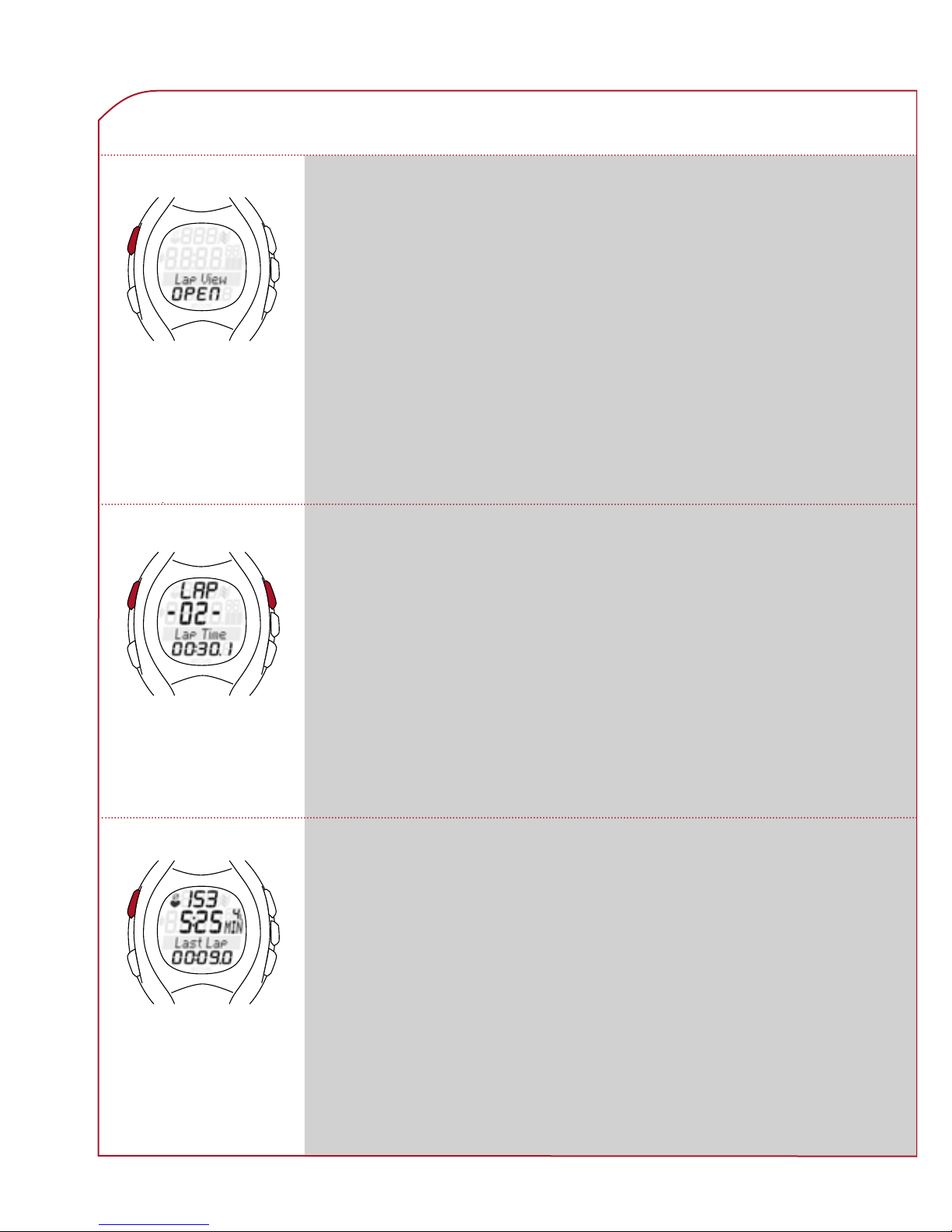

4.5.3 LAP VIEW
The RC 14.11 can be used for lap training.
The values for the individual laps or legs are saved
in the running computer. You can view the values in
the lap view after and during your training.
You can only activate the lap view from the
training mode. To do this, hold down the LAP button.
In lap view mode:
Use the LAP and START/STOP buttons to navigate
and scroll through the previous laps. Press the
PULSE (-) and SPEED (+) buttons to view the
heart rate and distance values for each lap.
While training, the running computer briefly shows
you a summary of the last lap for each completed lap
(briefly press the LAP button). This enables you to
directly determine whether you are close to values
you are striving to achieve (pace table, target time).

61
US/GB
Language
(ES, FR, IT, GB, DE)
Zone alarm
(On, Off)
Button tones
(On, Off)
Log interval
(5, 10, 20 or 30 sec.)
Logbook
(Cancel, Delete)
Measuring unit
(km/h, mph, min/km, min/mile)
Contrast
(5 levels)
Calibration
(Run/Walk)
Total Kcal
(Enter)
Date
(Enter, Format)
Correction factor
(Enter)
Total running time
(Enter)
Time
(Enter, 12h, 24h)
Total distance
(Enter)
Gender
(Male, Female)
Training zone
(Fat Burn, Fit Zone,
Individual)
Year of birth
(Enter)
Max. heart rate
(Calculated from gender,
age and weight.
Correction possible)
Weight
(Enter)
4.5.4 SETTING MODE
This mode enables you to adjust the device settings.
kUse the SPEED (+) button to scroll forward
from the language to the zone alarm.
kUse the PULSE (-) button to scroll backward
from the zone alarm to the language.
4 OVERVIEW

62 www.sigmasport.com
5 SETTING MODE
5.1 ACTIVATING THE SETTING MODE
Prerequisite: Your running computer must be in
training mode (see section 4.5 “Overview of modes
and functions”).
Hold down the SET button. The display will flash twice
to indicate that the setting mode is now active.
5.2 DISPLAY SETUP
5.3 BUTTON ASSIGNMENT IN THE SETTING MODE
1st line SET indicates that the setting mode
is active.
3rd line/ Submenu or the setting to be
4th line changed.
START/STOP
Press: In calibration mode,
start and stop the
measurement
SET
Press: Select function
Save value
Press and hold: Exit setting
mode (in calibration mode,
cancel calibration)
LIGHT
Press:
Light on
PULSE
Press:
Scroll
backward
Press and
hold:
Scroll
continuously
SPEED
Press: Scroll forward
Press and hold: Scroll
continuously

63
US/GB
5.4 BRIEF GUIDE TO DEVICE SETTINGS
Device settings such as language, measuring unit, correction factor, gender,
date of birth, weight, max. HR, contrast, log interval, logbook, button tones
and zone alarm are all set in the same manner: Select the device setting,
change the value and save the modified setting.
Prerequisite: Your running computer must be in setting mode (section 5.1).
1Press the PULSE (-) or SPEED (+) button
repeatedly until you reach the desired device setting.
2Press the SET button. The device setting value flashes.
3Press the PULSE (-) or SPEED (+) button
repeatedly until the desired value is displayed.
4Press the SET button. The new device setting is saved.
You can now scroll to a different device setting.
5 SETTING MODE
5.5 ESTABLISHING DEVICE SETTINGS
5.5.1 SETTING THE LANGUAGE
5.5.2 SETTING THEMEASURING UNIT
5.5.4 CORRECTION FACTOR
5.5.3 CALIBRATION
Follow the steps described in section 5.4 “Brief guide to device settings”.
Follow the steps described in section 5.4 “Brief guide to device settings”.
The correction factor is described in a separate section.
See section 6 “Calibration and correction factor”.
The calibration is described in a separate section.
See section 6 “Calibration and correction factor”.

64 www.sigmasport.com
5.5.5 SETTING THE DATE
5 SETTING MODE
Prerequisite: Your running computer must be in setting mode.
Press the SPEED (+) button repeatedly until “Date”
appears on the display.
Press the SET button. “Year” is displayed and below it
the preset year flashes.
Press the PULSE (-) or SPEED (+) button repeatedly
to set the year.
Press the SET button. “Month” is displayed.
Press the PULSE (-) or SPEED (+) button repeatedly
to set the month.
Press the SET button. “Day” is displayed.
Press the PULSE (-) or SPEED (+) button repeatedly
to set the day.
Press the SET button. A date format is displayed.
Use the PULSE (-) or SPEED (+) button to choose
a different date format.
Press the SET button. The data setting is saved.

65
US/GB
Press the SPEED (+) button repeatedly until “Clock”
appears on the display.
Hold down the SET button. “24H” is displayed and
flashes.
Use the PULSE (-) or SPEED (+) button to choose
between 12-hour and 24-hour format.
Press the SET button. The time is displayed.
The hours entry flashes.
Press the SPEED (+) button. The hour increases
by one. Press the PULSE (-) button to decrease the
displayed hour by one.
Press the SET button. The minute entry flashes.
Press the SET button. The new time is saved.
5.5.6 SETTING THE TIME
Example: Winter time has changed to summer time and you want to
adjust the time on your heart rate monitor.
Prerequisite: Your running computer must be in setting mode.
5 SETTING MODE

66 www.sigmasport.com
5.5.7 SETTING THE GENDER
Follow the steps described in section 5.4 “Brief guide to device settings”.
This device setting is taken into account when calculating
the maximum heart rate and calories. You should therefore ensure
that you set this value correctly.
5 SETTING MODE
5.5.8 SETTING THE DATE OF BIRTH
5.5.9 SETTING THE WEIGHT
5.5.10 SETTING THE MAX. HR
Follow the steps described in section 5.4 “Brief guide to device settings”.
This device setting is taken into account when calculating
the maximum heart rate and calories. You should therefore ensure
that you set this value correctly.
Follow the steps described in section 5.4 “Brief guide to device settings”.
This device setting is taken into account when calculating
the maximum heart rate and calories. You should therefore ensure
that you set this value correctly.
Follow the steps described in section 5.4 “Brief guide to device settings”.
The maximum heart rate (max. HR) is determined by the
running computer on the basis of your gender, weight and date of birth.
Caution: On changing this value, you also change the training zones.
Only change the max. HR value if it has been determined by a reliable
test, such as performance diagnostics, max. HR test, etc.

67
US/GB
5.5.11 SETTING THE TRAINING ZONE
You can choose from three training zones. The upper and lower limits
for the zone alarm are determined by the zone that you select.
Example: If you want to lose weight, select the “Fat Burn”.
Prerequisite: Your running computer must be in setting mode.
5 SETTING MODE
Press the SPEED (+) button repeatedly until
“Train. Zone” appears on the display.
Press the SET button. The set training zone is
displayed.
Use the SPEED (+) button to scroll to “Fat Burn”.
Press the SET button. The training zone is set for all
future training sessions.
Tip: To return to the training mode, press and hold the SET button.

68 www.sigmasport.com
Press the SPEED (+) button repeatedly to scroll until
“Train. Zone” appears on the display.
5.5.13 SETTING UP AN INDIVIDUAL TRAINING ZONE
5 SETTING MODE
Example: You would like to train in an individual training zone for a run
with a change of pace. The pulse range should lie between 120 and 160.
Prerequisite: Your running computer must be in setting mode.
5.5.12 TRAINING WITH TRAINING ZONES
Your running computer has three training zones. The preset
training zones “Fat Burn” and “Fit Zone” are calculated from the
maximum heart rate. Each training zone has an upper and a lower
heart rate limit.
kFat Burn
This training is for the aerobic energy metabolism. Thanks to the
long duration and low intensity, more fat than carbohydrates is
burned or converted into energy. Training in this zone will help you
lose weight.
kFit Zone
Your training is considerably more intensive in the Fitness Zone.
Training in this zone enhances your basic endurance level.
kIndividual Training Zone
This zone is set up by you.
The procedure for selecting the training zone is described in section
5.5.11 “Setting the training zone”.
