Sigma SL-50 User guide

SL-50 SL-60 MIXERS 1 of 23
USE AND MAINTENANCE INSTRUCTION MANUAL FOR
50/60 SILVER AND GREENLINE MIXER MACHINE

SL-50 SL-60 MIXERS 2 of 23
USE AND MAINTENANCE INSTRUCTION MANUAL FOR
50/60 SILVER AND GREENLINE MIXER MACHINE
This instruction, use and maintenance manual provides the instructions necessary for
transportation, starting-up, use and maintenance of the mixer. It must be consulted before
any one of these acts.
The manual must be read not only by maintenance technicians, but also by operators in
charge of the mixer who must correctly carry out what is within their line of competence.
The manual is an integral part of the mixer. It must be kept in a suitable place where it can remain intact and
where it can be consulted during the whole life of the machine.
INDEX
SAFETY INSTRUCTIONS............................................................................................................................................................................3
RESIDUAL RISKS .......................................................................................................................................................................................3
RESIDUAL RISKS, PROHIBITIONS, OBLIGATIONS: Summarised table...................................................................................................4
SYMBOLS USED AND QUALIFICATIONS OF THE PERSONNEL ............................................................................................................4
USE AND DESCRIPTION OF THE MIXER..................................................................................................................................................5
CONDITIONS FOR USE .............................................................................................................................................................................5
IDENTIFICATION, POSITION OF THE OPERATOR AND DANGEROUS AREAS.....................................................................................5
TECHNICAL DATA, PACKAGING, DIMENSIONS AND WEIGHT .............................................................................................................6
TRANSPORTATION AND HANDLING.........................................................................................................................................................6
STORAGE ....................................................................................................................................................................................................7
INSTALLATION ............................................................................................................................................................................................8
PRESERVATION OF THE MACHINE..........................................................................................................................................................8
WARRANTY TERMS ...................................................................................................................................................................................8
INSTRUCTIONS FOR USE .........................................................................................................................................................................9
PROCESSING WITH THE MIXER ............................................................................................................................................................11
CLEANING AND MAINTENANCE OPERATIONS.....................................................................................................................................12
CONTROL OF SAFETY SYSTEMS AND ELECTRICAL SYSTEM ...........................................................................................................13
ROUTINE MAINTENANCE ......................................................................................................................................................................14
EXTRAORDINARY MAINTENANCE..........................................................................................................................................................14
PERIODICAL MAINTENANCE ..................................................................................................................................................................15

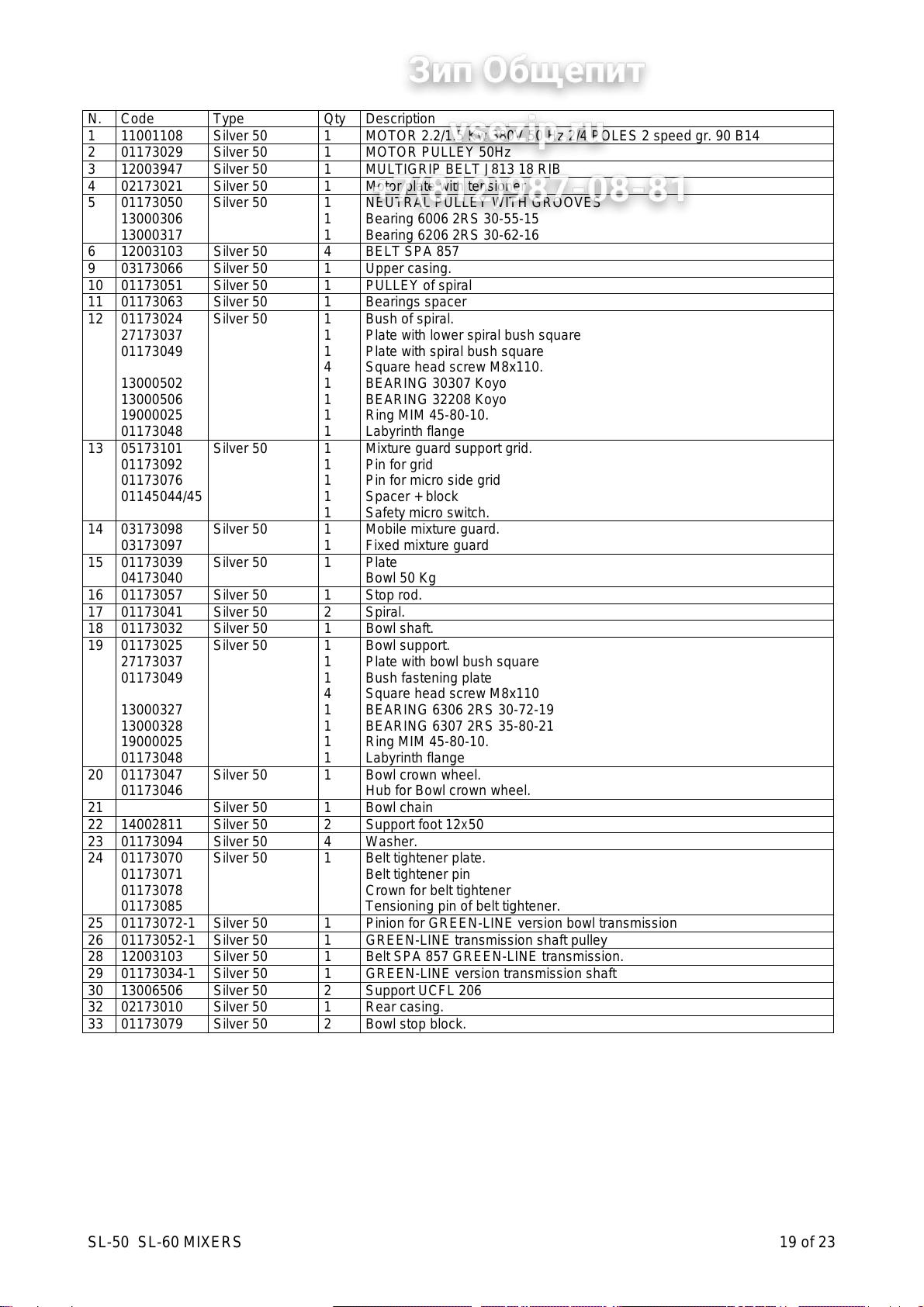

SPARE PARTS ..........................................................................................................................................................................................15
MAIN COMPONENTS................................................................................................................................................................................15
DISMANTLING AND WASTE DISPOSAL..................................................................................................................................................15
SPARE PARTS ..........................................................................................................................................................................................16
ELECTRICAL LAYOUT .............................................................................................................................................................................21
BLOCKAGE OF MACHINERY AND NECESSARY REMEDIES................................................................................................................23

SL-50 SL-60 MIXERS 3 of 23
SAFETY INSTRUCTIONS.
The safe and systematic use of the mixer is subordinated to compliance with behaviour and standards listed
hereafter.
Safety standards
Personnel must be in good physical and mental conditions and be adequately instructed on the use
of the mixer having read this publication.
The safety manager of the company, of the operating area and of the department, when choosing
the person who must use this equipment (a person suitable for the job according to Standards in
force), must consider his/her cultural preparation, physical suitability and the psychological aspect
(mental stability, sense of responsibility, etc.). Moreover, based on the attitudes and capacity that
were verified, the manager must provide this person with proper training, having him/her read the
present publication, in order to have full knowledge of the mixer and of the rules of behaviour
applying to it.
The area around the mixer must be well lit, free from other objects and clean.
The personnel in charge of running, cleaning and carrying out maintenance on the mixer must wear
the required PPE (personal protective equipment).
Do not wear dangling clothing or fluttering hems (ties, napkins, torn suits, open jackets etc.) to avoid
getting entangled.
During maintenance and cleaning, the operator must disarm the master switch and place the system
in safe conditions (for example, removing the plug).
Never leave the mixer unattended while it is running. Be careful of abnormal noises or behaviour.
Keep away from rotating parts. Never open the grid before the equipment has come to a complete
stop.
At the end of work, empty the machine completely, disconnect the master switch cutting the power,
place it in safe conditions and clean it with a neutral degreasing agent (i.e. with Marseille soap).
Safety devices.
The mixer is equipped with some devices which protect its operation as well as the safety of the operator.
They must not be removed or modified. Their functioning must be checked periodically.
Master switch: cuts power from the mixer, for maintenance in safe conditions.
Circuit breaker switch: cuts power if the electric motor overheats.
Fixed guards: All casings and guards fixed with screws or mechanical locks can be removed only for
maintenance, by specialised personnel and in the prescribed modalities. When the work is over, they
must be mounted immediately.
Mobile guards: Movement of the grid activates a micro switch which prevents the mixer from running
if the grid is open. If the grid is lifted while the mixer is running, it stops the cycle unconditionally, just
like an emergency stop. The start button must be pressed for the mixer to restart.
Safety Standards applied to the mixer.
EN 292 Safety of machinery.
EN 294 Minimum distances to prevent accidental contact.
CEI 17-13. Low-voltage switchgear and control gear assemblies.
Community Directives: 89/392/EEC, 89/336/EEC, 91/368/EEC, 93/44 EEC, 93/68 EEC.
RESIDUAL RISKS
Danger for limbs: Going beyond the protective grid or removing the casing during maintenance, it is
possible to access the moving organs of the mixer.
They are dangerous areas where serious physical injuries can occur. Do not introduce limbs or other
objects without having placed the mixer in safe conditions.
Danger of electrocution: the mixer must not operate without an adequate earthing system. It must be
connected to a system built in compliance with construction standards in force in the country where it
is installed.
Automatic cycle: after starting up the mixer, it follows an automatic operating cycle. Never go past
the safety barriers with your limbs or other objects while it is running.

SL-50 SL-60 MIXERS 4 of 23
RESIDUAL RISKS, PROHIBITIONS, OBLIGATIONS: Summarised table.
SYMBOLS USED AND QUALIFICATIONS OF THE PERSONNEL.
The following indicates the qualifications of personnel required to operate the mixer.
The symbols placed on a chapter mean to recall the specific skill needed for the intervention described
therein. Wherever no symbols are present, the chapter applies to everyone.
Symbol Description Features
OPERATOR
Person acquainted with operating, adjusting and programming the mixer and its
protection and safety systems, who knows possible work cycles and ingredients
to be used with relative maximum admitted amounts and who has read and
understood the use and maintenance manual.
ELECTRICAL
MAINTENANCE
TECHNICIAN
Person in good health who due to qualification, job or experience is qualified to
carry out the profession of electrical maintenance technician and who has read
and understood the use and maintenance manual.
MECHANICAL
MAINTENANCE
TECHNICIAN
Person in good health who due to qualification, job or experience is qualified to
carry out the profession of mechanical maintenance technician and who has read
and understood the use and maintenance manual.
PERSON IN
CHARGE OF
HANDLING
ZIONE
Person in good health who due to qualification, job or experience is qualified to
carry out handling of loads and who has read and understood the use and
maintenance manual.
ASSISTANCE
Requesting manual updates.
Phone customer assistance concerning functioning, starting or faults of
machinery.
Requesting spare parts, repairs, system overhauls, interventions on site.
Training courses
ATTENTION. This sign requests you to pay particular attention to the operations indicated.
Lack of compliance can cause harm to personnel or damage to the mixer.
Obligation to
disconnect mixer
before working on it.
Obligation to carry out
earthing.
ATTENTION!
Wear the required PPE during operations.
Clean the mixer thoroughly after use.
Do not remove the safety devices or protective casings.
Do not introduce any object through the protective grid with organs in movement: danger of objects being thrown.
Before carrying out any manoeuvre beyond the protective grid, wait for the mixer to come to a complete stop.
Stability for machinery: if there is the
possibility of slipping on wet or greasy
surfaces or positioning the equipment in
unstable places (ships, planes or other),
use the appropriate attachments for
stable fixing (4 anchoring devices with
200 kg resistance, M8 screws)

SL-50 SL-60 MIXERS 5 of 23
USE AND DESCRIPTION OF THE MIXER:
The mixers of the SILVER series are designed to amalgamate food mixtures which use water and flour as
their main ingredients. A spiral rotates mixing, amalgamating, refining and oxygenating the mixture in the
rotary bowl and, thanks to the mechanical action of the system, the mix is quickly and efficiently prepared.
Conceived to make dough for bread, the mixer is suitable for all types of leavened mixtures and products to
be baked, made from the following ingredients: all types of flour, water, yeast, grease - butter, sugar, aromas
and colourings allowed by law, salt, Liqueurs, and other ingredients for making bread and pastry.
Adapting the mixer to other work processes would implicate not only modifying the machinery by authorised
personnel but also the amendment of this manual.
The high-power motor, the transmission system and the steel framework make it sturdy and reliable, with a
large size suitable for professional use. The safety devices and electrical control equipment complying with
European Standards complete the machinery.
The mixer, loaded with the ingredients, usually water, flour and additives in the order and maximum amounts
described further down, is started from the controls panel and performs a manual or times cycle of a few
minutes where the spiral rotates together with the bowl, amalgamating the ingredients. In order to remove
the mixture, turn off the mixer by switching off the master switch, lift the grid and remove it from the bowl by
hand. Use a plastic, aluminium or wooden spatula (which do not scratch the bowl) to make the operation
easier.
CONDITIONS FOR USE:
Atmospheric conditions: The mixer needs to be installed inside of a lit, ventilated building, on top of a solid
and level support. Temperatures from 5 to 40°C with humidity no greater than 90%.
Lighting: the light at disposal of the operator must comply with the type of work carried out, in relation to
general lighting, according to the Standards in force. It must on any account be sufficient to read the controls
and danger signs and must not blind the operator.
Vibrations: in correct working conditions, vibrations do not create dangerous situations.
Noise emissions: 70 dbA for normal use.
Electromagnetic environment: the machine has been built to work correctly in an industrial type of
electromagnetic environment.
Environments with risk of explosion: An atmosphere capable to being transformed into an
explosive atmosphere due to room and/or operating conditions is defined a potentially explosive
atmosphere.
The mixer was not built to work in environments with potentially explosive atmospheres.
IDENTIFICATION, POSITION OF THE OPERATOR AND DANGEROUS AREAS.
There is a plate on the back of the mixer like the one shown which carries indications concerning the
manufacturer, the type of machine, serial number, electrical features, frequency, absorbed power and the
number of phases and the year of construction. The figure at the side shows the position of the plate, that of
the operator respect to the mixer and
the AS danger area which must be
free from people for a distance A =
400 mm.

SL-50 SL-60 MIXERS 6 of 23
TECHNICAL DATA, PACKAGING, DIMENSIONS AND WEIGHT.
There are four types of packaging: machine on pallet wrapped in cellophane, machine on pallet in cardboard
box, machine on pallet in wooden cage, machine on pallet with crate.
Model A
mm B mm C mm D mm Weigh
t
[Kg]
Bowl
litres Power [Kw] 380/50/3 - 2V
Silver 50
Silver 60 875 925 550 1185 545
595 200 55 1.5-2.2
PACKAGE Cellophane + pallet Cardboard + pallet Wooden cage or crate
Model AxBxH cm Weight
[kg] AxBxH cm Weight [kg] AxBxH cm Weight [kg]
Silver 50/60 1000x650x1350 215 1000x650x1400 225 1000x650x1500 230 240
TRANSPORTATION AND HANDLING.
Lifting standards of the mixer on pallet.
Always use a lift truck or lifting means with forks.
Make sure the lifting device is adequate for the load.
Widen the lifting forks as much as possible, make sure they come out from the pallet and the
grip is barycentric.
Work in an area free from persons and animals.
During movement, always keep the load as close to the ground as possible.
PACKAGE

SL-50 SL-60 MIXERS 7 of 23
Use the required P.P.E.
VERSION WITH SHIP ATTACHMENT:
Lifting standards of the mixer without pallet.
Due to its instability , the mixer must be handled with a suitably-sturdy strap, having
it pass below the head, as in the figure at the left.
Before lifting, stand the grid up vertically to avoid interference with the lifting strap.
Make sure the lifting equipment is adequate for the load.
Act on an empty area, and during movement, always keep the load as close to the
ground as possible.
Use the required P.P.E.
The mixer inclines by 8-10 degrees when lifted.
Transport standards of the mixer with wheels.
Act on an empty area, and on a floor with adequate sturdiness
(concrete, tiles, etc. as long as it has load capacity > 20 kgcm2),
smooth, even and without any differences in level.
Use the required P.P.E.
Fully tighten support "A", the mixer will rest completely on the wheels.
Push the fixer as shown in figure.
Once the wanted location is reached, tighten the two supports "A"
until the front wheels are lifted from the ground.
ATTENTION.
Do not make the mixer function only on wheels, always tighten the two supports “A” until the wheels are fully
lifted.

SL-50 SL-60 MIXERS 8 of 23
STORAGE:
Storage of packed mixer:
The mixer must be stored in a closed and covered place, on a smooth and solid surface protected from dust
and filth, sheltered from atmospheric agents and hygienically safe.
The temperatures must remain between –20 and +50°C, and humidity no greater than 90%.
Storage of unpacked mixer.
If the mixer has already been unpacked, in addition to that above, it must be lifted from the ground with a
pallet or other and covered in order to protect it from humidity, dust and filth. If wrapped in cellophane or
another type of plastic, avoid airtight closing below the mixer in order to prevent corrosion linked to
condensate.
ATTENTION! The mixer must not be stored in the open!!
INSTALLATION
The mixer must stand in a vertical position, on a smooth surface sufficiently sturdy for the load (floor
with resistance over 20 km/cm2). If in danger of tipping over (assembly on ship or other), anchor the
mixer to the floor using 4 plugs or bolts with a traction resistance over kg 400 (M10) using the
appropriate anchoring devices supplied upon request.
ATTENTION.
Do not make the mixer function only on wheels, always tighten the two supports “A” until the wheels are fully
lifted.
Connection to electrical mains
The electrical connection must be carried out by a specialised electrician, according to the modalities
and standards in force in the country where it is installed. Make sure that the voltage and frequency
of the system are the same as those on the mixer identification plate. Incorrect connection makes
the warranty void.
PRESERVATION OF THE MACHINE
Storage before a long period out of service
Clean the mixer thoroughly.
Disconnect it from the electrical mains.
If possible, put it back into its original packing.
WARRANTY TERMS
Validity: The warranty starts from the delivery date and lasts 12 months, if:
The mixer was not damaged during transportation, and it was installed, commissioned, used and
serviced as prescribed in this manual.
It was not tampered with, modified and no unintended tools were installed on it.
It did not undergo modifications or repairs carried out by the customer or third parties in an
incompliant fashion or without the prior consent of the supplier.
The following conditions constitute improper use of the mixer:
•Loading more than what is allowed or use of unsuitable ingredients.
•Cleaning with unsuitable tools or instruments that can scratch the bowl or damage the mixer or paint.
•Use of the mixer in unsuitable places.

SL-50 SL-60 MIXERS 9 of 23
Modality for granting the warranty
If the customer finds defects in the mixer, he must immediately inform the supplier, who will carry out a quick
analysis of the lack of compliance and will establish the intervention mode with the customer.
The customer must provide the needed time and opportunity to carry out modifications, improvements,
repairs or the supply of spare parts which the supplier deems reasonably necessary. If this does not occur,
the supplier will not be held liable.
Parts subject to wear
Some components are scaled for a life duration far longer than that of normal mixer use during the time of its
warranty. Breakage or malfunctioning of these pieces depends on their use. They are therefore considered
parts subject to wear and are not included in the warranty, unless they manifest evident defects in the parts
or machinery.
The parts subject to wear are: transmission belts, motors, bearings and bowl.
INSTRUCTIONS FOR USE.
The mixer is provided with a master switch on the right side. It is controlled by one of the front
panels shown below.
The first panel has a manual timer with a selector for inversion of the rotation direction of the bowl and one
for the exclusion of the timers in the event of a failure. There are start and stop switches on the equipment to
start and stop the mixer.
The second and third panel, besides the selector inverting the rotation direction of the bowl and the one
excluding the timers in the event of a failure, also has an electromechanical emergency button which
immediately stops the mixer wherever it is.
The exclusively digital timers are adjusted by pressing the select key and setting the time by means of the +
and - keys. Having set the time of the first speed, press the select key to set the time on the second timer.
When the times have been set, press select once again to confirm the selection and to start work with the
mixer.
ATTENTION: The grid must be down for the mixer to work. Otherwise the safety system will block its
functioning.
Check the correct rotation direction of the bowl (clockwise, according to the arrow). If incorrect,
contact a qualified electrician.

SL-50 SL-60 MIXERS 10 of 23
DO NOT REMOVE OR TAMPER WITH THE PROTECTIONS AND SAFETY DEVICES
BOTH ELECTRICAL AND MECHANICAL WITH WHICH THE MACHINE IS EQUIPPED.
START KEY STOP/EMERGENCY
BUTTON FIRST AND SECOND
SPEED TIMERS
MANUAL SWITCH TO BE TURNED IN THE
EVENT THE TIMERS ARE FAULTY
(EMERGENCY): FIRST AND SECOND SPEED
INVERSION OF ROTATION
DIRECTION OF THE BOWL FOR A
LIMITED PERIOD OF TIME.
START KEY
FIRST SPEED
TIMER SECOND SPEED TIMER MAINS
LED
EMERGENCY
EMERGENCY
SELECTOR (EXCLUDE
TIMER
)
BOWL
INVERSION
LEDS FOR GRID
ALARM OR CIRCUIT
BREAKER ALARM
SELECT KEY TO SET
FIRST AND SECOND
SPEED TIMES
KEYS TO CHANGE
WORK TIME
STOP KEY

SL-50 SL-60 MIXERS 11 of 23
PROCESSING WITH THE MIXER.
The mixer is now ready to mix. Follow some simple rules:
Firstly pour the required amount of water into the bowl.
Add the correct amount of flour, so that the mix hardens gradually to the right consistency.
On the contrary, adding water to flour creates lumps of flour on the base that must be worked
longer with consequent damaging of the mix.
The other ingredients (salt, yeast, oil, etc.) are added at will.
The spiral mixer is a machine where the work load is established by the customer. Despite all the information
regarding using the spiral mixers, many problems arise due to them being submitted to improper use. The
limit of use of the mixer is reached not by exceeding on the amount of the pasta, limited by the volume of the
bowl, but by the too low percentage of water.
A first but valid indication is supplied by the following table:
MODEL. PASTA kg FLOUR kg WATER % WATER litres
Silver 50 45 19-20 55 / 60 % 25-26
The use of flours rich in gluten creates very doughy mixes which absorb a lot of power. In this case, as well
as in the case of mix with percentages of water below those indicated in the table, it is necessary to reduce
the maximum mix capacity of the mixer.
START KEY
FIRST SPEED
TIMER SECOND SPEED TIMER
MAINS
LED
EMERGENCY
EMERGENCY
SELECTOR (EXCLUDE
TIMER
)
BOWL
INVERSION
LEDS FOR MICRO
SWITCH ALARM OR
CIRCUIT BREAKER
ALARM
SELECT KEY TO SET
FIRST AND SECOND
SPEED TIMES
KEYS TO CHANGE
WORK TIME
STOP KEY

SL-50 SL-60 MIXERS 12 of 23
CONTROL OF INSTALLED SAFETY SYSTEMS AND ELECTRICAL SYSTEM
The installed safety systems and the electrical system are subject to periodical checks carried out by
a specialised electrician.
Key of control intervals:
(INTERVAL) Key of how to carry out the controls: (METHOD)
d = daily.
w = weekly.
m = monthly.
a = annually.
O = observation: requires simple eye check (i.e. alarm light)
F = Function: requires a physical control of the action (i.e. pressing the
emergency button the mixer must stop)
M = Measurements: requires a control with an appropriate instrument (i.e.
control of earthing values).
Master switch.
Purpose: protection of power line.
Function: this equipment separates the machinery from the mains, it is placed on
the upright of the mixer, downstream the differential protection board.
Safety micro switch of grid.
Purpose: stop the machine temporarily. Function: by lifting the protection grid, the
motor power supply interrupts, temporarily stopping the machine. To reset the
machinery functioning, lower the grid and press the START button.
Stop Circuit (emergency).
Purpose: to stop the mixer immediately and unconditionally. Function: pressing
the STOP button cuts the power supply to the mixer, stopping it totally and not
systematically. To restore functioning of the machinery, the operator must release
the emergency button and start the cycle once again by pressing the START
button.
Controls of system
Periodically the mixer's automation functioning and earthing must be checked.
The operating modes, safety functions, terminal board contacts need to be
controlled as well as the integrity of the cables, luminous LEDs and earthing
system.
Control
Interval Method
a F
Control
Interval Method
m F
Control
Interval Method
m F
Control
Interval Method
a F, M

SL-50 SL-60 MIXERS 13 of 23
CLEANING AND MAINTENANCE OPERATIONS.
DO NOT CARRY OUT ANY MAINTENANCE OR CLEANING WITH ELECTRICITY
CONNECTED
The mixer does not require particular maintenance operations. All bearings and
transmission parts are lubricated for life. Keep the mixer clean to avoid flour from
depositing in the moving organs thus generating bothersome creaking and abnormal
wear.
To tension the belt,
remove the upper
casings, loosen the
motor bolts and act on
the appropriate register.
Fasten the motor bolts,
place the casings back
and test the machine.
Anomalies of the grid
micro: remove the
upper protection
casing, intervene on
the micro, close the
casing again and test
the machine.
Should a power cable
be damaged, replace
it with a H07RN/F
cable with a 3x1.5
mm2section
Cleaning: the mixer is not jet-
proof. Do not wash it with
running water. Clean it with a
moist cloth and neutral
detergents, such as
degreasing agents based on
Castile soap
A
EXTRAORDINARY MAINTENANCE:
To carry out interventions not specially mentioned in the manual, refer
to personnel authorised by SIGMA SrL. To replace the motor or the
circuit boards, or else if the mixer falls, contact our assistance service
for an intervention on site or else an overhaul at the factory
To tension the chain
and the lower bowl
dragging chain remove
the lower casing (tilt
the machine) and act
on the appropriate
registers. Replace the
casing and test the
machine
Electric interventions:
they must be carried
out by qualified
electrician, with
reference to the
layouts attached at the
end of the manual

SL-50 SL-60 MIXERS 14 of 23
TENSIONING OF THE BELTS.
the operation must be carried out by a specialised mechanic in assisting our machines.
•Tensioning of the upper motor belts (primary transmission of the spiral): loosen the tightening bolts
of plate "A" and act on the appropriate register until the correct tension is reached.
•Tensioning of the secondary transmission chains of the spiral: loosen the tightening bolts of the
support plate of the intermediate pulley and act on the appropriate register "B" until the correct
tension is reached. The tensioning of the secondary transmission causes tension variations of the
primary transmission that must be registered again.
•Tensioning of the lower motor belts (primary transmission of the bowl): loosen the tightening bolts of
the plate of the intermediate pulley and act on the appropriate register "C" until the correct tension is
reached. The tensioning of the primary transmission causes tension variations of the chain, that
must be registered again.
•Tensioning of the belt (secondary transmission of the bowl): loosen the tightening bolts of plate "D"
and act on the appropriate register until the correct tension is reached.

SL-50 SL-60 MIXERS 15 of 23
PERIODICAL MAINTENANCE.
DAILY CLEANING AND CONTROL OPERATIONS:
•Cleaning outside surfaces of the bowl and tools with cloth and neutral degreasing agent.
•Operative and emergency controls check.
MONTHLY, ANNUAL MAINTENANCE OPERATIONS
Monthly maintenance:
•Thorough cleaning of the mixer.
•Operative and emergency controls functioning check.
•Mixer's external components' check: tools, bowl, protective grid.
•Transmission noise check.
Annual maintenance:
•Thorough cleaning and check of entire machinery.
•Thorough check of transmission organs.
•Bolt tightening check for entire machinery.
Bolt tightening torques.
M6 M8 M10 M12 M14 M16
Mixer screws (8.8) [Nm] 9.7 23 47 80 130 196
Stop rod screws (10.9) [Nn] 13.6 33 6 113 180 275
Installed safety systems check.
SPARE PARTS
SIGMA S.r.l. reserves the right to carry out all the modifications that it deems necessary for its mixer
models. It is therefore always necessary to specify:
•Type of mixer
•Serial number
•Year of construction
•Position, description, item code and desired amount of pieces requested.
Send the request to:
MAIN COMPONENTS:
•Raw materials used: almost all of the components of the mixer are made of steel, cast iron, brass
and plastic. All of these components can be disposed of easily and do not represent a danger for
environmental pollution and/or personal safety. Separate the different materials for subsequent
reuse or differentiated waste collection.
•The electrical system must be dismantled and disposed of through a specialised company.
•Treatment of surfaces: painting of metallic surfaces with products compatible for food use.
•Sigma packaging replies fully with that required by Directive 94/62/EC and by Legislative Decree
05/02/97 n. 22 (and subsequent amendments and integrations). They thus can easily be assimilated
with city waste and can be inserted in any public differentiated waste program.
DISMANTLING AND WASTE DISPOSAL:
The purchaser is responsible for putting the mixer out of service, who must comply with local standards and
regulations. Dismantling of mechanical and electrical parts must be entrusted to competent personnel.

SL-50 SL-60 MIXERS 16 of 23
SL-50 STANDARD VERSION SPARE PARTS LIST

SL-50 SL-60 MIXERS 17 of 23
N. Code Type Qty Description
1 11001108 Silver 50 1 MOTOR 2.2/1.5 Kw 380V 50 Hz 2/4 POLES 2 speed gr. 90 B14
2 01173029 Silver 50 1 MOTOR PULLEY 50Hz
3 12003947 Silver 50 1 MULTIGRIP BELT J813 18 RIB
4 02173021 Silver 50 1 Motor plate with tensioner
5 01173050
13000306
13000317
Silver 50 1
1
1
NEUTRAL PULLEY WITH GROOVES
Bearing 6006 2RS 30-55-15
Bearing 6206 2RS 30-62-16
6 12003103 Silver 50 4 BELT SPA 857
7 01173035 Silver 50 1 2 Motor version transmission shaft
8 02173083 Silver 50 2 Tensioning plate
9 03173066 Silver 50 1 Upper casing.
10 01173051 Silver 50 1 PULLEY of spiral
11 01173063 Silver 50 1 Bearings spacer
12 01173024
27173037
01173049
13000327
13000328
19000025
01173048
Silver 50 1
1
1
4
1
1
1
1
Bush of spiral.
Plate with lower spiral bush square
Plate with spiral bush square
Square head screw M8x110.
BEARING 6306 2RS 30-72-19
BEARING 6307 2RS 35-80-21
Ring MIM 45-80-10.
Labyrinth flange
13 05173101
01173092
01173076
01145044/45
Silver 50 1
1
1
1
1
Mixture guard support grid.
Pin for grid
Pin for micro side grid
Spacer + block
Safety micro switch.
14 03173098
03173097 Silver 50 1 1 Mobile mixture guard. Fixed mixture guard
15 01173039
04173040 Silver 50 1 Plate Bowl 50 Kg
16 01173057 Silver 50 1 Stop rod.
17 01173041 Silver 50 2 Spiral.
18 01173032 Silver 50 1 Bowl shaft.
19 01173025
27173037
01173049
13000327
13000328
19000025
01173048
Silver 50 1
1
1
4
1
1
1
1
Bowl support.
Plate with bowl bush square
Bush fastening plate
Square head screw M8x110
BEARING 6306 2RS 30-72-19
BEARING 6307 2RS 35-80-21
Ring MIM 45-80-10.
Labyrinth flange
20 01173047
01173046 Silver 50 1 Bowl crown wheel. Hub for Bowl crown wheel.
21 Silver 50 1 Bowl chain
22 14002811 Silver 50 2 Support foot 12X50
23 01173094 Silver 50 4 Washer.
24 01173070
01173071
01173078
01173085
Silver 50 1 Belt tightener plate.
Belt tightener pin
Crown for belt tightener
Tensioning pin of belt tightener.
25 01173033 Silver 50 1 Pinion for bowl transmission
26 01173031 Silver 50 1 Chain tensioning pulley.
27 12003945 Silver 50 1 Multigrip chain J895 12 RIB
28 01173027 Silver 50 1 Bowl motor pulley.
29 Silver 50 1 Chain tensioning threaded bar
30 11000501
02173022 Silver 50 1 4 poles motor 0.55 Kw gr 71 B14 Bowl motor plate
31 23010151 Silver 50 2 Tie-rod M6
32 02173010 Silver 50 1 Rear casing.
33 01173079 Silver 50 2 Bowl stop block.

SL-50 SL-60 MIXERS 18 of 23
SL-50 GREEN-LINE VERSION SPARE PARTS LIST

SL-50 SL-60 MIXERS 19 of 23
N. Code Type Qty Description
1 11001108 Silver 50 1 MOTOR 2.2/1.5 Kw 380V 50 Hz 2/4 POLES 2 speed gr. 90 B14
2 01173029 Silver 50 1 MOTOR PULLEY 50Hz
3 12003947 Silver 50 1 MULTIGRIP BELT J813 18 RIB
4 02173021 Silver 50 1 Motor plate with tensioner
5 01173050
13000306
13000317
Silver 50 1
1
1
NEUTRAL PULLEY WITH GROOVES
Bearing 6006 2RS 30-55-15
Bearing 6206 2RS 30-62-16
6 12003103 Silver 50 4 BELT SPA 857
9 03173066 Silver 50 1 Upper casing.
10 01173051 Silver 50 1 PULLEY of spiral
11 01173063 Silver 50 1 Bearings spacer
12 01173024
27173037
01173049
13000502
13000506
19000025
01173048
Silver 50 1
1
1
4
1
1
1
1
Bush of spiral.
Plate with lower spiral bush square
Plate with spiral bush square
Square head screw M8x110.
BEARING 30307 Koyo
BEARING 32208 Koyo
Ring MIM 45-80-10.
Labyrinth flange
13 05173101
01173092
01173076
01145044/45
Silver 50 1
1
1
1
1
Mixture guard support grid.
Pin for grid
Pin for micro side grid
Spacer + block
Safety micro switch.
14 03173098
03173097 Silver 50 1 1 Mobile mixture guard. Fixed mixture guard
15 01173039
04173040 Silver 50 1 Plate Bowl 50 Kg
16 01173057 Silver 50 1 Stop rod.
17 01173041 Silver 50 2 Spiral.
18 01173032 Silver 50 1 Bowl shaft.
19 01173025
27173037
01173049
13000327
13000328
19000025
01173048
Silver 50 1
1
1
4
1
1
1
1
Bowl support.
Plate with bowl bush square
Bush fastening plate
Square head screw M8x110
BEARING 6306 2RS 30-72-19
BEARING 6307 2RS 35-80-21
Ring MIM 45-80-10.
Labyrinth flange
20 01173047
01173046 Silver 50 1 Bowl crown wheel. Hub for Bowl crown wheel.
21 Silver 50 1 Bowl chain
22 14002811 Silver 50 2 Support foot 12X50
23 01173094 Silver 50 4 Washer.
24 01173070
01173071
01173078
01173085
Silver 50 1 Belt tightener plate.
Belt tightener pin
Crown for belt tightener
Tensioning pin of belt tightener.
25 01173072-1 Silver 50 1 Pinion for GREEN-LINE version bowl transmission
26 01173052-1 Silver 50 1 GREEN-LINE transmission shaft pulley
28 12003103 Silver 50 1 Belt SPA 857 GREEN-LINE transmission.
29 01173034-1 Silver 50 1 GREEN-LINE version transmission shaft
30 13006506 Silver 50 2 Support UCFL 206
32 02173010 Silver 50 1 Rear casing.
33 01173079 Silver 50 2 Bowl stop block.

SL-50 SL-60 MIXERS 20 of 23
ELECTRICAL LAYOUT: STANDARD VERSION
